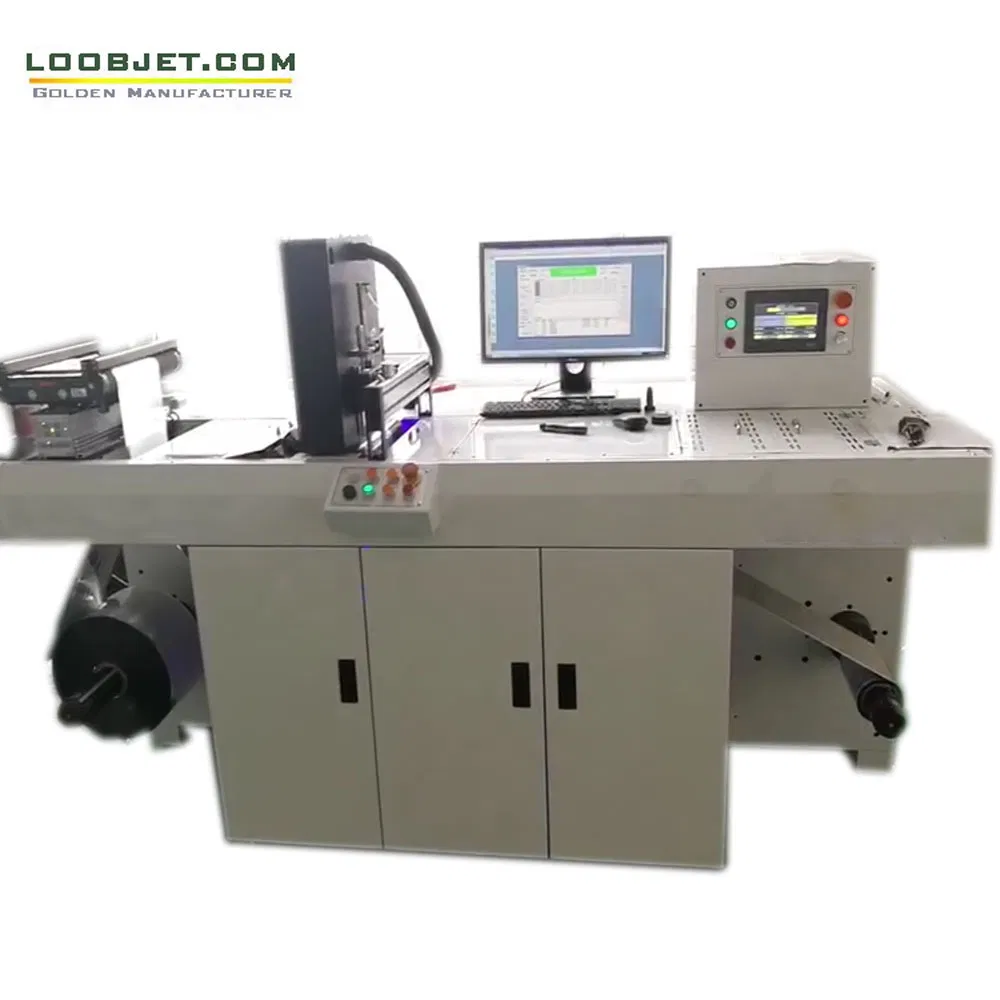

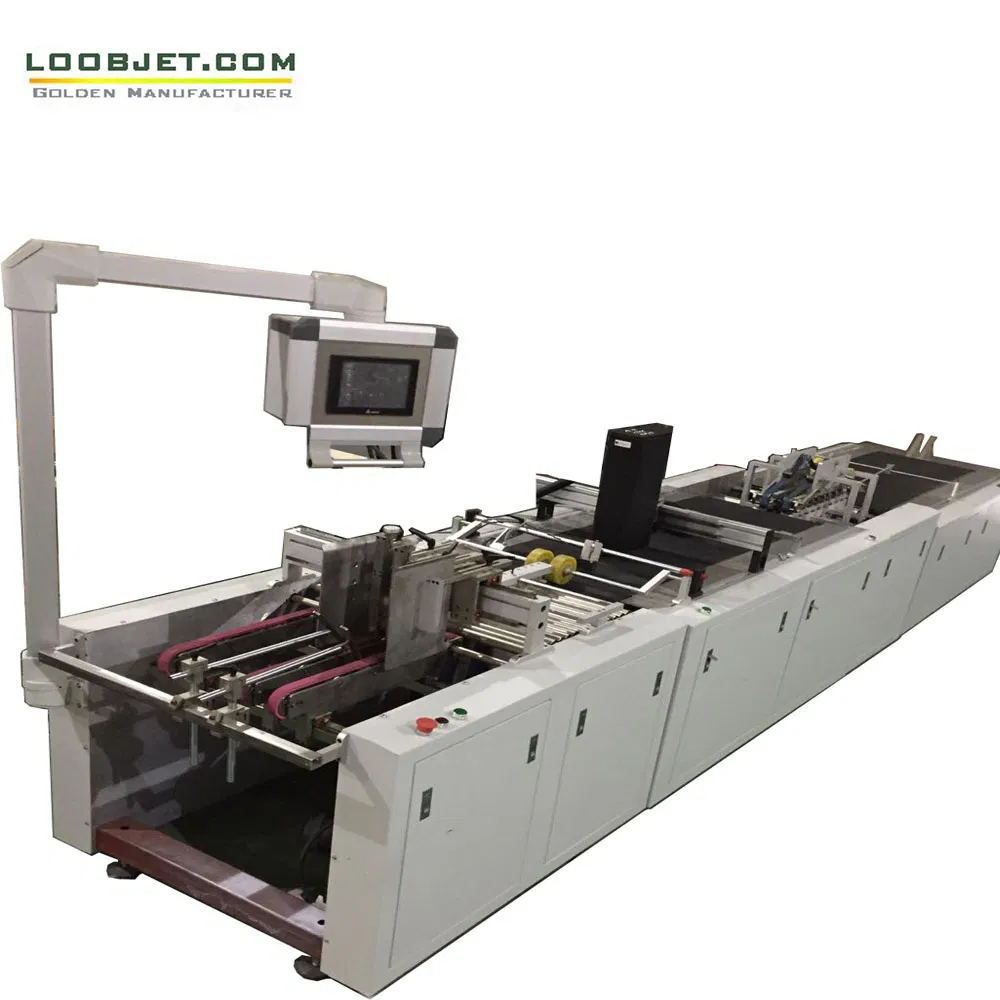

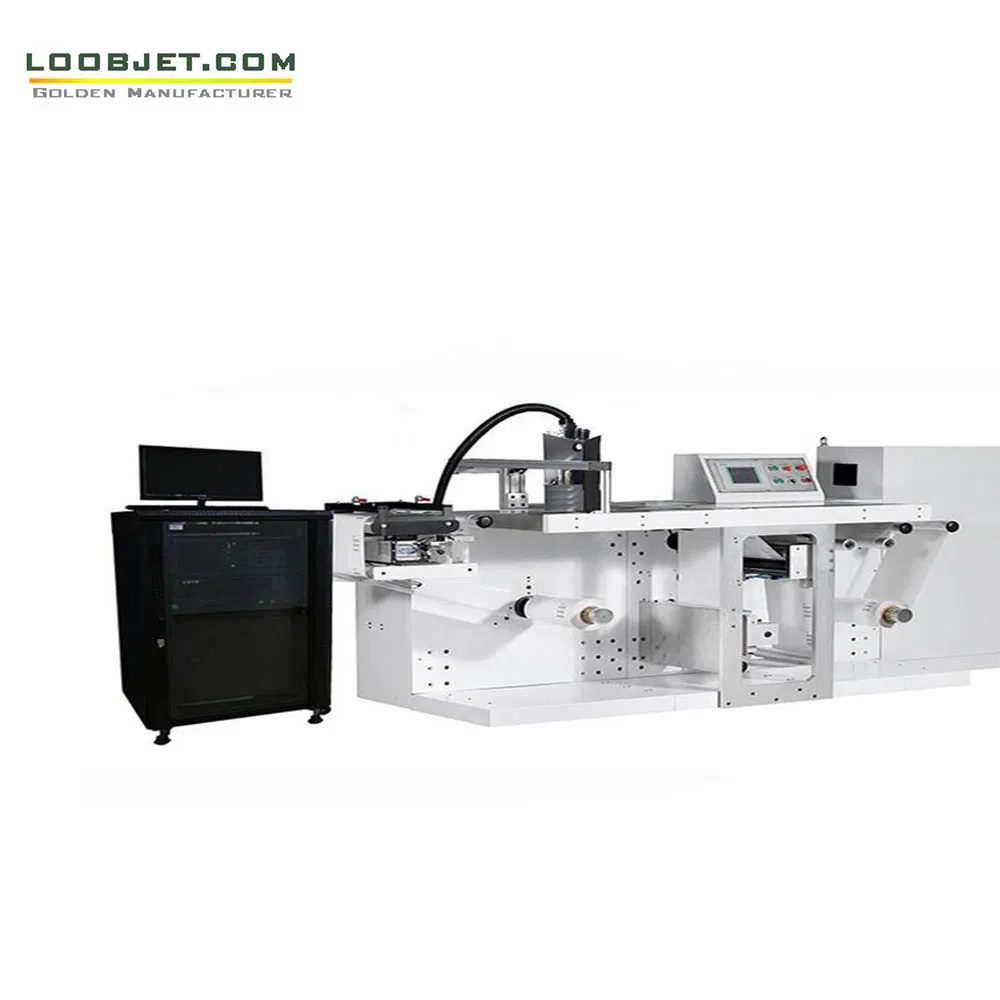

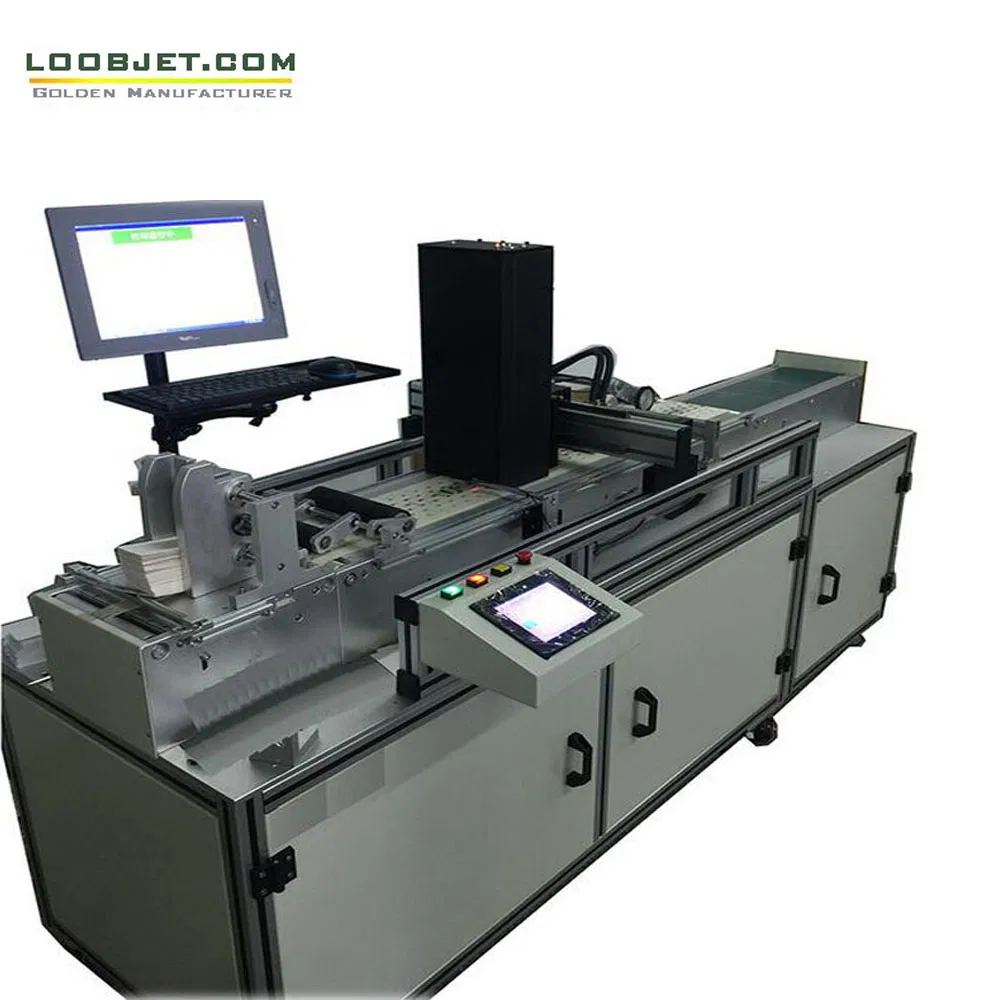

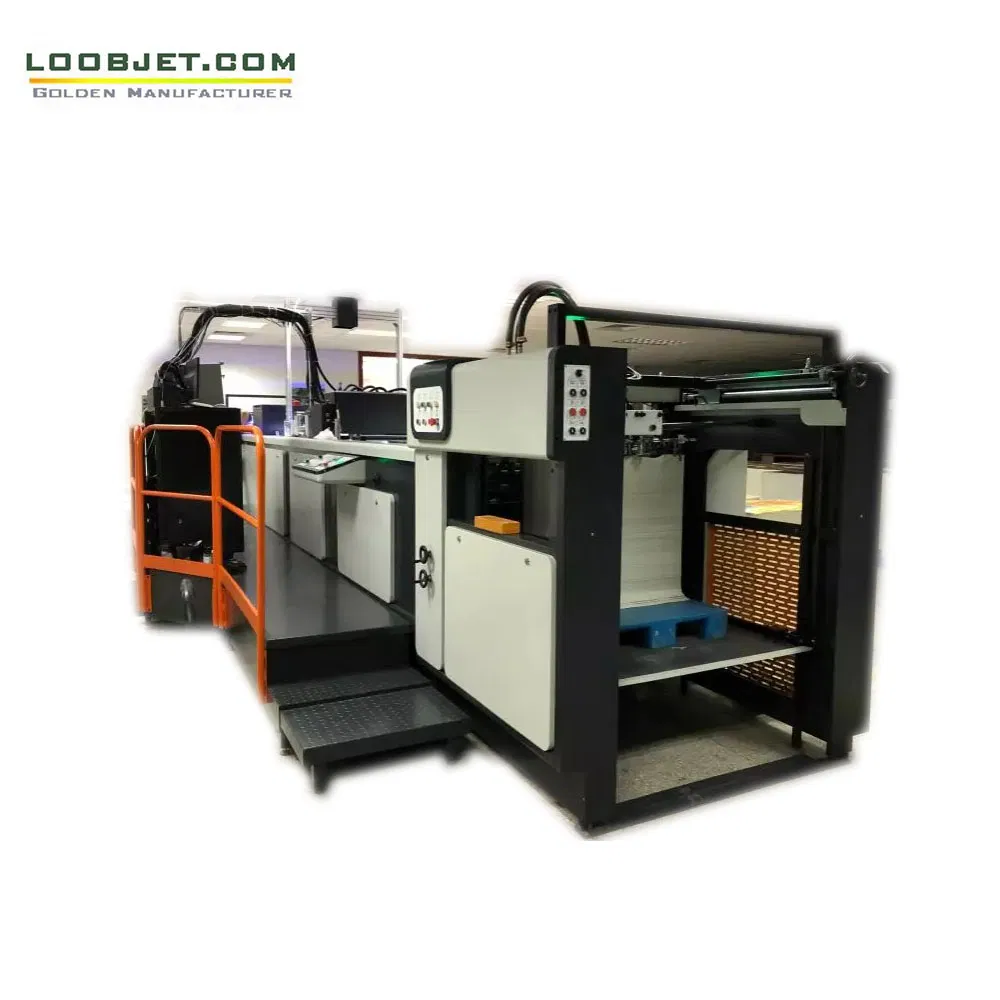

Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
1 / 5
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System
Fully Integrated Digital Inkjet Printing System

Fully Integrated Digital Inkjet Printing System

Customization: Available
Type: Demand for Ink Coding Machine
Usage: Daily Industrial, Chemical Products, Drug, Food
Send Inquiry

Product Description

Basic Specification
Model NO.
UV540
Automatic Grade
Automatic
Principle
Drop on Demand
Application
High Resolution Ink Jet Printer
Working Patterns
On-Line
Supplies
Ink
Joint
Seamless Multi-Head Joint
Ink Solution
Porous, Semi-Porous, Non-Porous
Resolution
150-600dpi
Power
AC 90V-240V/50-60Hz
Tech Support
Strong Support Provided
Capacity
500 Sets/Year
Product Introduction

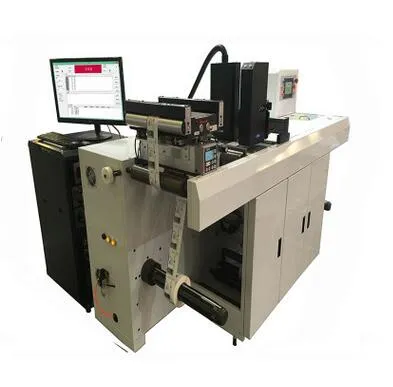

Digital Inkjet Printing System

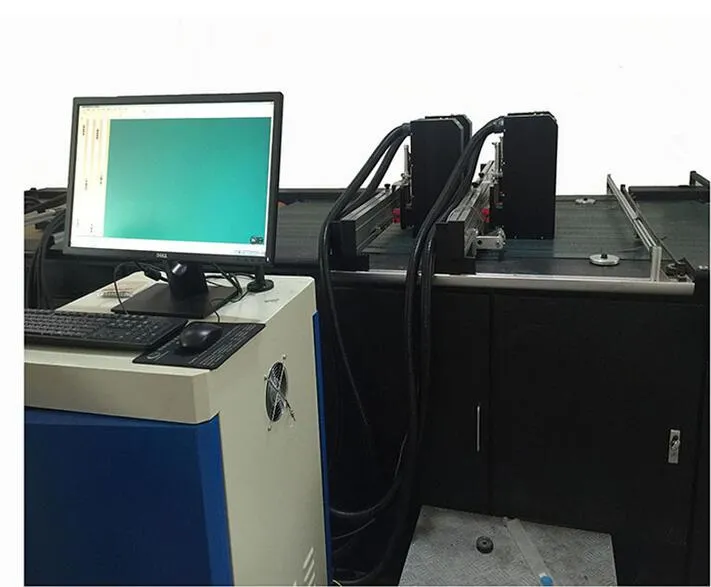

Printing System Overview

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for applications like mailings, barcodes, bills, checks, and packages. This modular system integrates easily into existing transport lines for web or sheet-fed printing.

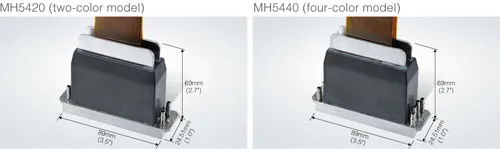

System Workflow
Technical Details
  • Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric.
  • Nozzle Lifespan: Over 3 years (10 billion printing cycles).
  • Print Width: 54mm, 72mm, or 108mm per single nozzle; expandable to 24 groups.
  • Speed: Linear card speed from 70 to 180 m/min.
  • Inks: Environmentally friendly UV or water-based inks.
  • Materials: Suitable for paper, plastics, PVC, PP, and PE films.
Printing Details
Advanced Printing Software

Our Printer Control Software (PCS) provides a user-friendly interface to monitor printer status and manage settings such as pulse width, jetting waveforms, and temperature. The system supports variable data printing (VDP) including text, graphics, logos, serial numbers, and complex barcodes.

Software Interface
Supported Formats: .CSV, .XLS, .XLSX, .TXT, and PDF.
Multilingual: English, Spanish, German, French, Portuguese, Russian, and Chinese.
Print Head Specifications
ModelVDG540 / VDK720 / KY108 Print HeadRicoh GN5 / Konica 1024i / Kyocera
Resolution600, 400, 300, 200 DPI Drop Size5 - 21 PL
Head Width54mm / 72mm / 108mm Max WidthUp to 24 units Seamless Joint
Speed (600x200dpi)180m/min Speed (600x600dpi)75m/min
SystemWindows 7 / Gigabit Ethernet BarcodesQR, PDF417, DATAMATRIX, CODE128, etc.
Frequently Asked Questions
Q: What types of materials can this system print on?
A: It is highly versatile and supports various substrates including paper, plastics, PVC, PP, and PE films.
Q: What is the lifespan of the industrial print heads?
A: The industrial piezoelectric nozzles are designed for durability, typically offering a life of over 3 years or approximately 10 billion printing cycles.
Q: Can the printing width be expanded?
A: Yes, the modular design allows for seamless joining of 1 to 24 groups of print heads to meet your specific width requirements.
Q: Does the software support variable data printing?
A: Absolutely. The software supports text, serial numbers, barcodes, QR codes, and database images from files like CSV, Excel, and PDF.
Q: What printing speeds can I expect?
A: Speed depends on resolution, ranging from 75m/min at high-quality 600x600dpi up to 180m/min at 600x200dpi.
Q: Which languages does the printer control system support?
A: The system supports multiple languages including English, Japanese, French, German, Spanish, Portuguese, Russian, and Chinese.
