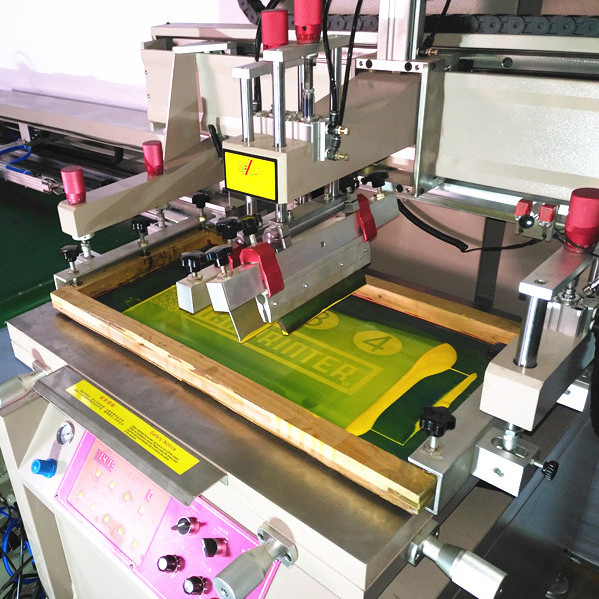

Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
1 / 5
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches
Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches

Flatbed Screen Printing Machine Semi Automatic Sie 15 Inches

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Technical Specifications

Model NO.:TM-Z4-D
Type:Automatic Screen Printing Machine
Style:Planographic Press
Structure:Flat-bed cylinder press
Color:Single-Colour Printing
Application:Packaging Printing
Origin:China
HS Code:8443198000

Core Advantages

✓
Precision Performance: Electric printing runs smoothly with high precision results.
✓
Cold Light Technology: Cold light source ensures drying sheets are not deformed.
✓
Eco-Friendly: Energy saving and suitable for clean room/dust-free workshops.

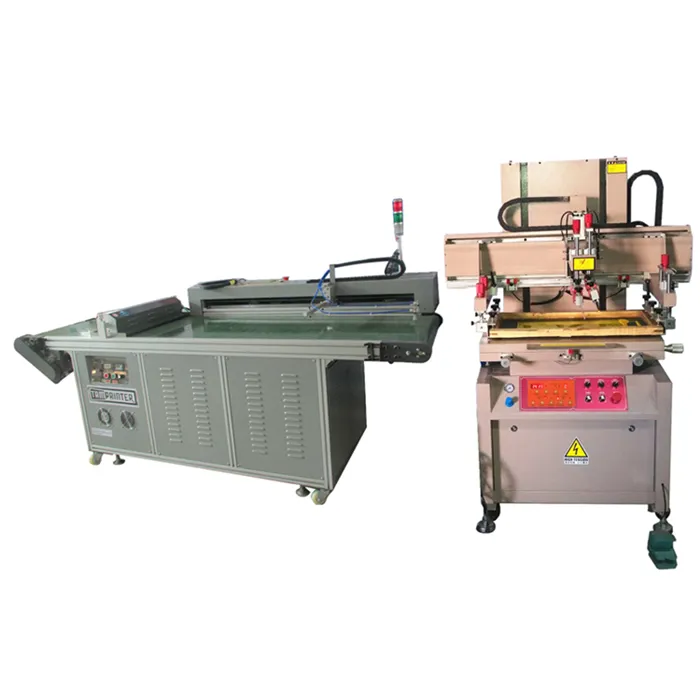

Flatbed Screen Printing Machine
Screen Printing Detail

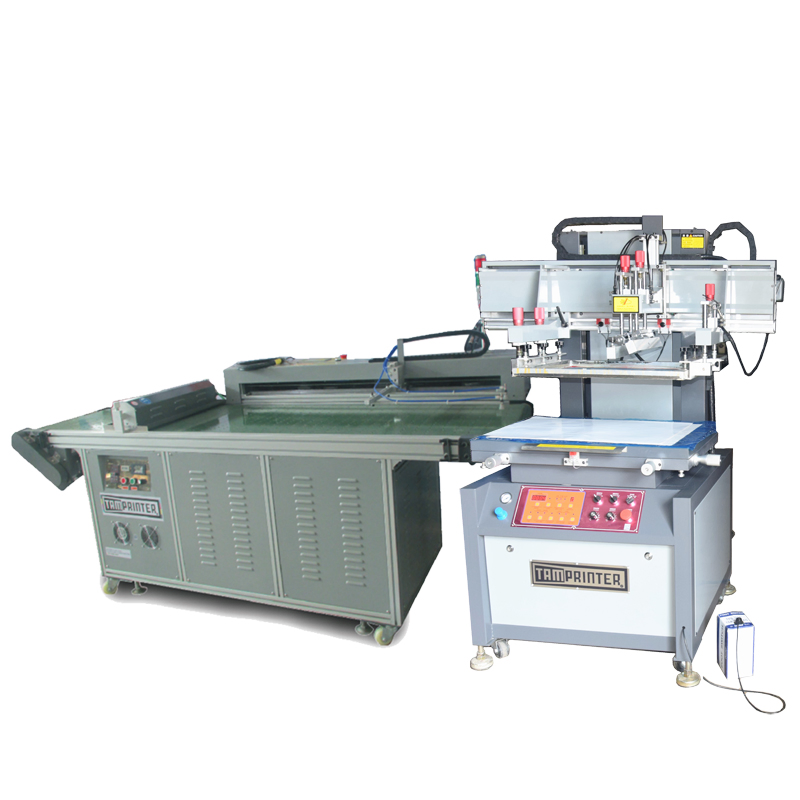

TM-D5070 Electric Vertical Screen Printer

Power380V 3phase or single-phase 220V
Lifting drive motorZ=1.5KW
Printing drive motorX=200w
Printing area500X700mm
Table size600X800mm
Max frame750X920mm
Printing thickness0 ~ 50mm
Overlay accuracy0.05 ~ 0.08mm
Printing speed800pcs/h
Dimensions1330mmX1000mmX1750mm

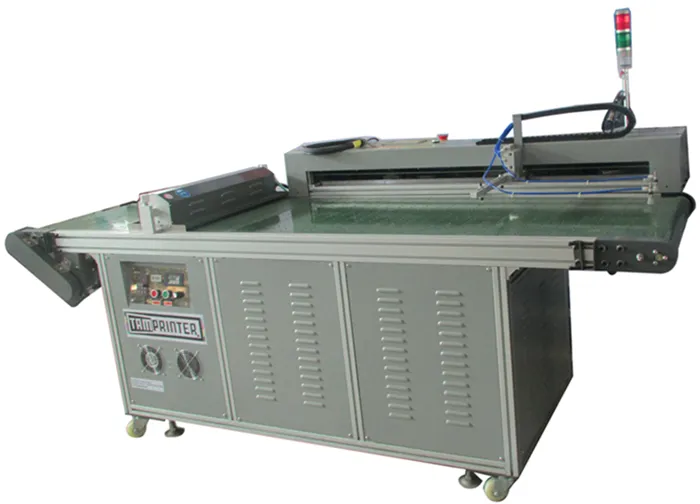

TM-LED800 Film LED UV Tunnel Dryer

Power supplySingle-phase 220V 50HZ 1.6kw
Irradiation width800mm Teflon Belt
Cooling systemWater-cooled system
Machine Dimensions2m * 1m * 1.1m
Light measurement range1000-9500mJ / cm2
LED Wavelength395 nm
UV Curing Equipment
Machine Structure

Performance & Features

Screen Printer Features:

  • Transmission driven by electric motor and synchronous belt.
  • Adjustable speed and frequency control for smooth operation.

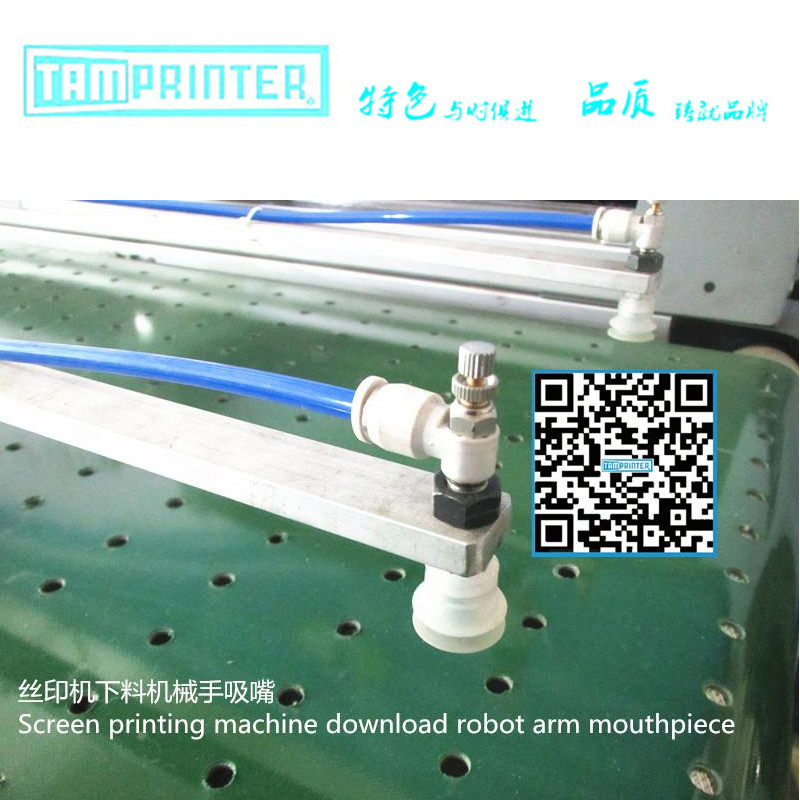

  • Vacuum adsorption worktable with vernier regulation system.
  • Equipped with security devices for reliable head printing stops.

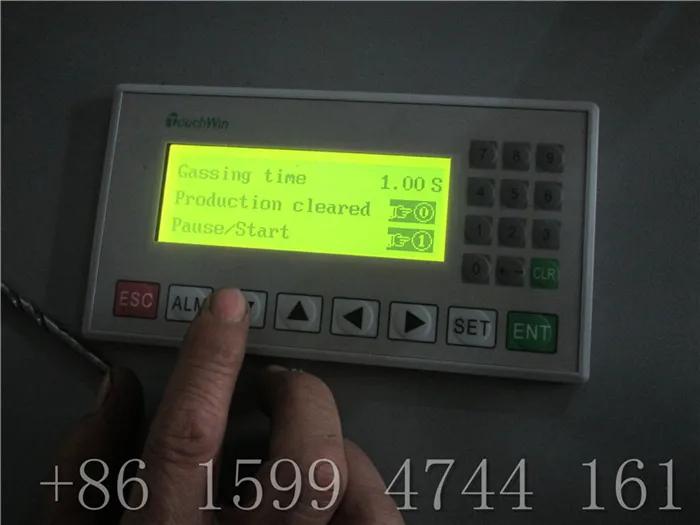

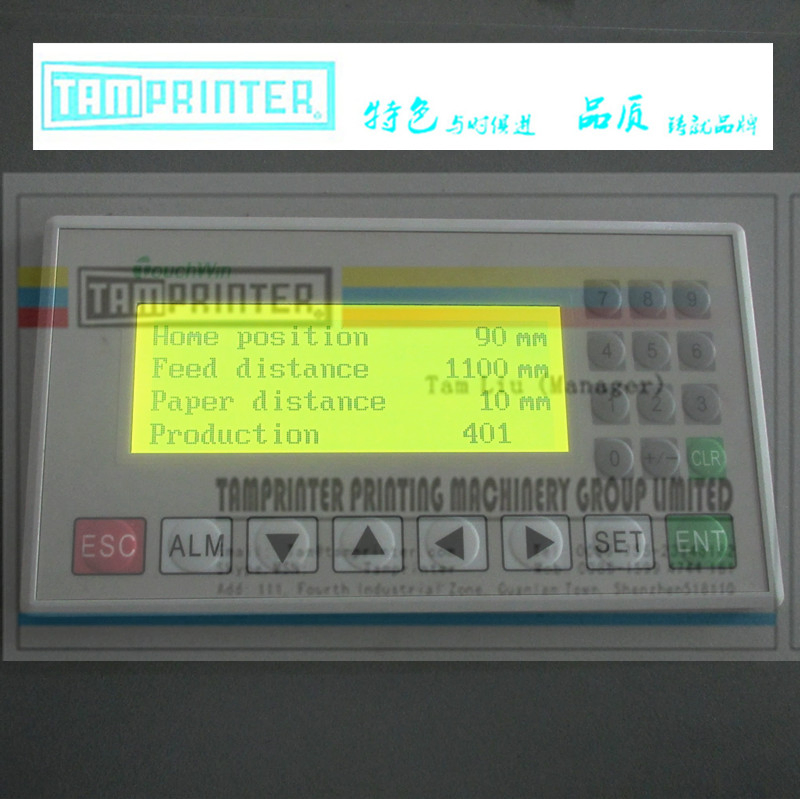

  • Microcomputer central control (ECU) for flexible operation.

UV LED Advantages:

  • Long lifespan: 25,000-30,000 hours (10x traditional lamps).
  • Instant light: No preheating required for 100% output power.
  • Energy Efficient: Consumes only 10% of traditional mercury lamp power.
  • Environmentally friendly: Ozone-free and mercury-free technology.

Application Scope

Ideal for printing on plastic sheets (polycarbonate, ABS, PET, PS), paper sheets, packaging materials, nameplates, colorful glittering glass, Light Guide Plates, lenses, membrane switches, and EL panels.

Frequently Asked Questions

Q: What is the printing accuracy of the TAM-Z4 system? A: The machine offers a high overlay accuracy of 0.05mm to 0.08mm and platform precision of +/-0.06mm.
Q: What materials can this screen printing line handle? A: It is designed for various substrates including ABS, PET, PC, PS plastic sheets, paper, glass, and EL panels.
Q: How much energy can the LED UV curing system save? A: The UV LED technology uses only 10% of the energy compared to traditional mercury lamps, saving up to 90% in power costs.
Q: Does the machine require preheating before use? A: No, the LED UV system provides instant light and reaches 100% output power immediately without preheating.
Q: What is the maximum printing speed? A: The system can achieve a printing speed of approximately 800 pieces per hour.
Q: Is this equipment suitable for dust-free environments? A: Yes, its energy-saving and environmental protection features make it suitable for clean rooms and dust-free workshops.
