Films Rewinding and Qr Code Printing System

1 / 5

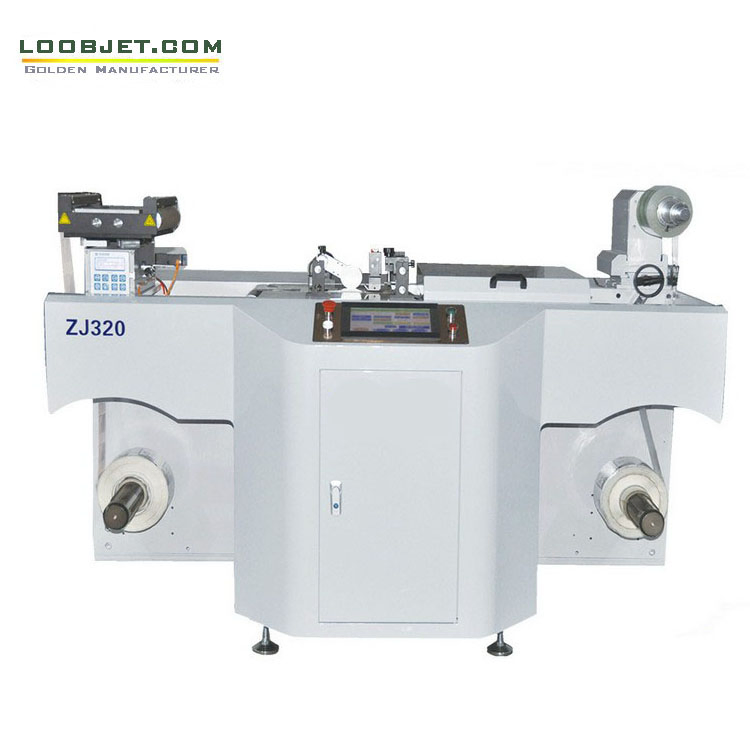

Films Rewinding and Qr Code Printing System

Customization:	Available
After-sales Service:	Online Support
Warranty:	12month

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

VDG540

Type

Ink Jet Type

Style

Digital

Structure

Inkjet Printing

Color & Page

Multi-Colour Printing Press

Automatic Grade

Automatic

Print Interface

USB2.0

Resolution

150-600dpi

Languages Support

English, Chinese

Production Capacity

500 Sets/Year

📦

Packaging & Delivery

Package Size

250.00cm * 220.00cm * 120.00cm

Gross Weight

2500.000kg

📄

Product Description

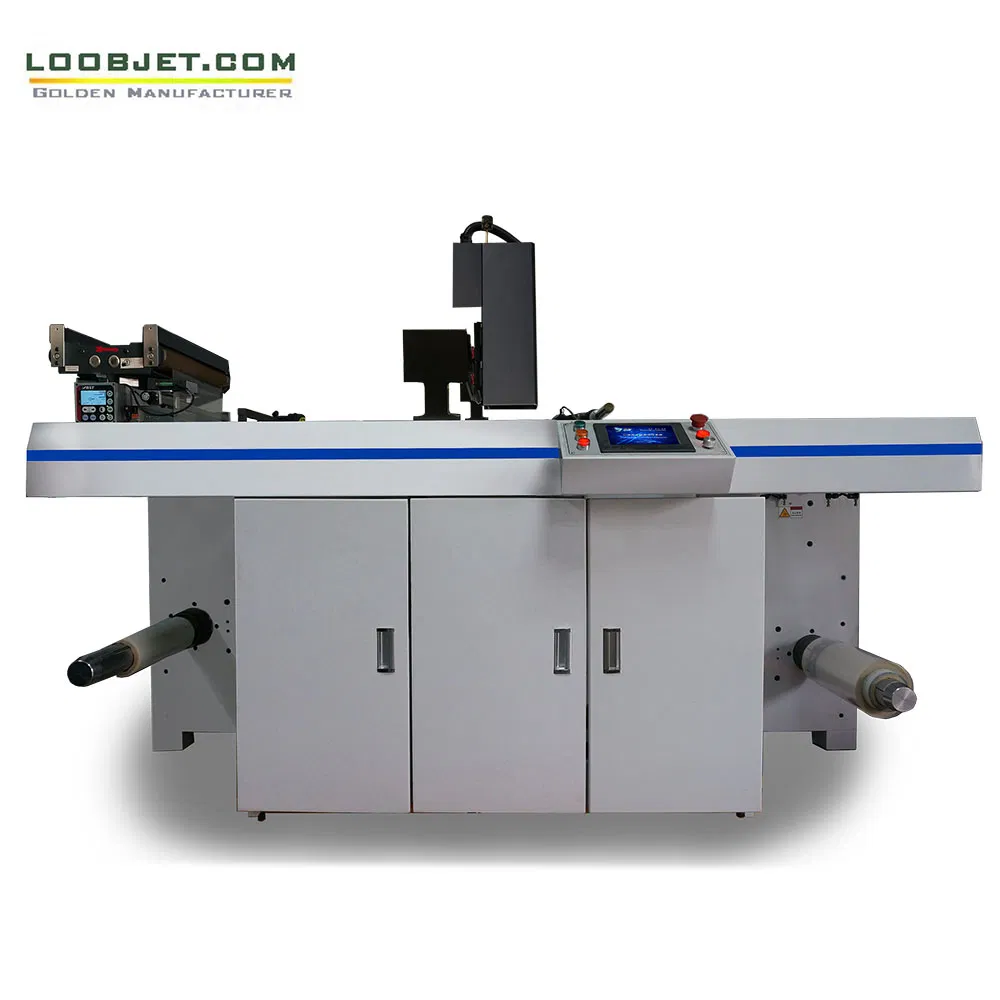

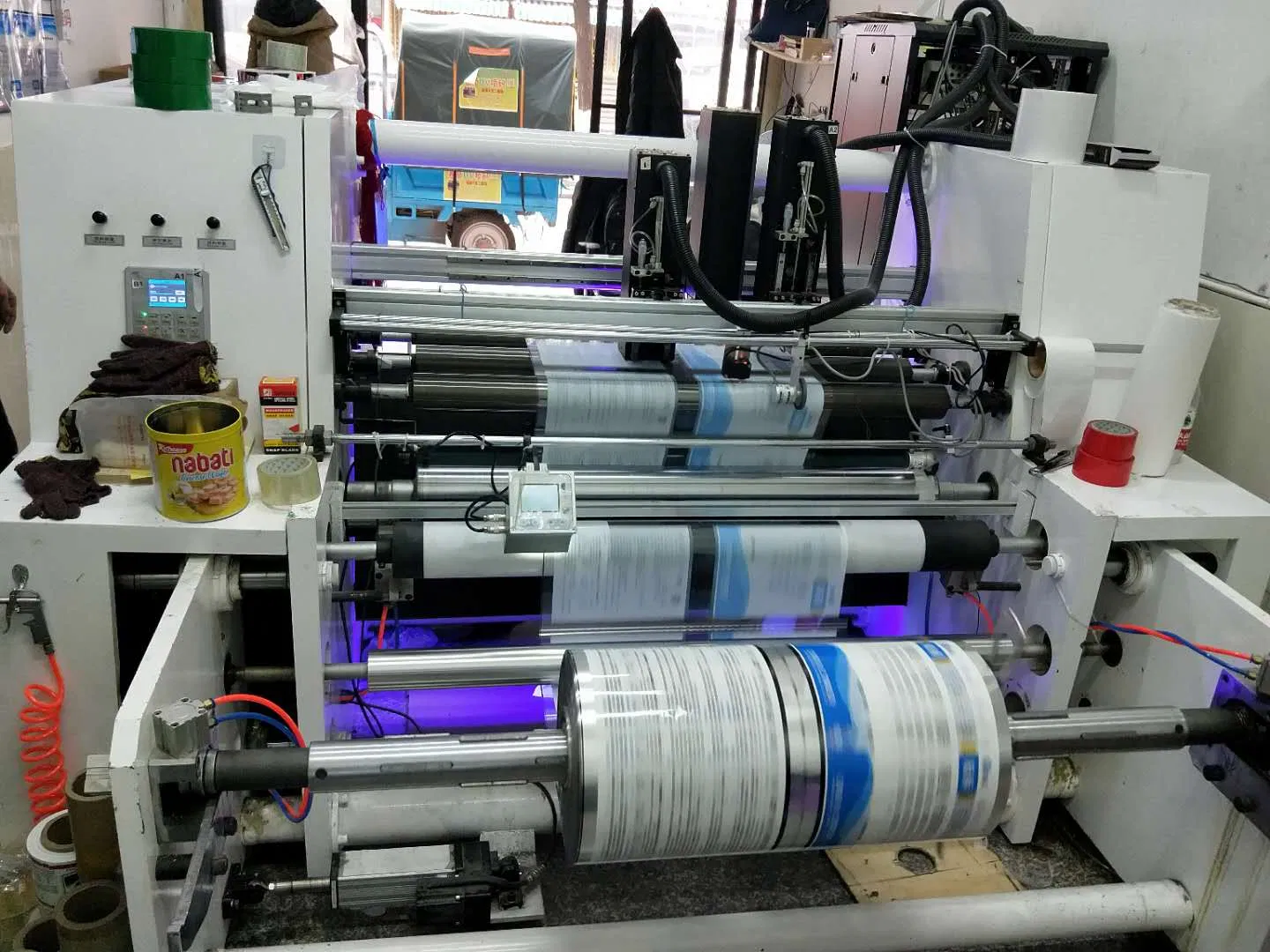

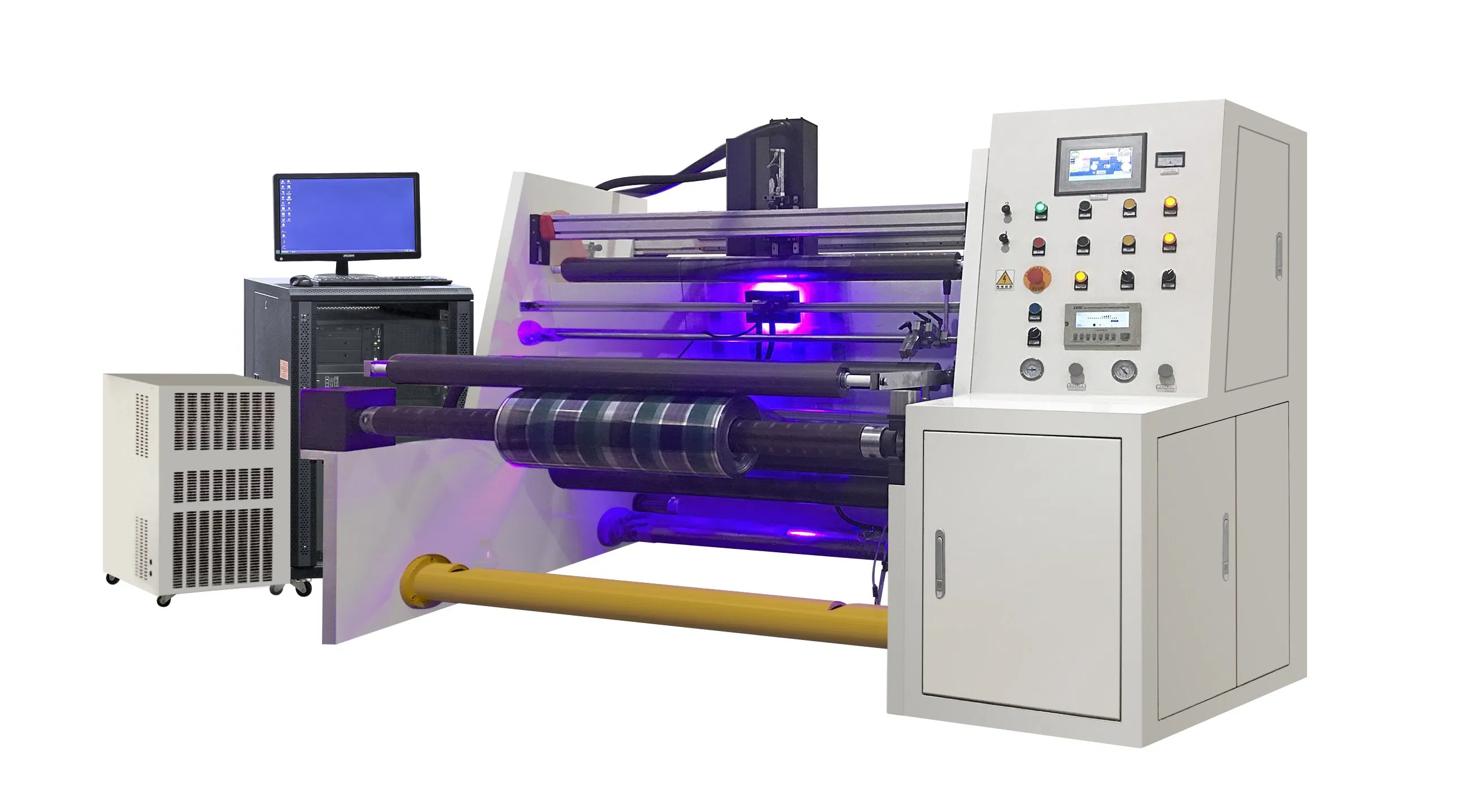

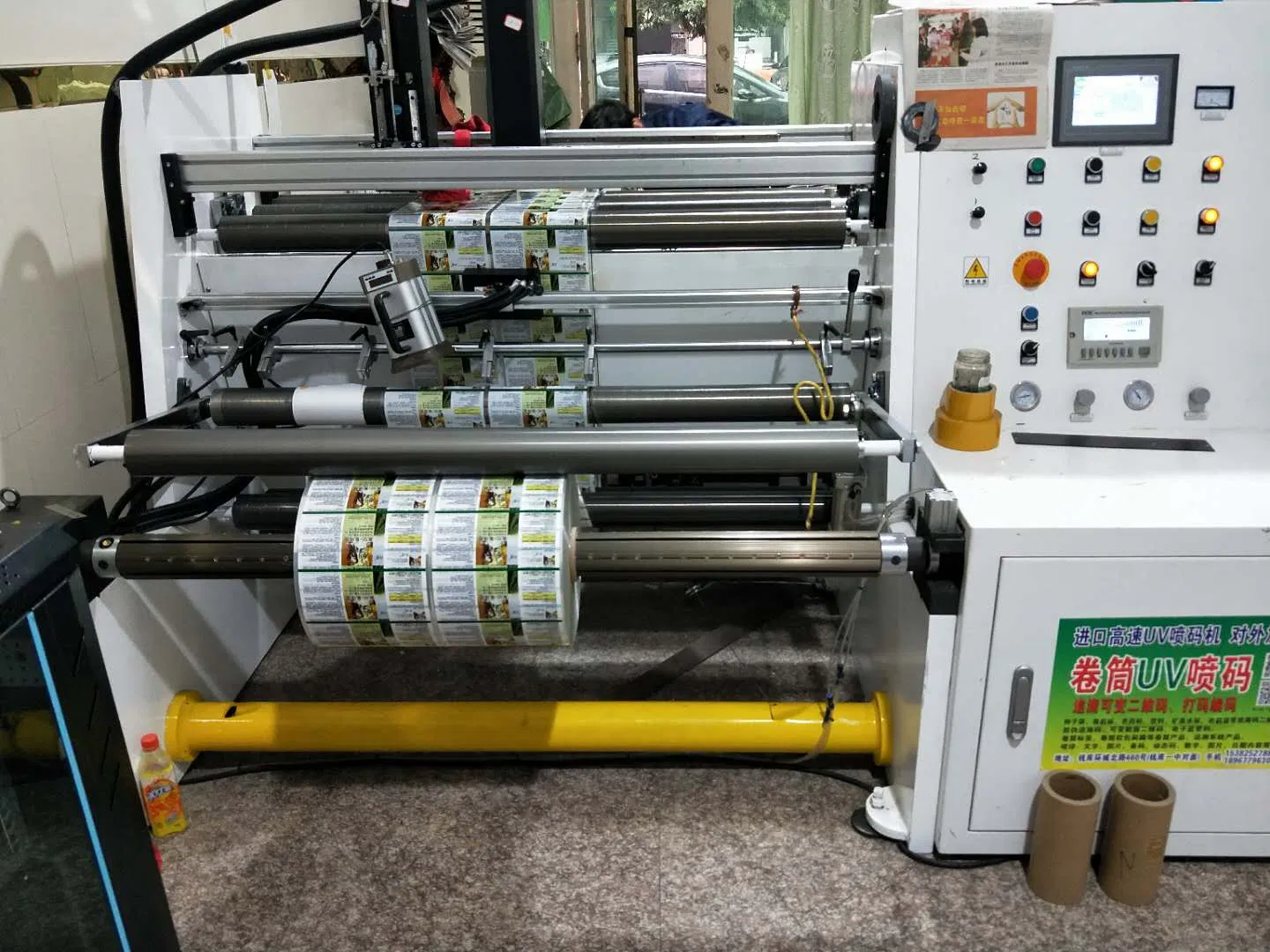

Films Rewinding and QR code Printing System

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution and high-speed industrial print heads, it meets rigorous demands for mailings, barcodes, bills, checks, and packages.

Technical Details

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
Nozzle Lifespan: More than 3 years (10 billion printing times).
Print Width: 54/72/108 mm base on requirements.
Scalability: 1 ~ 24 groups can be extended with seamless jointing.
Precision: Physical 600 DPI printing precision.
Speed: Linear speed of 70 ~ 180 m/min.
Ink Compatibility: Imported environmentally friendly UV or water-based inks.
Material Suitability: All kinds of paper, plastics, PVC/PP/PE film, etc.

Control Software (PCS)

Our Printer Control Software (PCS) offers a user-friendly interface to monitor printer status, set waveforms, and manage temperatures. Features include database checking, DPI settings, motor speed control, and variable data printing (Text, Date, Logos, Barcodes, etc.). It supports loading data from .CSV, .XLS, .XLSX, .TXT, and PDF files.

📊

Specifications Sheet

Model	VDG540/VDK720/KY108	Print Head	Ricoh GN5/Konica 1024i/KY
Resolution	600×600, 400, 300, 200dpi	Max Width	54/72/108mm × 24 Seamless Joint
Printing Speed	180m/min (600×200dpi) to 75m/min (600×600dpi)	Drop Size	5-21PL
Barcodes	UPCA, EAN13, CODE128, QR, DATAMATRIX, etc.	File Formats	MS Excel, TXT, PDF, BMP
System	Windows 7 / Windows 10	Power	AC 200~240V/50~60Hz

Frequently Asked Questions

What materials are compatible with this inkjet system?

The system is suitable for a wide variety of materials including paper, plastics, and films such as PVC, PP, and PE.

What is the expected lifespan of the print nozzles?

Under normal operating conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years or approximately 10 billion printing times.

Does the software support variable data printing?

Yes, our software supports various variable objects including text, dates, times, graphics, logos, serial numbers, and multiple barcode formats.

What is the maximum printing speed achievable?

The system can reach a linear speed of up to 180 m/min at a resolution of 600x200dpi.

What types of file formats can be used for data sourcing?

The system supports loading data from .CSV, .XLS, .XLSX, .TXT, and PDF files.

Are multiple languages supported by the operating interface?

Yes, the software supports English, Spanish, German, French, Portuguese, Russian, and both Simplified and Traditional Chinese.
