Digital UV Inkjet System for Label Printing

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Send Inquiry

Product Description

Basic Info.

Color & Page

Single-Colour Printing Press

Usage

Paper Printer, Label Printer, Card Printer, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Multi Print Head Seamless Joint

Accepted

Ink Solution

Support Porous, Semi-Porous and Non-Porous

Languages Support

English, Japanese, French, German, Spanish, Portug

Resolution

150-600dpi

Powder

AC 90V-240V/50-60Hz

Logo/OEM

Accepted

Strong Tech Support

Yes

Training

Free

Delivery

in Time

Transport Package

Box/Pallet

Specification

CE, SGS

Production Capacity

500 Sets/Year

Product Description

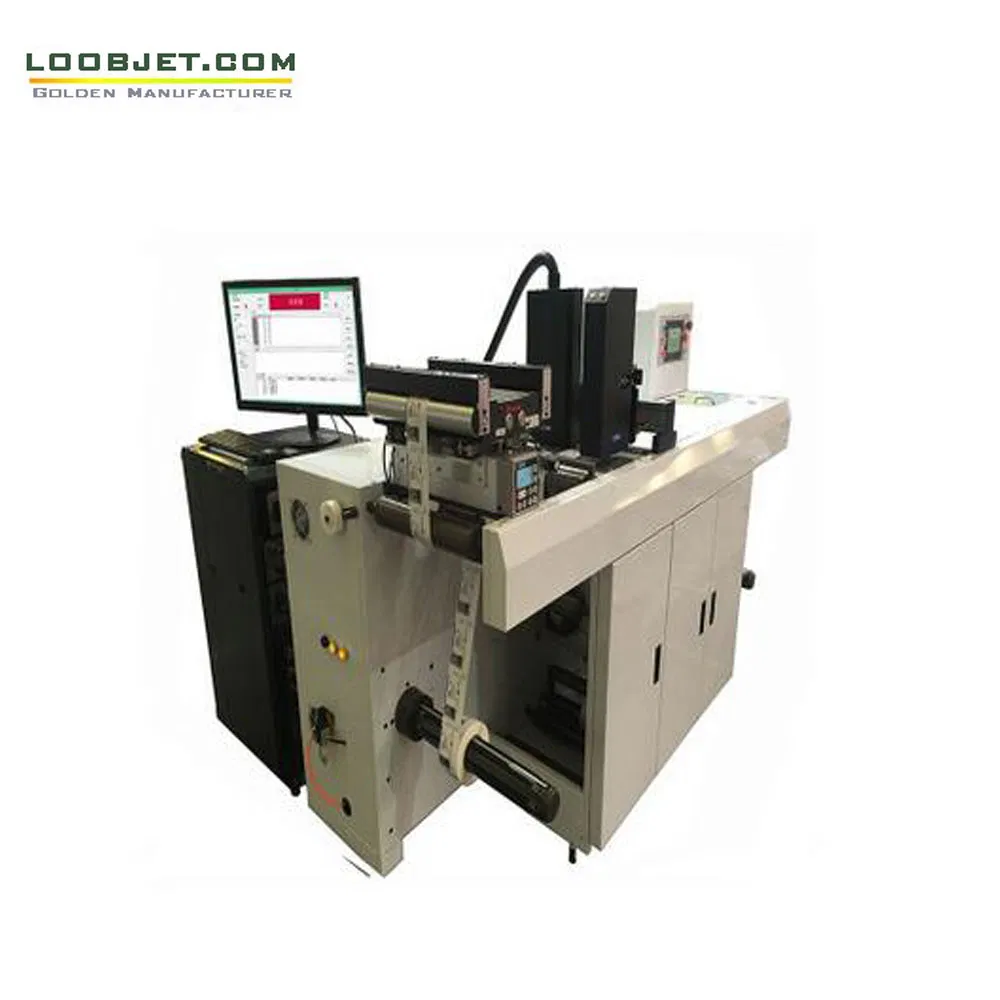

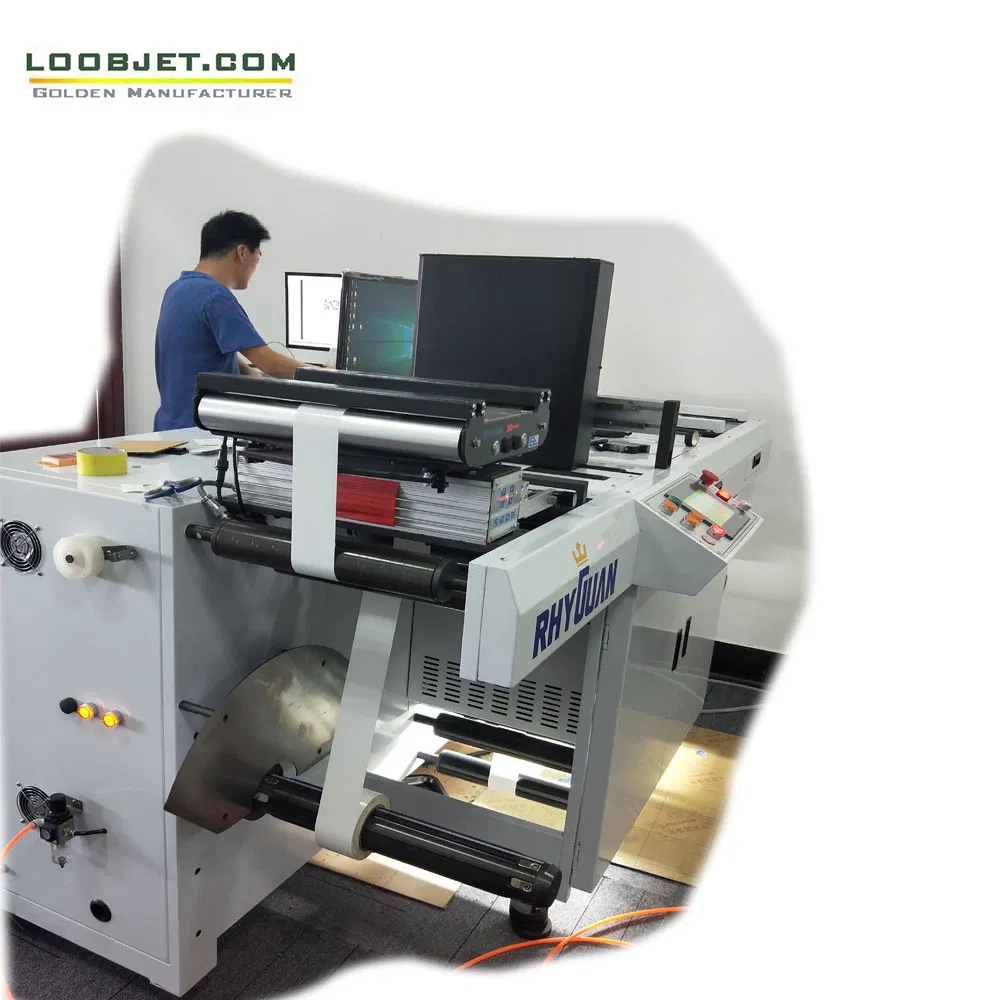

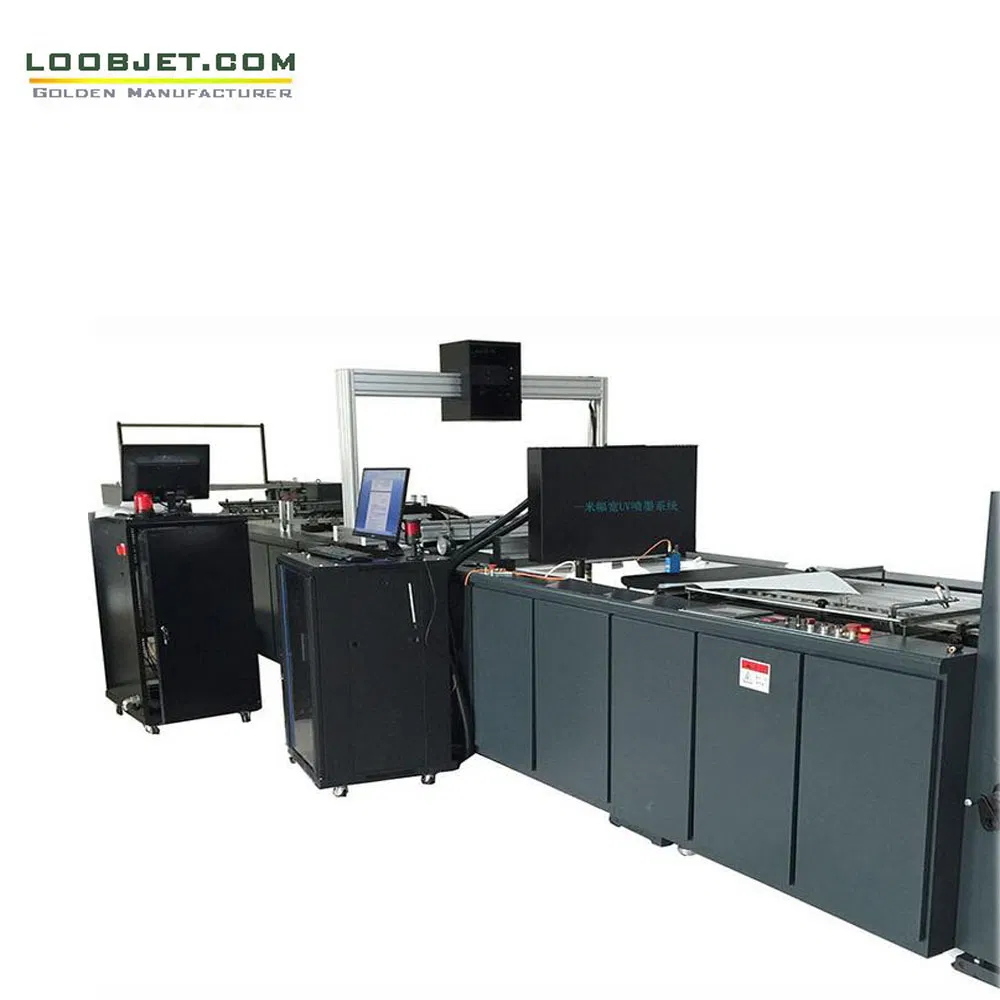

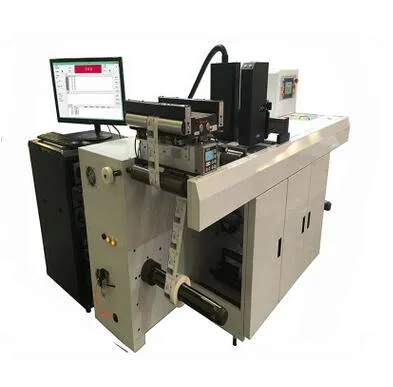

Clothing tag inkjet printing line

Introduction

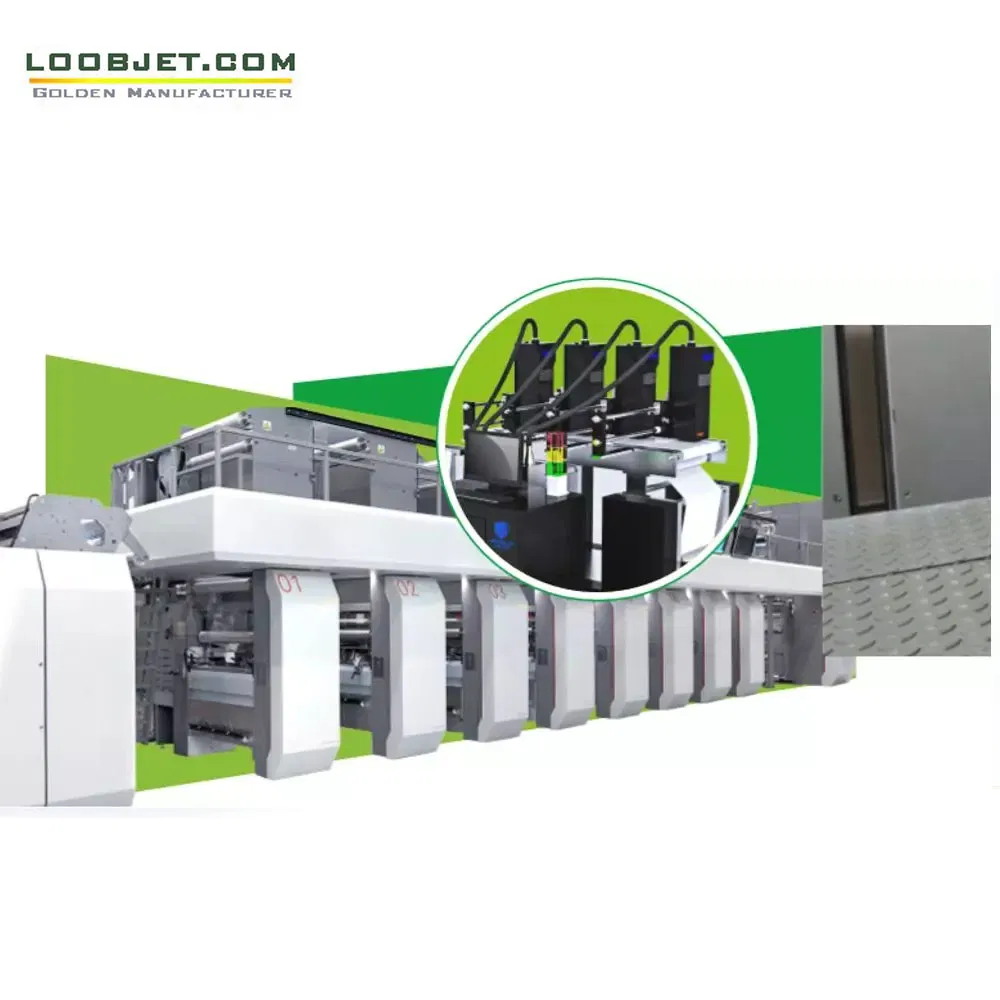

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with high-resolution and high-speed DOD piezoelectric print heads, this system meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications. It is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems.

Technical Details

Nozzle type: Ricoh GEN5/Kyocera108 or Konica 1024i industrial piezoelectric nozzle.
Normal life of nozzle: More than 3 years (10 billion printing times).
Single Nozzle print width: 54/72/108 mm based on requirements.
Printing unit: 1 ~ 24 groups extendable with seamless joint.
Resolution: Physics 600 dpi printing precision.
Card linear speed: 70 ~ 180 m/min.
Inks: Imported environmentally friendly UV or water-based inks.
Materials: Suitable for paper, plastics, PVC/PP/PE film, etc.

Software Features

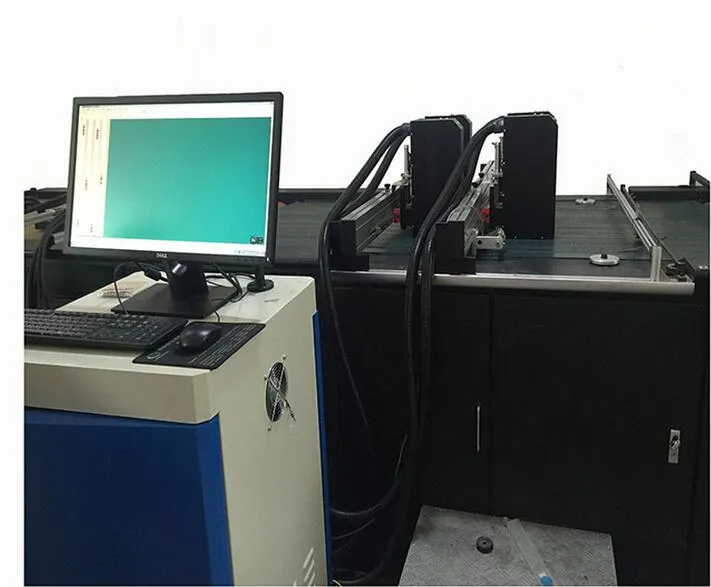

The Printer Control Software (PCS) designed for scanning inkjet printing offers a user-friendly interface to control the printer, monitor status, and set options like jetting waveforms and temperature. Features include database checking, data settings, DPI settings, motor speed, and head settings.

Variable Data Printing

Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images.
Loads data from .CSV, .XLS, .XLSX, .TXT and PDF files.
Customizable editing directions.

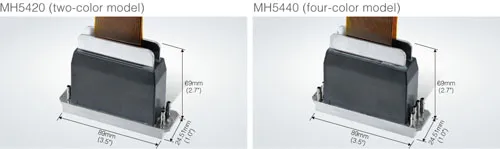

Print Head Specifications

Print Head	Ricoh GEN5 / Konica 1024i / KY	Resolution	600×600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Printing Speed	Up to 180m/min (600×200dpi)
Max Width	54/72/108mm × 24 Seamless Joint	Method	Piezoelectric Ink-jet
Drop Size	5-21 PL	Inks	Original SGS UV Inks
System	Windows 7	Port	Gigabit Ethernet interface
Barcodes	UPCA, EAN13, CODE128, QR, DATAMATRIX, etc.	Files Format	MS Excel, TXT, PDF, BMP

Frequently Asked Questions

1. What materials are compatible with this inkjet system? The system is highly versatile and suitable for various materials including all types of paper, plastics, PVC/PP/PE films, and specialized clothing tags.

2. What is the maximum printing speed available? Depending on the resolution, the system can reach speeds up to 180m/min at 600×200dpi, and typically runs at 100m/min for standard high-quality output.

3. What types of print heads can be used with this system? Users can choose between several industrial-grade piezoelectric nozzles, including Ricoh GEN5 (54mm), Konica 1024i (72mm), and Kyocera (108mm) based on specific application needs.

4. Does the software support variable data printing? Yes, the software fully supports variable data printing for objects such as serial numbers, barcodes, QR codes, database-linked images, and real-time dates.

5. What is the expected lifespan of the print nozzles? The industrial nozzles are designed for durability, with a normal life expectancy of more than 3 years or approximately 10 billion printing operations.

6. Which languages does the operation software support? The system supports multiple languages, including English, Spanish, German, French, Portuguese, Russian, and Chinese, ensuring global usability.
