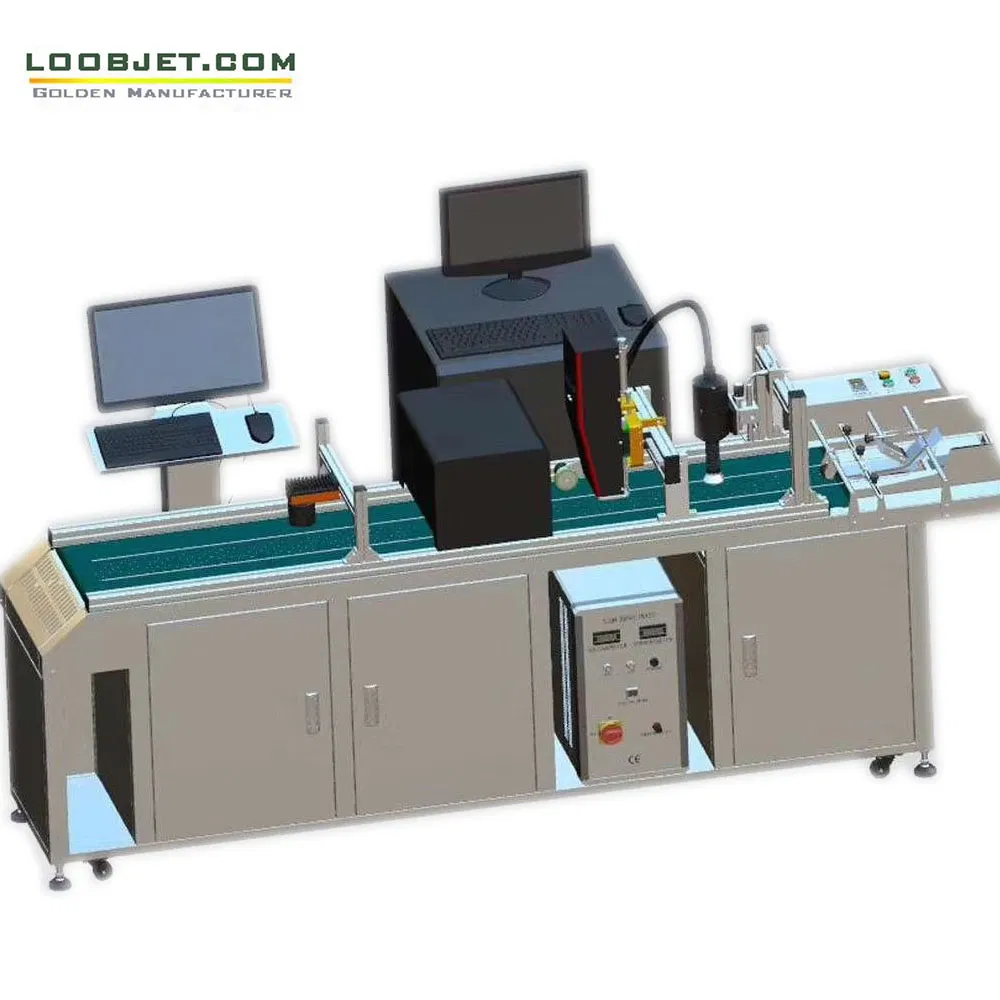

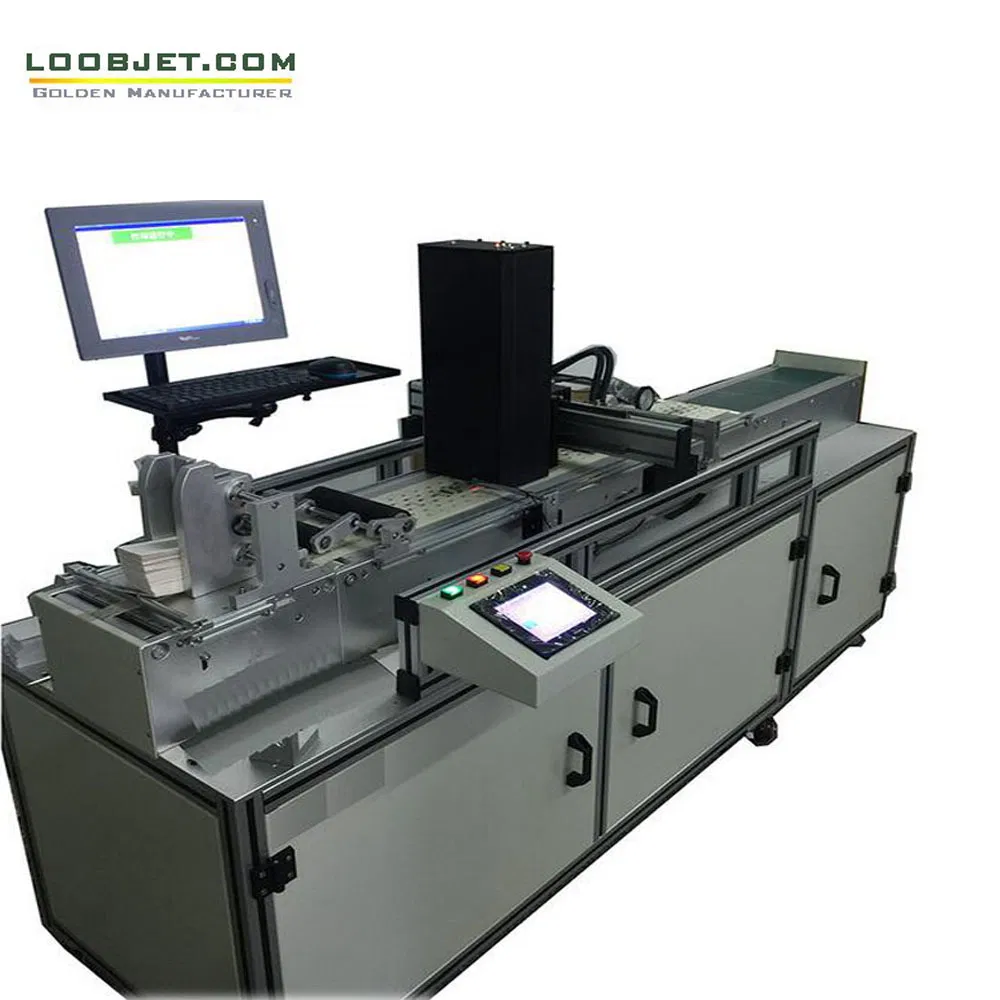

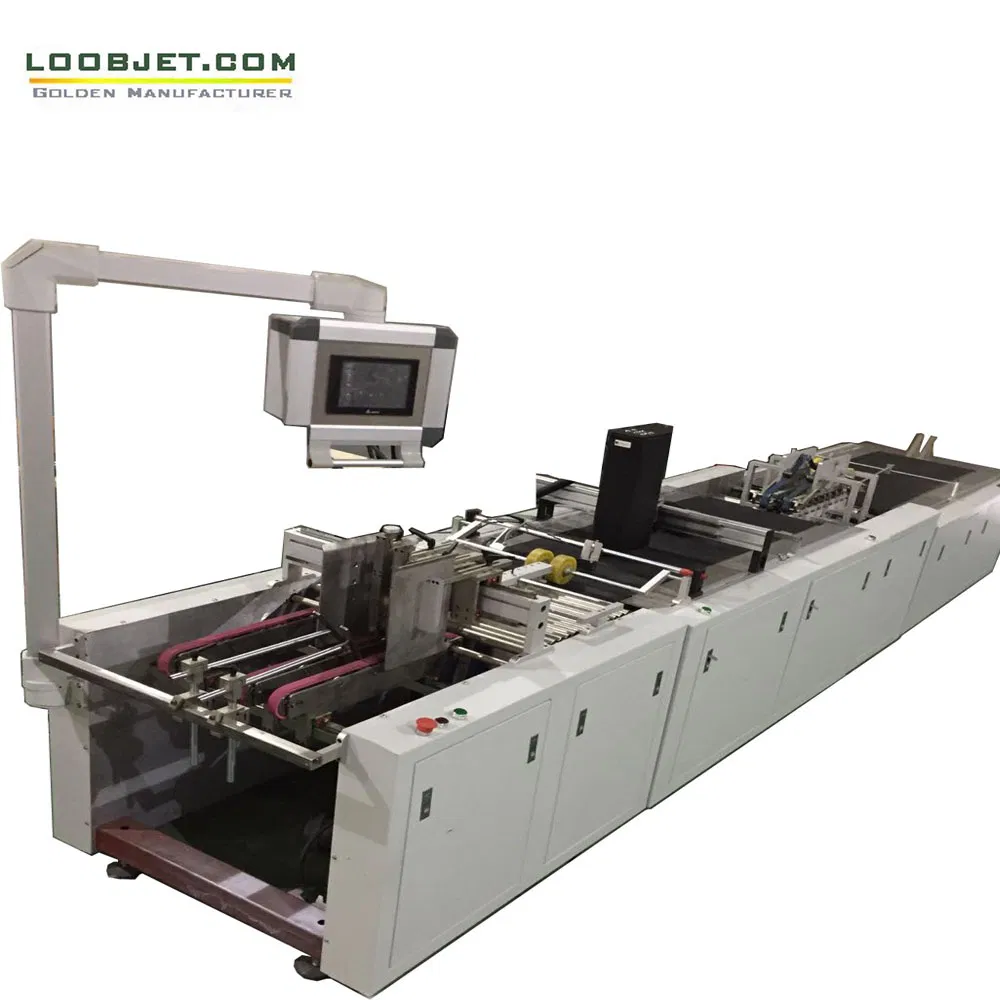

Fully Digital Inkjet Printing System

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

Basic Information

Model NO.

HSJET

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Base on Your Requirement

Printing Interface

RS232

Printing Speed

100m/Min

Printing Paper Size

330mm or More

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Support Porous, Semi-Porous and Non-Porous

Production Capacity

500 Sets/Year

Product Description

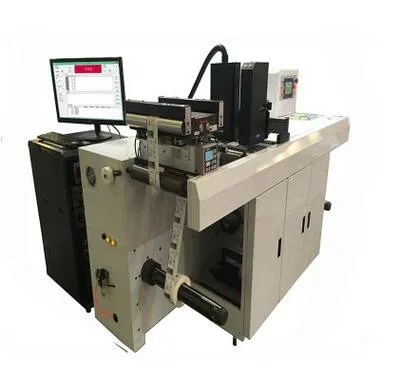

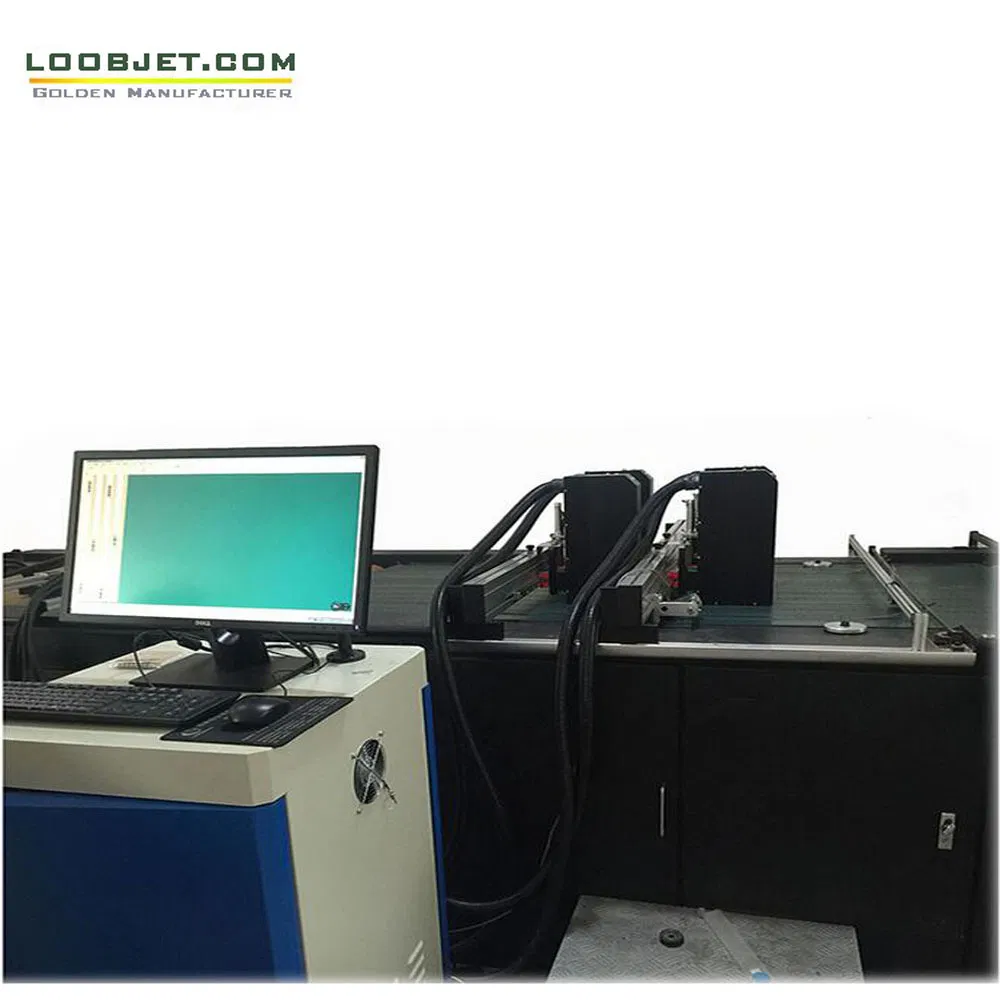

UV inkjet printer label press

Introduction

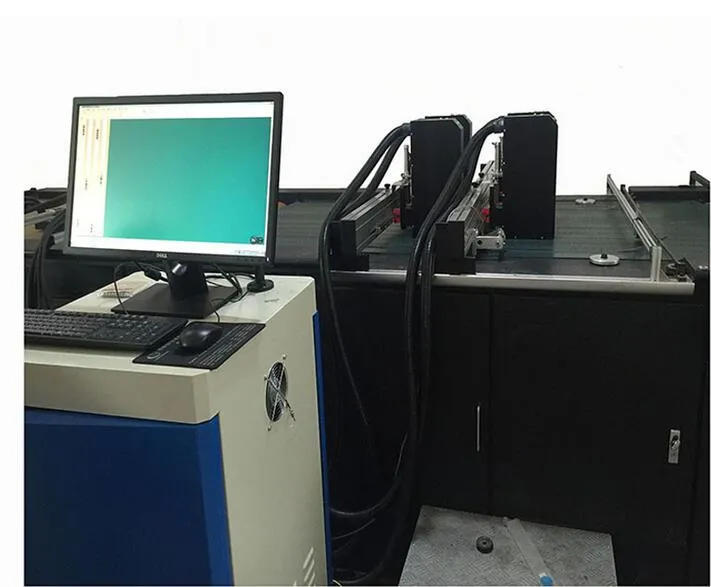

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with high-resolution and high-speed industrial DOD piezoelectric print heads, it meets the rigorous demands for applications like mailings, barcodes, bills, checks, and packaging marking.

This system is ideal for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

Technical Details

Equipment: UVJET

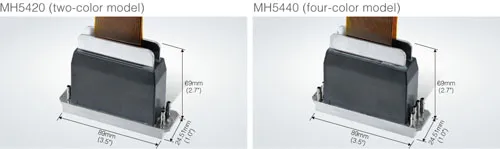

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle
Lifespan: More than 3 years (10 billion printing times)
Print Width: 54/72/108 mm (Expandable groups for seamless joint)
Precision: 600 dpi physical printing precision
Linear Speed: 70 ~ 180 m/min
Inks: UV or water-based imported environmentally friendly inks
Substrates: Suitable for paper, plastics, PVC/PP/PE film, and more

Advanced Control Software

The Printer Control Software (PCS) offers a user-friendly interface for monitoring status and setting options like jetting waveforms and temperature for each print head. Features include database checking, data settings, DPI settings, and motor speed controls.

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

Technical Specifications

Model	VDG540/VDK720/KY108	Print Head	Ricoh GEN5/Konica 1024i/KY
Resolution	600×600, 400, 300, 200 dpi	Max Width	Up to 24 Seamless Joints
Drop Size	5-21 PL	Printing Speed	Up to 180m/min (at 600×200dpi)
System	Windows 7 / Windows 10	Port	Gigabit Ethernet interface
Barcodes	UPCA, EAN13, CODE128, PDF417, QR, DATAMATRIX, etc.

Frequently Asked Questions

Q1: What materials can this UV inkjet printer handle? A: It is designed for high versatility and can print on various materials including paper, plastics, PVC, PP, and PE films.

Q2: What is the maximum printing speed of the system? A: The system can reach a maximum linear speed of 180 m/min at 600x200 dpi resolution.

Q3: Which industrial print heads are compatible? A: You can choose between Ricoh GEN5 (54mm), Konica 1024i (72mm), or Kyocera (108mm) based on your specific requirements.

Q4: Does the software support variable data printing? A: Yes, the software fully supports variable data including serial numbers, barcodes, QR codes, and database photo images from various file formats like Excel and PDF.

Q5: What is the expected lifespan of the print nozzles? A: Under normal conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years, supporting up to 10 billion printing cycles.

Q6: What languages are supported by the operating software? A: The system supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
