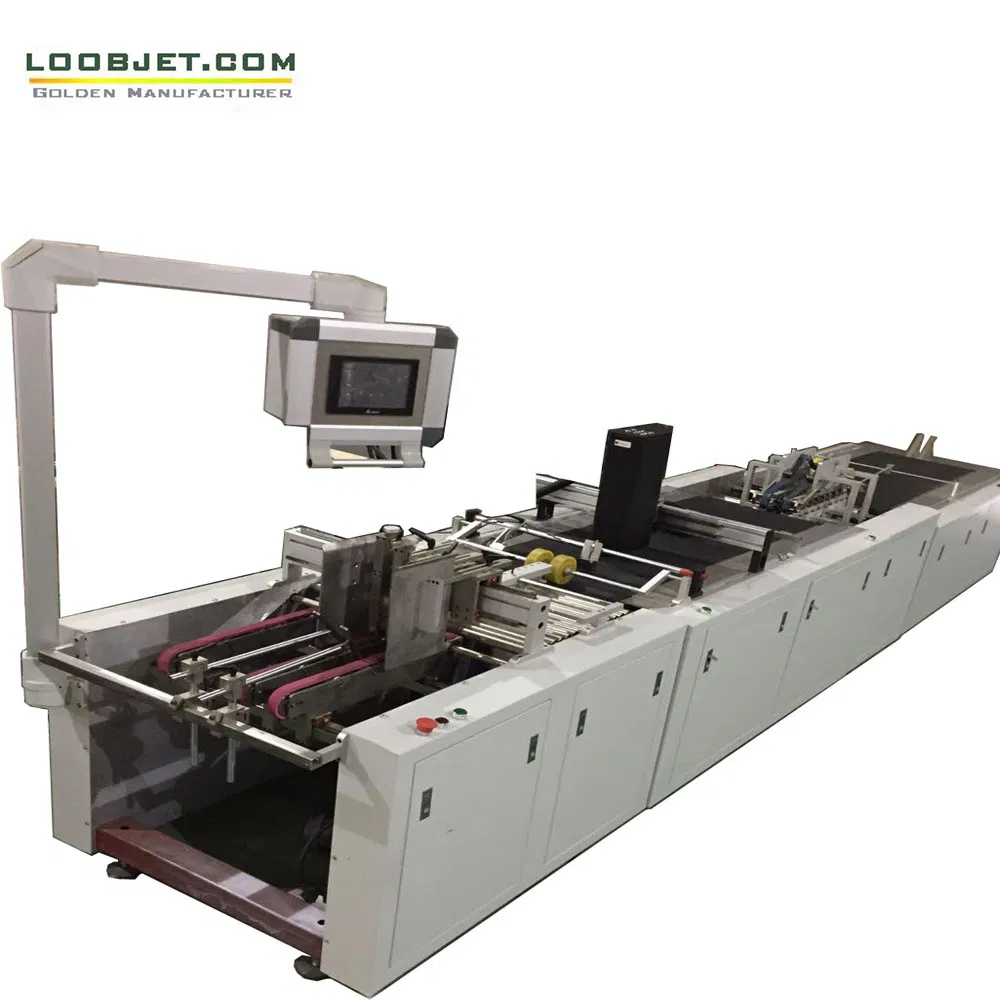

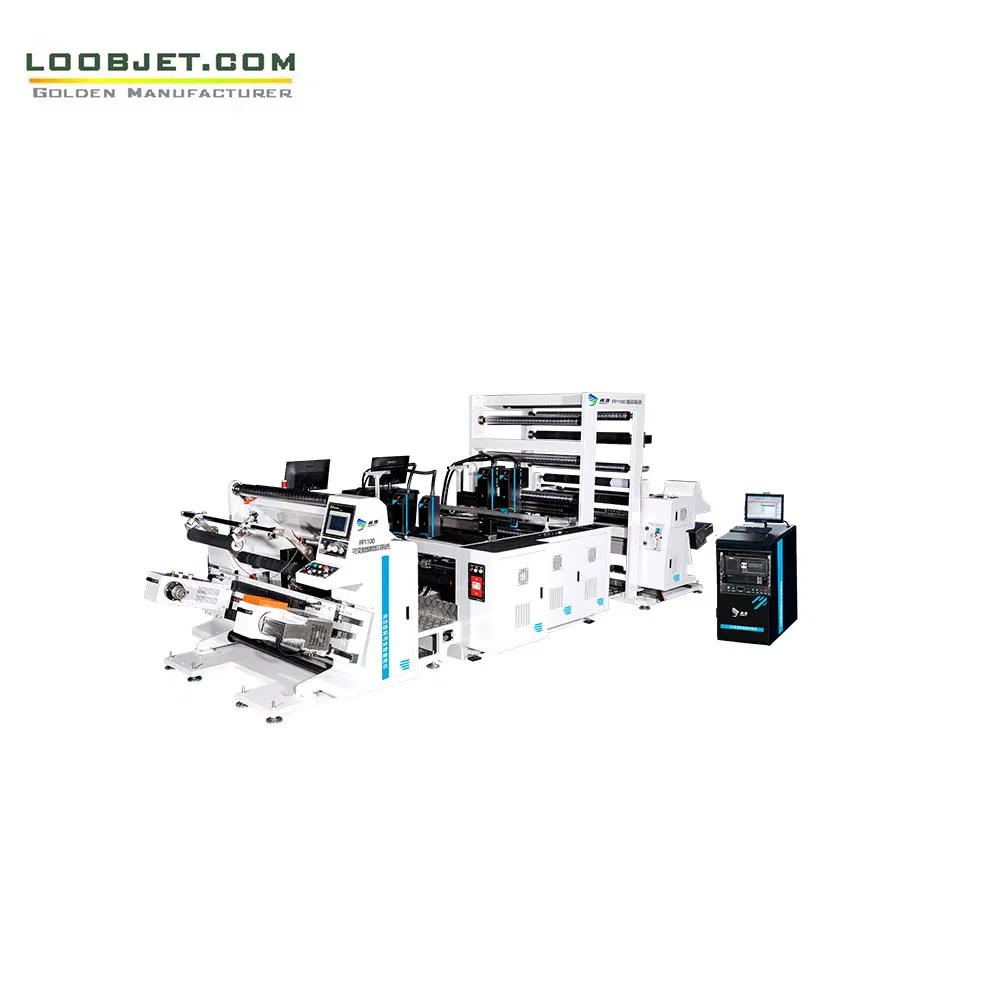

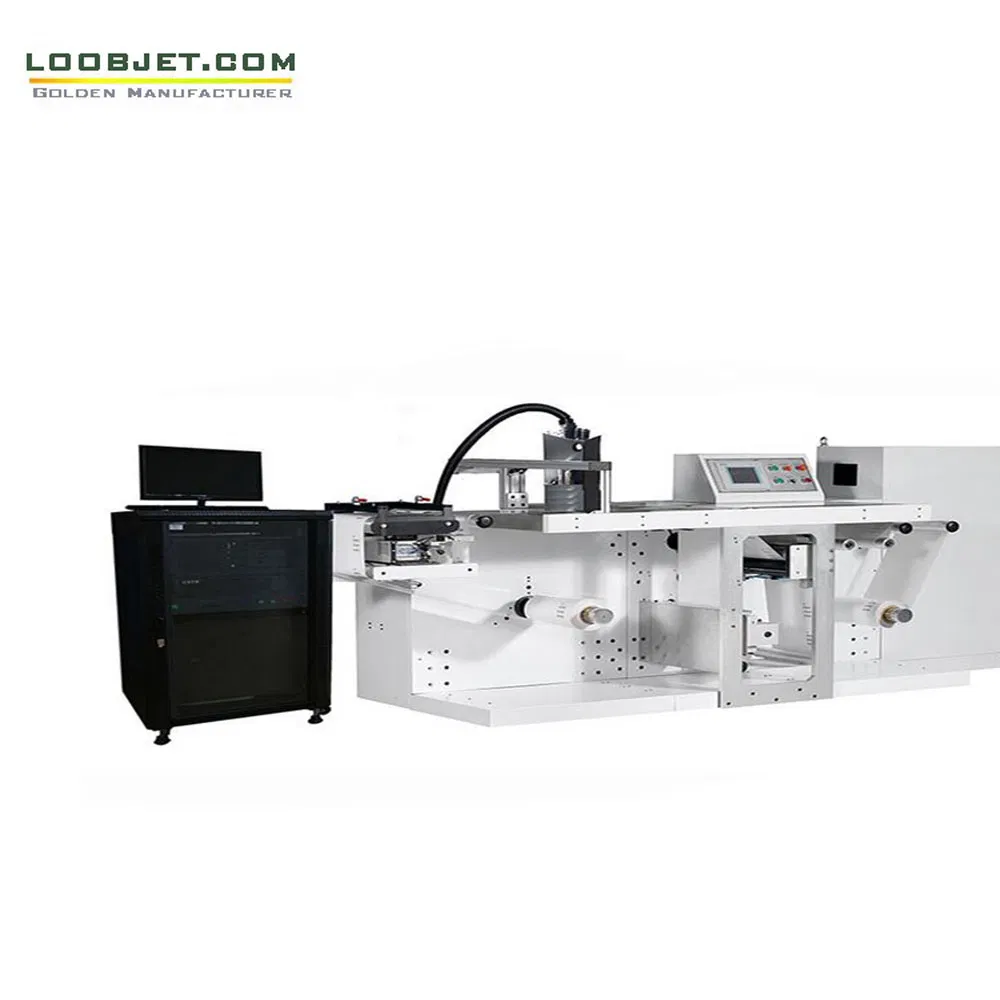

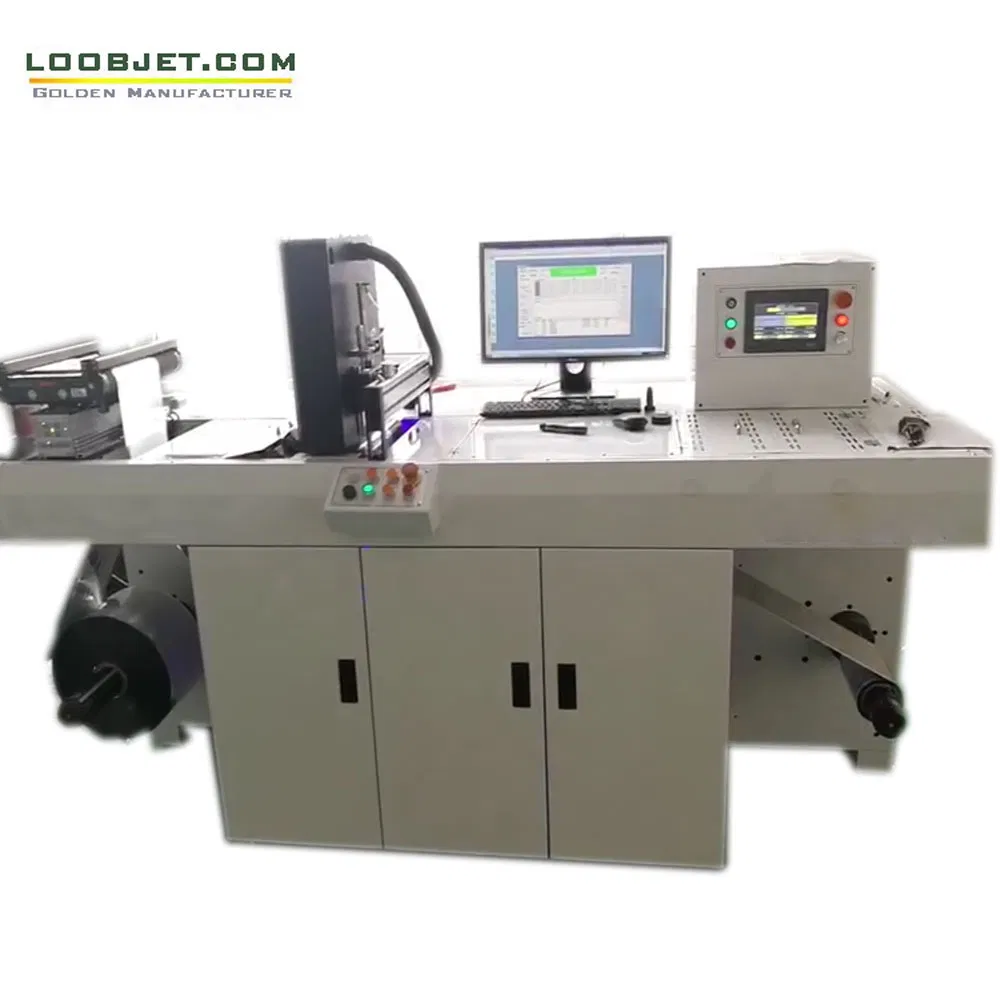

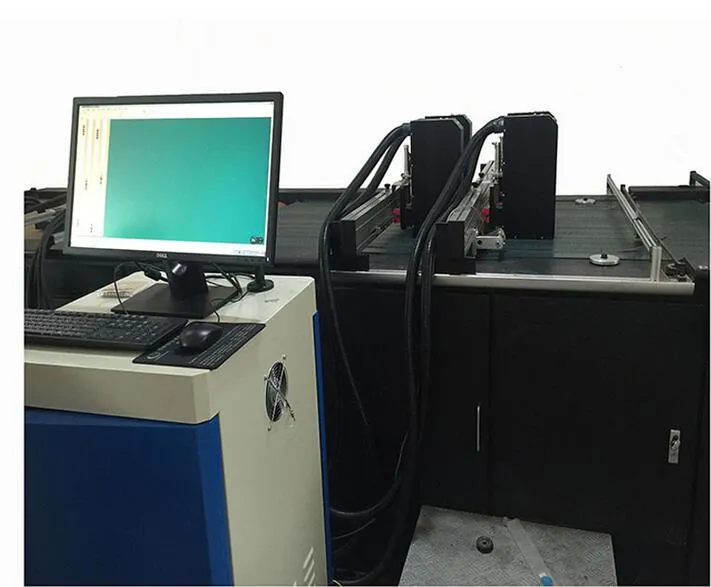

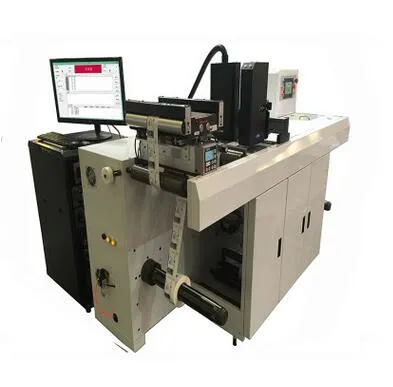

QR Codes Digital Label Press. LOOBJET UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, has greatly improved in production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the increasing and rigorous demands for the applications of mailings, barcodes, bills, checks, packages, and marking.
It is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, it can be easily integrated into existing transport systems thanks to its modular design to create more value-added opportunities.
Technical Details

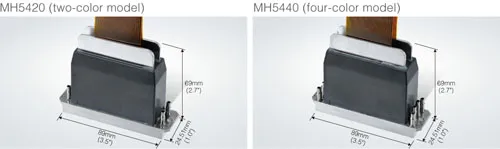

Nozzle type
Ricoh GEN5 / Kyocera108 / Konica 1024i
Nozzle Life
3+ years (10 billion prints)
Print Width
54 / 72 / 108 mm (Customizable)
Printing Units
1 ~ 24 groups extendable
Precision
Physics 600 dpi
Linear Speed
70 ~ 180 m/min
Ink Types
UV or Water-based (Eco-friendly)
Materials
Paper, Plastics, PVC/PP/PE film
Software & Control
Our Printer Control Software (PCS) offers a user-friendly interface to interactively control the printer, monitor status, and set options such as jetting waveforms and temperature.
Variable Data Printing: Supports text, dates, graphics, logos, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT and PDF files.
Specifications Table
Model
VDG540/VDK720/KY108
Print Head
Ricoh GN5/Konica 1024i/KY
Resolution
600×600, 400, 300, 200 dpi
Drop Size
5-21PL
Max Speed
180m/min (600×200dpi)
Linear Speed
75m/min (600×600dpi)
Max Width
54/72/108mm × 24 Seamless Joint
Method
Piezoelectric ink-jet
Bar codes
QR, DATAMATRIX, PDF417, CODE128, etc.
File Format
MS Excel, TXT, PDF, BMP
Frequently Asked Questions
1. What materials can this digital label press print on?
The system is highly versatile and suitable for printing on various materials including paper, plastics, and PVC/PP/PE films.
2. What is the expected lifespan of the print heads?
The industrial piezoelectric nozzles (Ricoh, Kyocera, or Konica) typically have a lifespan of more than 3 years, supporting up to 10 billion printing cycles.
3. Does the software support variable data like QR codes and serial numbers?
Yes, our Variable Data Printing Software supports several object types including text, QR codes, barcodes, serial numbers, and database images from files like Excel and PDF.
4. What is the maximum printing speed and resolution?
The system can reach speeds up to 180m/min at 200dpi, and provides a physical printing precision of 600dpi for high-quality requirements.
5. Can multiple print heads be combined for wider printing?
Absolutely. The system features a modular design where 1 to 24 groups of print heads can be extended using seamless joint technology.
6. Which languages are supported by the control system?
The software supports multiple languages including English, Japanese, French, German, Spanish, Portuguese, Russian, and Chinese.
