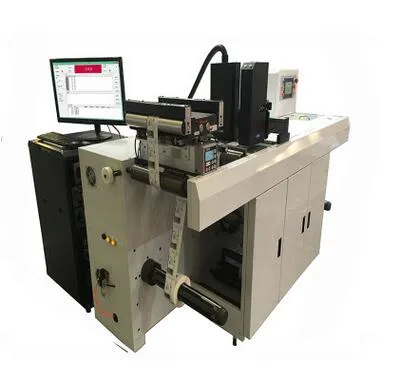

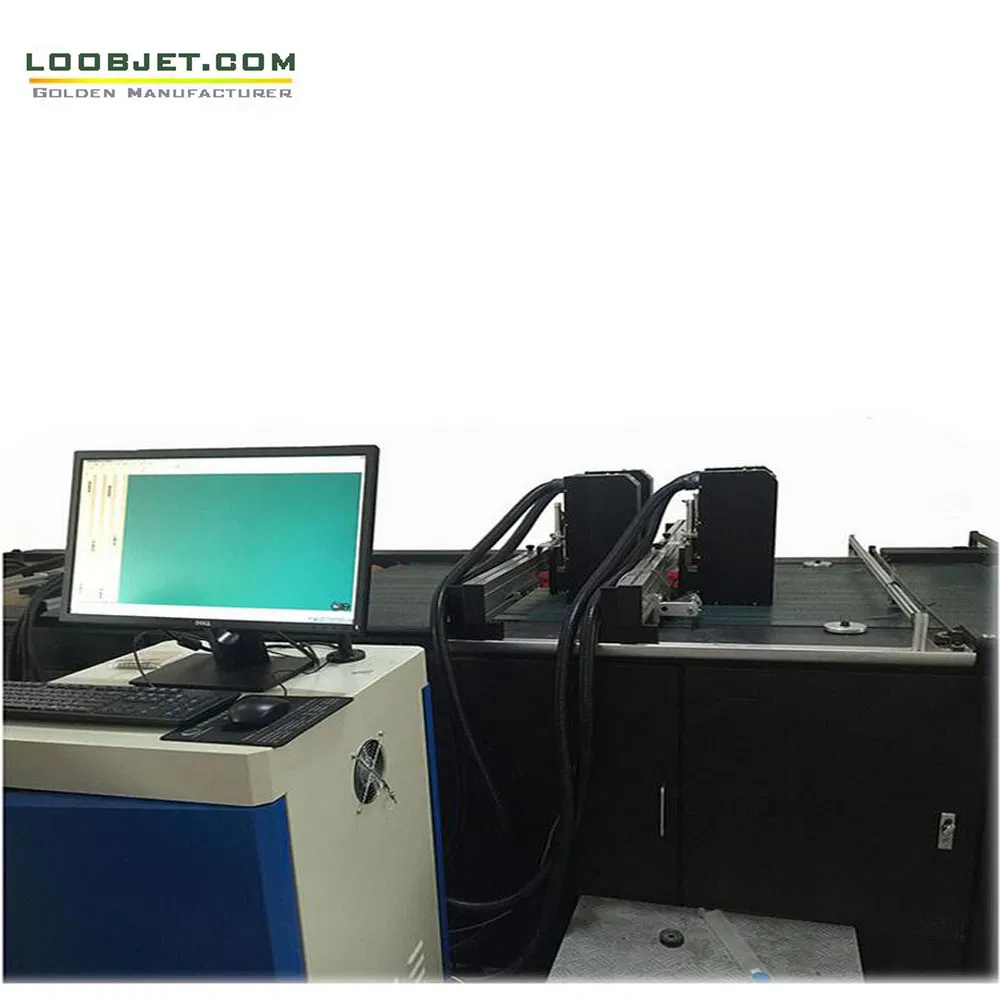

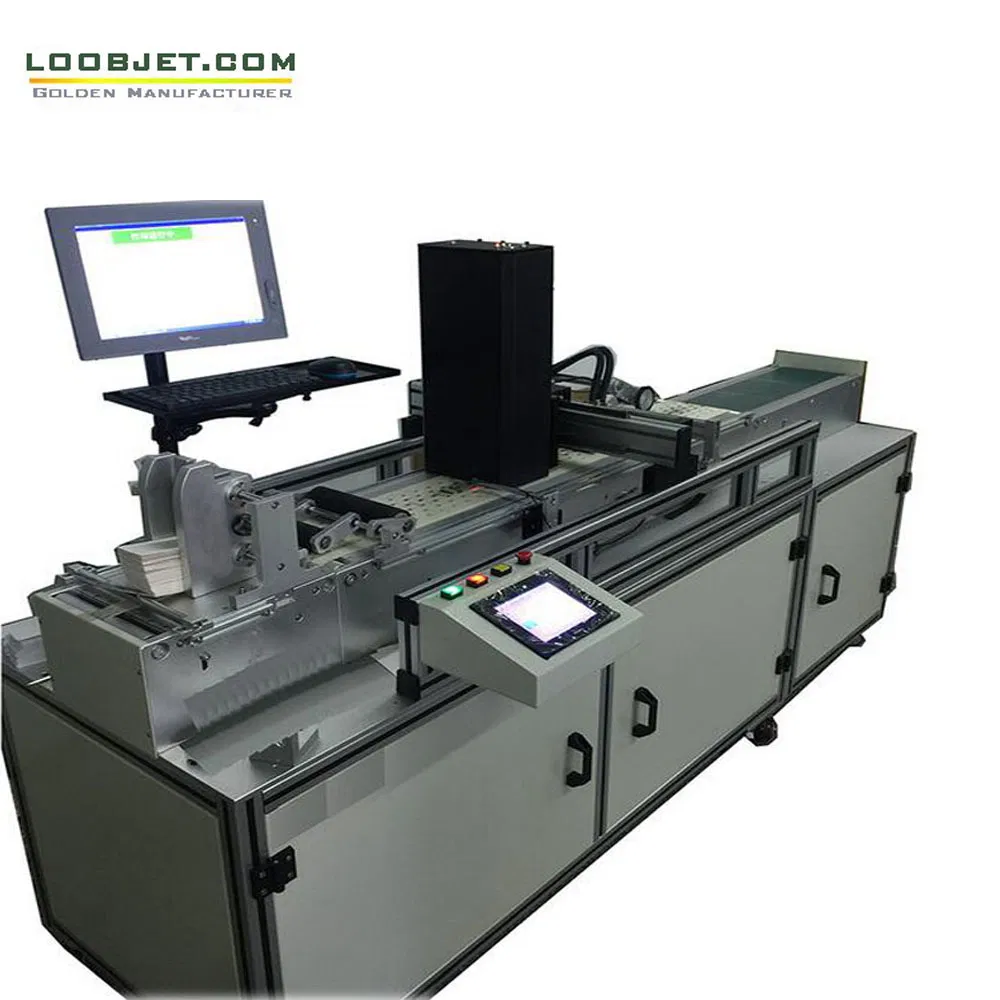

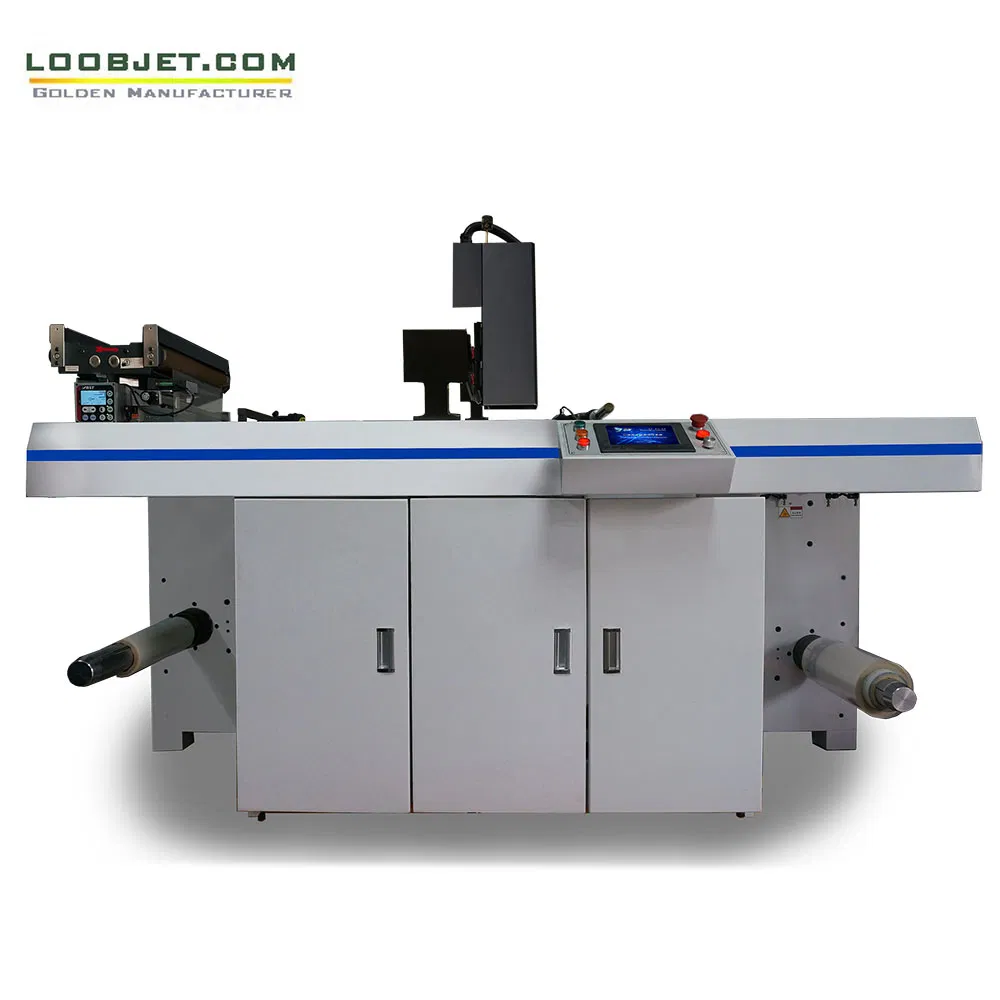

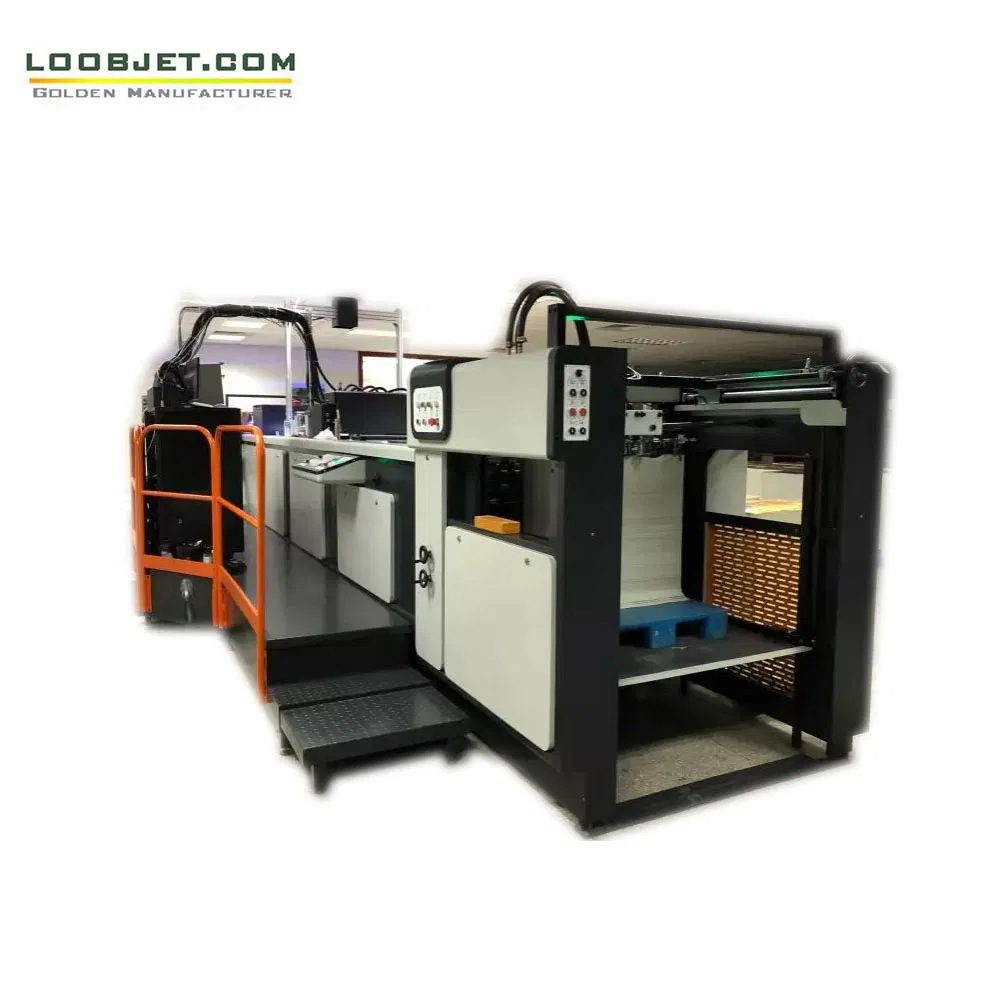

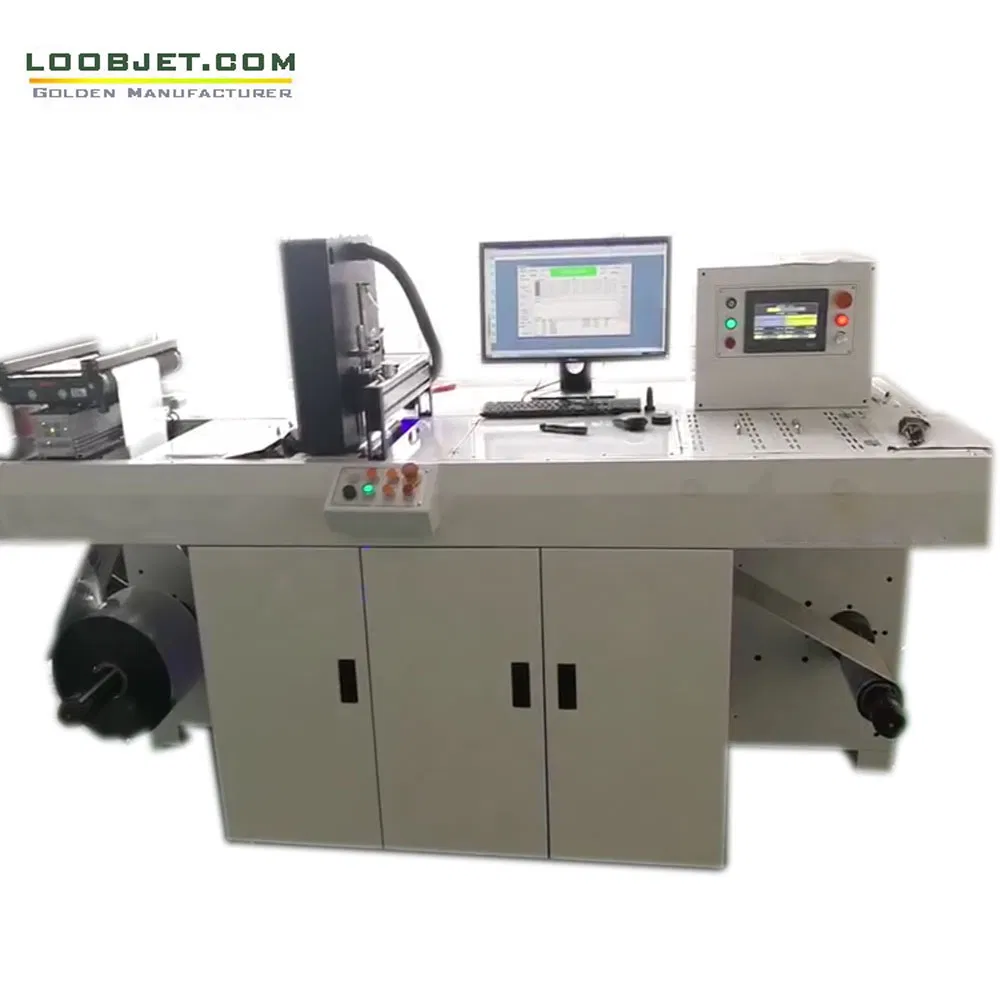

Clothing Label Rolling Digital System

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

Basic Information

Model NO.

HSJET

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Application

Packing and Printing

Printing Breadth

Customizable

Printing Interface

RS232

Printing Speed

100m/Min

Resolution

150-600dpi

System Supported

Windows

Ink Solution

Porous, Semi-Porous, Non-Porous

Powder

AC 90V-240V/50-60Hz

Production Capacity

500 Sets/Year

Product Description

🚀 Industrial DOD Technology

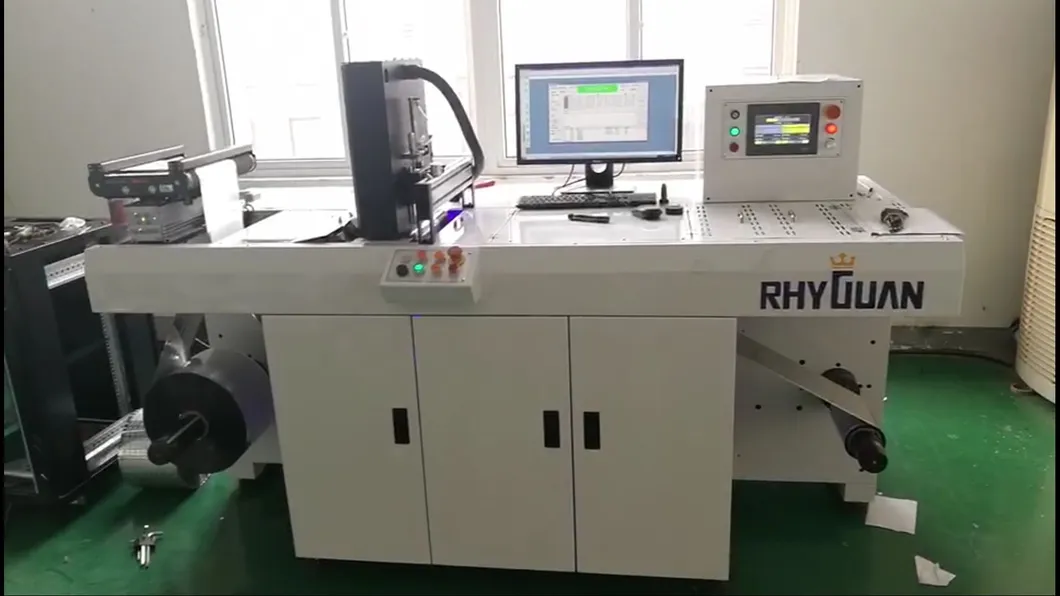

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with high-resolution DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, packages, and marking applications.

⚙️ Equipment Details

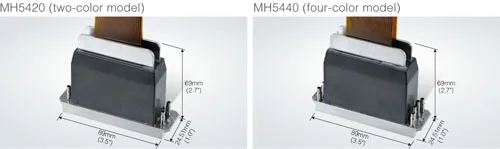

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial nozzle.
Lifespan: Over 3 years / 10 billion printing times.
Modular Design: 1 to 24 groups can be extended with seamless jointing.
Inks: Environmentally friendly UV or water-based inks.
Substrates: Suitable for paper, plastics, PVC/PP/PE film, and more.

Advanced Control Software

Our Printer Control Software (PCS) offers a user-friendly interface for real-time monitoring and parameter setting, including waveform amplitude, pulse width, and temperature control for each print head.

📊 Variable Data Printing (VDP)

Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files. Multi-language support included (English, Spanish, German, French, Portuguese, Russian, Chinese).

Technical Specifications

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GEN5 / Konica 1024i / KY
Resolution	600×600, 400, 300, 200 DPI	Single Head Width	54.0mm / 72.0mm / 108mm
Max Speed	180m/min (600×200dpi)	Method	Piezoelectric Ink-jet
Drop Size	5-21PL	Max Width	Up to 24 Seamless Joints
System	Windows 7 / 10	Data Port	Gigabit Ethernet
Barcodes	QR, DataMatrix, PDF417, EAN128, etc.	Formats	MS Excel, TXT, PDF, BMP

Frequently Asked Questions

What types of materials can this UV inkjet printer handle?

The system is highly versatile and compatible with a wide range of materials, including various types of paper, plastics, and PVC, PP, or PE films.

What is the maximum printing speed and resolution?

The printer can reach speeds up to 180m/min at 600×200dpi. For higher precision at 600×600dpi, it operates at 75m/min.

Can the printing width be expanded?

Yes, the modular design allows for seamless jointing of 1 to 24 groups of print heads to achieve the required printing breadth.

What variable data types are supported?

The VDP software supports text, dynamic dates/times, serial numbers, various 1D/2D barcodes (like QR and DataMatrix), and database-linked images.

What is the typical lifespan of the industrial print heads?

With proper maintenance, the industrial piezoelectric nozzles (Ricoh/Kyocera/Konica) have a normal life of more than 3 years or approximately 10 billion printing cycles.

What are the power and environmental requirements?

The system requires AC 200~240V power and operates best in environments between 0ºC~30ºC with humidity levels of 50~80%.
