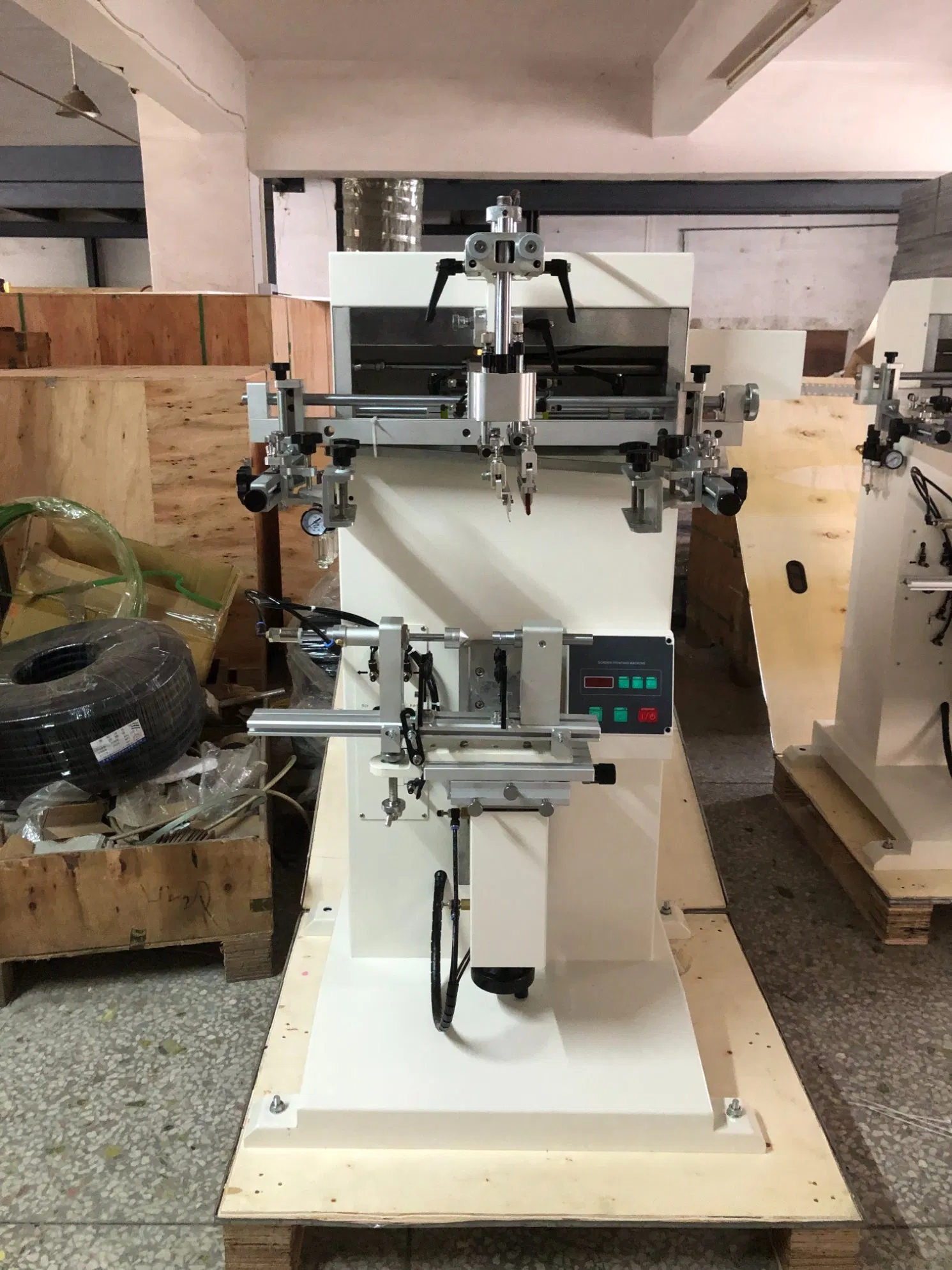

Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
1 / 5
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer
Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer

Dgruida Round Face Pneumatic Screen Printing Machine Plastic Glass Bottles Cups Screen Printer

Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.SS-250
TypeCylindrical Screen Printing Machine
StyleScreen-process Printing Press
StructureRound Face Screen Printing Machine
Color & PageSingle-Colour Printing Press
ApplicationBottle Printing
Transport PackagePlywood Box
OriginChina
⚙️

Technical Specifications

NameROUND FACE SCREEN PRINTING MACHINE
Maximum Frame SizeL420 * W300mm
Minimum Frame SizeL230 * W150mm
Work piece Height200mm
Work piece Length300mm
Work piece DiameterØ70MM
Work piece Arc220mm
Printing AreaL220 * W160mm
Printing Speed1000pcs/hr
Air Consumption56L/min
Air Pressure4-6bar
Vertical Stroke80mm
Horizontal Stroke250mm
Up/Down Worktable200mm
Power Supply220V/110V 50/60Hz
🚀

Product Features

  • Controlled by Microcomputer for precise operations.
  • Equipped with four-digit auto counter.
  • Advanced round face and conical printing functions.
  • Efficient automatic scraping system.
  • Fully adjustable printing stroke and speed settings.
  • Auto balance blade ensuring equalized printing pressure.
  • Versatile workbench and frame holder (Adjustable: back/forth, left/right, up/down).
  • Independently lifted blade for easy replacement and cleaning.

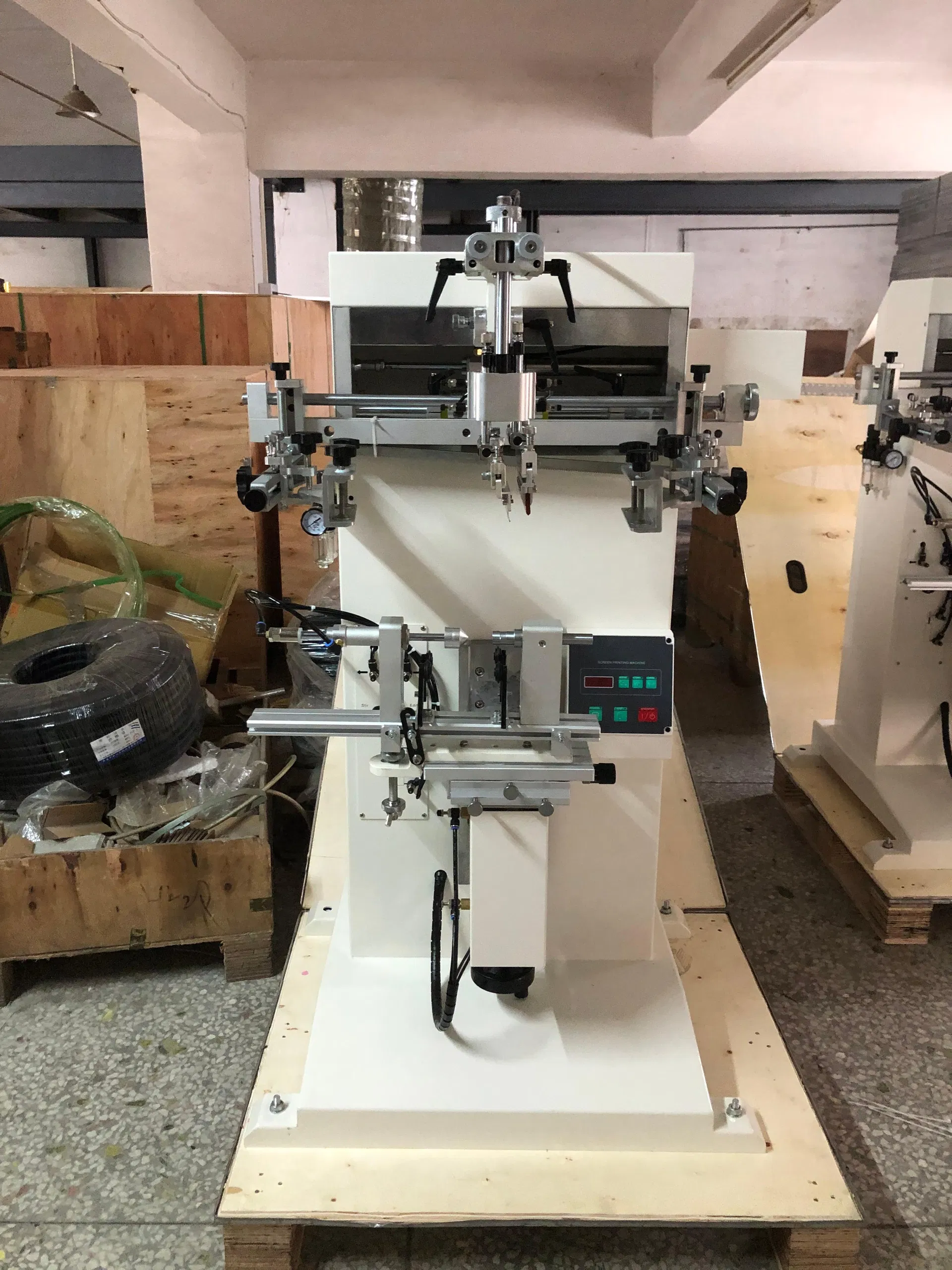

Screen Printing Machine Detail 1

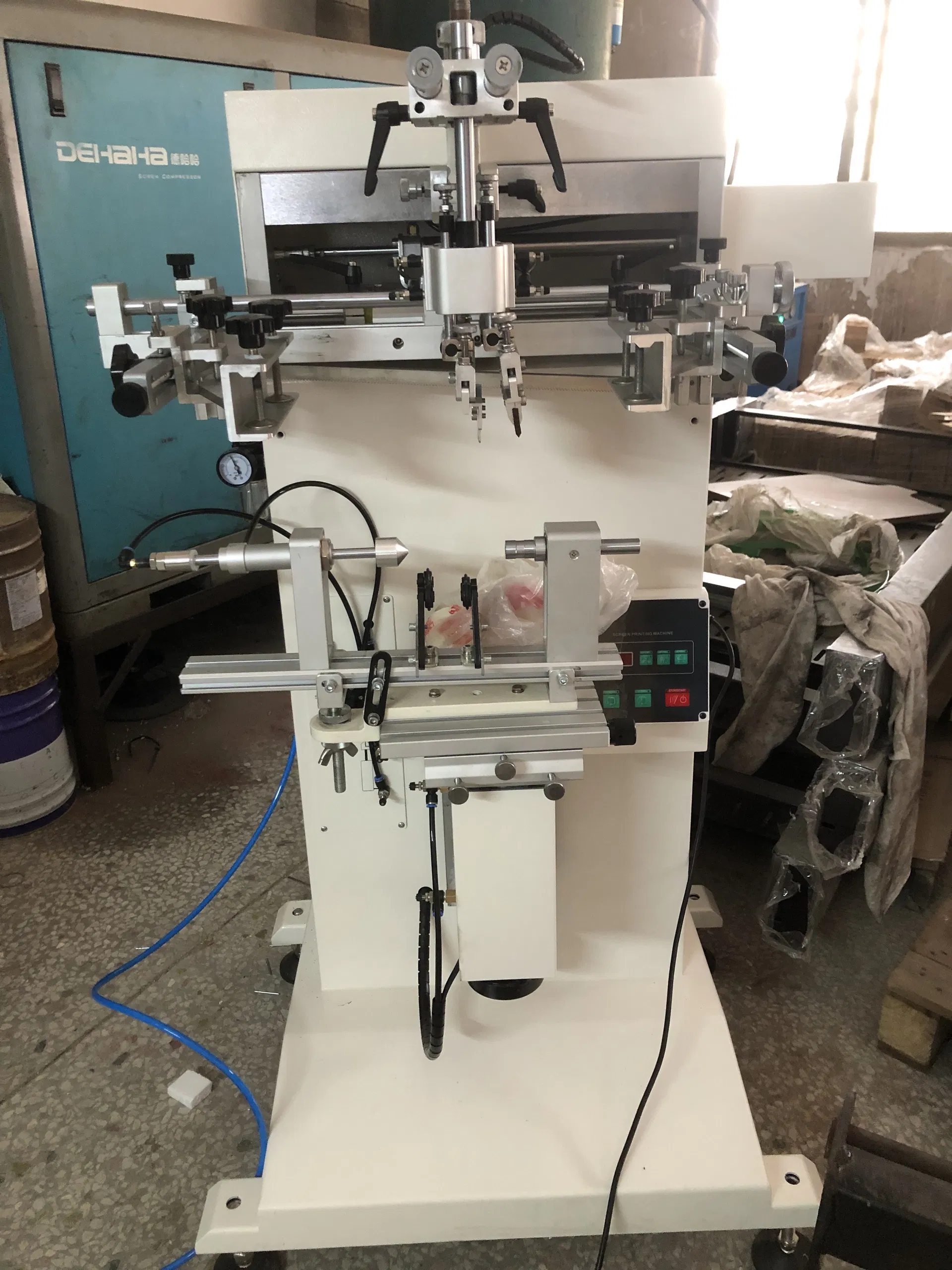

Screen Printing Machine Detail 2

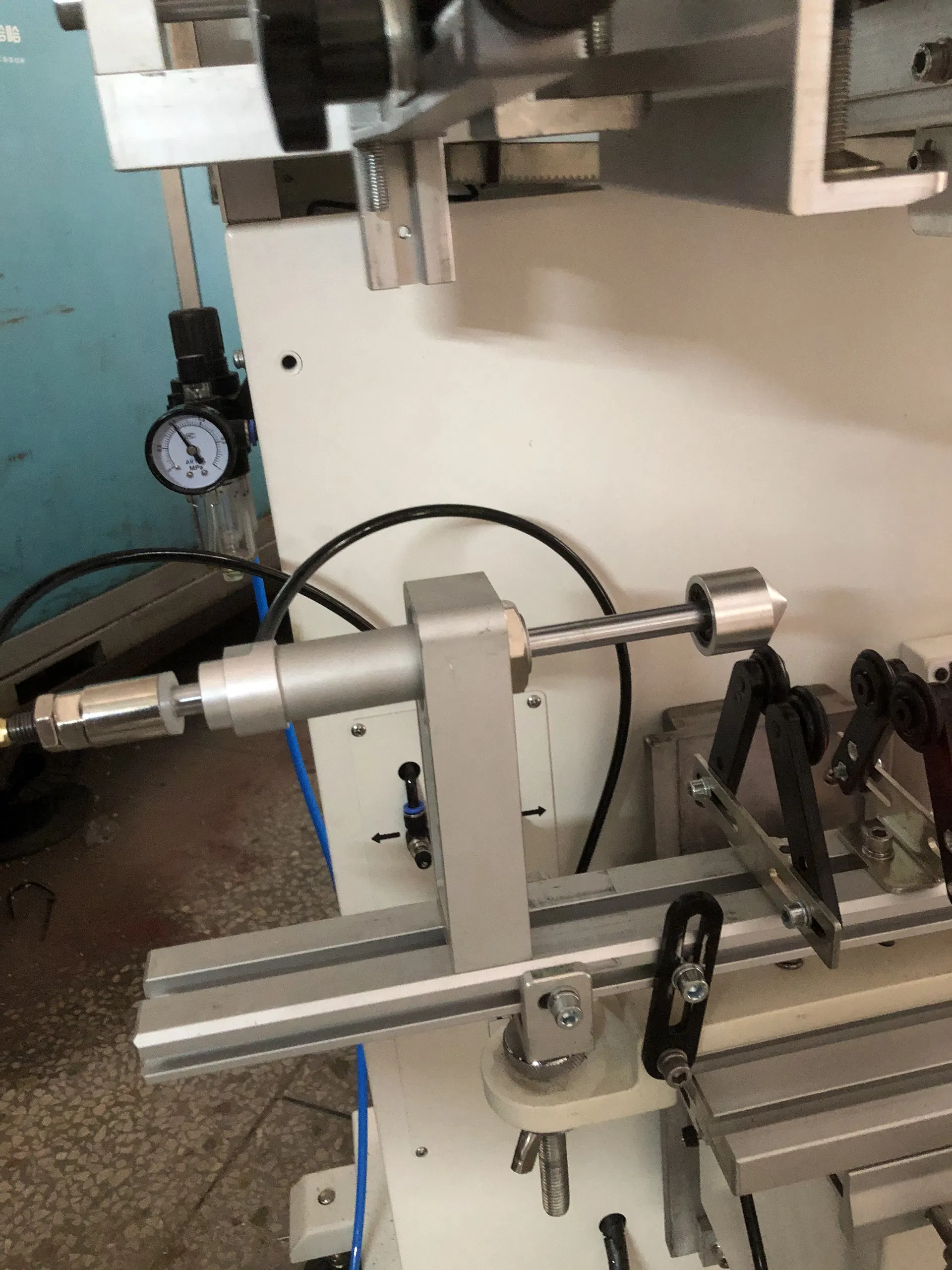

Screen Printing Machine Detail 3
📦

Packing & Delivery

Package Size84.00cm * 74.00cm * 141.00cm
Gross Weight127.000kg

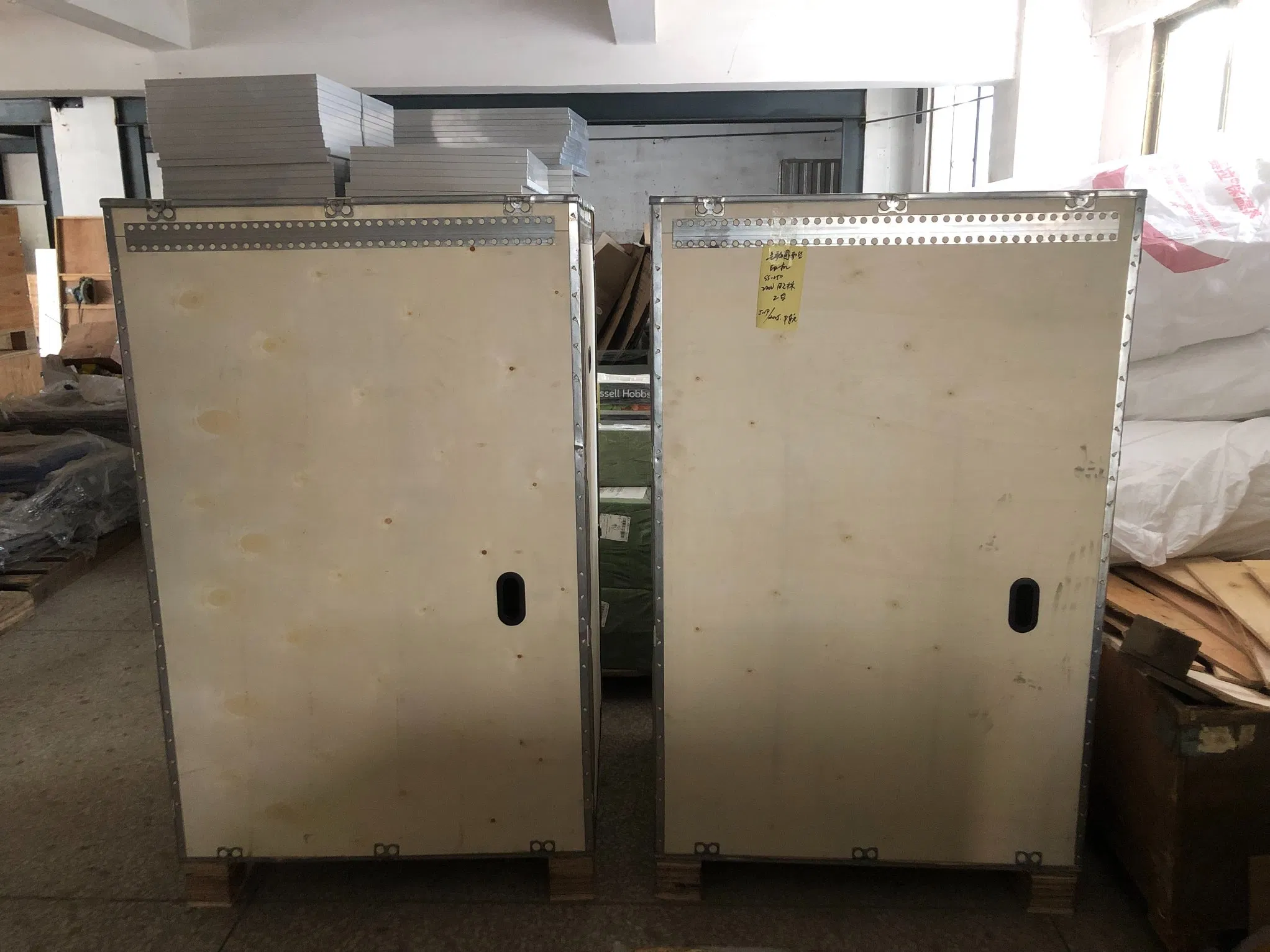

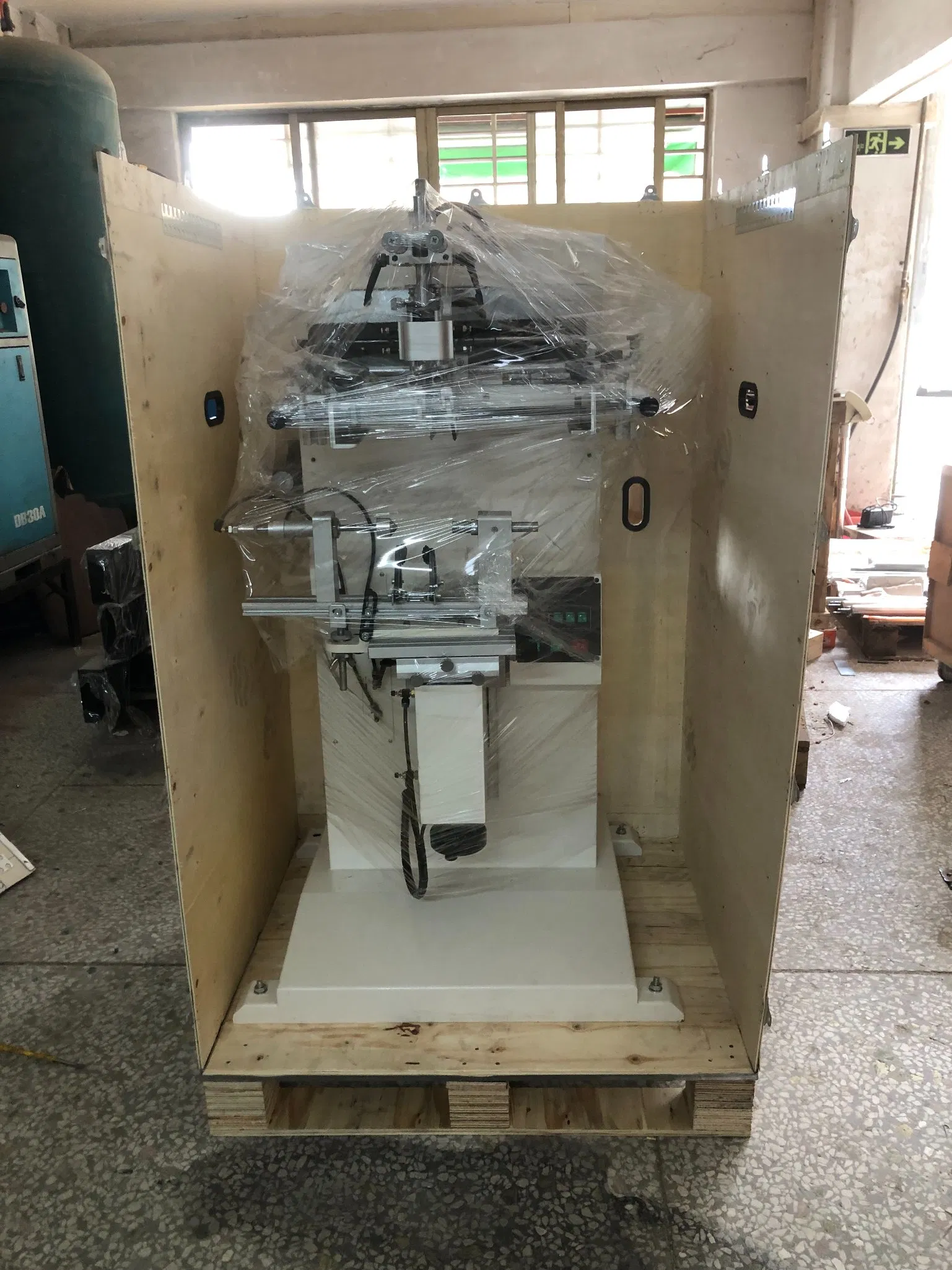

Packaging Detail 1
Packaging Detail 2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

🏢

Industrial Expertise

Founded in 2011, we are engaged in the production of garments silk screen printing machines and auxiliary equipment. The machines can be applied to costume, woven, fabric, metal, paper, copybook, plastic, wood, glass, ceramic, leather, and other products requiring flat or round printing.

Our products have been exported to more than 50 overseas countries and regions, including America, France, Britain, Holland, Philippines, Malaysia, New Zealand, and Dubai. After 16 years of development, we have hundreds of product items, creating every machine with heart and providing excellent service for our customers.

Machine Operation Video Cover
Machine Overview 1
Machine Overview 2
Machine Overview 3
❓

Frequently Asked Questions

Q1: What materials can this machine print on? A1: This machine is versatile and can print on plastic, glass, metal, wood, ceramic, leather, and various fabrics, making it ideal for bottle and cup printing.
Q2: Can it handle both cylindrical and conical shapes? A2: Yes, the machine is specifically designed with functions to handle both round (cylindrical) and conical printing surfaces.
Q3: What is the maximum printing speed? A3: The machine can achieve a printing speed of up to 1000 pieces per hour, depending on the operator and piece size.
Q4: How is the printing quality maintained? A4: It features an auto-balance blade and a microcomputer control system that ensures equalized printing pressure and precise stroke adjustment.
Q5: What are the air pressure requirements? A5: The machine operates efficiently with an air pressure range of 4-6 bar and an air consumption of approximately 56L/min.
Q6: Is the machine easy to maintain? A6: Yes, the blade can be independently lifted for quick replacement and cleaning, and the workbench is fully adjustable for different job setups.
