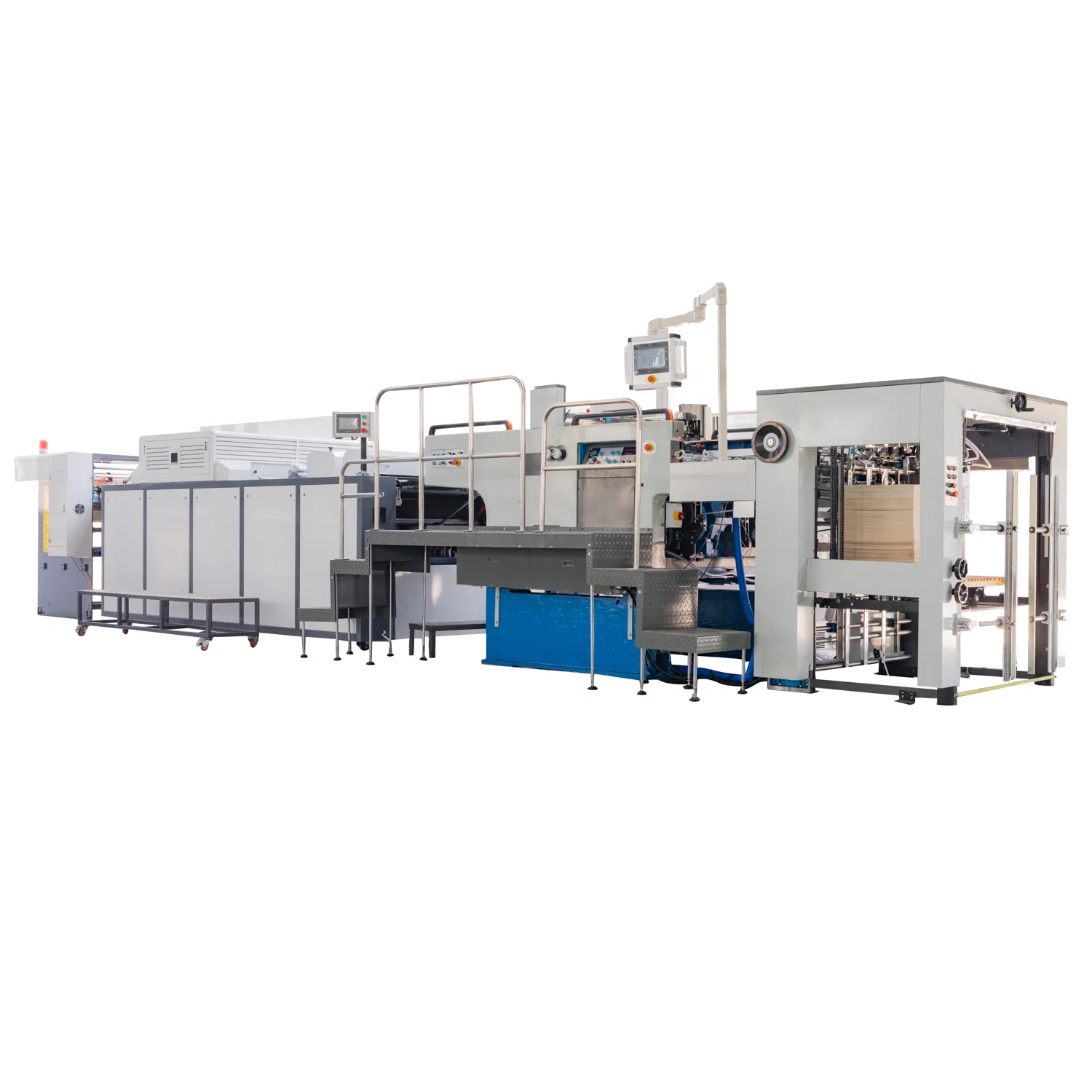

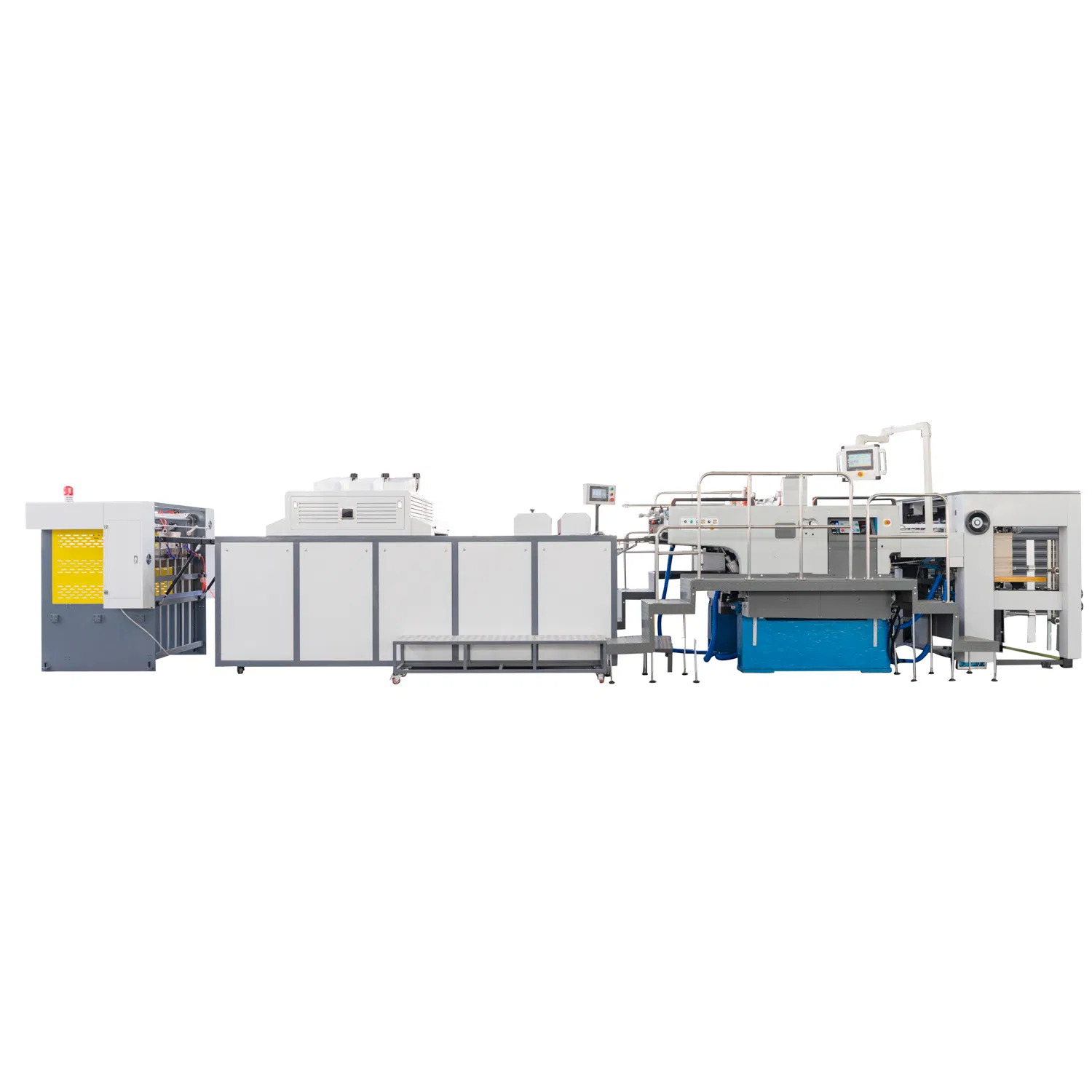

Automatic Screen Printing Machine for Spot UV Varnish

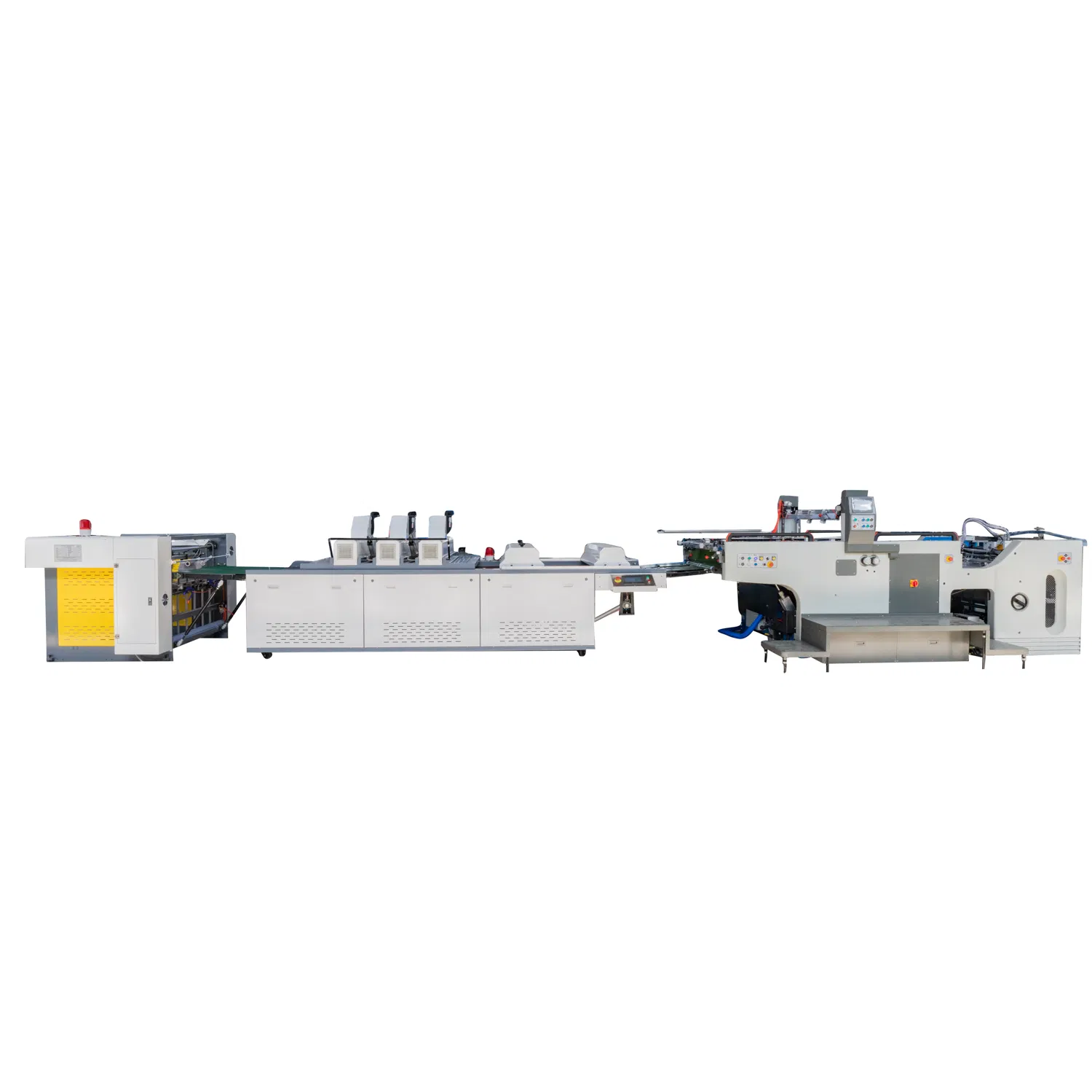

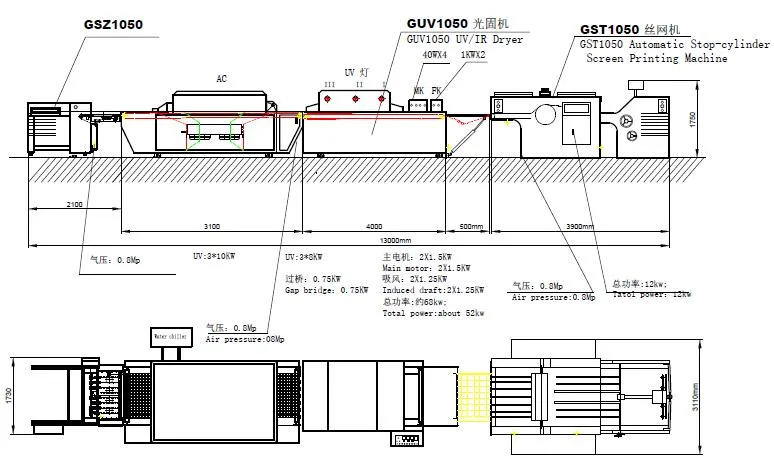

System Configuration: Automatic screen printing machine + UV Dryer + Sheet stacker

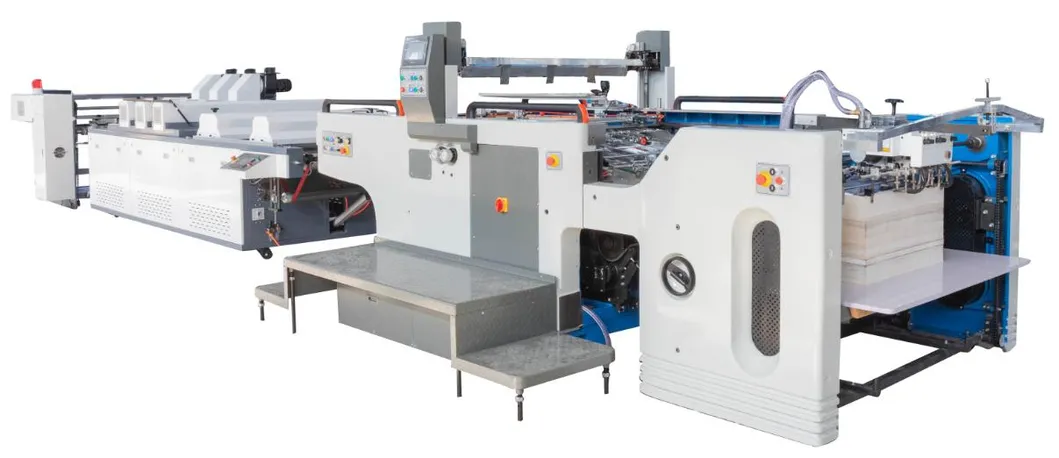

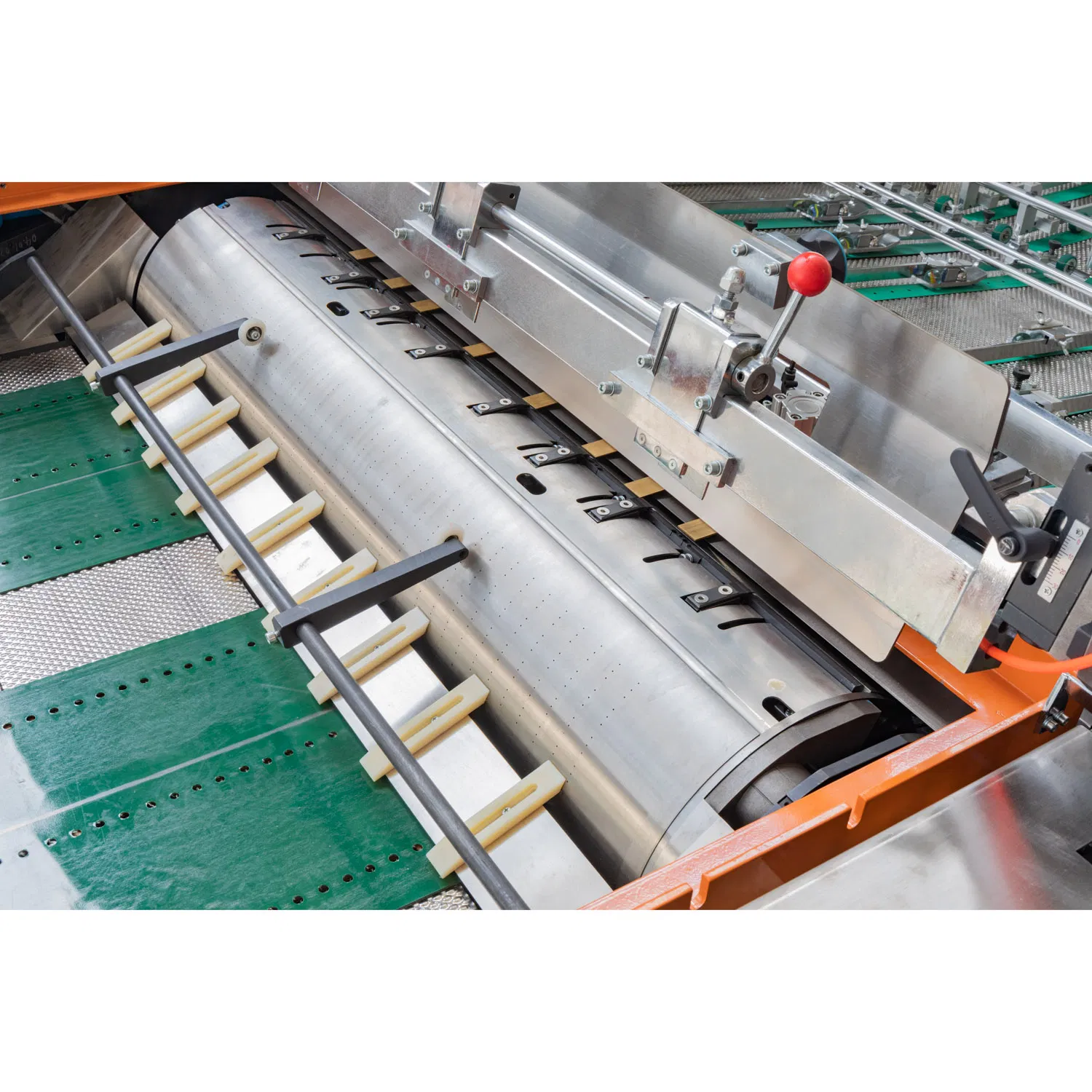

GST Series Automatic Stop-cylinder Screen Printing Machines are upgraded models from traditional Rotary Cylinder Printing Machines. This equipment adopts the classical "Stop-cylinder" printing movement instead of original "reciprocating movement". It ensures accurate paper positioning before scratch-print and significantly reduces waste. The high-speed revolving design improves register precision with minimal impact.
| MODEL | GST-720 | GST-800 | GST-1020 | GST-1050 |
|---|---|---|---|---|
| Max. Paper Size (mm) | 720×520 | 800×600 | 1020×720 | 1050×750 |
| Max. Printing Size (mm) | 720×510 | 800×590 | 1020×710 | 1050×720 |
| Paper Thickness (g/m²) | 90-250 | 120-250 | 90-350 | 90-350 |
| Printing Speed (p/h) | 500-3000 | 600-3000 | 600-3000 | 600-4000 |
| Total Power (kw) | 8 | 11 | 15 | 15 |
| Dimension (mm) | 3000×2300×1700 | 3500×2480×1710 | 3900×2900×1800 | 3800×3100×1800 |

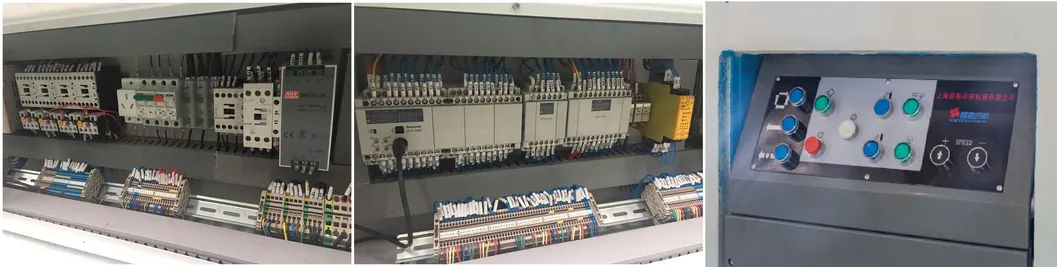

Panasonic PLC and German Muller electrical systems ensure reliability and stability. Redesigned operation panel for user convenience.

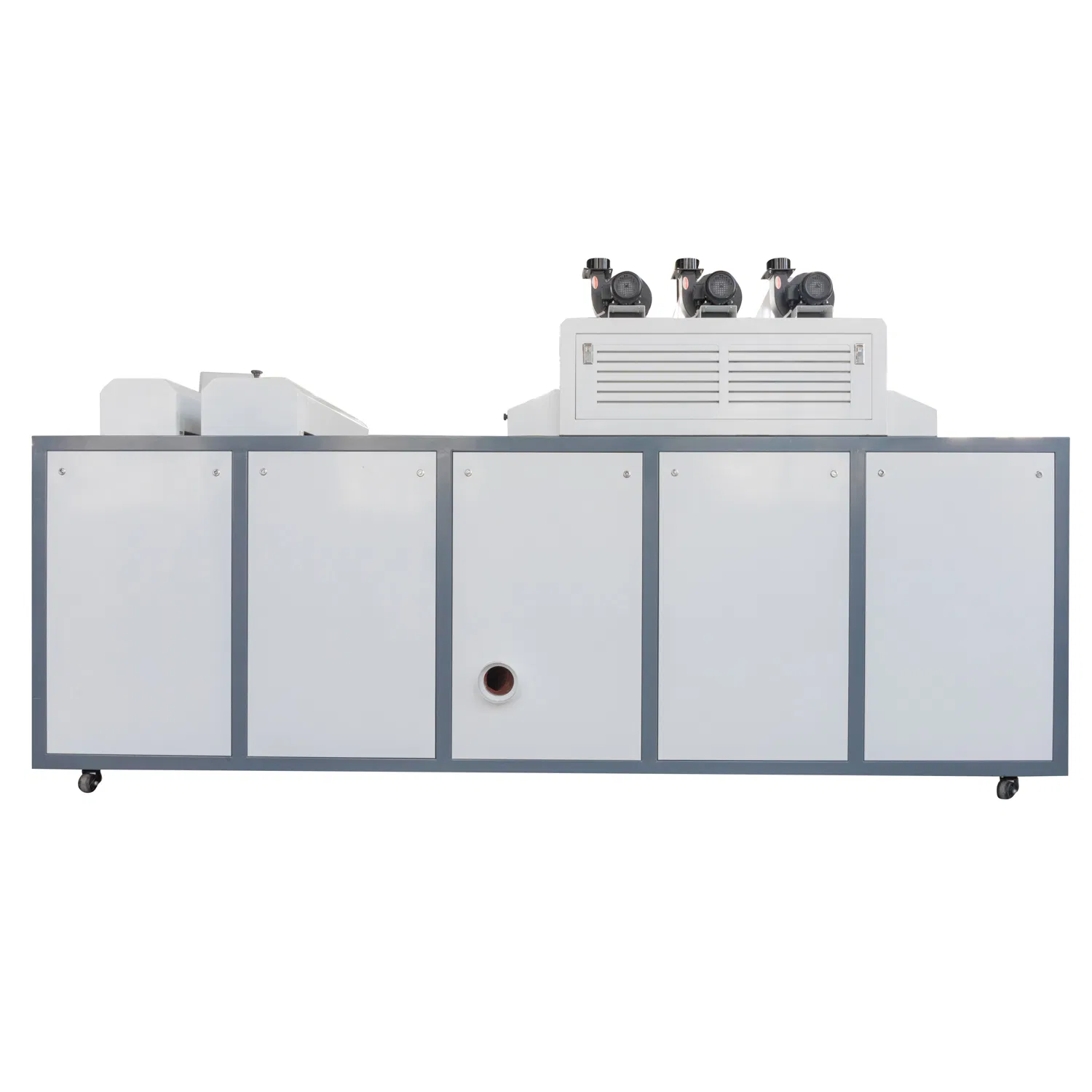

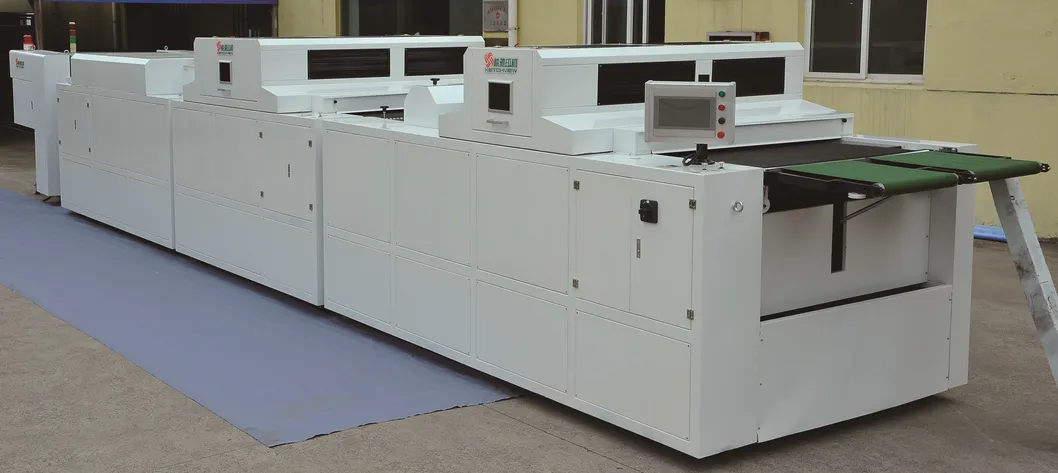

GUV/IR series UV Dryers are widely used for drying UV ink printed on paper, PCB, and nameplates. They provide high hardness, brightness, and anti-solvent properties to the printing surface.
| Model | GUV/IR900 | GUV/IR1050 |
|---|---|---|
| Max conveying width (mm) | 900 | 1150 |
| Conveyor Belt Speed (m/min) | 0-65 | 0-65 |
| UV Lamp x QTY (kw x pcs) | 8x3 | 10x3 |
| Total Power (kw) | 33 | 39 |
| Dimension (mm) | 5000x1600x1300 | 5000x1800x1300 |

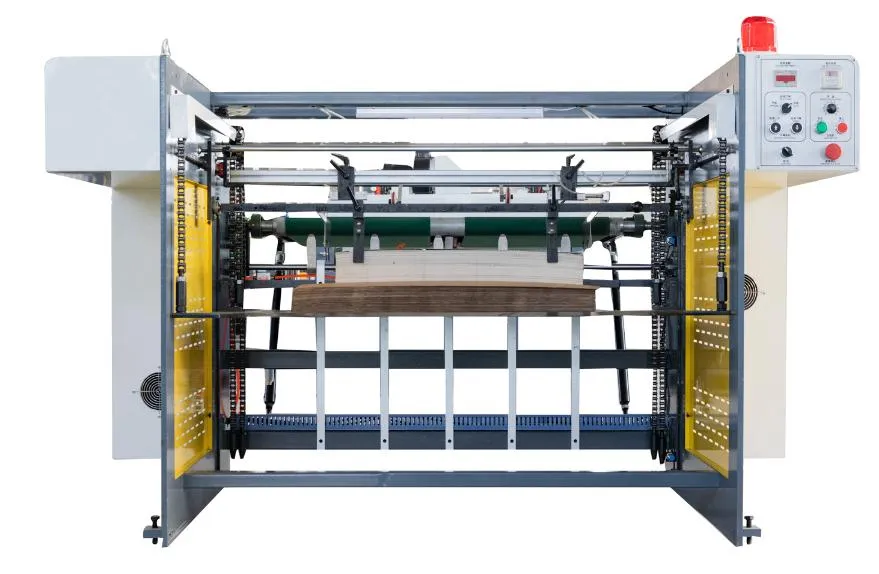

The GSZ sheet stacker is essential accessorial equipment for automatic cylinder screen printing, used to collect and pile paper efficiently.
| Model | GSZ900 | GSZ1050 |
|---|---|---|
| Max paper size (mm) | 900X650 | 1050X760 |
| Max Pilling height (mm) | 600 | 600 |
| Total power (KW) | 1 | 1 |
| Total weight (Kg) | 600 | 700 |

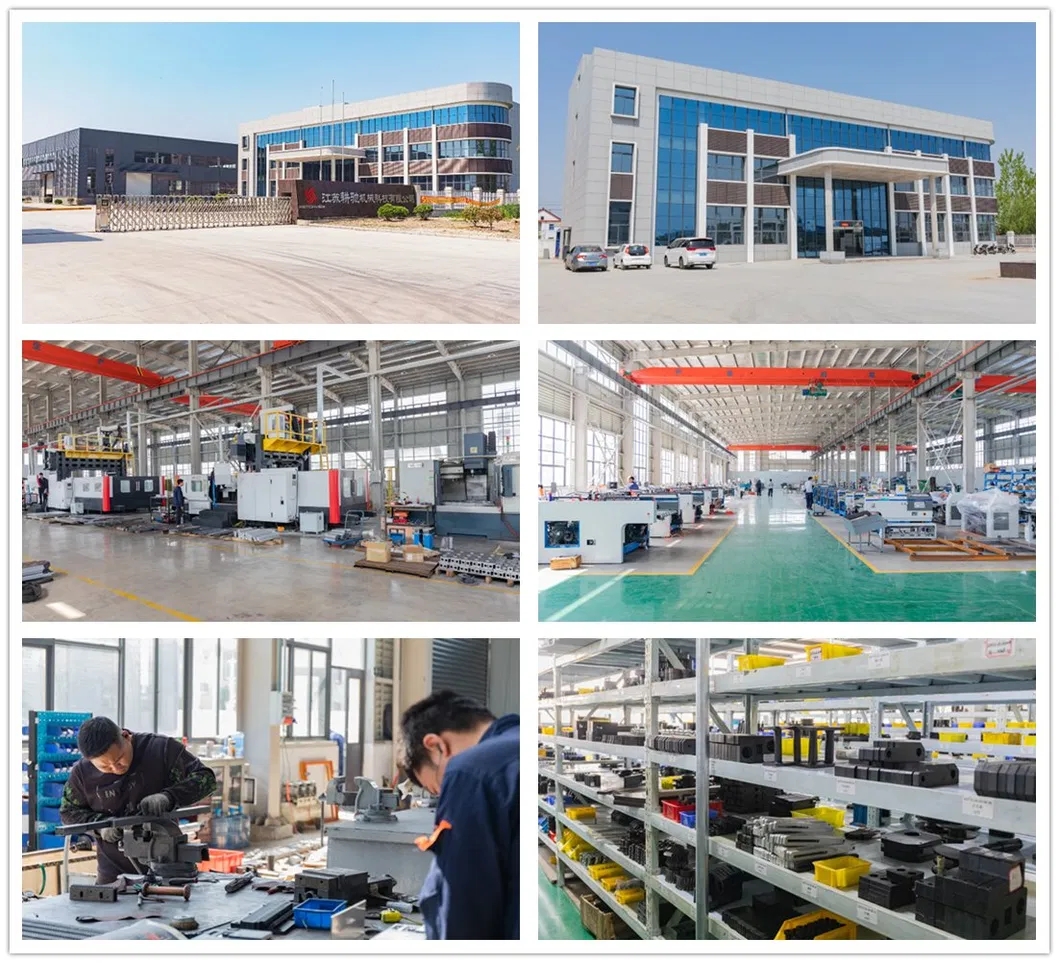

Our manufacturing facility specializes in high-performance screen printing machines. Products include automatic cylinder screen printing presses, semi-automatic series, and advanced IR/UV dryer units. We serve global industries including packaging, advertising, glass, ceramic decal, and PCB printing.
