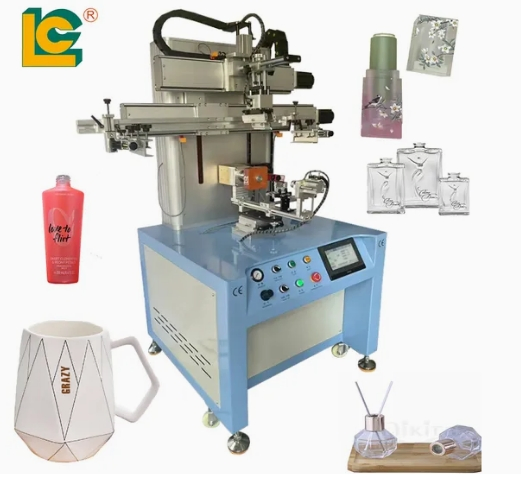

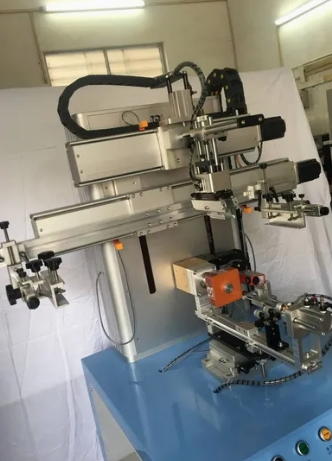

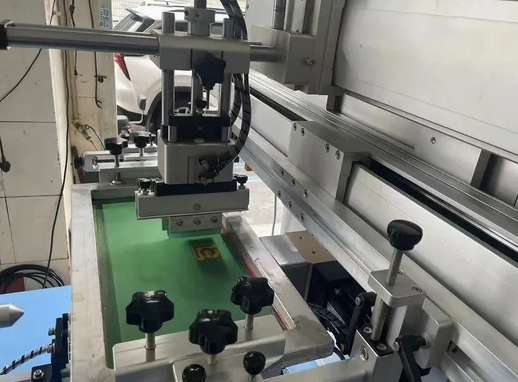

Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
1 / 5
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine
Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine

Customized Servo Motor Polygon Complicated-Shape Glass Cup Bottle Serigraphy Screen Printing Machine

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

i

Basic Information

Model NO. LC-PA-400RS
Type Vertical Screen Printing Machine
Style Screen-process Printing Press
Structure Platen Press
Application Bottle Printing
Production Capacity 10 set/Month
Package Size 150.00cm * 140.00cm * 170.00cm
Gross Weight 400.000kg
★

Multicolor Silk Screen Printing Machine

This high-precision silk screen printing machine is designed for glass and plastic bottle cups, featuring advanced servo motor technology for complicated shapes and high-quality finishes.

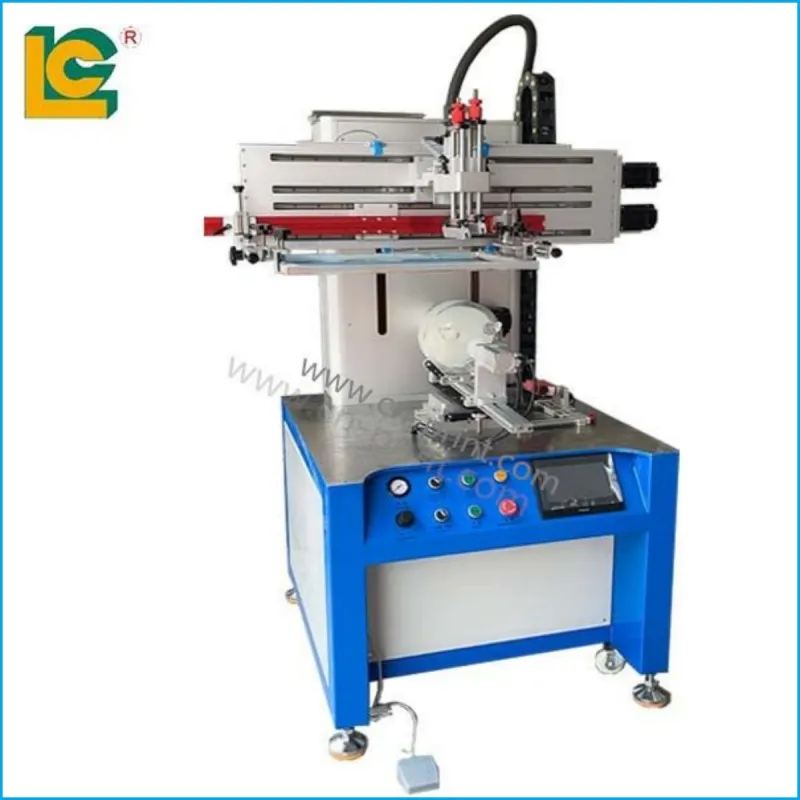

Screen Printing Machine Main
⚙

Technical Specifications

Product AppearanceRound, oval, square, triangle and alien shape bottles
Max. Printing DiameterΦ 220mm
Max Printing Arc LengthL: 670mm
Max Printing Area350 * 670mm
Printing Speed800 PCS/H
Air Pressure0.5Mpa
Voltage Power220V / 60HZ
Machine Size1000 * 900 * 1420mm
✔

Key Features

●
Multi-Shape Compatibility: Can print 10 kinds of shapes including round, oval, quadrilateral, triangle with arc, and irregular alien shapes.
●
Versatile Materials: Suitable for metal, plastic, ceramic, glass, and wood. Ideal for cosmetics, drinks, and industrial parts.
●

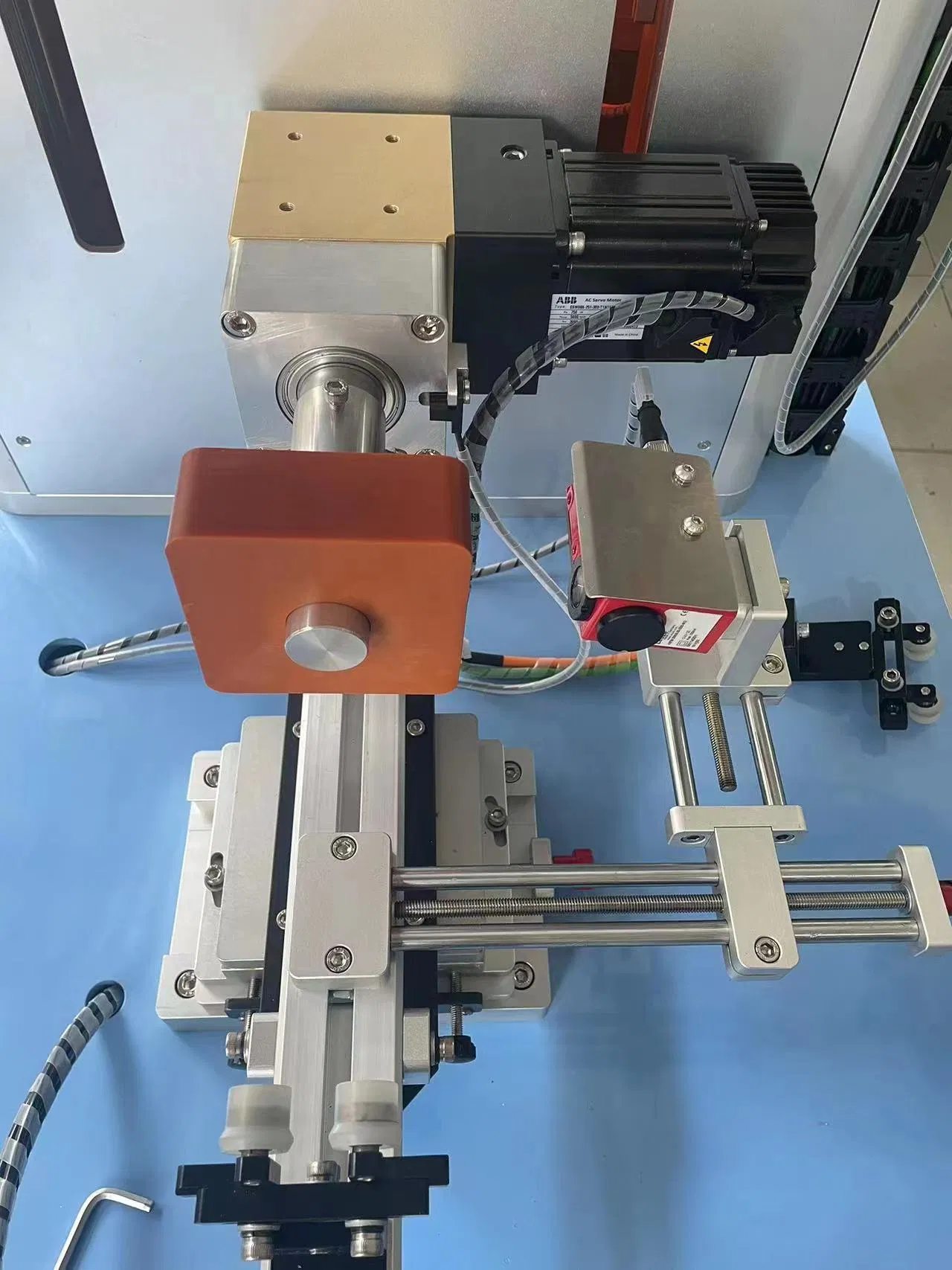

Four-Axis Servo: Enables simultaneous printing on multiple sides (up to 4+ sides). You can select specific surfaces for square or polygonal containers.
●

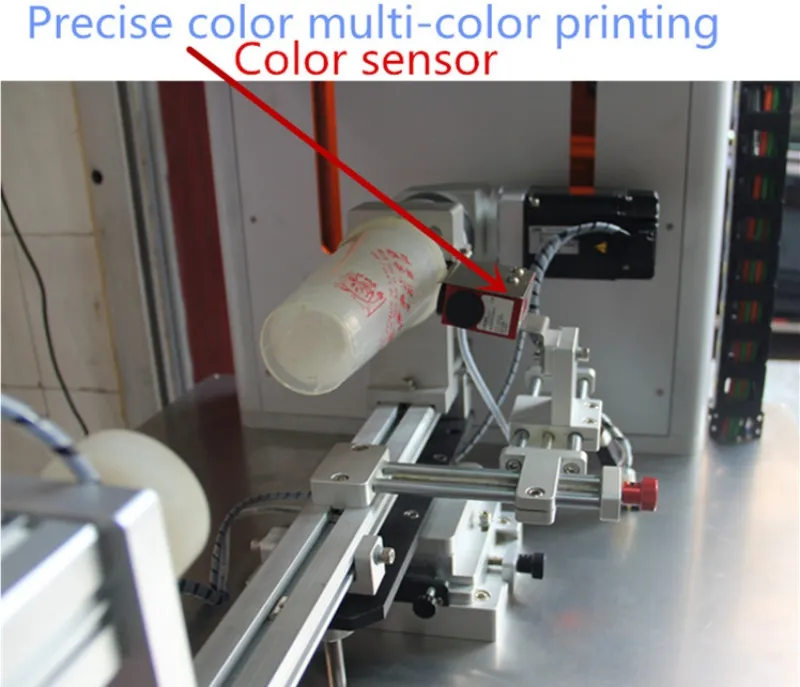

Automatic Registration: Equipped with a color sensor for precise multi-color overprinting and registration.
●
Remote Maintenance: Supports remote control for program updates and technical maintenance.
P

Printing Samples

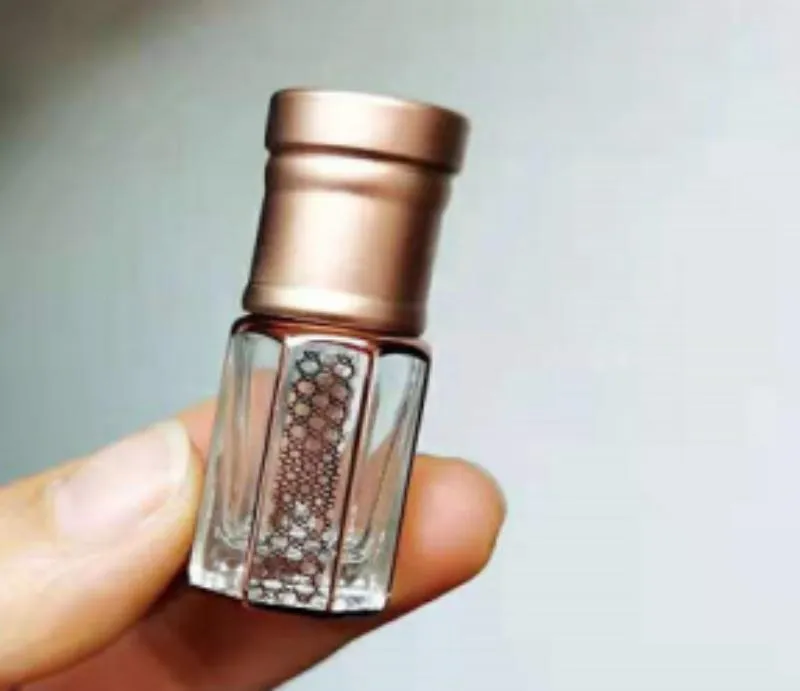

Sample 1

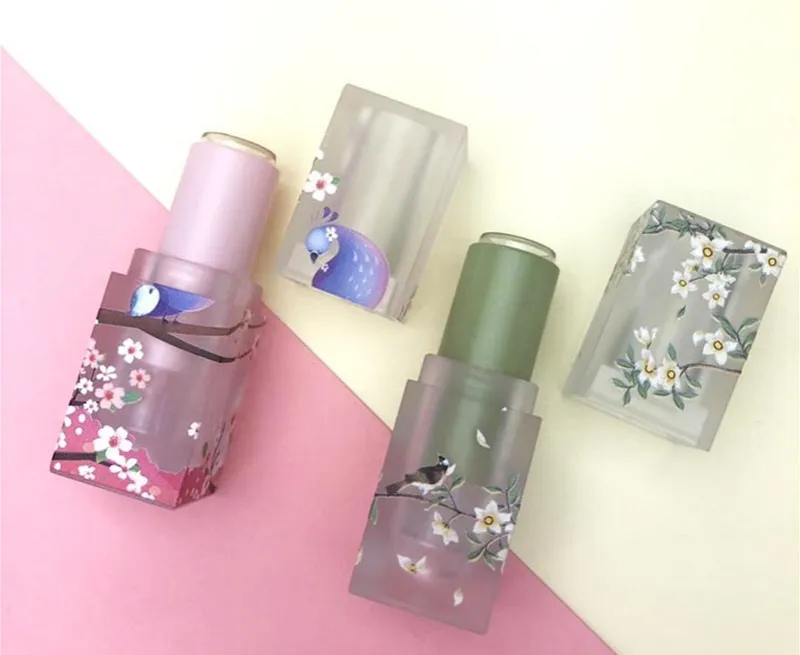

Sample 2

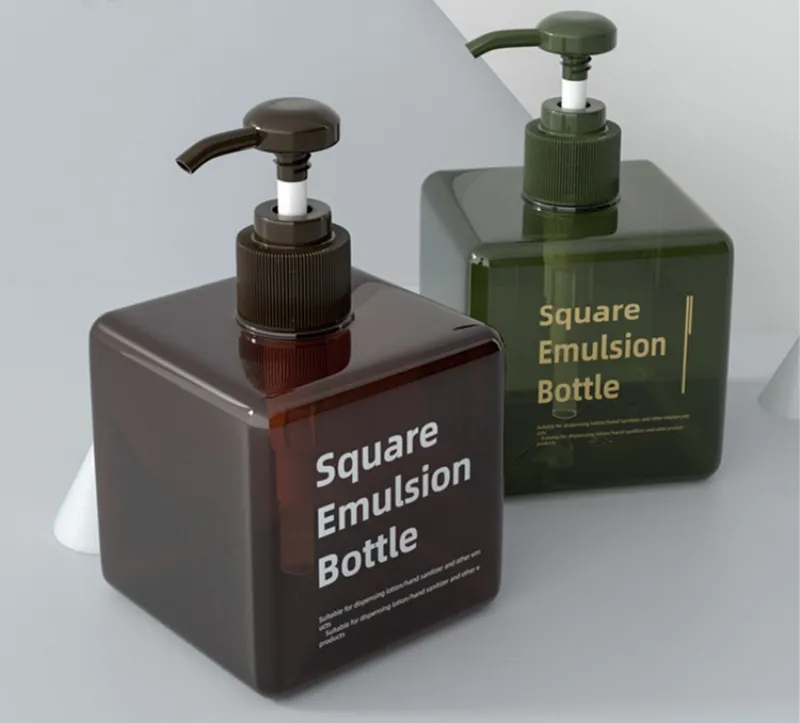

Sample 3
D

Product Display

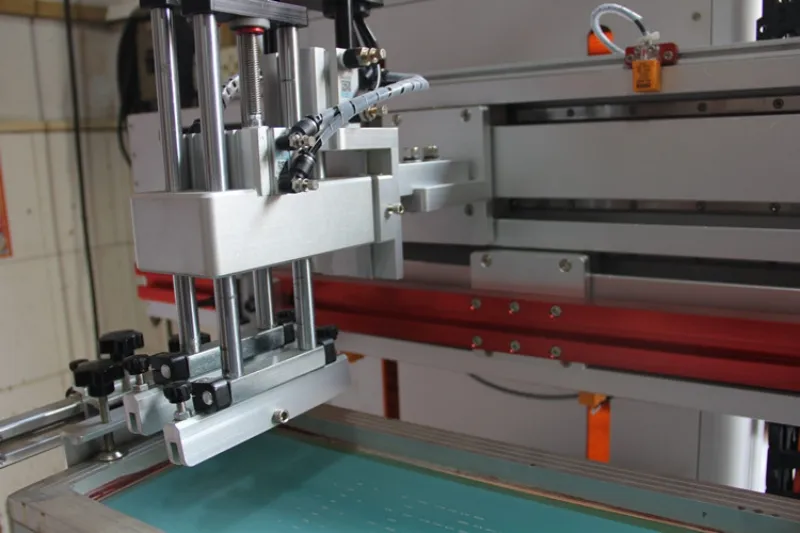

Display 1
Display 2

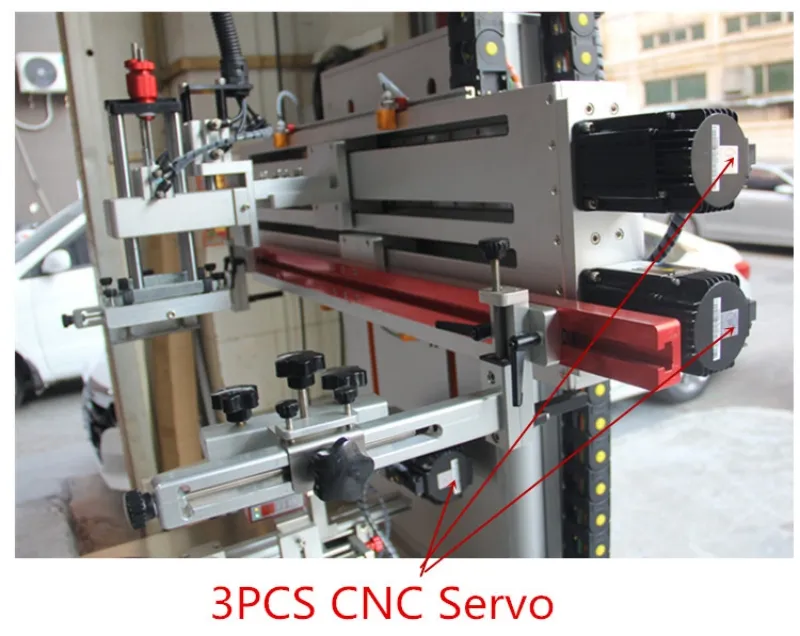

Display 3

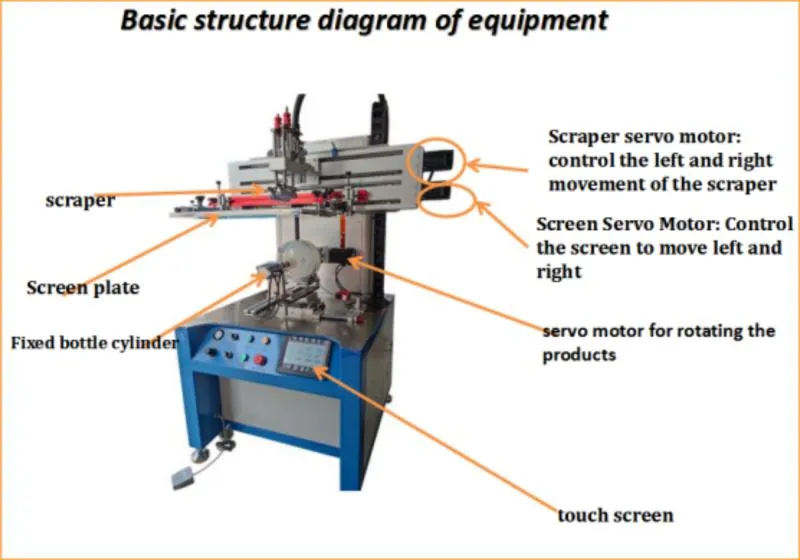

Display 4

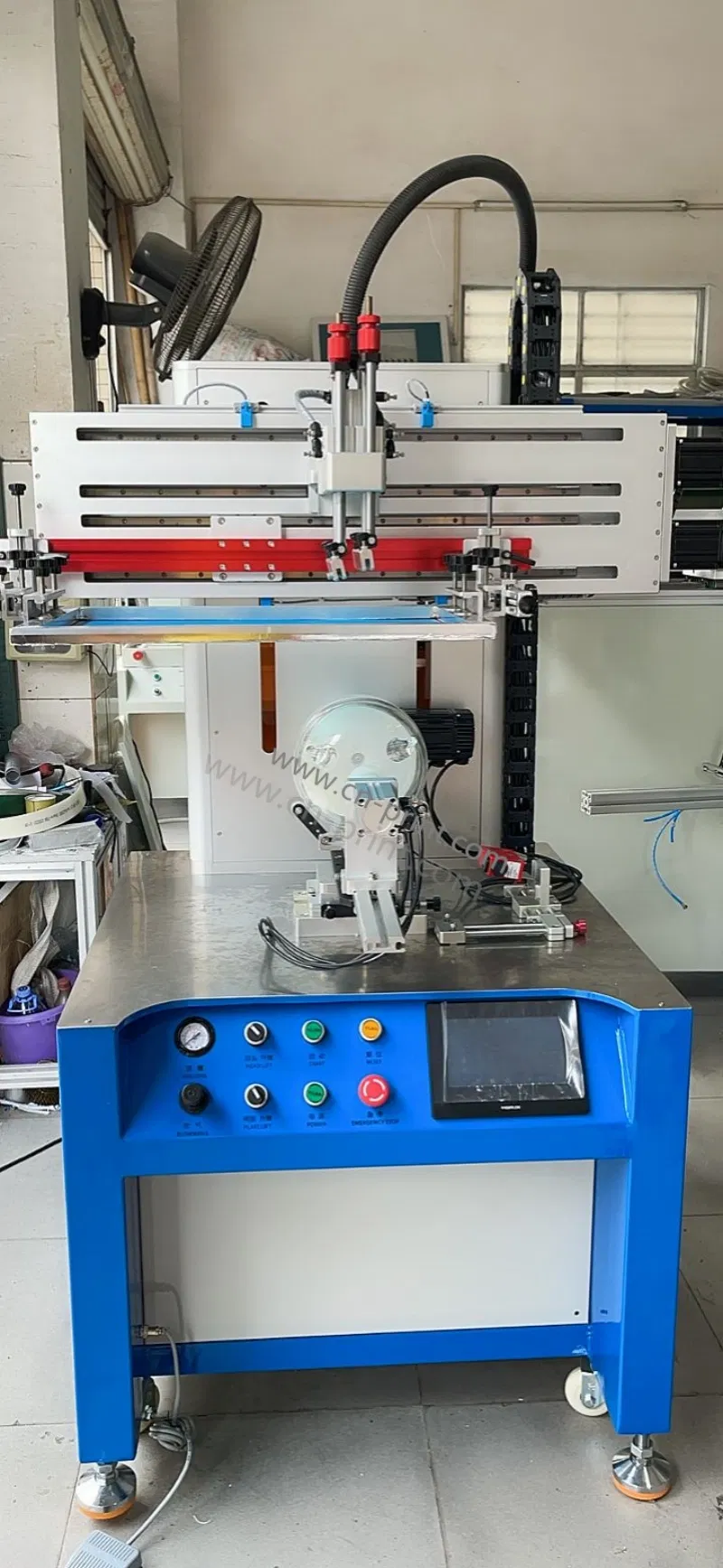

Display 5
Full Specification Chart
?

Frequently Asked Questions

Q1: What types of bottle shapes can this machine handle? A1: It supports a wide variety of shapes, including round, oval, square, triangle, and even complex alien or irregular shapes.
Q2: Can it print on materials other than plastic? A2: Yes, the machine is highly versatile and can print on metal, ceramic, glass, wood, and various plastic materials.
Q3: How does the machine handle multi-color printing? A3: The machine is equipped with a high-precision color sensor that allows for automatic color registration and accurate multi-color printing.
Q4: Is it possible to print on multiple sides of a square bottle at once? A4: Yes, thanks to the four-axis servo system, you can choose to print on 2, 3, or 4 sides in a single operation.
Q5: Does the machine support remote technical support? A5: Yes, it can be equipped with remote control capabilities for software updates and program maintenance.
Q6: What is the maximum production speed of the LC-PA-400RS? A6: The machine has a printing speed of approximately 800 pieces per hour, depending on the product complexity.
