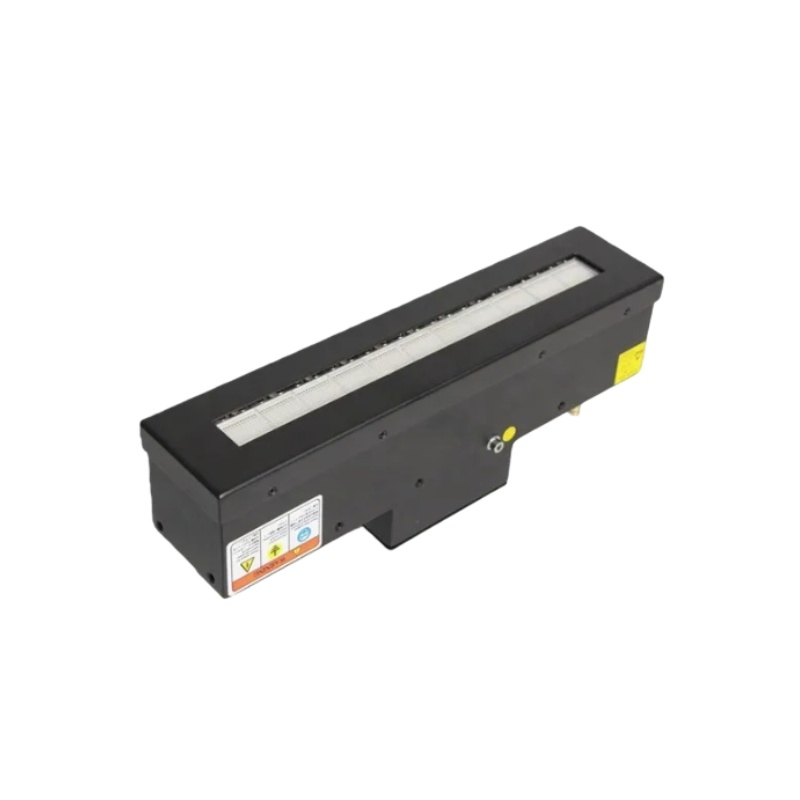

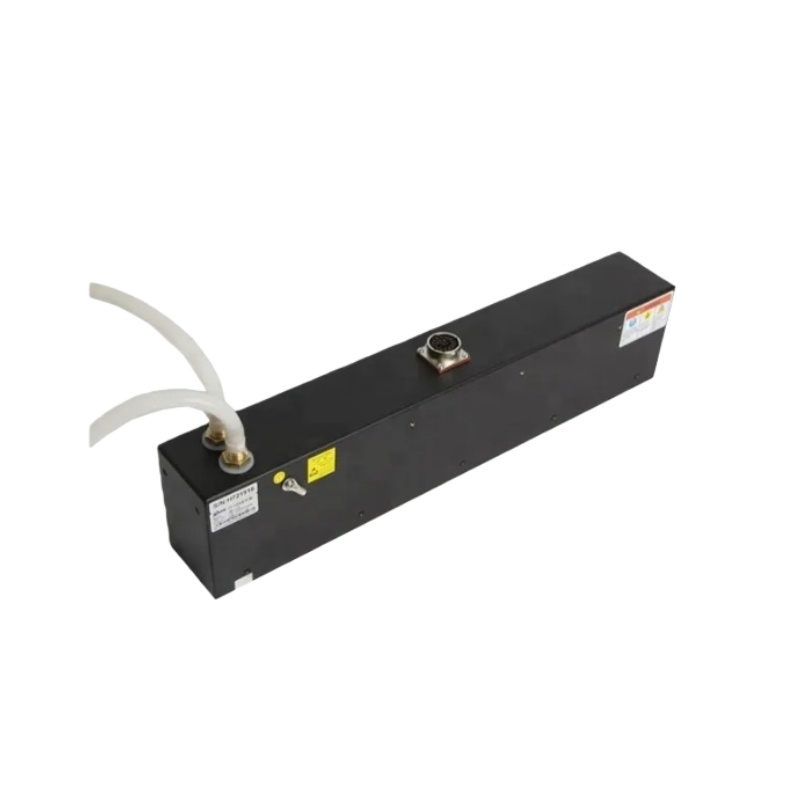

Customizable Size UV Light Curing Lamp System for UV Flexo Digital Printing Ink and Varnish
Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)
| Model NO. | A280F20 | Certification | RoHS, ISO, CE |
|---|---|---|---|
| Warranty | 12 Months | Wavelength | 365nm/385nm/395nm/405nm(±5) |
| Input Voltage | AC100~240V | Frequency | 50/60Hz |
| Cooling Method | Air-Cooled and Water-Cooled | LED Life | 20000hrs |
| Control Method | RS232/Pedal/PLC | LED Beam Size | 20X80mm |
| UV Intensity | 1~20W/Cm2 | Package Size | 46.00cm * 43.00cm * 25.00cm |
| #A280F20 Technical Specifications | ||

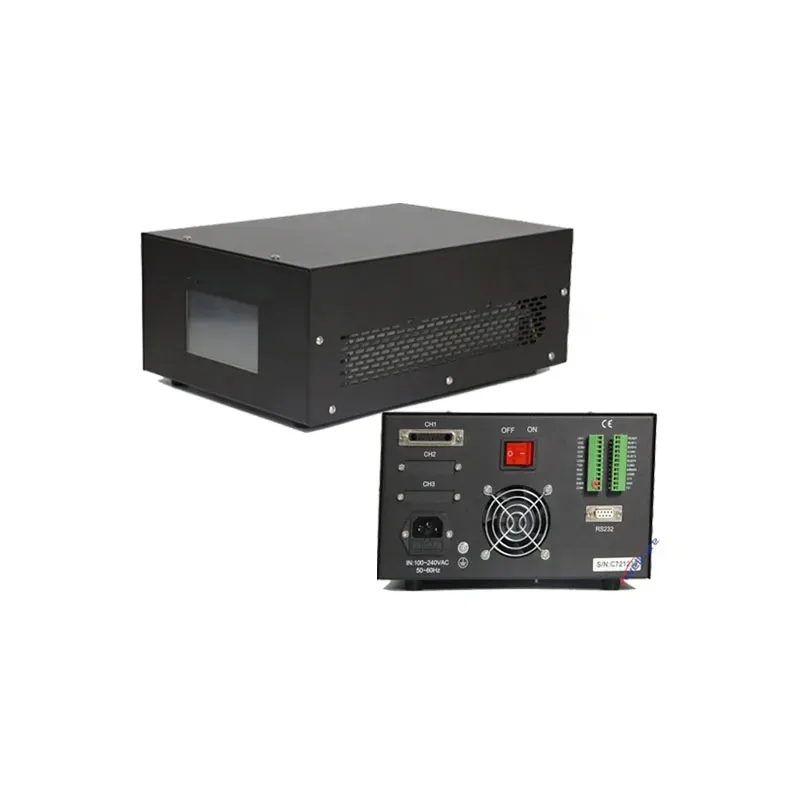

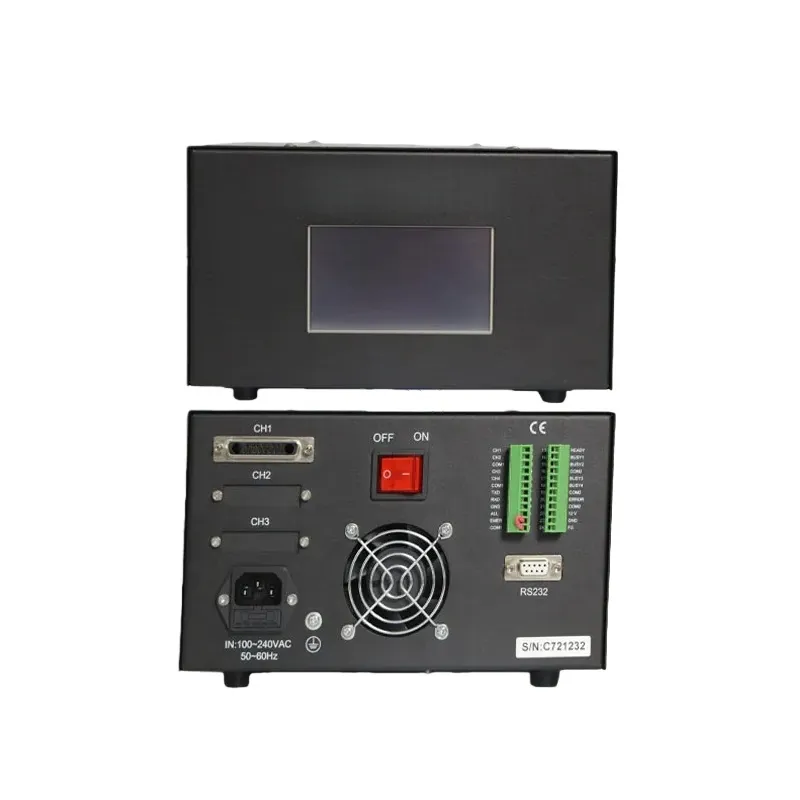

| CONTROLLER | Voltage | 100-240V AC |
| Control Method | Touch/Pedal/RS232 Port/PLC | |
| Irradiation Power Range | 10%~100%mW | |
| Irradiation Mode | Manual / Automatic (0.1-999.9S) / Ladder (1-20 Steps) / Pulse | |
| Communication | RS232 Serial Port / I/O Interface | |
| Working Temp | 0-45ºC (Humidity: 30-85RH) | |

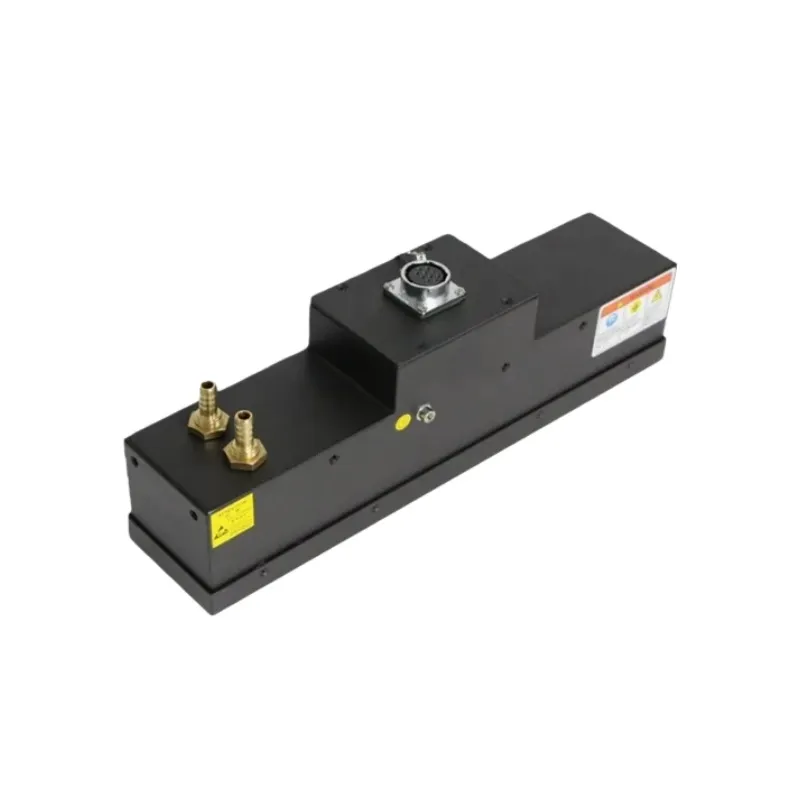

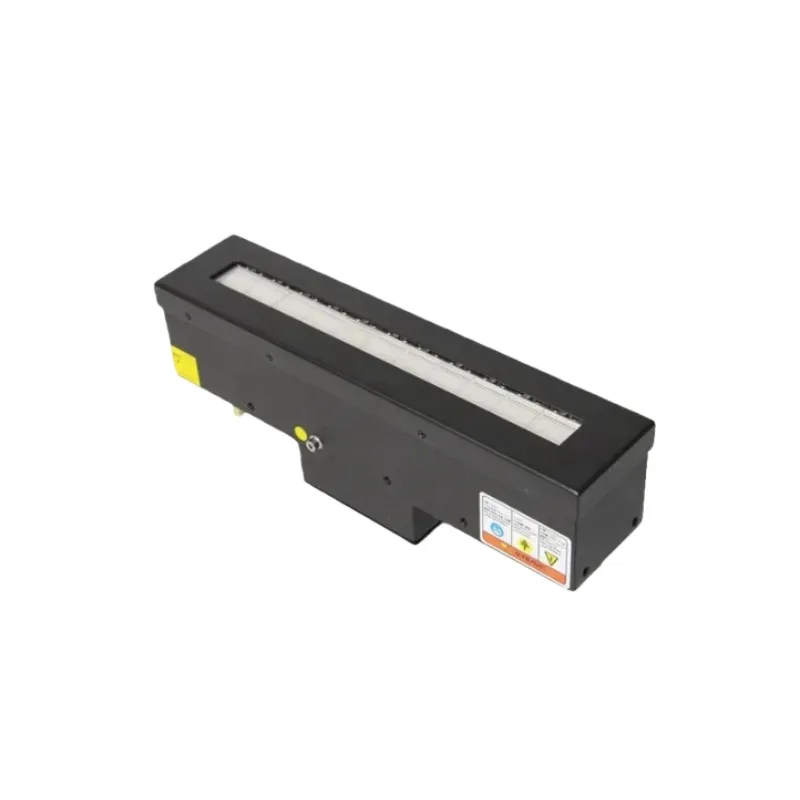

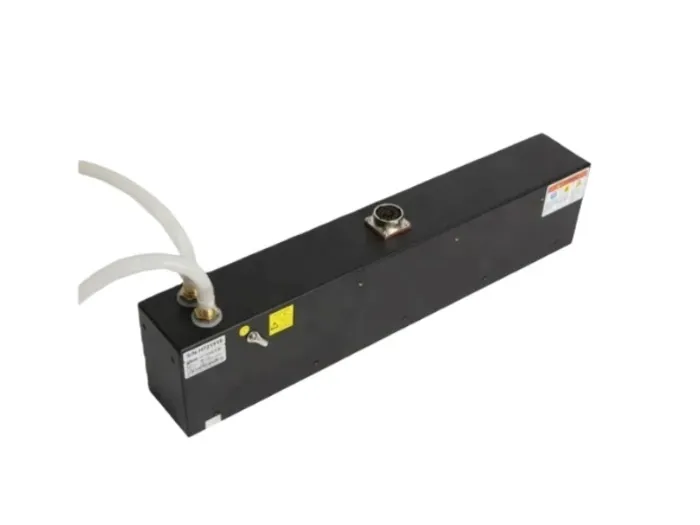

| IRRADIATION HEAD | LED Type | Imported |
| Usage Time | 20000Hrs @80% power | |
| Wavelength | 365nm/385nm/395nm/405nm(±5) | |
| Luminous Size | 20x80mm | |
| Peak Intensity | 10~20W/cm² | |
| Cooling | Air cooled / Water cooled | |
A UV LED Spot Curing System is an advanced industrial device that utilizes high-intensity, light-emitting diodes (LEDs) to generate concentrated ultraviolet (UV) light. This focused "spot" of UV energy is designed to rapidly cure (harden) photosensitive materials such as adhesives, coatings, inks, and resins within seconds or even milliseconds. Its core principle lies in triggering a photochemical reaction in the material's photoinitiators, leading to instant polymerization.
1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
3. UV Ink: UV printing, 3D printing
