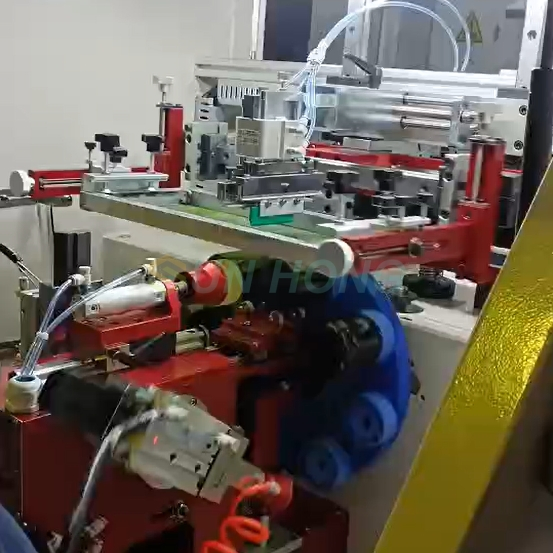

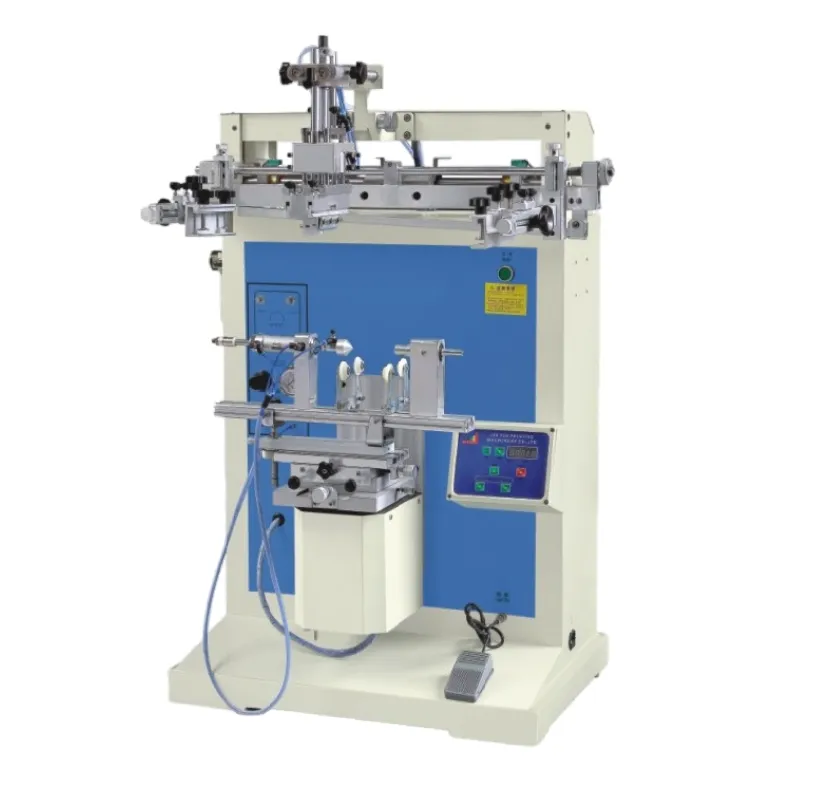

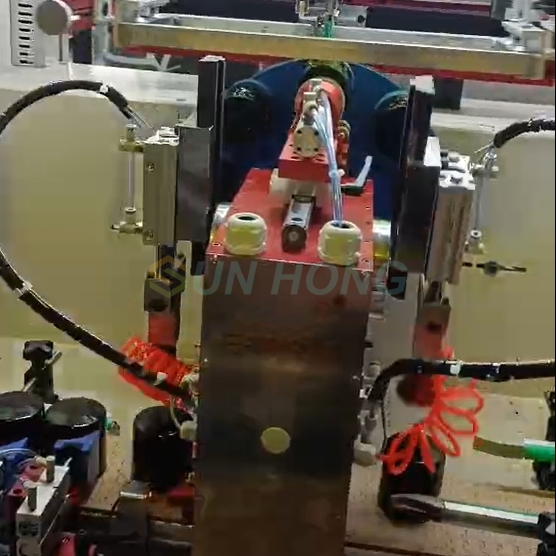

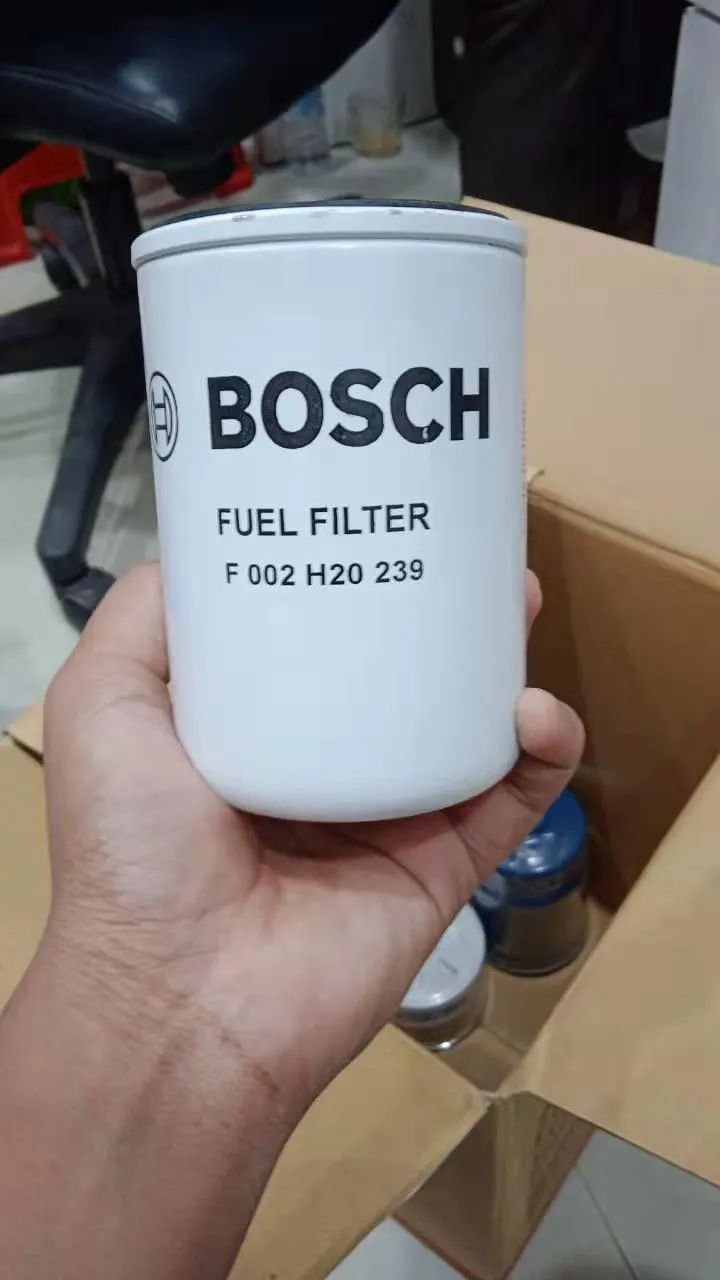

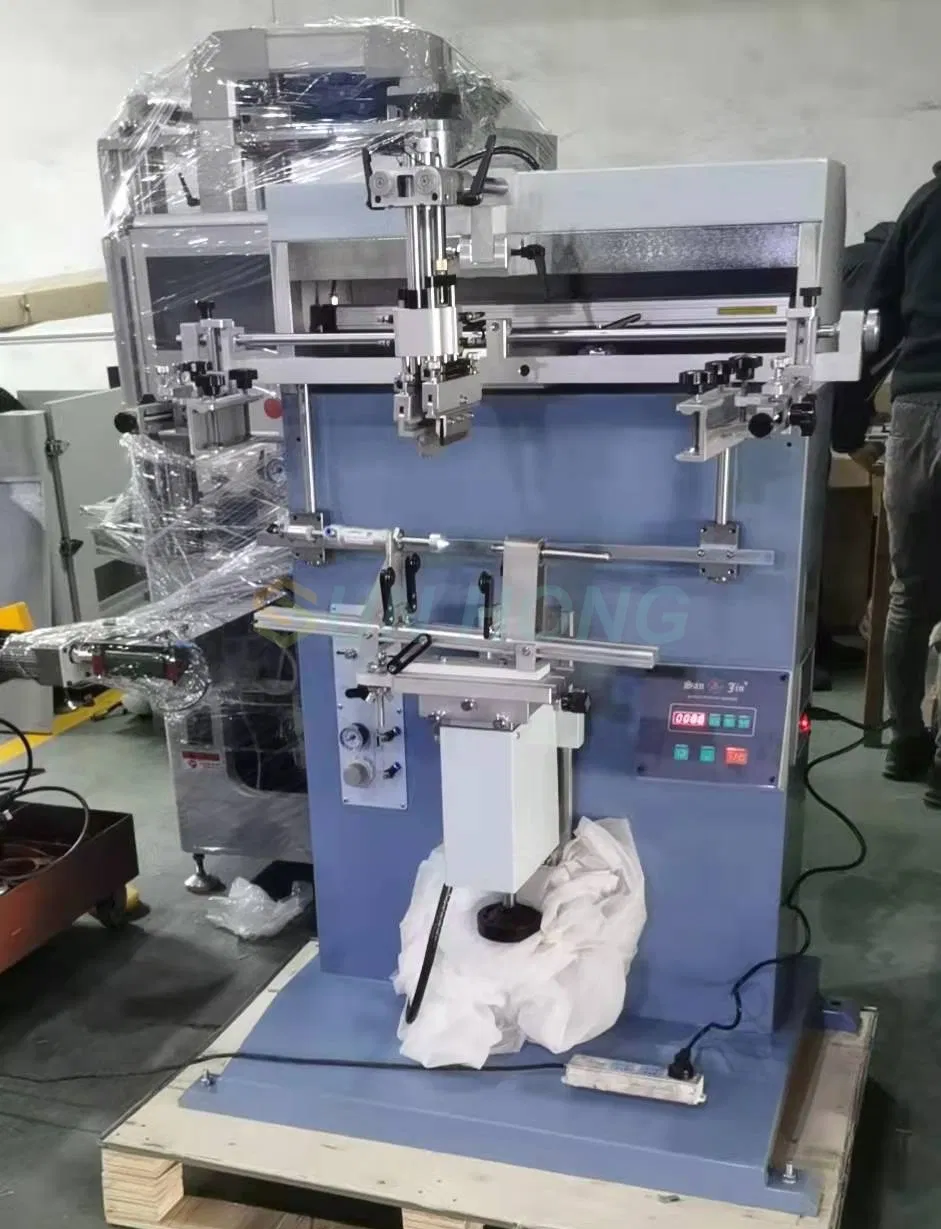

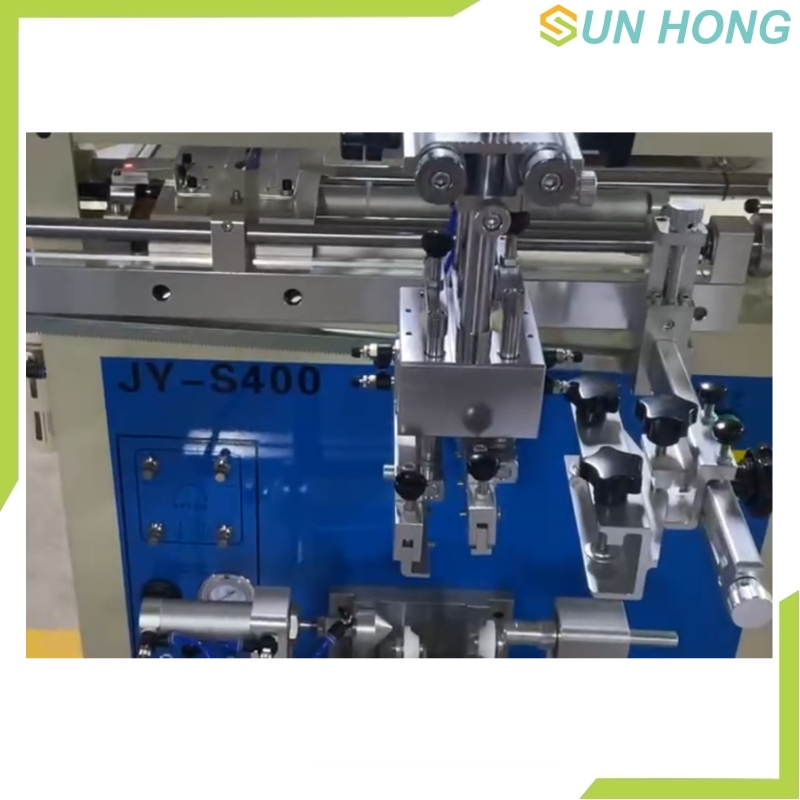

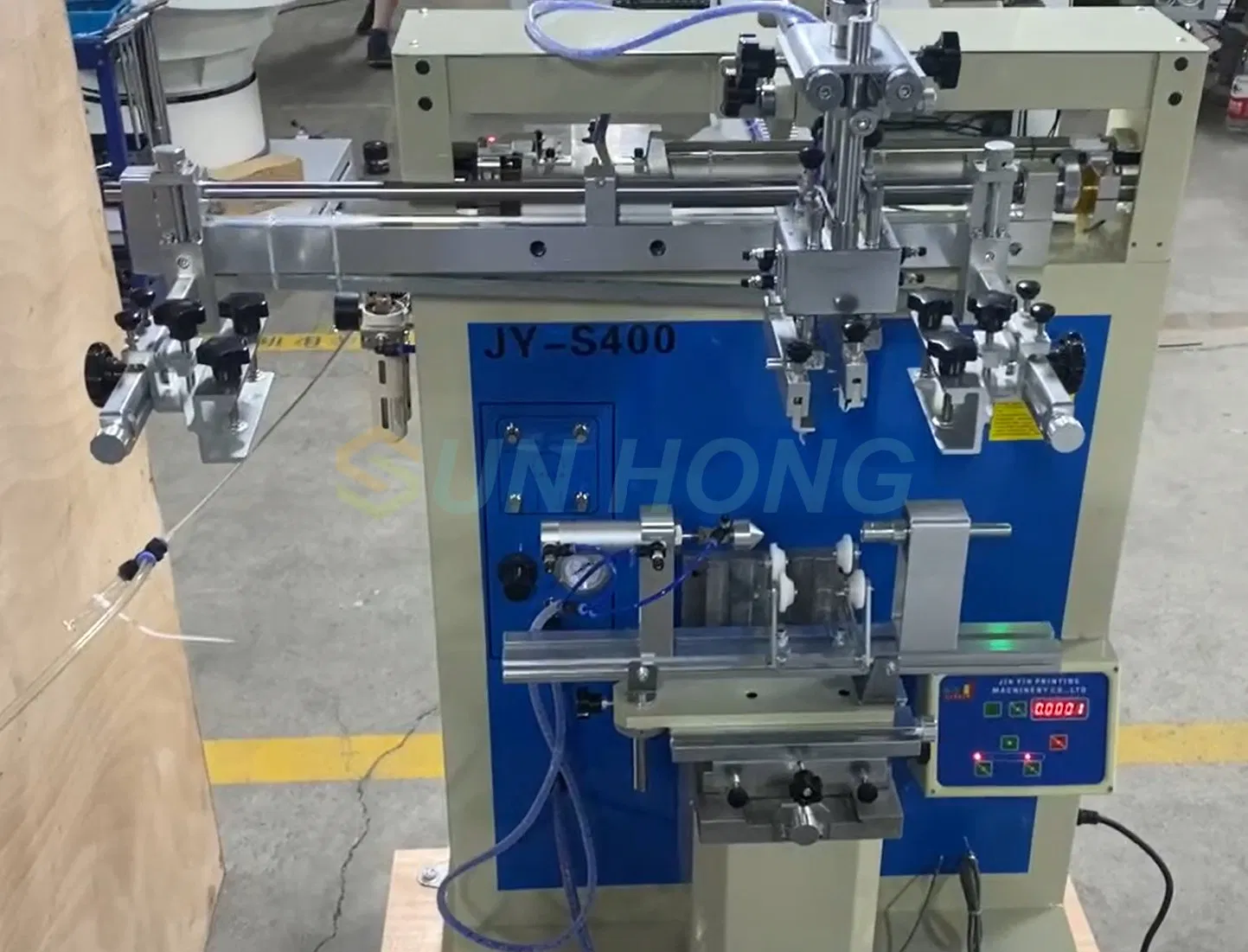

Application: Specifically engineered for printing the shell of car spin-on oil fuel filters.
| Printing Diameter | ≤300mm |
| Printing Length | ≤320mm |
| Printing Taper | Positive ≤15° / Negative ≤7° |
| Max Circle Diameter | ≤125mm |
| Power Supply | 220/110V 50/60HZ |
| Compressed Air | 4-6 bar |
| Printing Speed | 1200 pcs/hr |
| Registration Accuracy | 0.05mm |
| Weight / Dimensions | 100kg / 1300×900×670mm |

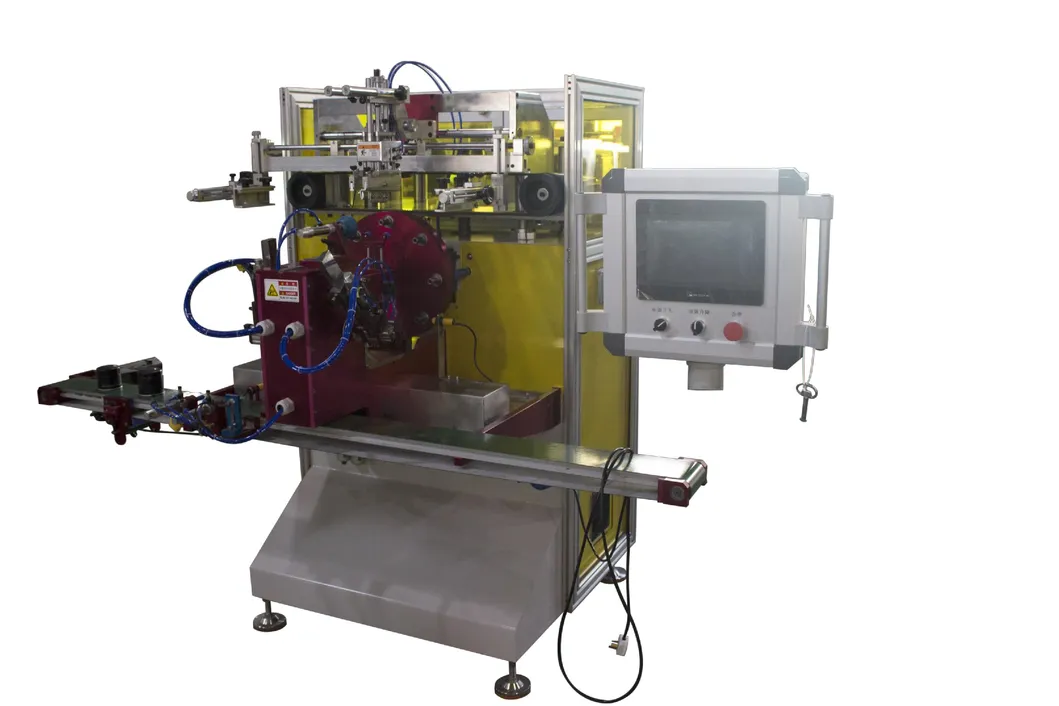

Application: High-efficiency automated solution for spin-on filter shell printing.
| Filter Diameter Range | 55-100mm |
| Printing Speed | 35-45 pcs/min |
| Filter Height | 60-150mm |
| Air Pressure | 0.6Mpa |
| Motor Power | 3Kw |
| Conveyor Motor | 120W |
| Power Supply | 380V/50Hz |
| Weight / Size | 500kg / 2000×1300×1700mm |
A: It is primarily designed for car spin-on oil and fuel filter shells, but it can handle various cylindrical, flat, and plane objects within the specified dimensions.
A: The Full Auto Type machine can achieve a printing speed of 35 to 45 pieces per minute, significantly enhancing production efficiency.
A: No, the machine features a microcomputer intelligent IC and an intuitive touch panel, making it easy to compile action programs and operate.
A: Yes, the machine includes an automatic balance scraper that ensures even pressure, and settings can be adjusted to meet specific quality requirements.
A: The machine provides high precision with a registration accuracy of approximately 0.05mm, ensuring clear and professional printing results.
A: The manual model typically uses 220V/110V, while the heavy-duty automatic model requires a 380V/50Hz power supply.
