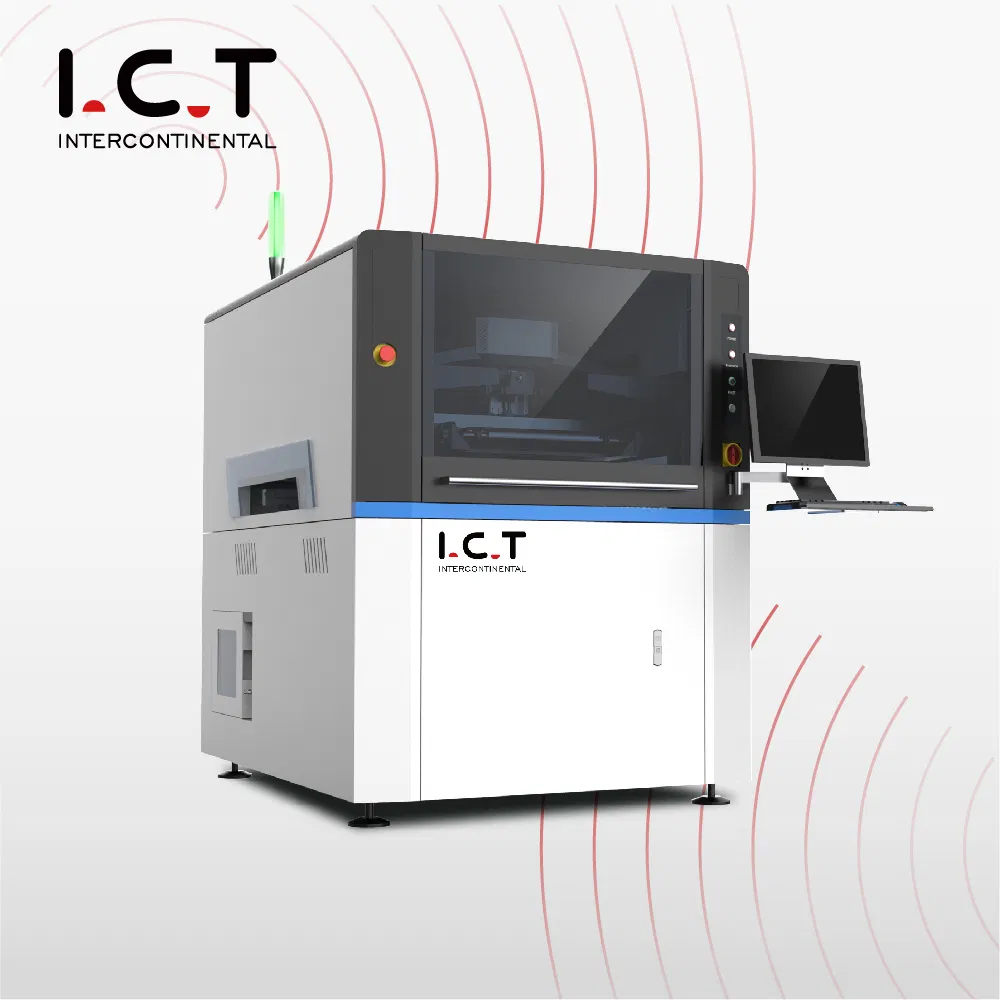

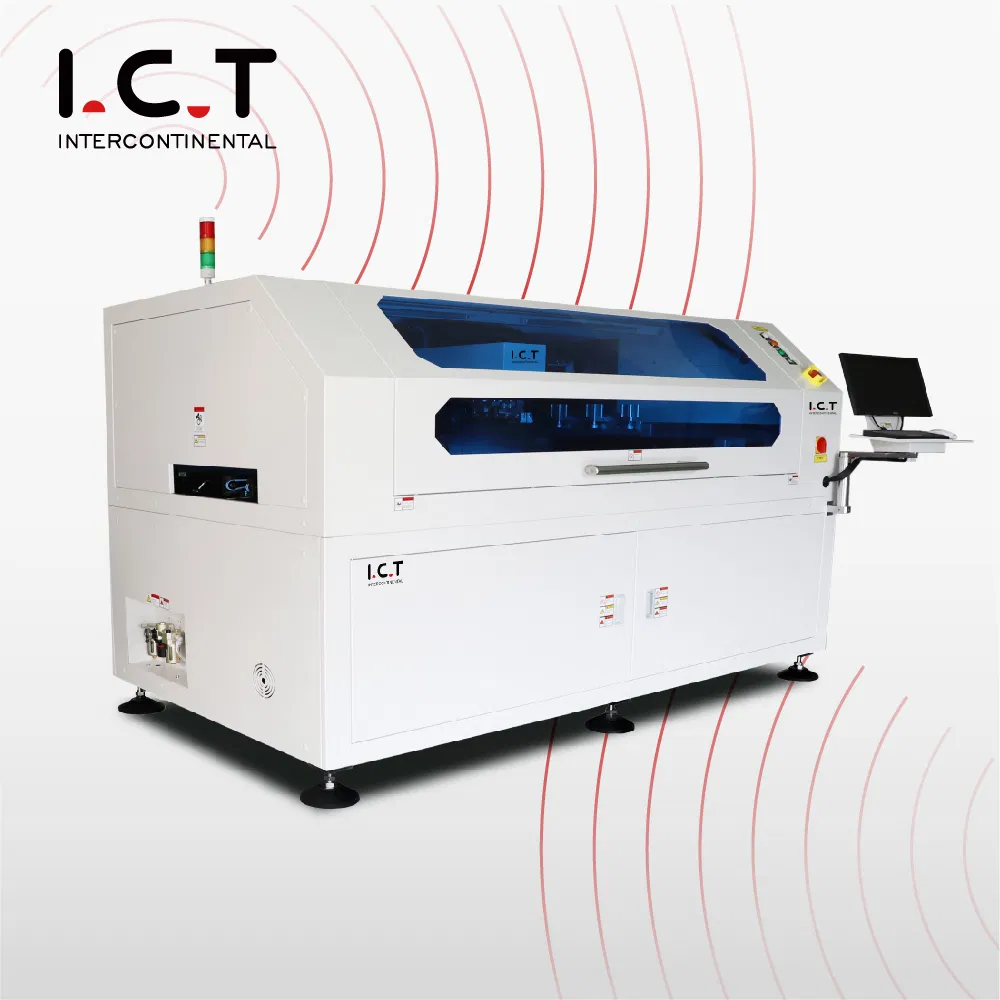

Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
1 / 5
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China
Best Price SMT Stencil Screen Printing Machine PCB Printer From China

Best Price SMT Stencil Screen Printing Machine PCB Printer From China

Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Structure: Single-revolution printing press
Send Inquiry

Product Description

📋 Technical Specifications

Model NO.4034
ApplicationPrinted Circuit
Frame Size470*370 ~ 737*737
PCB Size50*50 ~ 400*340mm
PCB Thickness0.4~6mm
PCB Warpage<1%
Transport Height900±20mm
Transport SpeedMax 1500mm/S
Support SystemMagnetic Pin / Support Block
Clamping SystemSide Clamping, Vacuum Nozzle
Printer HeadTwo Independent Motorised Printhead
Specification1220*1355*1500mm
Capacity50 set/Month

⚙️ Product Description

High-Precision SMT Stencil Screen Printing Machine

This automatic SMT stencil printer is designed for high-accuracy solder paste printing on printed circuit boards. It features two independent motorized printheads and a sophisticated clamping system to ensure stable production for various PCB thicknesses and sizes.

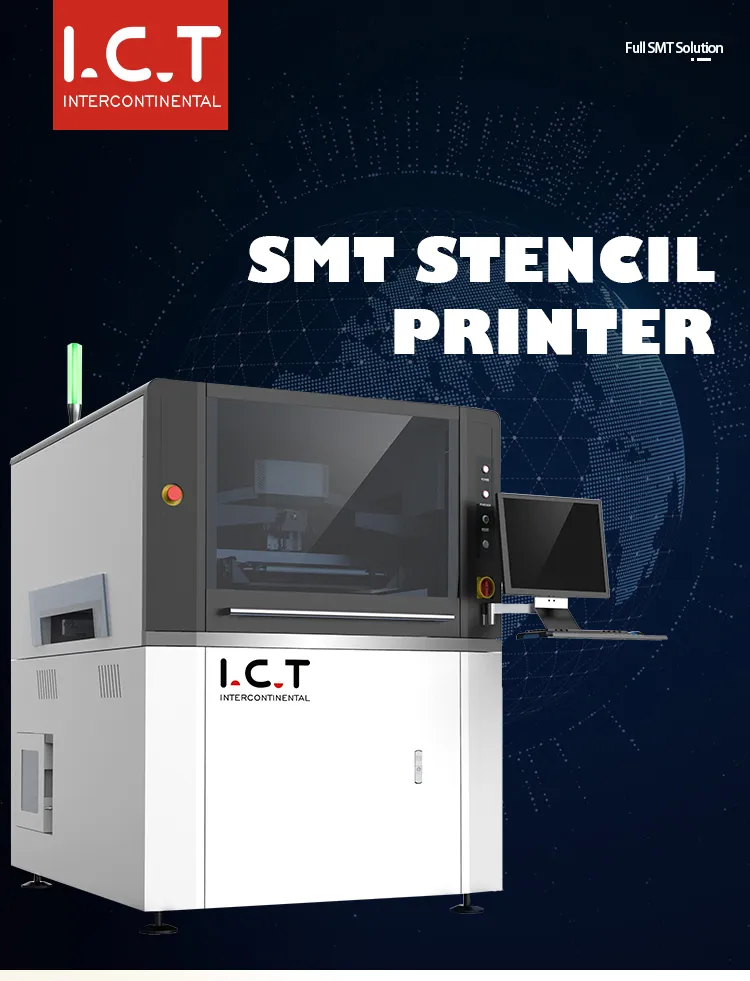

SMT Printer Overview
Printing Detail

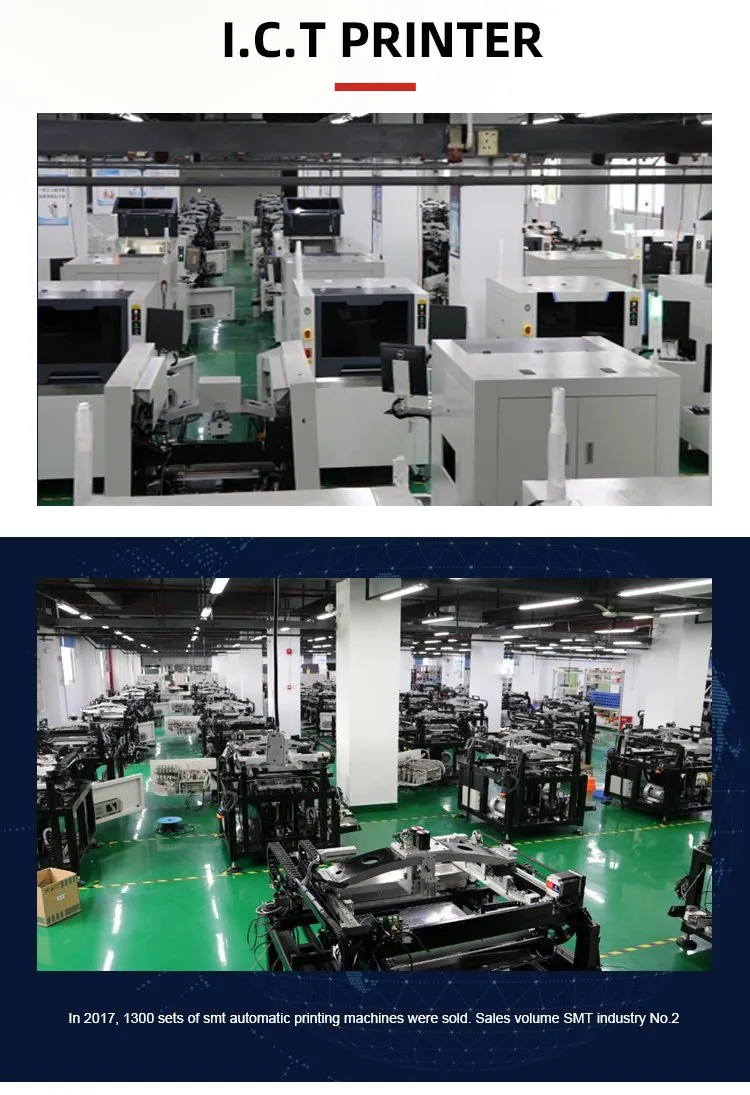

Inner Mechanism

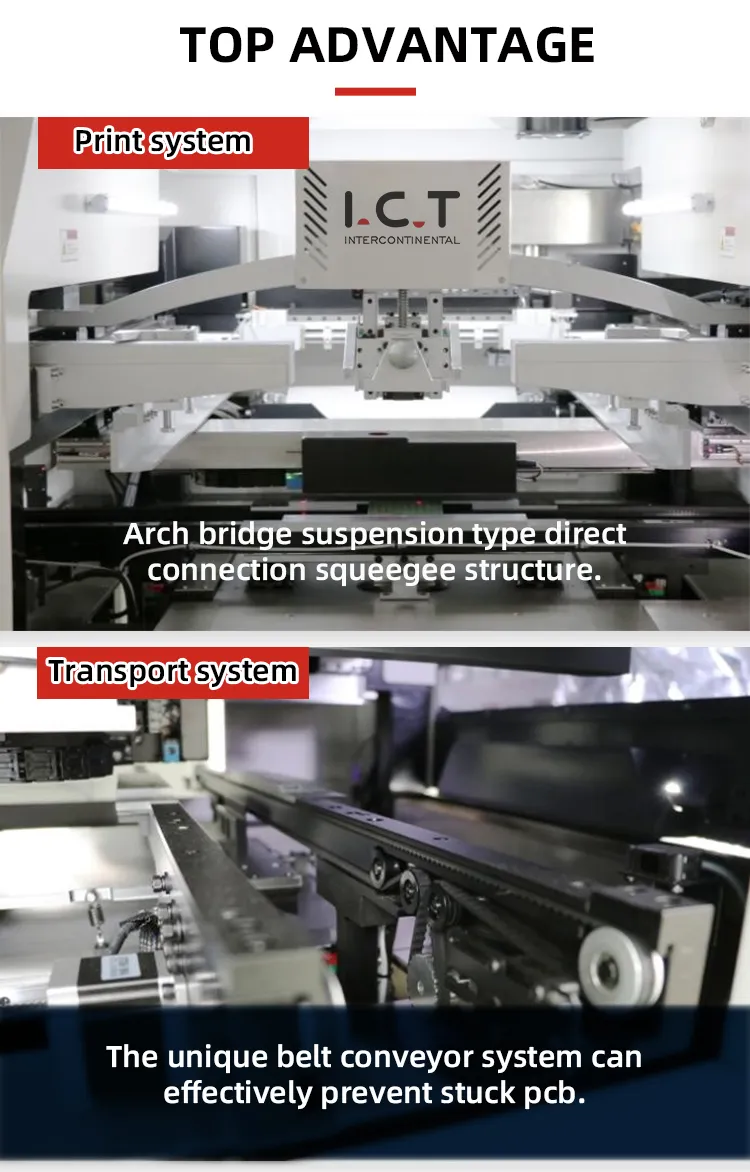

System Interface

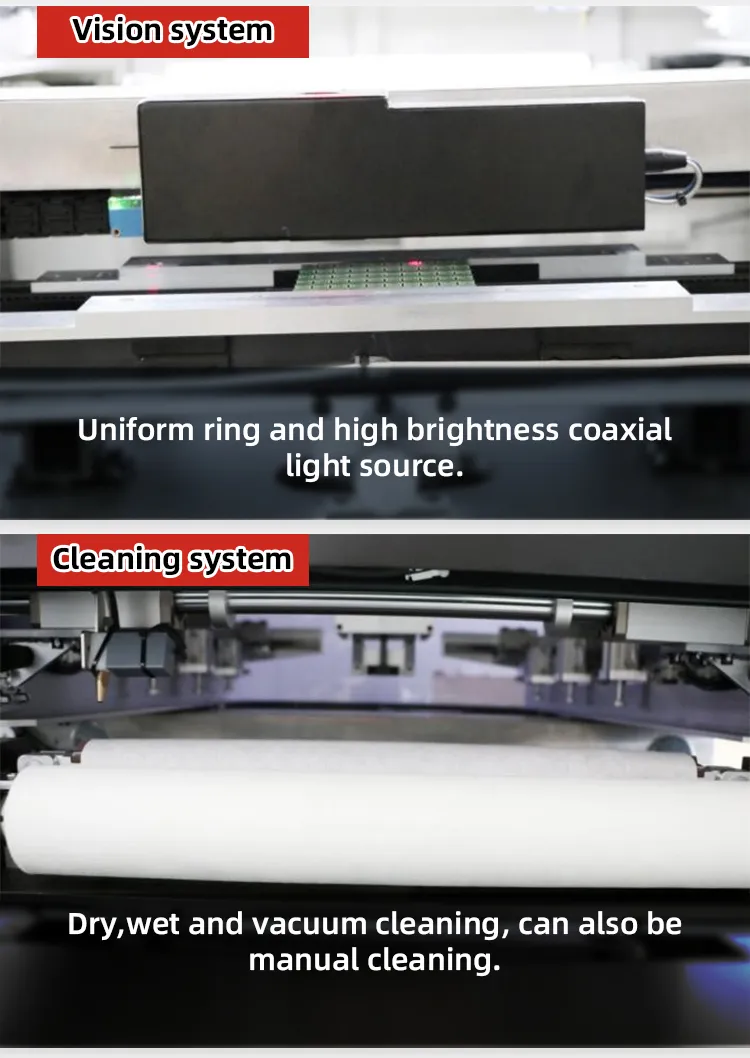

PCB Support

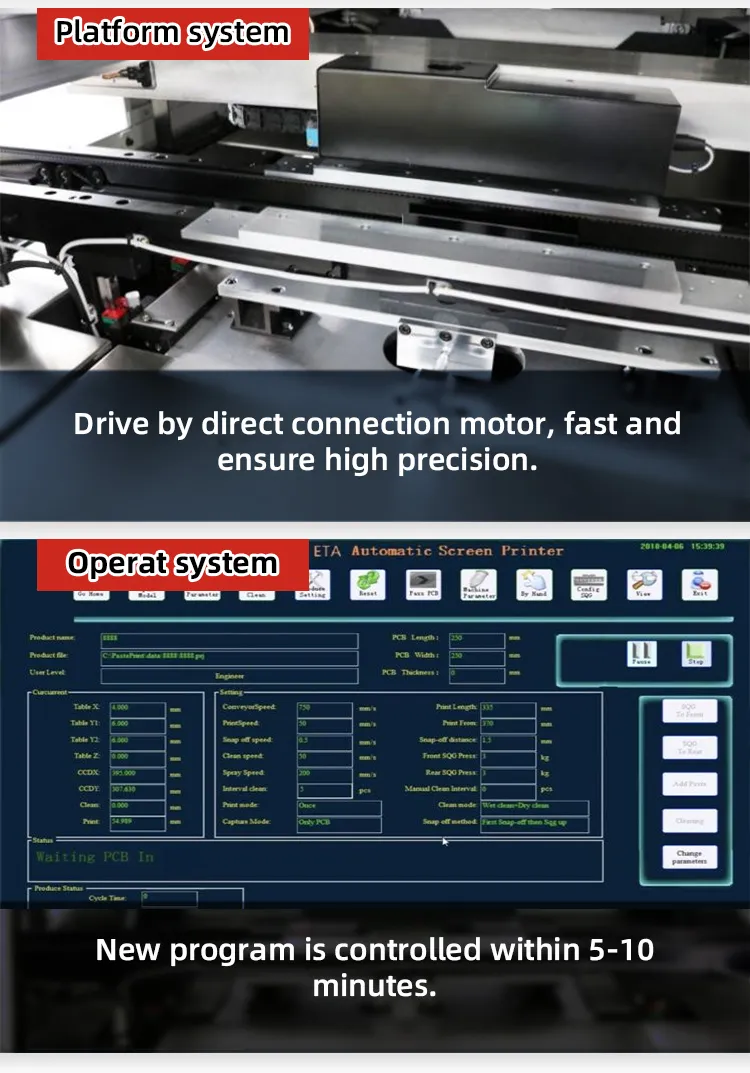

Machine Structure
Stencil Alignment

📜 Certifications & Quality Assurance

Certificates

📦 Packing & Delivery

Wooden Case Packing

Standard: Wooden Case with Vacuum Package

Shipping Options: Air express (DHL, UPS) for small parts; Sea freight for large machine units.

Estimated Lead Time: Within 35 Days.

🌍 Global Presence & Feedback

Exhibition

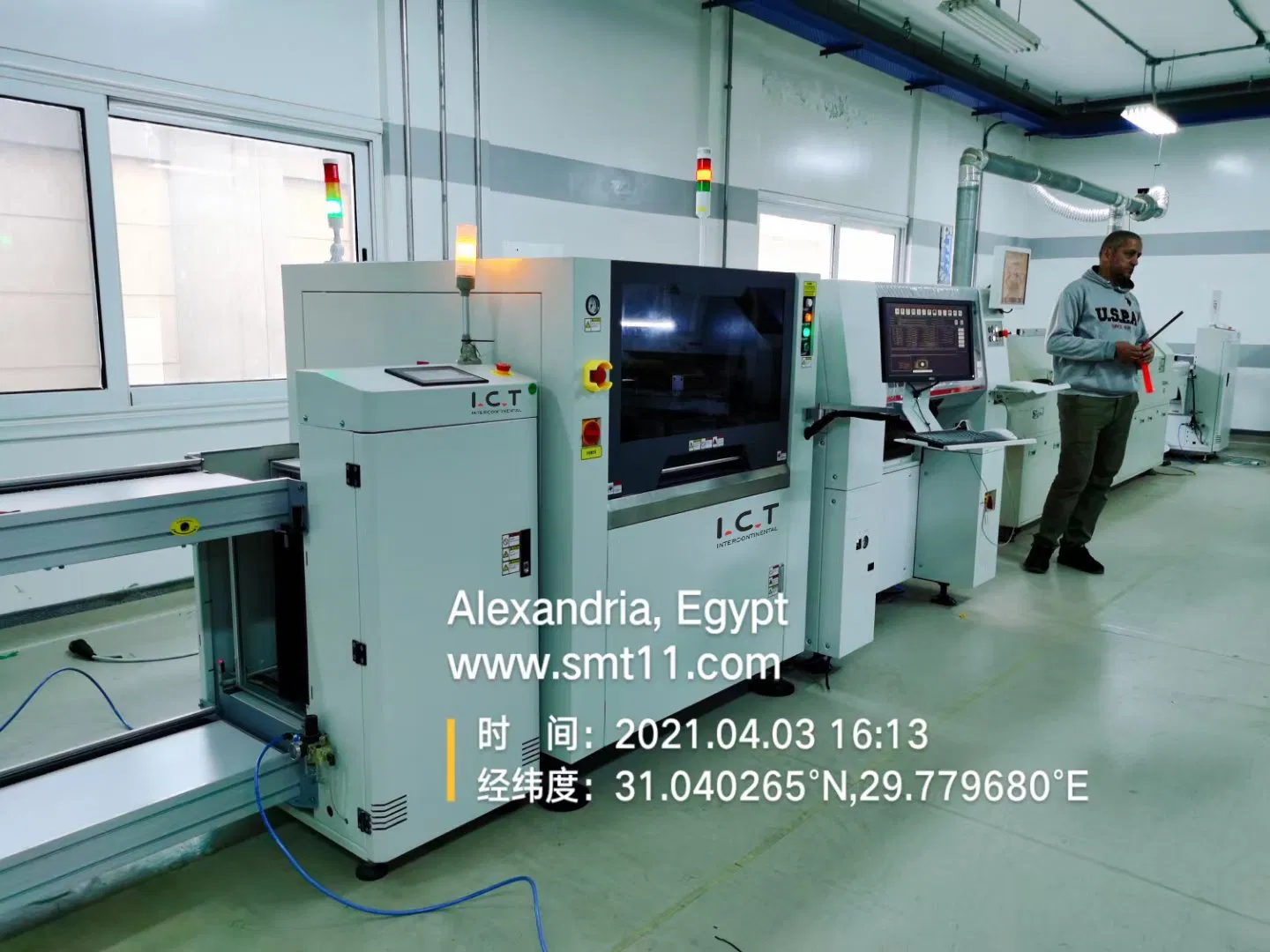

Customer Feedback

❓ Frequently Asked Questions

Q1: What are the primary applications for this SMT printer? A: It is specifically designed for high-precision solder paste printing on Printed Circuit Boards (PCBs) within SMT assembly lines.
Q2: What is the maximum PCB size this machine can handle? A: The machine supports PCB sizes ranging from a minimum of 50*50mm up to a maximum of 400*340mm.
Q3: What kind of clamping system does the machine use? A: It utilizes a robust combination of side clamping and vacuum nozzles to ensure the PCB remains perfectly stationary during the printing process.
Q4: How long does it take for delivery? A: Standard delivery time is approximately 35 days after receipt of payment, depending on the specific configuration.
Q5: Is the machine protected for international shipping? A: Yes, all units are packed in standard heavy-duty wooden cases with vacuum packaging to prevent moisture and damage during transit.
Q6: What support systems are available for different PCB thicknesses? A: It features a flexible support system including magnetic pins, an adjusted up-down table, and support blocks to accommodate thicknesses from 0.4mm to 6mm.
