Awellcure UV LED Curing System Ink Dryer with 2 Years Warranty for Narrow Web Label Printing

Customization:	Available
After-sales Service:	Repair, Replacement in Gurantee
Warranty:	12 Months

Product Overview

UV LED Curing System Ink Dryer with 2 Years Warranty for Narrow Web Label Printing

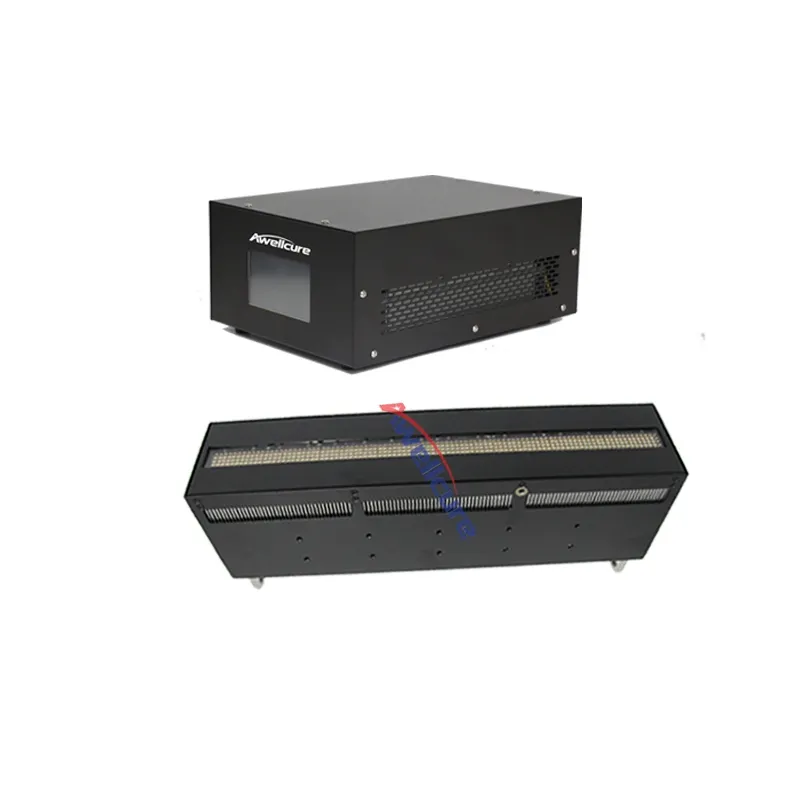

Model: AFL-300x10 | Type: Controller + Irradiator Head (Scalable configuration)

Model NO.

AW20400H1

Input Voltage

AC85~240V(50/60Hz)

Cooling Method

Air-Cooled and Water-Cooled

LED Life

20,000 hrs

Control Method

RS232/Pedal/PLC

Operation Interface

Touch Screen

LED Beam Size

10X300mm

Wavelength

365/385/395/405nm

UV Intensity

1~20W/cm²

Material

Pure Aluminum

Core Features & Advantages

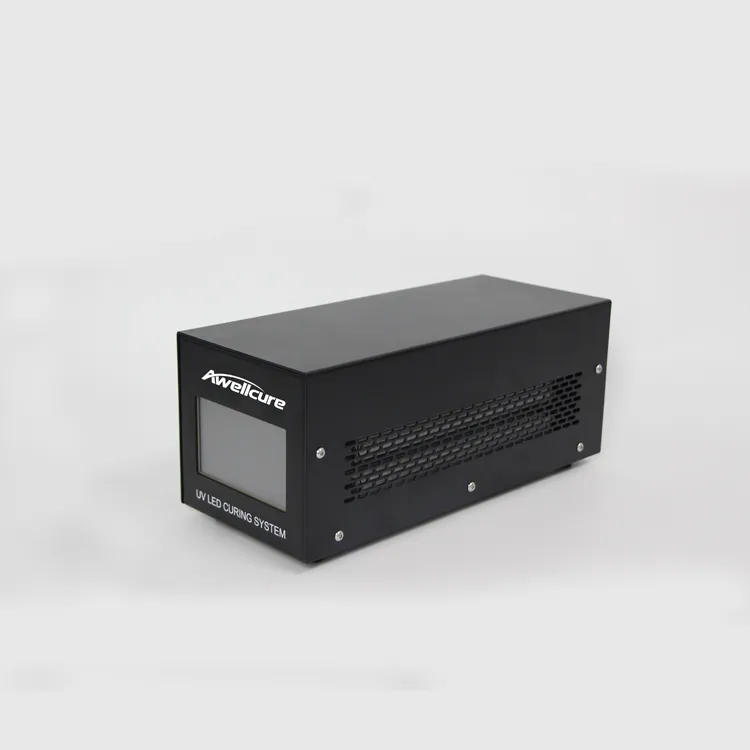

Controller Features

External input signal controls UV irradiation via MCU, PLC, or scanner.
Status LEDs for Start, Stop, Working, and Alarm monitoring.
RS232 interface for programming parameters and PC/PLC integration.
Direct lighting control via foot switch or sensor terminals.

UV LED Advantages

Cold light source: No infrared radiation, ideal for heat-sensitive materials.
Instant Response: No warm-up phase required; immediate on/off capability.
Energy Efficiency: Significant power savings compared to traditional lamps.
Eco-Friendly: Ozone-free and mercury-free operation.

Technical Specifications

Controller Specifications

Parameter	Detail
Voltage	100-240V AC
Heat Dissipation	Fan Cooling
Control Methods	Touch Screen / Pedal / RS232 Port / PLC
Power Adjustment	10% ~ 100%
Irradiation Modes	Manual, Automatic (0.1-999.9s), Ladder (Step-wise), Pulse
Communication	RS232 Serial Port & I/O Interface
Operating Environment	Temp: 0-45℃ \| Humidity: 30-85RH

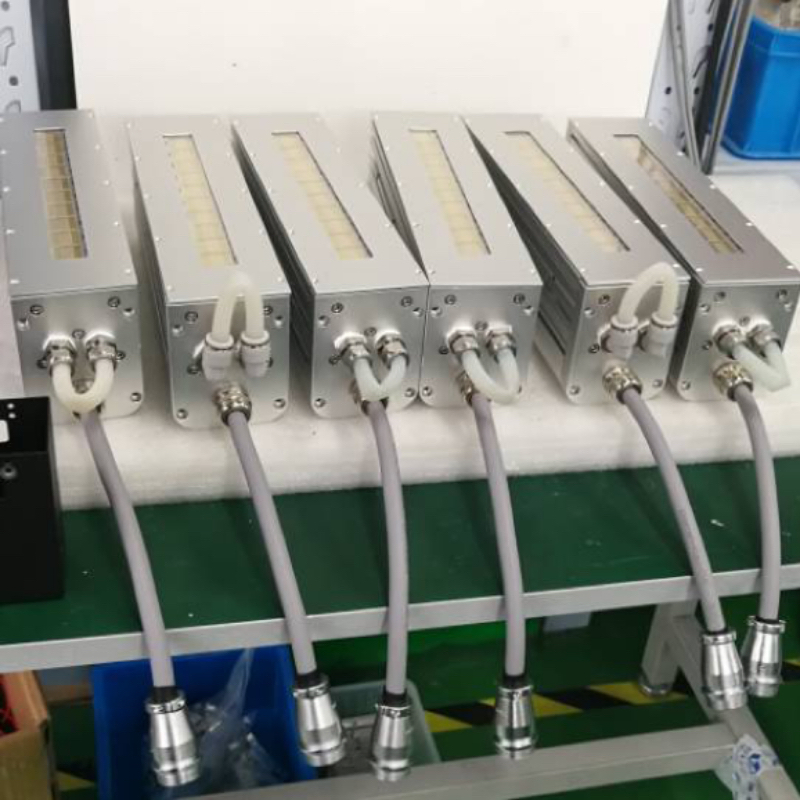

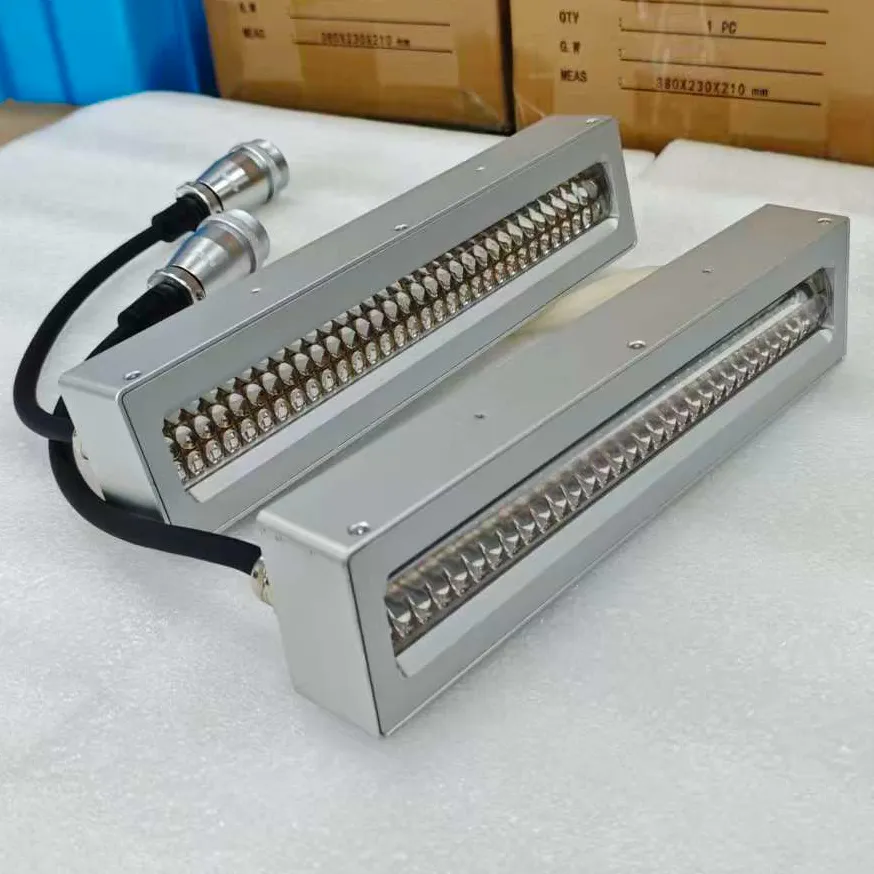

Irradiation Head Specifications

Component	Specification
LED Type	High-Performance Imported Chips
Lifespan	20,000 Hrs (@80% power)
Wavelength Range	365nm / 385nm / 395nm / 405nm (±5)
Luminous Size	10x300mm
Peak Intensity	2700mW or Customized
Standard Cable	2M / 5M (Customizable)

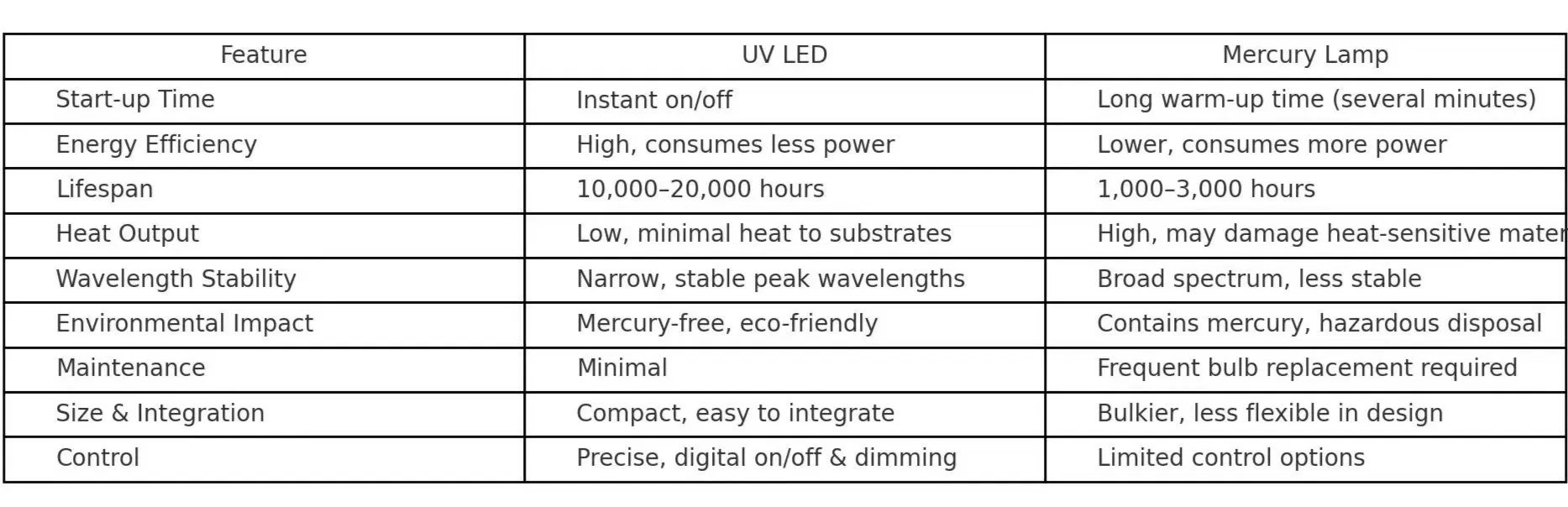

UV LED vs. Mercury Lamp

A comprehensive comparison highlighting why UV LED technology is the modern choice for industrial printing.

Applications

UV Adhesive: Optical communications, microelectronics, medical consumables, camera modules, and touch screens.
UV Coating: PCBA protection, precision machining, chip packaging, and automotive industries.

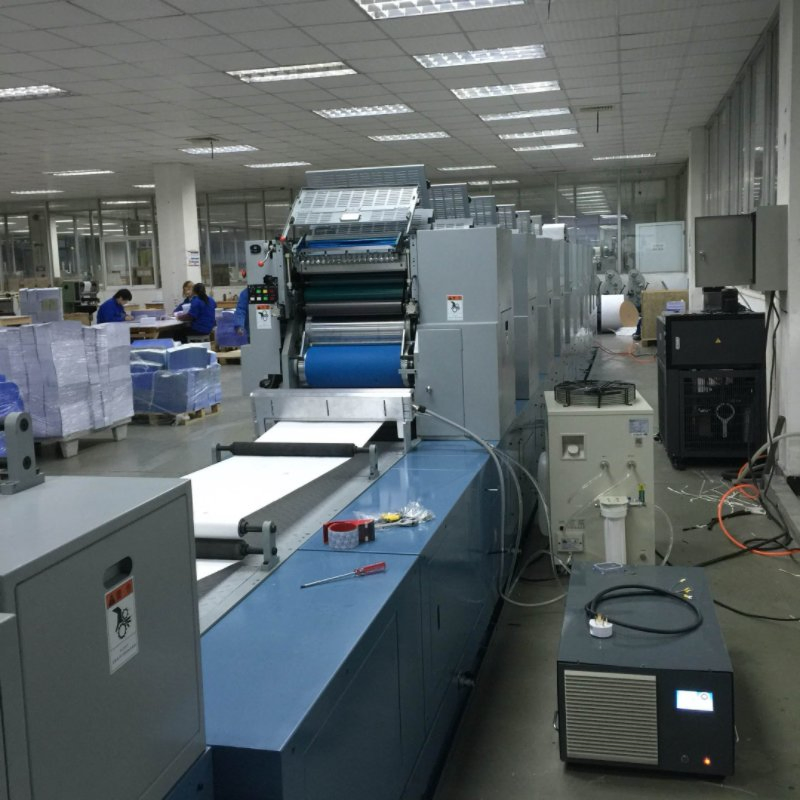

UV Ink: Flexo printing, digital inkjet, screen printing, 3D printing, and label production.

Service & Support

Standard Warranty

12 Months

Extended Warranty

Optional up to 36 Months

Global Support

24/7 Technical assistance and spare parts supply

Training

Remote or on-site operation/maintenance training

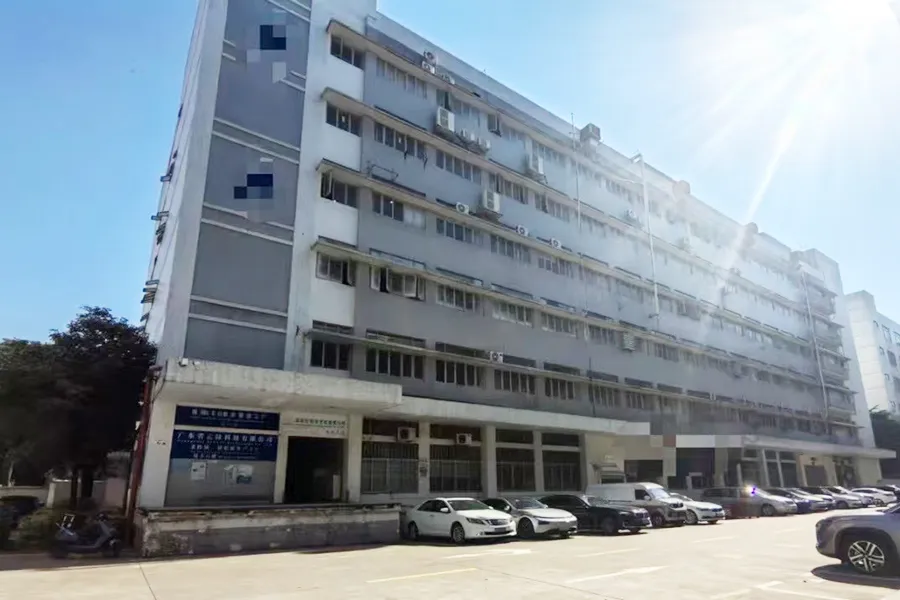

About the Manufacturer

With over 12 years of expertise, we are a leading manufacturer of UV LED Curing Systems. Certified with ISO 9001, CE, and RoHS, we export to over 50 countries, offering reliable curing solutions backed by R&D innovation and strict quality control.

Product Range

UV-LED Spot & Line Curing
UV-LED Area & Oven Systems
UV-LED Conveyor Systems
UV Measuring Instruments

Why Choose Us

Full OEM/ODM capabilities
Competitive pricing for bulk orders
Turnkey project solutions
Fast global shipping support

Frequently Asked Questions

What are the primary applications for this UV LED curing system?

The system is primarily used for curing UV-sensitive materials such as glues, inks, adhesives, paints, and varnishes in industries ranging from electronics to label printing.

How does UV LED compare to traditional mercury lamps?

UV LED systems offer a significantly longer lifespan (up to 20,000 hours), higher energy efficiency, instant on/off capabilities, and are more environmentally friendly as they do not contain mercury or produce ozone.

Can the emitting window size be customized?

Yes, we can customize the size of the emitting window and the peak irradiance levels to match your specific production requirements and application area.

How do I determine the power intensity required for my project?

The required power intensity depends on the sensitivity of your UV materials and your desired production speed. Our technical team can help you select the optimal configuration.

Does the system require a warm-up phase?

No, one of the major advantages of UV LED technology is that it can be turned on and off instantly without any warm-up or cool-down periods.

What control interfaces are supported?

Our controllers support multiple interfaces including Touch Screen, Pedal switch, RS232 Serial Port, and PLC integration for automated production lines.
