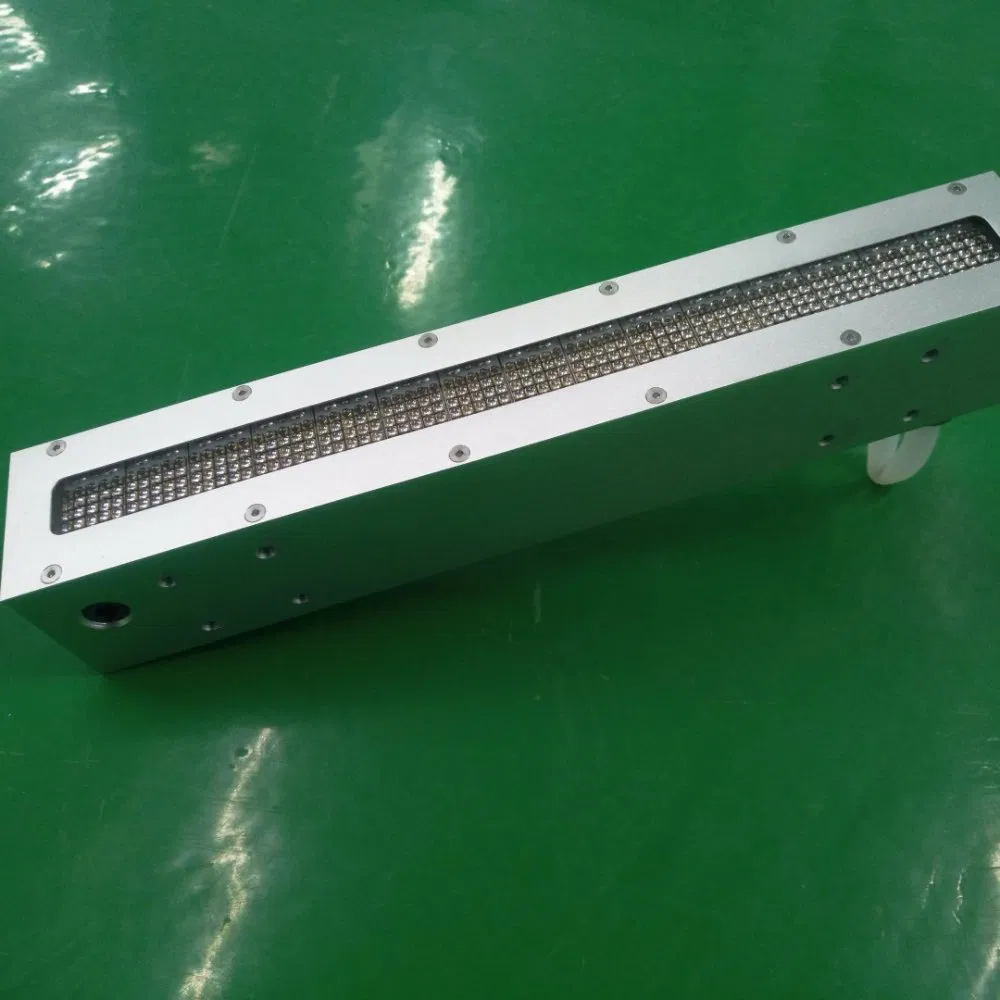

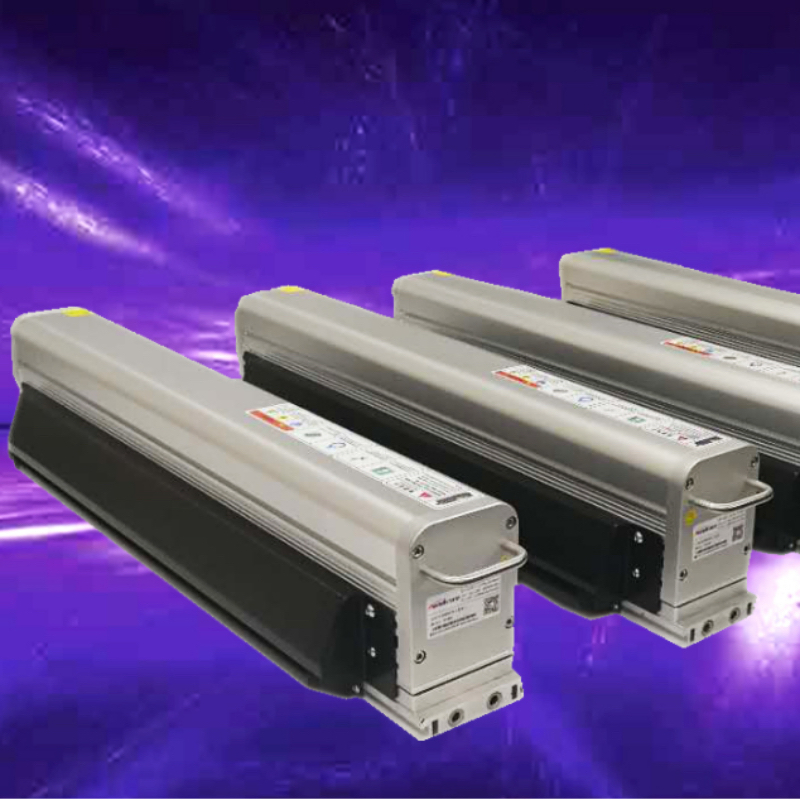

Awellcure Factory Supplier UV Curing Unit for Flexo Label Printing Machine UV Drying System

Customization: Available
After-sales Service: Repair, Replacement in Gurantee
Warranty: 12 Months

Product Description

Product Overview

Factory Supplier UV Curing Unit for Flexo Label Printing Machine UV Drying System

Model NO.
AW20300H
Input Voltage
AC110~220V(50/60Hz)
Cooling Method
Water Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
Interface
Touch Screen
LED Beam Size
25X300mm
Wavelength
385nm / 395nm
Application
Label/Flexo Printing
Max Speed
200m/Min
Core Features
Controller Features
  • External signal control via MCU, PLC, and scanners
  • Status LEDs for Start, Stop, Working, and Alarm
  • RS232 interface for parameter programming and updates
  • Direct lighting control via foot switch or sensor
UV LED Advantages
  • Zero infrared radiation: Ideal for low-temp materials
  • Fast curing ensures production efficiency
  • Instant On/Off: No warm-up phase required
  • Environmentally friendly and energy-saving
Technical Specifications

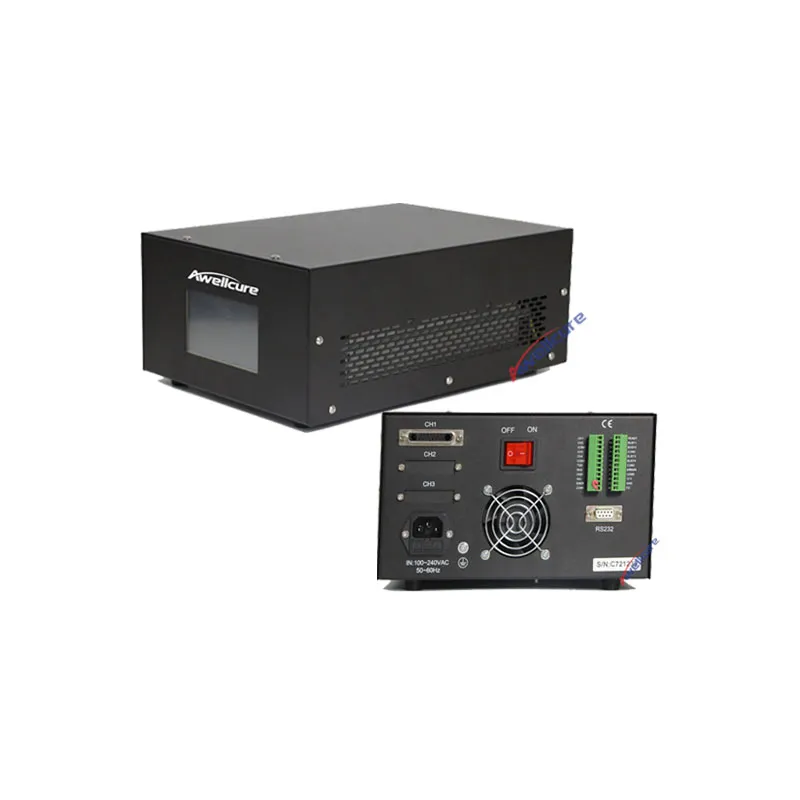

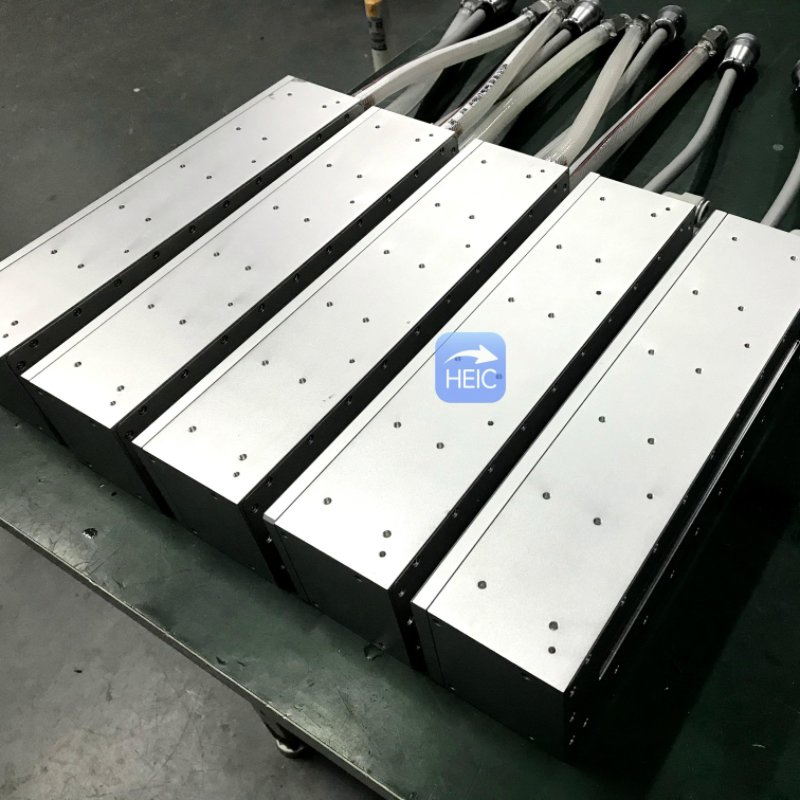

UV Curing Unit View 1

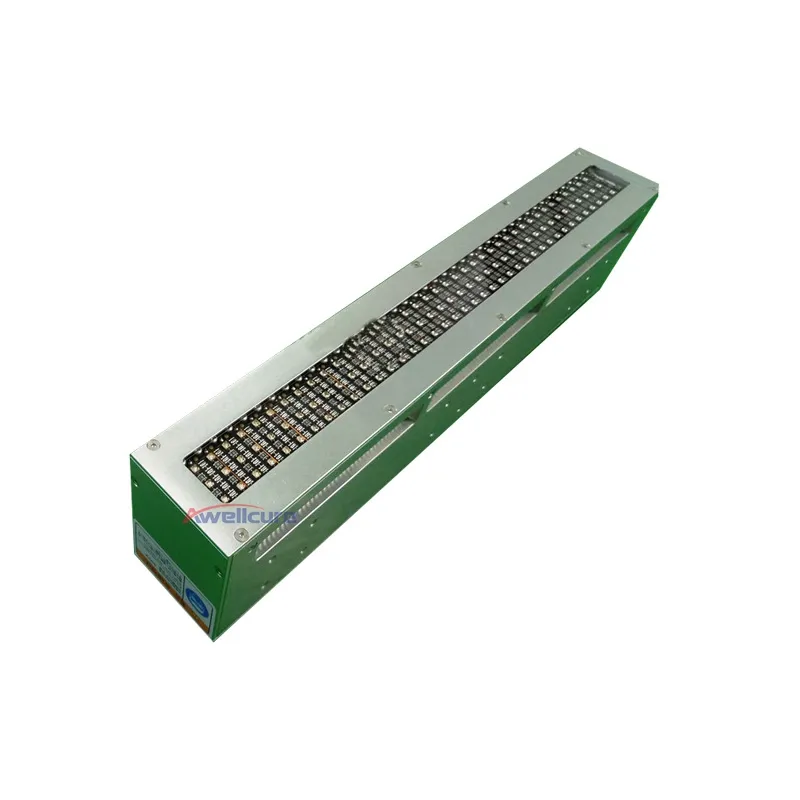

UV Curing Unit View 2
System Parameters
Voltage100-240V AC
Heat DissipationWater Cooling
Irradiation Power10%~100% Adjustable
Irradiation ModesManual / Automatic / Ladder / Pulse
Luminous Size25x300mm
Peak Intensity14W/cm²
Peak Wavelength385nm / 395nm
Cable LengthStandard 2M/5M (Customizable)

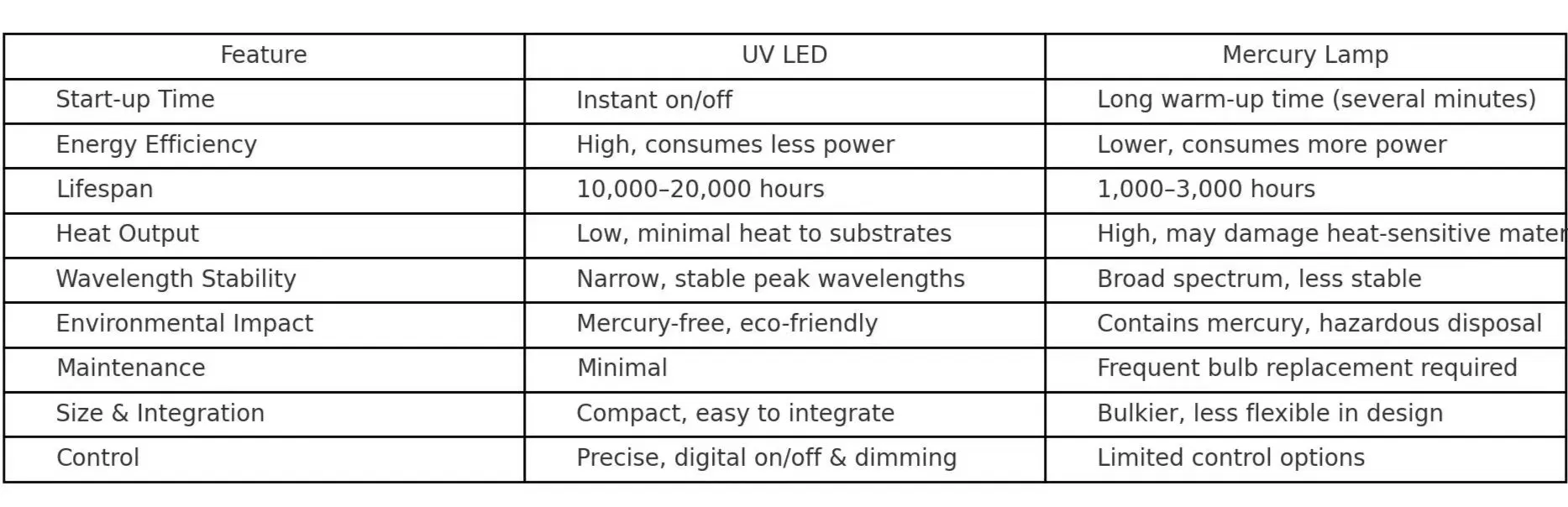

UV LED vs. Mercury Lamp
Comparison Graph
Industrial Applications
  • UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
  • UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
  • UV Ink: UV printing, 3D printing, Flexo printing, digital printing, screen printing.

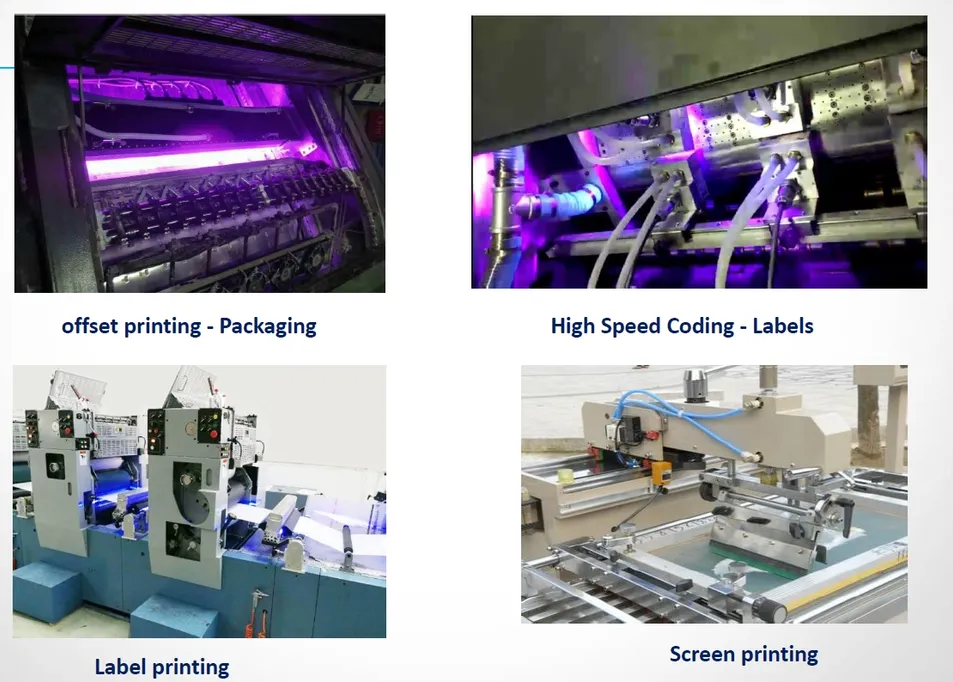

Application Case

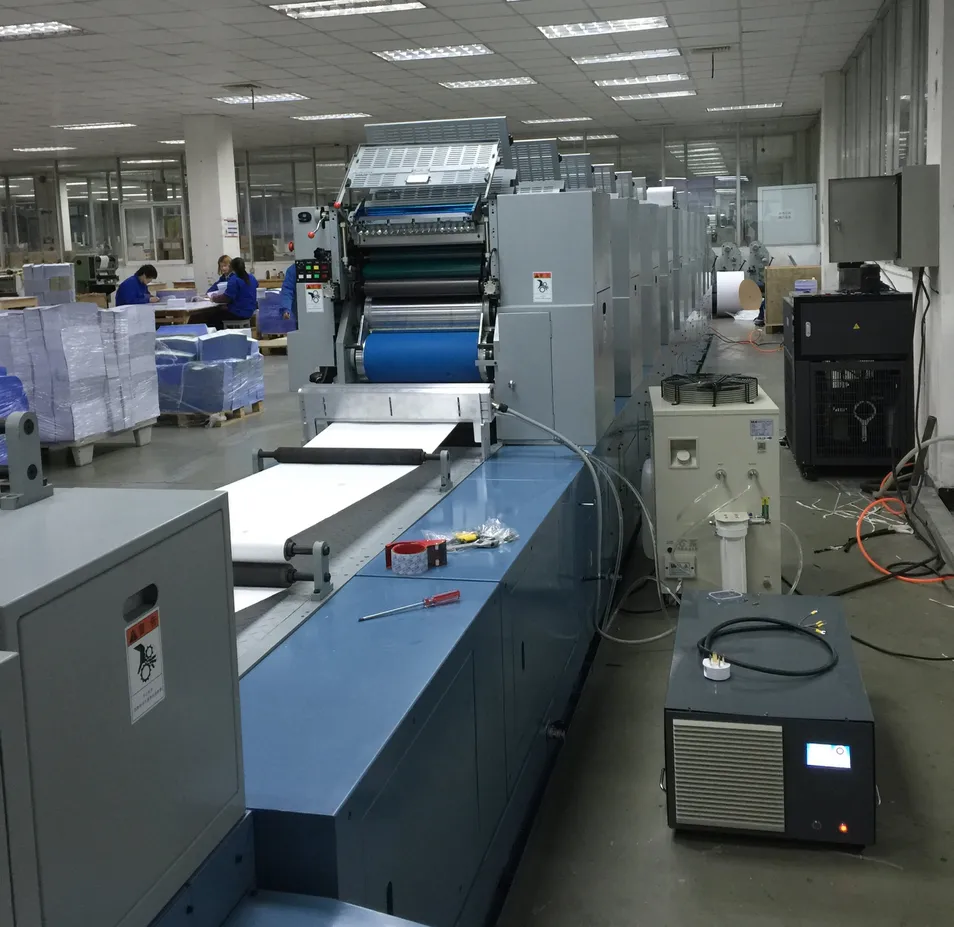

Process 1

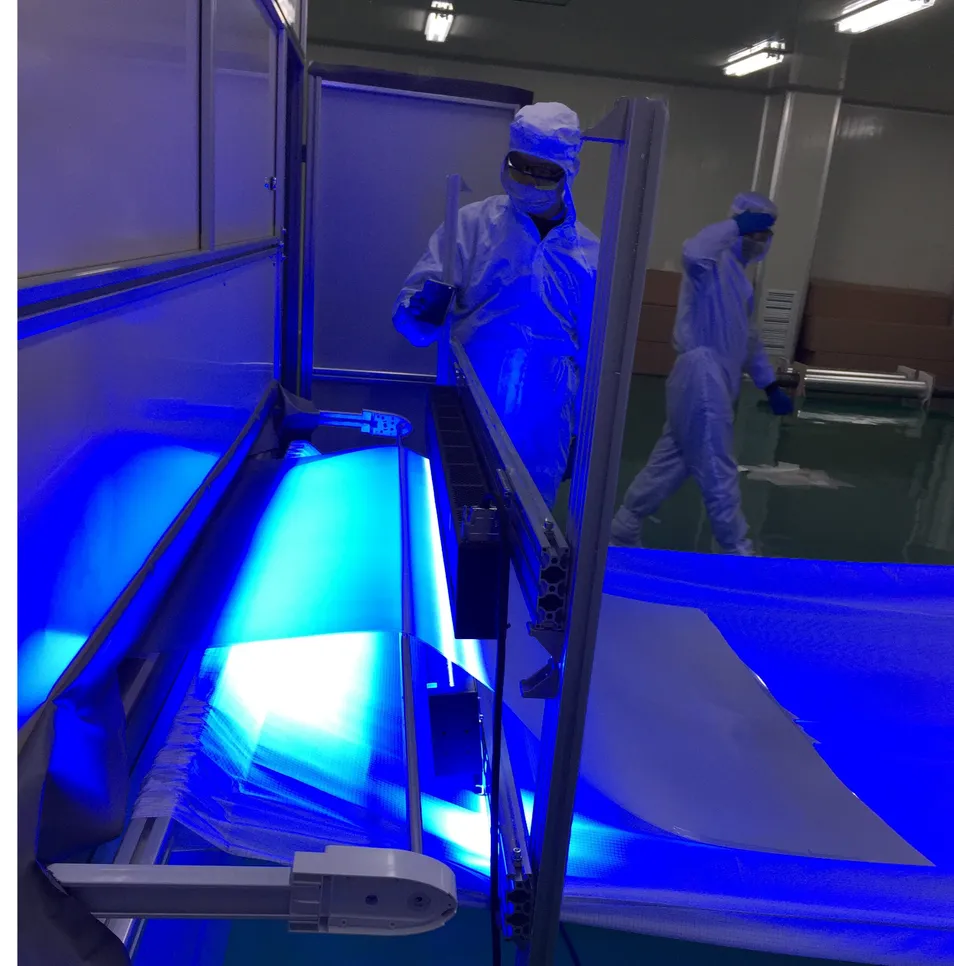

Process 2
Support & Service
Standard Warranty
12 Months
Extended Warranty
Up to 36 Months (Optional)
Technical Support
24/7 Remote Assistance
Training
On-site or Remote Maintenance Training
Frequently Asked Questions
Why choose a UV LED curing system over traditional methods?
UV LED systems provide a longer service life, significant energy savings, instant on/off capabilities, and are environmentally friendly as they do not contain mercury.
What are the primary applications for this equipment?
It is mainly used for curing UV glue, UV ink, UV adhesives, UV paints, and varnishes in industries such as electronics, printing, and medical manufacturing.
How do I determine the required emitting window size?
The size of the emitting window depends entirely on the specific curing area required by your production line or application.
How do I choose the correct power intensity?
Power intensity requirements are determined by the sensitivity of your UV materials and your required production speed/efficiency.
Can the irradiance and window size be customized?
Yes, we can customize any size of emitting window and peak irradiance to match your specific industrial requirements.
What is the expected lifespan of the UV LED?
The UV LED heads are rated for approximately 20,000 hours of usage at 80% power, significantly outperforming traditional bulbs.
