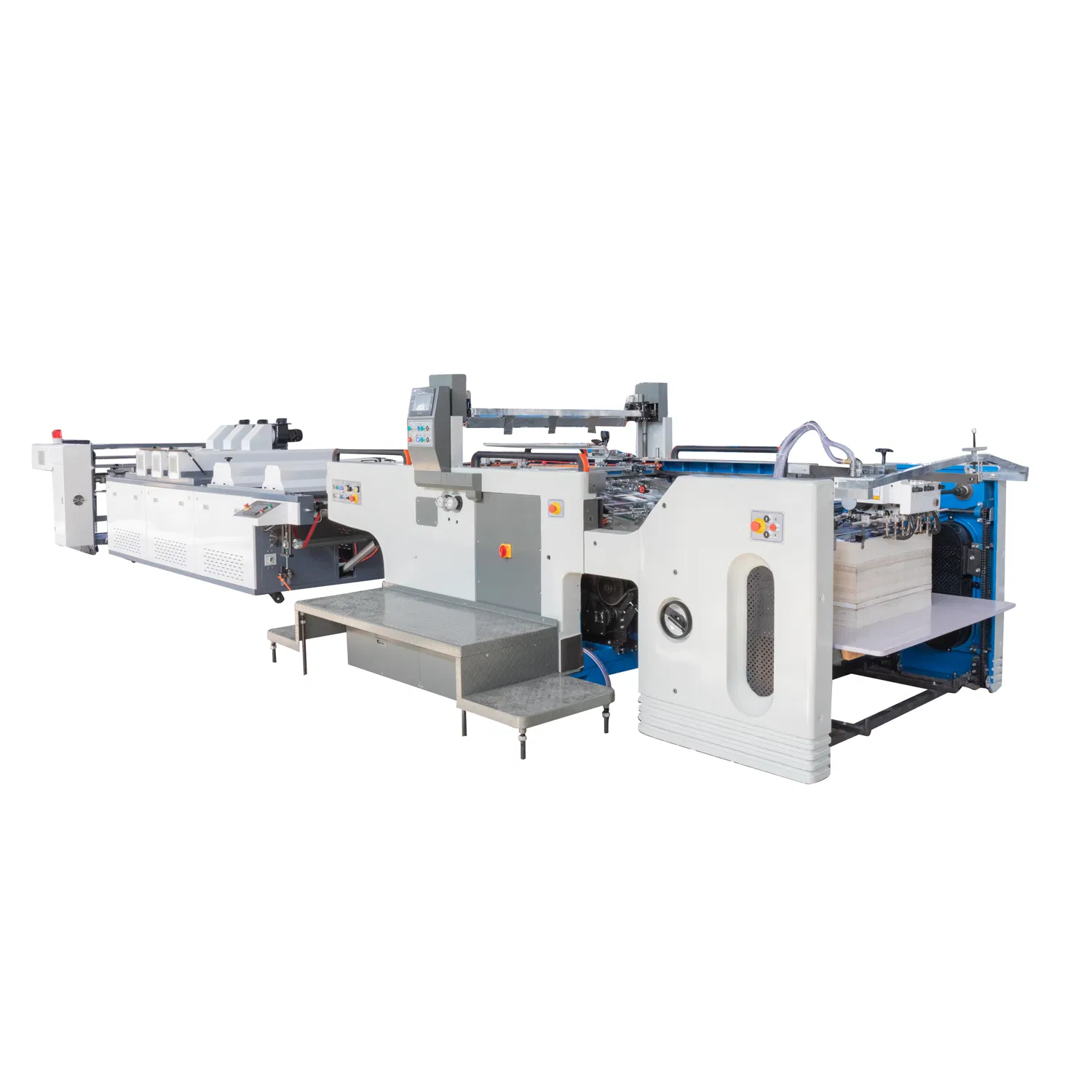

Automatic Screen Printing Machine for Spot UV varnish

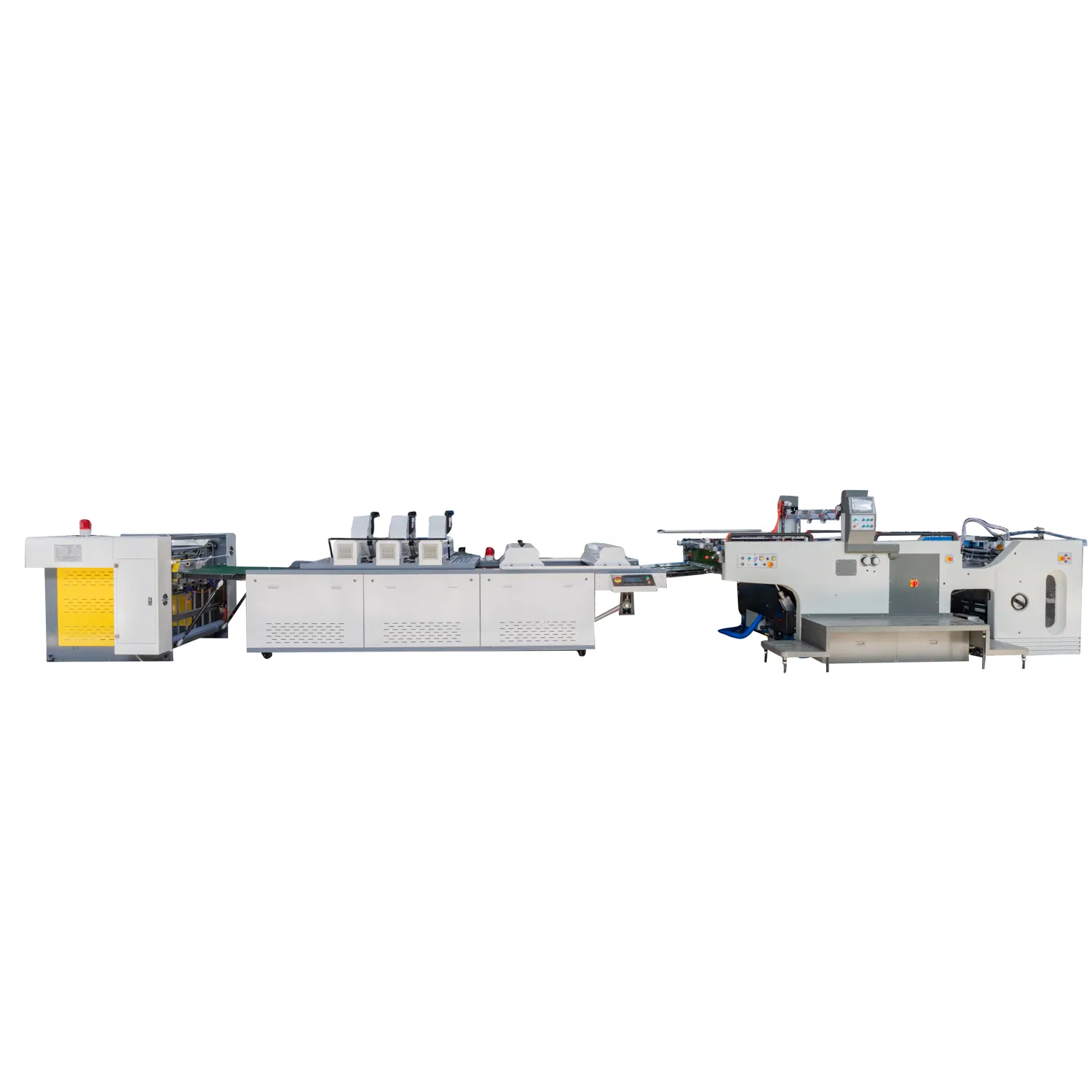

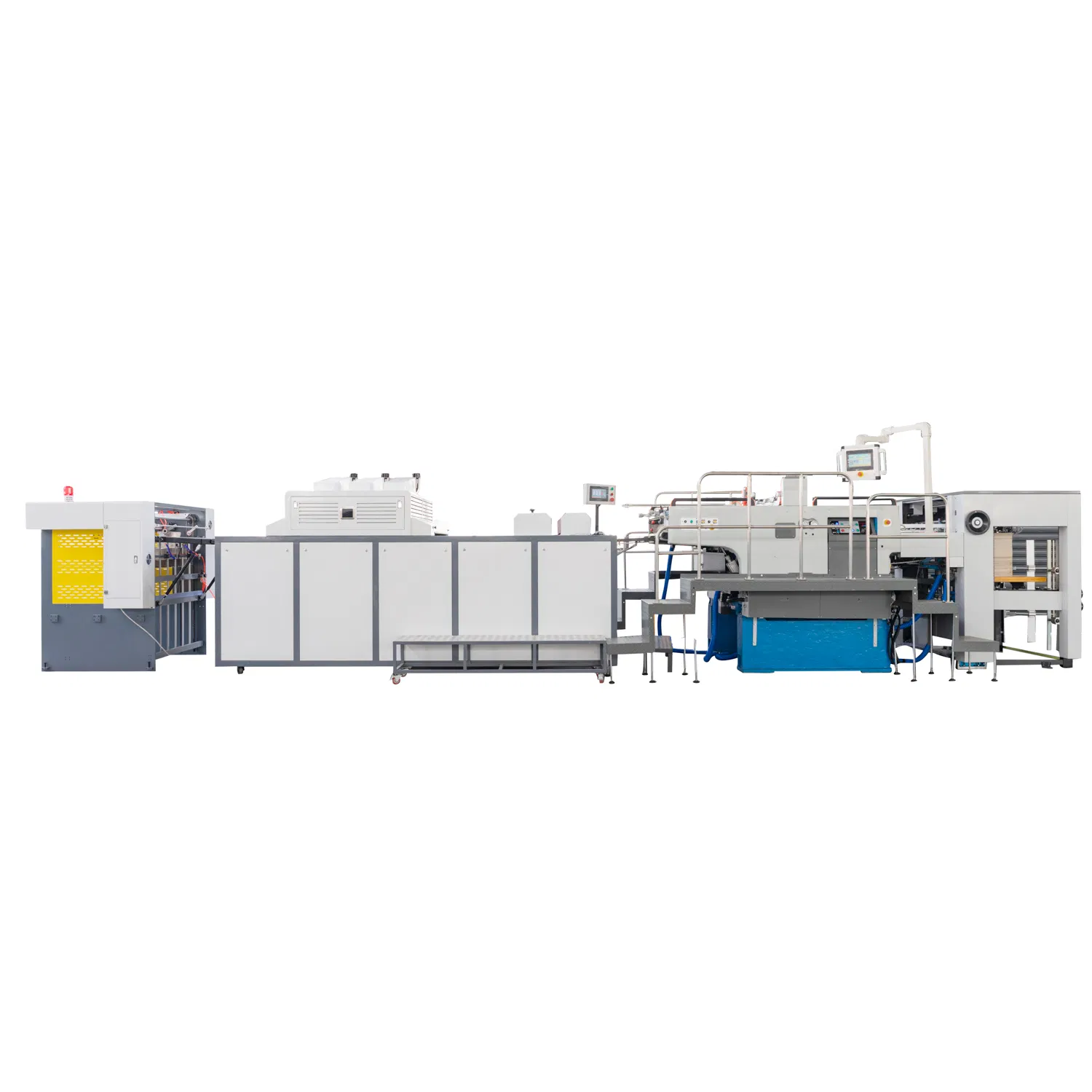

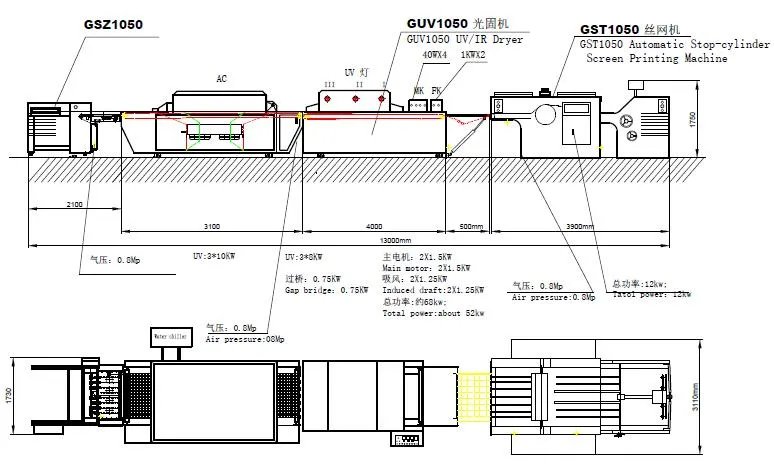

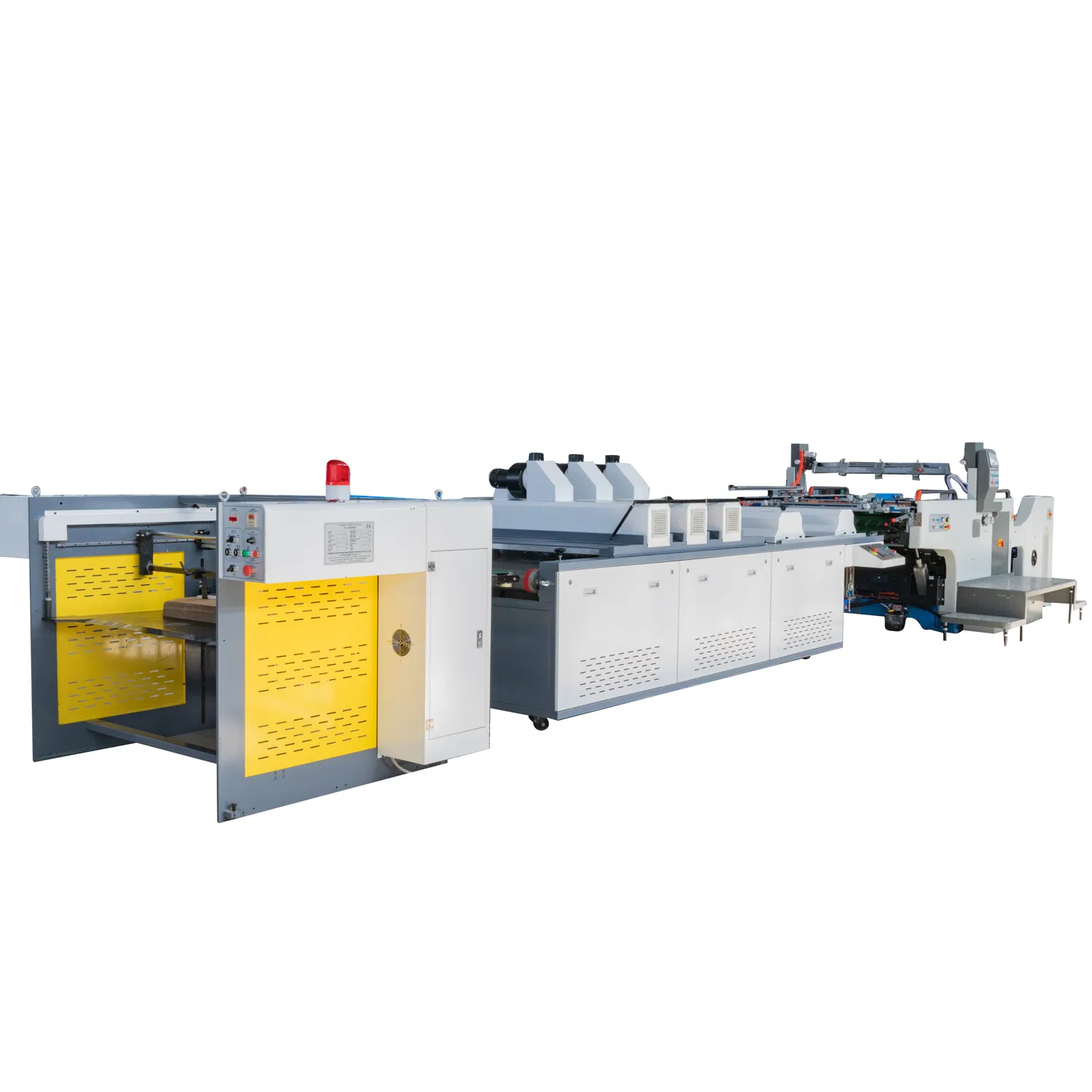

Automatic screen printing machine + UV Dryer + Sheet stacker

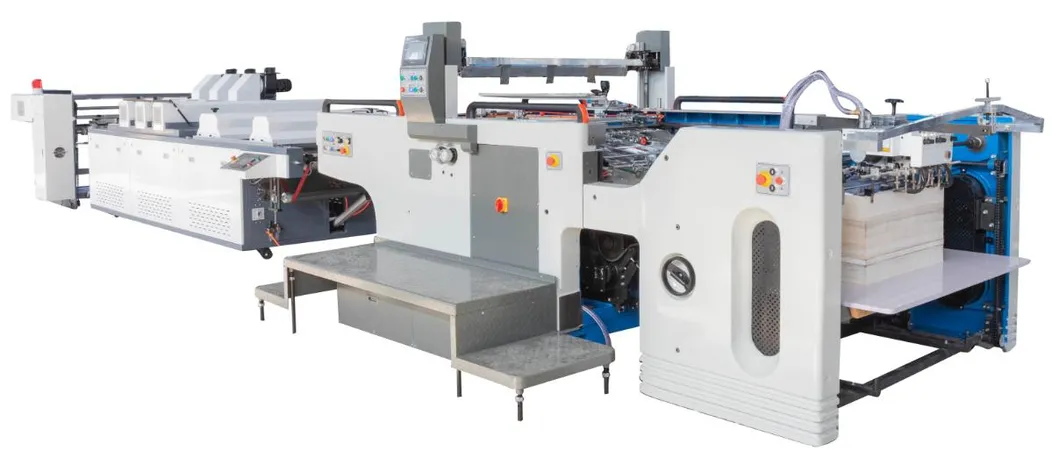

GST Series Automatic Stop-cylinder Screen Printing Machines are upgrade models from Rotary Cylinder Printing Machines. This kind of machine adopts classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". This ensures accurate paper positioning before scratch-print and reduces waste rates. The high-speed revolving design improves register precision with minimal impact.
| MODEL | GST-720 | GST-800 | GST-1020 | GST-1050 |
|---|---|---|---|---|
| Max.Paper Size(mm) | 720×520 | 800×600 | 1020×720 | 1050×750 |
| Min.Paper Size(mm) | 350×270 | 350×270 | 560×350 | 560×350 |
| Max.Printing Size(mm) | 720×510 | 800×590 | 1020×710 | 1050×720 |
| Paper Thickness(g/m2) | 90-250 | 120-250 | 90-350 | 90-350 |
| Printing Speed(p/h) | 500-3000 | 600-3000 | 600-3000 | 600-4000 |
| Total Power(kw) | 8 | 11 | 15 | 15 |
| Total Weight(kg) | 3500 | 4000 | 5500 | 5500 |

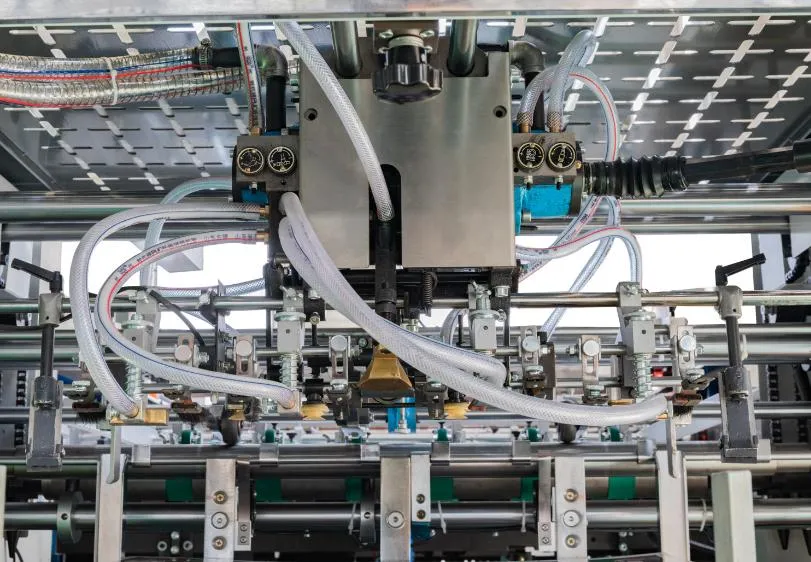

Four suction and four delivery feeder system with German Backer vacuum pump.

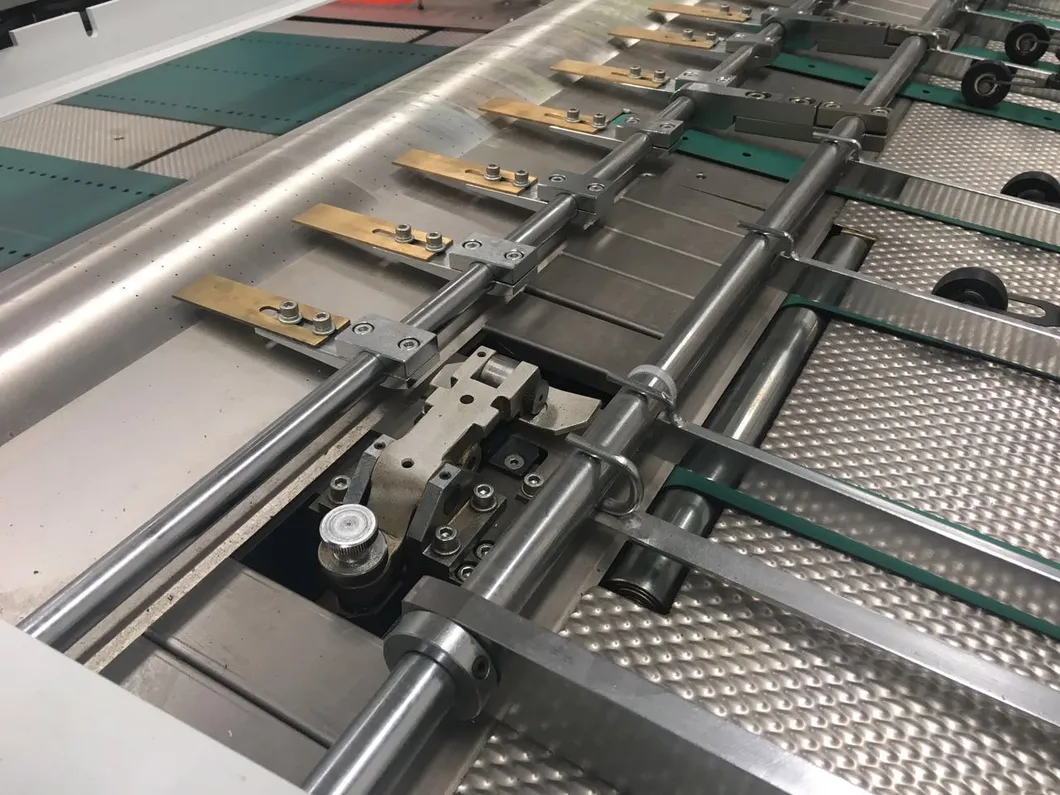

New designed pull and push lay for precise registration.

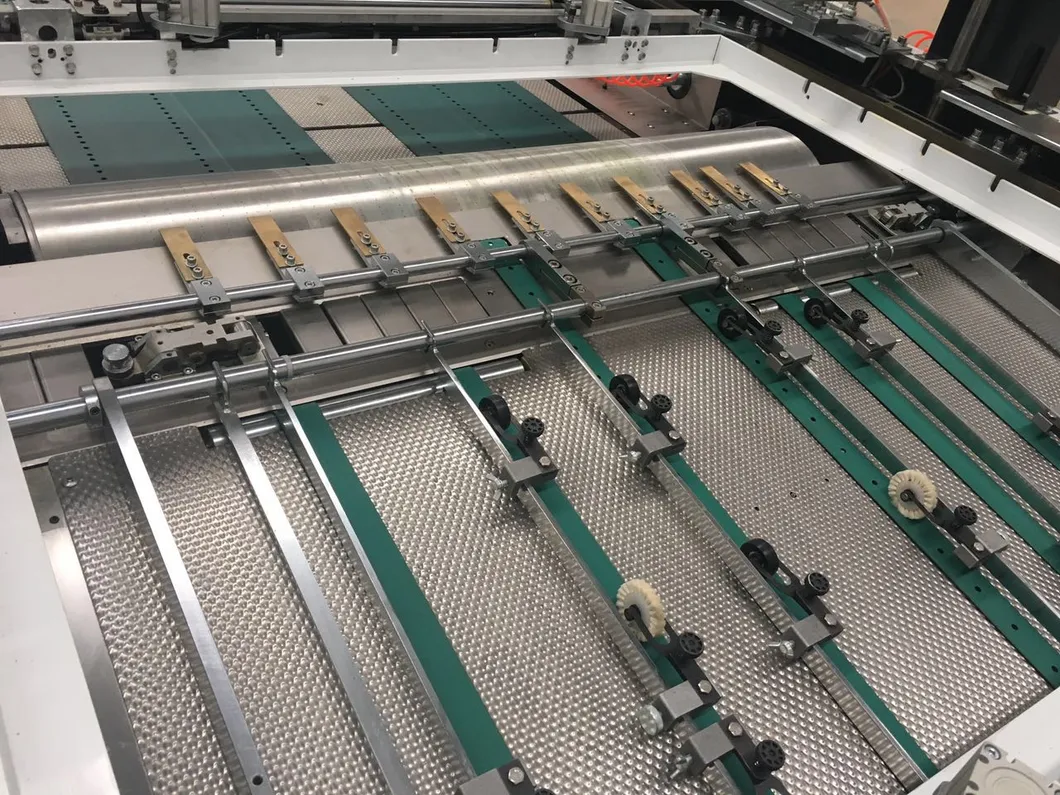

Imported stainless steel delivery board with low friction.

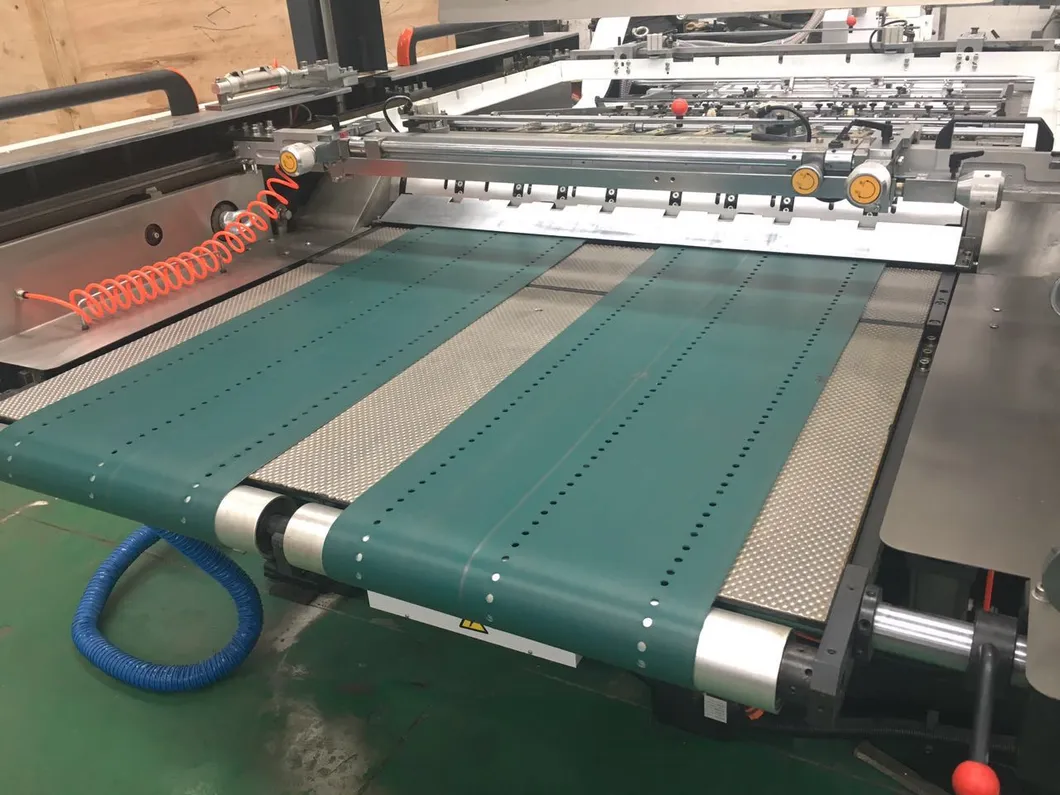

Double vacuum conveyor belt suitable for different sheet sizes.
The GUV series UV Dryer is widely used for drying UV ink printed on paper, PCB, and nameplates. It provides high hardness, brightness, and anti-attrition properties to the printing surface.
| Model | GUV/IR900 | GUV/IR1050 |
|---|---|---|
| Max conveying width (mm) | 900 | 1150 |
| Conveyor Belt Speed (m/min) | 0-65 | 0-65 |
| UV Lamp (kw x pcs) | 8x3 | 10x3 |
| Total power (kw) | 33 | 39 |
| Dimension (mm) | 50000x1600x1300 | 50000x1800x1300 |

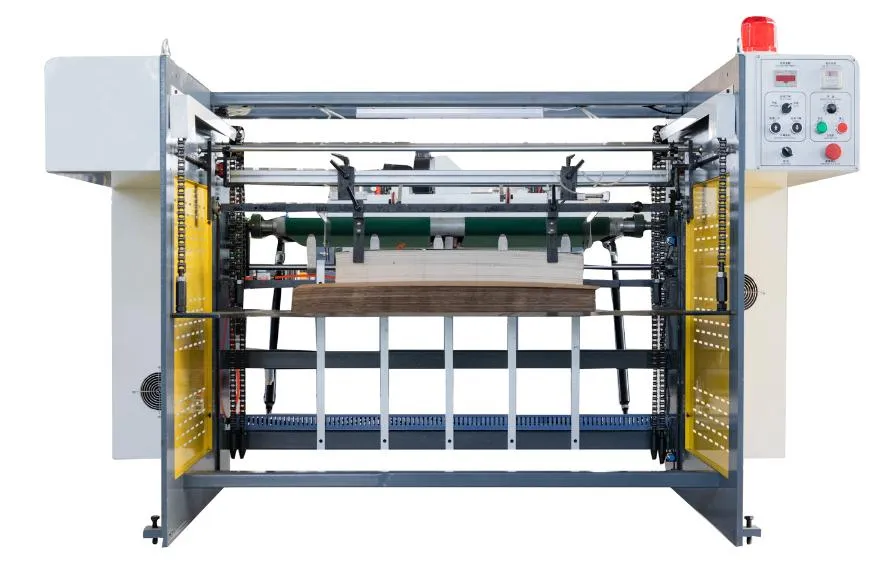

The GSZ sheet stacker is used to collect and pile paper automatically, improving production efficiency. It features an input-bracket mechanism, pushing-paper mechanism, and PLC control system.

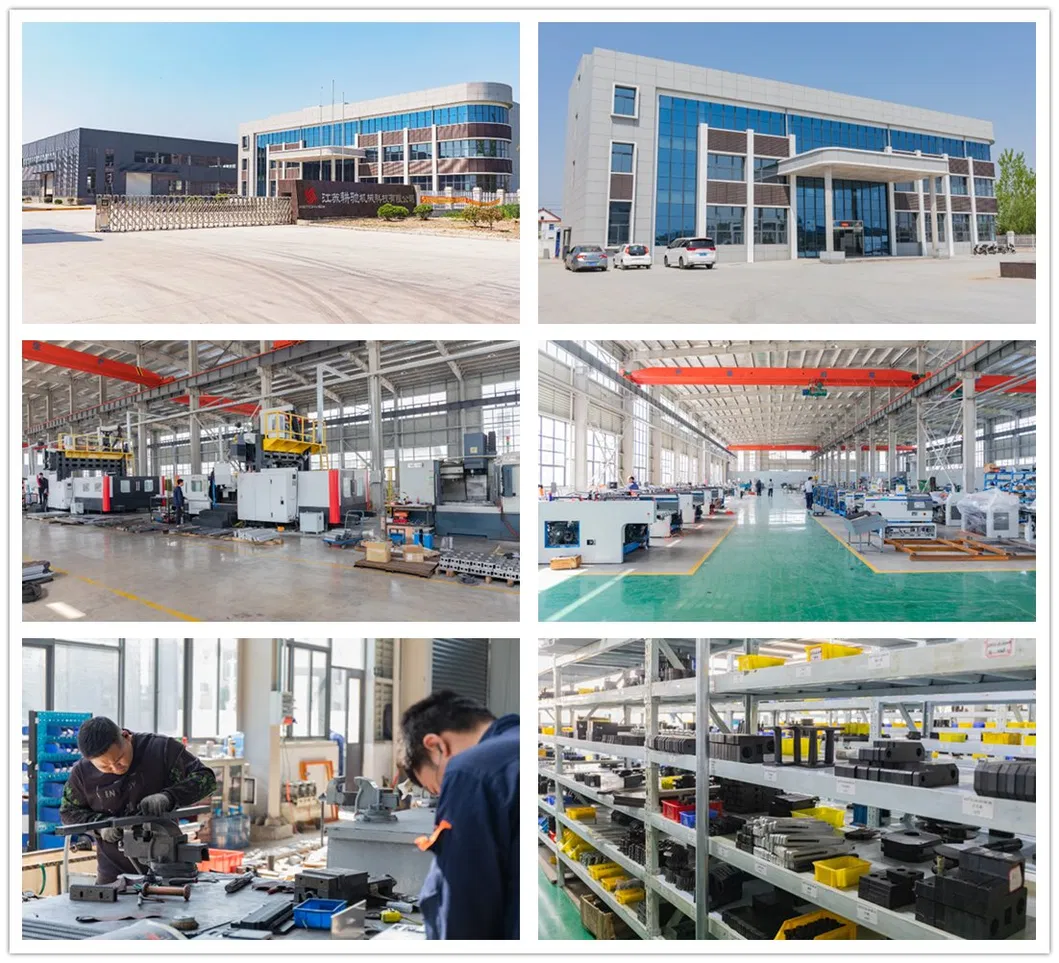

We are a specialized manufacturer of screen printing machines. As a recognized industry leader, our main products include automatic cylinder screen printing presses, reversible-cylinder presses, stop-cylinder presses, and various IR/UV dryer series. We provide over 4 product series with more than 30 models.
Our engineering team focuses on research and development to satisfy changing market needs. Our machines are widely used in packaging, advertising, glass, ceramic decals, and PCB printing. Utilizing electrical equipment from Europe and Japan, we maintain superior quality and stability across the international market.
