Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
1 / 5
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG
Automatic Silk Screen Printing Machine Jb-1050AG

Automatic Silk Screen Printing Machine Jb-1050AG

Customization: Available
Type: Printing
Plate: Silk Screen Printing
Send Inquiry

Product Description

Basic Information
Model NO.
JB-1050AG
Structure
Flat-Bed Cylinder Press
Color & Page
Single-Colour Printing Press
Model Size
A4 to 1050X750
Usage
Paper, Cloths, Plastic
Automatic Grade
Automatic
Printing Speed
4000PCS/H
System Support
3p 380V 50Hz 11.3kw
Weight
6500kg
Package
2 Plywood Cases
Warranty
One Year After Installation
Origin
Made in China
Product Description

JB-1050AG Automatic Silk Screen Printing Machine is a high-performance cylinder screen press designed for professional UV varnishing and precision printing. This full automatic stop cylinder screen press incorporates advanced design and production technology, merging mature offset printing techniques with patented innovations, specifically optimized for the paper and packaging sectors.

Utilizing a classic stop cylinder mechanism, the machine achieves a maximum operating speed of 4000 PCS/h. It features non-stop feeder and non-stop collection technology, allowing operators to load substrates and collect finished products without halting the machine. This innovation eliminates downtime, improving printing efficiency by more than 30%. It is ideal for screen printing on ceramic and glass transfer films, advertising, textile transfers, electronics, and various industrial applications.

Technical Specifications
ModelJB-1050AG
Max. Paper Dimension1050X760mm
Min. Paper Dimension560X350mm
Max. Printing Dimension1050X750mm
Frame Size1300X1170mm
Paper Thickness90~420g/m2
Precision of Overprint0.10 mm
Border≤ 10 mm
Max. Printing Speed800-4000/h
Power Required3P 380V 50Hz 11.3Kw
Machine Weight6300kg
Overall Dimensions6700 × 3060 × 2050mm
Product Visuals

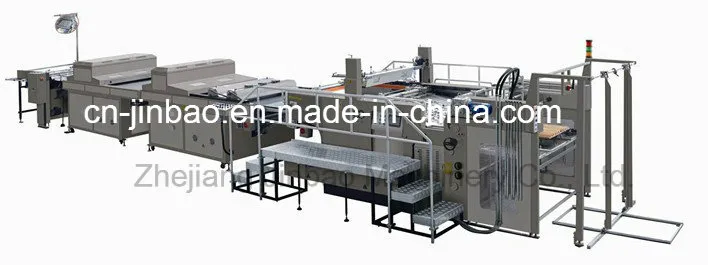

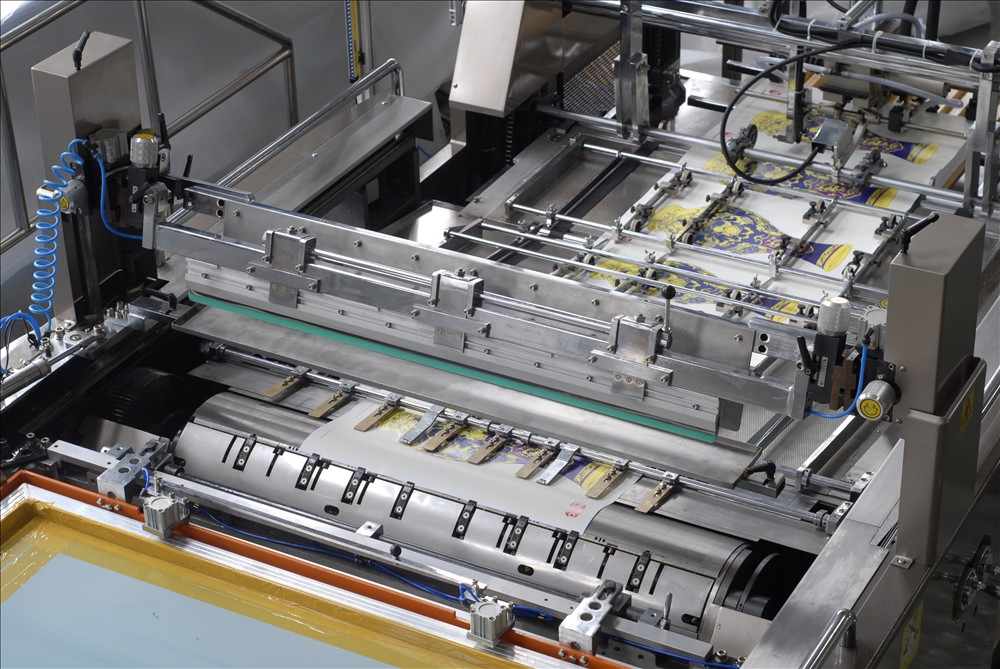

Automatic Silk Screen Printing Machine Jb-1050AG

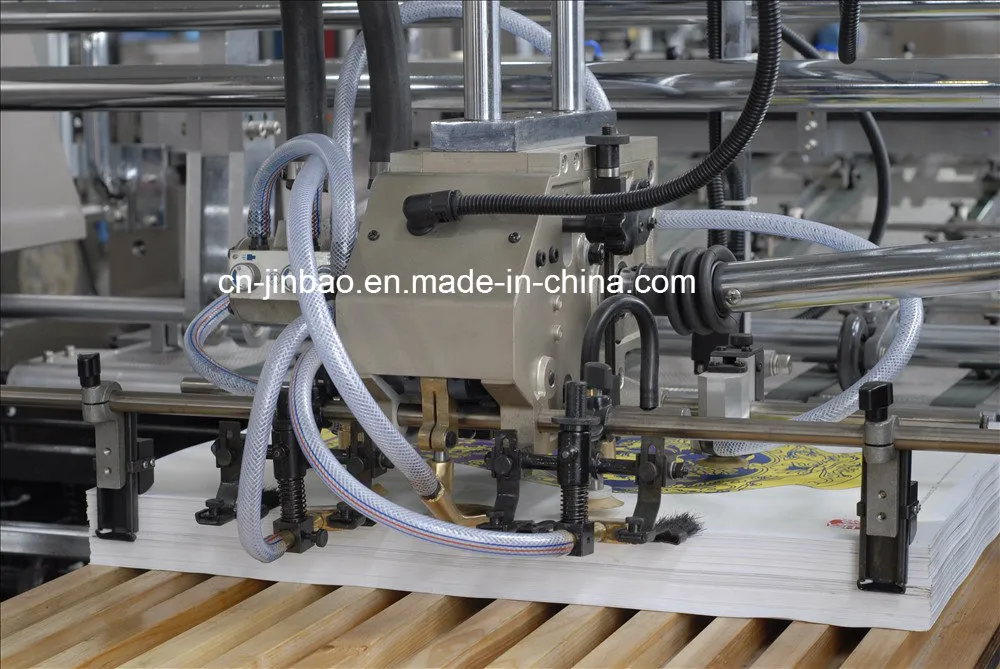

Automatic Silk Screen Printing Machine Jb-1050AG Detail

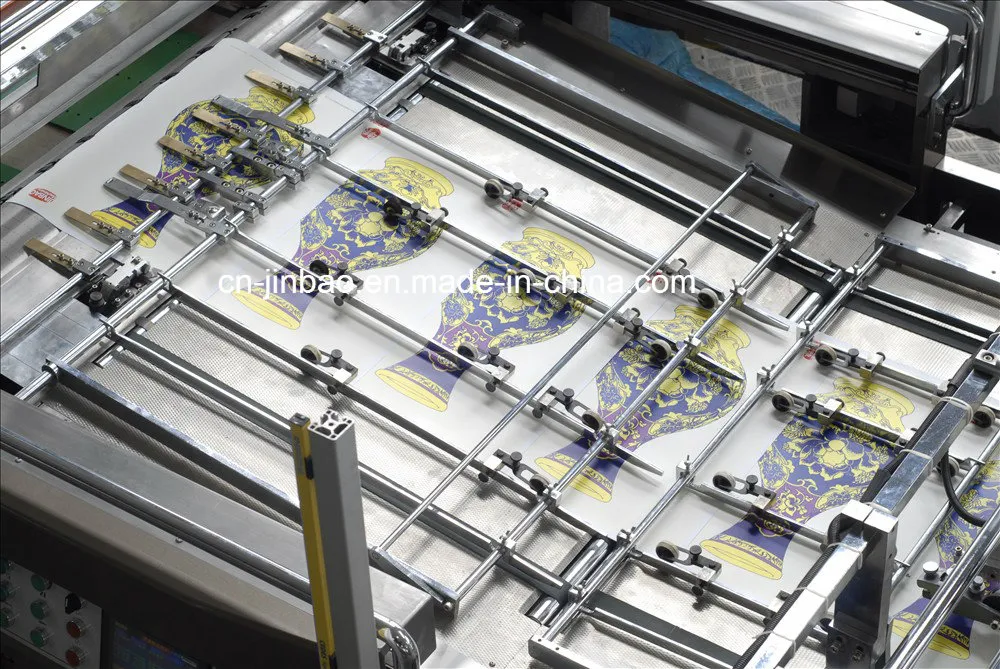

Automatic Silk Screen Printing Machine Jb-1050AG Front
Automatic Silk Screen Printing Machine Jb-1050AG Side

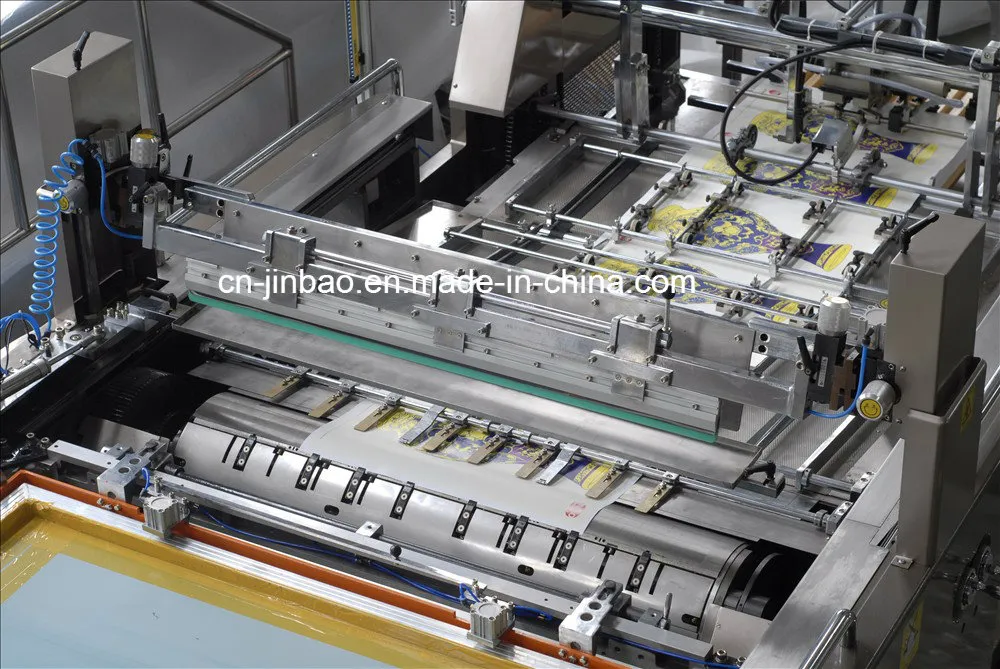

Automatic Silk Screen Printing Machine Jb-1050AG Back

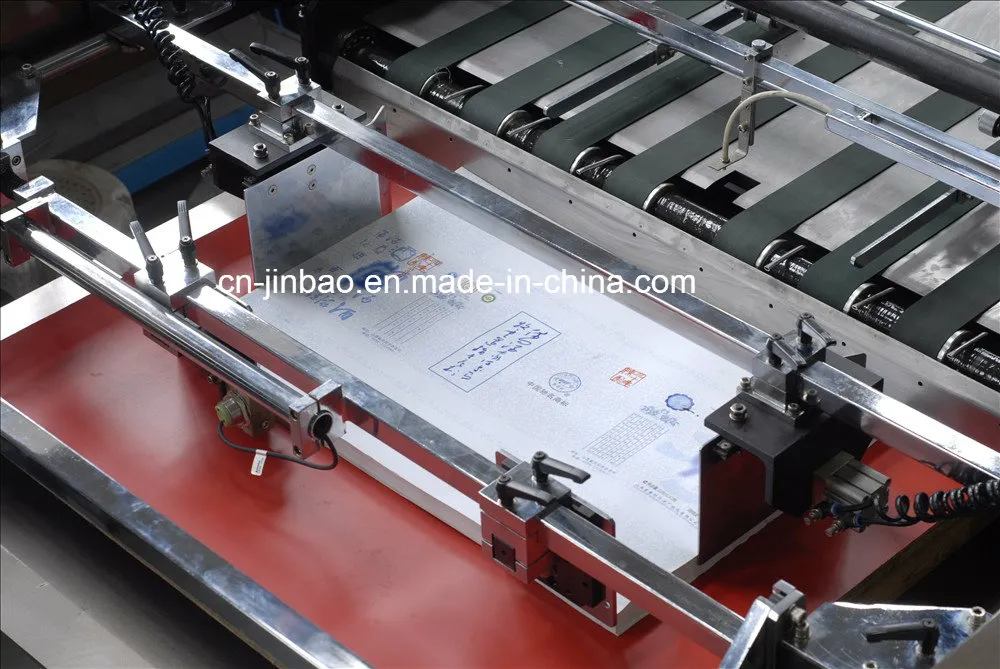

Automatic Silk Screen Printing Machine Jb-1050AG Components
Frequently Asked Questions
What is the maximum printing speed of the JB-1050AG?
The machine features a high-speed stop cylinder design that reaches a maximum speed of 4000 pieces per hour.
What materials are compatible with this screen printer?
It is suitable for paper, cloth, plastics, ceramic and glass transfer films, advertising materials, and electronic components.
How does the "non-stop" technology benefit production?
The non-stop feeder and collection system allow for loading and unloading without stopping the machine, increasing production efficiency by over 30%.
What is the overprint precision of this model?
The JB-1050AG offers high-precision printing with an overprint tolerance of ≤ 0.10 mm.
What are the power requirements for installation?
The machine requires a 3-phase 380V 50Hz power supply with a total power consumption of 11.3Kw.
What is the thickness range of paper it can handle?
It can efficiently process paper and substrates with a thickness ranging from 90 to 420g/m2.
