Automatic Round Manual Silk Screen Printing Printer Machine for Steel Drum

1 / 5

Automatic Round Manual Silk Screen Printing Printer Machine for Steel Drum

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

HLT

Type

Automatic Screen Printing Machine

Style

Screen-process Printing Press

Structure

Rotary Printing Press

Color & Page

Two-Colour Printing Press

Application

Packaging Printing

Product Name

Steel Drum Heat Transfer Printing Machine

Voltage

380V, 50Hz

Total Power

4.5kw

Air Pressure

0.4---0.8kpa

Drum Diameter

500-600mm

Drum Height

100-400mm, Adjustable

Efficiency

About 6 PCS/Min

PLC Control

Mitsubishi

Printing Length

Max 1800mm

Dimension

5000(L)X1200(W)X1750(H)mm

🛠️ Product Description

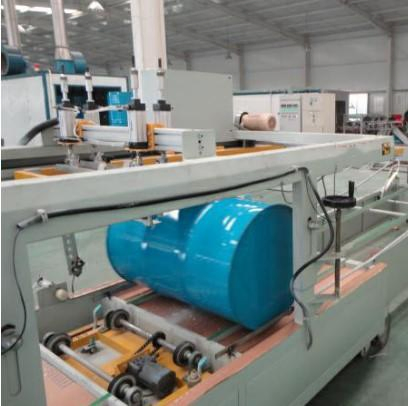

A: Heat transfer printing machine B: Silk printing machine

Automatic Round Manual Silk Screen Printing Printer Machine

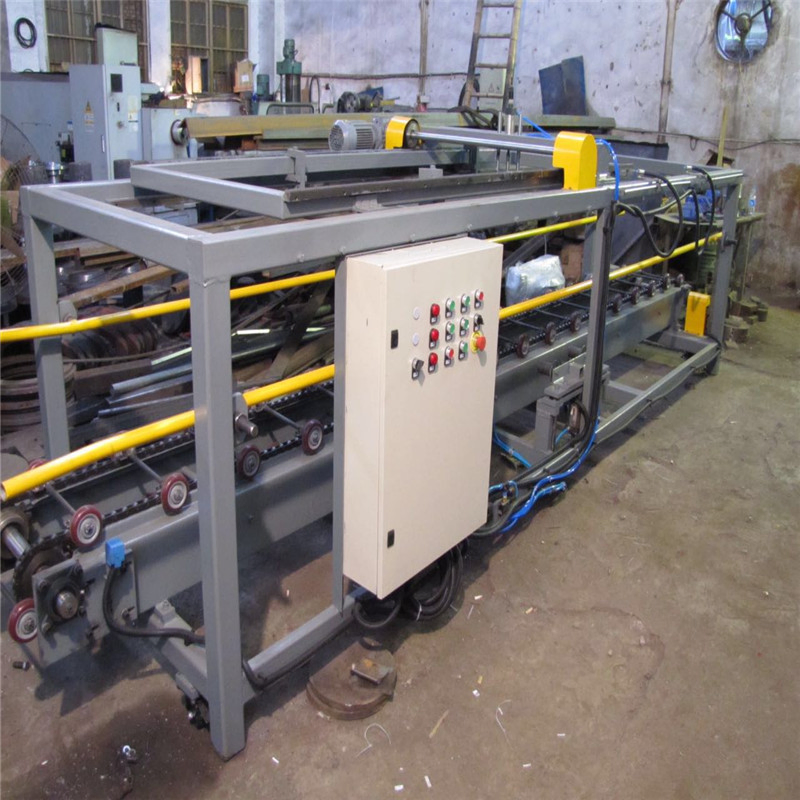

Heat transfer printing machine Parameters

Power: 4kw
Voltage: 220V/380V
Air pressure: 0.6Mpa
Efficiency: about 6 pcs/min
PLC control: Mitsubishi
Capabilities: Prints up to any two parts of the barrel with freely adjustable segments.

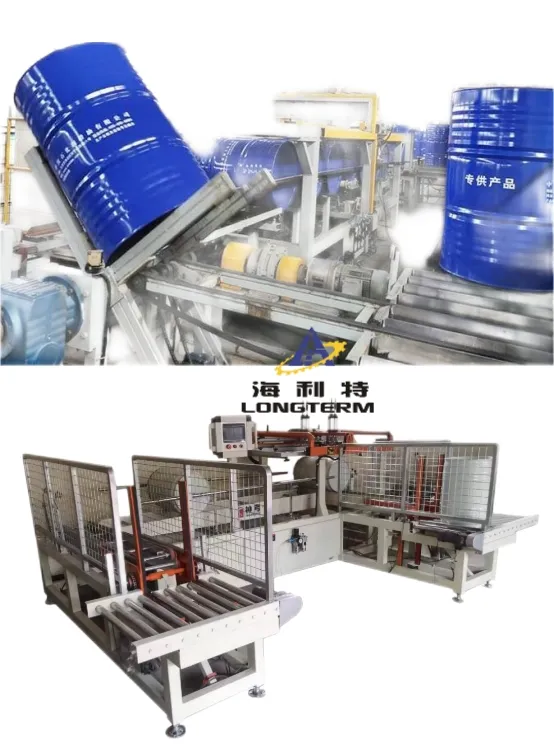

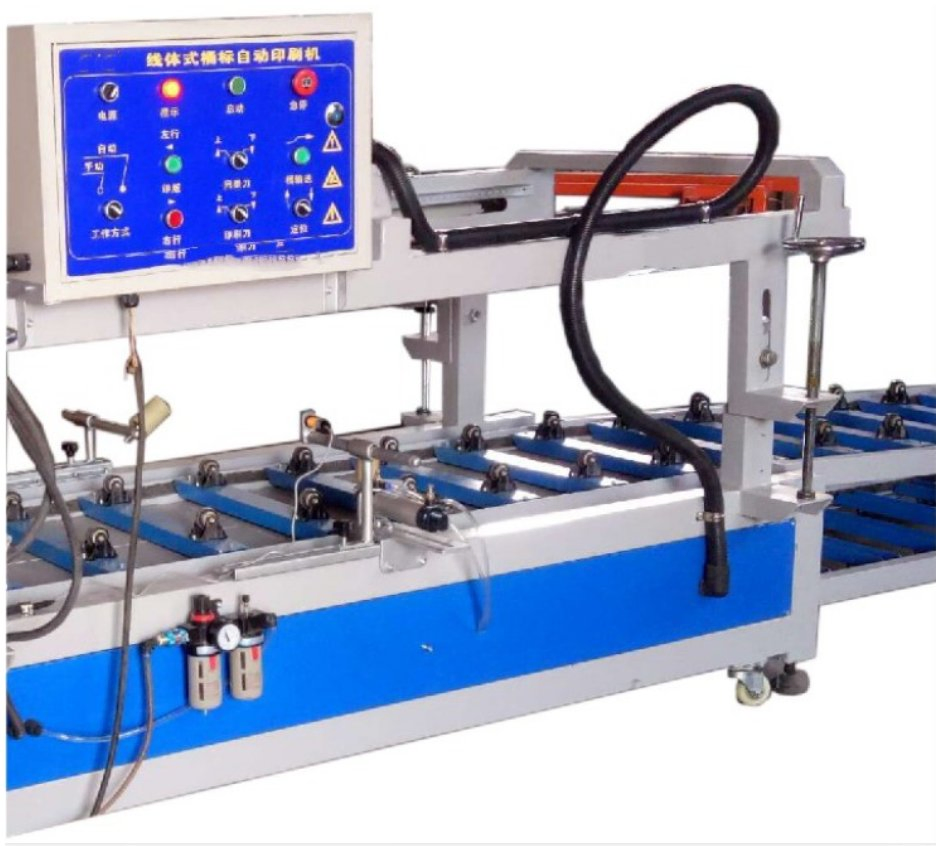

Silk Printing Machine Specification

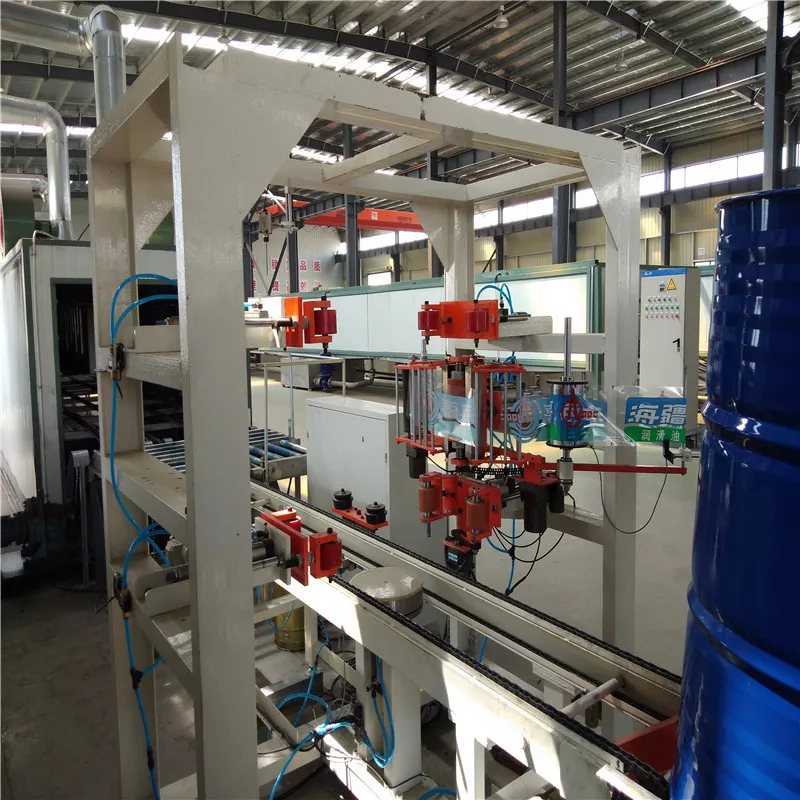

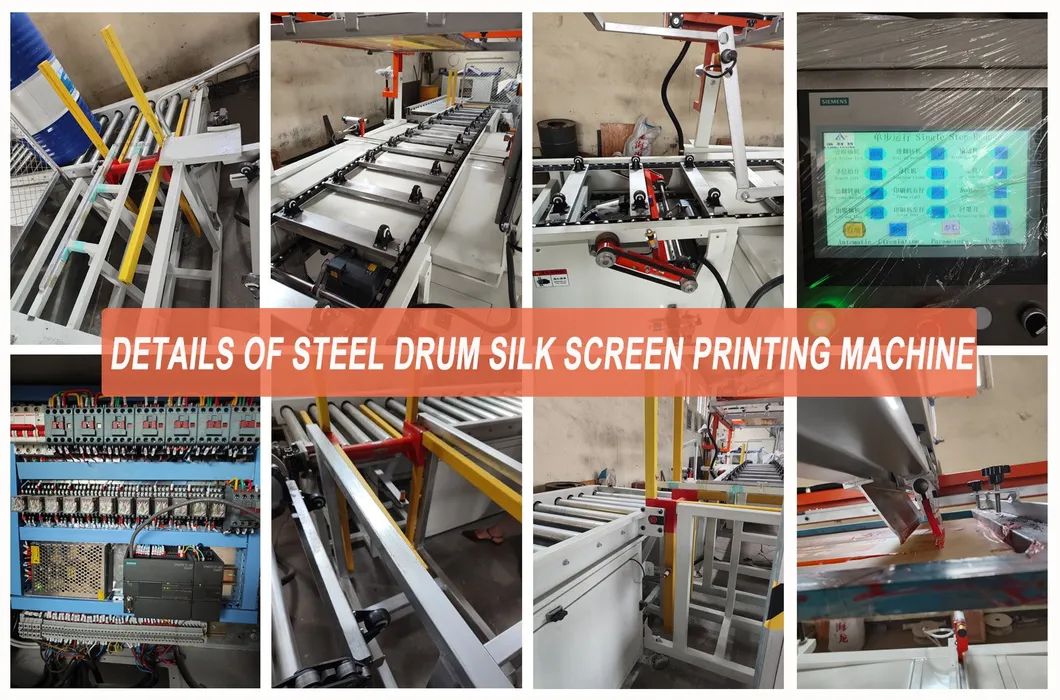

Process Flow	Suitable for 216L closed type steel drum. Sequence: Feeding station -> 90° Turnover -> Conveyor transportation -> Drum cover positioning -> Silk screen printing station -> Automatic printing -> Unloading turnover mechanism (90° flip).
Structure	All steel structure, painted finish.
Positioning	Adopts advanced photoelectric positioning system.

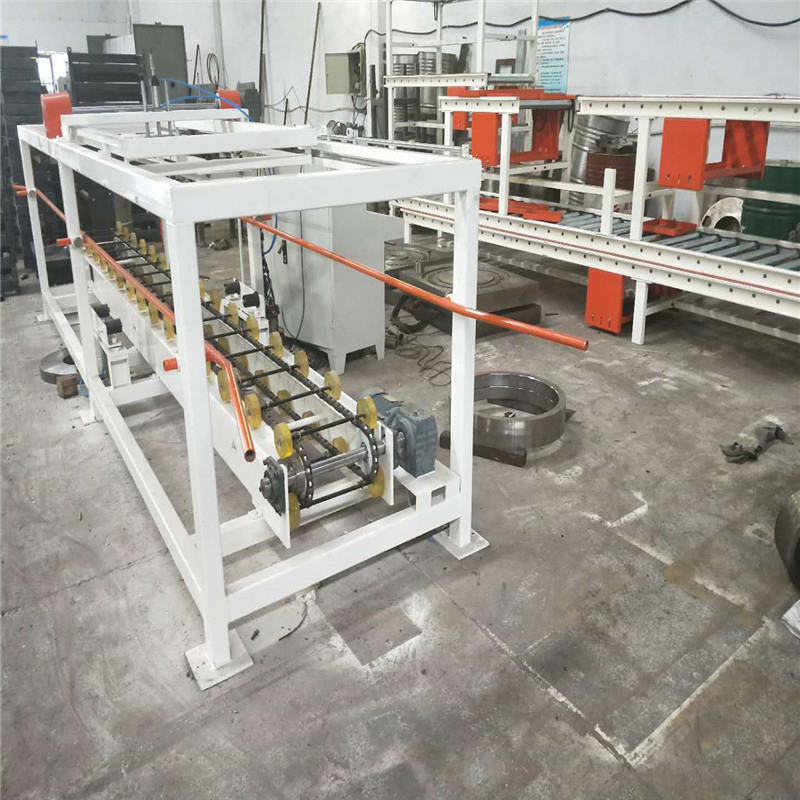

Conveying	High-quality carbon steel rolling chain with polyurethane support wheels to prevent scratching the drum surface.
Control	Siemens PLC program controller with high-quality electronic components.

Three parts of steel drum could be printed at the same time

🌟 Features & Advantages

Advanced Drive System Cam-linkage mechanisms combined with PLC control ensure working stability, reliability, and maximum efficiency.

Global Standard Components Equipped with main components from international brands like Rexroth, SMC, and Mitsubishi.

Robust Construction Machine frame and structures are manufactured using high-intensity aluminum alloy and stainless steel.

Intelligent Safety Features a "No-product-no-print" system, automatic counter, and safety alarm devices.

High Precision Highly precise registering for double-color printing with lower noise due to mechanical driven systems.

UV Curing System Electronic UV Curing System for power saving and adjustable intensity (20%-100%).

🏢 Company Profile

The manufacturer is a leader in the field of steel drum production lines, with a well-established reputation for outstanding performance. Recognized worldwide for proprietary design and manufacturing know-how, the company has been involved in this industry since 1990. Equipment has been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India, and more.

Servicing is facilitated by advances in remote control software, allowing for troubleshooting and rapid support globally to ensure customers stay competitive with quality parts and fast turnaround times.

❓ Frequently Asked Questions

What is the printing efficiency of this machine?

The machine operates at an efficiency of approximately 6 pieces per minute.

What control systems are integrated into the equipment?

We use high-quality PLC systems from Mitsubishi and Siemens to ensure precise operation and stability.

Can the machine handle different drum sizes?

Yes, it is designed for drum diameters between 500-600mm and adjustable heights between 100-400mm. It is ideal for 216L steel drums.

Does the machine support multi-color printing?

Yes, the system supports high-precision double-color printing and multi-part printing simultaneously.

What are the power and air pressure requirements?

The machine requires a voltage of 380V/50Hz and an operating air pressure between 0.4 and 0.8kpa.

What information is needed for a customized offer?

Please provide your technical drawings, the specific size of the steel drums you wish to manufacture, and your required production capacity per shift.
