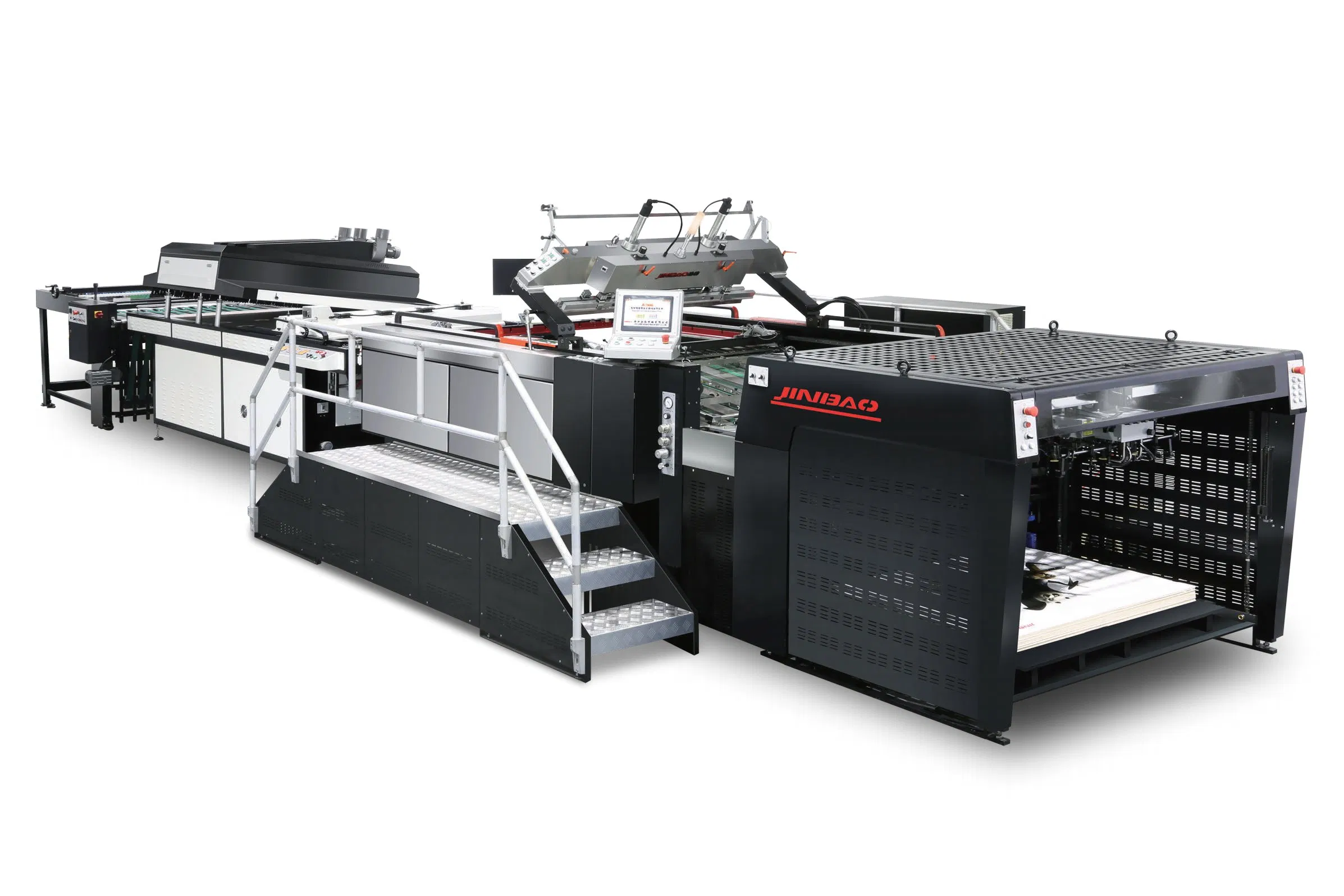

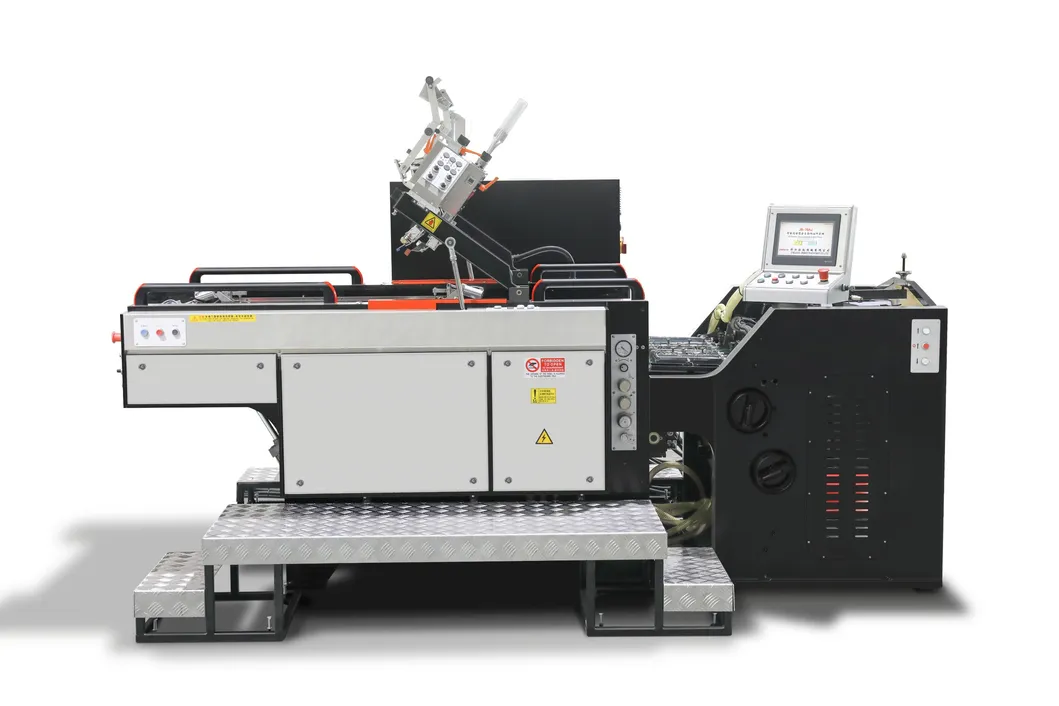

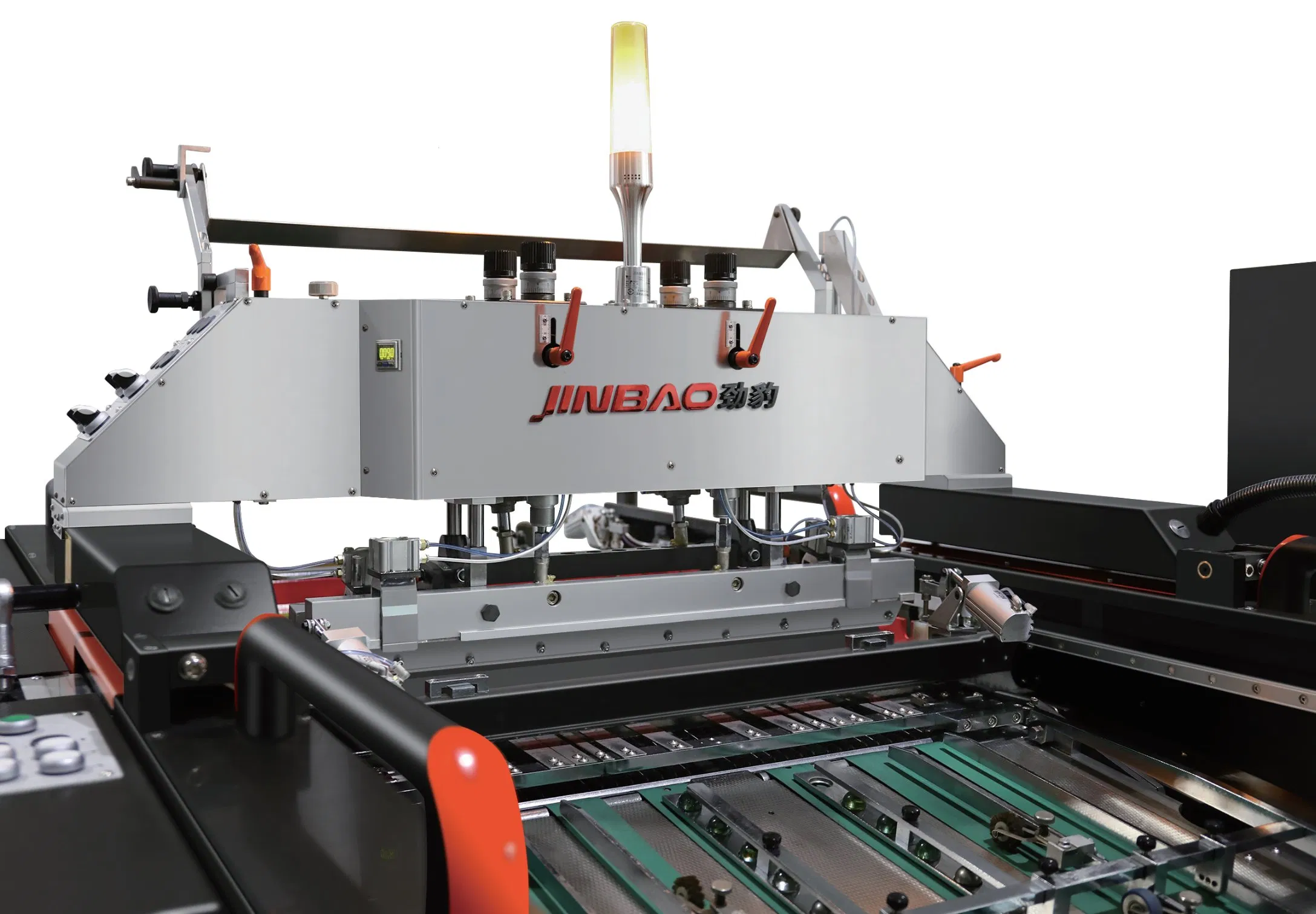

Intelligent SERVO Control Automatic STOP Screen Printing Machine
The Intelligent servo automatic screen printing machine is a leading industry solution designed with independent intellectual property rights. Under the requirement of ensuring the quality of printed products, the full-size printing speed can reach 4200 pieces / hour. For personalized products, the speed can reach up to 4500 pieces / hour. It is the ideal choice for paper and plastic packaging, ceramics, glass decals, textile transfer, and electronic components.

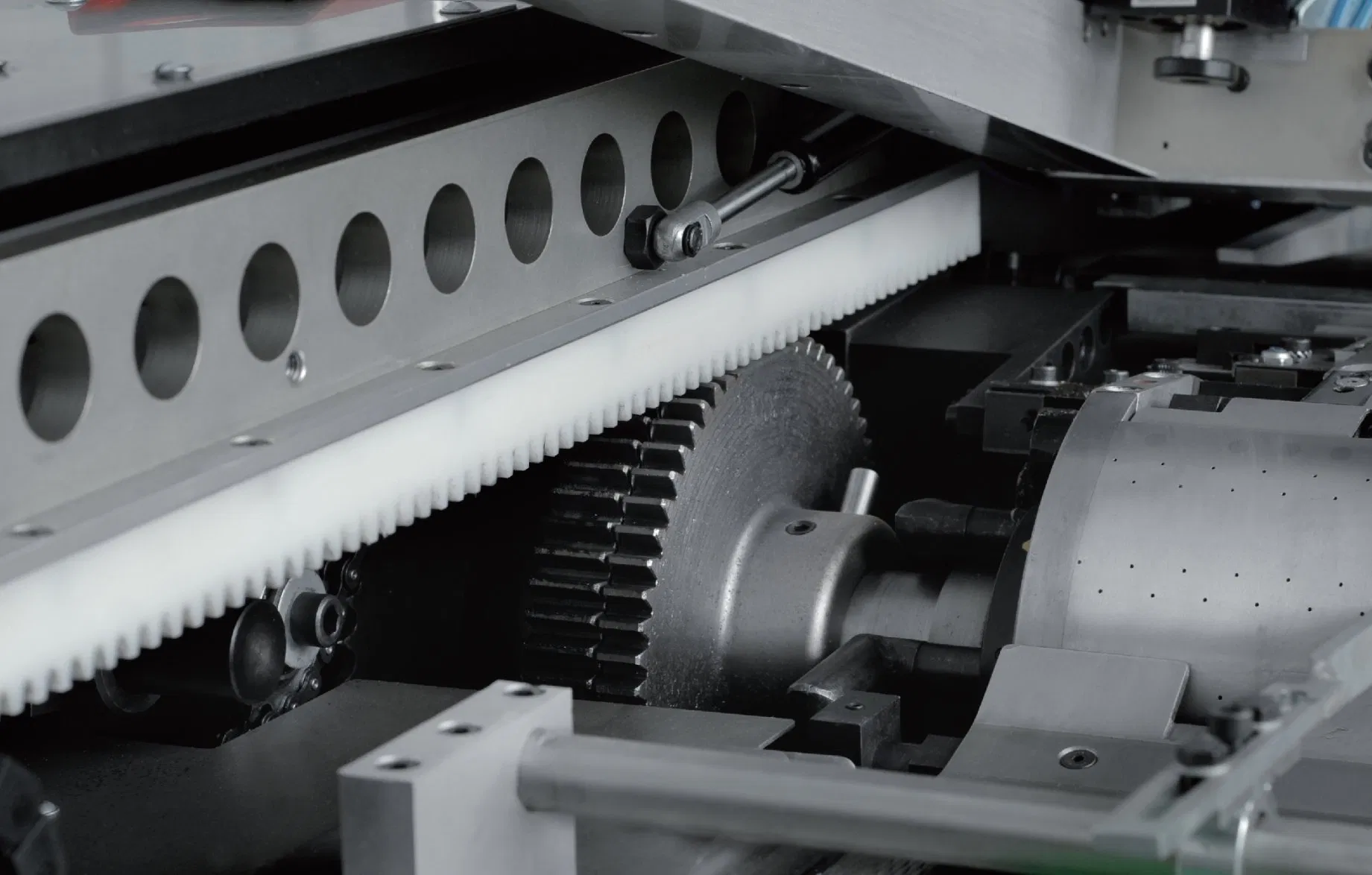

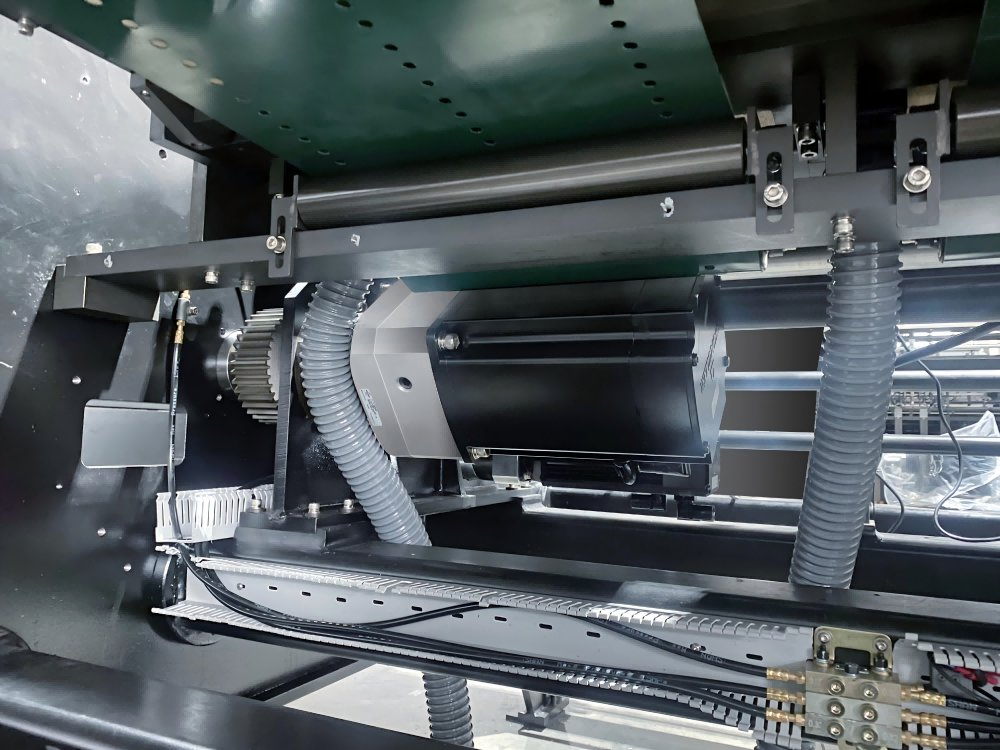

This advanced machine utilizes three servo motors to drive the paper feeding, roller, and frame independently. By replacing traditional mechanical transmission parts like shafts and gearboxes with automatic control, it significantly improves mechanical stiffness, reduces transmission errors, and enhances overall printing quality and efficiency.
| Model Parameter | Specification (JB-78AJ) |
|---|---|
| Max. Sheet Size | 780×540mm² |
| Min. Sheet Size | 350×300mm² |
| Max. Printing Size | 780×520mm² |
| Frame Size | 880×880 mm² |
| Thickness of Sheet | 108-420 g/m² |
| Border | ≤10mm |
| Printing Speed | 400-4200 sheet/h |
| Total Weight | ≈3500kg |
| Overall Size | 3390×2640×2075 mm |

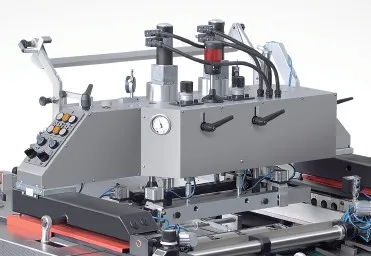

1Heavy Pneumatic Squeegee System
Integrates electronic, pneumatic, and hydraulic technologies. It allows for preset squeegee pressure and positioning, ensuring a constant pressure that guarantees perfect ink layer thickness and consistent printing quality.

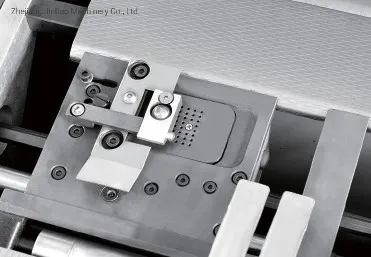

2Pneumatic Side-lay System
Features a vacuum side-pull mechanism that prevents damage or smudging on the substrate. The photoelectric detection system monitors substrate placement in real-time, significantly reducing waste rates.

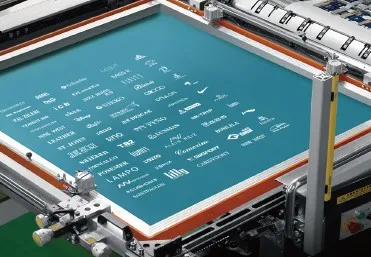

3Separated Screen Frame Structure
The screen frame can be decoupled from the transmission and pulled out easily. This makes registration adjustment, cylinder cleaning, and screen maintenance much safer and faster.
