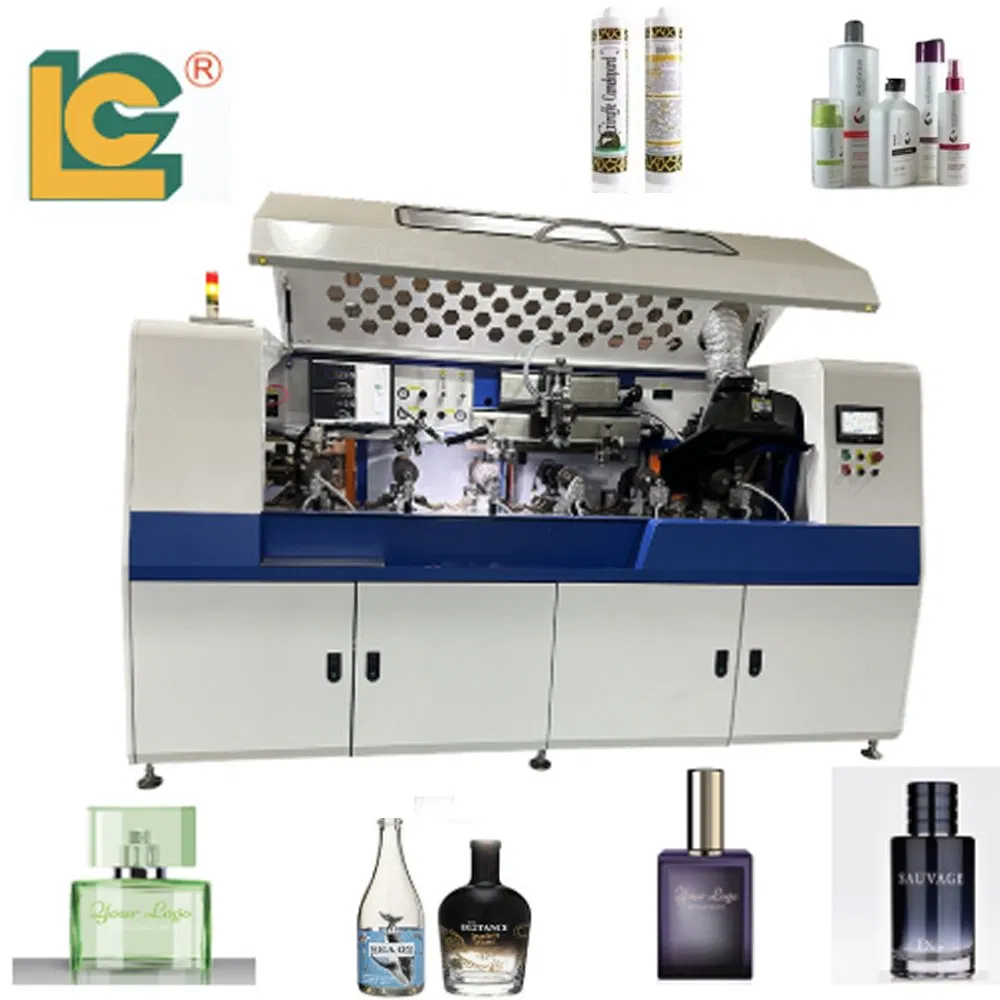

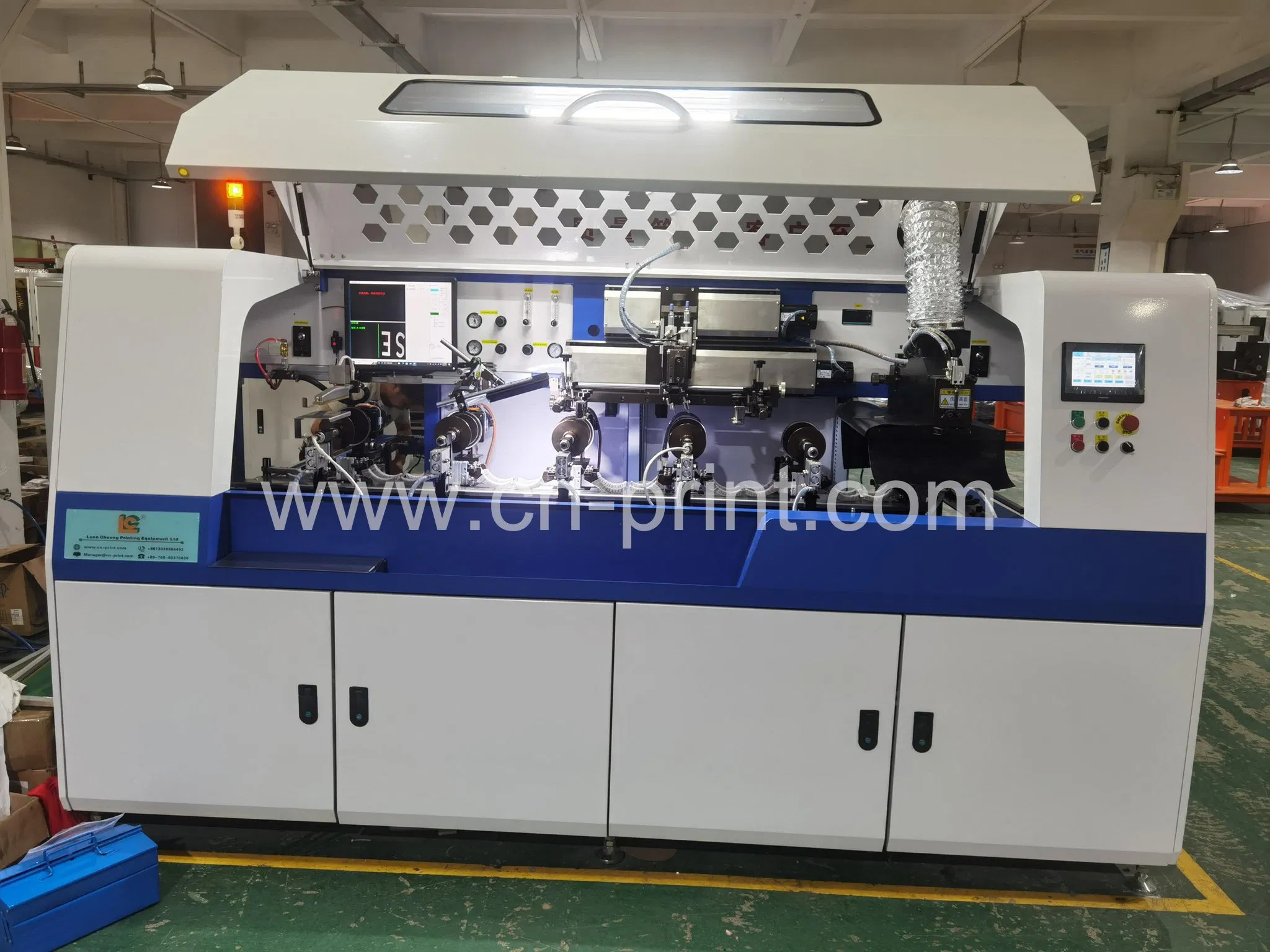

Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
1 / 5
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans
Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans

Automatic Servo CNC Cylinder Silk Screen Printing Machine for Round Oval Square Glass Plastic Bottle Jar Container Cans

Customization: Available
After-sales Service: Online Support, Video Technical Support
Warranty: 1year
Send Inquiry

Product Description

Basic Information

Model NO.:LC-CNC106-S
Type:Automatic Screen Printing Machine
Style:Screen-process Printing Press
Structure:Rotary Printing Press
Color & Page:Two-Colour Printing Press
Application:Packaging Printing
Machine Size:2400*2000*1700 mm
Machine Weight:2000kg
Trademark:LC
Origin:China

Packaging & Delivery

Package Size:240.00cm * 200.00cm * 170.00cm
Gross Weight:1240.000kg
Transport Package:Wood Case

Product Description

Factory Direct Sale Full Automatic Glass Bottle Screen Printer with CCD Visual Position

Automatic Screen Printer
Model:LC-CNC106-S
Printing color:1 color (can print multi color by multi times)
Product appearance:cylinder/flat/oval and other special shape, plastic glass bottles, jars, cups, cans
Operation:Full CNC Servo
Diameter of circular printing:ф15mm~ф100mm
Circular printing height:20mm~270mm
Flat printing diameter:R20mm~R180mm
Flat printing height:20mm~270mm
Fastest printing speed:round products: 50-60Pcs/min, flat bottles: 70Pcs/min
Power requirements:AC380V 3Phase 50Hz /60Hz
Rated power:host 7.5KW
Air pressure requirement:5~8bar
Machine size:L2400*W2000*H1700 (Length can be customized)

Core Features & Capabilities

Description

This machine is suitable for screen printing of round, oval, square, special-shaped bottles and containers. It offers stable operation, high versatility, and high printing efficiency. Equipped with screen heating and UV light fixing furnace options, it adapts to various ink types including UV and high-temperature solid inks.

  • Auto loading and unloading with multi-axis servo robot.
  • Dust cleaning system integrated.
  • Auto flame treatment before printing and UV LED curing after printing for reduced energy and zero ozone emission.
  • All-servo driven printing system: printing head, mesh screen frame, and rotation.

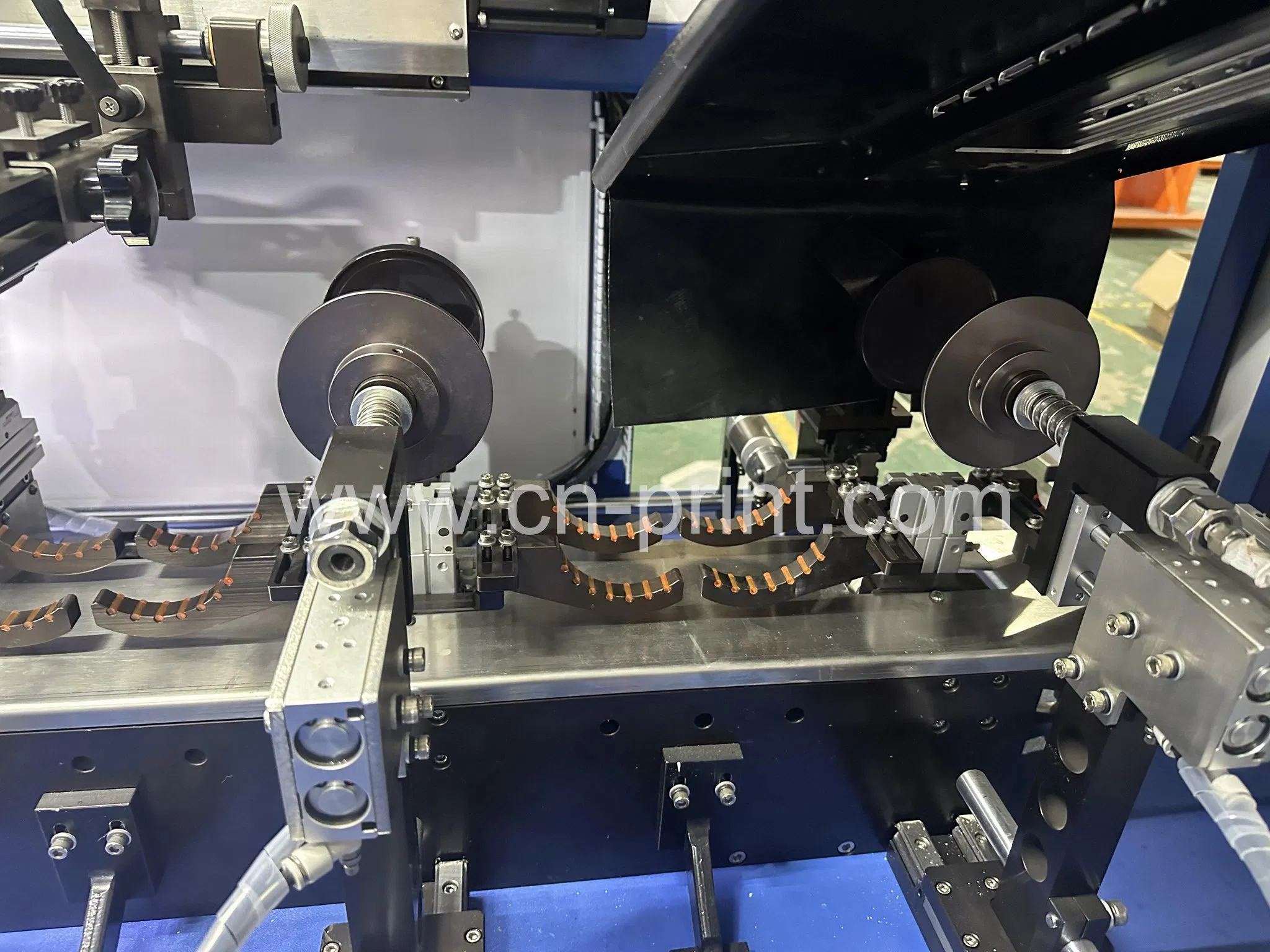

  • No gears needed for jigs; fast product changeover via servo motor rotation.
  • Quick 20-minute debugging per color with touch screen parameter settings.

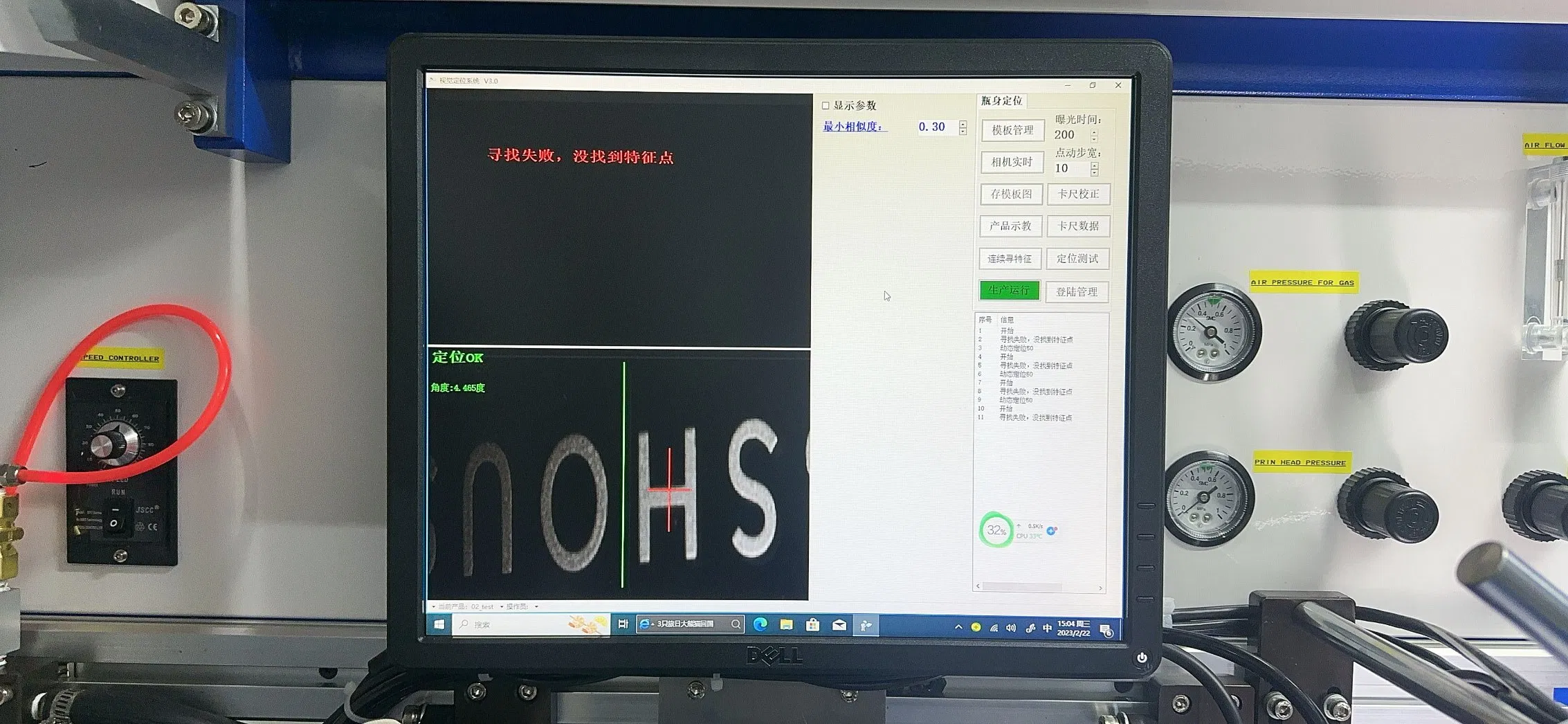

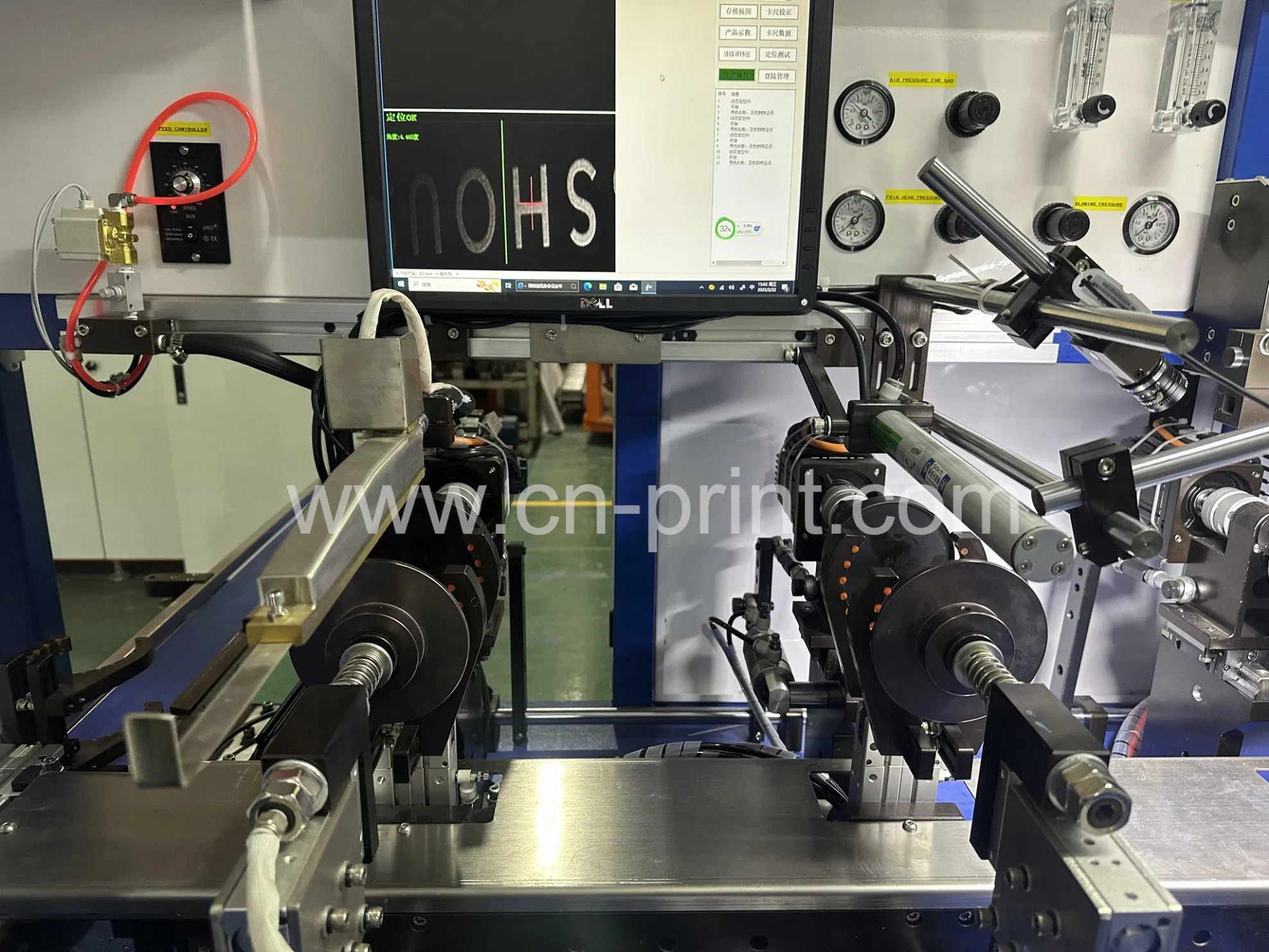

  • Industrial PLC control & linear high-speed precision CCD scanning for cylindrical products without registration points.
  • CE standard safety design machine house.

Printing Samples

Printing Sample 1 Printing Sample 2

Product Display

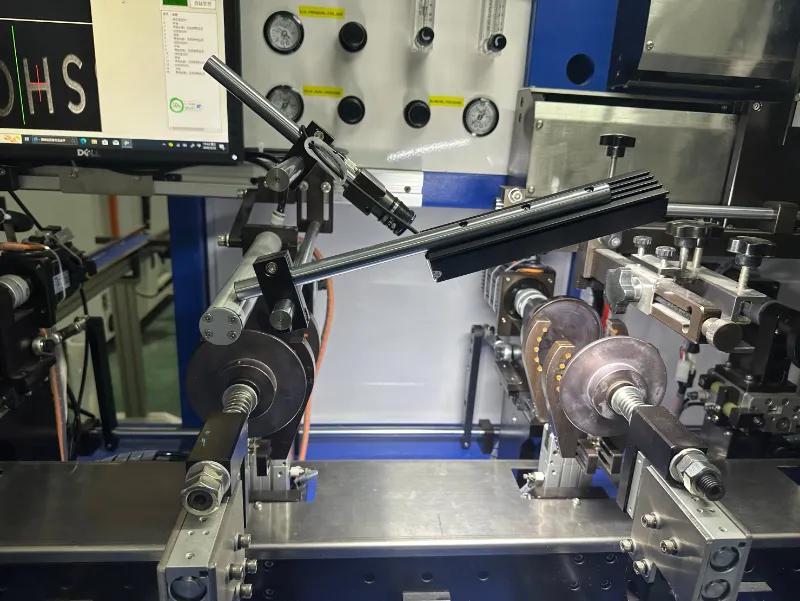

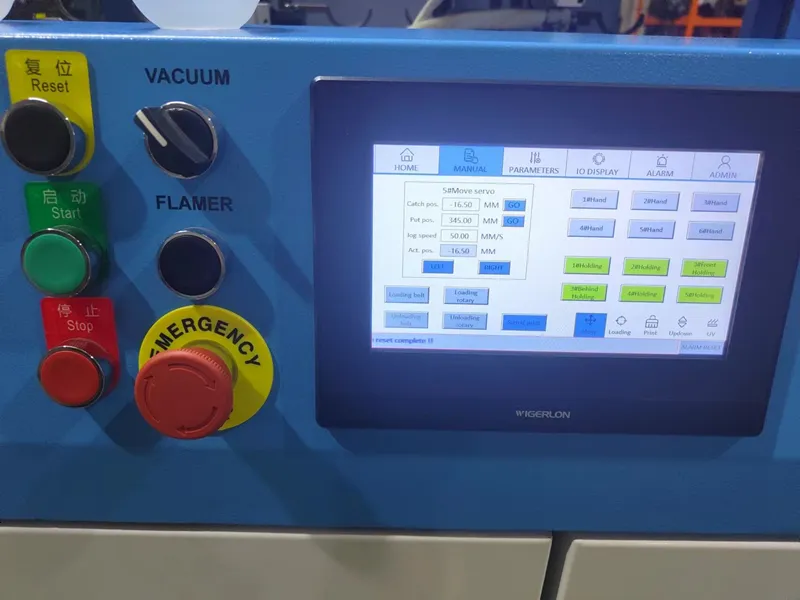

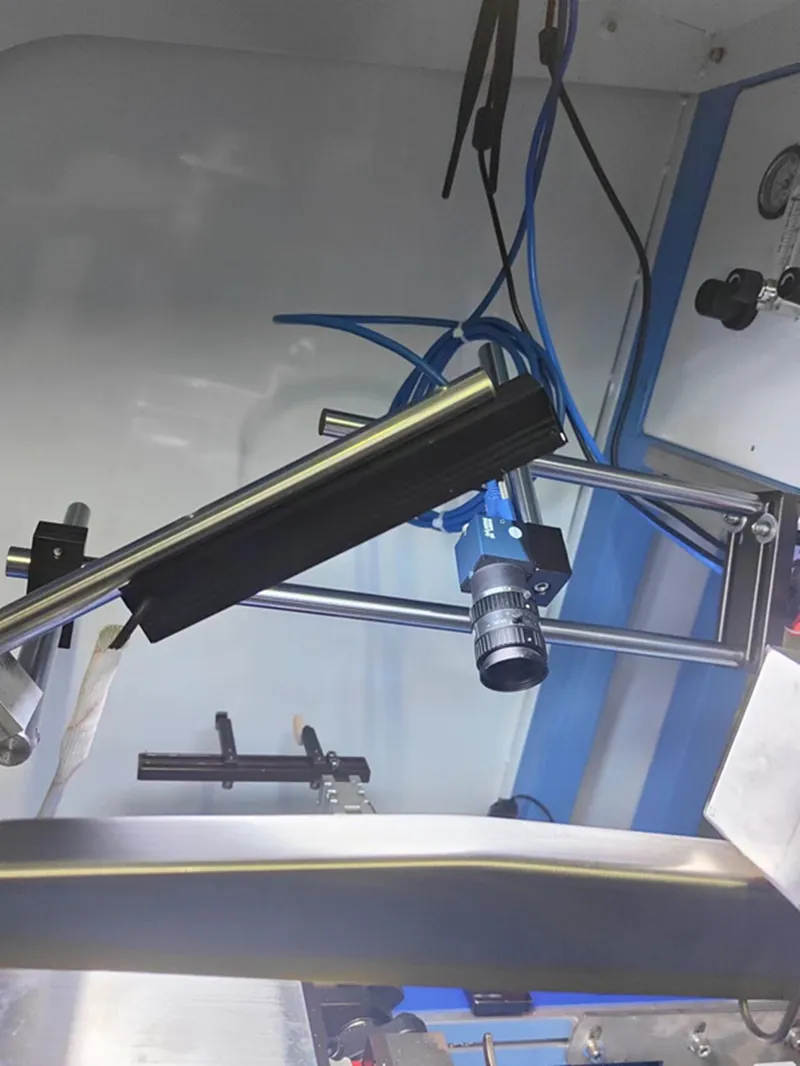

Display 1 Display 2 Display 3

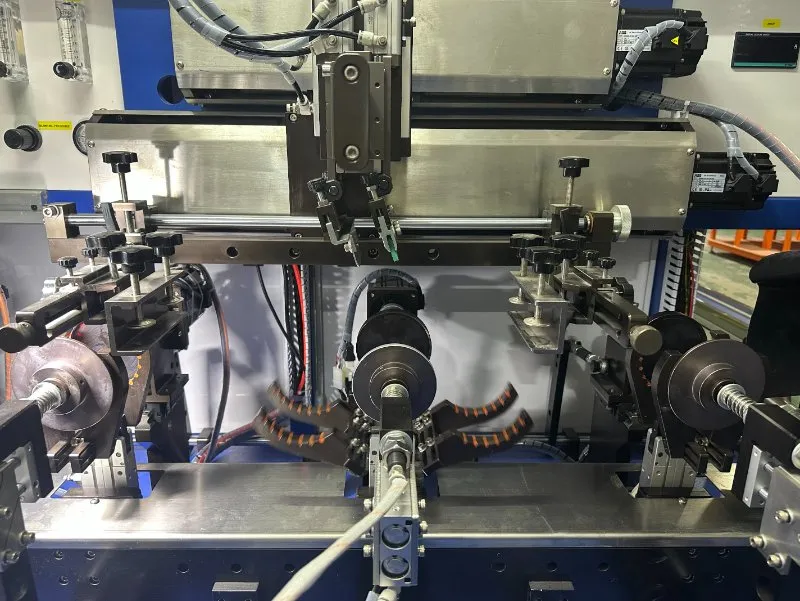

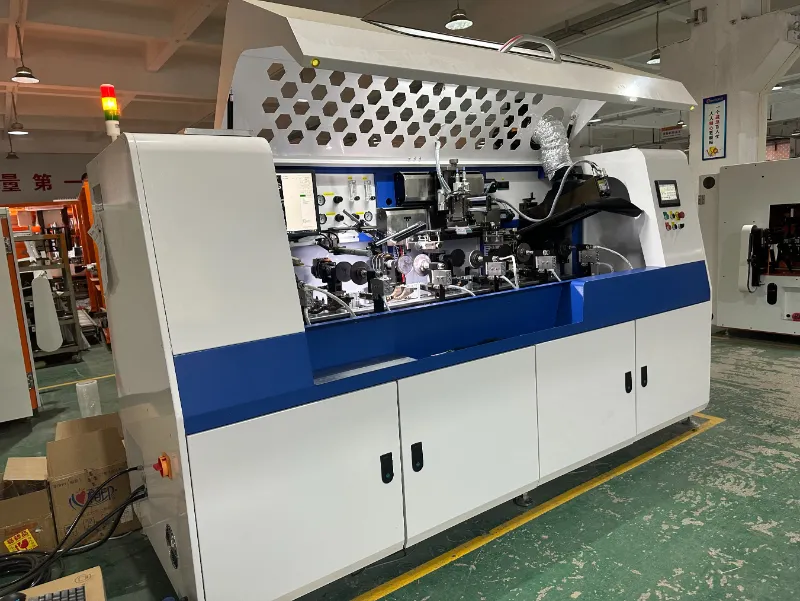

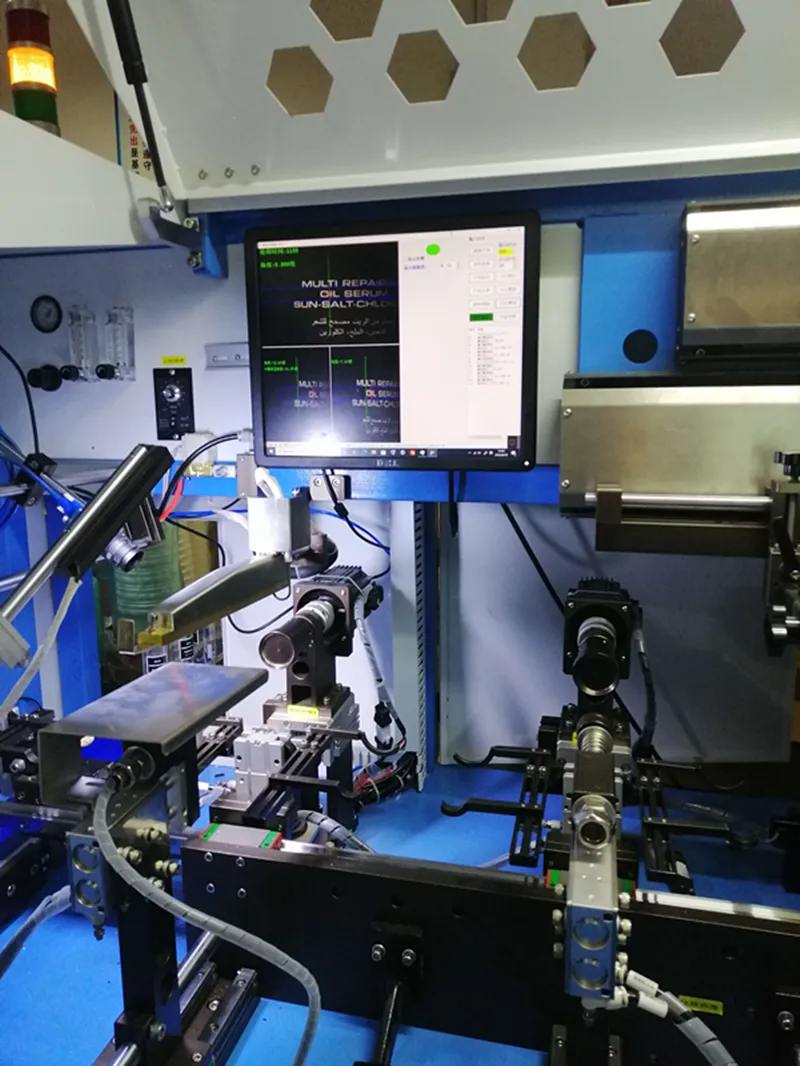

Display 4 Display 5 Display 6

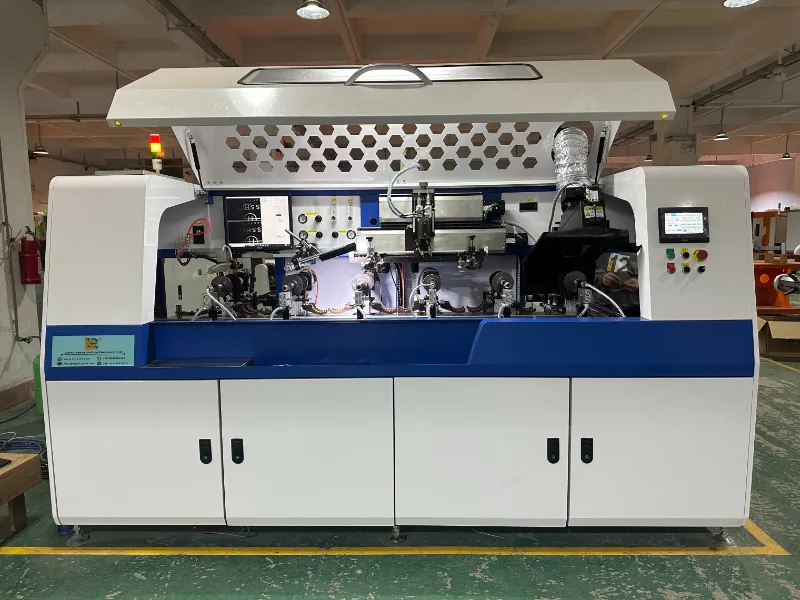

Display 7
Detailed Machine View
cylinder screen printing machine bottle screen printing machine cosmetic bottle printer plastic bottle printing glass bottle silk screen automatic uv printer servo rotary printer CNC screen printer wine bottle printing perfume bottle printer

Frequently Asked Questions (FAQ)

Q1: What types of bottle shapes can this machine handle?
A: The LC-CNC106-S is designed for high versatility. It can print on round, oval, square, and various special-shaped containers, including those with different radians on both sides.
Q2: How fast is the printing process?
A: The machine is highly efficient, reaching speeds of 50-60 pieces per minute for round products and up to 70 pieces per minute for flat bottles.
Q3: Does the machine support multi-color printing?
A: Yes, while it is a 1-color system, it can print multiple colors by running the products through multiple passes. All registration is handled precisely by the servo system.
Q4: What ink types are compatible with this screen printer?
A: It supports a wide range of inks including ordinary self-drying ink, UV ink, and high-temperature solid inks, thanks to its optional heating and UV curing modules.
Q5: How long does it take to switch between different product sizes?
A: Thanks to the full CNC servo system and touch-screen parameter settings, a complete changeover and debugging for each color typically takes only about 20 minutes.
Q6: Does it require manual registration points for cylindrical bottles?
A: No, the machine adopts linear high-speed precision CCD scanning, allowing it to repeat print double colors on cylindrical products even without physical registration points.
