3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
1 / 5
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper
3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper

3/4 Automatic Screen Printing Machine with Auto Unloading System for PVC/PCB/Paper

Customization: Available
After-sales Service: 10 Year
Warranty: 1year
Send Inquiry

Product Description

Basic Specifications
Model NO.
TMP-6090
Type
Oblique Arm Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Printing Area
600*900mm
Certificate
CE
Power
2.3kw
Weight
456kg
Printing Speed
500-1200 PCS/H
Dimensions
1.55X1.15X1.46m
Product Description

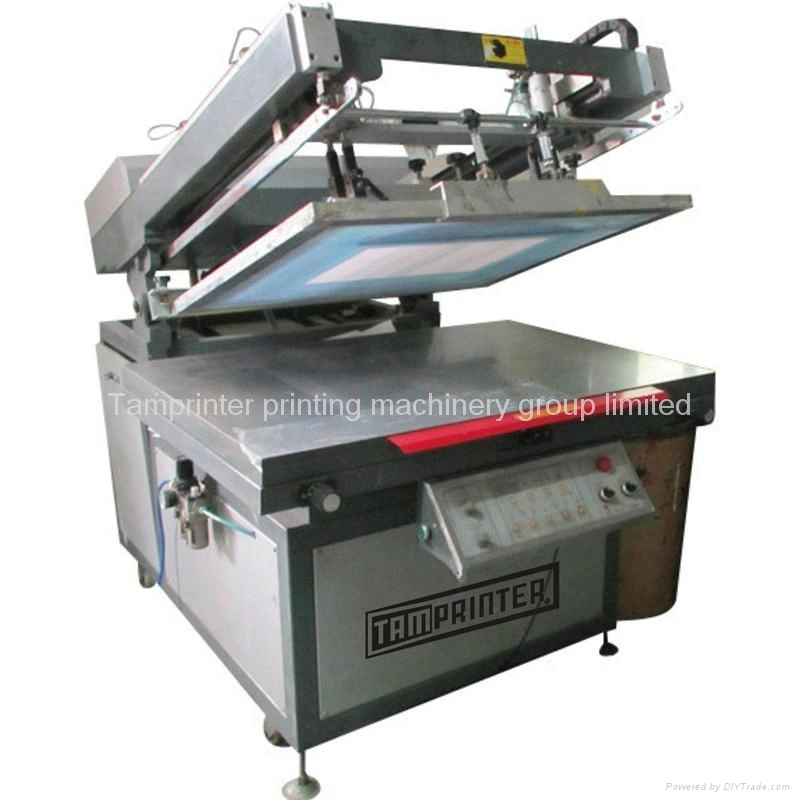

TMP-6090 Semi Clamshell Screen Printing Machine

Screen Printing Machine
Technical Parameters
Model No. TMP-6090 TMP-70100 TMP-90120
Size of worktable (mm)720X1000800X11001000X1300
Max printing area (mm)600X900700X1000900X1200
Max frame (mm)900X12001000X13001200X1500
Substrate thickness (mm)0-200-200-20
Printing speed (pcs/h)500-1200500-1000400-900
Working pressure (Mpa)0.3-0.50.3-0.50.3-0.5
Voltage / Single Phase220V 50Hz220V 50Hz220V 50Hz
Power2.3kw3kw3.7kw
Performance Characteristics
⚙️
Driven by motor drive with belt drive, offering sensitive and balanced adjustable speeds.
🏗️
Oblique arm lifting motor with frequency control ensures the machine runs smoothly.
📏
Blade and back blade pressure regulating device, adjustable to substrate thickness and size.
🌀
Vacuum adsorption system for fixed and stable printing pieces.
🎯
Multi-directional tuning (up/down, left/right, before/after) for accurate printing plate alignment.
🛡️
Equipped with safety devices that stop the oblique arm in the upper position for reliable security.
💻
Centralized electronic control unit by microcomputer for simple, flexible operation and maintenance.
Product Gallery
Detail 1

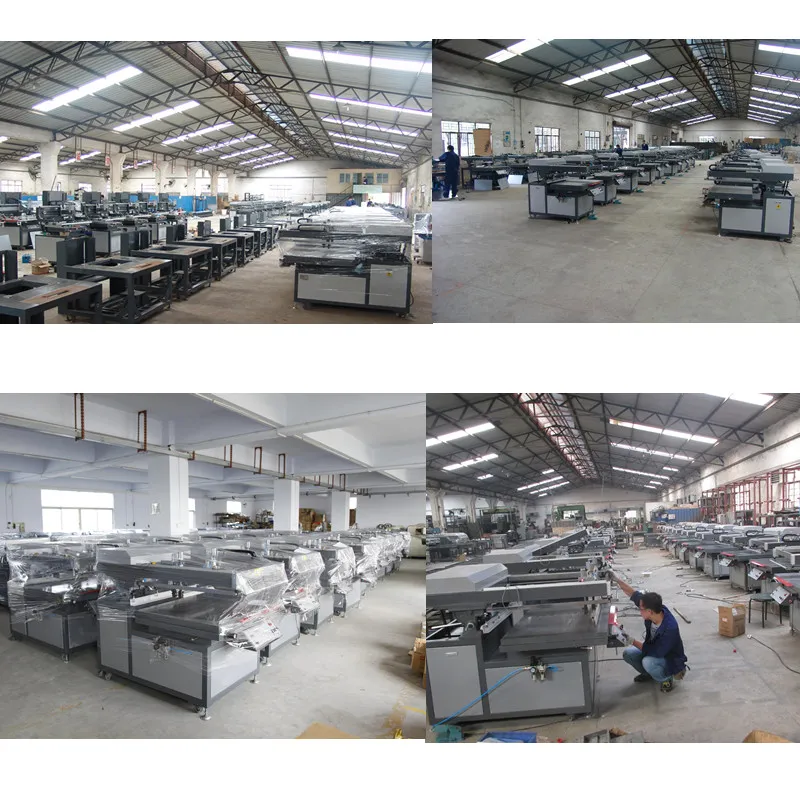

Detail 2
Detail 3
Detail 4
Frequently Asked Questions
1. What materials are suitable for this screen printing machine?
It is widely used for packaging (cigarette, wine, gift boxes), trademarks, calendars, credit cards, stickers, computer keyboards, and electronic industry components.
2. How is the printing speed of the TMP-6090 model?
The TMP-6090 offers a printing speed ranging from 500 to 1200 pieces per hour, which is adjustable based on your requirements.
3. What are the key safety features of the machine?
The machine is equipped with a safety device that automatically stops the oblique arm in the upper position to ensure operator security during maintenance or setup.
4. Can the printing plate be adjusted for precision?
Yes, the printing plate features up, down, left, right, and forward/backward tuning devices, making it highly accurate and convenient for board alignment.
5. Does the machine support vacuum adsorption?
Yes, it includes a vacuum adsorption system to firmly fix printing pieces in place during the printing process for consistent results.
6. What is the maximum substrate thickness allowed?
The machine can handle substrate thicknesses ranging from 0mm to 20mm across all three standard models (TMP-6090, 70100, and 90120).
