Fusion Digital Print
1 / 5
| Model Number | LC-E70100 | Workbench Area | 800*1100mm² |
|---|---|---|---|
| Max Print Area | 700*1000mm² | Max Screen Size | 1000*1300mm |
| Min Screen Size | 550*650mm | Printing Speed | 500-1200pcs/h |
| Dimensions | 1600*1350*1280mm | Weight | 480KG |
High Precision liner guideway installed to control the movement of rubber squeegee and screen frame. It is widely used to print circuit boards, precision electron circuits, and other industrial fields. Also widely used in the glass printing field, such as mobile windows, machine panel screen printing, plastic parts, furniture industry, wooden cases, etc.
The major parts are imported components to ensure machine precision and quality stability. This machine is ideal for printing cigarette, wine, gift, and cosmetic packages, as well as trademarks, calendars, oil paintings, computer keyboards, transfer paper, and credit cards.

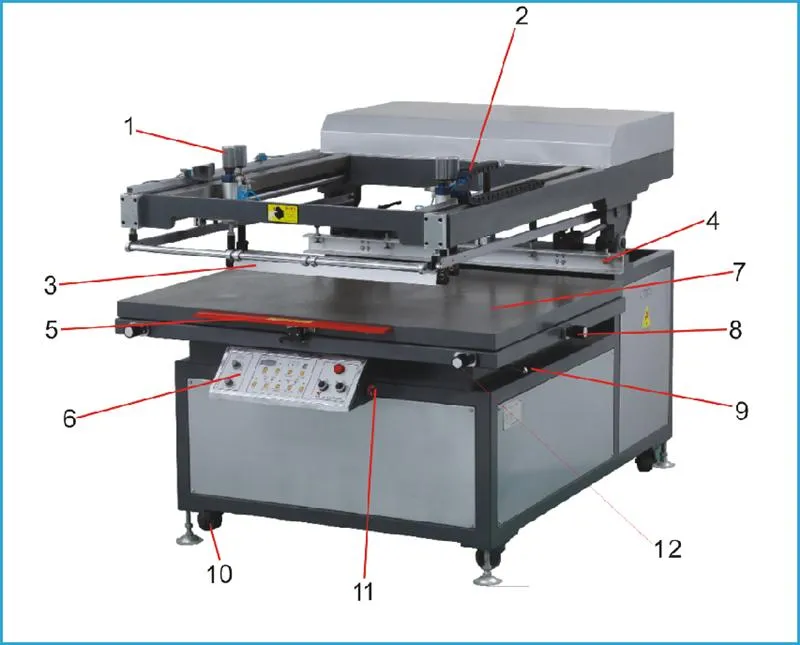

| 1. Printing & ink reclaiming air cylinder | 2. Air pipe towline |
| 3. Front net clamp | 4. Black net clamp |
| 5. Safe break gear | 6. Operating control board |
| 7. Working plate | 8. Plate left-right micro adjustment |
| 9. Plate lock handle | 10. Wheel |
| 11. Stop emergency on-off | 12. Plate micro adjustment device |
A: It is ideal for thin and soft materials like paper and film due to its vacuum table, as well as glass, plastic parts, circuit boards, and wooden cases.

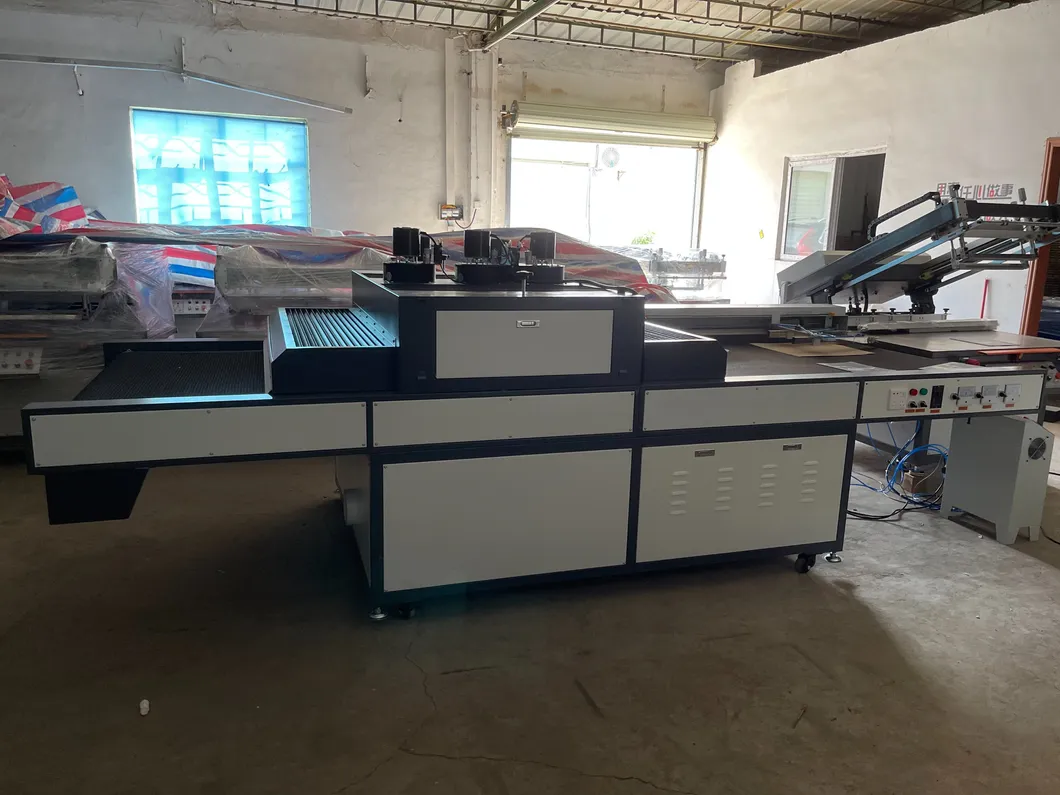

A: This machine integrates a UV curing unit that dries the ink immediately after printing, making it perfect for high-speed production lines and UV coating processes.
A: Yes, it features high-precision liner guideways and micro-adjustment devices for the plate (front/back, left/right, and angle) to ensure exact pattern placement.
A: Absolutely. The screen forme clamping device is fully adjustable to accommodate different frame sizes up to 1000*1300mm.
A: The printing speed is adjustable and ranges from 500 to 1200 pieces per hour, depending on the material and pattern complexity.
A: The machine utilizes a microcomputer program control system and includes a 4-digit auto counter, making the operation intuitive and production monitoring simple.
