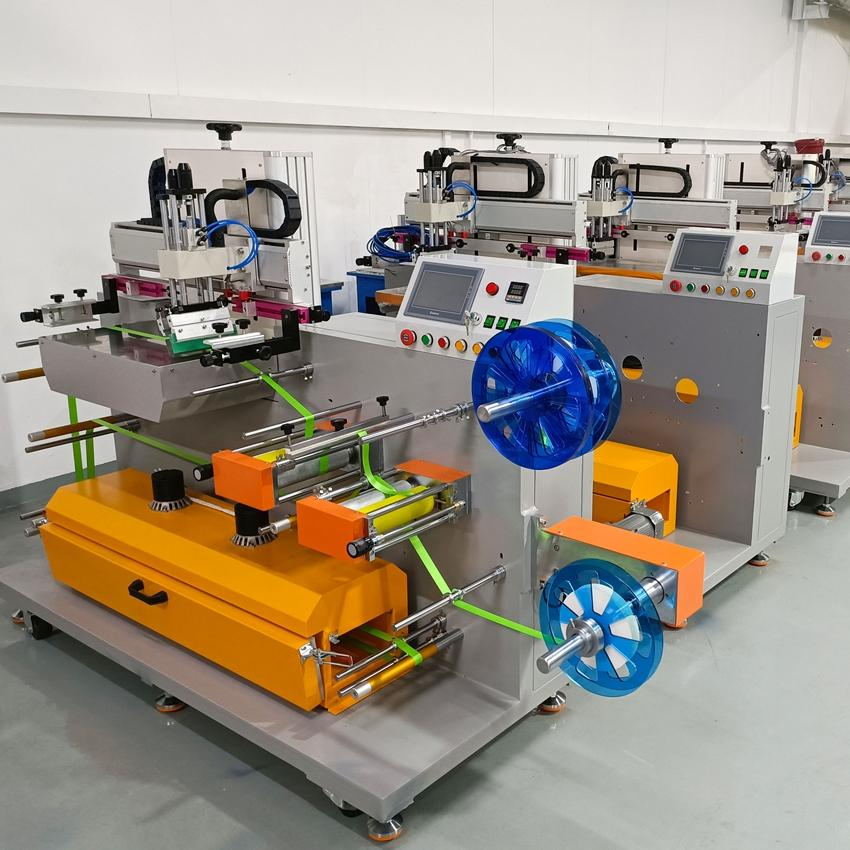

Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
1 / 5
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons
Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons

Full Automatic 1 Color Roll to Roll Ribbon/Webbing Screen Printing Machine for Satin Ribbons

Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Information

Model NO.GW-BD150-W
TypeScreen Printing Machine
StyleScreen-process Printing Press
StructureFlat-bed cylinder press
Color & PageSingle-Colour Printing Press
ApplicationRibbon Printing
Print InterfaceUSB2.0
Printing Area150*400mm
Oven Power3kw
Printing Speed1000 Times Per Hour
Air Pressure6-8bar
OriginChina
HS Code8443192900
★

Product Description

Application:
This machine is mainly used for all kinds of ribbon printing. The machine adopts a double reel mode, so that the printing and roll are more stable, and the screen frame is snap-off mode when printing, which can be applied to printing with different inks.
The machine is controlled by PLC and touch screen, which is safe and simple to operate. The unique oven design is equipped with hot air circulation. The product can pass through the oven in double-layered to shorten the baking time and improve the printing output.

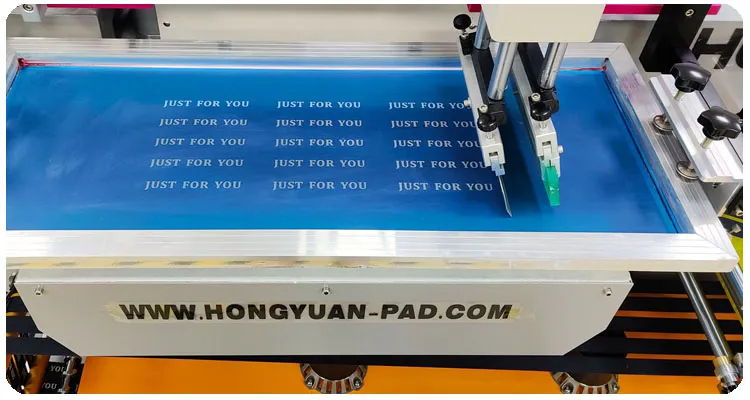

Roll to Roll Ribbon Screen Printing Machine
Key Functions:
  • Solid printing and color fastness, perfect for label printing on dark materials.
  • Small dimension with low energy consumption.
  • Integrated IR drying system allows products to dry directly after printing.
  • Single color press with sensor for accurate repeat printing.
  • Available for double side printing and security identification ink.
  • Screen frame rises independently for easy ink changes.
  • Includes Snap-off function and hot air circulation.
Automatic Screen Printing Machine
⚙

Technical Parameters

Specification Details
Printing area150*400mm
Printing speed1000times/hr
Max screen frame size300*800mm
Oven power3KW
Air pressure6bar-8bar
Machine size2200*850*1550mm
Packing size1900*900*1700mm
Machine voltage220v single-phase 4.5KW
📷

Detailed Photos

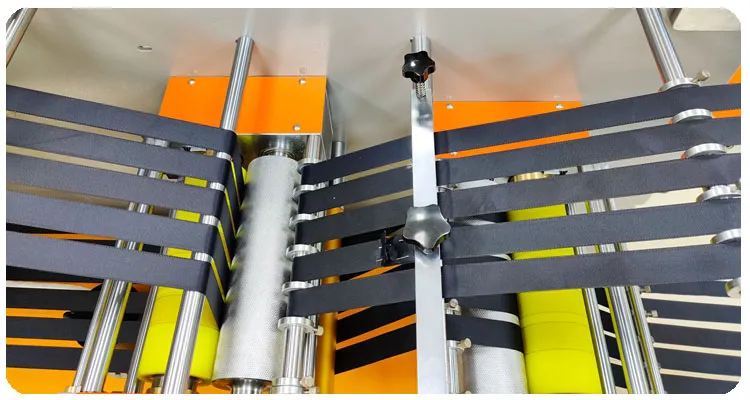

Detailed View 1

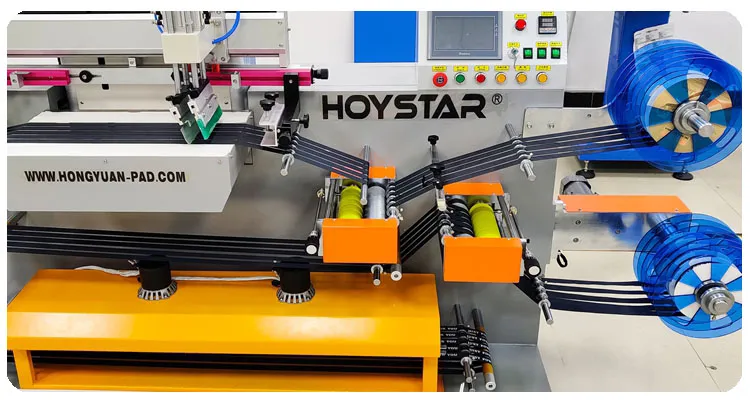

With double reel system for stability:

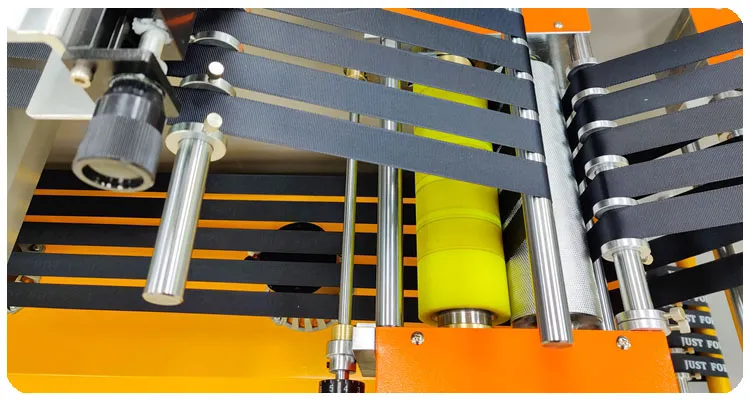

Double Reel System

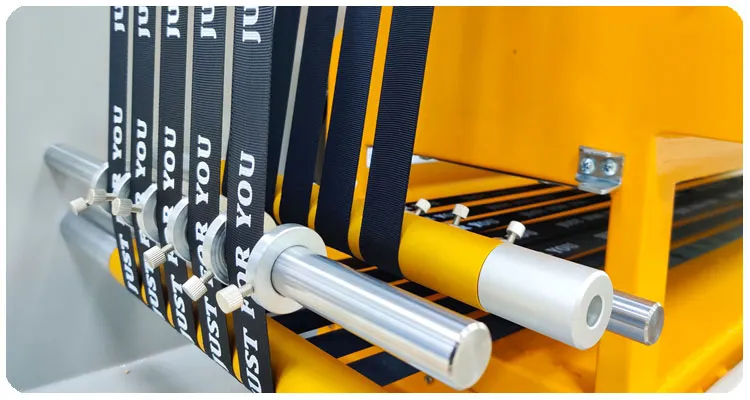

Solid Structure

Oven and Screen Frame Details:

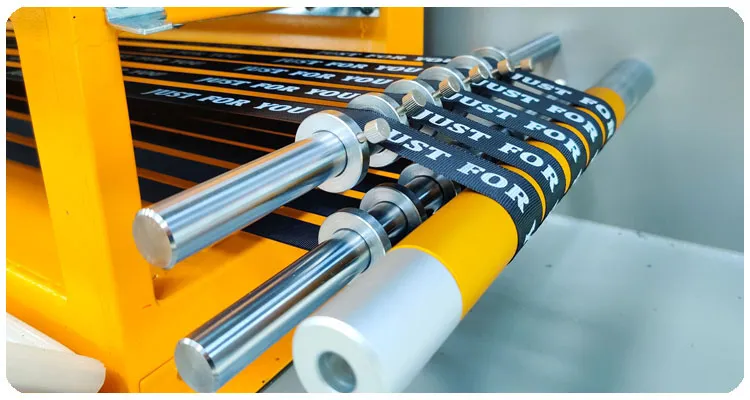

Screen Frame

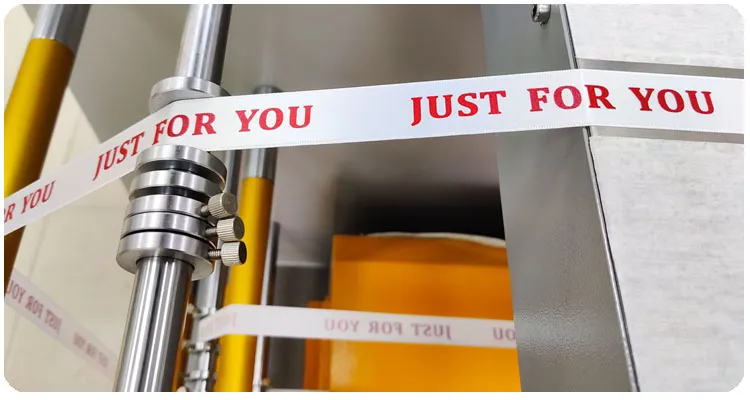

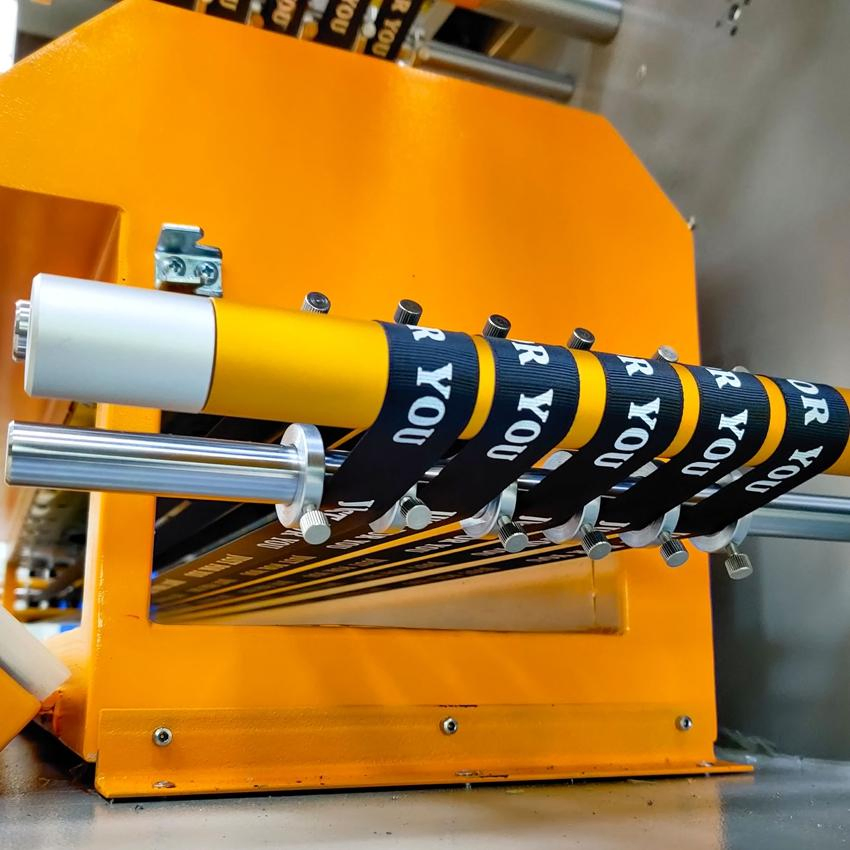

Oven Layer

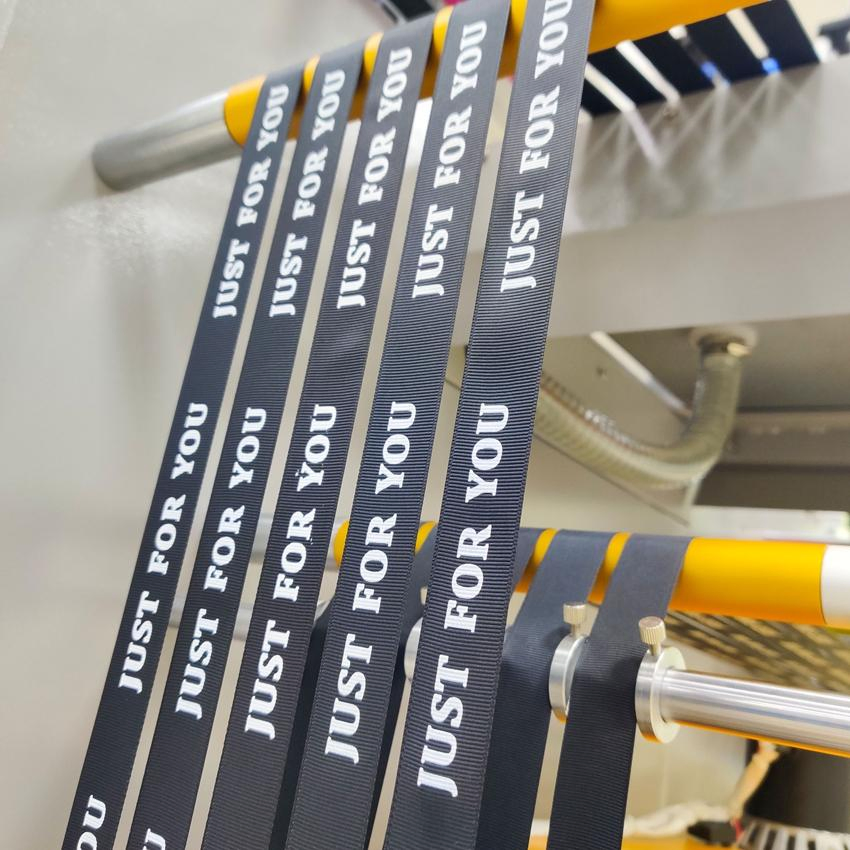

Printing Result
?

Frequently Asked Questions

What materials can this screen printing machine handle?
This machine is specifically designed for all kinds of ribbon printing, including satin ribbons and webbing, and is highly effective for dark color materials.
How does the drying system work?
The machine features a unique IR drying system with hot air circulation. The product passes through the oven in a double-layered configuration to shorten baking time and increase efficiency.
Is the machine easy to operate for beginners?
Yes, the machine is controlled via a PLC system and a user-friendly touch screen, making it both safe and simple to operate.
What is the maximum production speed?
The machine can reach a printing speed of up to 1000 times per hour, depending on the specific application and material.
Can it perform double-sided printing?
Yes, this machine is suitable for double-side printing and can be used for applying security identification inks on woven labels.
What is the printing area and frame size?
The standard printing area is 150*400mm, and the machine can accommodate a maximum screen frame size of 300*800mm.
