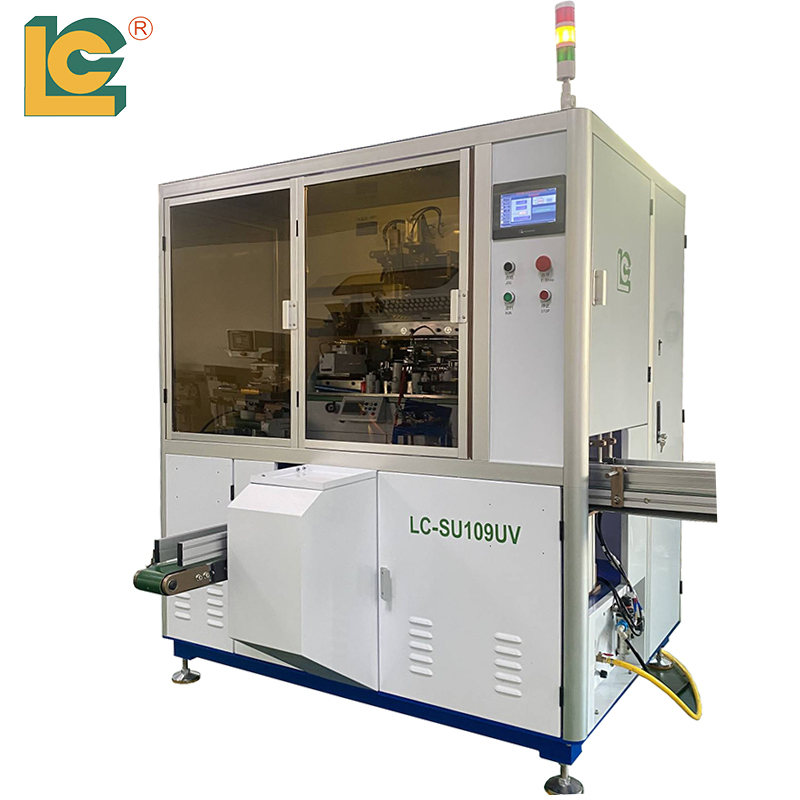

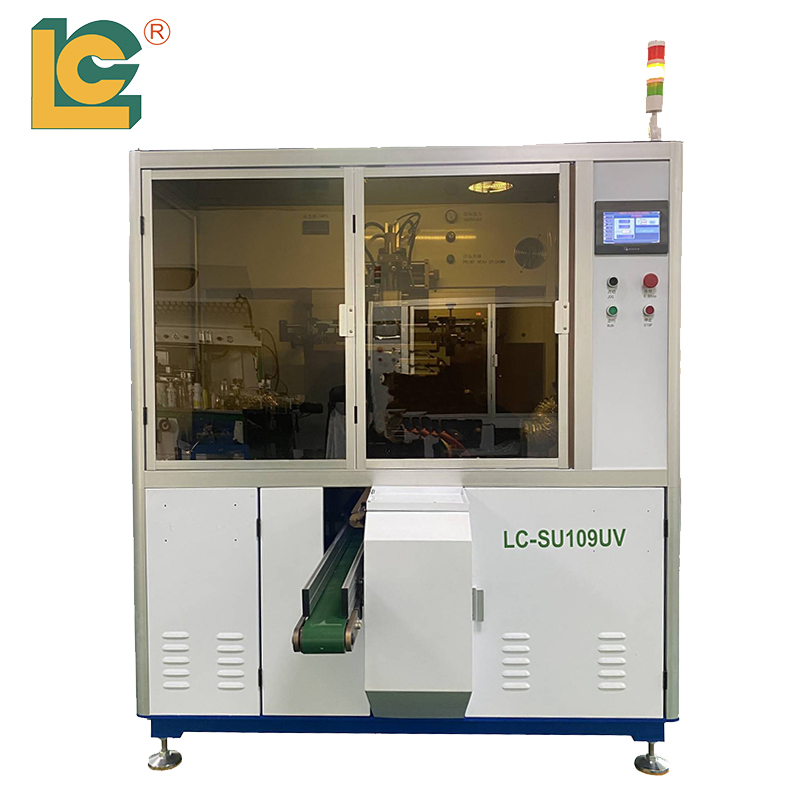

| Model NO. | LC-SU109UV |
| Type | Automatic Screen Printing Machine |
| Style | Screen-process Printing Press |
| Structure | Rotary Printing Press |
| Color & Page | Multi-Colour Printing Press |
| Application | Plastic Bottle Printing |
| Printing Speed | 3600PCS/H |
| Bottle Height Range | 20-200 mm |
| Bottle Diameter Range | 10-70 mm |
| Maximum Printing Area | 220*170 mm |
| UV Lamp Power | 5 Kw |
| Machine Weight | 1000kg |
| Air Supply | 5-7 Bar |
| Specification | CE AND ISO-9001-2000 |

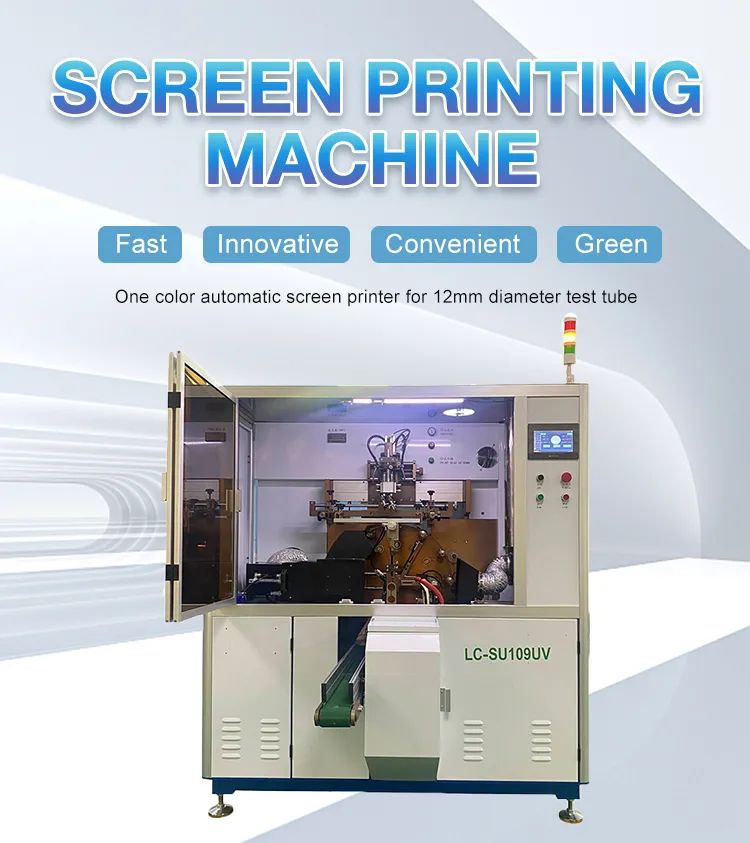

Designed for Lyophilized/Centrifugal Tube Printing, this advanced system ensures high-precision results for various plastic containers.
The machine offers a maximum printing speed of 3600 pieces per hour, ensuring efficient high-volume production.

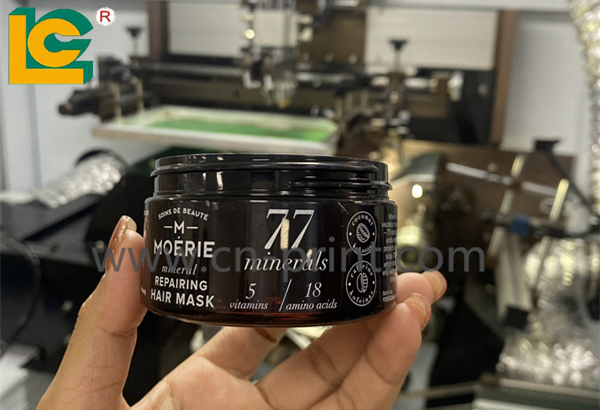

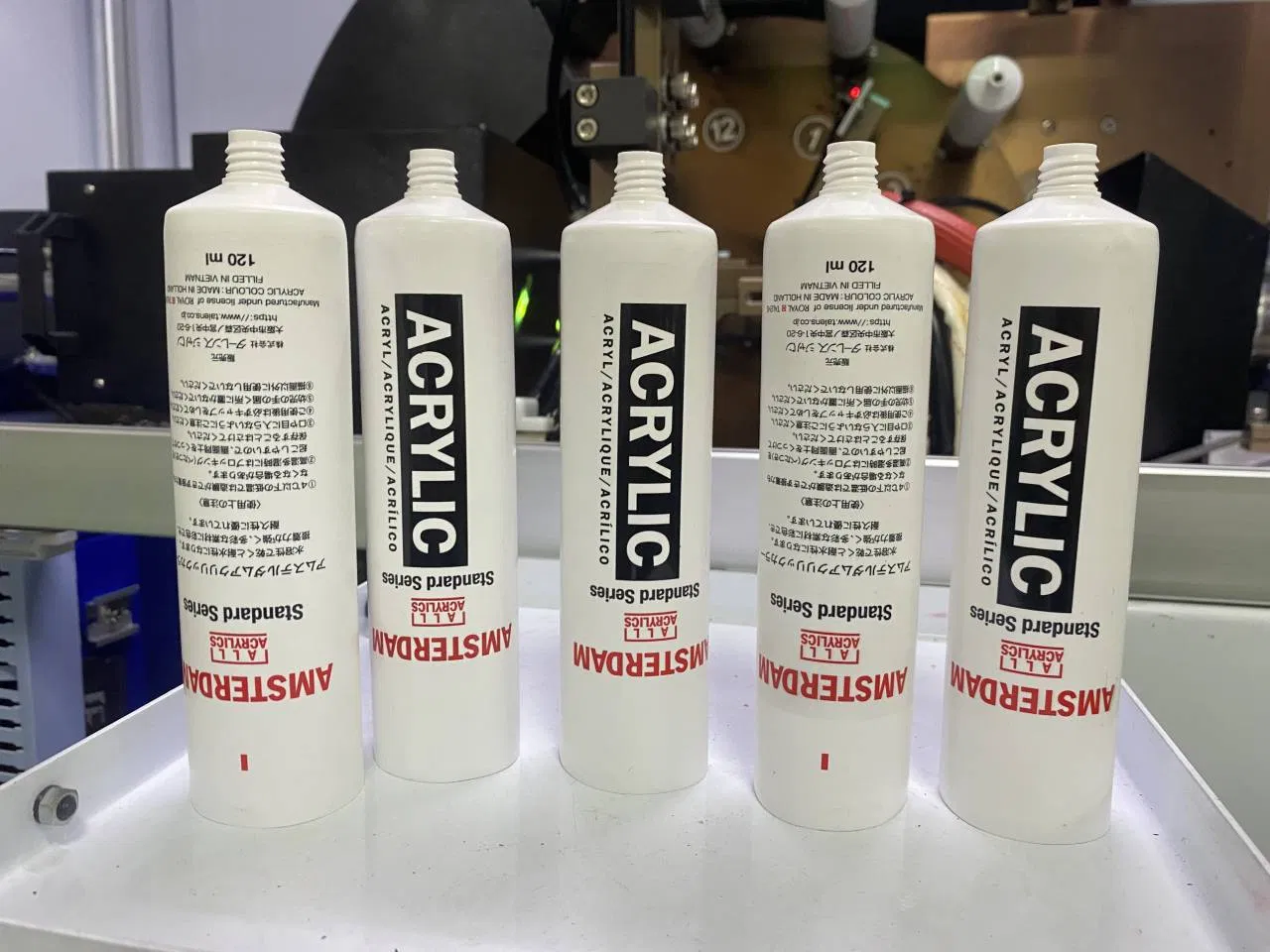

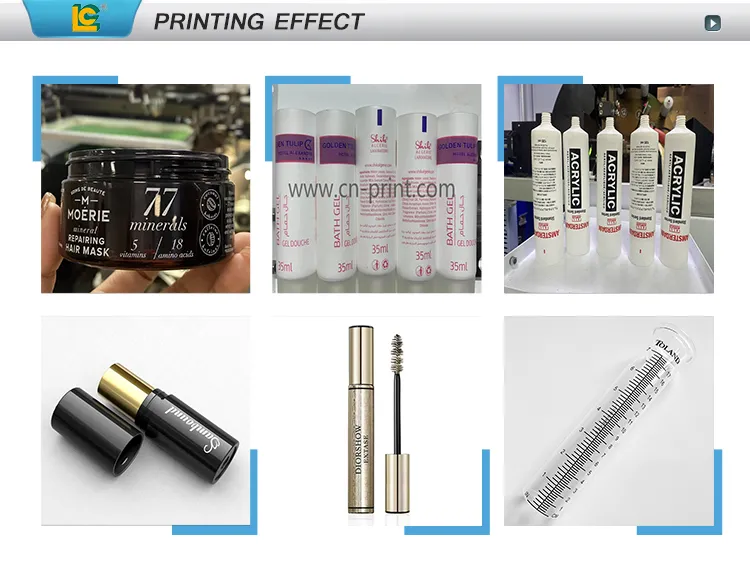

It is specially designed for circular shaped applications including tubes, caps, cosmetic jars, and plastic or glass bottles with diameters between 10mm and 70mm.

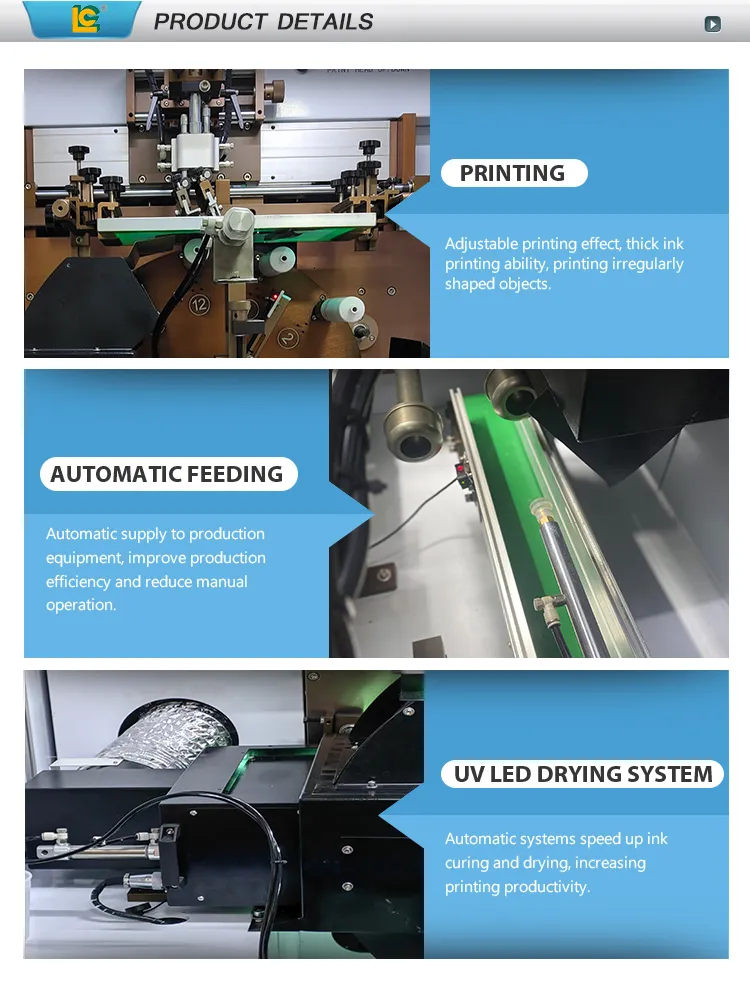

Yes, the machine integrates a 5 KW UV curing system to ensure the ink is instantly dried and cured after printing.

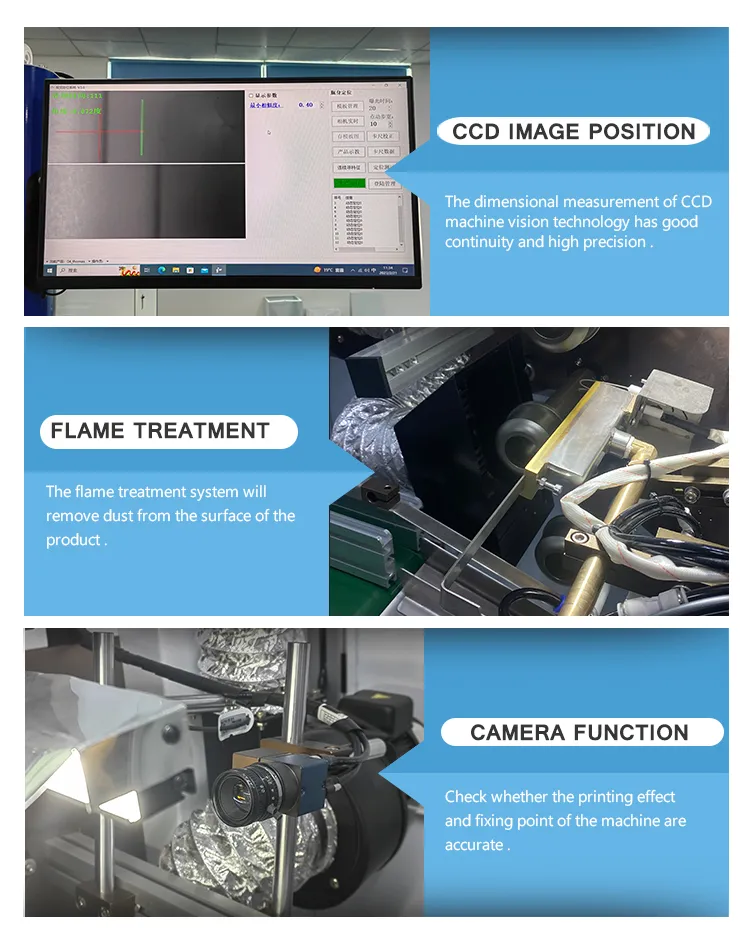

The machine utilizes a servo optical fiber indexing system and high-quality electrical components from Japan and Germany to maintain high printing precision and quality.
The machine requires an air supply of 5-7 bar with a consumption of 400 liters/min, and a power supply of 380V, 3 phase, 50Hz.
Yes, the servo indexing system makes it possible to perform multi-color printing and overprinting for various industrial applications.
