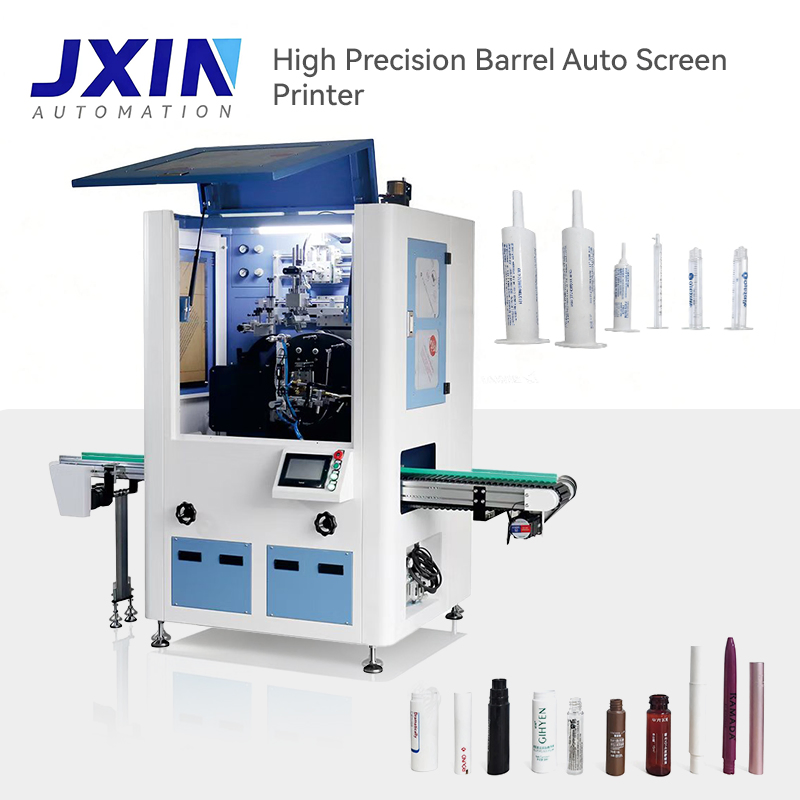

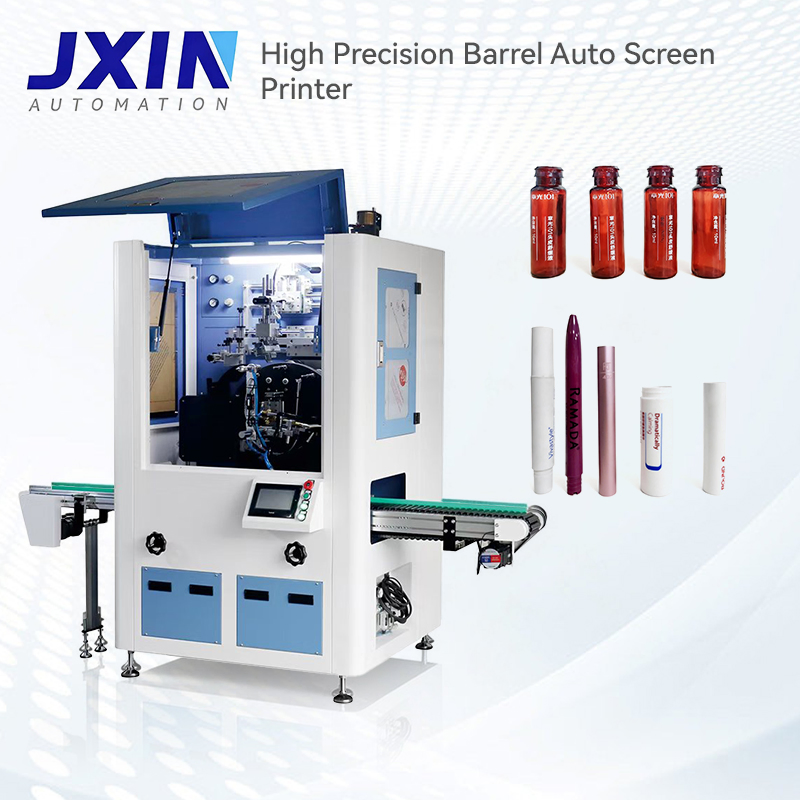

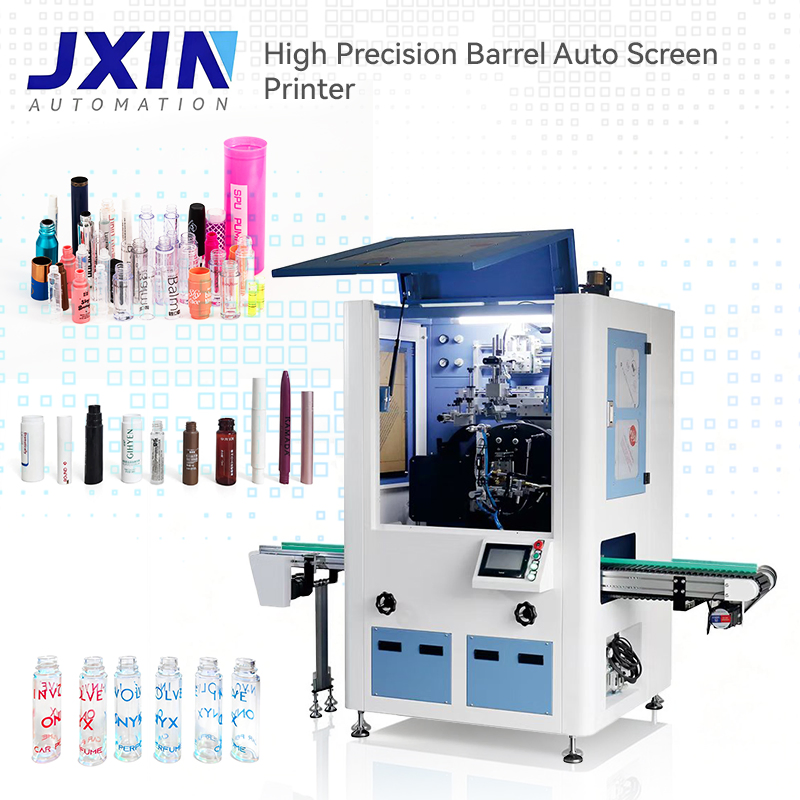

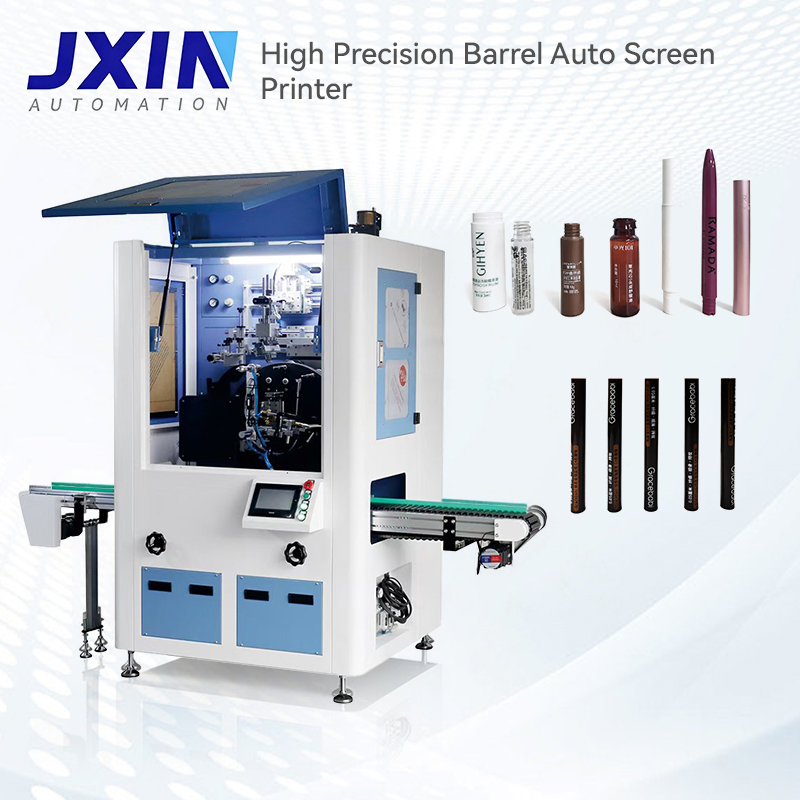

Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
1 / 5
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System
Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System

Robust Precision Automatic Screen Printrt for Plastic Tube Barrel Bottles with Flame Treatment and UV System

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 1 Year Warranty
Send Inquiry

Product Description

📊 Basic Information
Model NO.
JX-P12G
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour
Printing Speed
1500-3500PCS/H
Bottle Diameter
10-25mm
Bottle Height
120mm
Workstations
12 PCS
Voltage
220V
💡 Product Description

Equipped with a German original factory CNC-grade multi-axis linkage system, it can print multi-faceted patterns all at once and is compatible with printing various irregular shapes and surface patterns. It is a dedicated printing machine for irregular bottles in the cosmetics industry such as perfume bottles, nail polish bottles, and essential oil bottles.

Featuring a high-efficiency transmission system, the machine includes automatic feeding, a full servo screen printing system, auto off-loading, and UV curing or IR dryer after printing. It is designed for ease of operation and convenient adjustment, realizing full automation for various plastic/glass bottles, jars, and tube containers.

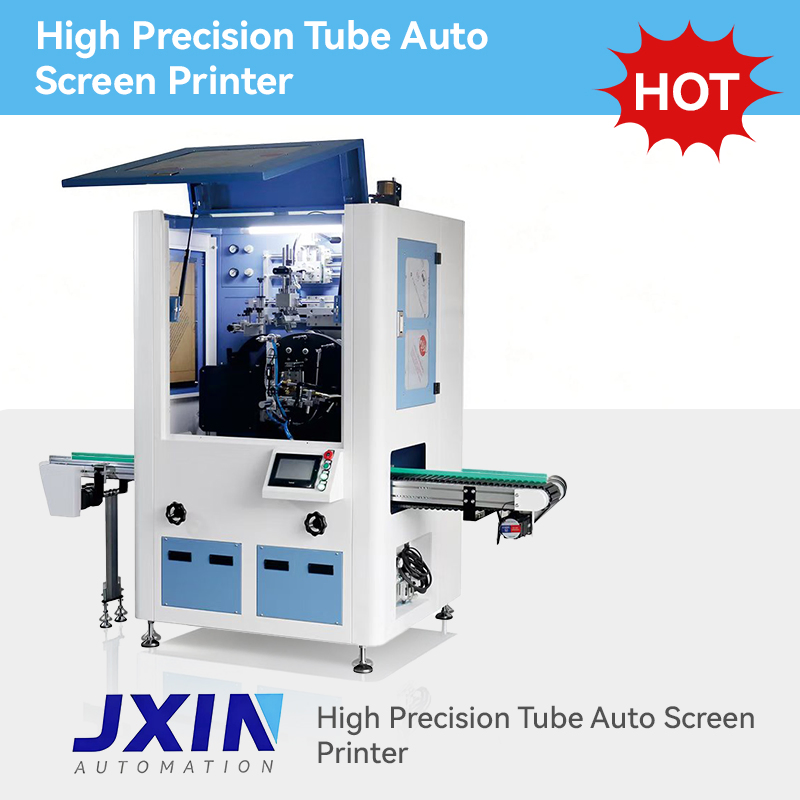

Automatic Screen Printer
📋 Specification
Bottle/Tube Diameter Φ10~Φ25MM Printing Speed 1500-3500PCS/H
Bottle/Tube Height 120 MM Workstations 12 PCS
Power Source 220V/1-P Power 5 KW
LED UV Area 100*100MM Air Pressure 5-7 Bar
⚙️ Technical Highlights

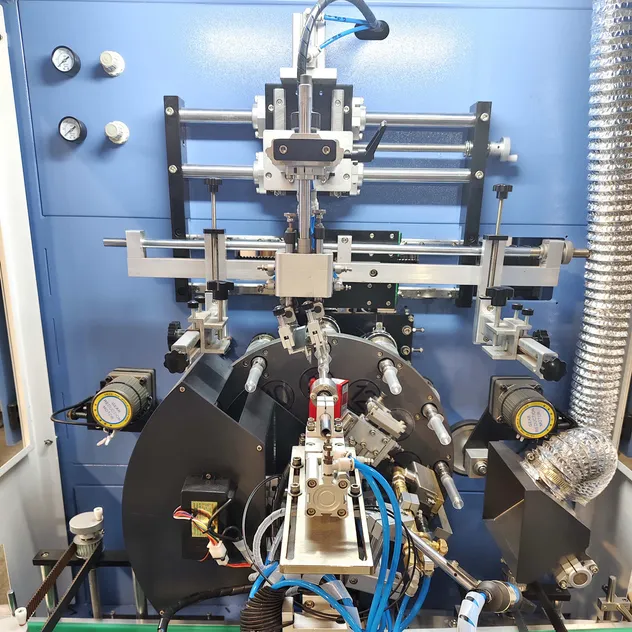

Servo Printing System High Accurate Servo Printing

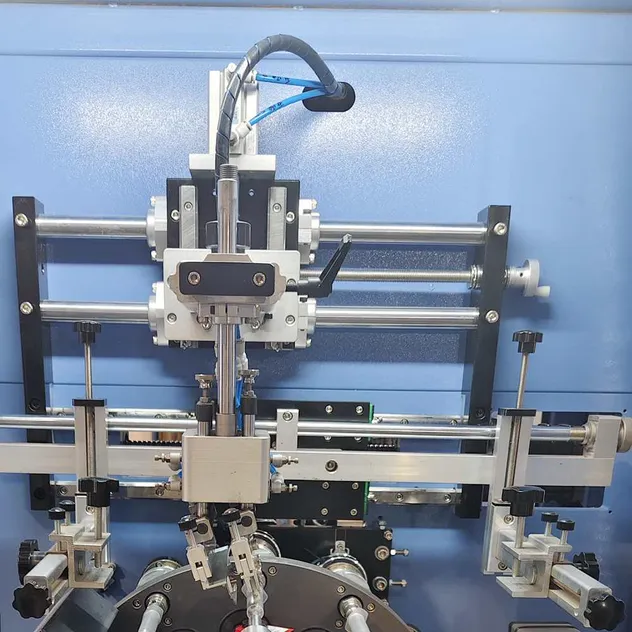

Adjustment Mechanism Easy Adjustment Mechanism

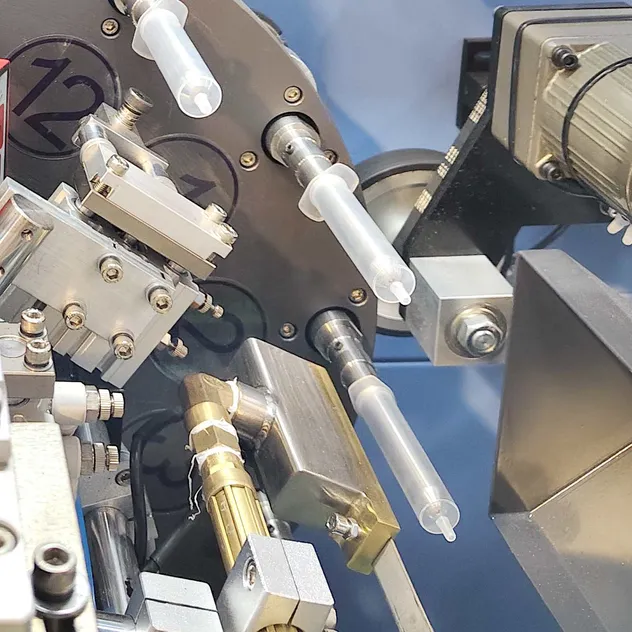

Pre-treatment Perfect Ink Adhesion

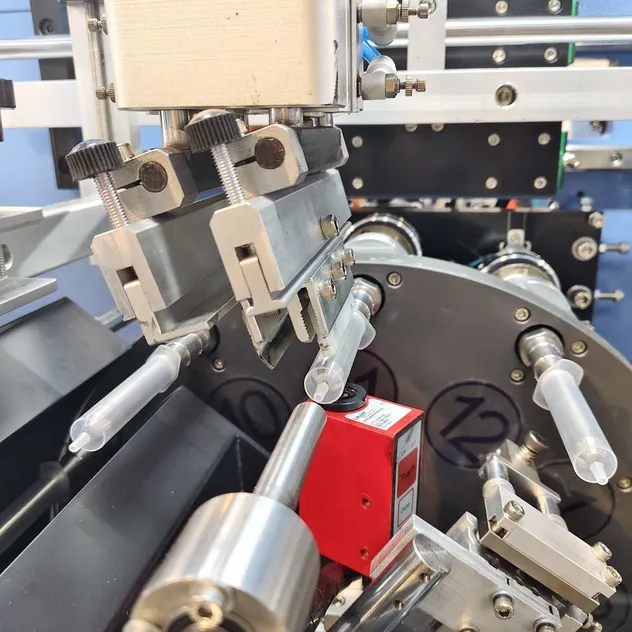

Fixture Parts Fine Processing Fixtures

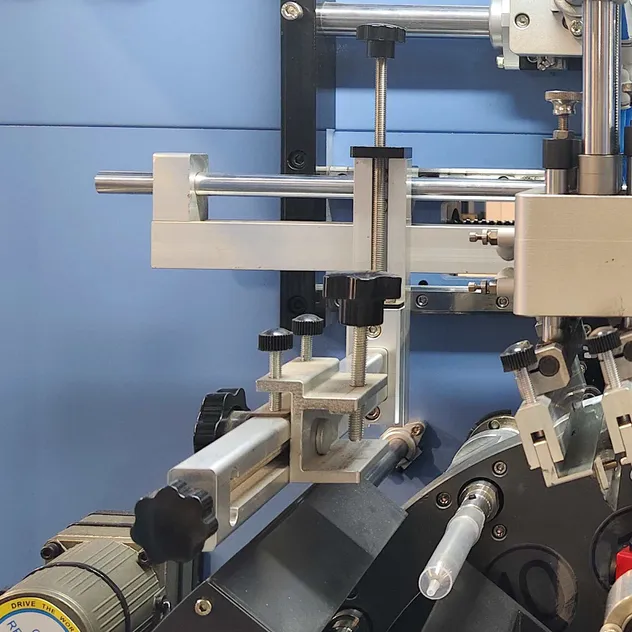

Squeegee Sitting Flexible Squeegee Sitting

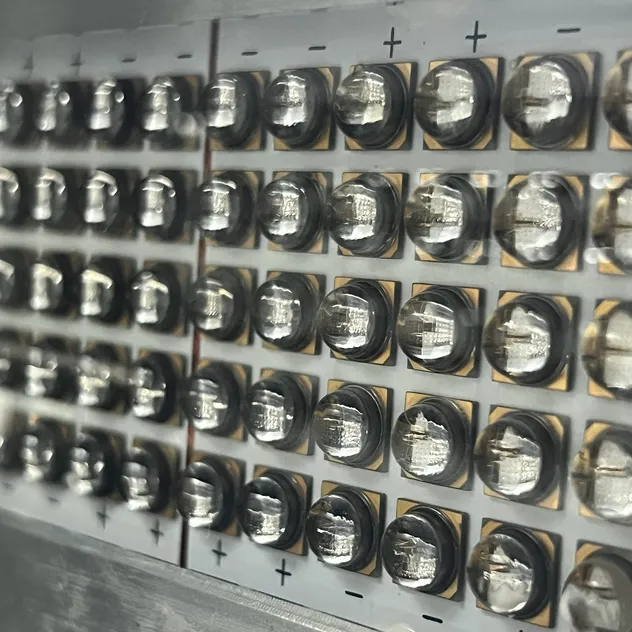

LED UV Lamp High-efficiency LED UV
📦 Packing & Delivery
Package Size
135.00cm * 120.00cm * 210.00cm
Package Gross Weight
1000.000kg

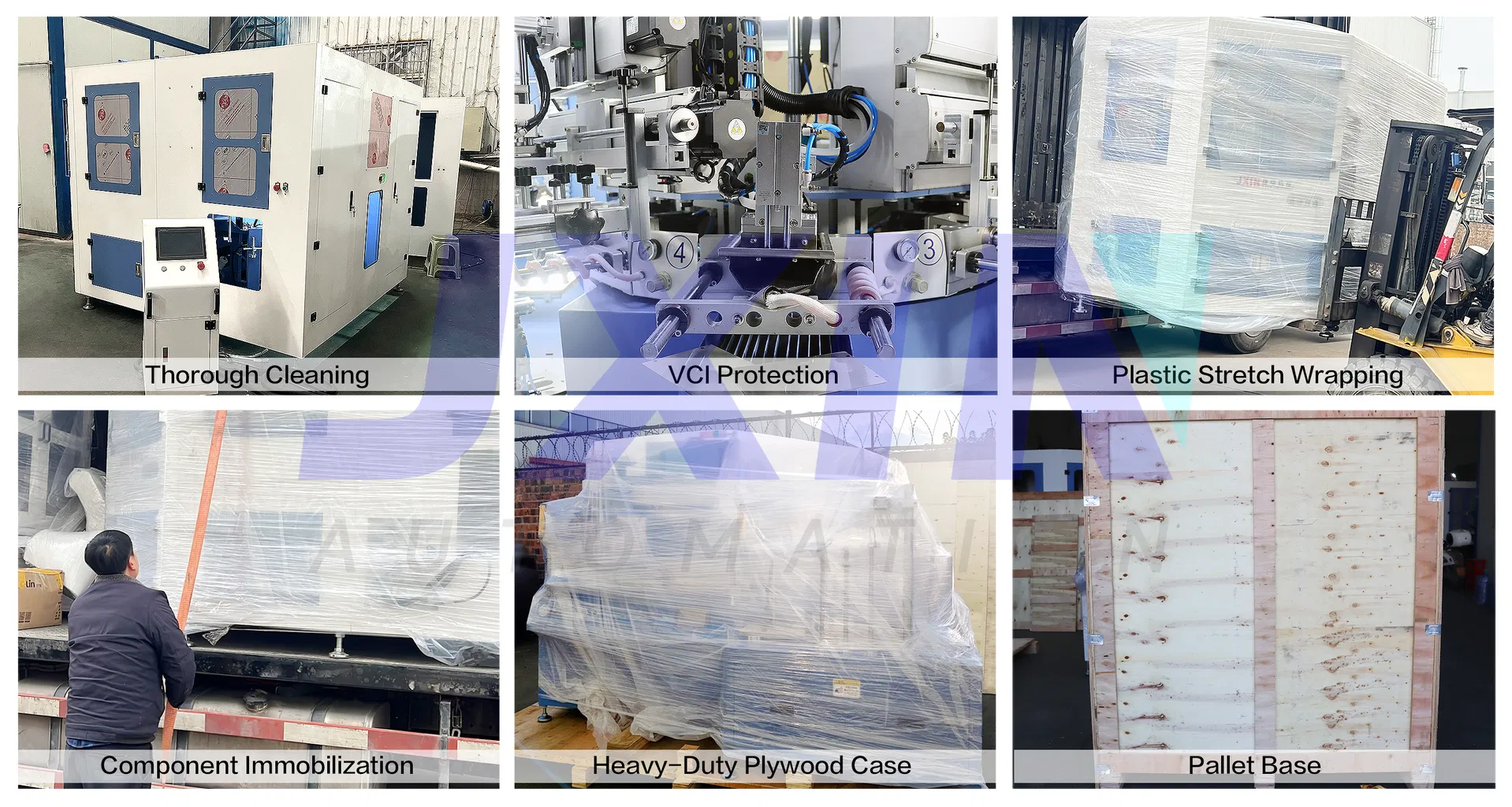

Packaging Process
📜 Certifications
Certification 1
Certification 2

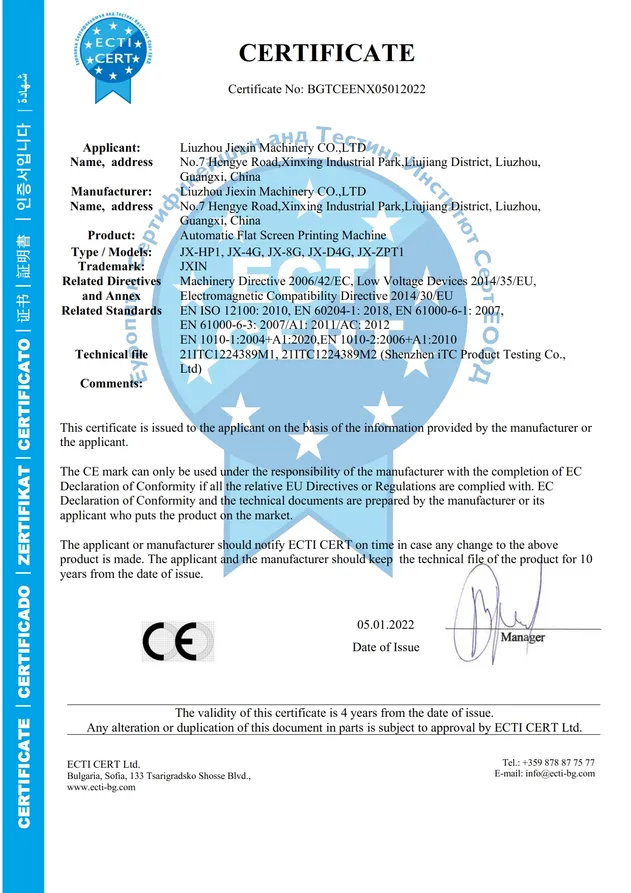

Certification 3
❓ Frequently Asked Questions
What is the maximum printing speed of this machine?
The JX-P12G can reach a printing speed of 1500 to 3500 pieces per hour, depending on the bottle size and shape.
What types of bottles can it print on?
It is designed for small bottles and tubes with diameters of 10-25mm, including irregular shapes like perfume, nail polish, and essential oil bottles.
Does the machine include a curing system?
Yes, the machine is equipped with a high-efficiency LED UV curing system or an optional IR dryer for immediate ink drying.
Is the printing process fully automatic?
Yes, it features a full automatic process including automatic feeding, servo screen printing, and automatic off-loading.
How does the machine handle surface pre-treatment?
The system includes a pre-treatment mechanism (such as flame treatment) to ensure perfect ink adhesion on plastic or glass surfaces.
What is the power requirement for installation?
The machine operates on a 220V 1-phase power source with a total power consumption of 5 KW.
