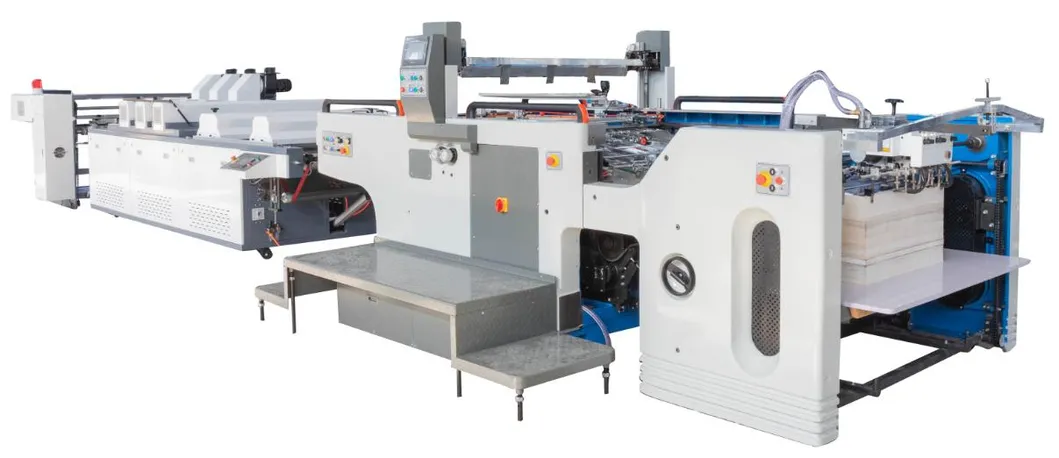

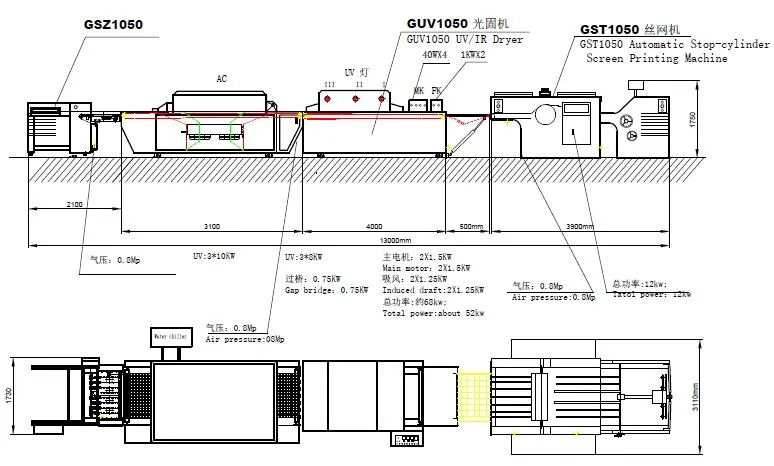

Automatic screen printing machine + UV Dryer + Sheet stacker

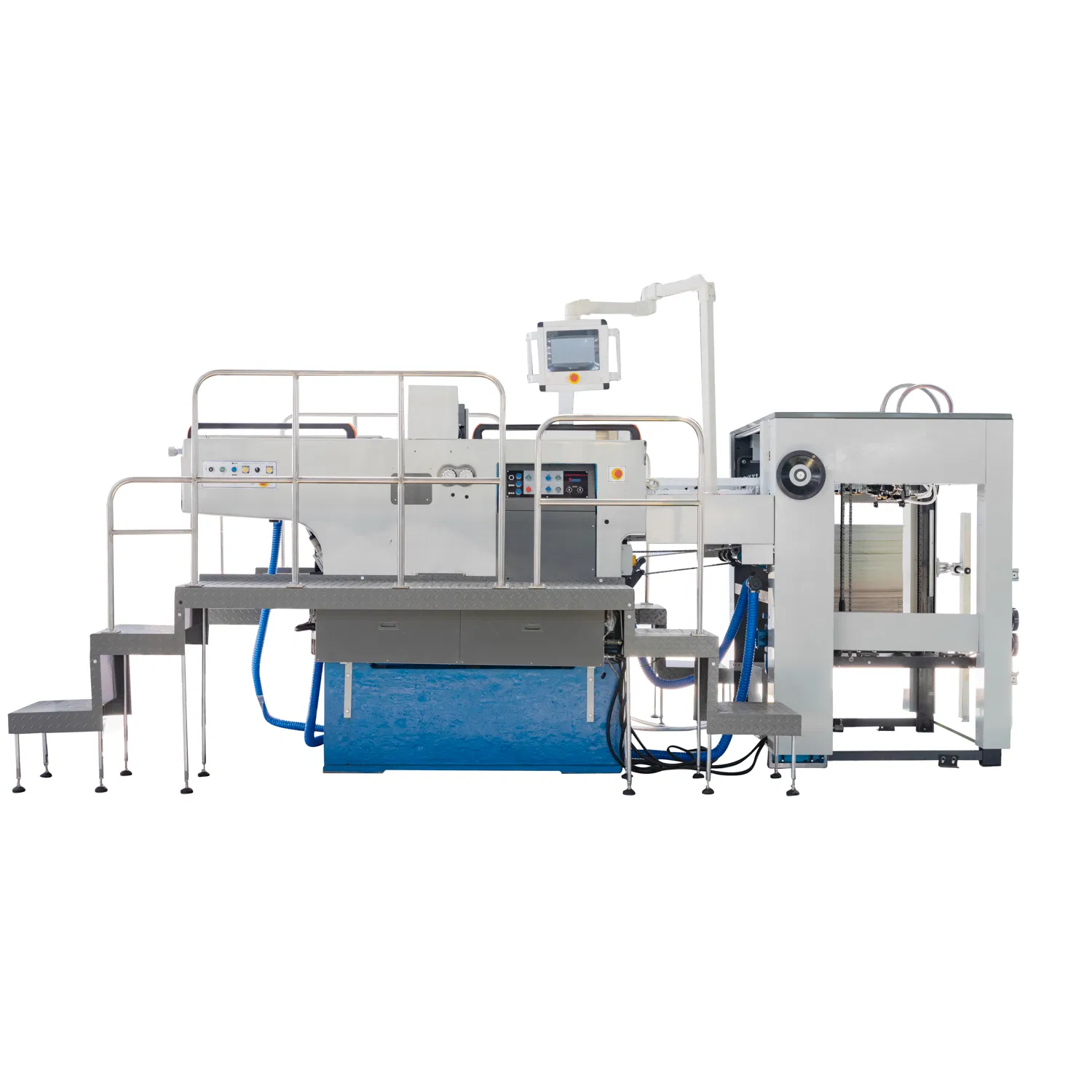

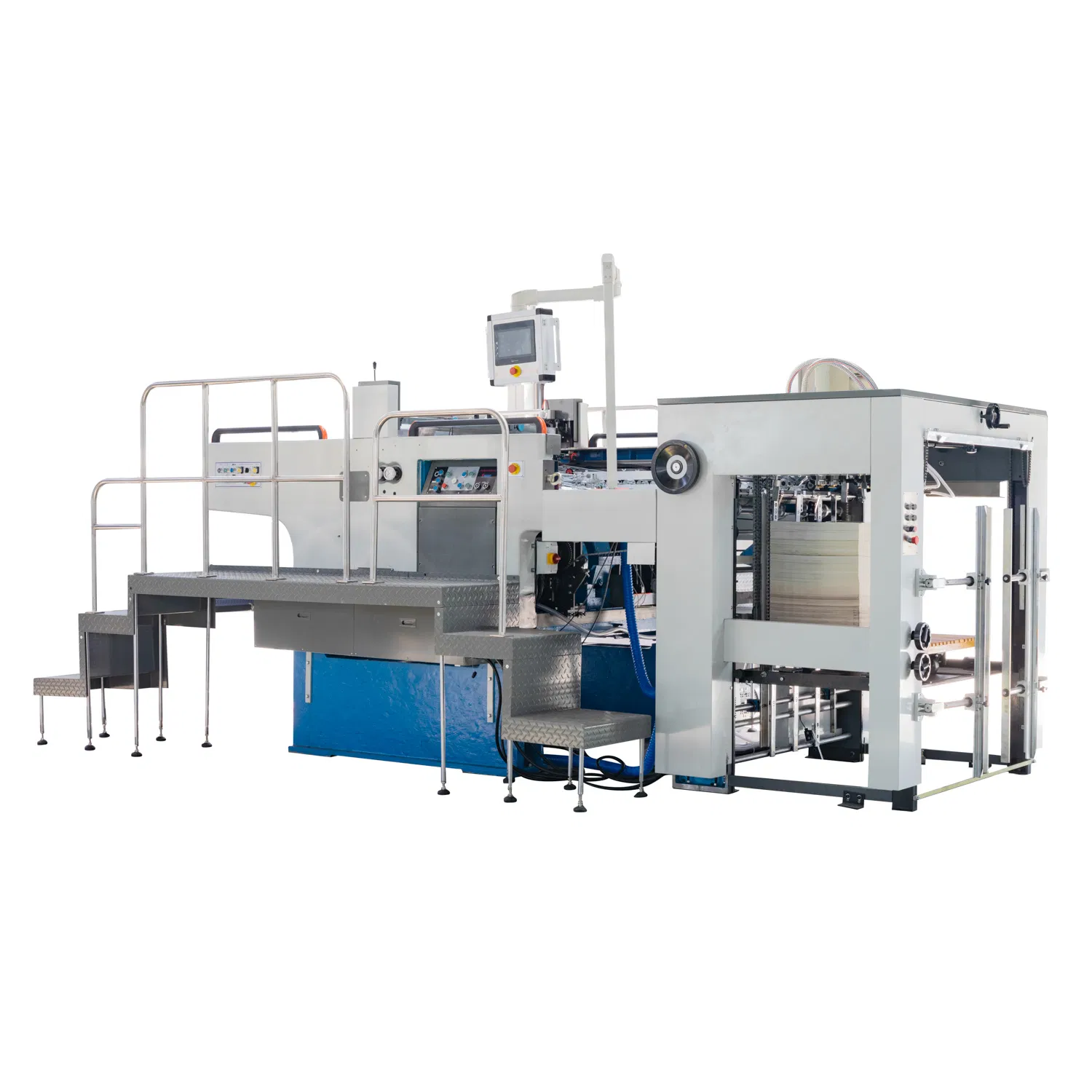

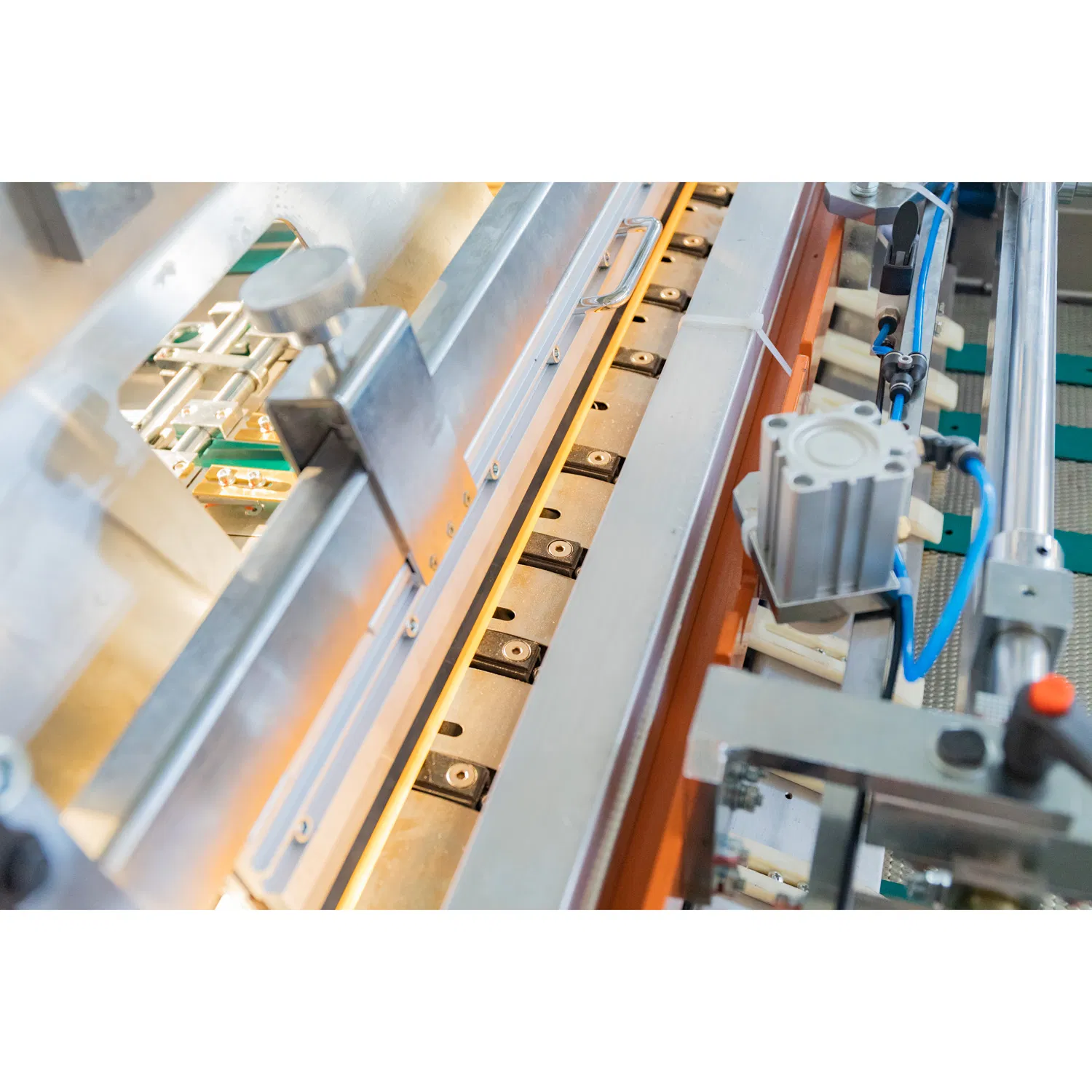

GST Series Automatic Stop-cylinder Screen Printing Machine are upgrade models from Rotary Cylinder Printing Machine recent years. This kind of machine has adopted classical "Stop-cylinder" printing movement instead of the original "reciprocating movement". Therefore, it not only ensures the paper accurate position before scratch-print, but also reduce the producing waste rate. Besides, there is little impact with such high speeds and revolving, which also improves the register precision.
| MODEL | GST-720 | GST-800 | GST-1020 | GST-1050 |
|---|---|---|---|---|
| Max.Paper Size(mm) | 720×520 | 800×600 | 1020×720 | 1050×750 |
| Min.Paper Size(mm) | 350×270 | 350×270 | 560×350 | 560×350 |
| Max.Printing Size(mm) | 720×510 | 800×590 | 1020×710 | 1050×720 |
| Paper Thickness(g/m2) | 90-250 | 120-250 | 90-350 | 90-350 |
| Printing Speed(p/h) | 500-3000 | 600-3000 | 600-3000 | 600-4000 |
| Total Power(kw) | 8 | 11 | 15 | 15 |
| Total Weight(kg) | 3500 | 4000 | 5500 | 5500 |

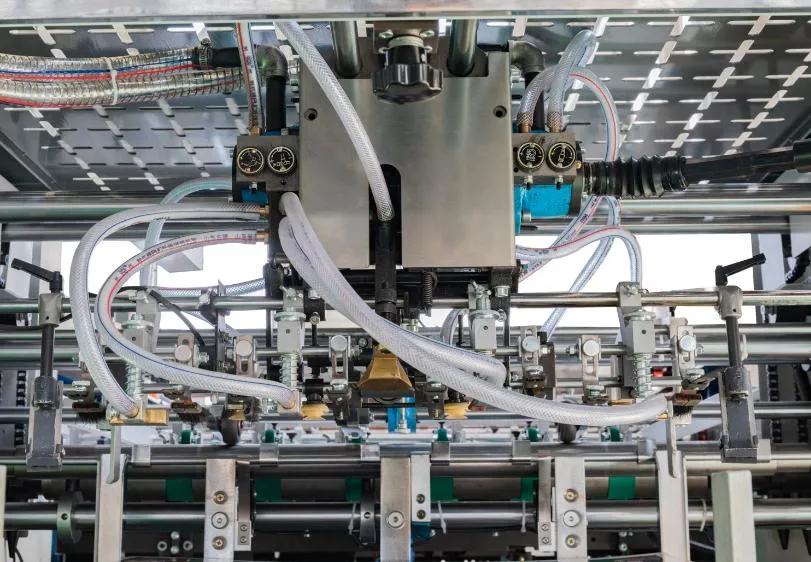

Four suction and four delivery feeder system with German vacuum pump.

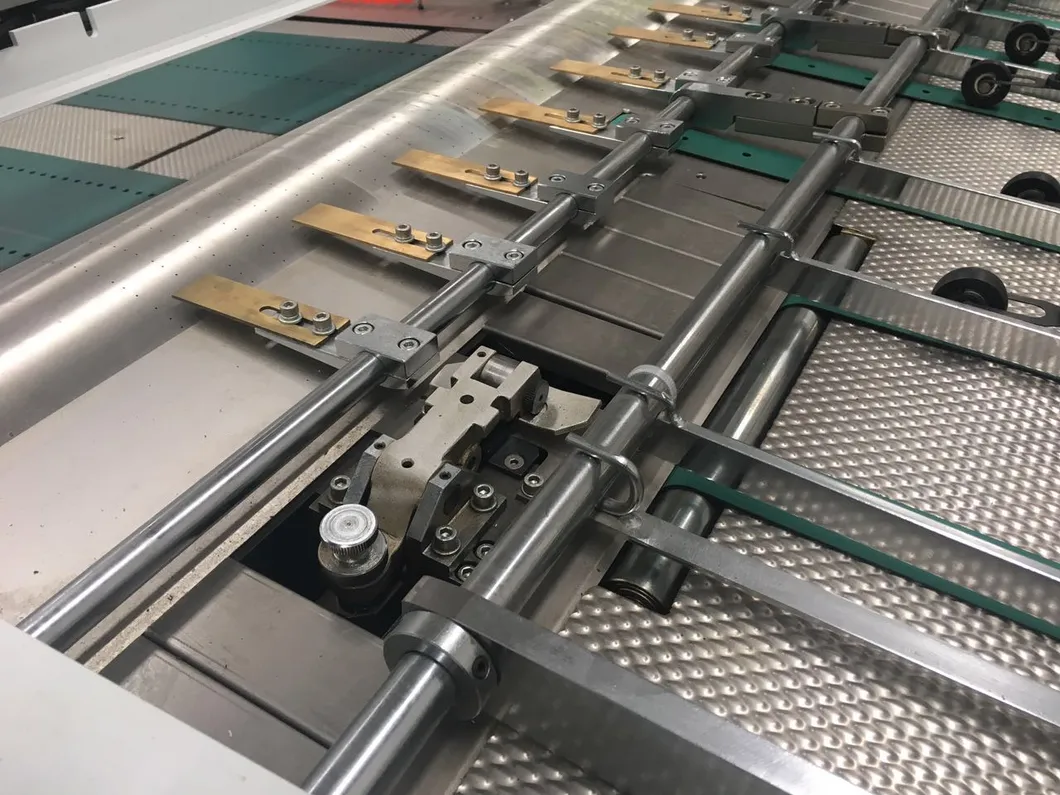

New designed pull and push lay system.

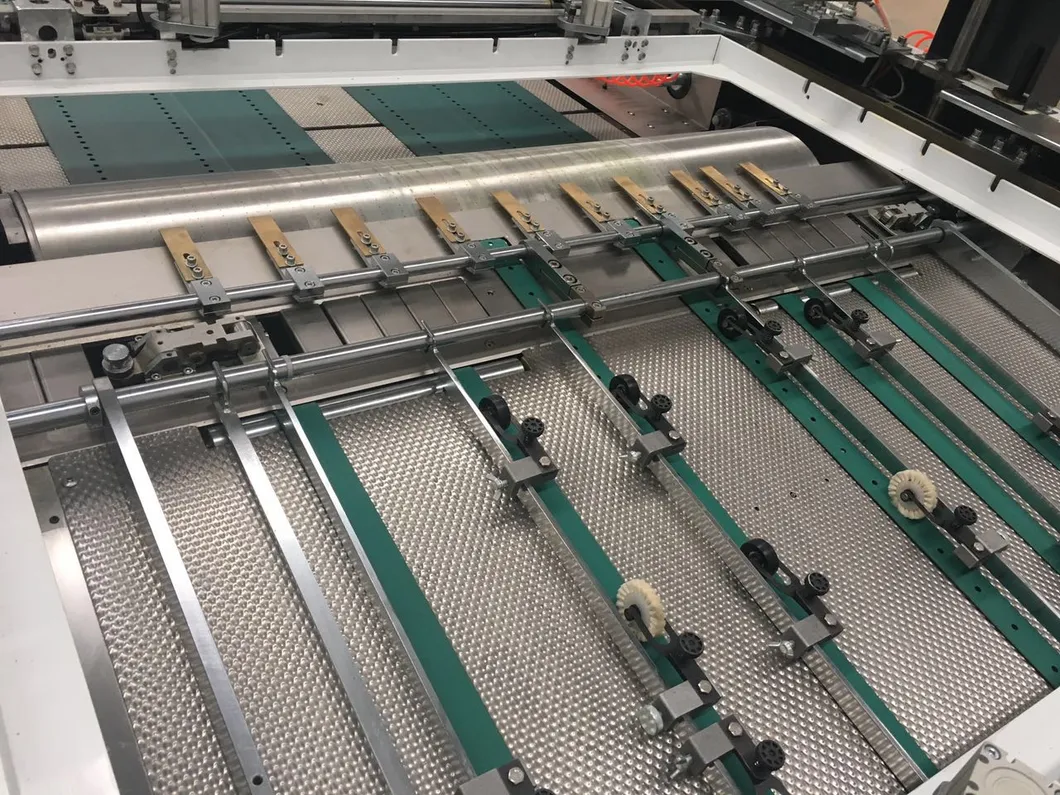

Imported stainless steel delivery board, less static and friction.

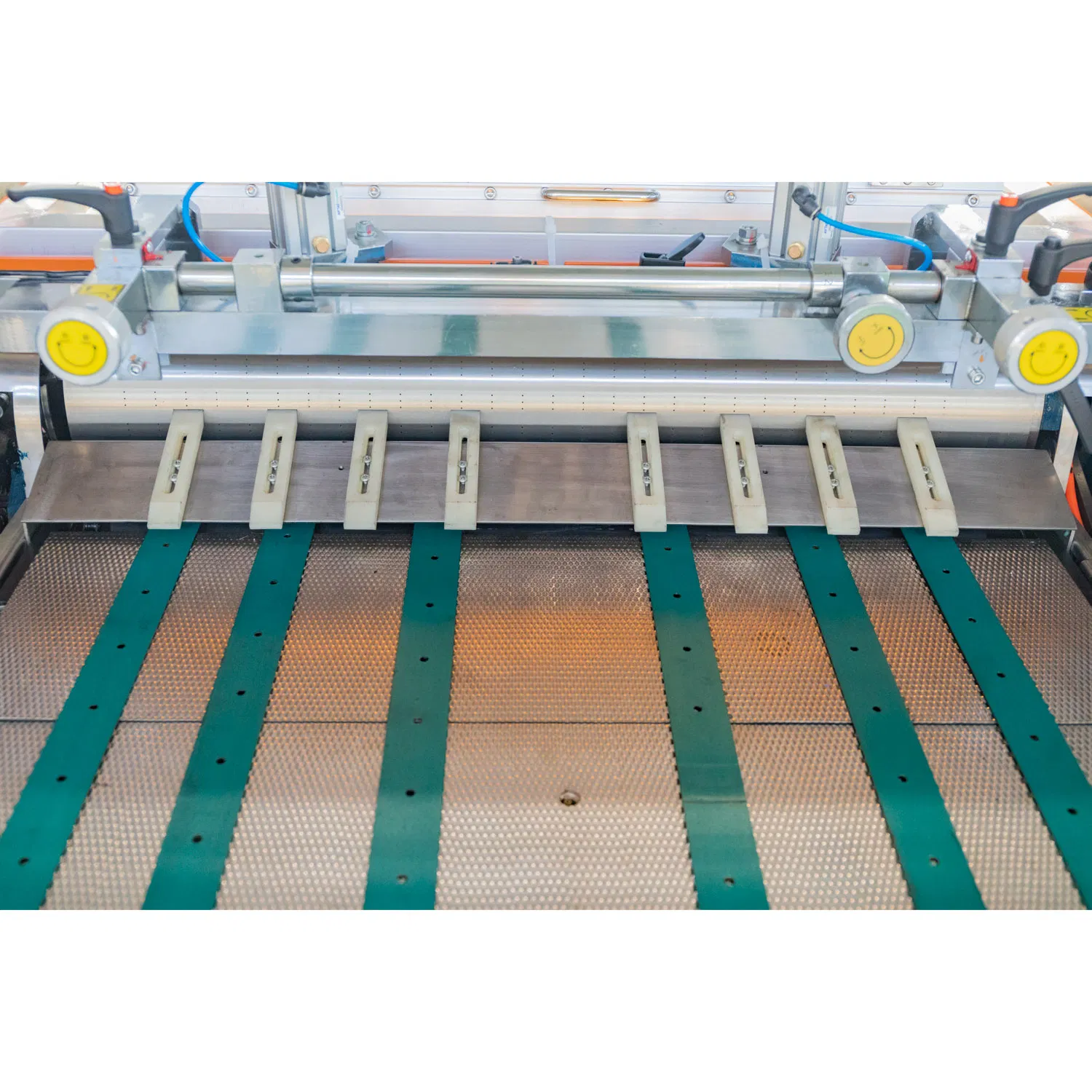

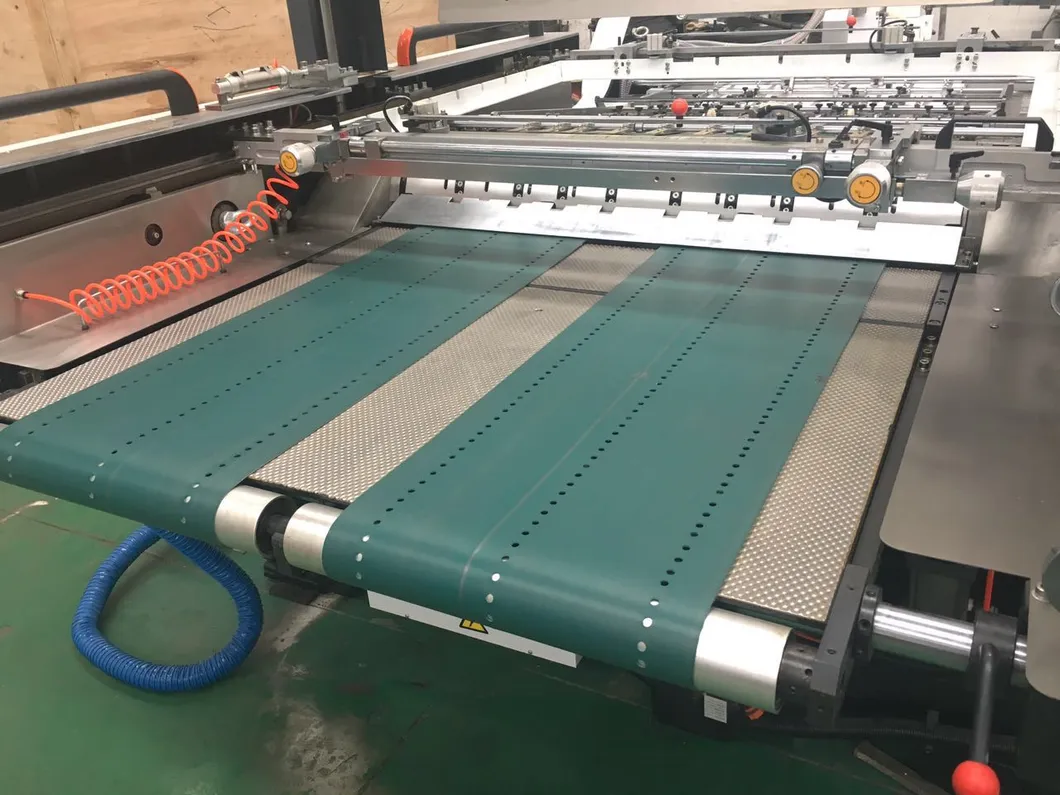

Double vacuum conveyor belt suitable for different sheet sizes.

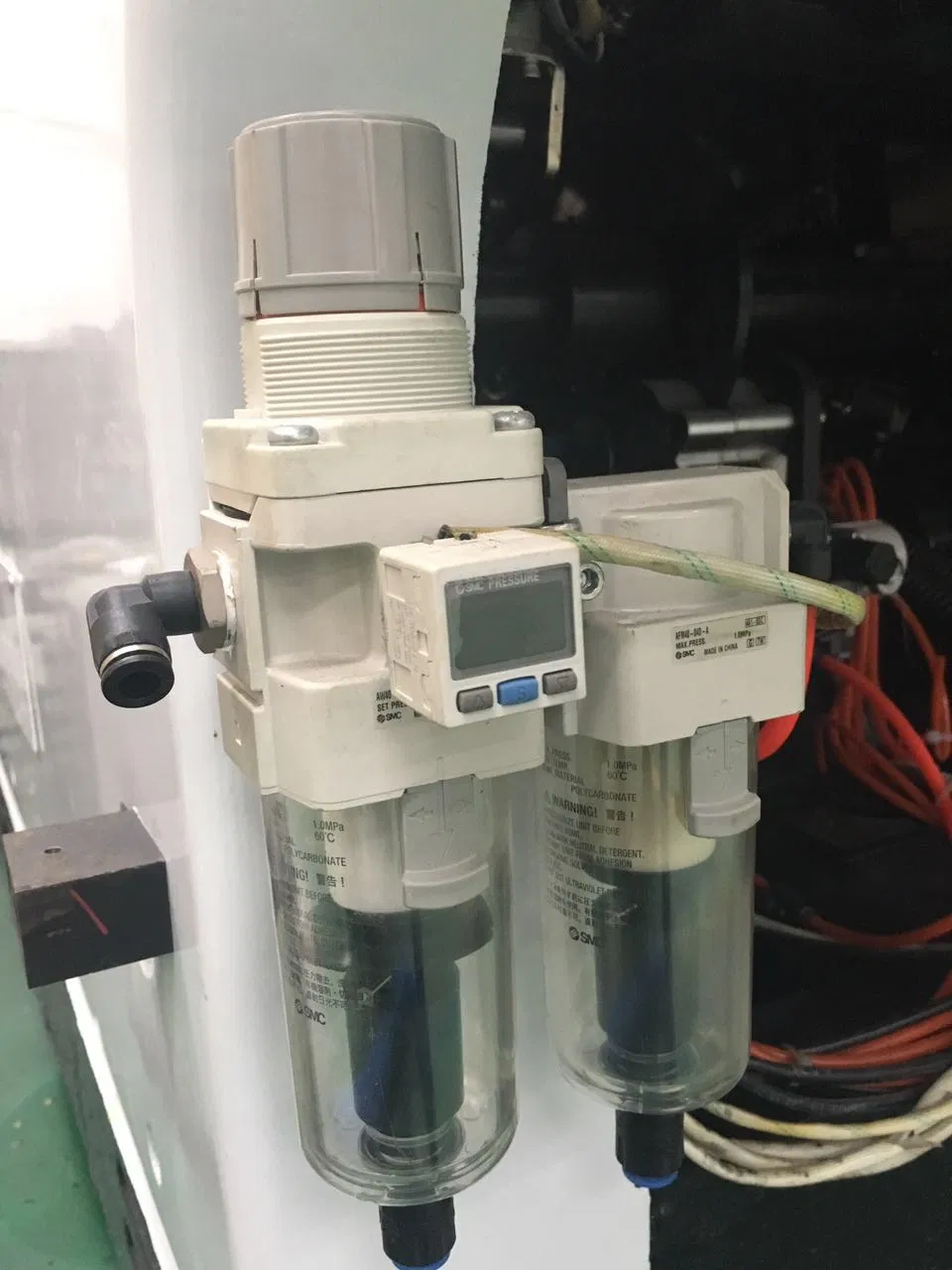

SMC and KOGANEI pneumatic systems for reliable long-term performance.

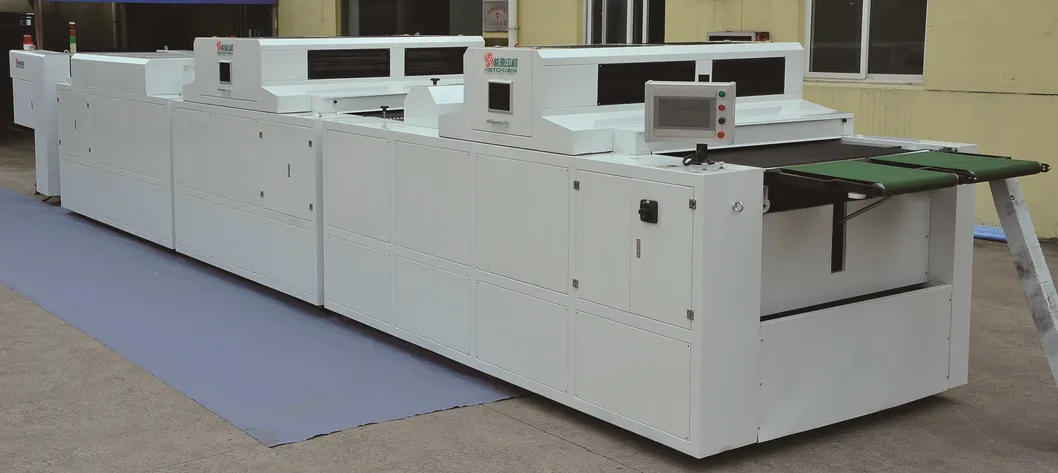

Widely used for drying UV ink printed on paper, PCB, PEC, and instrument nameplates.
| Model | GUV/IR900 | GUV/IR1050 |
|---|---|---|
| Max conveying width (mm) | 900 | 1150 |
| Conveyor Belt Speed (m/min) | 0-65 | 0-65 |
| UV Lamp (kw x pcs) | 8x3 | 10x3 |
| Total power (kw) | 33 | 39 |

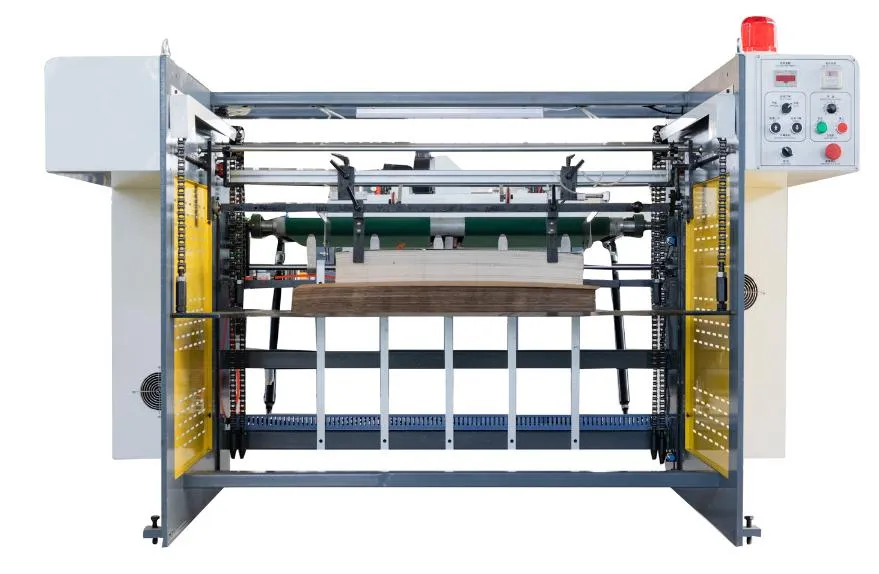

Accessorial equipment used to collect and pile paper, significantly improving production efficiency.

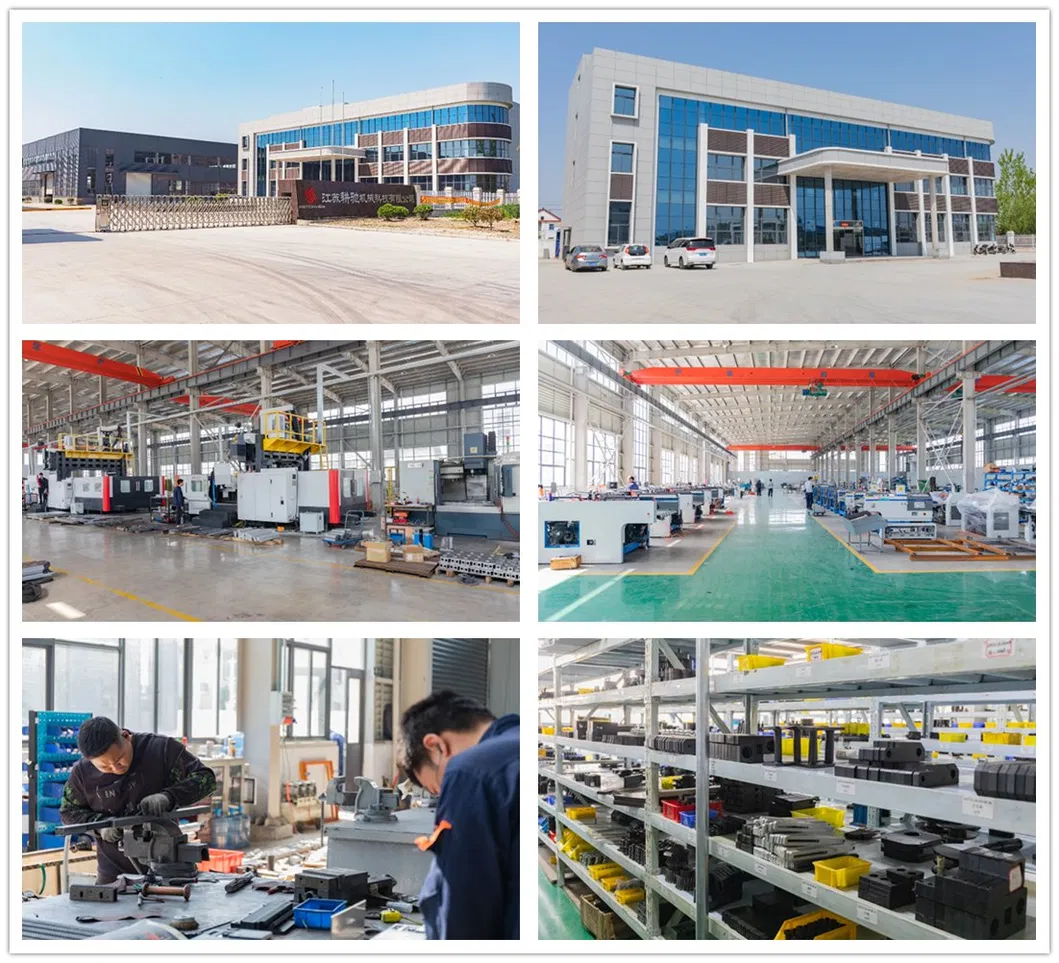

As a specialized manufacturer and member of SGIA, our production lines include automatic cylinder screen printing presses, reversible-cylinder presses, stop-cylinder presses, and comprehensive dryer series. We offer over 30 models across 4 major series.
Relying on research and development of innovative products, we satisfy changing market needs across packaging, advertising, glass, ceramic decal, and PCB printing. Utilizing components from Europe and Japan, we maintain superior quality and stable functionality for the international market.
Standard export cases with customized packaging options available. Shipping via Express, Air, or Sea under Ex-works, FOB, CIF, or CFR terms.
