Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
1 / 5
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE
Automatic System Glass Decal Screen Printing Machine 800*600mm with CE

Automatic System Glass Decal Screen Printing Machine 800*600mm with CE

Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
SpeciesScreen Printing Machine
StructurePlaten Press
Color & PageSingle-Colour Printing Press
UsageCard Printer, Label Printer, Paper Printer, Glass
Automatic GradeSemi-Automatic
ModelMtsp-10200
Max Printing Area1000*2000mm
Worktable Size1100*2300mm
Max Mesh Frame1400*2620mm
Substrate Height0-30mm
Voltage/Power380V / 5.6kw
Product Description
Applicable Materials: All flat materials such as paper, plastics, circuit board, ceramic, glass, non-woven fabric etc.

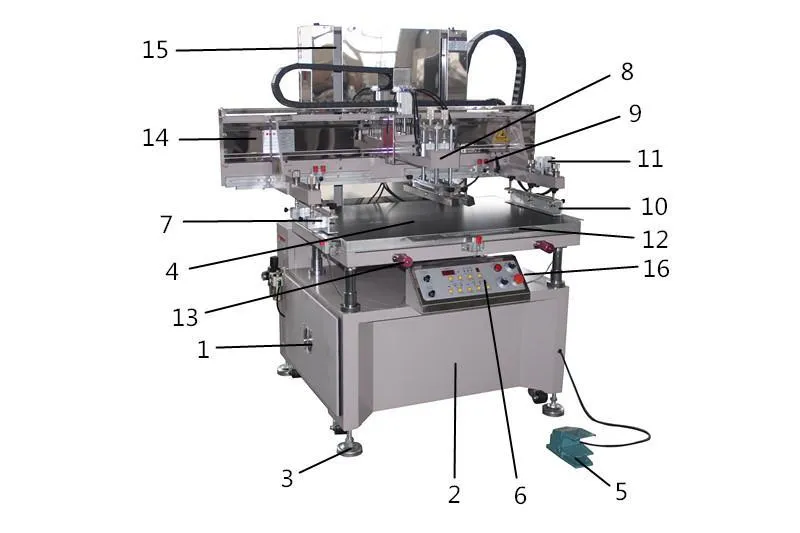

Screen Printing Machine Detail
  • Cover hoardings
  • Rack base
  • Universal wheel and foot cup
  • Work platform and tray
  • Foot switch
  • Control Panel
  • Front screen plate clamp
  • Adjustment system of squeegees
  • Stroke adjustment
  • Back screen plate clamp
  • Off-grid installations
  • Safety Brake
  • Fine-tune handle for platform
  • Head beam
  • Upper and lower linear guide rail
  • Off-grid switch
Power & Installation Notes
Power Supply: 380V Three-phase five-wire. Air switch 30A+.
Wiring: Red(L1), Blue(L2), Black(L3) - Phase; Green(N) - Zero; White(E) - Ground.
Gas Source: Consumption 0.03 m³/min. Pipe ∮8. External pressure 0.6-0.8.

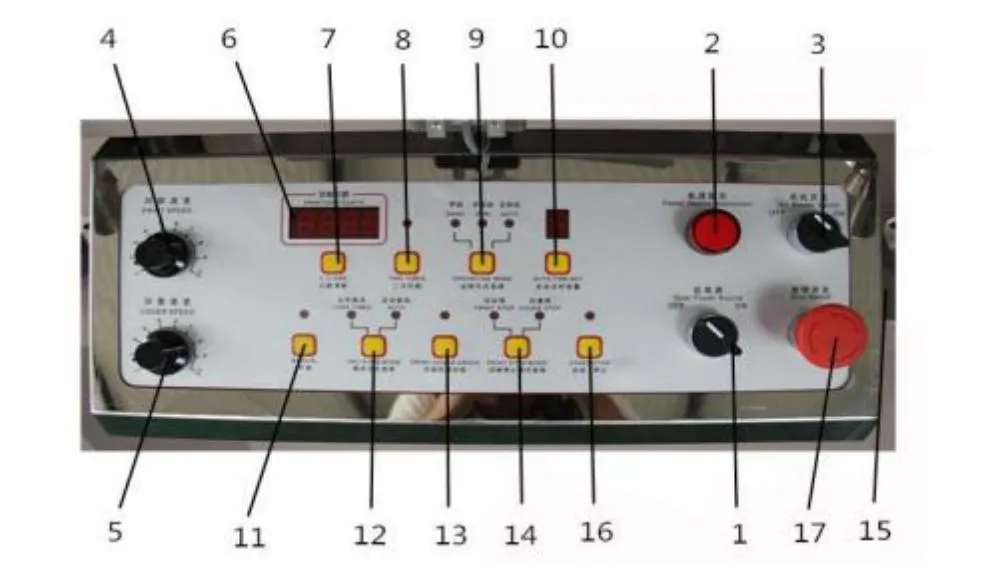

Control Panel Settings

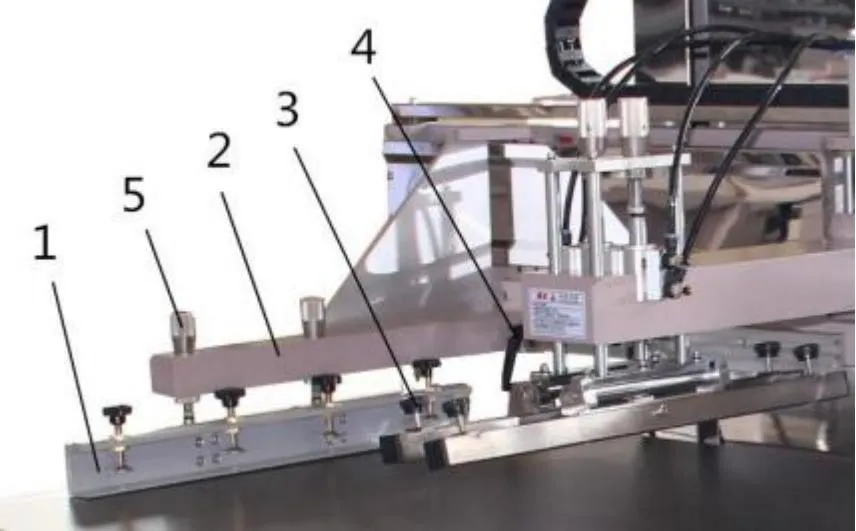

Mechanical Detail
Operation & Care
Maintenance: Fill lubricant oil at running parts moderately. For reduction gear, change gear oil every 2-3 months. Keep rails clean from dust to extend service life.

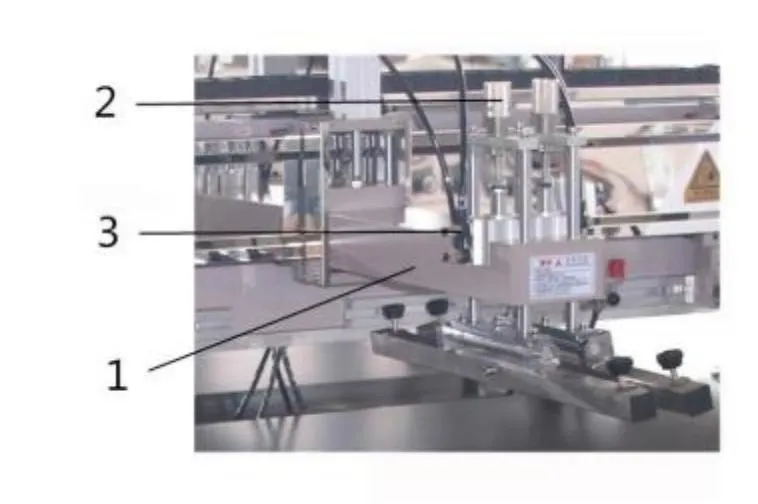

Pressure Adjustment

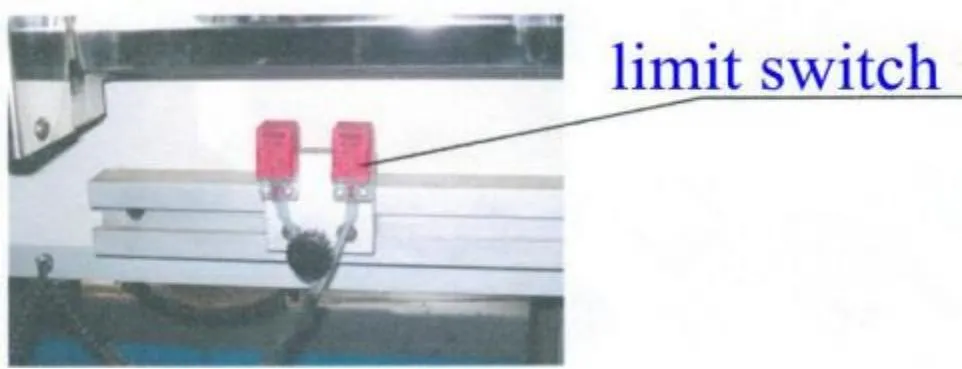

Stroke Limit Switch
Product Categories

As a partner for glass processing solutions, we source and supply an extensive range of machinery for the glass industry. We supply integrated machinery for processing glass units, manufacture of insulated glass units, glass window and door fabrication, and façade manufacture.

Glass Processing Solution Category
Frequently Asked Questions
What materials are compatible with the MTSP-10200?
This semi-automatic machine is designed for various flat materials including paper, plastics, circuit boards, ceramics, glass, and non-woven fabrics.
What is the maximum printing area of this machine?
The MTSP-10200 offers a generous maximum printing area of 1000*2000mm, with a worktable size of 1100*2300mm.
What are the power and air requirements?
The machine requires a 380V three-phase five-wire power supply and a gas source with a pressure of 0.6-0.8 and a flow of 0.03 m³/minute.
How do I adjust the printing pressure?
Pressure is adjusted using specific handles on the head beam and the air pressure adjustment valve to ensure uniform cylinder stroke speed.
What maintenance is needed for long-term operation?
Regularly fill lubricant oil at running parts, change gear oil every 2-3 months, and keep the linear guide rails clean from dust and debris.
Does the machine have safety features?
Yes, it is equipped with a safety brake and an emergency stop switch to immediately halt operations during hazardous situations.
