Automatic Flatbed Paper Sticker Heat Transfer PCB Metal Screen Printing Machine for Glass Acrylic Board Silkscreen Printer Plastic PVC Sheet Serigraphie Maquina

1 / 5

Automatic Flatbed Paper Sticker Heat Transfer PCB Metal Screen Printing Machine for Glass Acrylic Board Silkscreen Printer Plastic PVC Sheet Serigraphie Maquina

Customization:	Available
After-sales Service:	Spare Parts Provide and Technology Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.	GW-80120
Type	Vertical Screen Printing Machine
Style	Screen-process Printing Press
Structure	Screen Printing
Color & Page	Single-Colour Printing Press
Application	Advertising Printing
Transport Package	Package by Wooden Box and Sea Transportation
Specification	800*1200mm
Origin	China
Production Capacity	50 Sets Per Month

Product Description

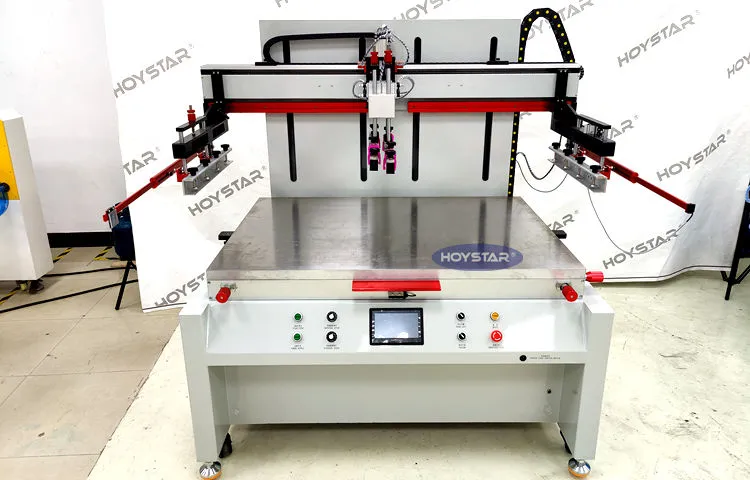

Universal Flatbed Screen Printing Solution

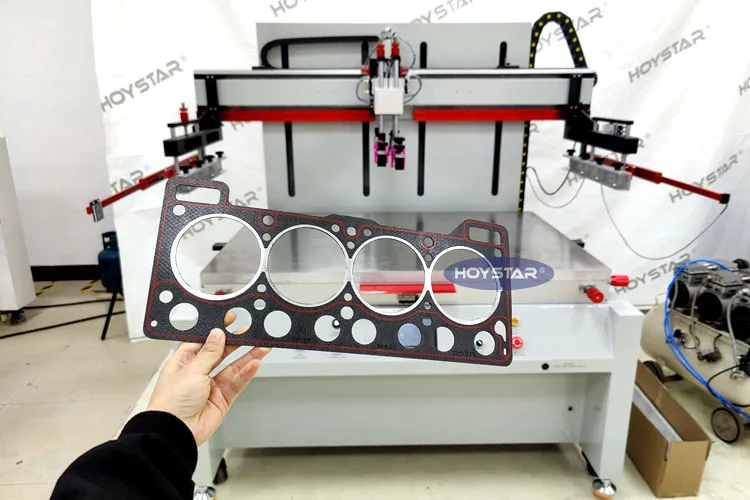

This automatic flatbed screen printing machine is specifically designed for high-precision printing on thin and light flat materials. It is the ideal choice for various industrial and advertising applications.

Paper & Cardboard Sheets

PVC, PET & Heat Transfer Films

Metal Plates & Aluminum Sheets

Glass, Acrylic & Wooden Boards

PCB & Circuit Boards

Membrane Switches & Stickers

Technical Parameters

Max. Print Size	800*1200mm
Max. Screen Frame Size	1100*1600mm
Worktable Size	900*1400mm
Air Pressure	5-7 Bar
Voltage	220V Single Phase

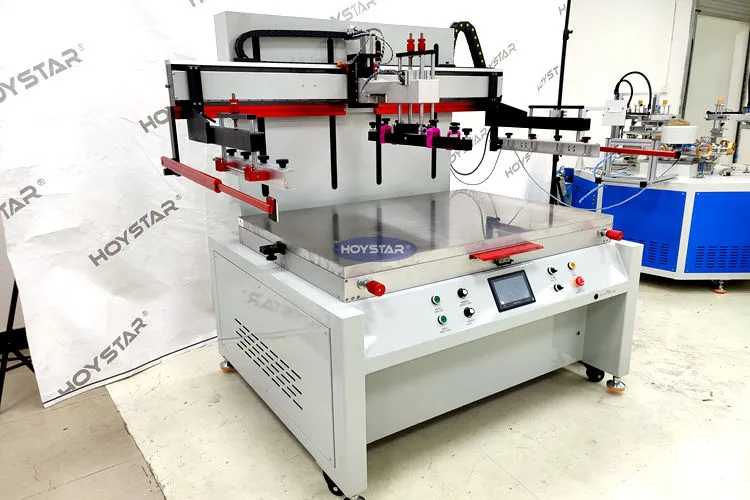

Dimension	200014001800mm
Weight	980kg

Detailed Component Showcase

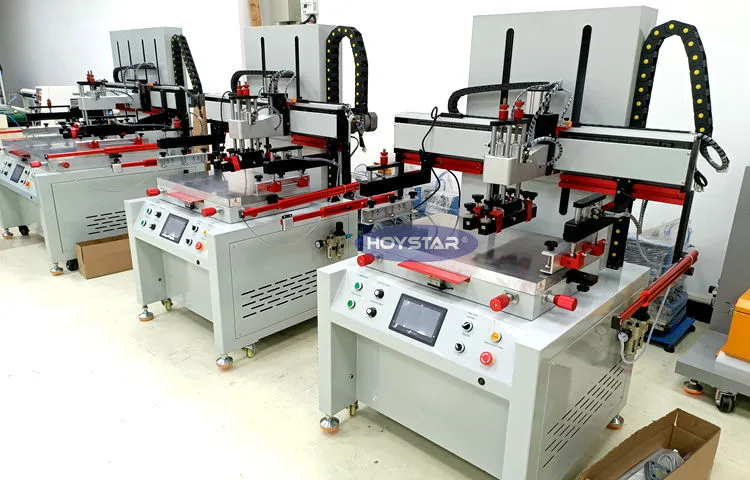

Precision Engineering & Control

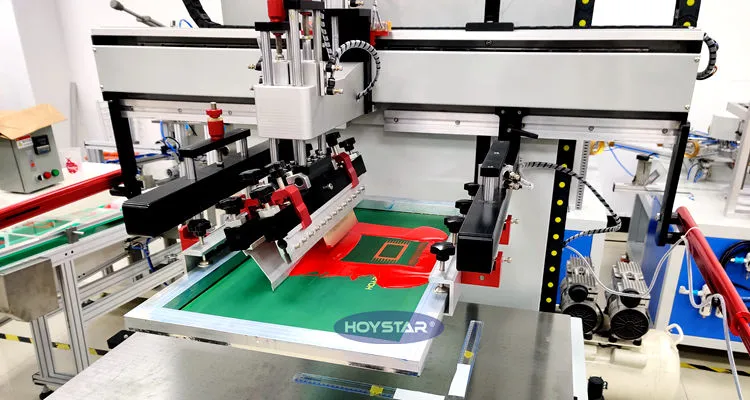

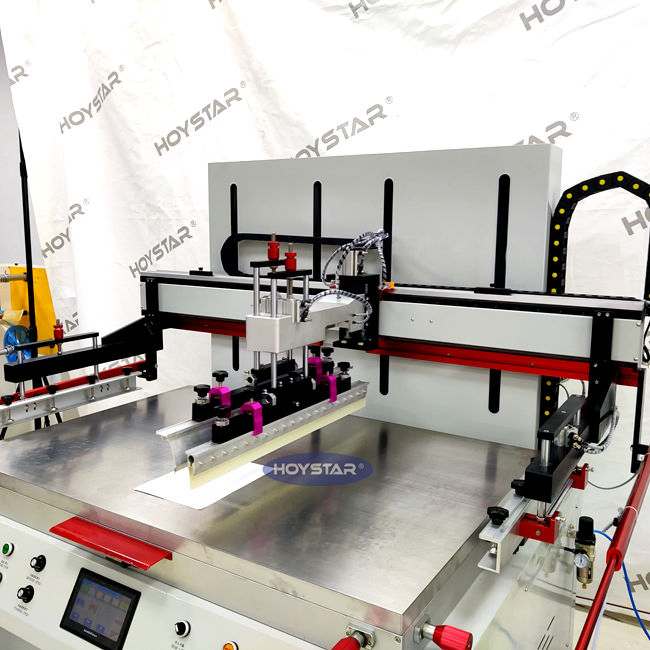

Electric Servo Motor Head

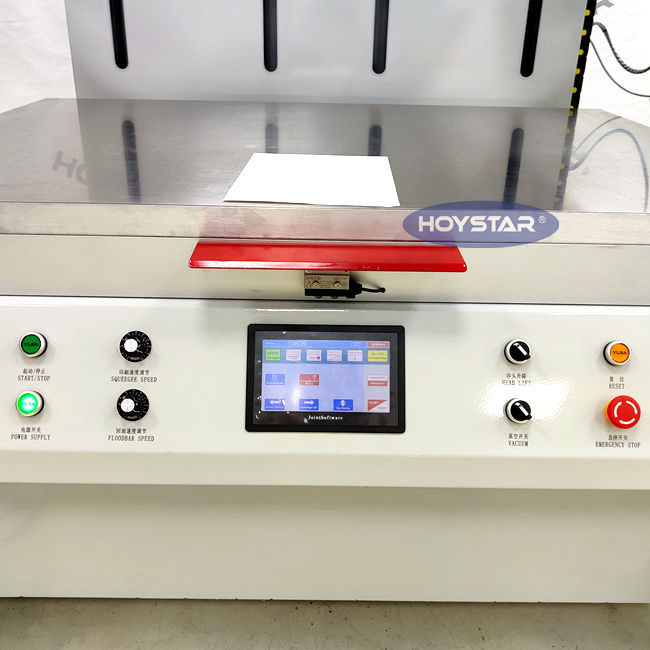

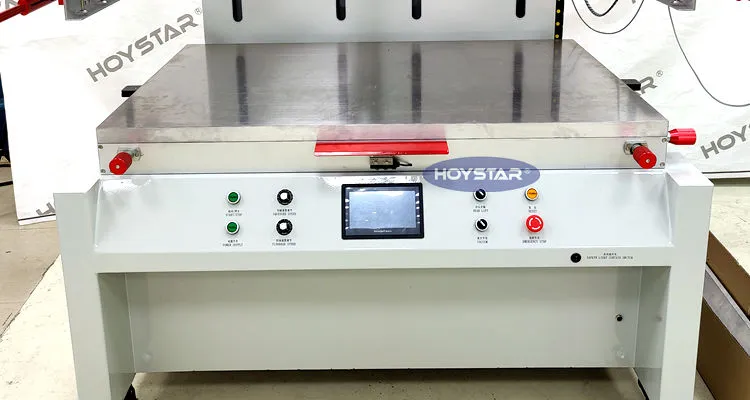

PLC & Touch Screen Control

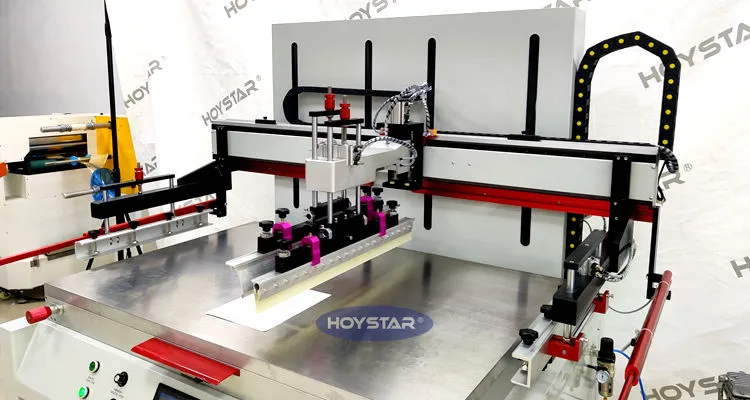

Adjustable Squeegee & Blade

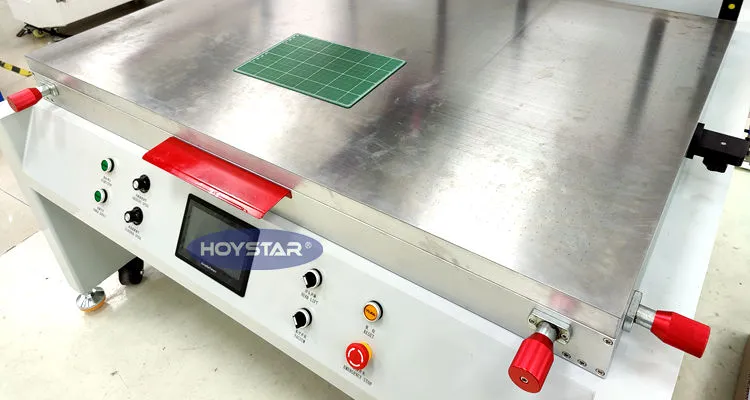

Adjustable Vacuum Worktable

Versatile Material Handling

High Stability Output

Key Features

Equipped with Mitsubishi PLC program and intuitive touch screen panel.
Advanced safety sensors to prevent injury during manual feeding/unloading.
Strong vacuum adsorption system to ensure products remain fixed during the print cycle.
Fully electric motor-driven printing head for smooth horizontal and vertical movement.
Fully adjustable printing angle, squeegee pressure, and screen spacing.
Precision linear guidance system with adjustable speed and travel distance.

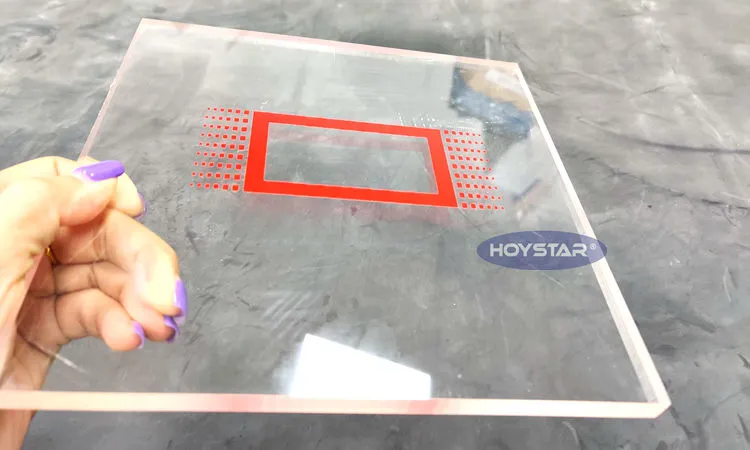

Samples & Compliance

Frequently Asked Questions

1. What materials are best suited for this machine? The GW-80120 is ideal for any thin, flat substrate including PVC, PET, metal sheets, glass, acrylic, and paper stickers.

2. Does the machine require a constant air supply? Yes, it operates on an air pressure of 5-7 Bar to ensure the pneumatic components function correctly.

3. Can the printing speed be adjusted? Absolutely. Through the PLC touch screen, you can adjust the linear speed and travel distance for different production requirements.

4. How does the vacuum table help with printing? The vacuum adsorption system firmly holds thin materials against the table, preventing any movement that could cause ghosting or misalignment.

5. Is the machine easy for operators to use safely? Yes, it includes built-in safety sensors that detect obstacles to prevent pinching, and the Mitsubishi PLC interface is designed for user-friendly operation.

6. What is the power requirement? The machine runs on a standard 220V single-phase electrical connection.
