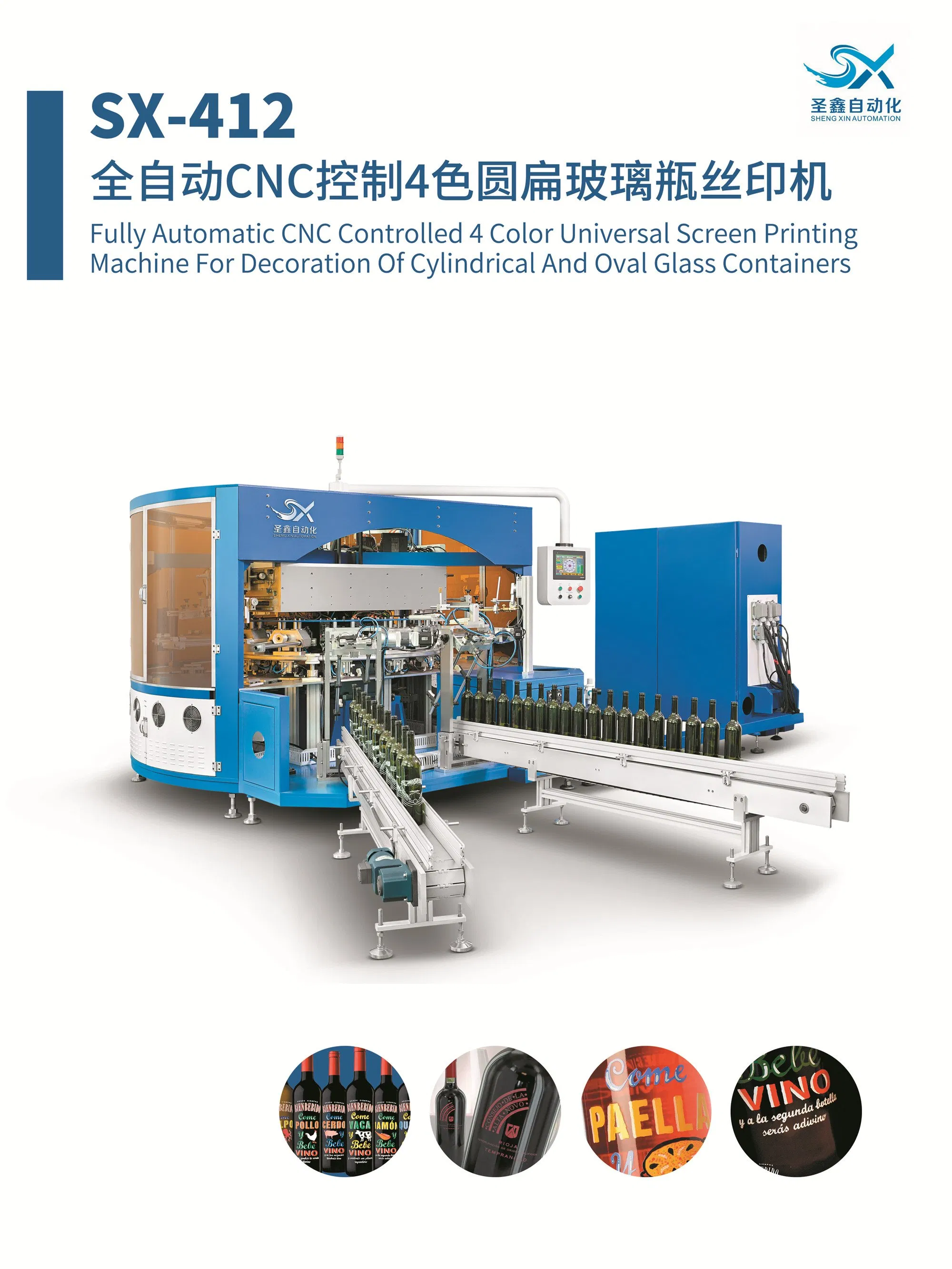

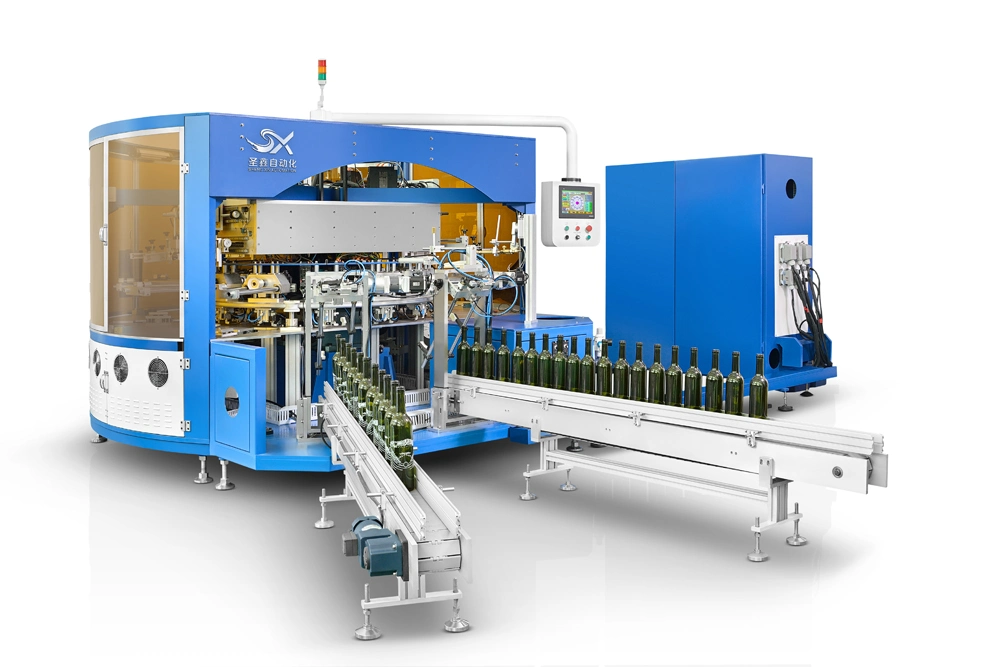

Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
1 / 5
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine
Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine

Automatic CNC Controlled 4 Color Glass Wine Bottle Label Trademark Silk Screen Printing Machine

Customization: Available
After-sales Service: on Site
Warranty: One Year
Send Inquiry

Product Description

Basic Information

Model NO.SX-412
TypeRotary Screen Printing Machine
StyleScreen-process Printing Press
StructureRotary Printing Press
Color & PageMulti-Colour Printing Press
ApplicationPackaging Printing
System SupportedWindows2000
Specification5400*5000*2400 mm
Production Capacity1800-2100 Pieces/Hour
HS Code8443192900

Automatic CNC Controlled 4 Color Glass Wine Bottle Label Silk Screen Printing Machine

Silk Screen Printing Machine
Applications:

This multifunctional rotary multicolor screen printing machine is applied to different print patterns and words on cylindrical and oval objects. Suitable for wine glass bottles, liquor glass bottles, drinking glass bottles, soy sauce glass bottles, glass jars, glass tubes, and other glass containers. Features easy operation, accurate positioning, high automation, fast printing, and low maintenance.

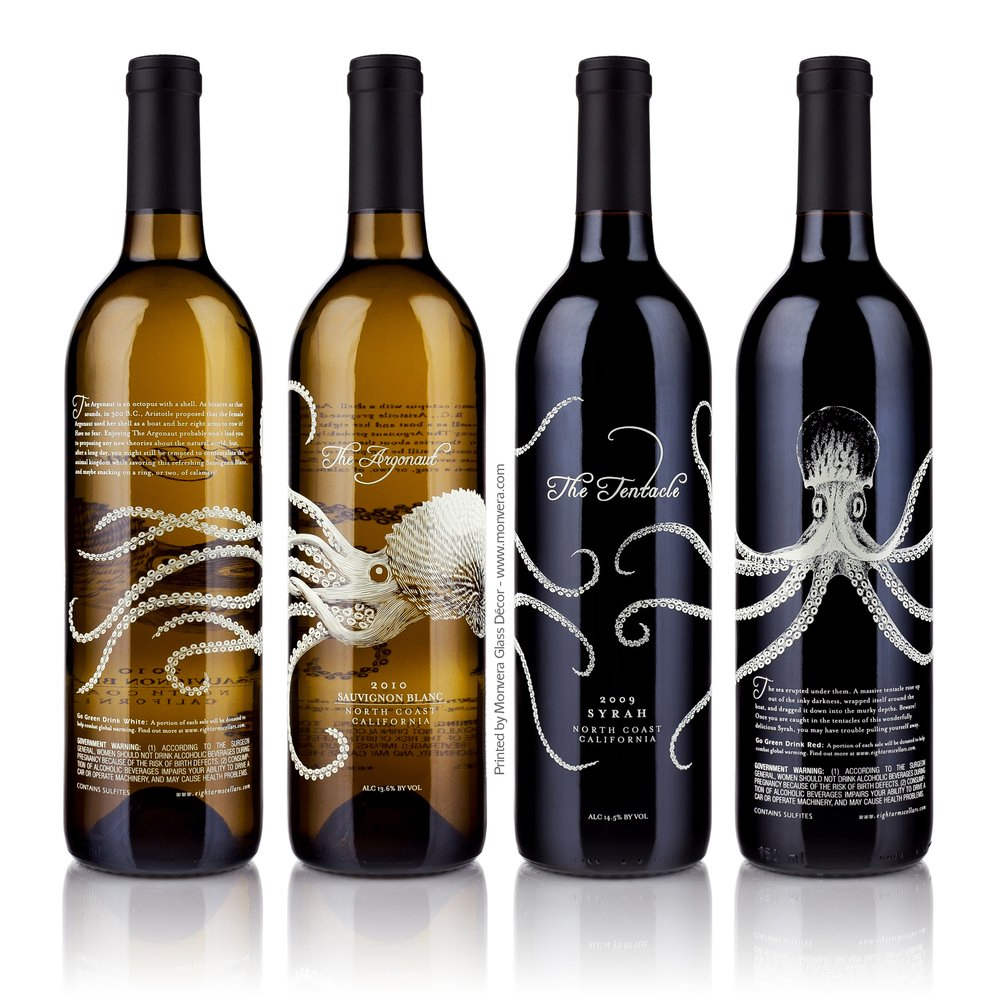

Application Sample

Key Features

  • Mechanical register and visual mark register for high color-to-color accuracy.
  • Controlled by PLC and touch screen display with monitoring systems for stability at high speeds.
  • Vertical or horizontal infeed/outfeed and antistatic dust device.
  • Flame pre-treatment and automatic pre- and main register.
  • No article, no print sensor; compatible with Conventional UV or LED UV curing systems.
  • Main components sourced from Taiwan, France, Germany, USA, and Japan.
  • Optional integration of hot stamping unit and varnishing.

Technical Parameters

Printing Speed Max 1800-2100 pieces/hour (depending on article shape, size, and image)
Printing Area 280*220mm
Compressed Air Pressure 6-8 Bar
Machine Dimension 5400*5000*2400mm
Power AC 380V, 3-Phase, 50Hz/60Hz, 23Kw (UV) / 5Kw (LED)

Machine Details & Workflow

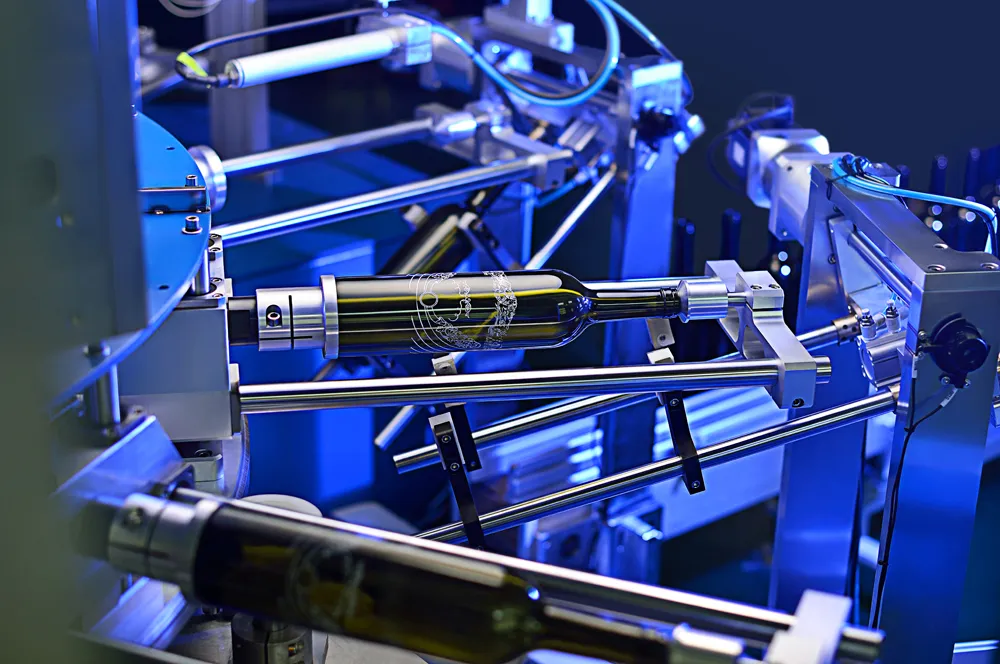

Machine Details

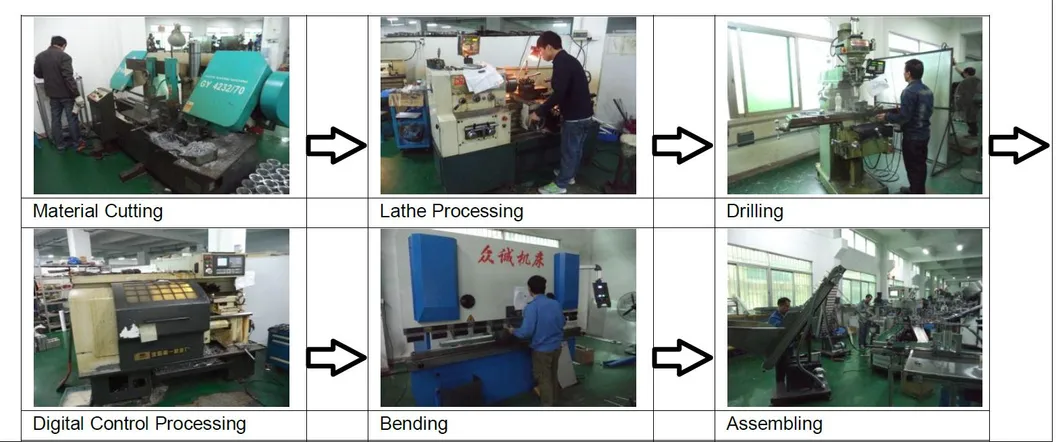

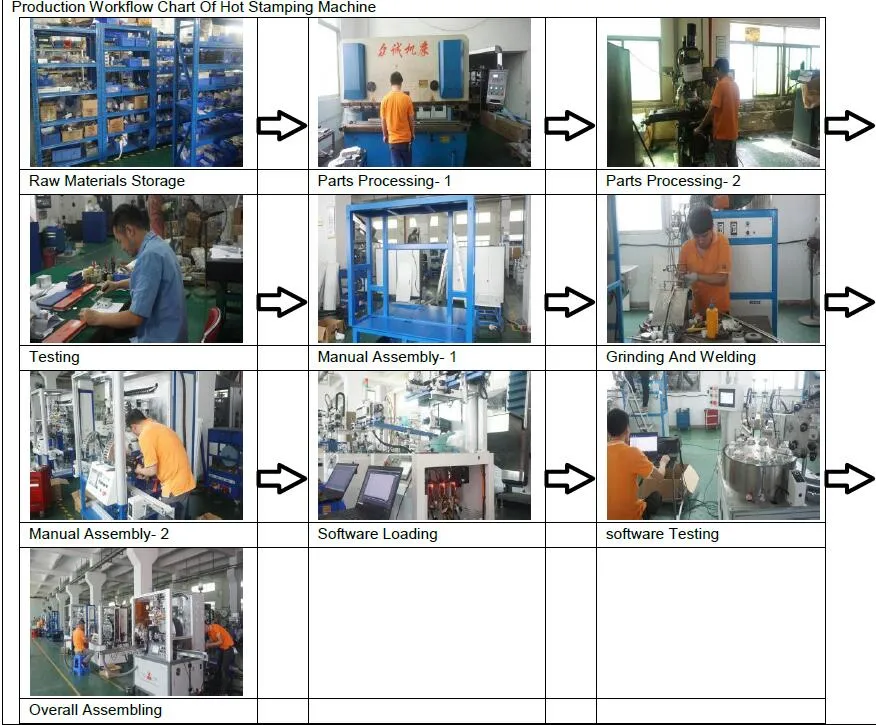

Production Workflow Chart:

Workflow 1 Workflow 2

About Our Manufacturing

We are a high-tech enterprise and professional manufacturer concerned with the design, development, and production of high-quality fully automatic screen printing machines, hot stamping machines, and assembly lines. With over ten years of R&D experience, we import advanced design concepts and production technologies to create value for customers globally.

Our Honors & Certificates:

Honor 1 Honor 2 Honor 3

Cooperation Partners & Cases

Partners Successful Cases

Packaging and Shipping

Packaging

Frequently Asked Questions (FAQ)

1. What types of containers can this machine print on? It is designed for cylindrical and oval objects such as wine glass bottles, liquor bottles, glass jars, and glass tubes.
2. What is the maximum printing speed? The machine can achieve a production capacity of 1800 to 2100 pieces per hour, depending on the article shape and size.
3. Does the machine support UV curing? Yes, it can be equipped with either conventional UV or LED UV curing systems based on your requirements.
4. How is the printing accuracy maintained? Accuracy is ensured through mechanical and visual mark registration, controlled by a high-precision PLC system and photoelectric sensors.
5. What kind of after-sales service is provided? We offer a one-year guarantee, technical support throughout the machine's life, and on-site engineering services if required.
6. Can this machine handle multi-color printing? Yes, this is a multi-color rotary screen printing press designed for high-quality label and trademark applications.
