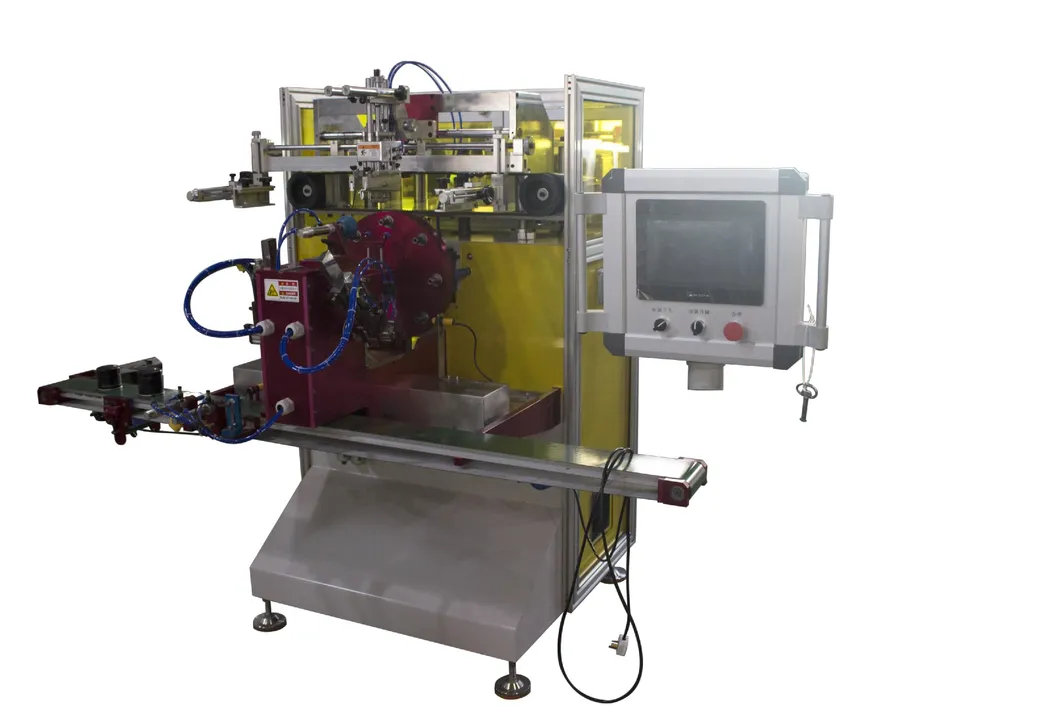

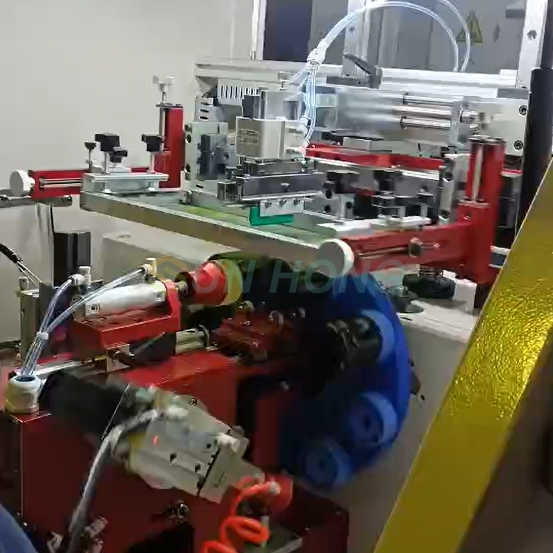

Full Auto Manual Car Spin on Oil Fuel Filter Making Print Shell Marking Auto Silk Screen Printing Machine

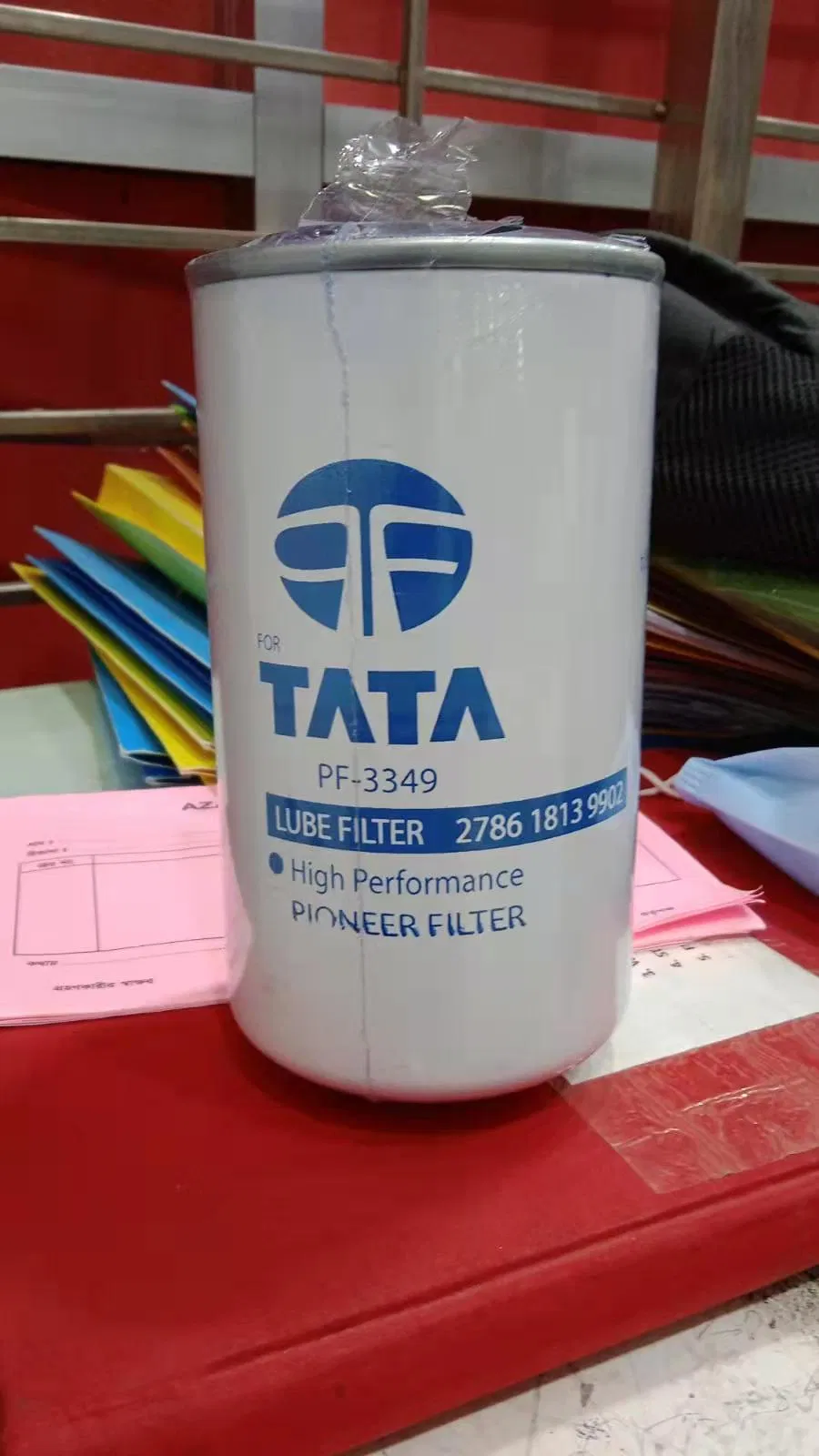

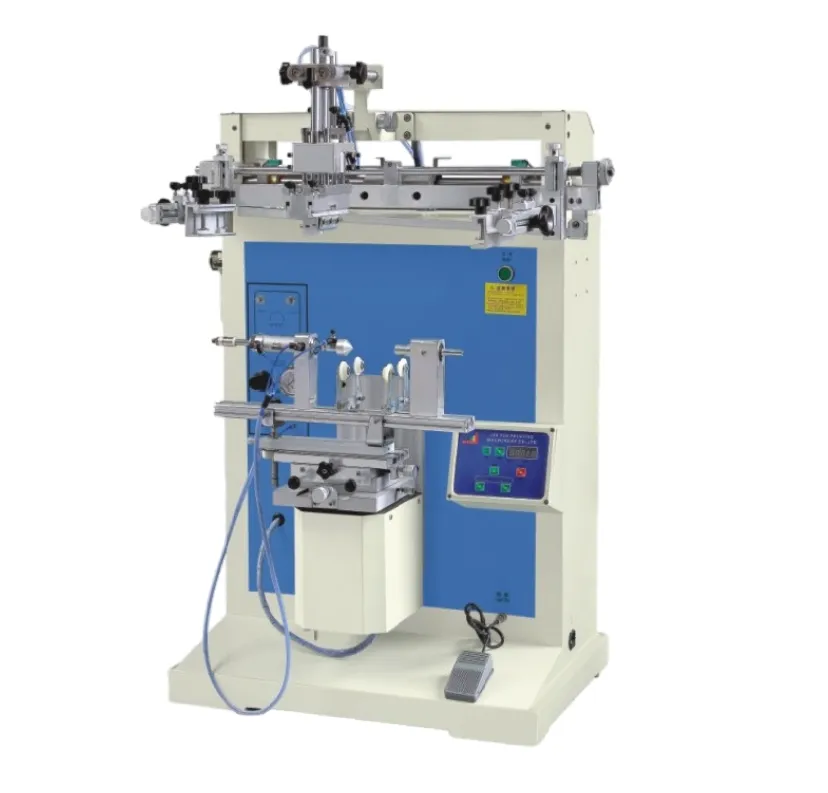

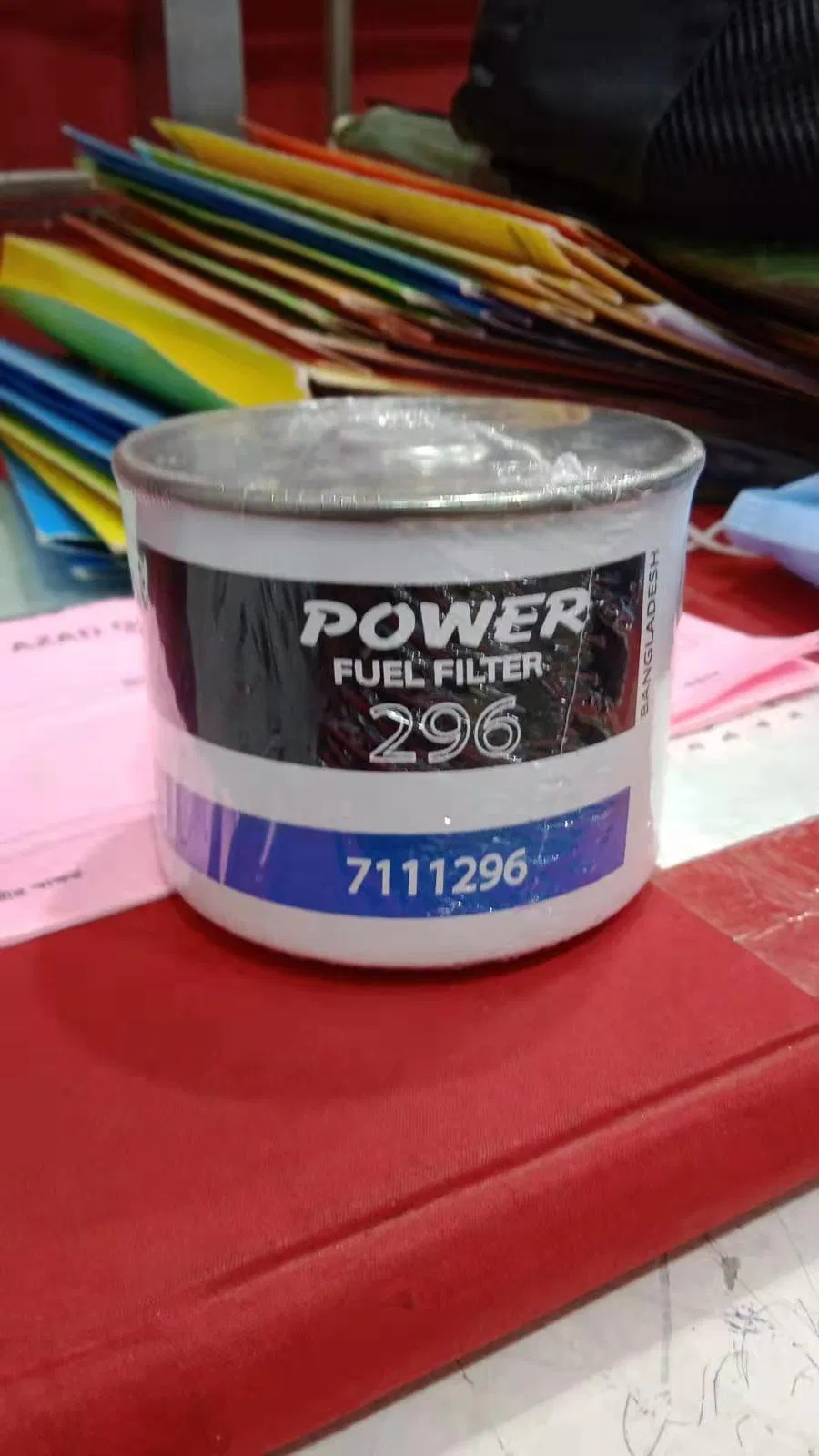

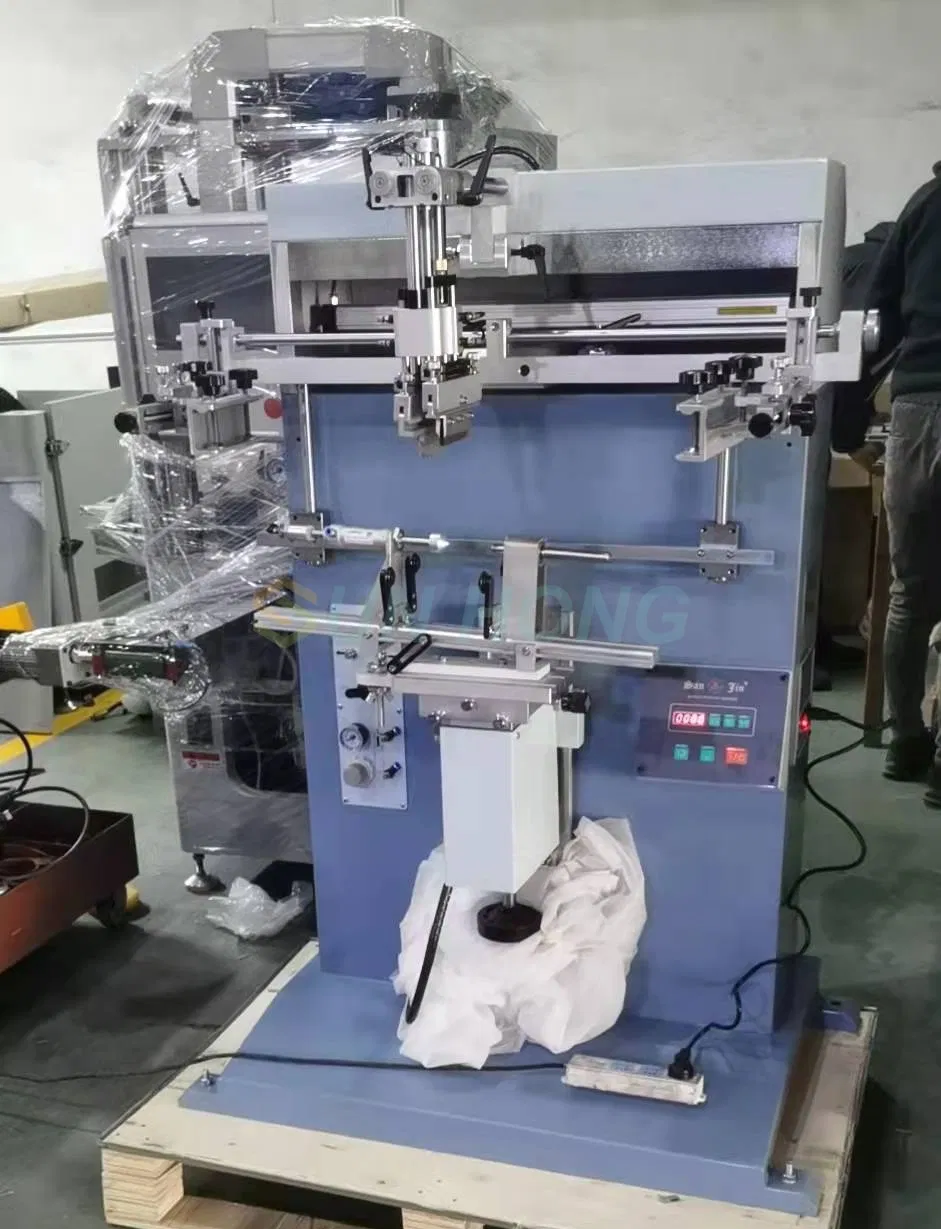

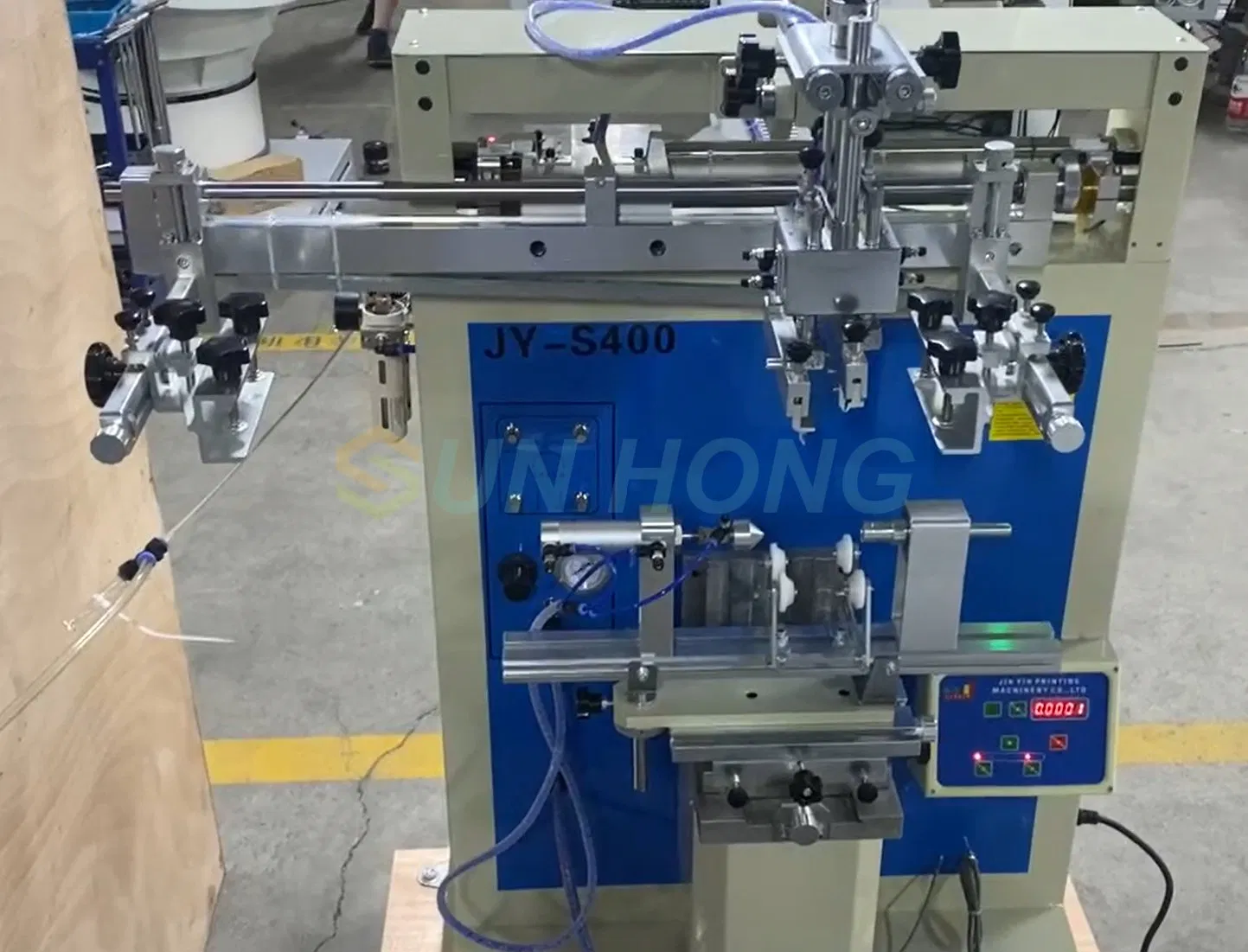

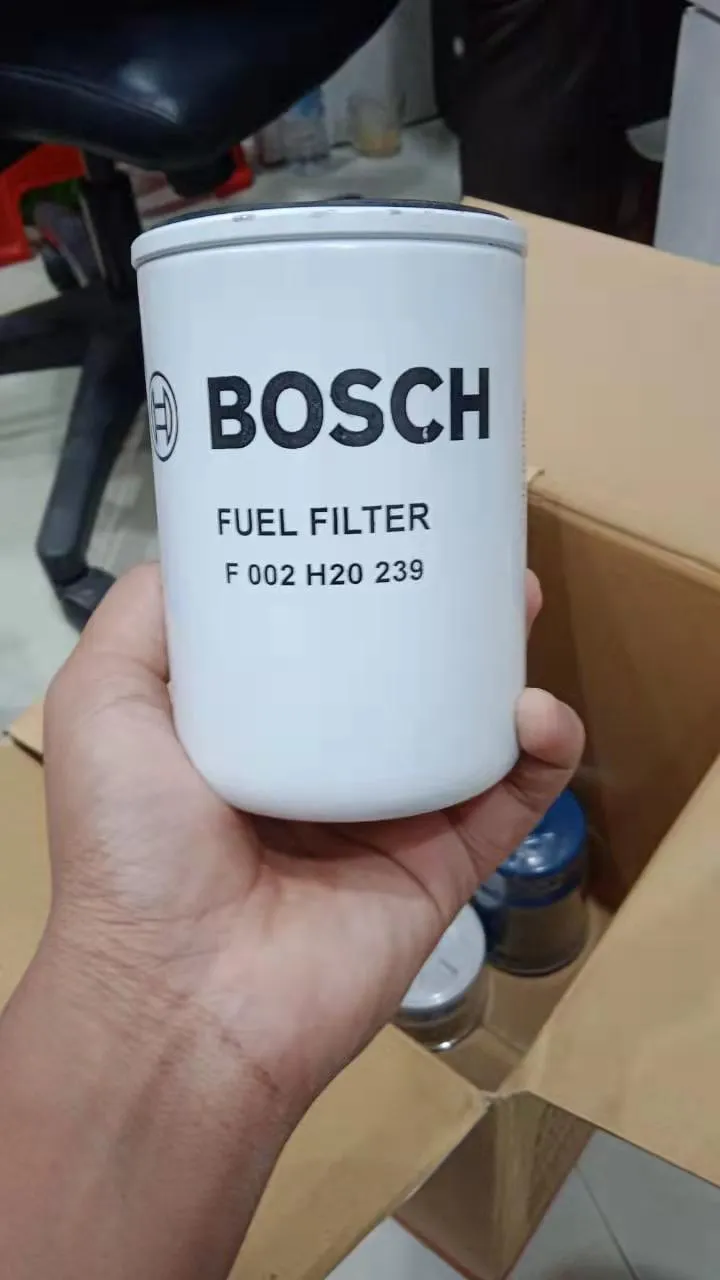

Application: This machine is used for printing the shell of the car spin on oil fuel filter.

• Printing diameter: ≤300mm
• Printing length: ≤320mm
• Printing taper: positive ≤15°, negative ≤7°
• Max screen printing circle diameter: ≤125mm
• Power supply: 220/110V 50/60HZ
• Compressed air pressure: 4-6bar
• Printing speed: 1200pcs/hr
• Dimensions: 1300mm×900mm×670mm
• Registration accuracy: 0.05mm

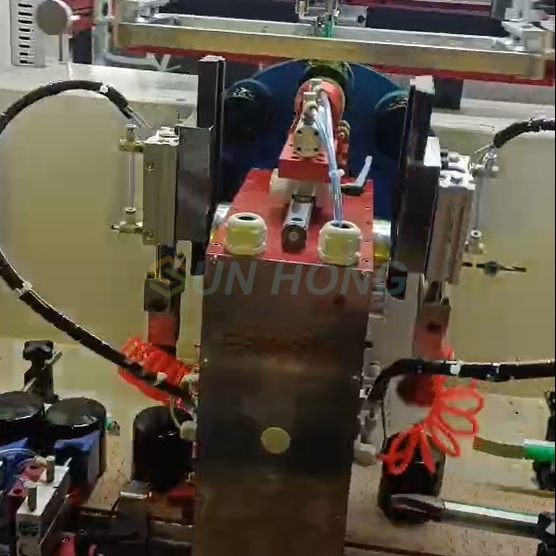

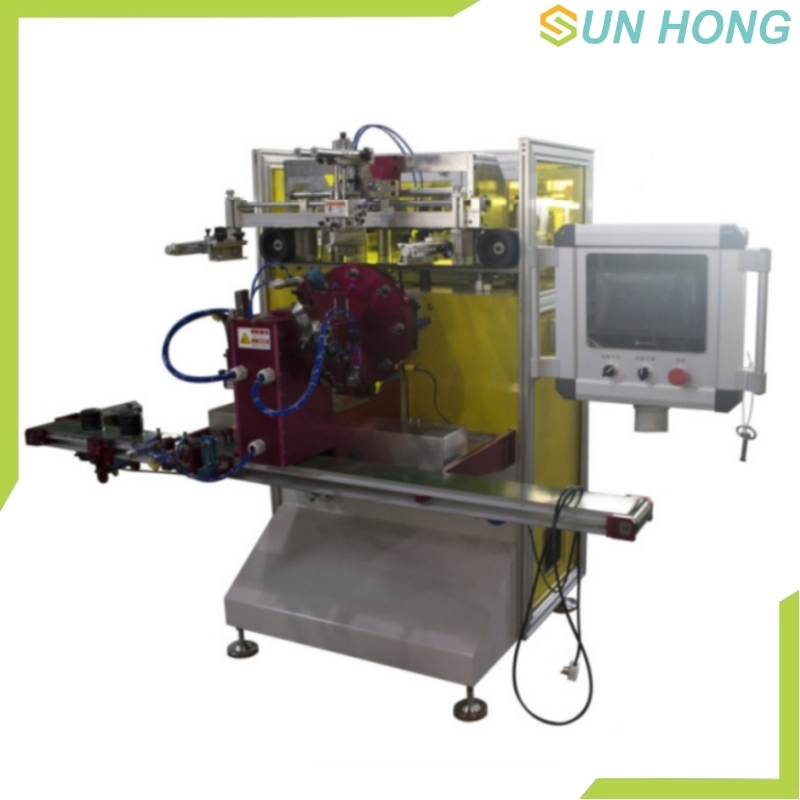

Application: Specially designed for high-efficiency printing on spin-on filter shells.

• Filter diameter range: 55-100mm
• Printing speed: 35-45pcs/min
• Filter height: 60-150mm
• Air pressure: 0.6Mpa
• Motor power: 3Kw
• Conveyor motor: 120W
• Power supply: 380V/50Hz
• Machine weight: 500kg
• Size: 2000mm*1300mm*1700mm

• Microcomputer intelligent IC and touch panel action program control, easy to operate.
• Built-in four-digit automatic counter.
• Adjustable printing stroke and speed to meet different requirements.
• Three functional modes: round, flat, and plane printing.
• Automatic ink scraping, ink return, and table lifting for stable quality.
• Automatic balance scraper ensures uniform printing pressure.

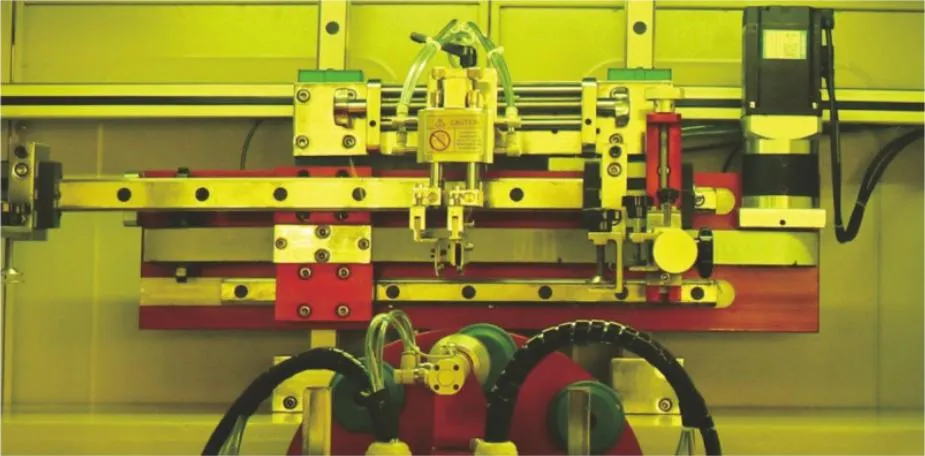

• Adjustable screen frame (left/right, up/down) for high precision.

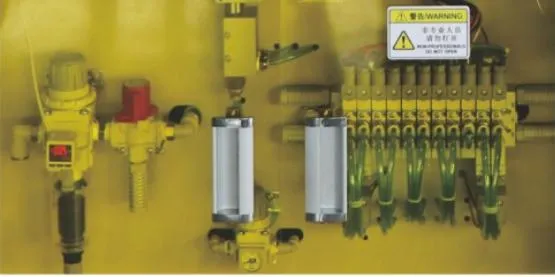

• Imported pneumatic components for long-term machine reliability.
