Air Cooled Linear UV LED Curing Systems Dryer for Label Printing

1 / 5

Air Cooled Linear UV LED Curing Systems Dryer for Label Printing

Customization:	Available
After-sales Service:	Repair, Replacement in Gurantee
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

AFL-300x10

Input Voltage

AC85~240V(50/60Hz)

Cooling Method

Air-Cooled / Water-Cooled

LED Life

20,000 hrs

Control Method

RS232/Pedal/PLC/Touch Screen

LED Beam Size

10X300mm

Wavelength

365/385/395/405nm

UV Intensity

1~20W/Cm2

Material

Pure Aluminum

Certification

Product Description

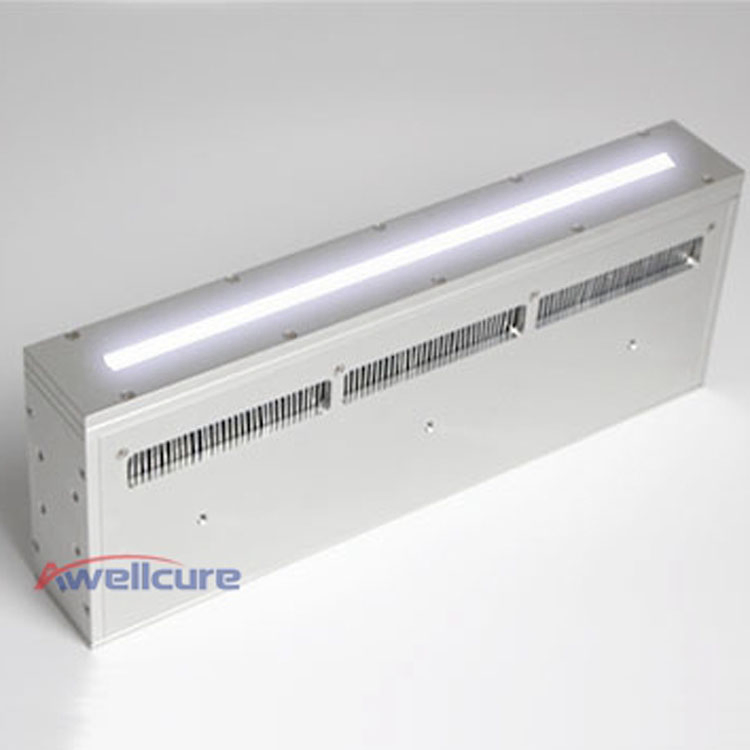

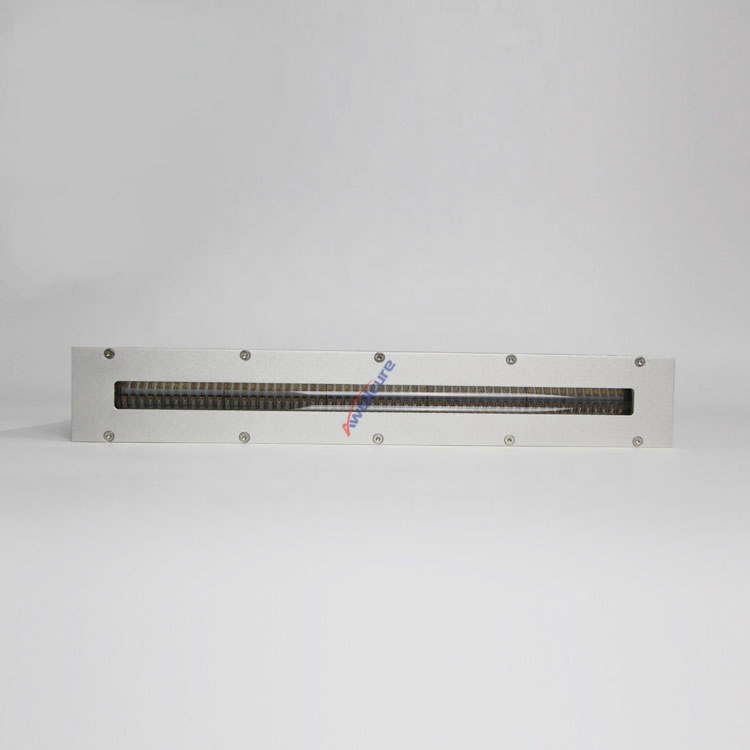

Air cooled Linear UV LED Curing Systems Dryer for label printing

Model: AFL-300x10

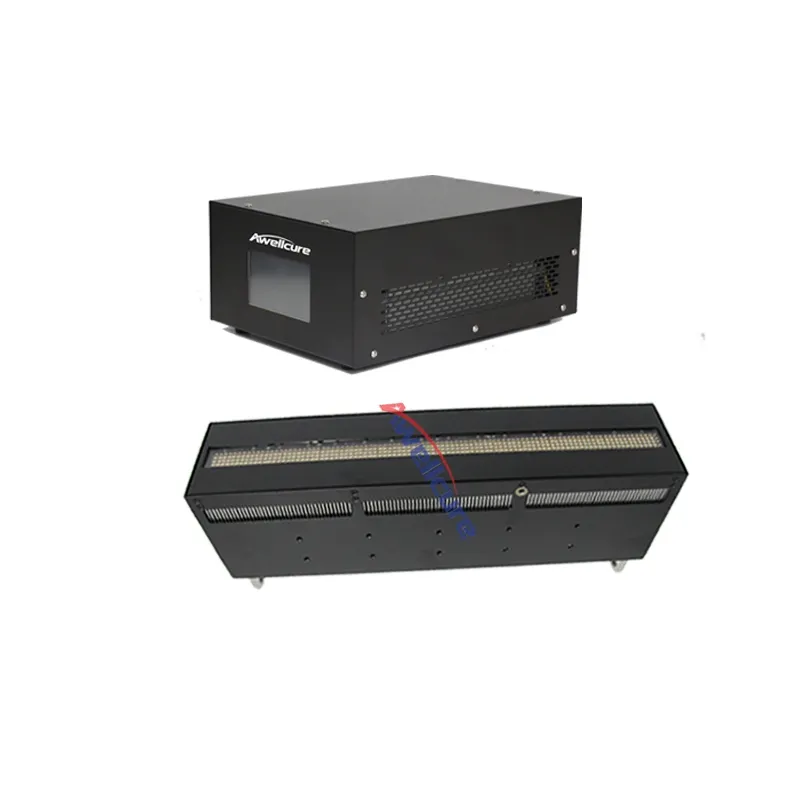

System Composition: Controller + Irradiator Head (One controller can drive multiple irradiator heads).

● Controller Features

External signal control via MCU, PLC, and scanners.
Status LEDs for start, stop, work, and alarm outputs.
RS232 interface for programming and software updates.
Direct lighting control via foot switch or sensor terminals.

● UV LED Advantages

No infrared radiation; ideal for low-temperature materials.
Instant on/off capability with no warm-up phase.
Optimized spectra for safe and rapid curing.

Technical Specifications

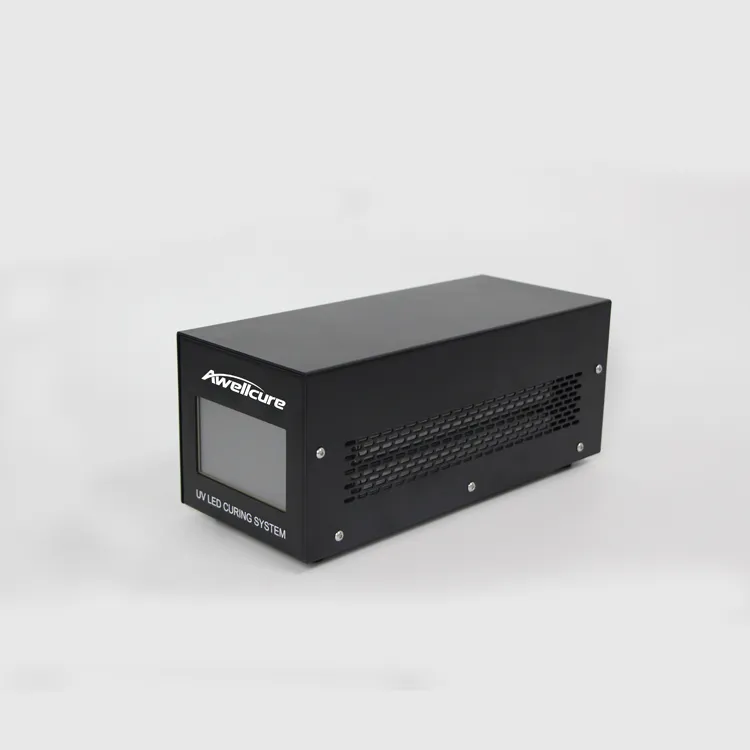

Controller Specifications
Voltage	100-240V AC
Material	Pure Aluminum
Heat Dissipation	Fan Cooling
Irradiation Mode	Manual / Automatic (0.1-999.9S) / Ladder (1-20 Steps) / Pulse
Communication	RS232 Serial Port / I/O Interface
Working Temp	0-45℃

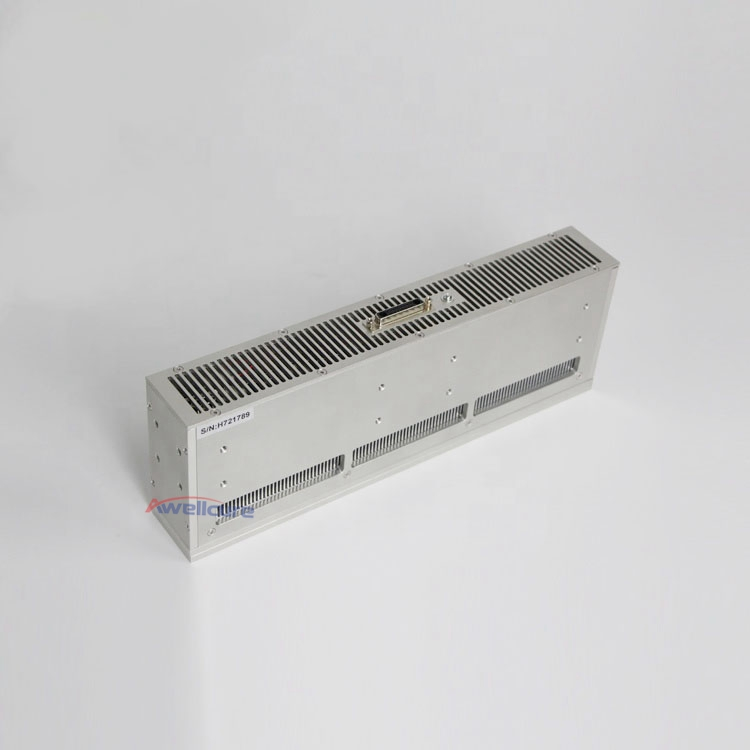

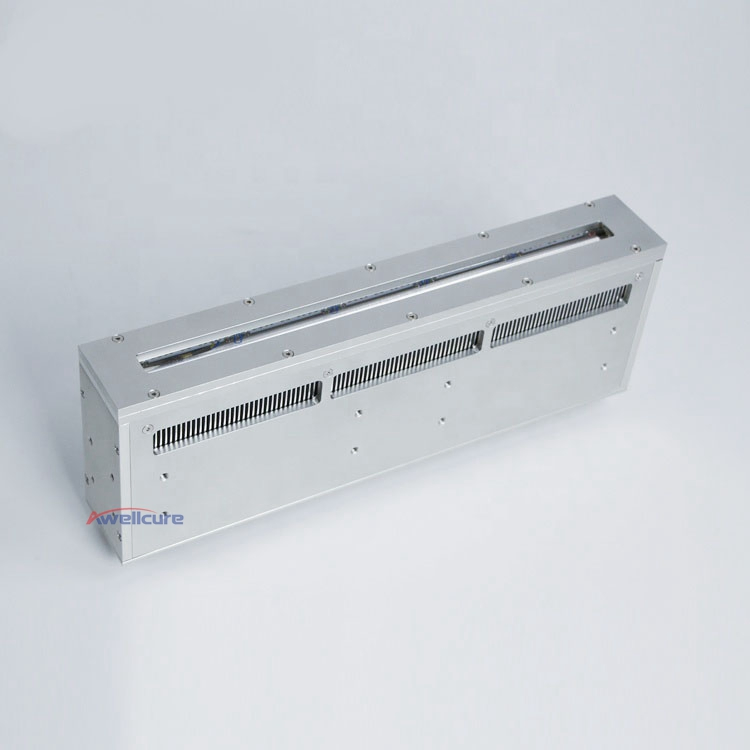

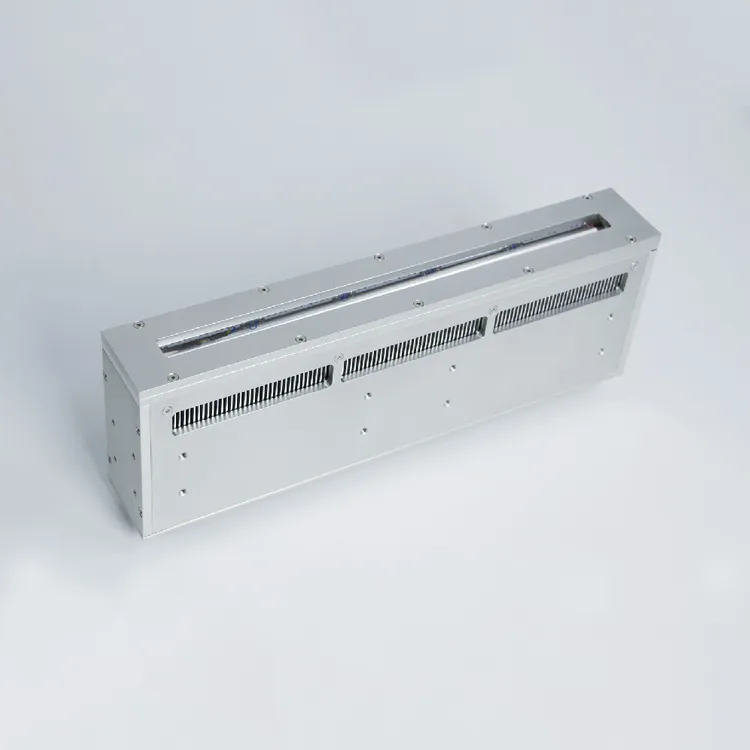

Irradiation Head Specifications
UV LED Usage Time	20,000 Hrs @80% power

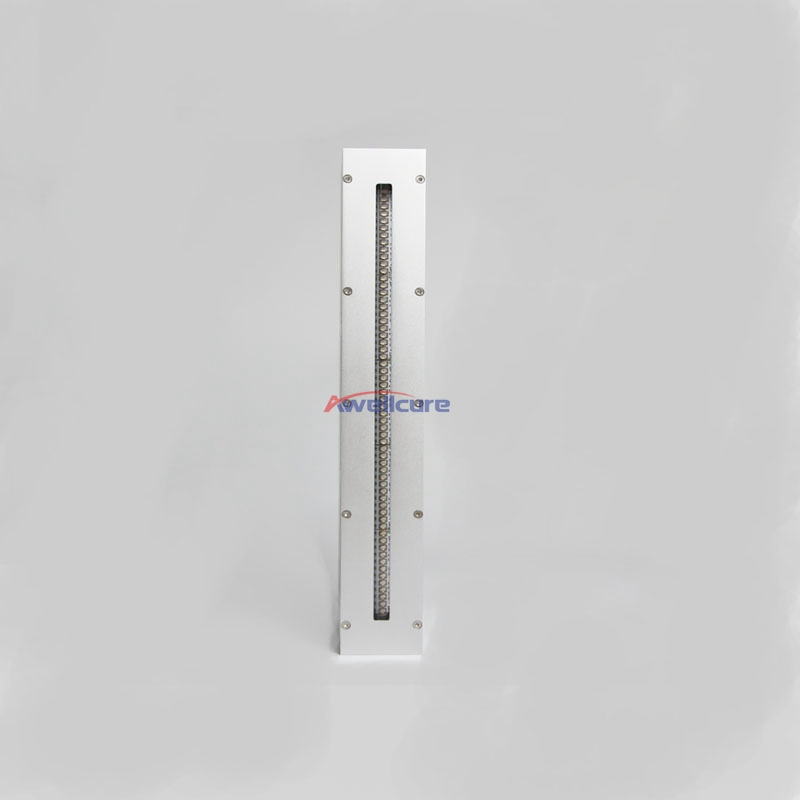

Luminous Size	10x300mm
Peak Intensity	2700mW or Customized
Wavelength Range	365nm/385nm/395nm/405nm (±5)
Standard Cable	2M / 5M or Customized

Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
UV Ink: UV printing, 3D printing, Flexo printing, digital printing, screen printing.

After Sales Service

Standard Warranty: 12 months.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

Industry Expertise

With over 12 years of expertise, our production processes are certified with ISO 9001, CE, and RoHS. We provide reliable UV curing solutions backed by continuous R&D innovation and strict quality control, serving clients in over 50 countries.

Frequently Asked Questions

Q: What are the primary applications for this UV LED curing system?

A: It is mainly used for curing UV glue, UV ink, UV adhesives, UV paint, and UV varnish across electronics, medical, and printing industries.

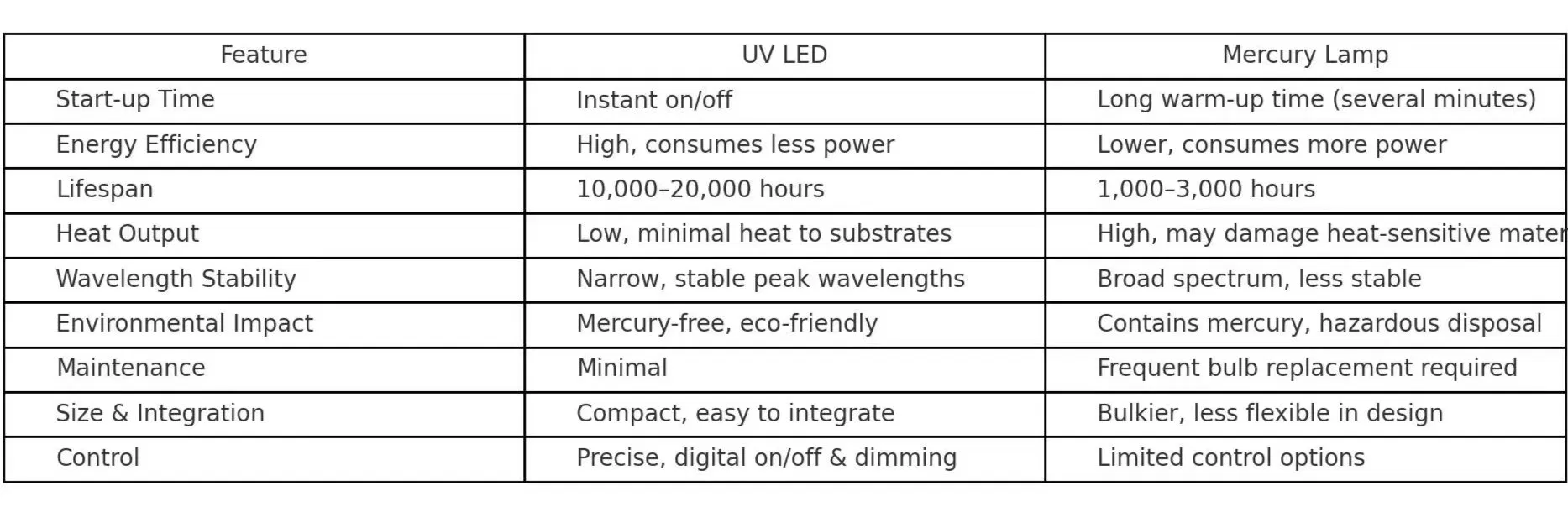

Q: What are the advantages of UV LED over traditional mercury lamps?

A: UV LED systems offer a significantly longer lifespan, lower energy consumption, instant on/off capabilities, and are environmentally friendly as they contain no mercury.

Q: Can the emitting window size be customized?

A: Yes, the size of the emitting window and the peak irradiance can be fully customized based on your specific application requirements.

Q: How do I choose the right power intensity?

A: The required intensity depends on your specific UV-sensitive materials and your desired production speed/efficiency.

Q: What is the typical lifespan of the UV LED heads?

A: Our UV LED heads are rated for approximately 20,000 hours of operation at 80% power.

Q: Does the system require a warm-up period?

A: No, unlike mercury lamps, UV LEDs reach full intensity instantly and can be cycled on and off as needed.
