Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
1 / 5
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment
Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment

Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HANZE-STM-S662L
Color & Page
Multi-Colour Printing Press
Usage
Cloths, Paper, Label, Card Printer
Automatic Grade
Manual
Pallet Size
22 X 18 in / 55 X 45 cm
Max Frame Size
22.8 X 18.9 in / 58 X 48 cm
Printing Color
6 Colors
Printing Station
6 Stations
Production Capacity
100 Sets Per Month
Product Description

Screen Printing 6 Color 6 Station Rotary Printer Precise Matching Color Equipment HTM-S662L

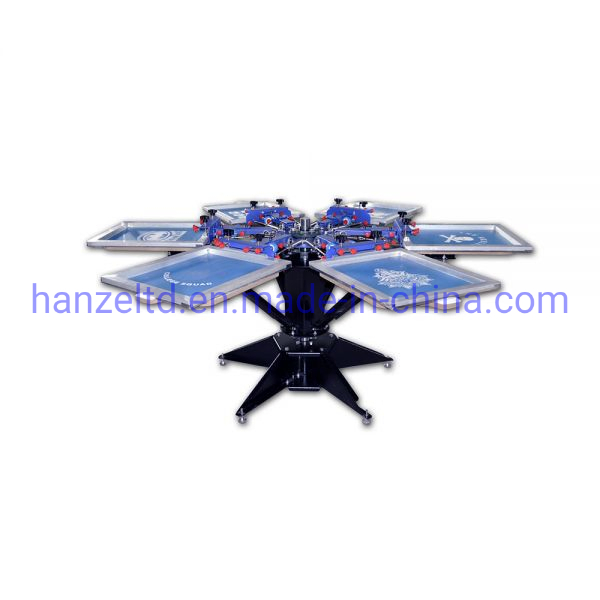

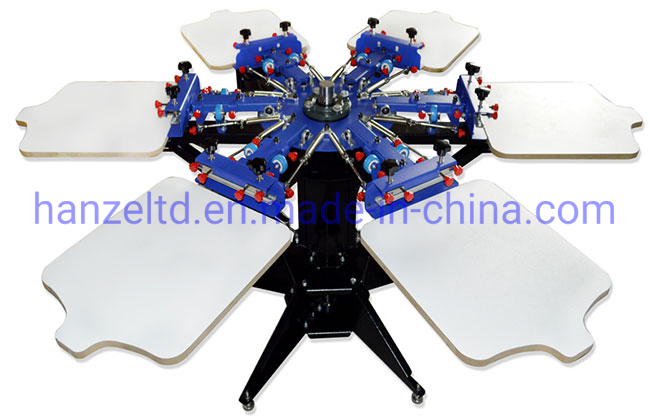

This is an all-steel six color six station rotary screen printing press. It is an upgraded model equipped with precise micro-registration functions to ensure high-quality output.

Screen Printing Equipment
Technical Specifications

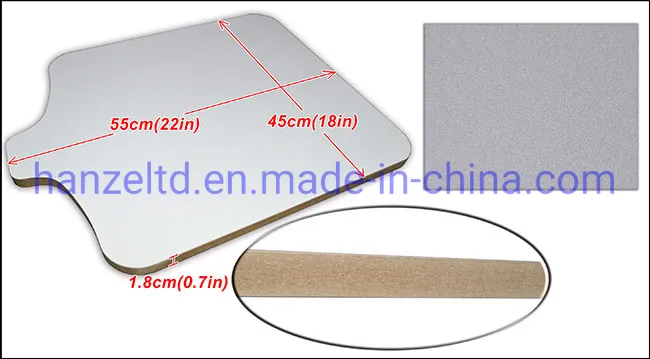

Pallet Size22 x 18 in / 55 x 45 cm
Max Frame Size (OD)22.8 x 18.9 in / 58 x 48 cm
Max Frame Thickness1.57 in / 4 cm
Printing Height0.4 in / 1 cm
OperationManual
Printing Color6 Colors
Key Functions & Features
  • ●

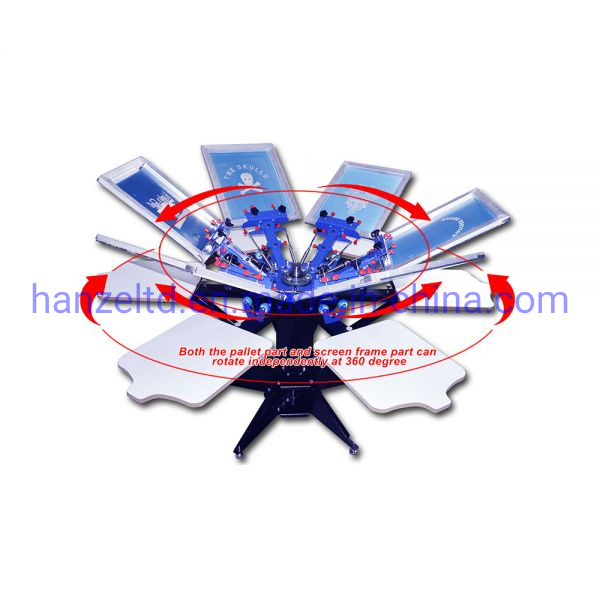

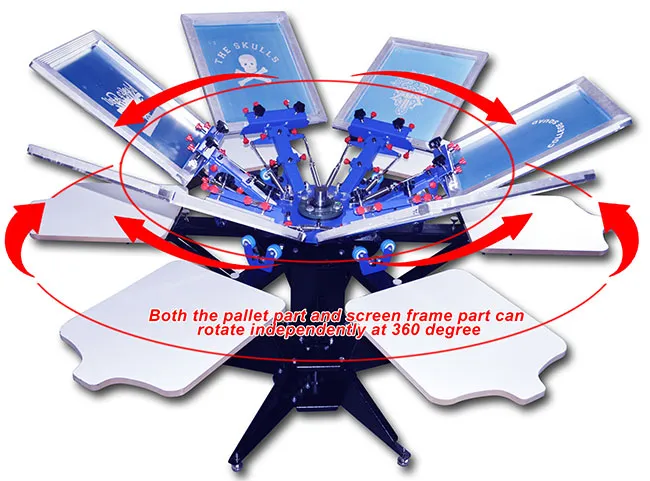

    360° Rotation: Both the pallet and screen frame can rotate independently in 360 degrees.
  • ●

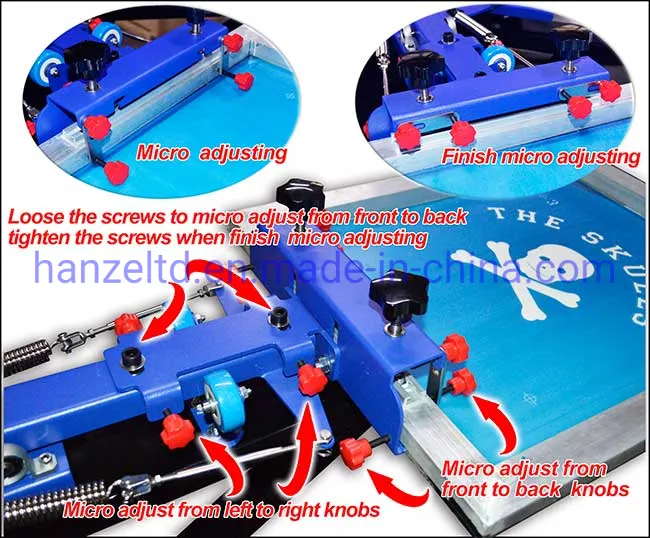

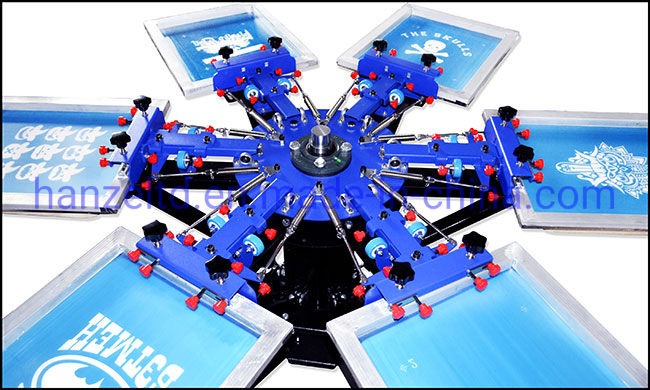

    Micro-Adjustment: Each screen frame chuck is configured with manual micro-adjusting knobs for accurate overprinting.
Micro adjustment detail
  • ●

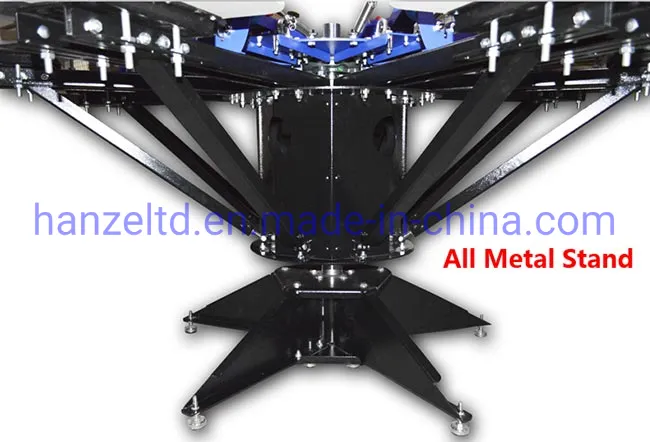

    Enhanced Stability: Metal supports under each pallet ensure maximum stability during operation.
  • ●
    High Efficiency: With two operators and a flash dryer, the capacity is 30-50 pcs of six-color shirts per hour.
  • ●
    Automatic Alignment: Aligning one pallet automatically adjusts others to the correct position.
  • ●

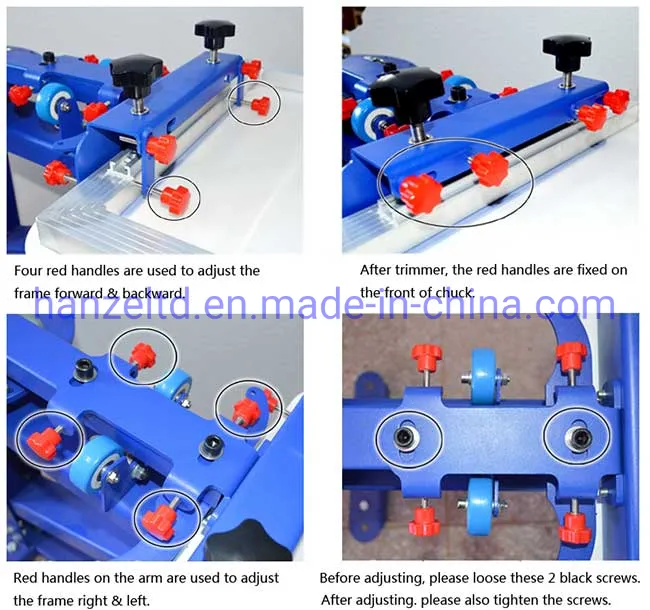

    Eight-Way Adjustability: Eight micro-adjust knobs per holder assist with front-to-back and left-to-right positioning.

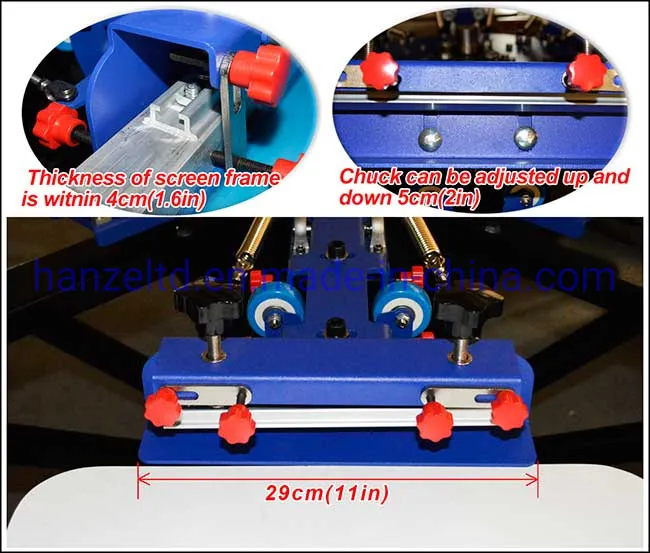

Rotary Printer Detail

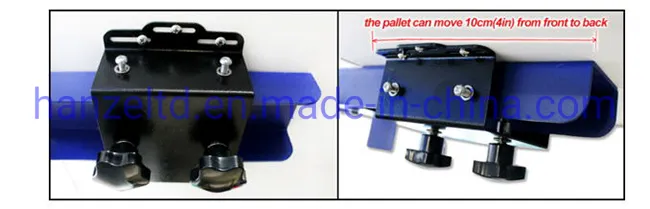

Spring tension system

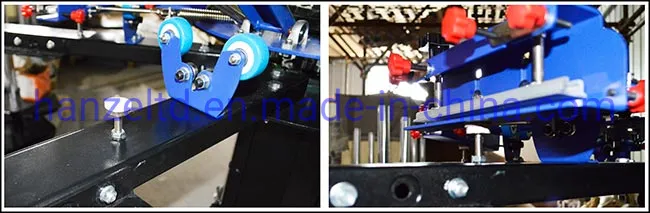

Frame support
  • ●
    Adjustable Tension: Springs can be adjusted based on frame weight to achieve perfect balance.
  • ●

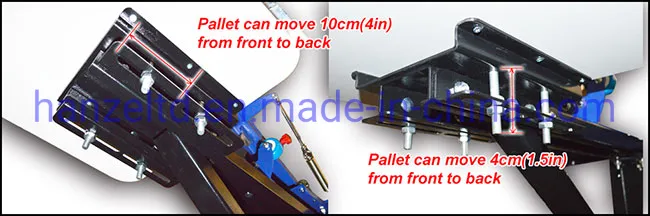

    Height Adjustment: Pallets can move up/down within 1 inch (3cm) and back/forth within 4 inches (4cm).
  • ●
    Machine Leveling: Configured with 10 supporting feet to adjust the overall machine height within 1.6 inches (4cm).
Pallet adjustment
Installation & Usage

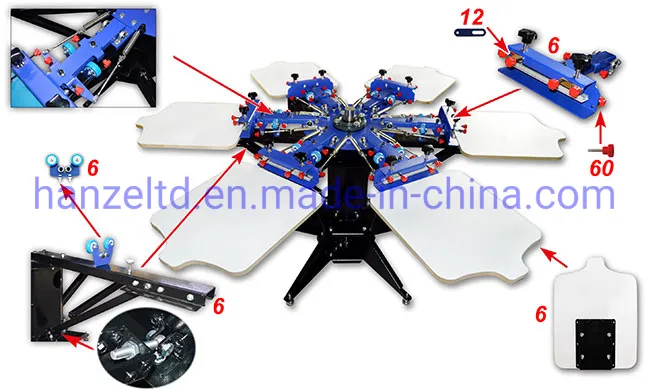

All machines come with a full set of installation tools; no additional equipment is required. The package includes a clear installation diagram, packing list, installation CD, and operation video for convenience. Spare parts are also included in the box.

Support feet
Tool set
Package parts

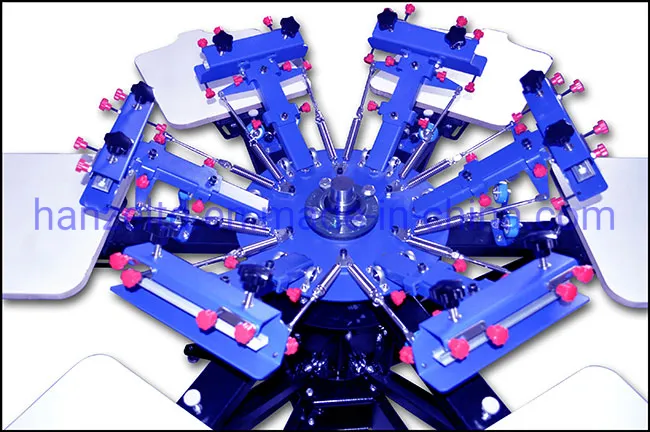

Assembly view 1
Assembly view 2

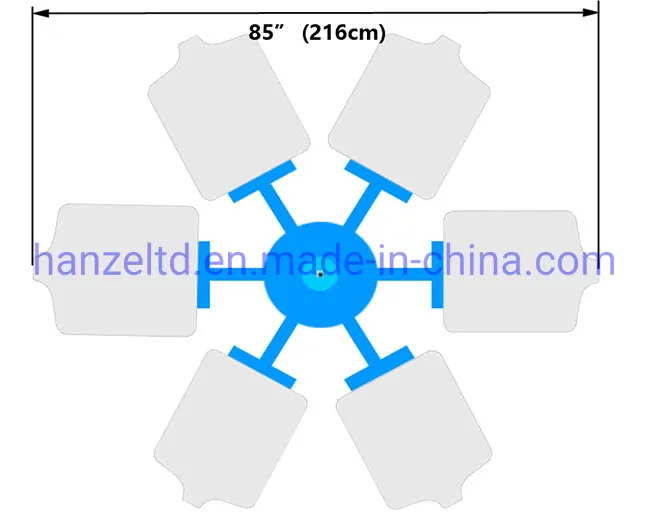

Full assembly
Frequently Asked Questions
What materials can be printed using this machine?
This versatile printer is suitable for cloths (T-shirts), paper, labels, and card stock.
Does the machine require complex tools for installation?
No, it comes with a full set of necessary tools, an installation CD, and a step-by-step operation video.
How many colors can it print at once?
The machine is designed for 6-color printing with 6 independent rotating stations.
Is it possible to adjust the height of the printing pallets?
Yes, the pallets feature adjustable metal supports that allow for up/down movement within 1 inch (3cm).
What is the production efficiency of this manual printer?
With two operators and a flash dryer, you can achieve a production rate of 30-50 six-color shirts per hour.
How does micro-registration work on this model?
Each frame holder is equipped with eight micro-adjustment knobs for precise front-to-back and left-to-right positioning.
