| Model NO. | AW30600H1 | Input Voltage | AC85~240V(50/60Hz) |
| Cooling Method | Air-Cooled and Water-Cooled | LED Life | 20000hrs |
| Control Method | RS232/Pedal/PLC | Operation Interface | Touch Screen |
| LED Beam Size | 30X600mm | Wavelength | 365/385/395/405nm |
| Certification | CE | Material | Pure Aluminum |
| UV Intensity | 1~20W/Cm2 | Production Capacity | 10000PCS/Year |

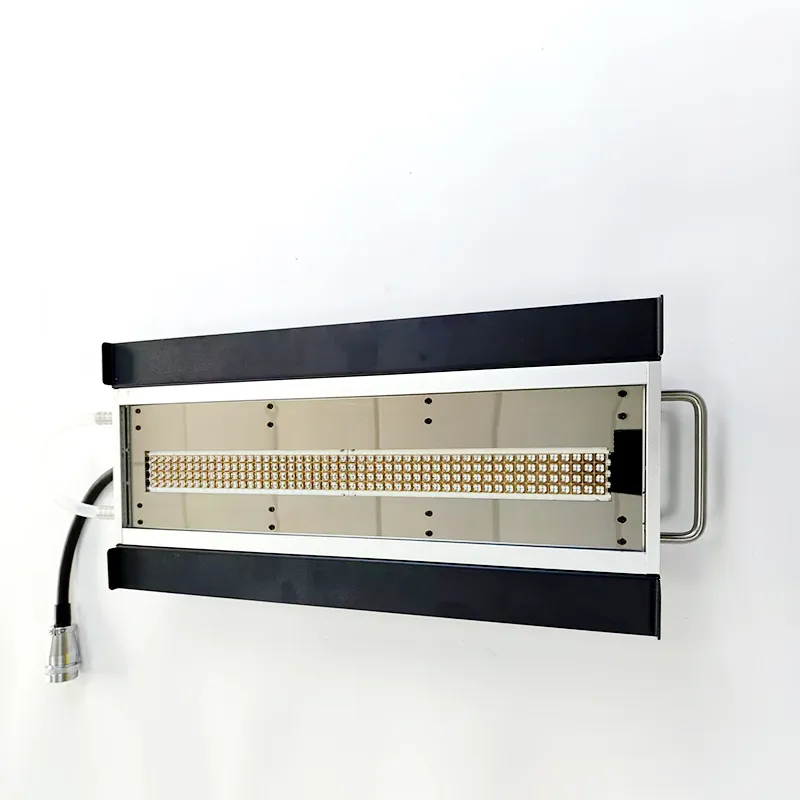

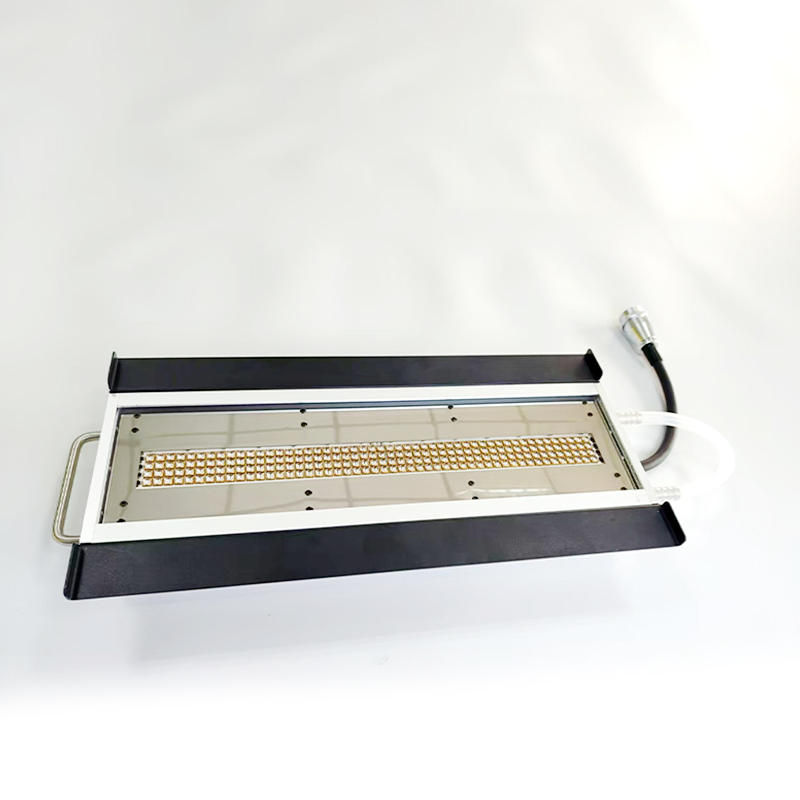

Product model: AFL-30x600

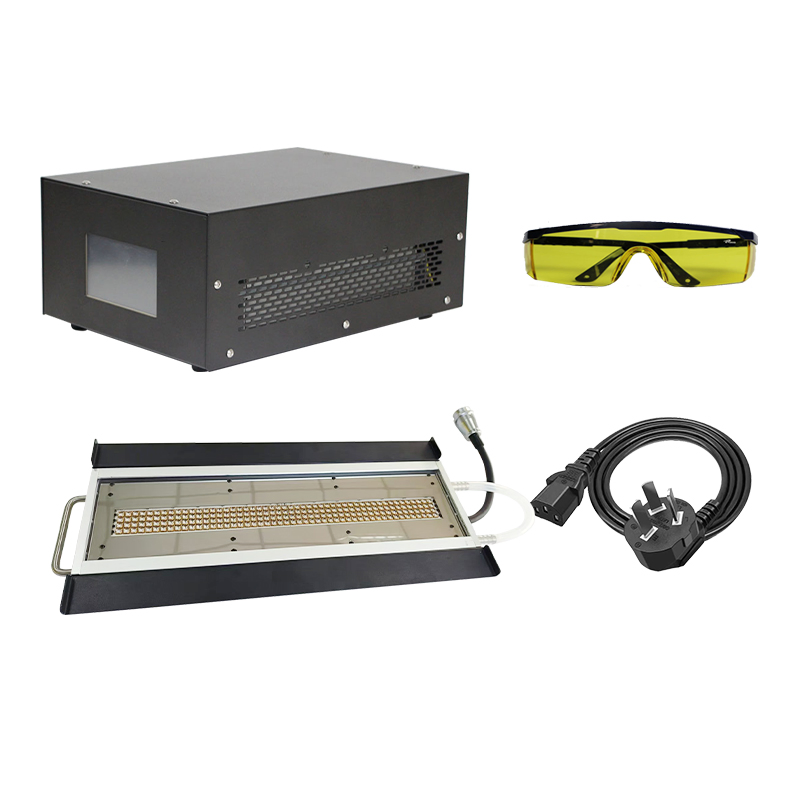

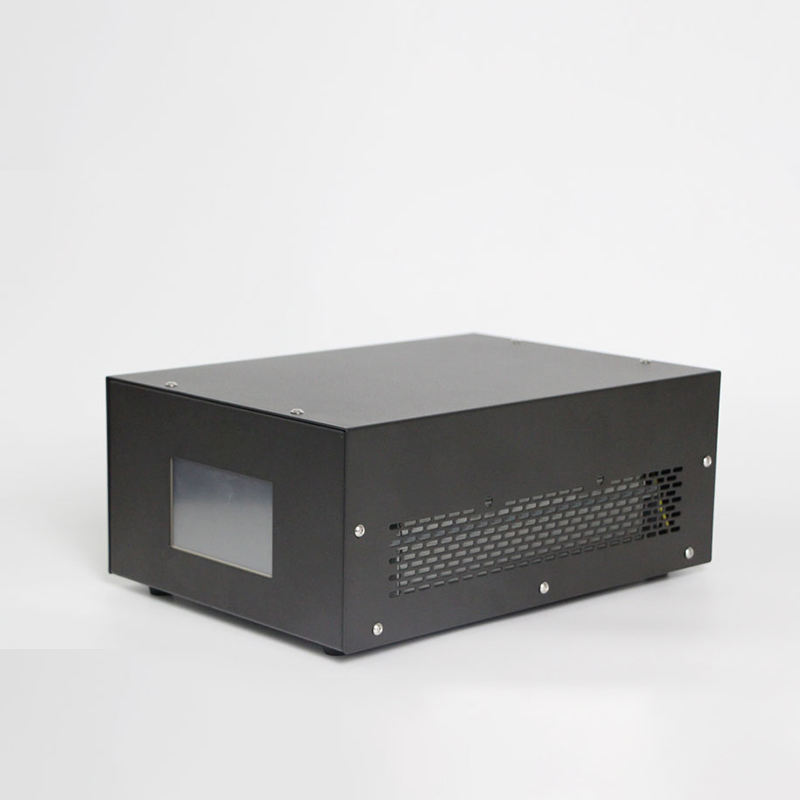

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)
| Voltage | 100-240V AC |
| Material | Pure Aluminum |
| Heat Dissipation | Water |
| Control Method | Touch/Pedal/RS232 Port/PLC |
| Power Adjustable | 10%~100%mW |
| Irradiation Mode | Manual, Automatic (0.1-999.9S), Ladder (1-20 Steps), Pulse |
| UV LED Usage Time | 20000Hrs @80% power |
| Wavelength Range | 365nm/385nm/395nm/405nm(±5) |
| Luminous Size | 30x600mm |
| Peak Intensity | 15W or Customized |
| Working Temp | 0-45℃ |

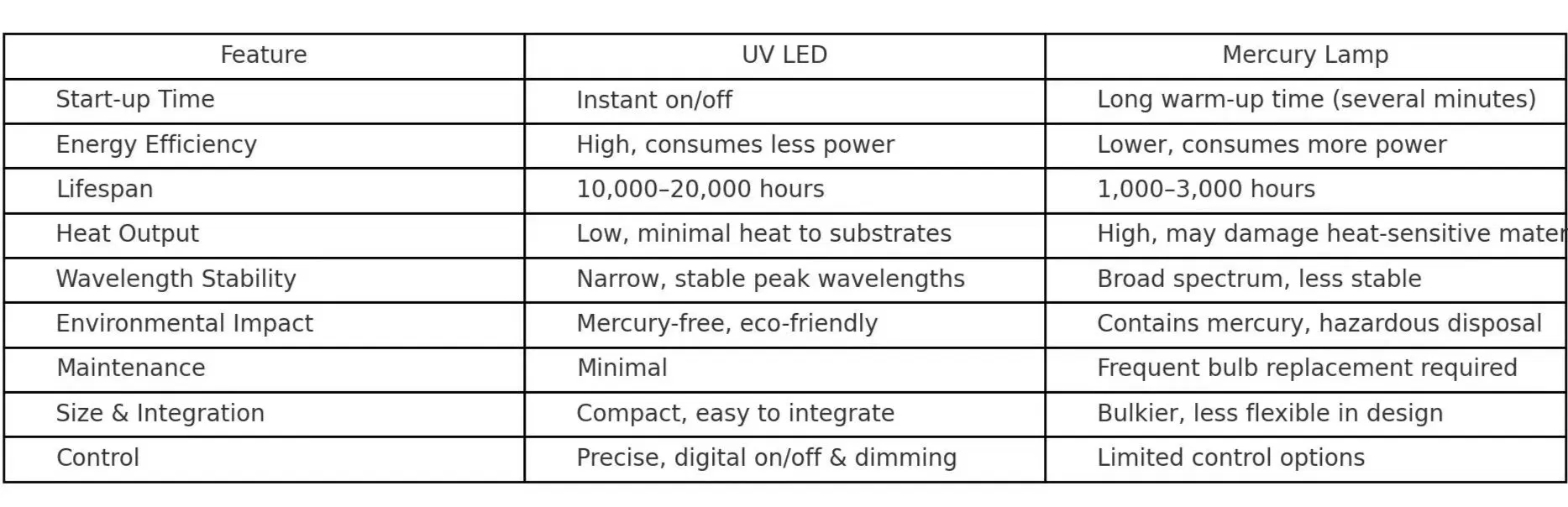

UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps.
1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry.
3. UV Ink: UV printing, 3D printing, Flexo printing, digital printing, screen printing.
With over 12 years of expertise, we are a leading manufacturer of UV LED Curing Systems, certified with ISO 9001, CE, and RoHS. We export to over 50 countries, providing reliable solutions backed by R&D innovation and strict quality control.
