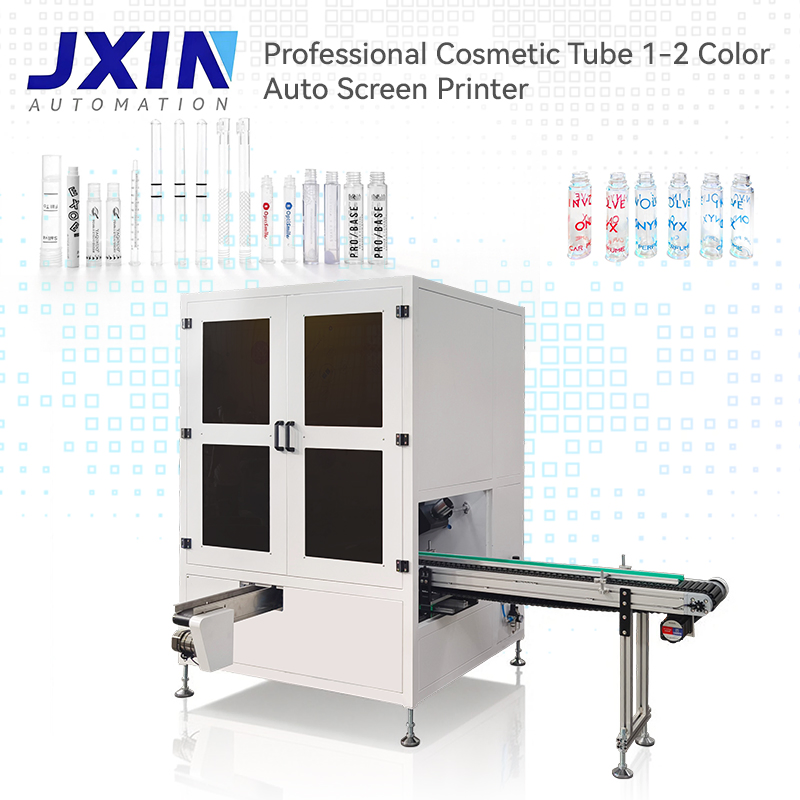

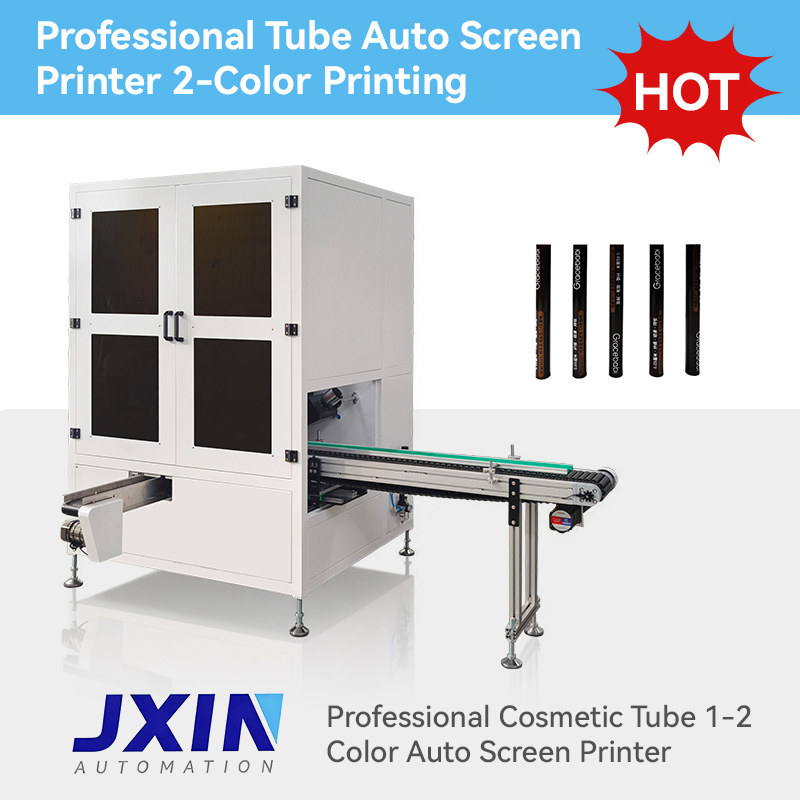

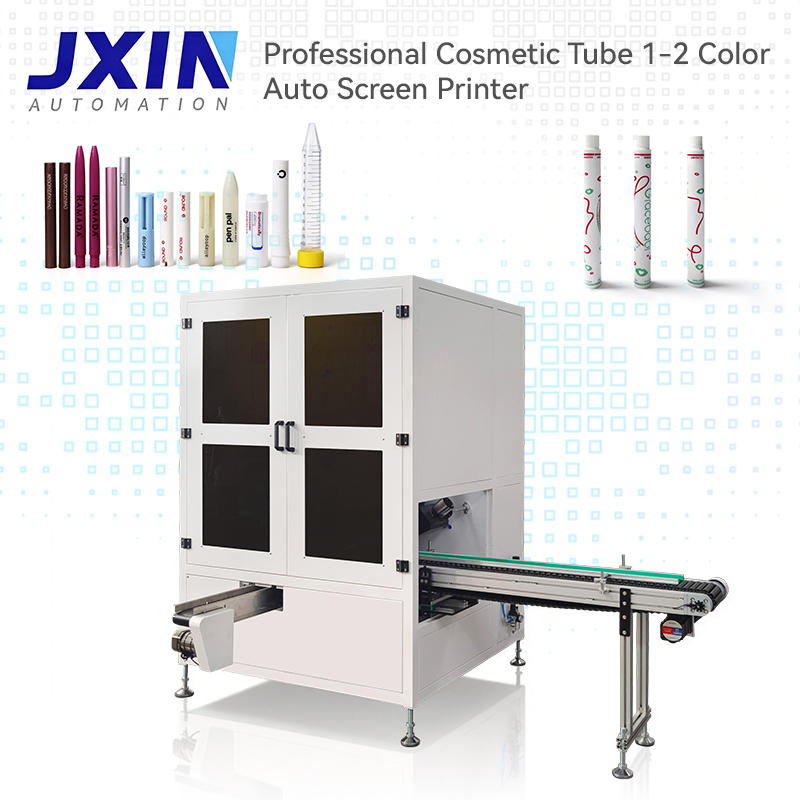

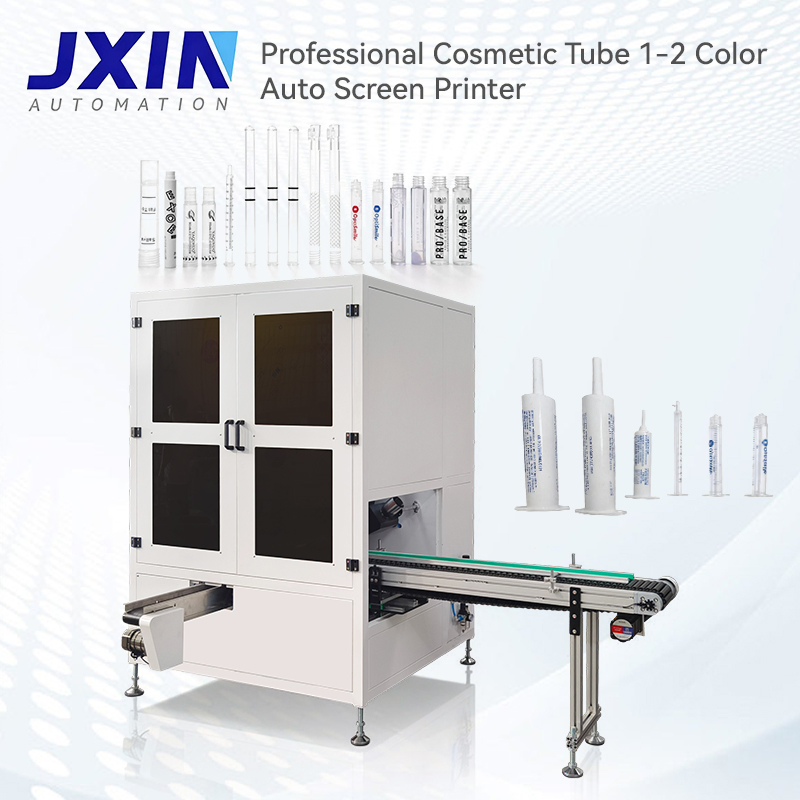

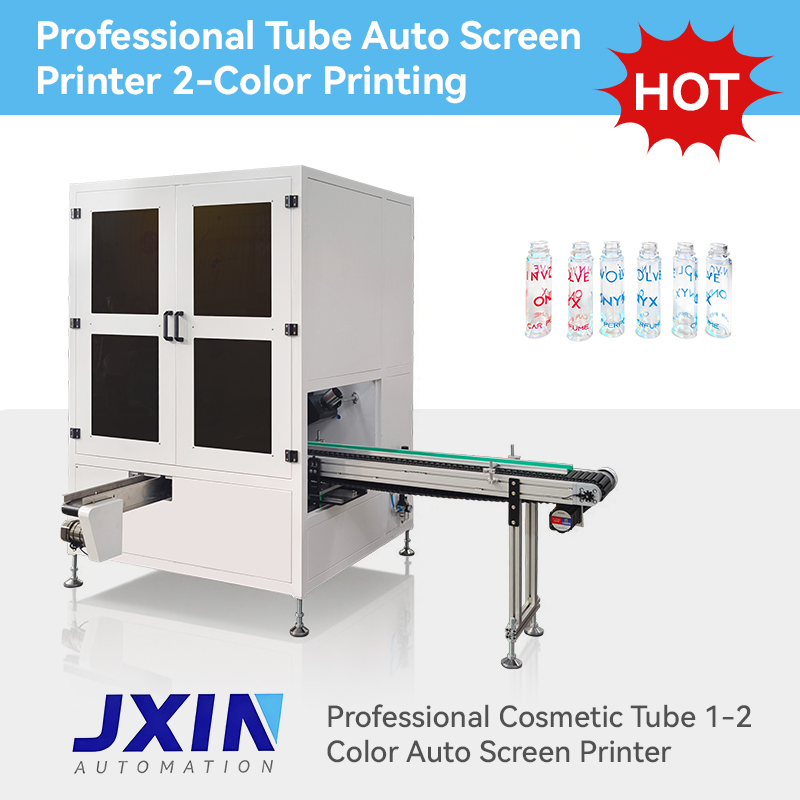

Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
1 / 5
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing
Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing

Professional 2 Color Tube Screen Printing System for Quality and Speed Optimization with LED UV Curing

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 1 Year Warranty
Send Inquiry

Product Description

📊

Basic Information

Model NO.
JX-P12
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Printing Speed
2500-3000PCS/H
Voltage
220V
Air Pressure
5-7 Bar
Workstations
15 PCS
Bottle Diameter
10-25mm
Bottle Height
120mm
📝

Product Description

DESCRIPTION
Equipped with a CNC-grade multi-axis linkage system, it can print multi-faceted patterns all at once. It is compatible with printing various irregular shapes and surface patterns; it's easy to adjust, has high capacity, and is a dedicated printing machine for irregular bottles in the cosmetics industry such as perfume bottles, nail polish bottles, and essential oil bottles.

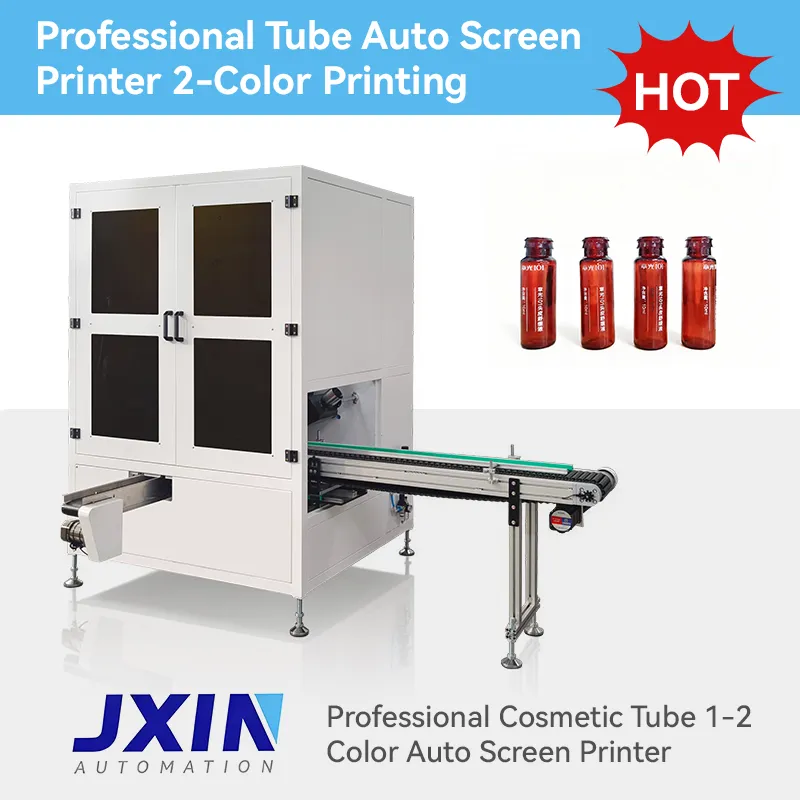

Screen Printing System

Machine with high efficient transmission system, automatic feeding, full servo screen printing system, auto off-loading, UV curing or IR dryer after printing. It is easy for the operator to operate and convenient to adjust, fully realizing automatic screen printing for a variety of plastic/glass bottles, jars, tube containers, etc.

⚙️

Specification

Machine Parameter and Application Scope
Bottle/Tube DiameterΦ8MM~Φ25MM Printing Speed2500-3000PCS/H
Bottle/Tube Height120 MM Workstations15 PCS
Printing Color Number1-2 Flame Treatment Width120MM
LED UV Area100*100MM/2 Sets Air Pressure5-7 Bar
Indexer Table Diameter800MM Power Supply380V/3-Phase

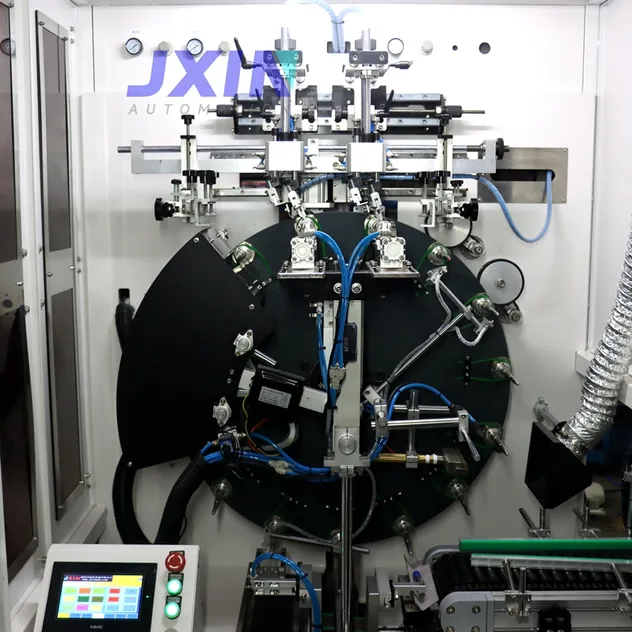

Servo Printing System

High Accurate Servo Printing System

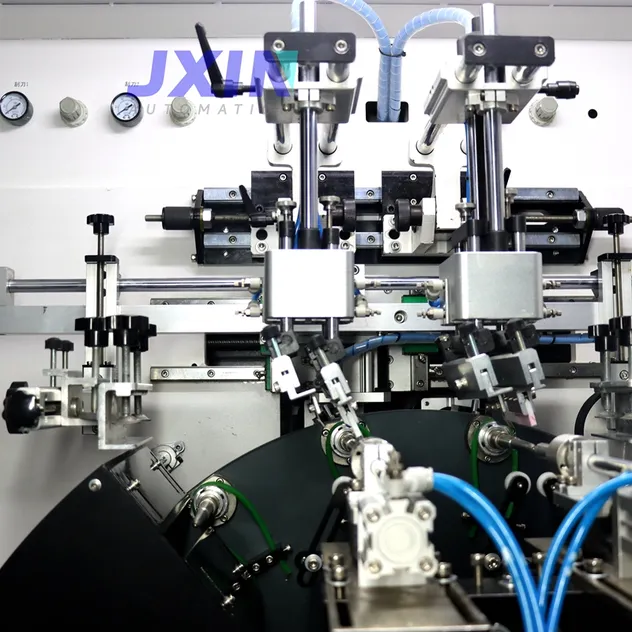

Adjustment Mechanism

Easy & Friendly Adjustment Mechanism

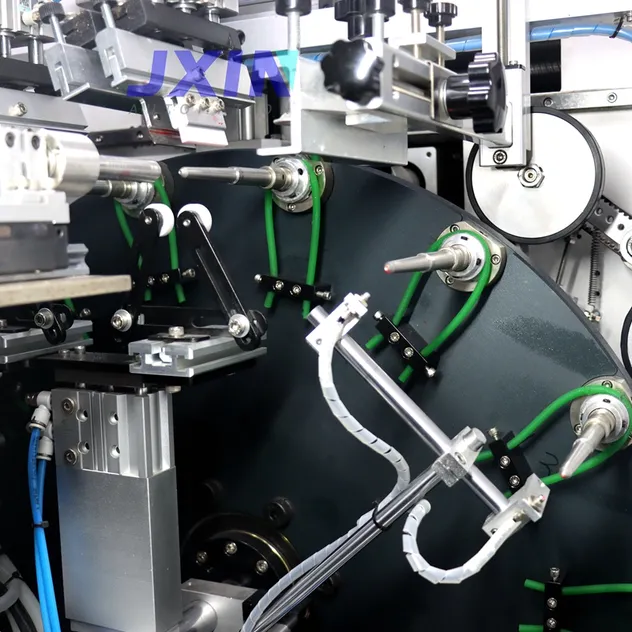

Pre-treatment

Pre-treatment for Perfect Ink Adhesion

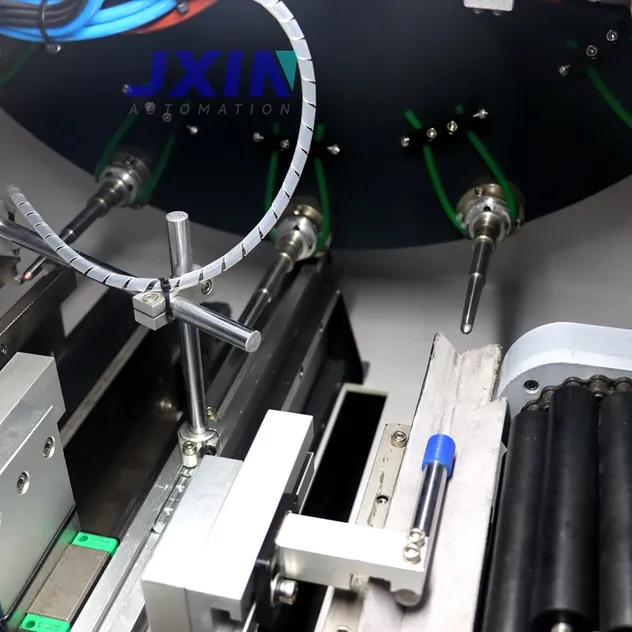

Fixture Parts

Fine Processing Fixture Parts

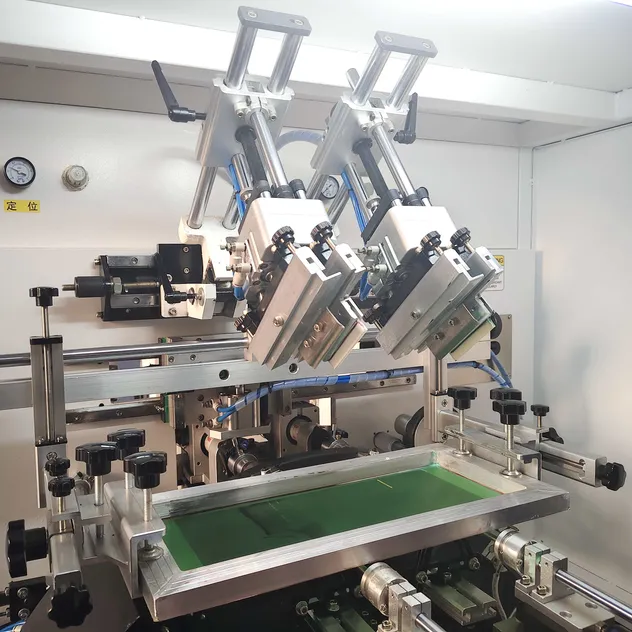

Squeegee Sitting

Flexible Squeegee and Ink Blade Sitting

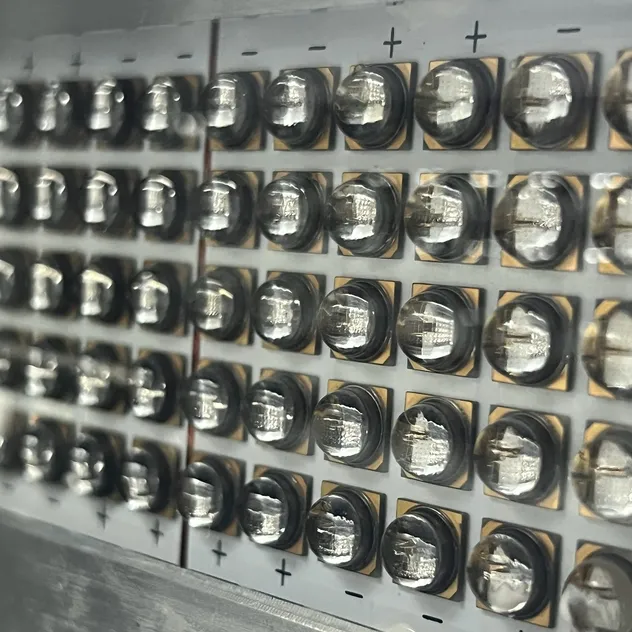

LED UV Lamp

High-efficiency LED UV Lamp

📦

Packing & Delivery

Package Size
150.00cm * 135.00cm * 220.00cm
Gross Weight
1000.000kg
Package Type
Ply-Wooden Pallet

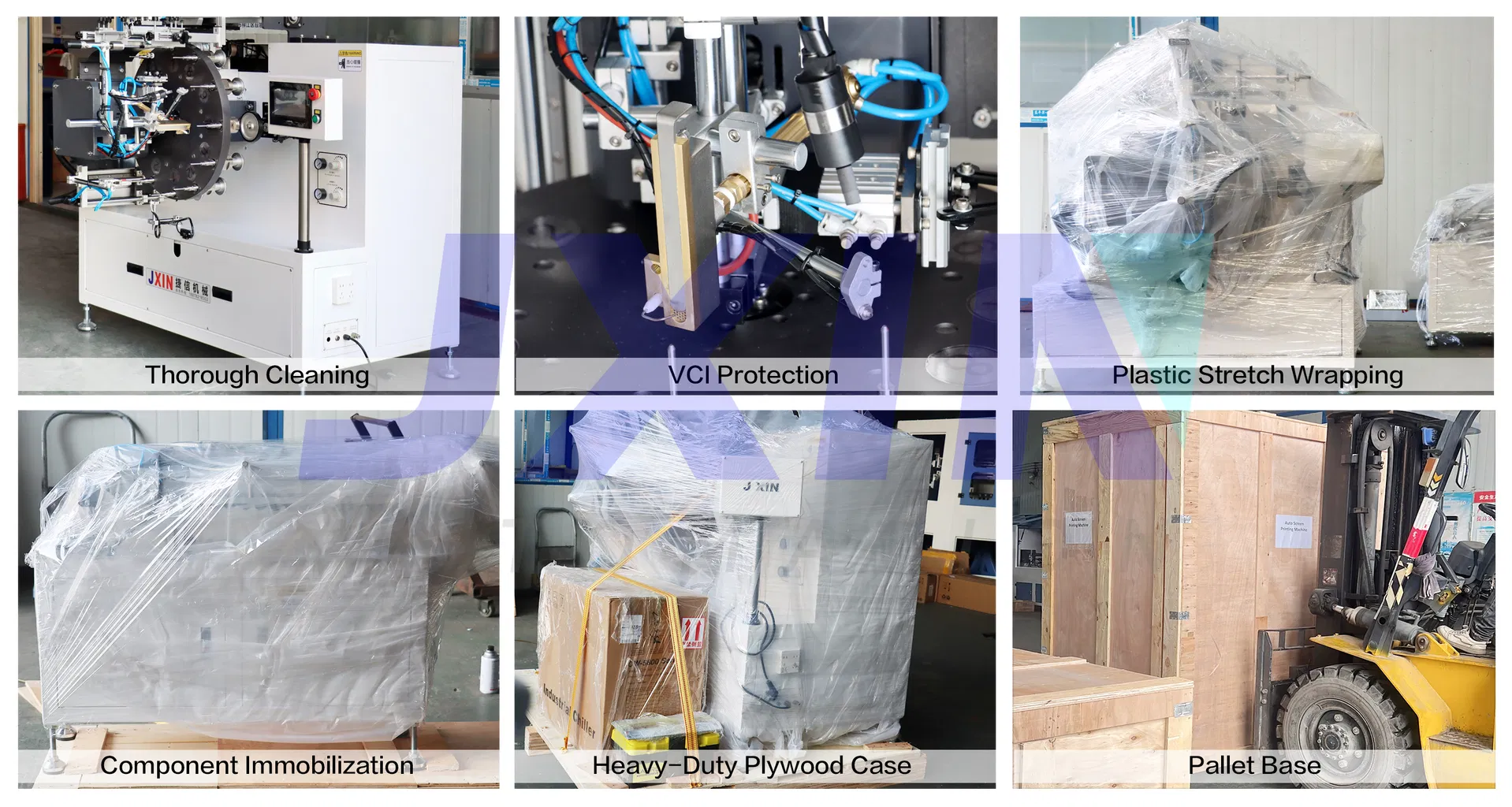

Packing details
📜

Certifications

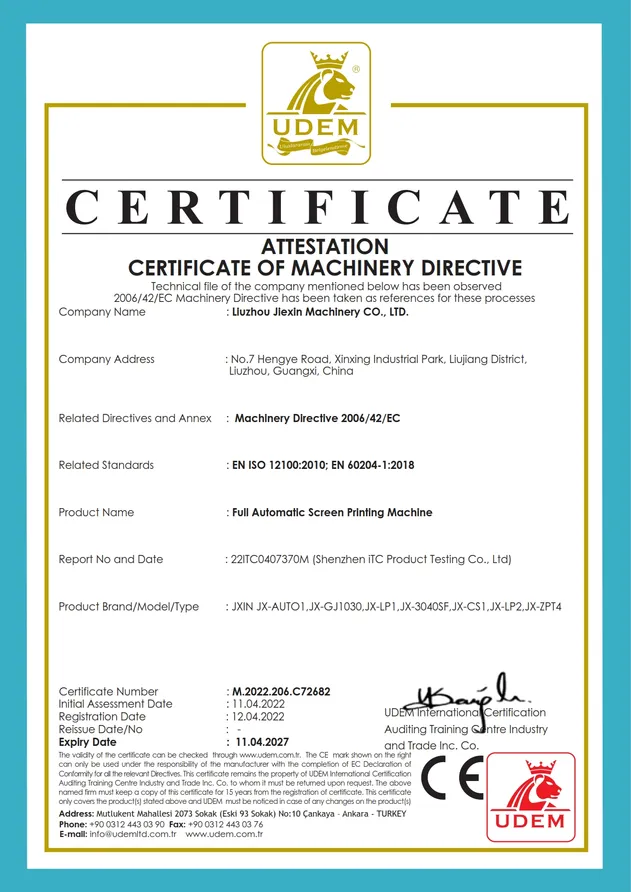

Certification 1

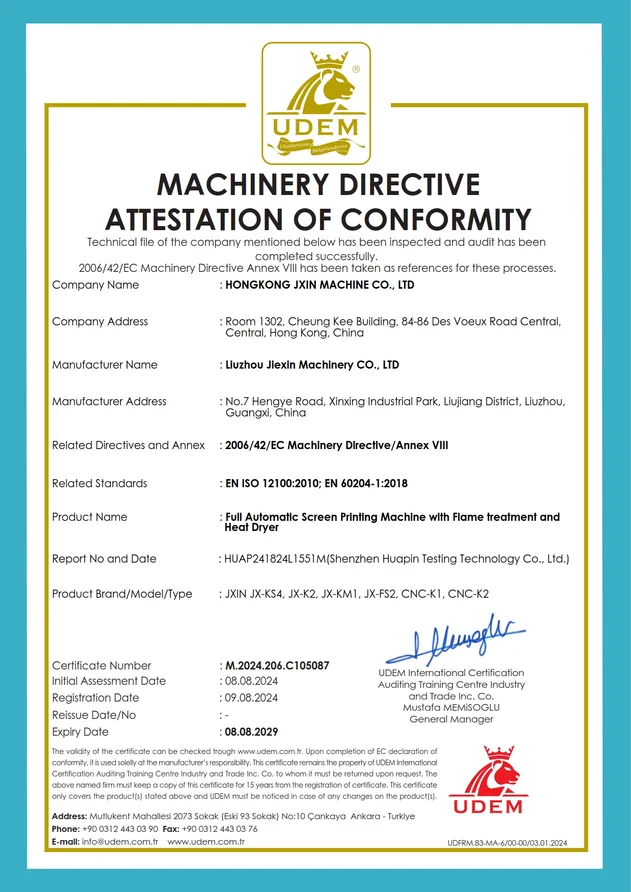

Certification 2

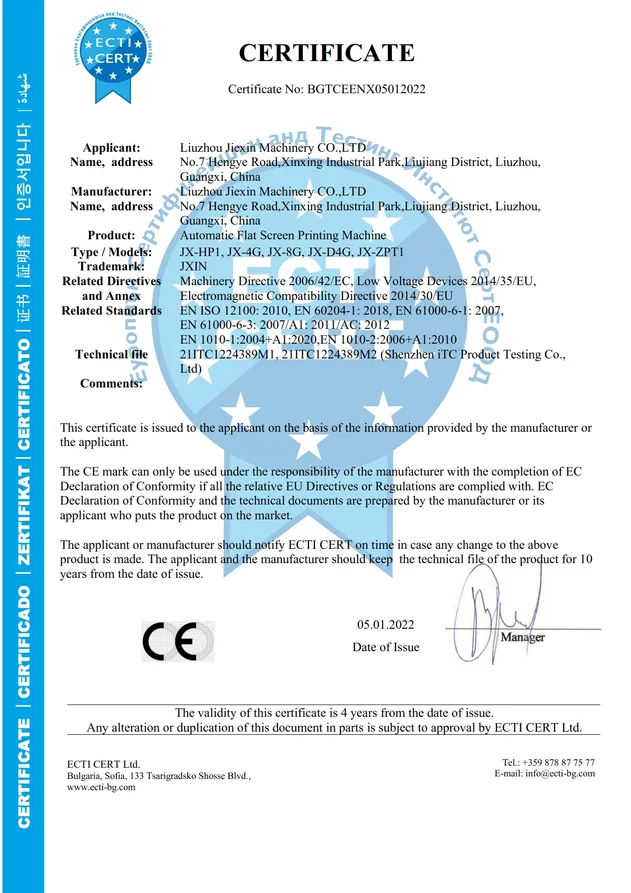

Certification 3
❓

Frequently Asked Questions

FAQ Banner
What is the maximum printing speed of the JX-P12?
The JX-P12 automatic screen printing machine offers a high-efficiency production speed of 2500 to 3000 pieces per hour.
What types of containers can this system handle?
It is designed for various plastic and glass containers, specifically irregular shapes like perfume bottles, nail polish bottles, and cosmetic tubes.
What are the bottle dimension requirements?
The machine supports bottle or tube diameters ranging from 10mm to 25mm, with a maximum height of 120mm.
Does the machine include a curing system?
Yes, it features a high-efficiency LED UV curing system with two sets of 100*100mm areas for instant ink drying.
Is the printing process fully automatic?
Yes, the system includes automatic feeding, a full servo screen printing system, and auto off-loading for a seamless production line.
How is the machine protected during shipping?
The unit is securely packed on a Ply-Wooden Pallet to ensure safety during transport, with a total package weight of approximately 1000kg.
