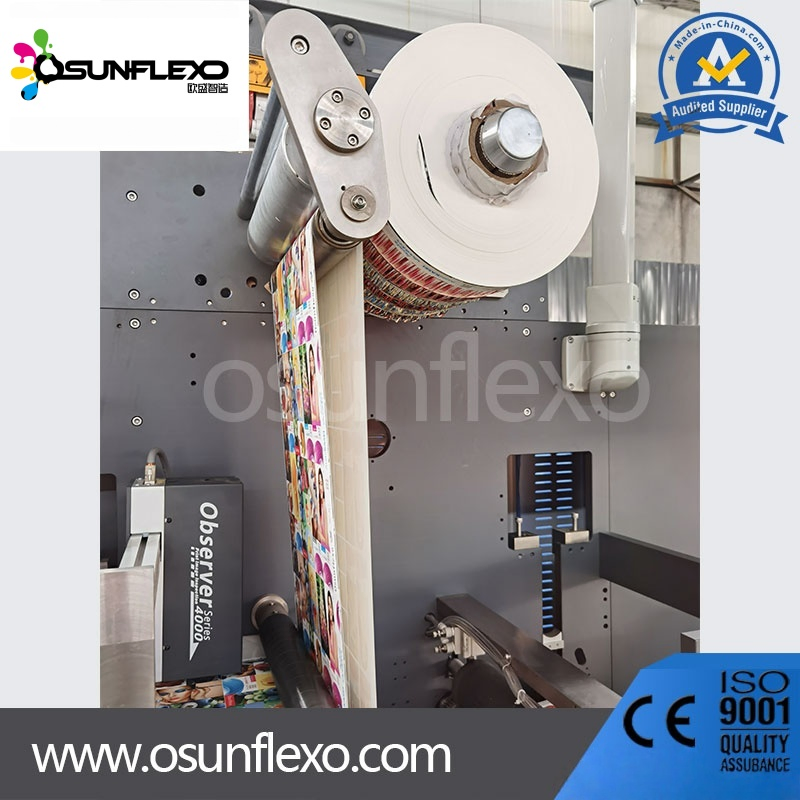

Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
1 / 5
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine

Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine

Printing Page: Double Faced
Printing Color: More Than 10 Colors
Anilox Roller: Ceramic Anilox Roller
Send Inquiry

Product Description

Basic Information
Dryer
UV & IR
Type
Flexography
Embossing Structure
Platen Press
Structure
Unit Type
Application
Label and Packaging Printing
Automatic Grade
Automatic
Printing Speed
200m/min
HS Code
8443160090
Production Capacity
100 Sets/Year
Product Overview
Zero Defect High Speed Multifunctional Combination Label and Film Rotary Screen Printing Machine

N5 Series flexo printing machine, can be combined with web gravure, silk screen, offset, digital (inkjet), cold foil and hot foil stamping, designed for all kinds of materials.

  • Shortest web path, large chiller drum good for film printing
  • Advanced full servo driven on Unwind, infeed, printing stations, die cutting, outfeed, rewind and cold foil stamping etc.
  • Fast job change over, lower waste, high printing quality and great efficiency
  • Automatic Pre-register, register and Re-register can widely meet different printing applications.
Applicable Materials

All kinds of adhesive labels (paper, PET, BOPP, PVC), paper (≥30gsm), carton (≤350gsm), unsupported film (PET≥12um, PVC, BOPP, PE, PA≥15um), foil≥20um and other specialized substrates.

Technical Specifications
Specification 14.5"(370) 16.5"(420) 20.5"(520) 25.5"(650)
Max web width370mm430mm530mm660mm
Max printing width350mm420mm520mm650mm
Max die-cutting width350mm420mm520mm650mm
Printing repeat length152-610mm152-610mm152-610mm152-610mm
Die-cutting repeat length290-610mm290-610mm290-610mm290-610mm
Max unwinding diameter1016mm1016mm1016mm1016mm
Max rewinding diameter1016mm/762mm1016mm/762mm1016mm/762mm1016mm/762mm
Gearing1/8cp1/8cp1/8cp1/8cp
Max printing speed200m/min (Single/Dual servo driven)
Drying modeHot-air drying / IR drying / UV drying
Applicable inkWater-based ink / UV ink / Solvent ink
Detailed Photos

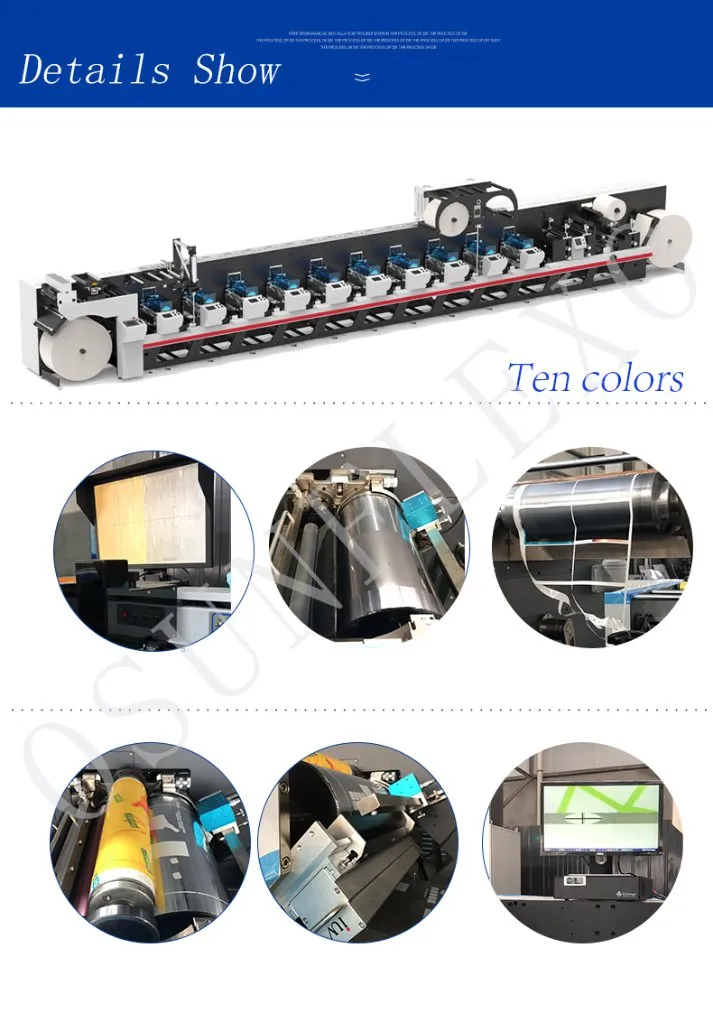

Printing Machine Detail

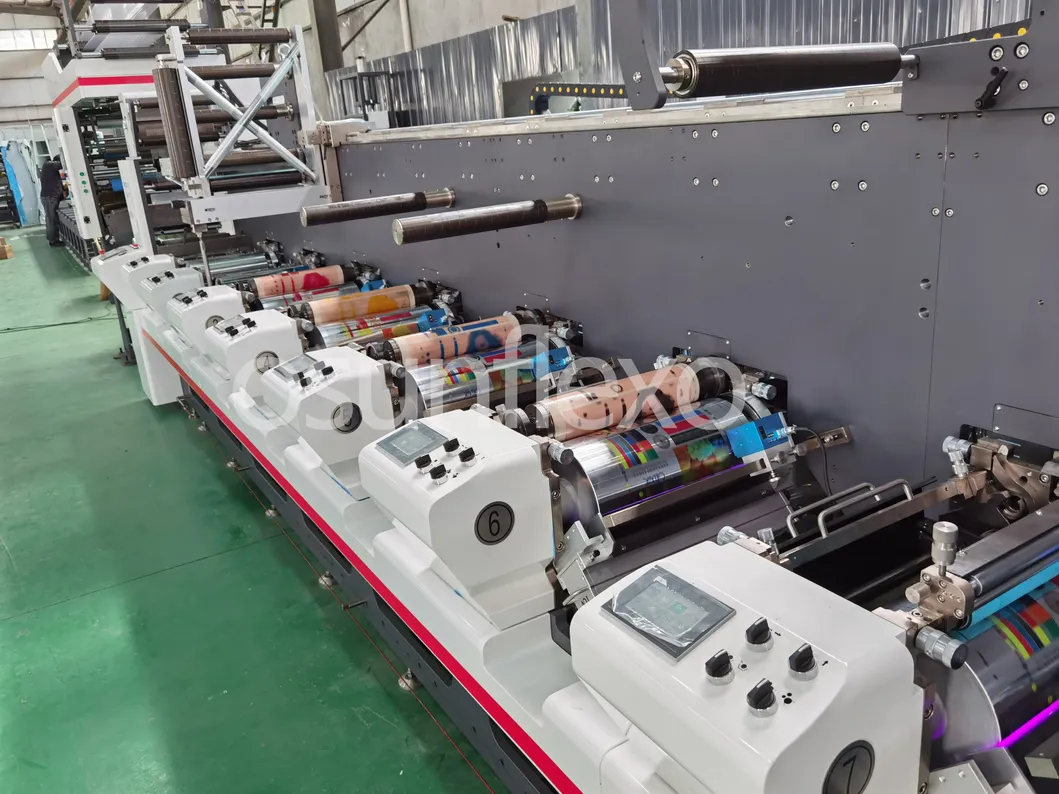

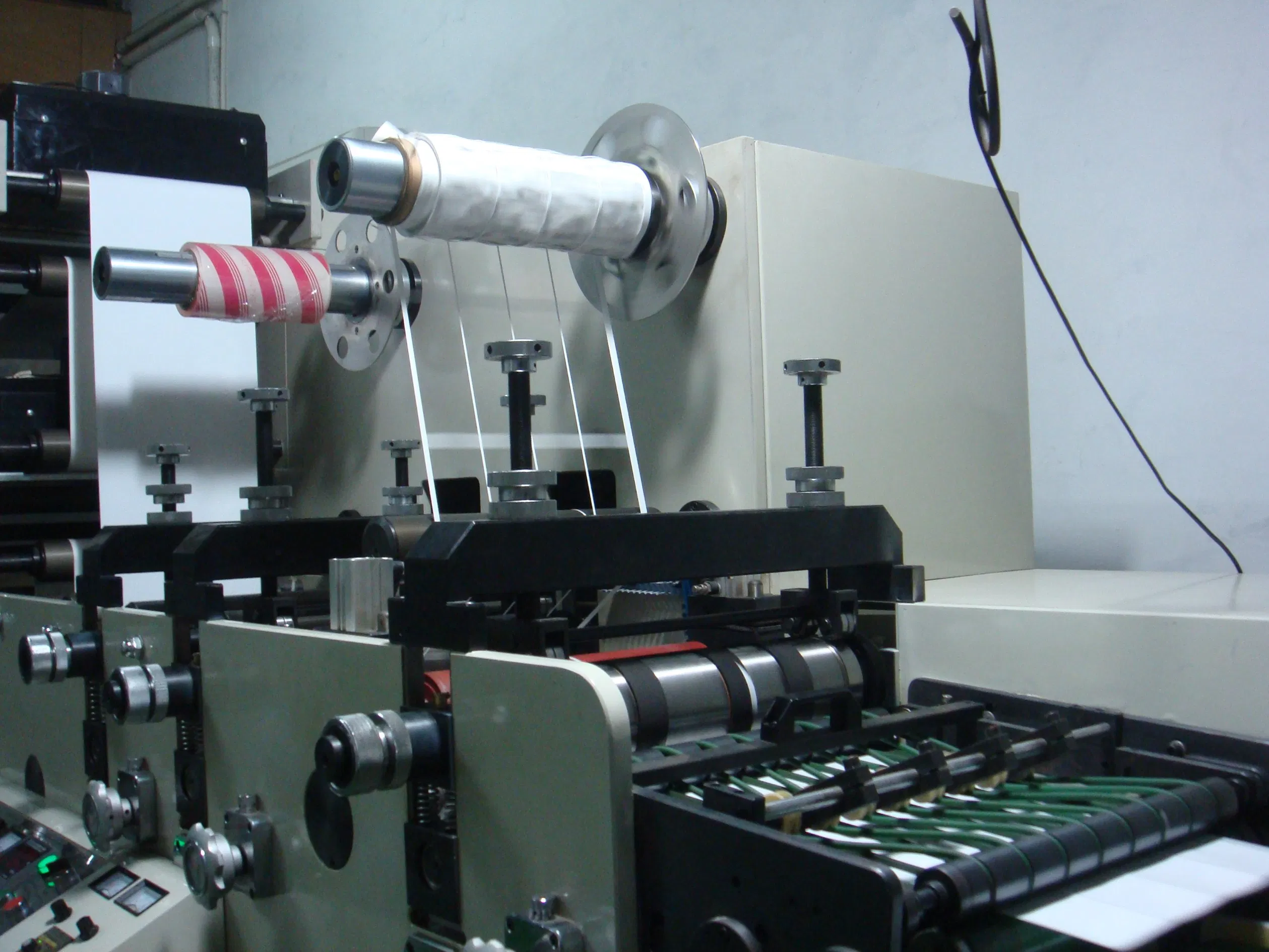

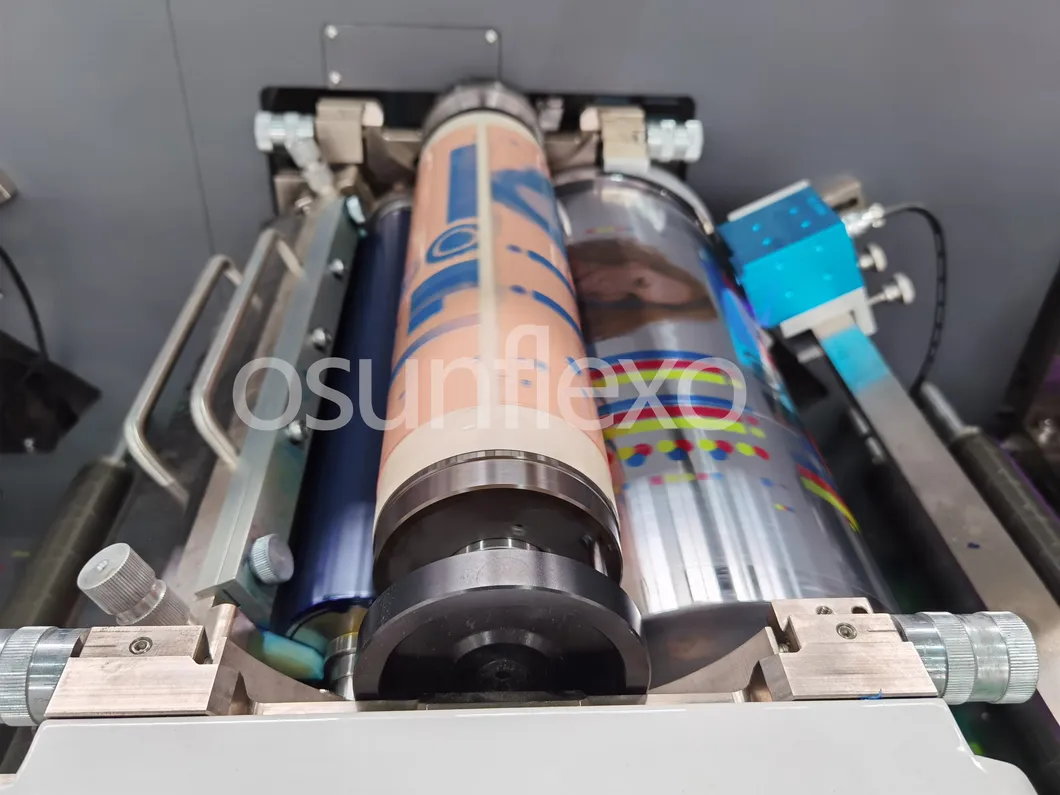

Machine Detail 1 Machine Detail 2

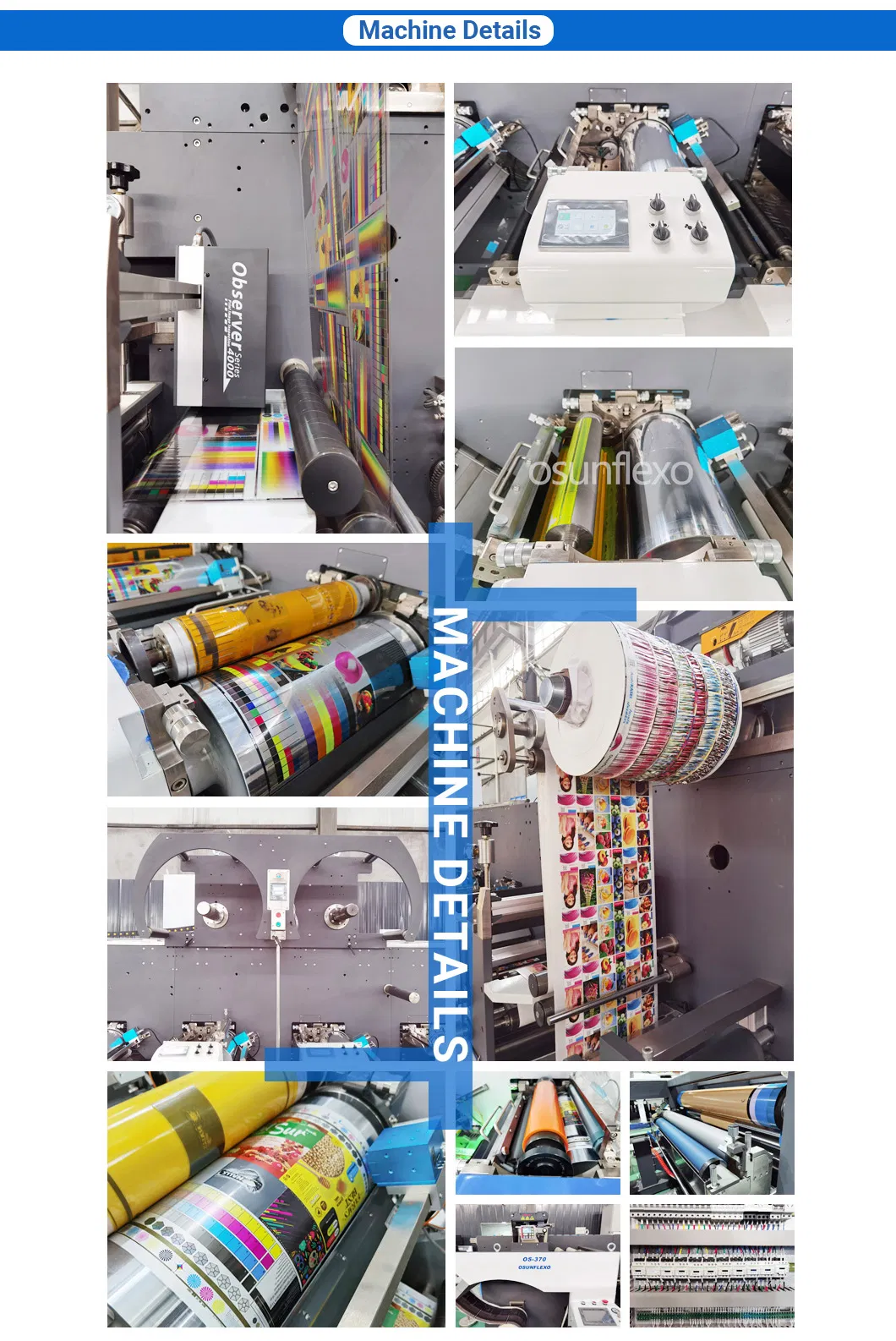

Machine Detail 3
Machine Detail 4 Machine Detail 5
Manufacturing Facility

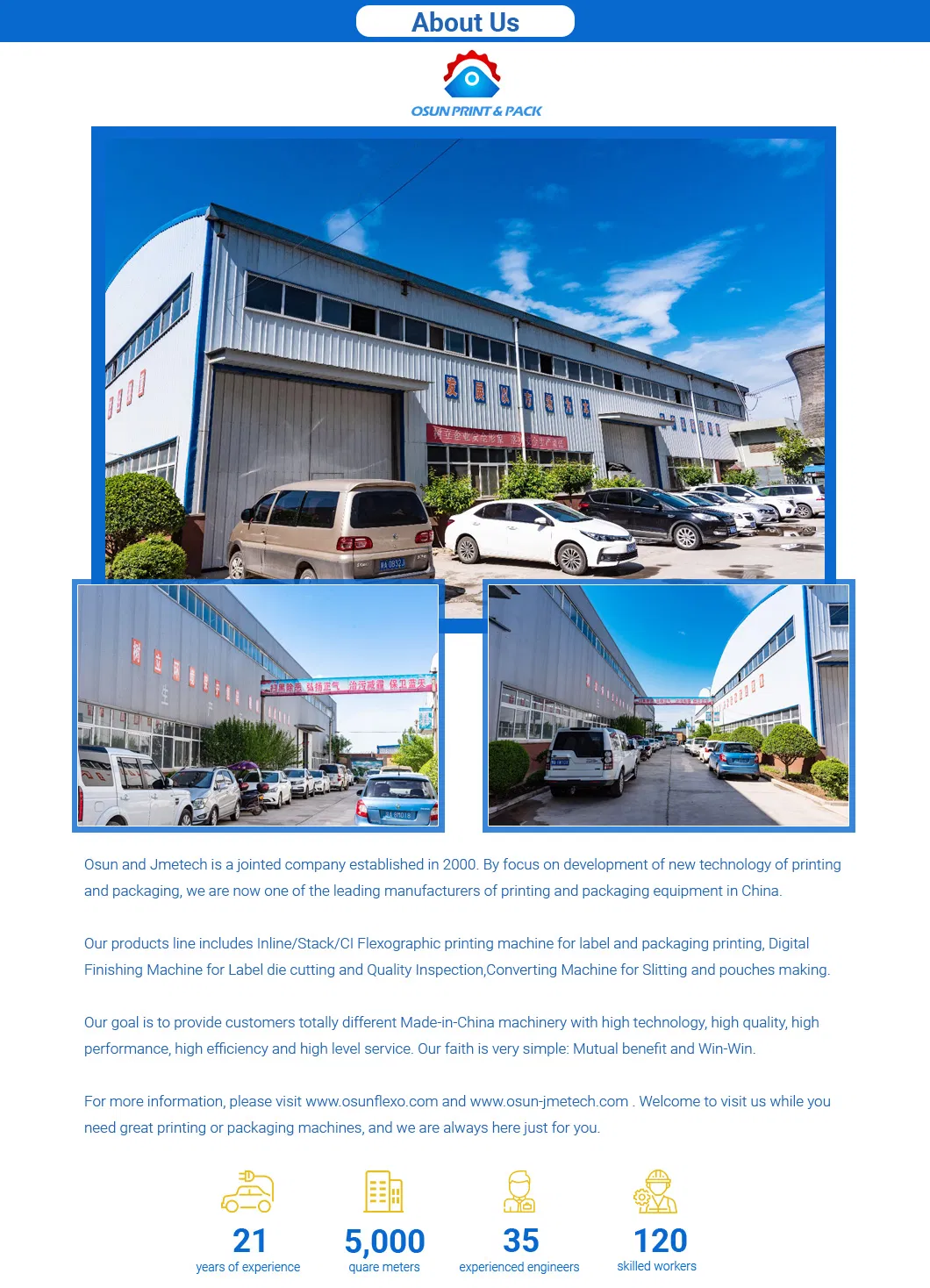

Factory Overview

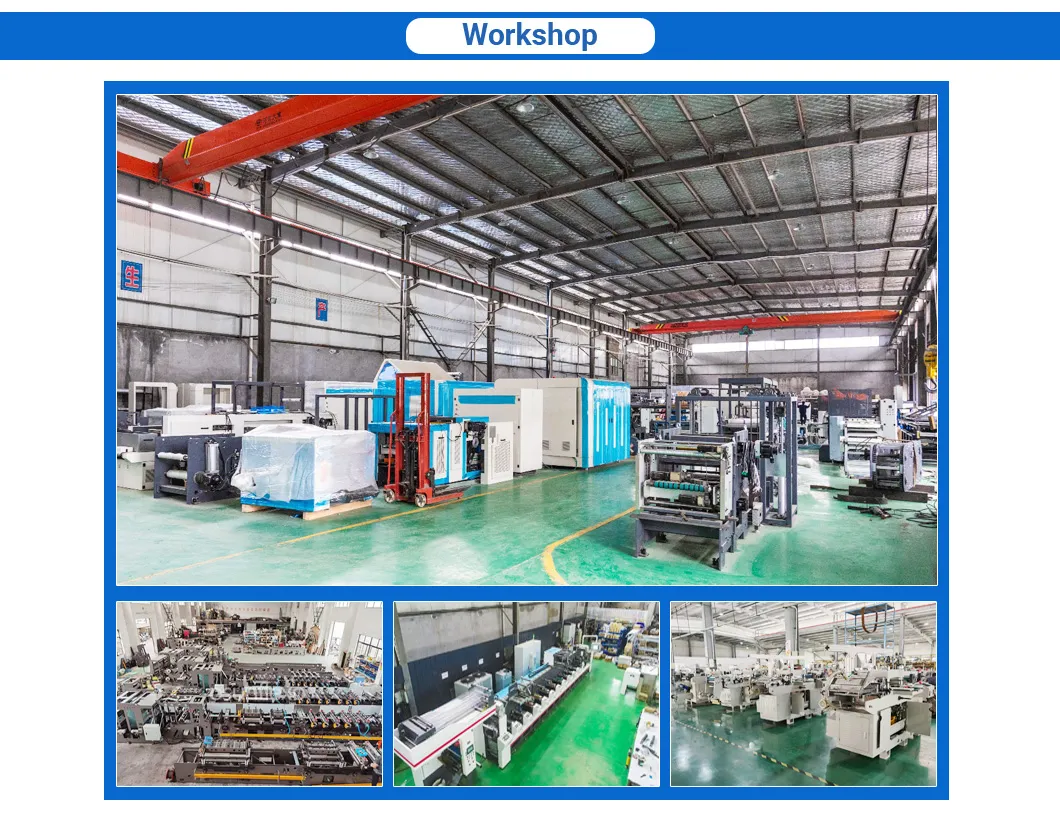

Production Line 1 Production Line 2 Workshop
Assembly Area Testing Area
Frequently Asked Questions
How many colors can your machine print?
We can configure the machine to print between 1 and 12 colors based on your requirements.
What kind of materials are suitable for this machine?
The machine is compatible with plastic films such as PP, PE, PVC, BOPP, and various types of paper.
What is your after-sale service?
We provide online support, video technical guidance, and spare parts delivery. If necessary, engineers can be arranged for on-site assistance.
What information is needed to get a price quote?
Please provide the required number of colors, material width, effective printing width, material type, and a sample photo of your printing job.
What are the standard delivery terms and payment methods?
We typically use FOB, CIF, or CFR terms. Payment is usually via T/T (30% deposit, 70% before delivery) or L/C at sight.
What is the warranty period?
We offer a one-year machine warranty and lifelong technical support. Spare parts are provided free of charge within the first year.
