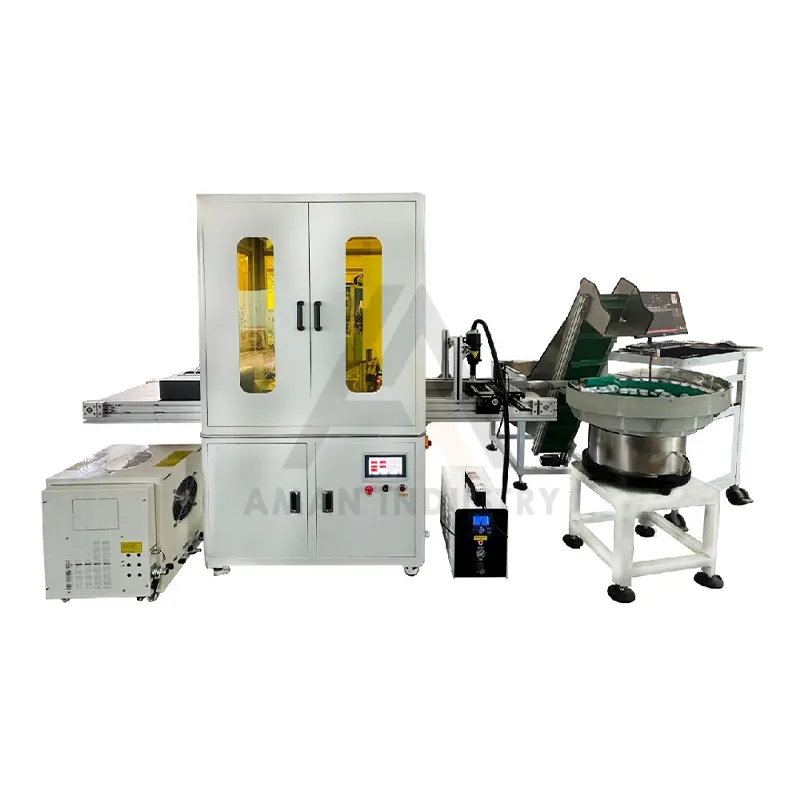

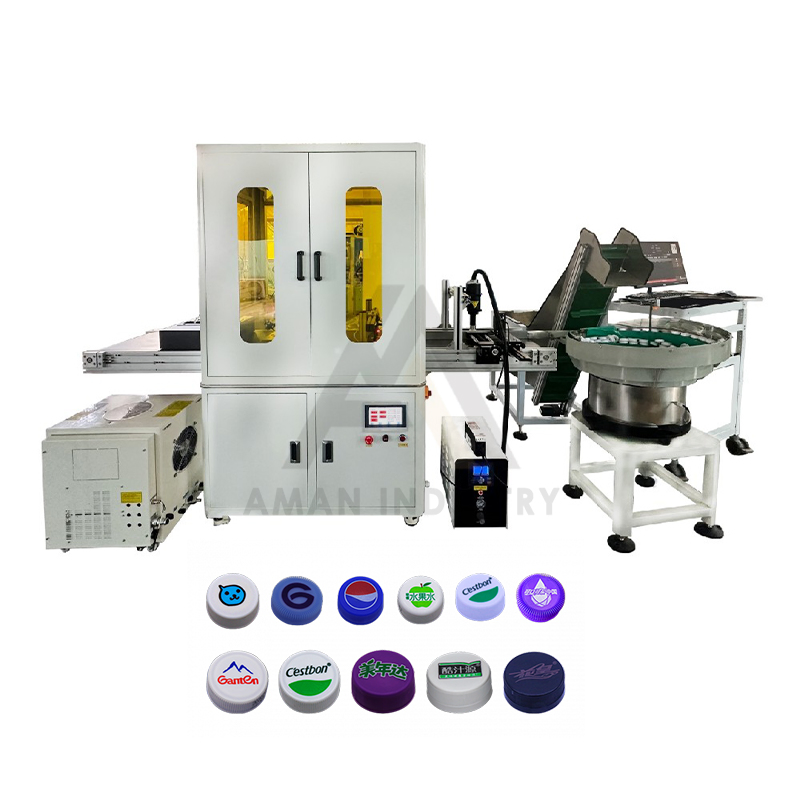

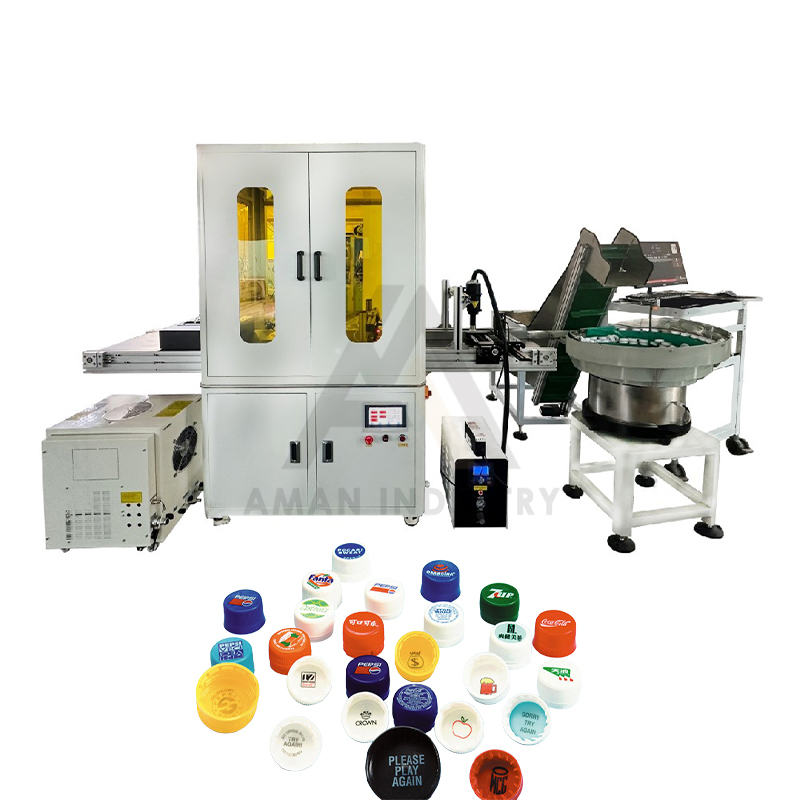

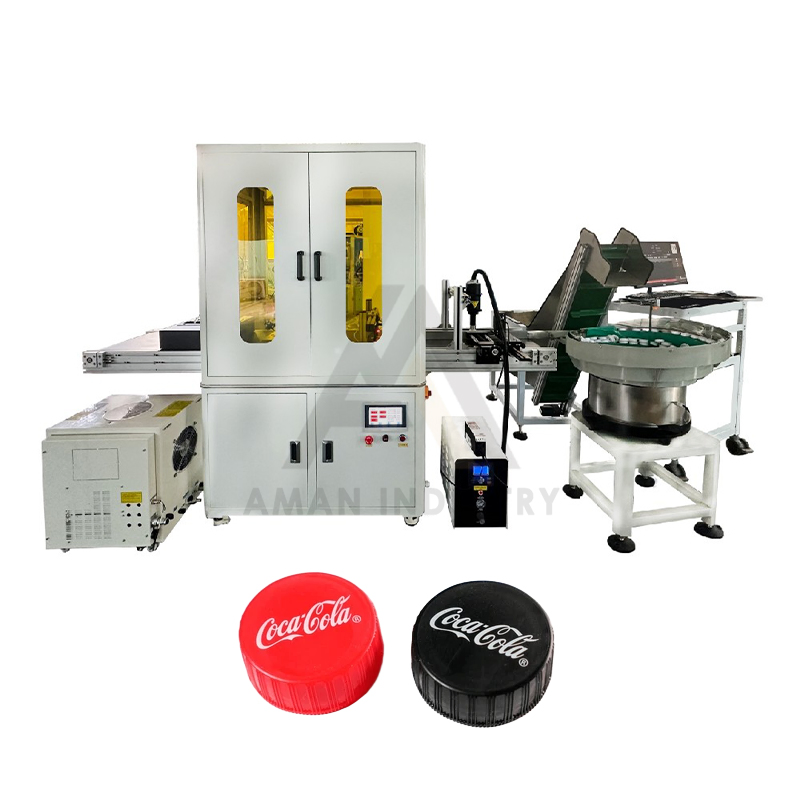

High-Speed Bottle Cap Color UV Printer
The high-speed bottle cap color UV printer features industrial-grade print heads (3-5 years lifespan, anti-clogging) and eco-friendly UV inks (instant drying, odor-free). With low printing costs, high speed (10-40m/min), and minimal ink consumption, it enables direct digital printing from computer images, eliminating plate-making. Equipped with a fully automated production line, including material handling and unloading systems, it operates without manual intervention. Key advantages include UV curing technology for instant drying, plasma corona treatment for enhanced surface adhesion, and a vision positioning system (±0.1mm accuracy) for precise alignment on irregular shapes. Its compact design (3500mm × 1000mm × 1850mm) and 220V power supply make it efficient for high-volume production.
📋
Technical Specification
| Model NO. | AM-DY1-5 |
| Machine Dimensions | L3500mm × W1000mm × H1850mm |
| Power Supply | 220V 50Hz 1.5kw |
| Print Heads | 3 Ricoh Gen5 Stainless Steel Print Heads |
| Printing Width | 54mm |
| Printing Speed | 10-40m/min |
| Plate | Inkjet Printing |
| Structure | Rotary Letterpress |
| Color & Page | Multi-Colour Printing Press |
| Automatic Grade | Automatic |
| Conveyor Belt Width | 400mm |
| Conveyor Belt Length | 2300mm |
| Print Head Lifting Height | 100mm (Servo control) |
| Anti-Collision Detection | Ruike Proximity Sensor |
| Transport Package | Wooden Package |
No Plate-Making
Save time and cost with one-click operation, enabling effortless personalized printing.
UV Curing Technology
White and color co-printing with instant curing to boost production efficiency.
600dpi Print Head
Ultra-fine resolution delivers high-quality image reproduction.
Vision Alignment System
±0.1mm precision ensures accurate printing on irregular objects.

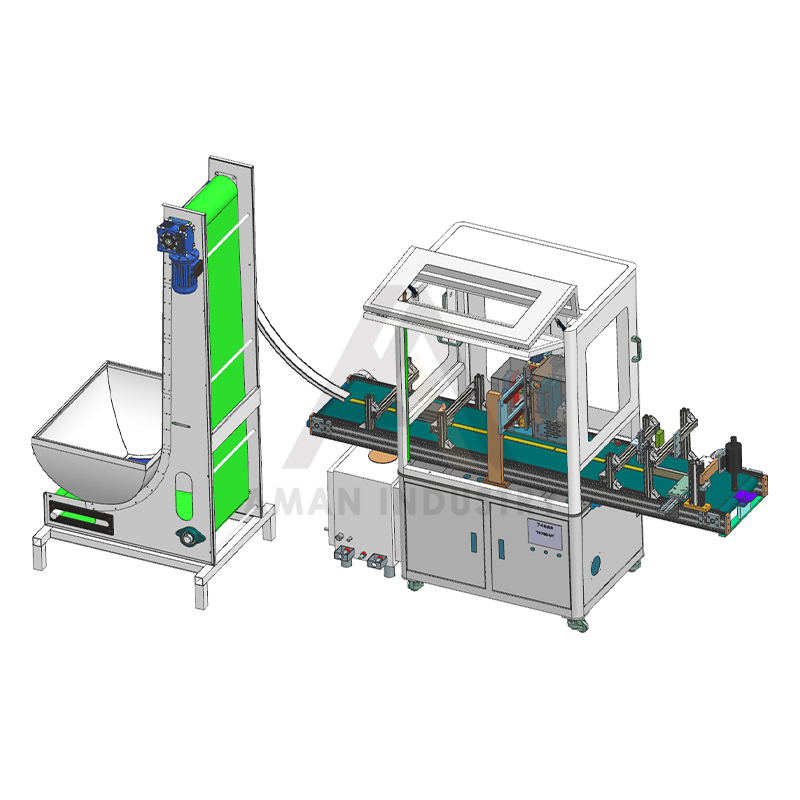

- The elevator sorts and aligns the caps, which then flow onto the conveyor belt.
- The printer's conveyor belt transports the product through the plasma treatment unit.
- The incoming material detection photoelectric sensor identifies the product's position.
- White inkjet printing is performed based on sensor position data.
- Product passes under LED UV curing unit, then moves to the color inkjet station.
- Color printing is performed, followed by a final LED UV curing pass.
- Feeding speed: 300–500 caps per minute (depending on size).
Remarks: Print heads are not covered under warranty.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
🏢
Professional Manufacturer Profile
Established in 2007, we have developed strong export and import relationships with customers in Russia, India, Singapore, Brazil, Mexico, Spain, Ukraine, South Korea, South Africa and other regions. We persist in strict management and technology innovation, providing wholehearted service for all customers.
❓
Frequently Asked Questions
What is the standard lead time for orders?
Standard products ship in 15–30 days; customized solutions typically require 30–45 days.
Do you provide international after-sales support?
Yes, we provide 24/7 technical assistance and have partnered service centers available globally.
What are the accepted payment terms?
We typically accept T/T with a 30% deposit and the remaining 70% balance due before shipment.
What is the Minimum Order Quantity (MOQ)?
Standard products have no MOQ. Custom orders require a minimum of 1 unit.
How is the equipment packaged for transport?
Products are securely packed in heavy-duty wooden crates to ensure safety during international transit. We also offer OEM/ODM branding options.
Is there a warranty period for the machine?
The standard warranty period is 12 months from the date of shipment, covering major components excluding consumable print heads.
