Product Description

Basic Specifications
Model NO.
SX-116
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Dimensions
2500*2300*2100mm
Condition
New
Other
Caps/Cups/Tubes/Bottles Printer
Transport
Wooden Package
HS Code
8443192900
Capacity
100
Product Overview

SX-116 Fully automatic servo rotary two screen printing one hot stamping machine, replaceable varnishing

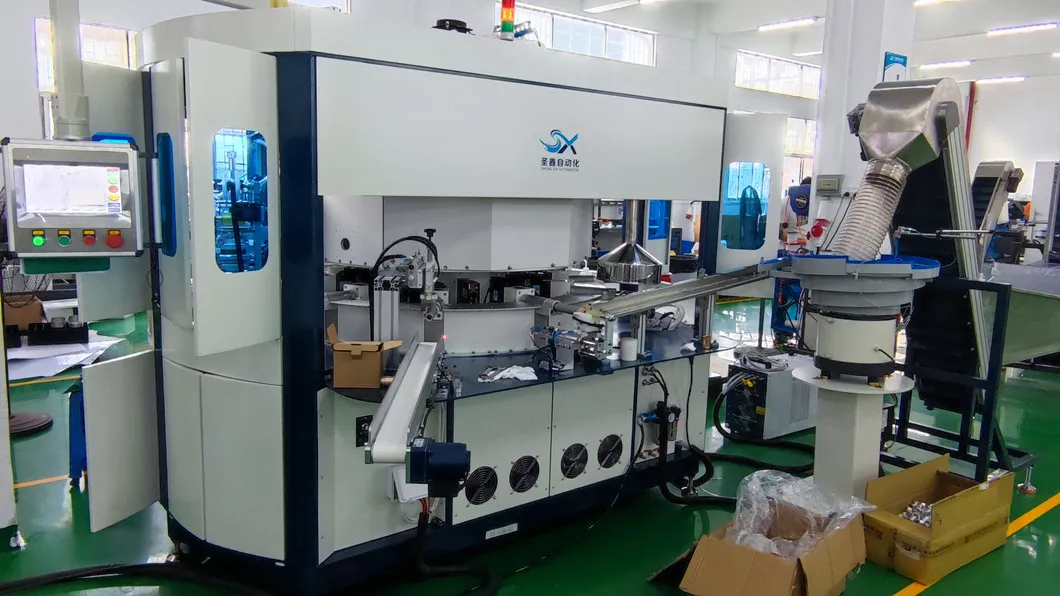

SX-116 Printing Machine

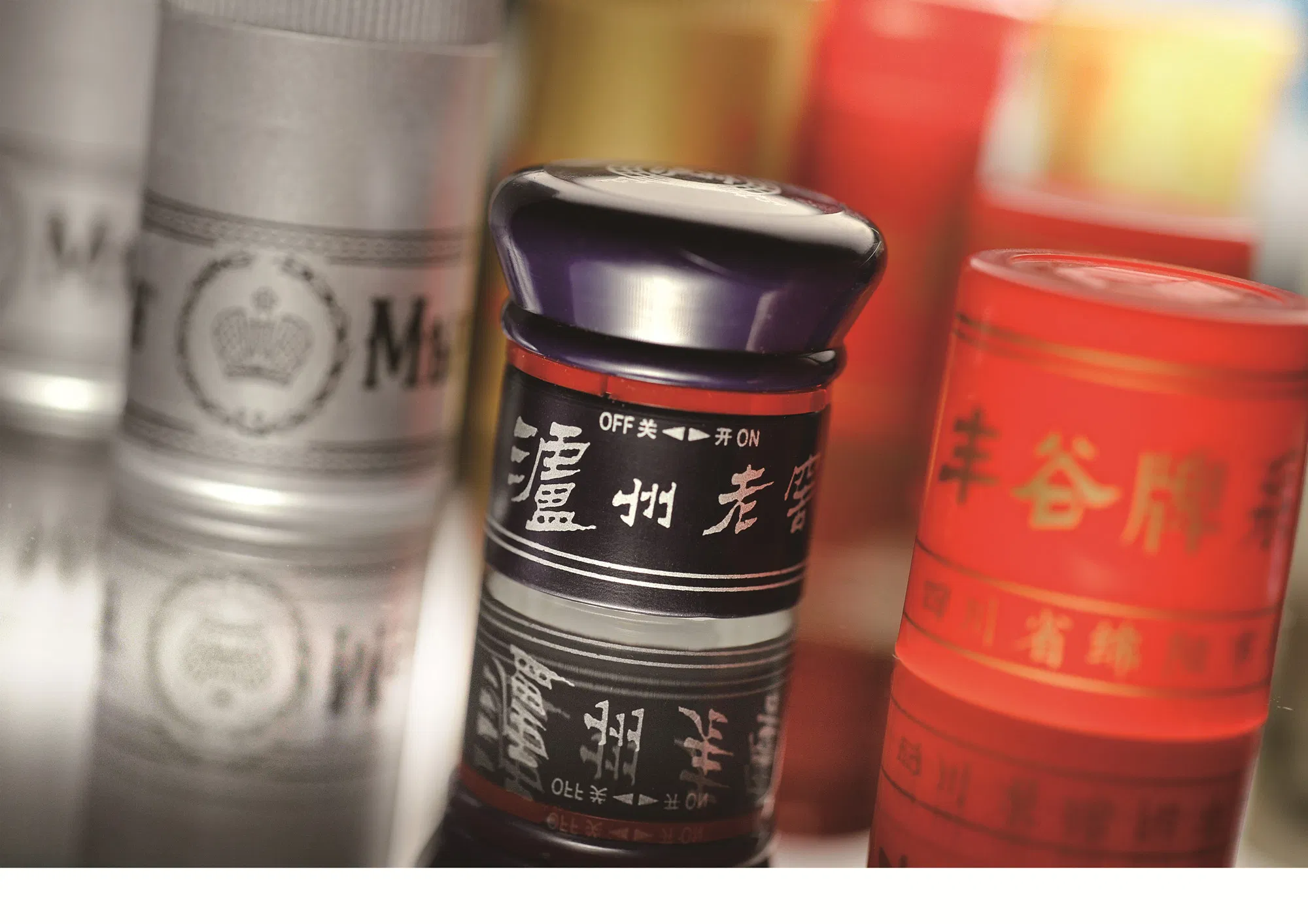

Multi color automatic servo screen printer is mainly used for round surface printing, such as bottle lids, tubes, and cups.

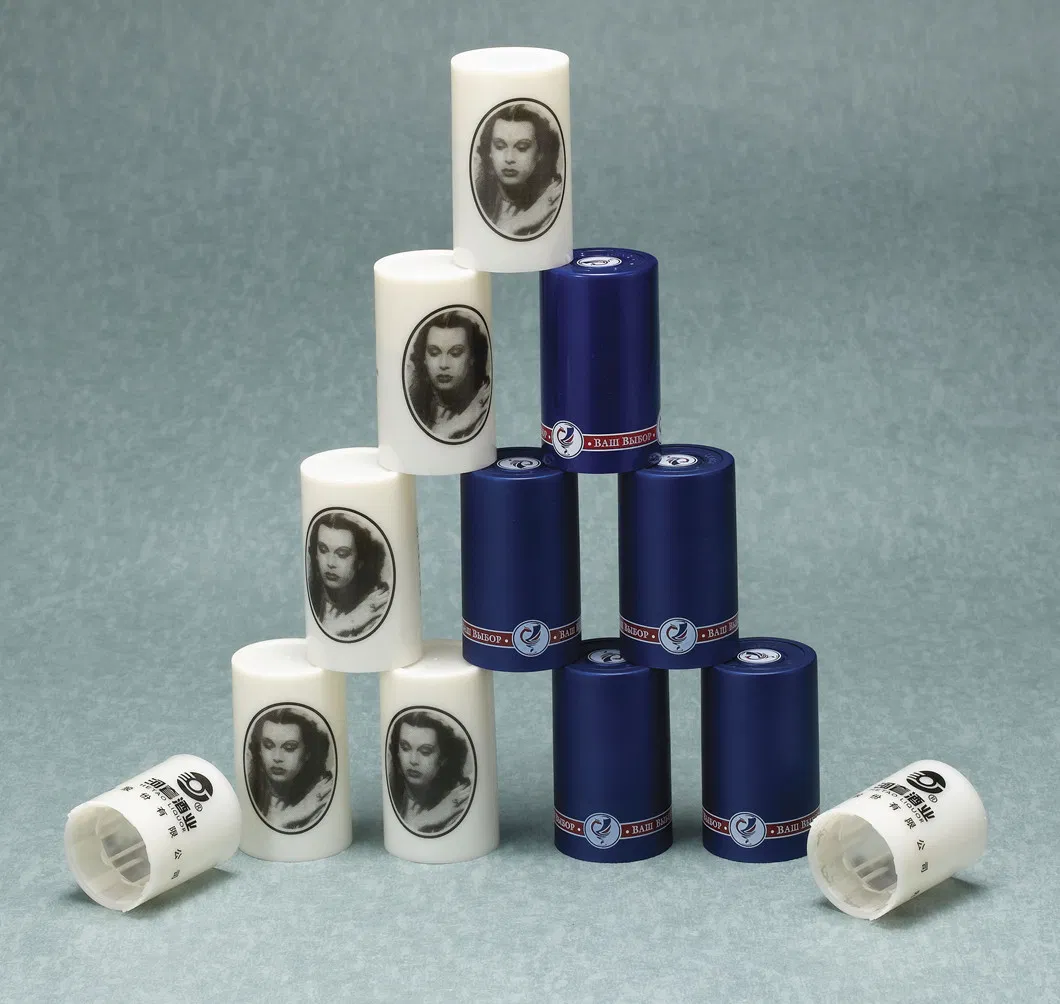

Product Application
Key Technical Features
  • Highly intelligent: printing station can be replaced with hot stamping, labeling, thermal transfer, and varnishing.

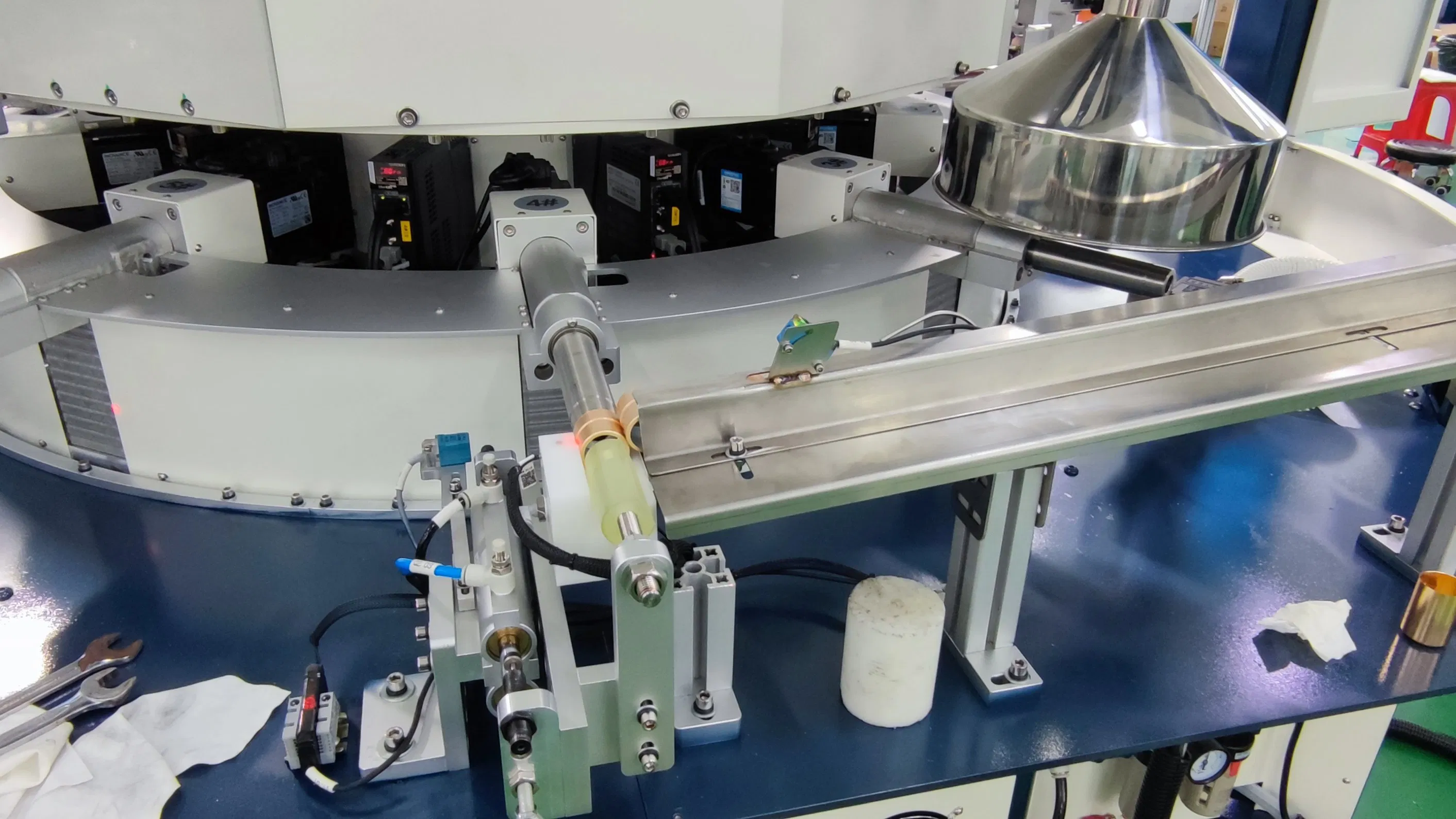

  • Adopt high-precision Spanish GOIZPER servo turntable and INOVANCE servo motors.

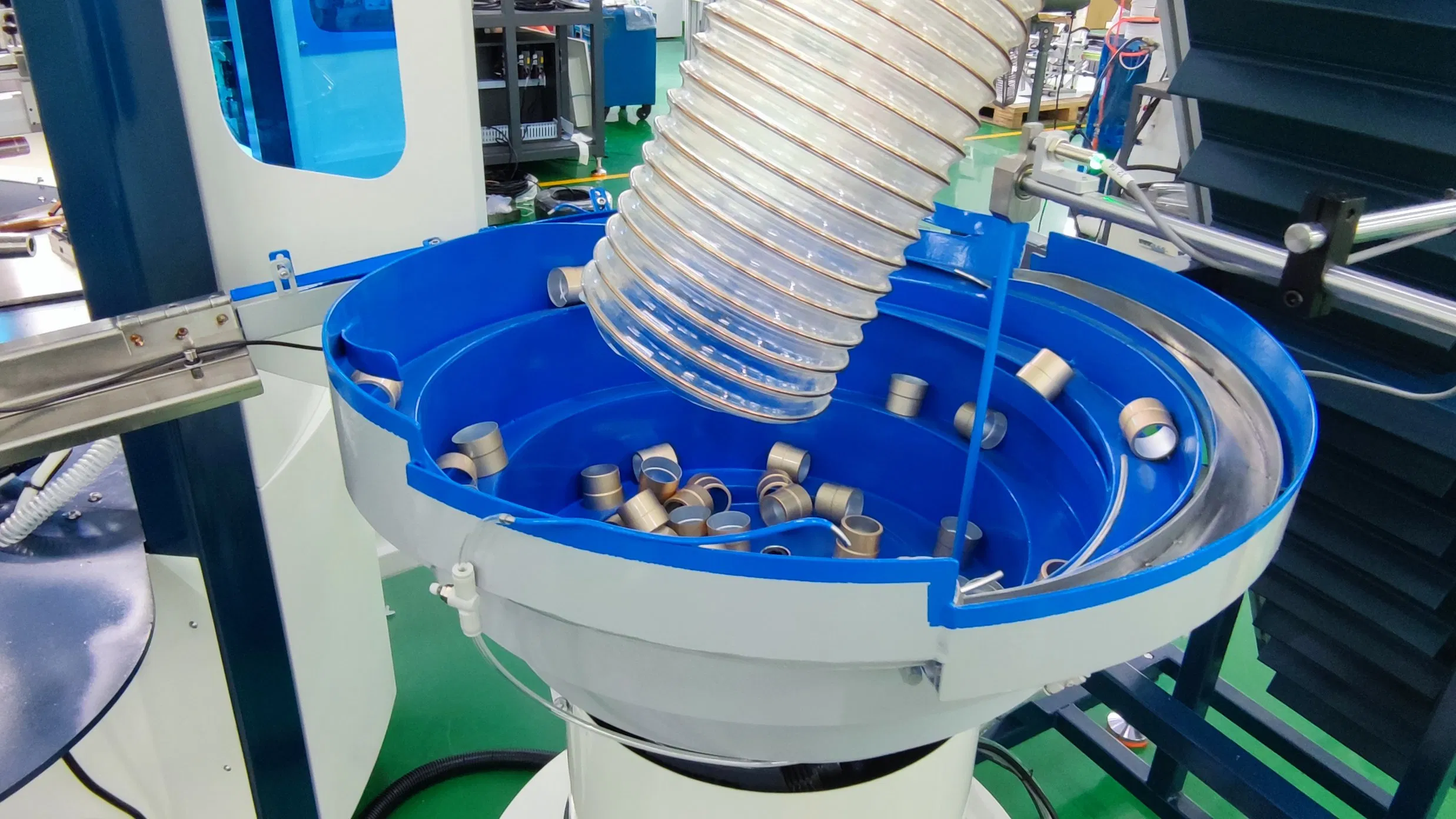

  • Integrated workflow: automatic feeding, hot air treatment, screen printing, LED curing, hot stamping, and automatic unloading.
  • "No part, no print" intelligent function to minimize waste.
  • Equipped with premium PLC, touch screen, and transmission components for stable operation.
  • Adjustable printing head lifting, scraper pressure, and three-dimensional screen frame adjustments.
  • Independently adjustable temperature for hot stamping and heat transfer heads.
Technical Parameters
Printing speed2400-3000pcs/hr
Printing size (Diameter)Φ15-Φ50mm
Printing size (Length)10-50mm
Compressed air0.5-0.7MPa
Overall Dimensions2500*2300*2100mm
Power Requirements15KW, 380V, 50HZ
Our Professional Services
Quick response to all inquiries and technical questions.
Full support for OEM, ODM, and sample testing.
Engineers available for international after-sales service.
Over 10 years of specialized industry experience.
One-year comprehensive guarantee and lifelong technology support.
Manufacturing Excellence

As a high-tech enterprise, the manufacturer focuses on the design, development, and production of high-quality fully automatic screen printing machines, hot stamping machines, and assembly lines. With over ten years of R&D experience, advanced design concepts are integrated with strict quality control.

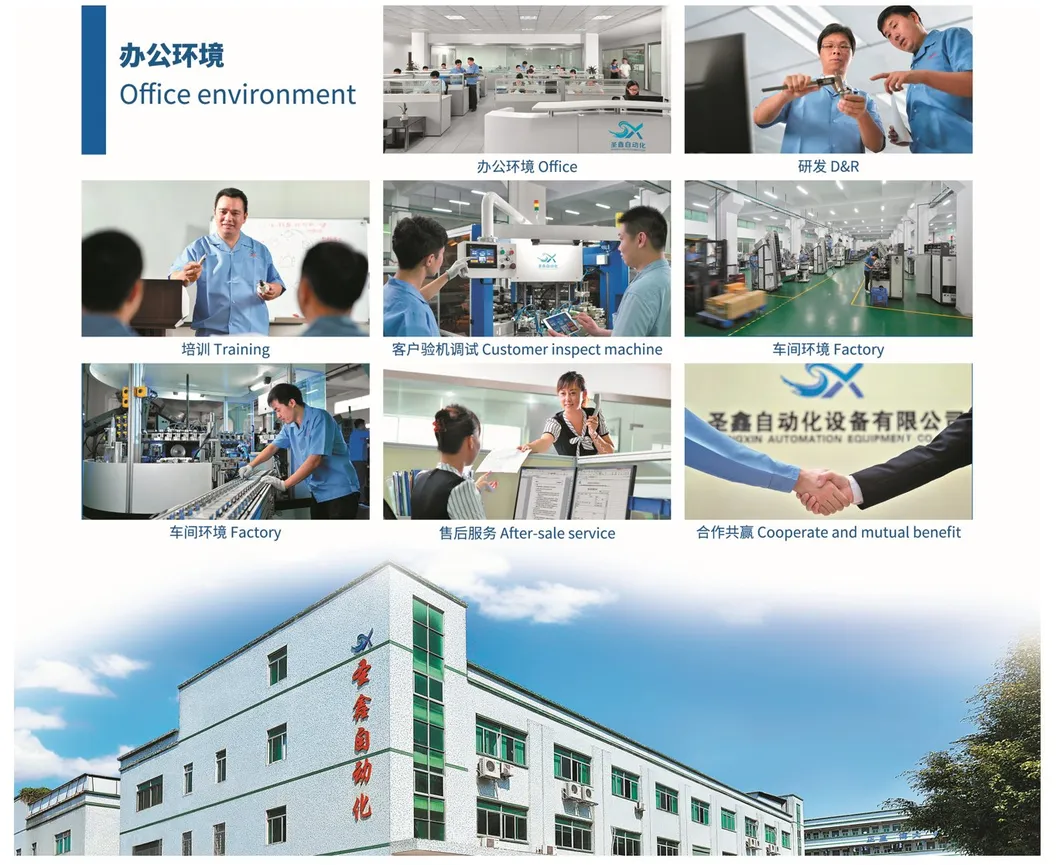

Manufacturing Facility
Honors & Certifications

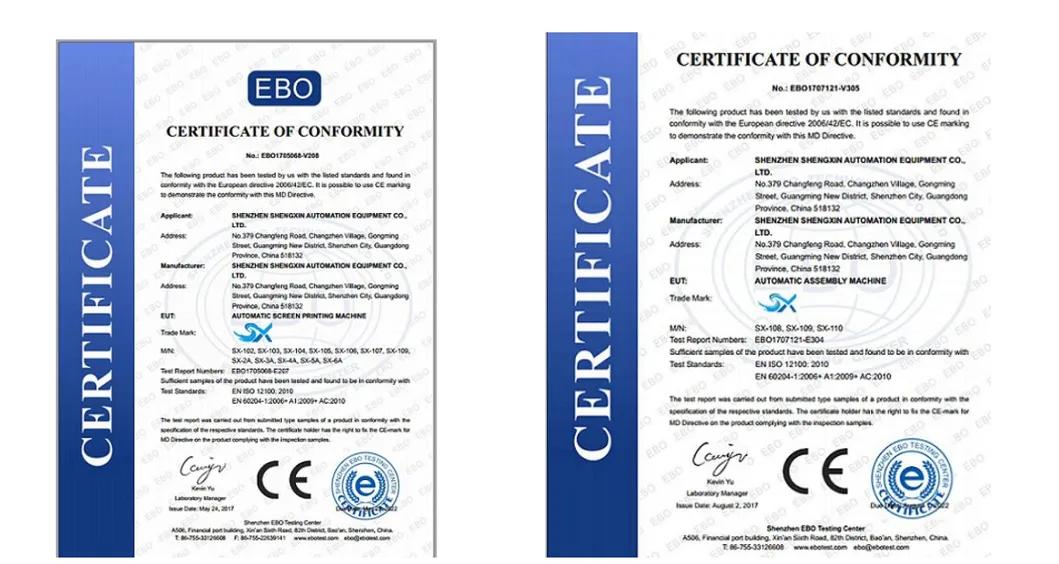

Honor 1

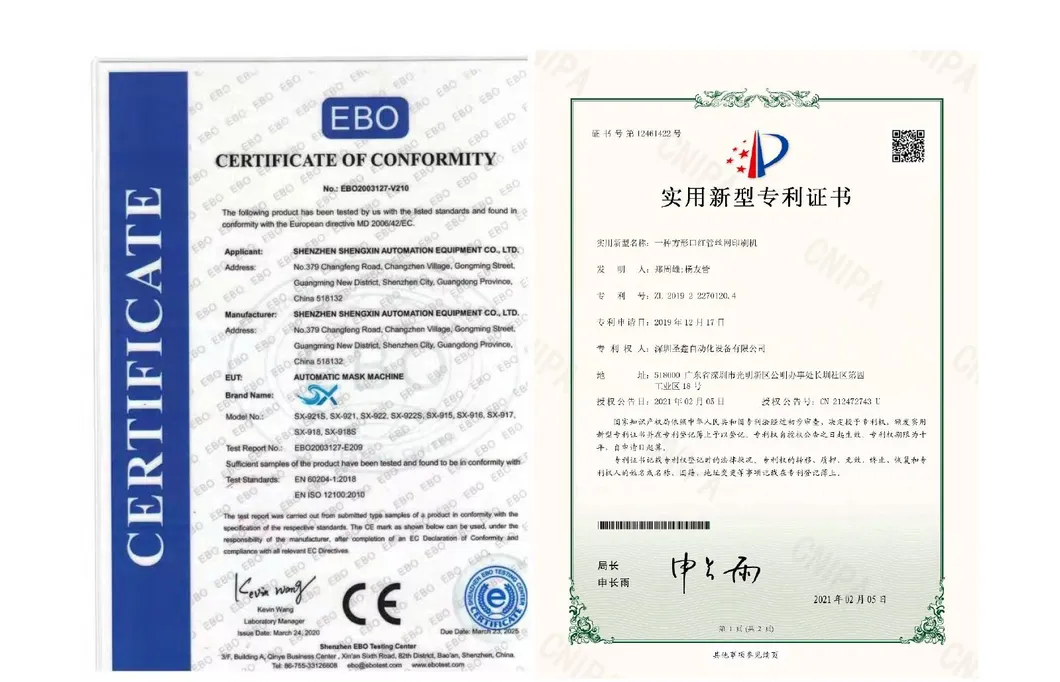

Honor 2
Honor 3
Packaging & Global Cases

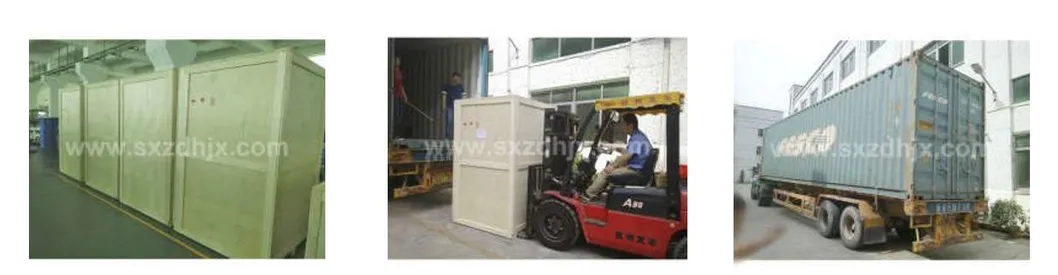

Packaging
Partners
Successful Cases
Frequently Asked Questions
What is the maximum printing speed of the SX-116?
The SX-116 offers a high-efficiency production speed of 2400 to 3000 pieces per hour, depending on the item dimensions and material.
What types of products can this machine handle?

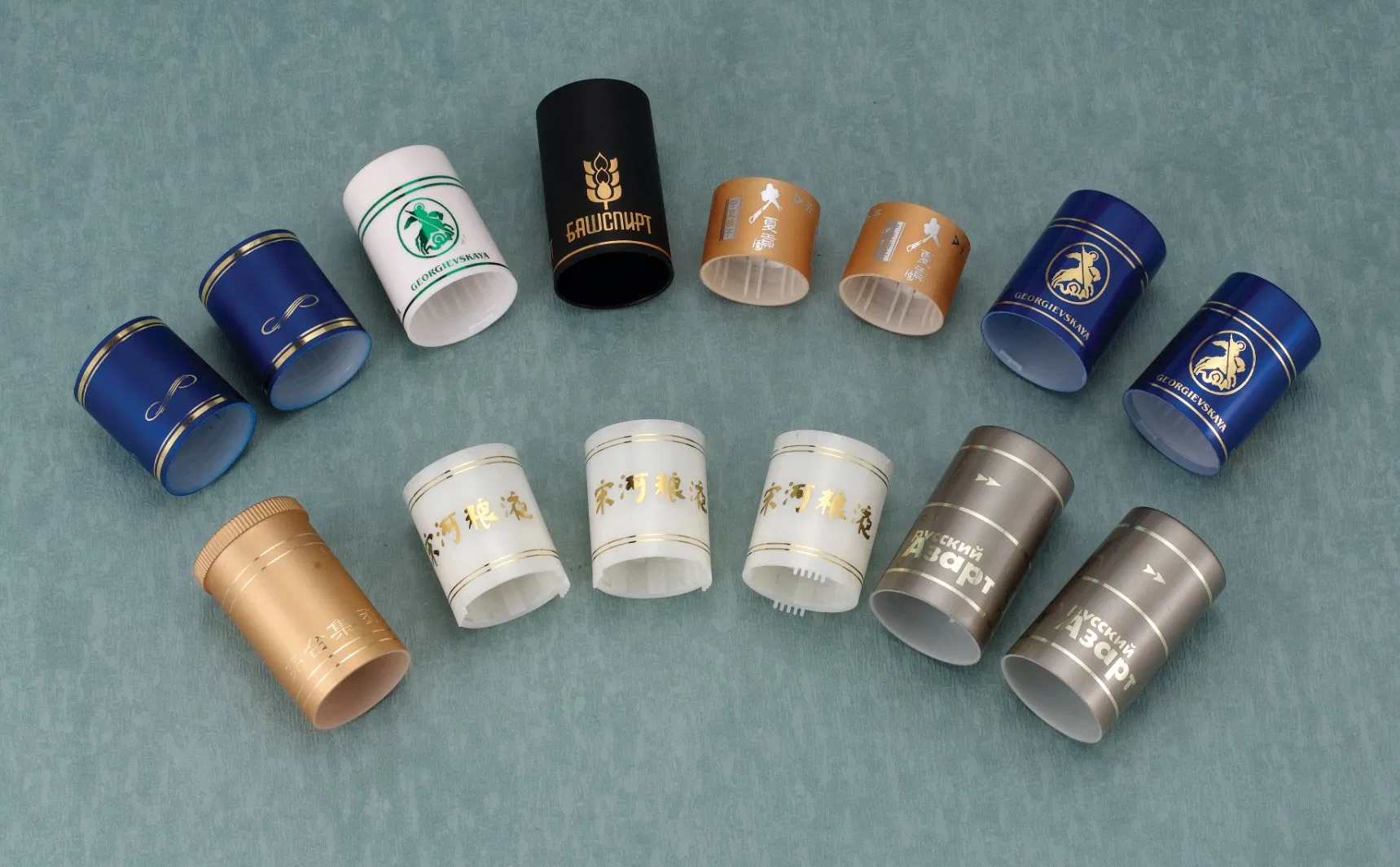

It is specifically designed for round or cylindrical surfaces, making it ideal for bottle lids, cosmetic tubes, wine bottle caps, and various types of cups.
Can the machine perform more than just screen printing?
Yes, the station is modular and can be replaced or integrated with hot stamping, labeling, thermal transfer, and varnishing functionalities.
How is the printing quality and precision maintained?
The machine utilizes a high-precision Spanish GOIZPER servo turntable and high-end servo motors to ensure accurate positioning and consistent print quality.
Does the machine support automatic curing?
Yes, the system integrates LED curing and hot air treatment within the automatic workflow for immediate drying and processing.
What kind of technical support is available after purchase?
We provide a one-year guarantee and lifelong technical support. Engineers are available for after-sales service, including installation and debugging assistance.
