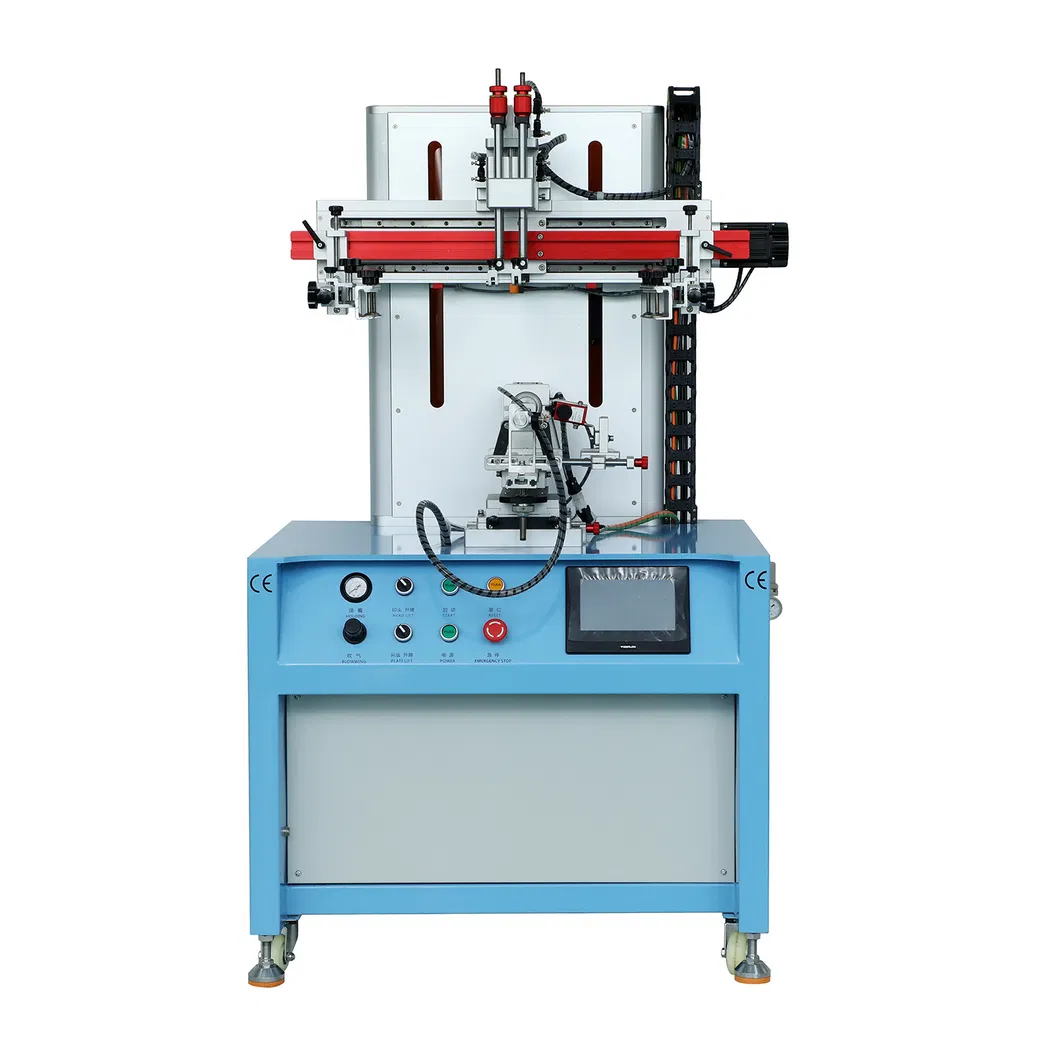

Servo Motor Glass Bottle Screen Printer with PLC Control Semi Automatic Cylinder Cup Screen Printing Machine for Paper Cup

1 / 5

Servo Motor Glass Bottle Screen Printer with PLC Control Semi Automatic Cylinder Cup Screen Printing Machine for Paper Cup

Customization:	Available
After-sales Service:	Lifetime Service
Warranty:	1 Year

Send Inquiry

Product Description

Paper Plastic Cup Screen Printing Machine

High-Precision Milk Tea Cup & Bottle Printing Solution

📋 Basic Specifications

Model: LC-PA-400ES
Type: Rotary Screen Printing Machine
Structure: Rotary Printing Press

Application: Packaging Printing
Color & Page: Multi-Colour Printing
Capacity: 100 sets/Month

Package: Wooden Case
Gross Weight: 250kg / 330kg
Dimensions: 98*88*170cm

⚙️ Technical Parameters

Max Printing Diameter	Φ120mm	Max Printing Arc Length	370mm

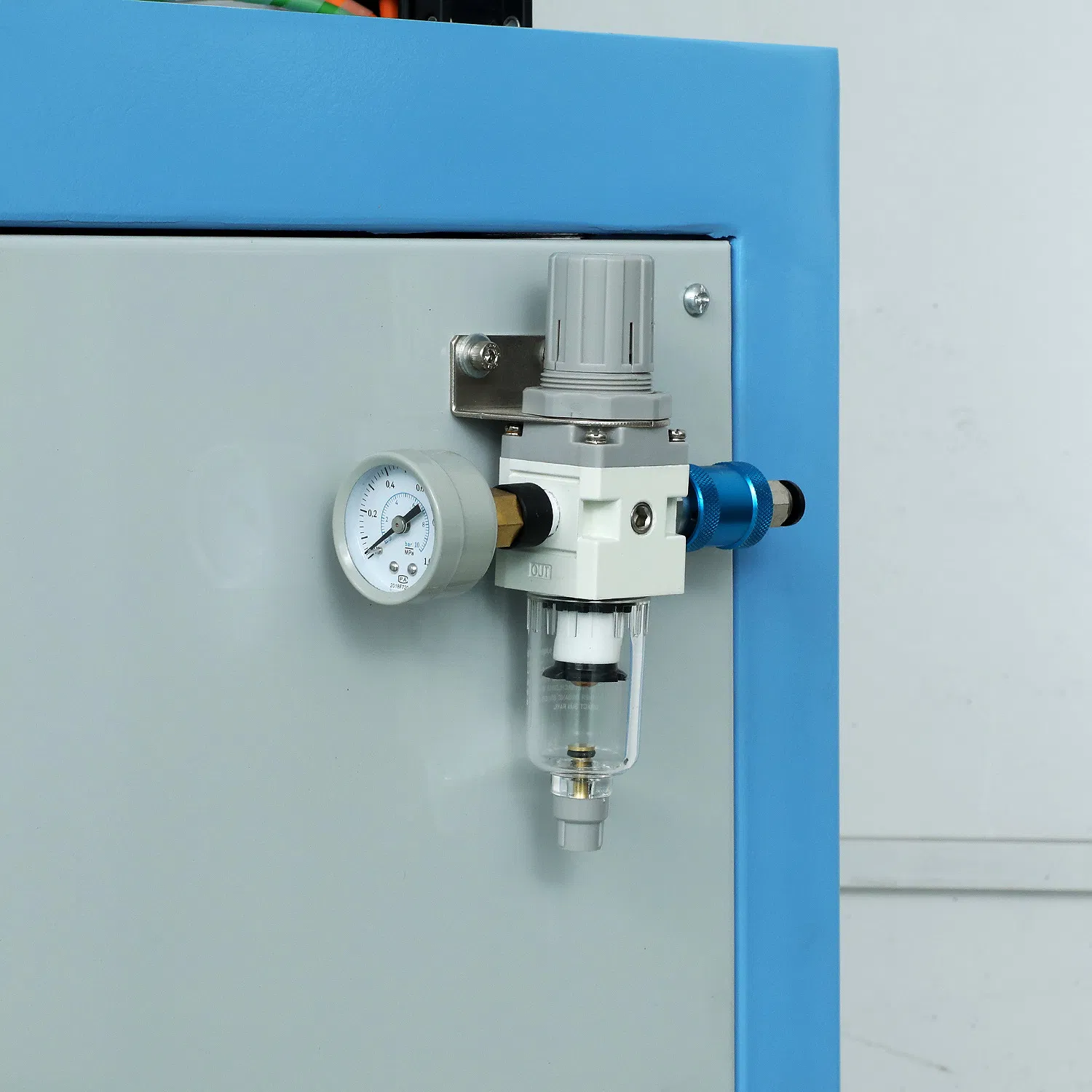

Printing Speed	2000 PC/H	Air Pressure	0.5Mpa
Voltage Power	220V / 50HZ	Product Appearance	Round
Application Area	Bottles, Cups, Mugs	System Control	PLC & Full Servo

🚀 Advanced Technology & Application

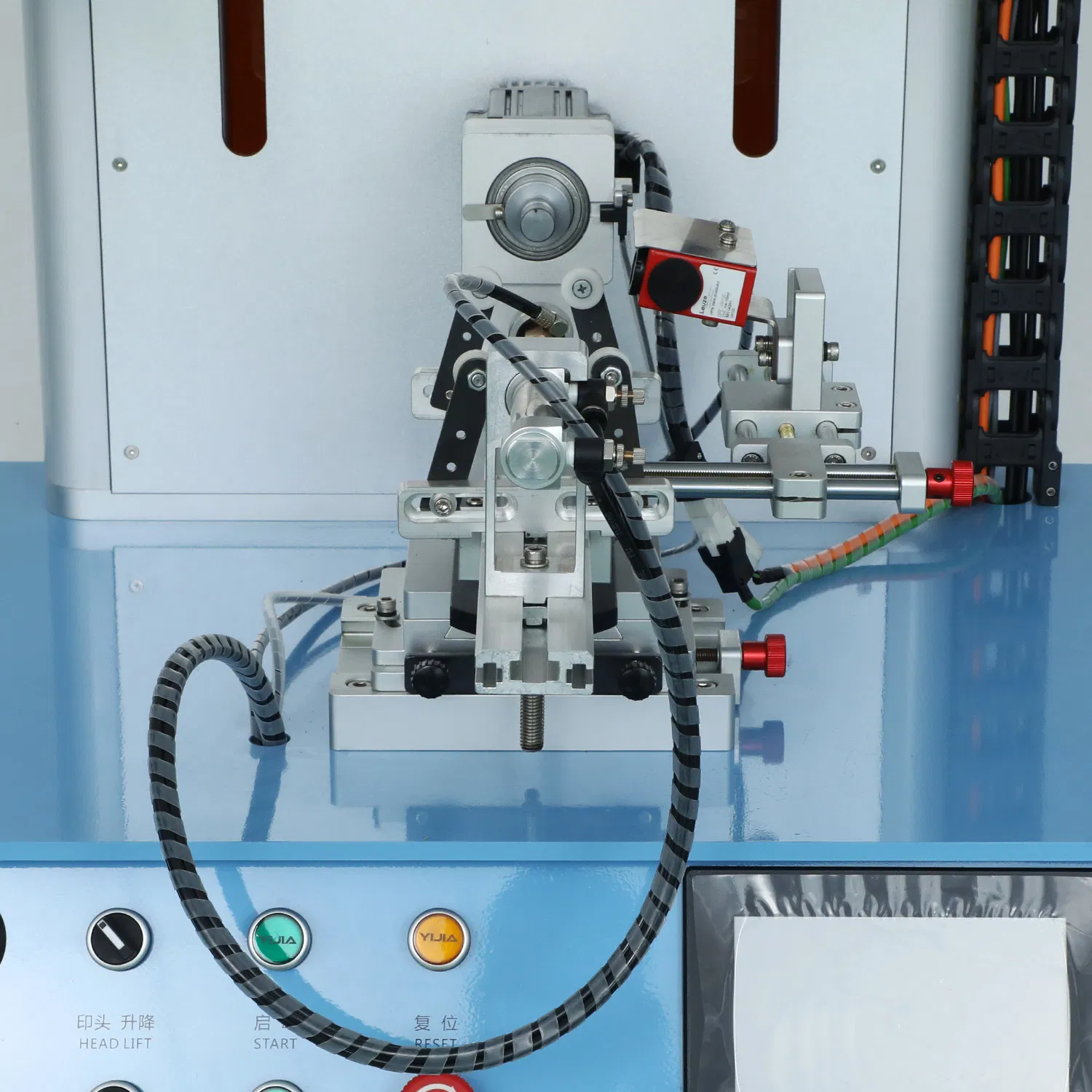

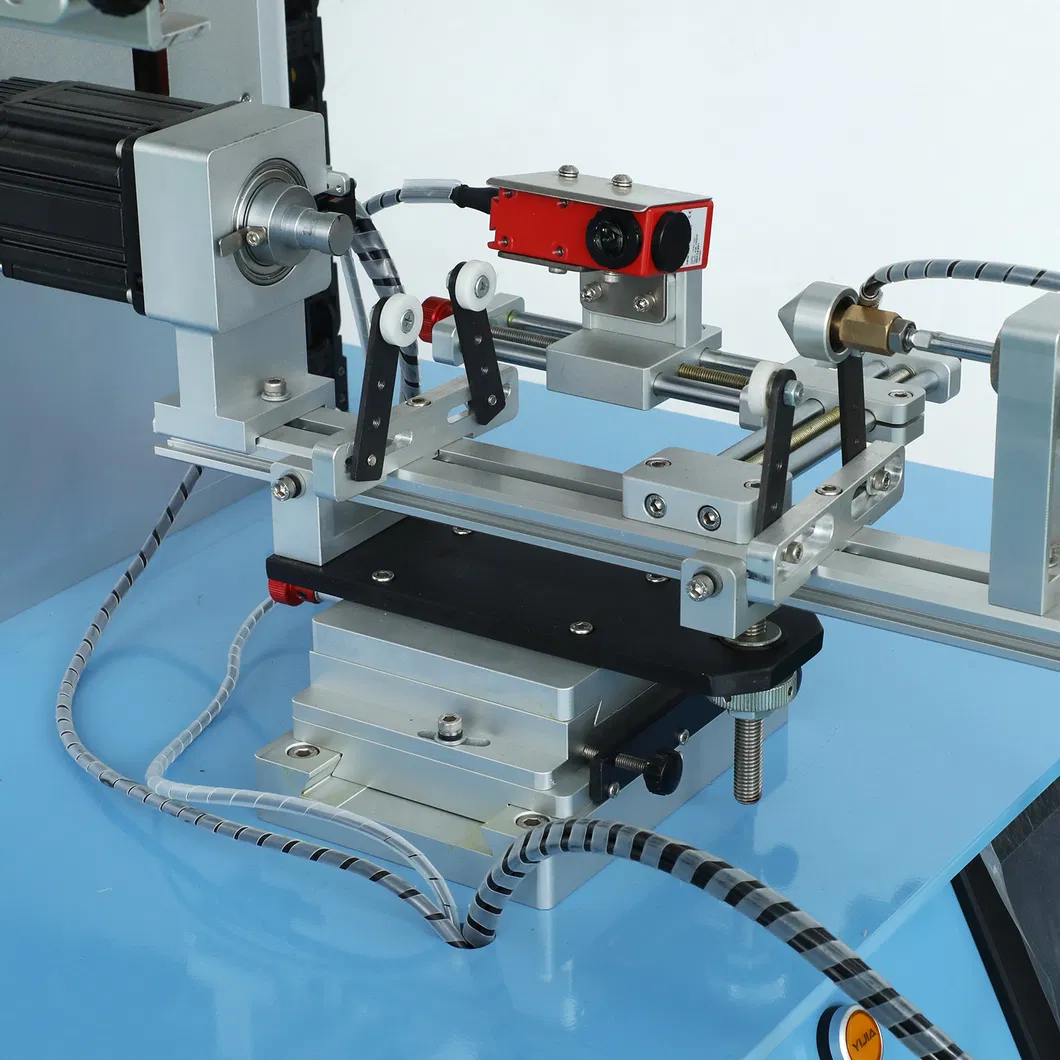

The LC-PA-400ES is a state-of-the-art cylindrical silk screen printing machine utilizing a full servo system for unparalleled precision. It features high-sensitivity sensors for automatic registration and positioning.

High-Quality Multi-Color Printing: Easily handles 2, 3, 4, 5, 6+ colors with perfect alignment.

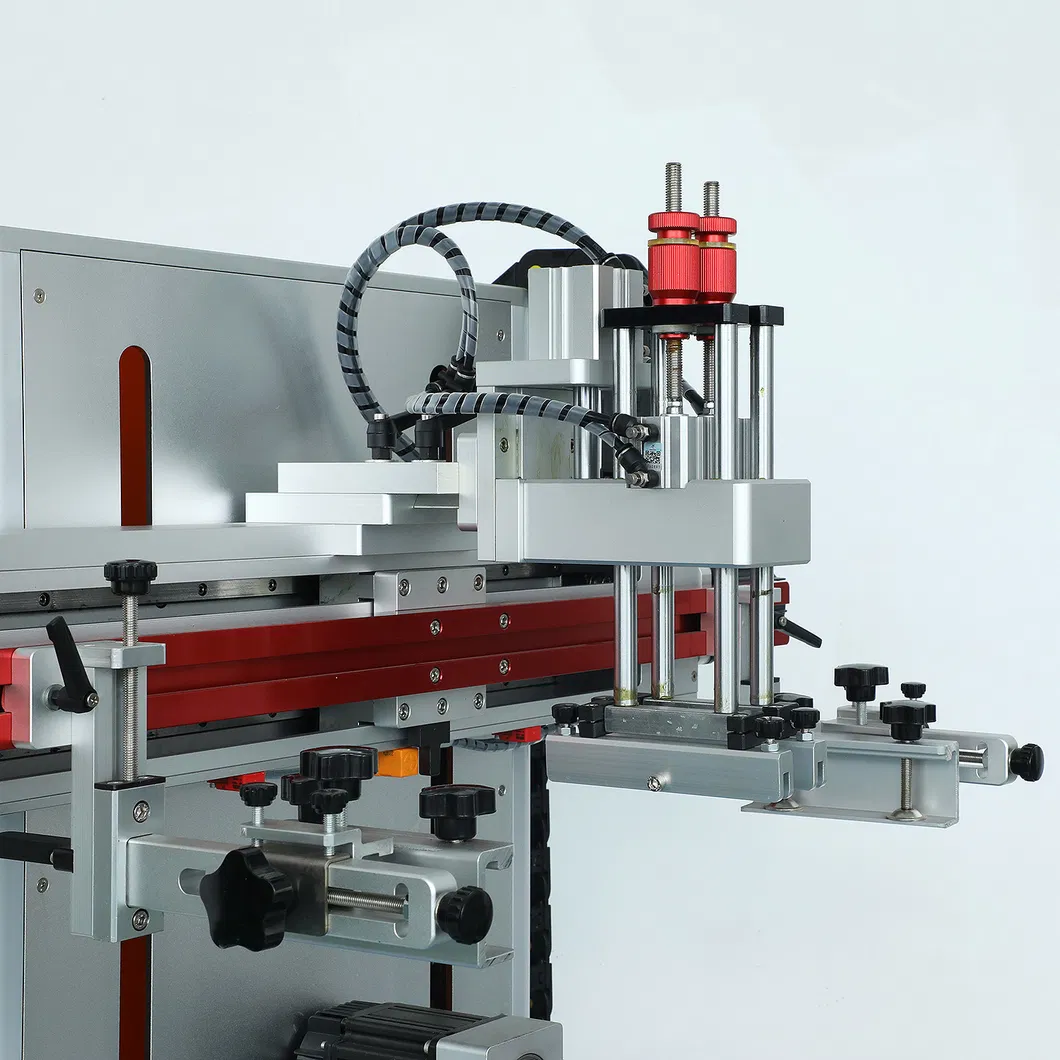

Full Servo Control: Equipped with 3 sets of servos controlling left/right, up/down, and rotation movements.
Planetary Reducer: Ensures more stable and precise printing without the use of traditional gears.

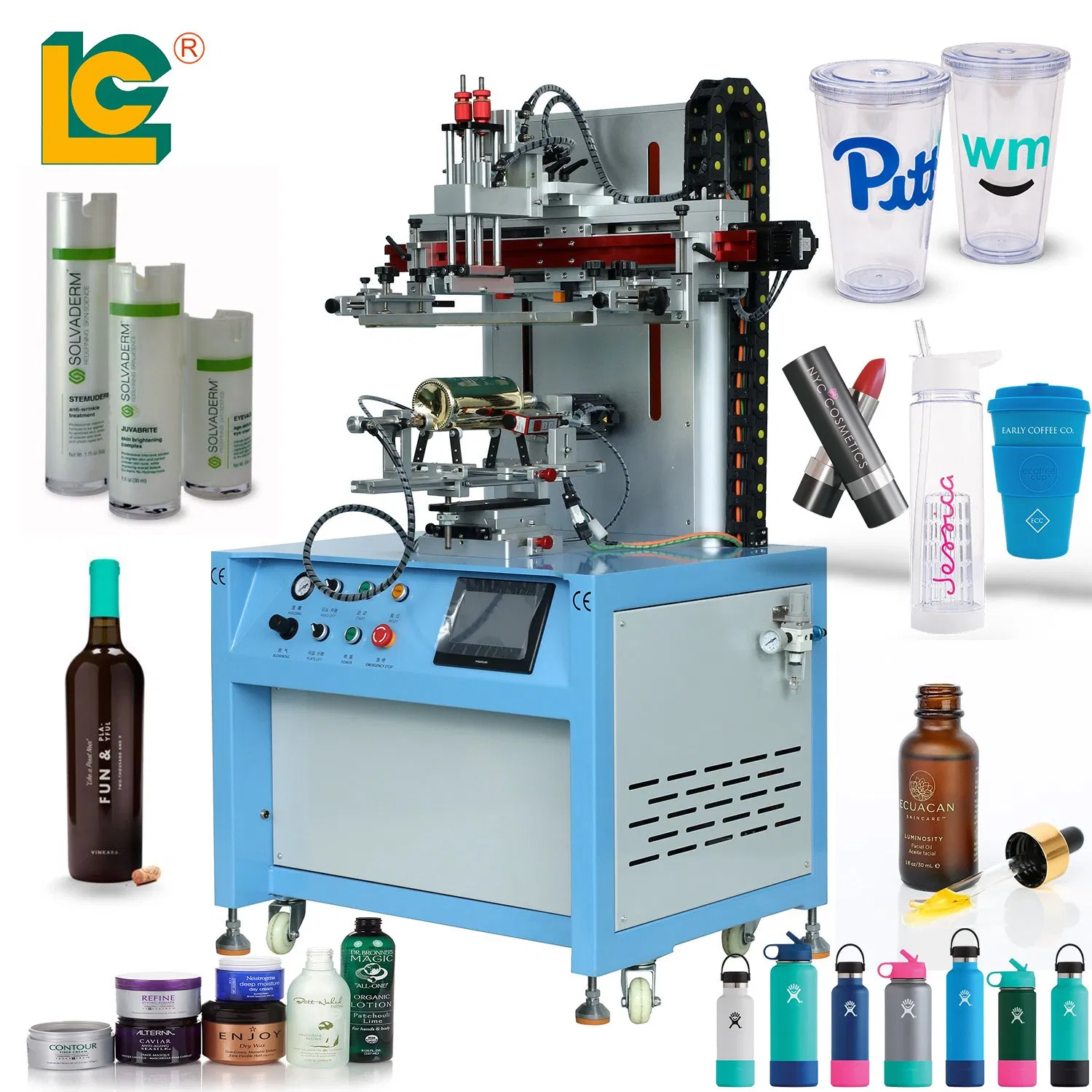

360-Degree Printing: Specialized in full-circle designs for cups, bottles, soft tubes, jars, and oil filters.
Versatile Materials: Suitable for Plastic, Glass, Wood, Metal, and more.

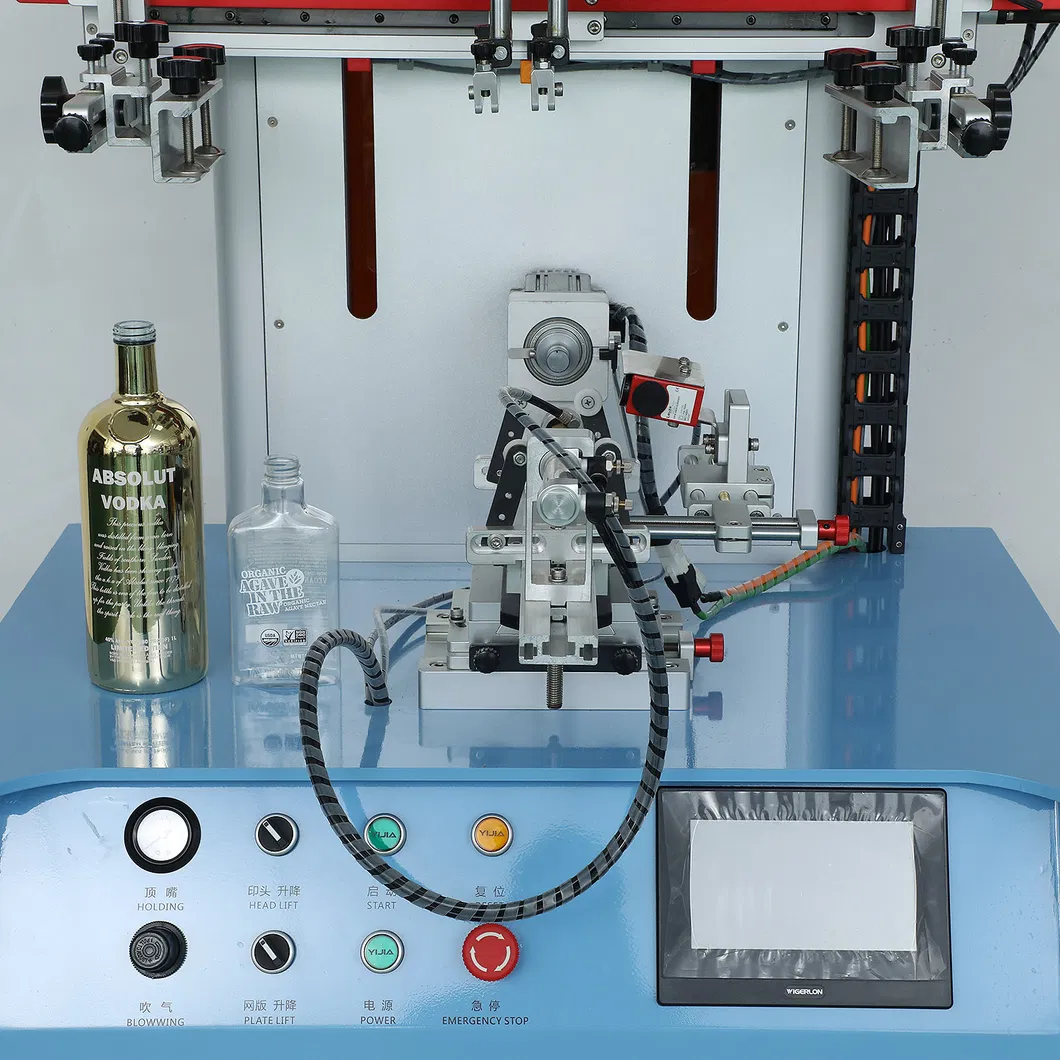

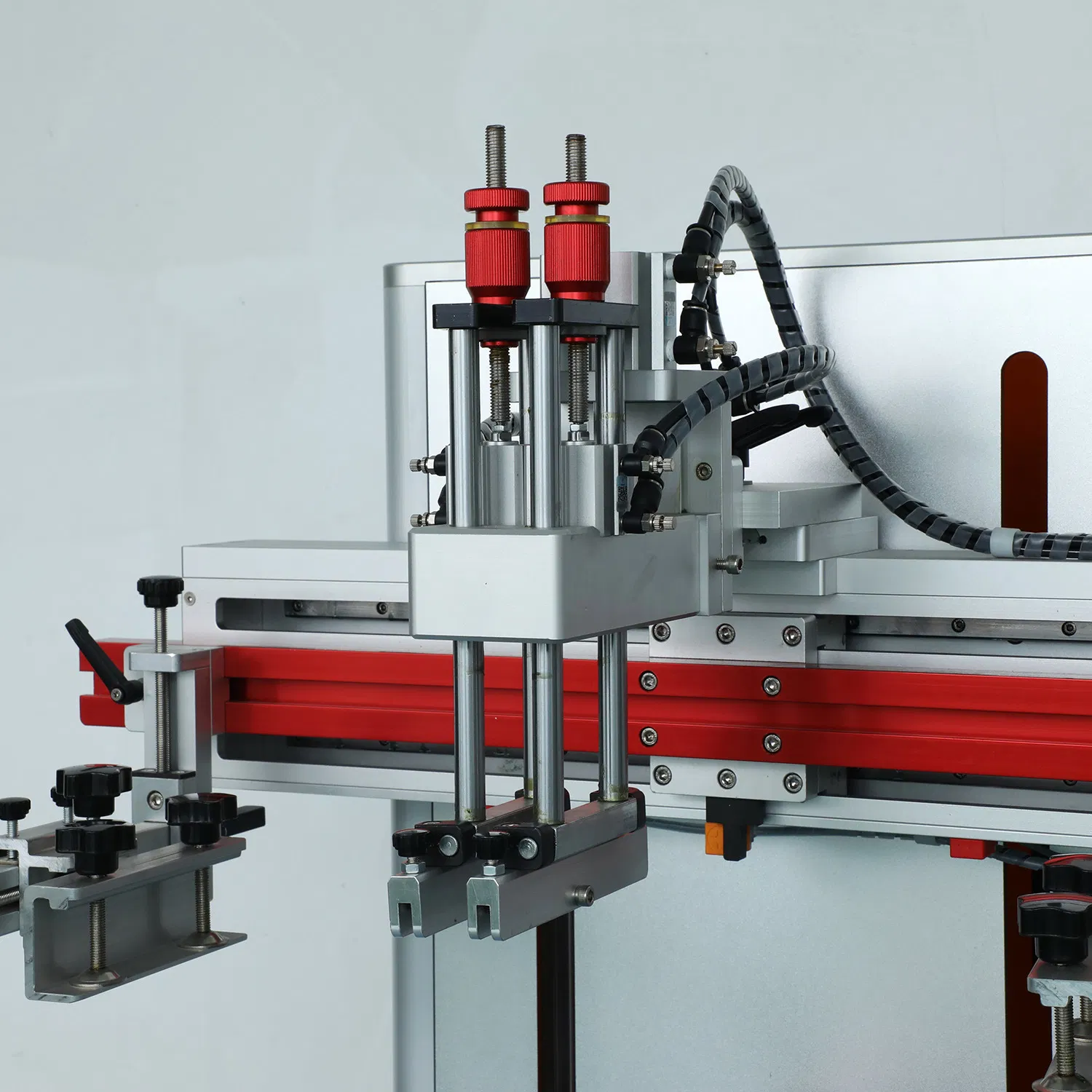

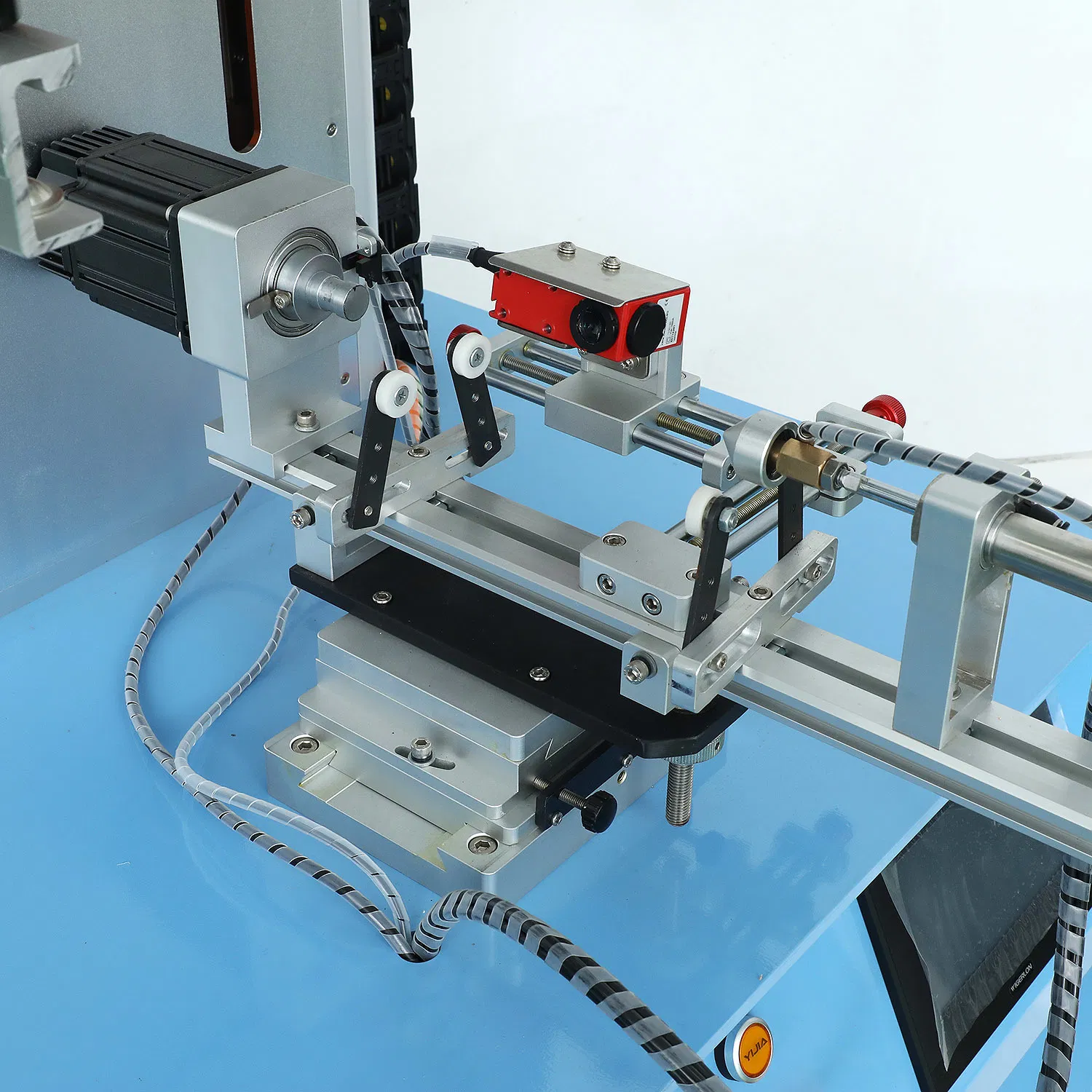

📸 Detailed Product View

❓ Frequently Asked Questions

What types of products can this machine print?

It is designed for round and cylindrical items such as paper cups, plastic milk tea cups, glass bottles, soft tubes, jars, and even specialized items like oil filters or pens.

Does the machine support multi-color printing?

Yes, thanks to the automatic registration sensor and full servo system, it can print 2, 3, 4, 5, 6, or more colors with high precision and quality.

How does the servo system improve printing quality?

The machine uses 3 sets of servos to control all movement axes (horizontal, vertical, and rotation) independently. Combined with a planetary reducer, this eliminates gear play and ensures extremely stable operation.

Can it perform 360-degree full-circle printing?

Absolutely. The LC-PA-400ES is optimized for full 360-degree printing on round objects, ensuring seamless designs around the entire surface.

What materials is this printer compatible with?

This versatile machine is compatible with a wide range of materials including plastic, glass, wood, and metal.

What is the maximum production speed?

The machine can reach a printing speed of up to 2000 pieces per hour, depending on the operator and product specifications.
