Basic Information
Model NO.:ZT-400R-YC
Type:Automatic Screen Printing Machine
Style:Screen-process Printing Press
Structure:Flat-bed cylinder press
Color & Page:Single-Colour Printing Press
Application:Fire Extinguisher Printer
Print Interface:USB3.0
System Supported:PLC
Package:Standard Export Plywood Box
Specification:850mm * 850mm * 1250mm
Origin:China
Capacity:100 Sets Per Month
Machine Introduction

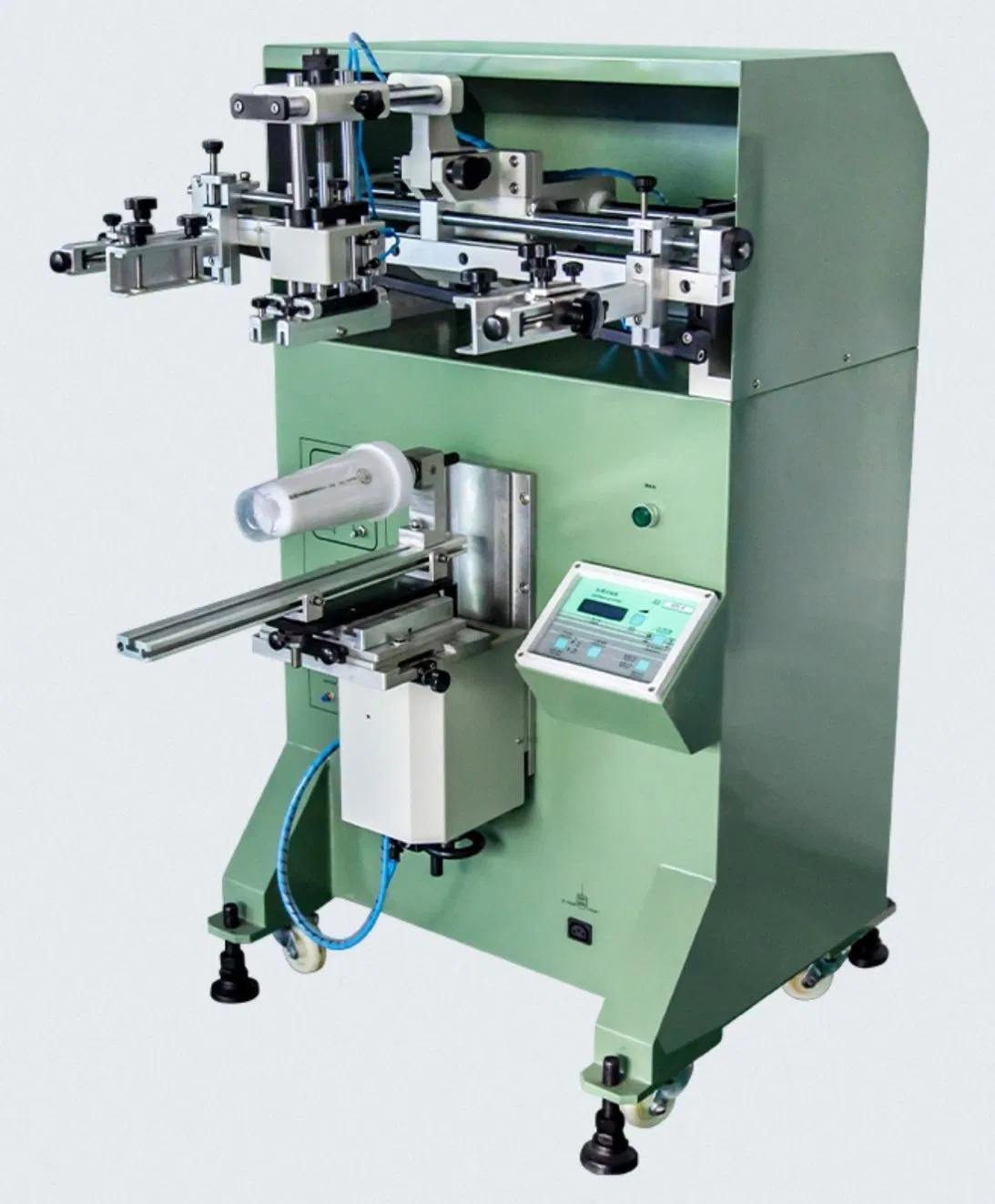

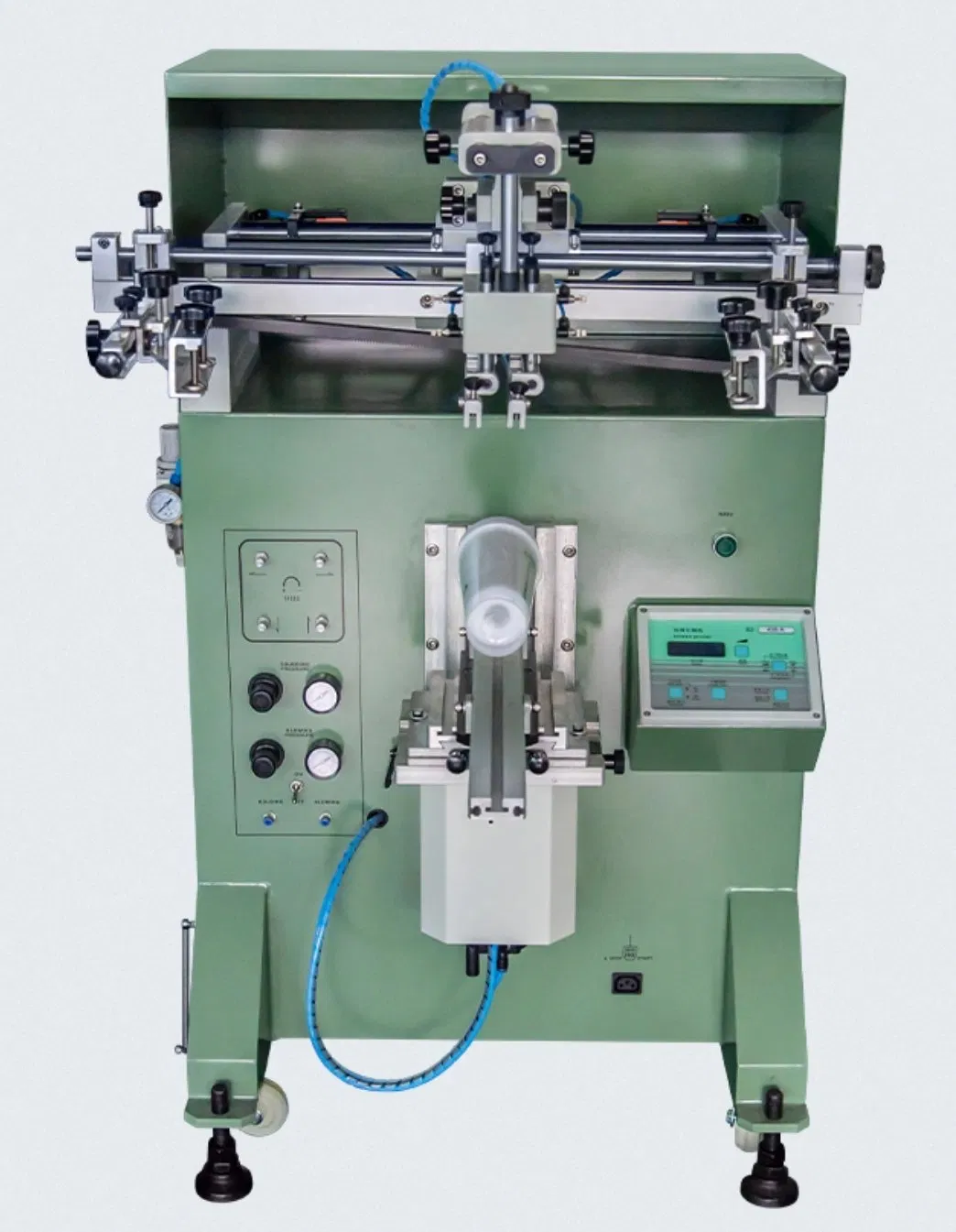

Semi Automatic Glass Wine Bottle Printer Screen Printing Machine
This is a cost-effective screen printing machine with full pneumatic drive mode. It can be used when connected to household electricity and air compressors. The stroke of imported rodless cylinder is 400MM. The limited printing arc length is 350MM. The printing stroke is adjustable, suitable for all kinds of heat preservation. Cup, bottle, cylindrical product printing; at the same time, the fixture can be replaced to adapt to flat product printing.
It is suitable for surface printing of cylindrical, oval and flat products made of plastic, glass, ceramics, wood, metal and other materials. Printed products such as: lipstick shells, cosmetic bottles, detergent bottles, beverage bottles, cups, filters, jars, etc. This machine is assembled with all imported electrical components, so that its accuracy is at the same level, and the service life of the machine is greatly extended.
Machine Features
The microcomputer intelligent IC cooperates with the light touch panel to compile the action program control, which is easy to operate, and the action is accurate and reliable.
Built-in four-digit automatic counter.
The printing stroke and speed are adjustable to meet different printing requirements.
It has three printing functions: round, flat and oval.
Automatically scrape ink, return ink, lift the worktable, etc., which not only simplifies the operation, but also ensures the stability of the printing quality.
The automatic balance scraper can ensure the printing pressure is balanced.
The left and right emblem adjustment screen frame of the worktable can be adjusted left and right, up and down, with high printing precision, convenient and fast adjustment.
Imported pneumatic components are used to ensure the high quality of the machine.

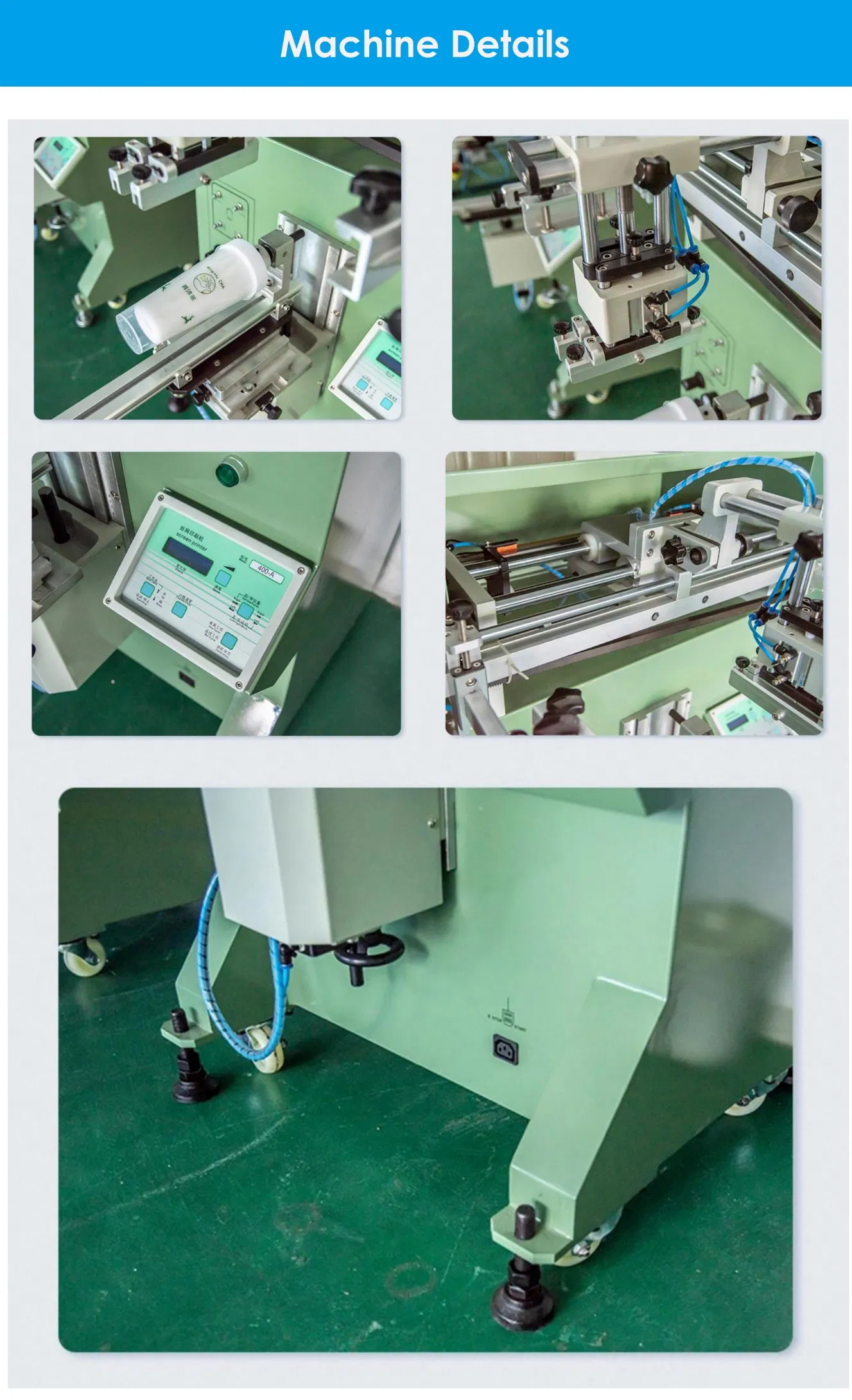

Machine Details & Samples

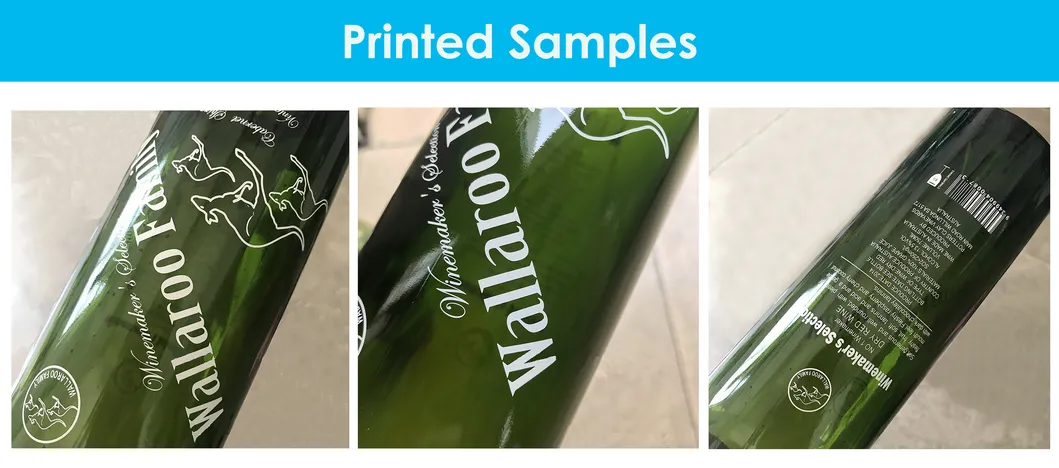

Printed Samples:

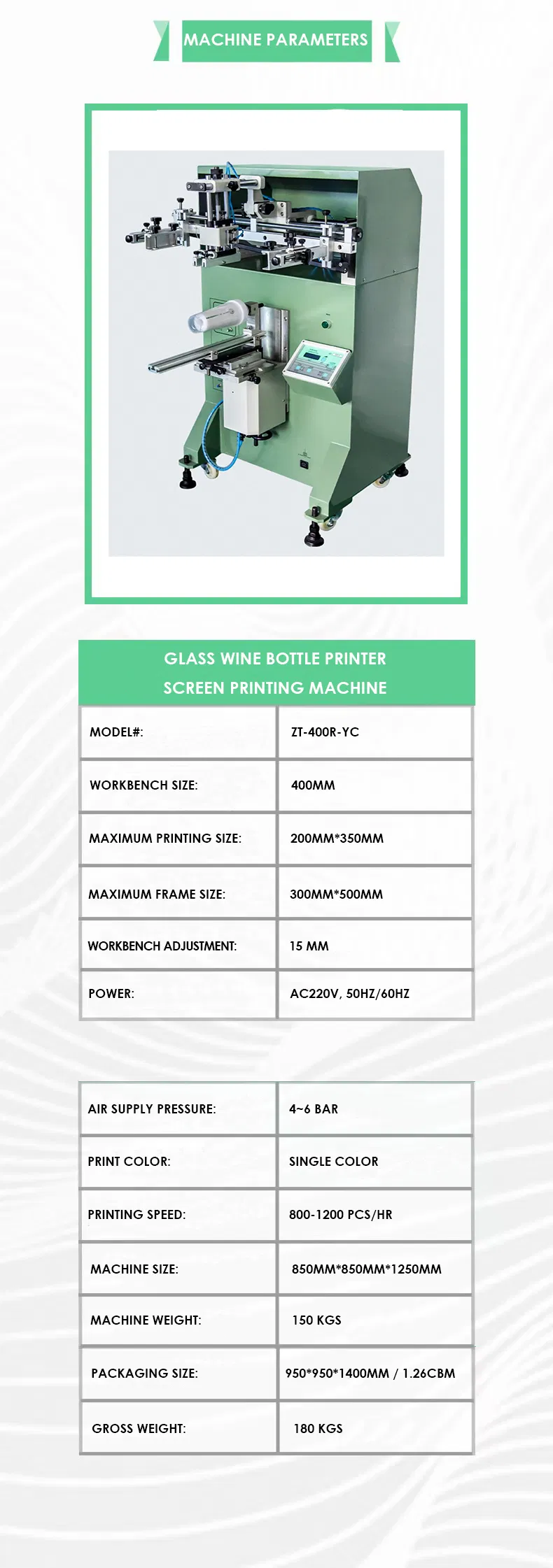

Machine Parameters
| Glass Wine Bottle Screen Printing Machine - Technical Specifications |
| Model# | ZT-400R-YC |
| Workbench Size | 400mm |
| Maximum Printing Size | 200mm * 350mm |
| Maximum Printed Product's Height | 110mm |
| Maximum Screen Frame Size | 300mm * 500mm |
| Machine Size | 850mm * 850mm * 1250mm |
| Machine Weight | 150KG |
| Power | 220V / 0.6KW |
| Air Source Requirement | 4-6BAR |
| Printing Speed | 800~1000 PCS/HOUR |
| Package Size (Wooden Box) | 950mm*950mm*1400mm / 1.26CBM |
| Gross Weight | 180KG |
| Workbench Adjustment | 15mm |
| Printing Color | Single Color (Multi-color registration supported) |
| SUPPORT CUSTOMIZATION |
Safety Performance Of Machine Operation
ZT-400R-YC circular printing press is in line with the latest engineering style. If it is used as required, it is absolutely reliable.
- In case of emergency, press the emergency switch immediately. The machine returns to the starting position. Turn the emergency switch to restart safely.
- Power supply and air source must be cut off when the machine needs to be moved or repaired.
- Follow standard steps when adjusting or cleaning the oil scraper.
- Enhance fire prevention awareness and provide necessary fire-fighting equipment.
Frequently Asked Questions (FAQ)
1. What materials can this screen printing machine handle?
This machine is versatile and suitable for surface printing on plastic, glass, ceramics, wood, and metal materials.
2. Can I print on both round and flat objects?
Yes, the machine features three printing functions: round, flat, and oval. Fixtures can be replaced to adapt to different product shapes.
3. Is the printing speed adjustable?
Absolutely. The printing stroke and speed are fully adjustable via the microcomputer control panel to meet various production requirements.
4. What are the electrical and air requirements?
The machine requires a 220V power supply and an air source of 4-6 BAR. It is designed to work with standard household electricity and air compressors.
5. Does it support multi-color printing?
While it is a single-color printing press, it can be registered for multi-color printing through sequential passes.
6. What safety features are included?
The machine includes a microcomputer intelligent IC for precise control and an easy-access emergency stop switch that resets the machine to its starting position.
