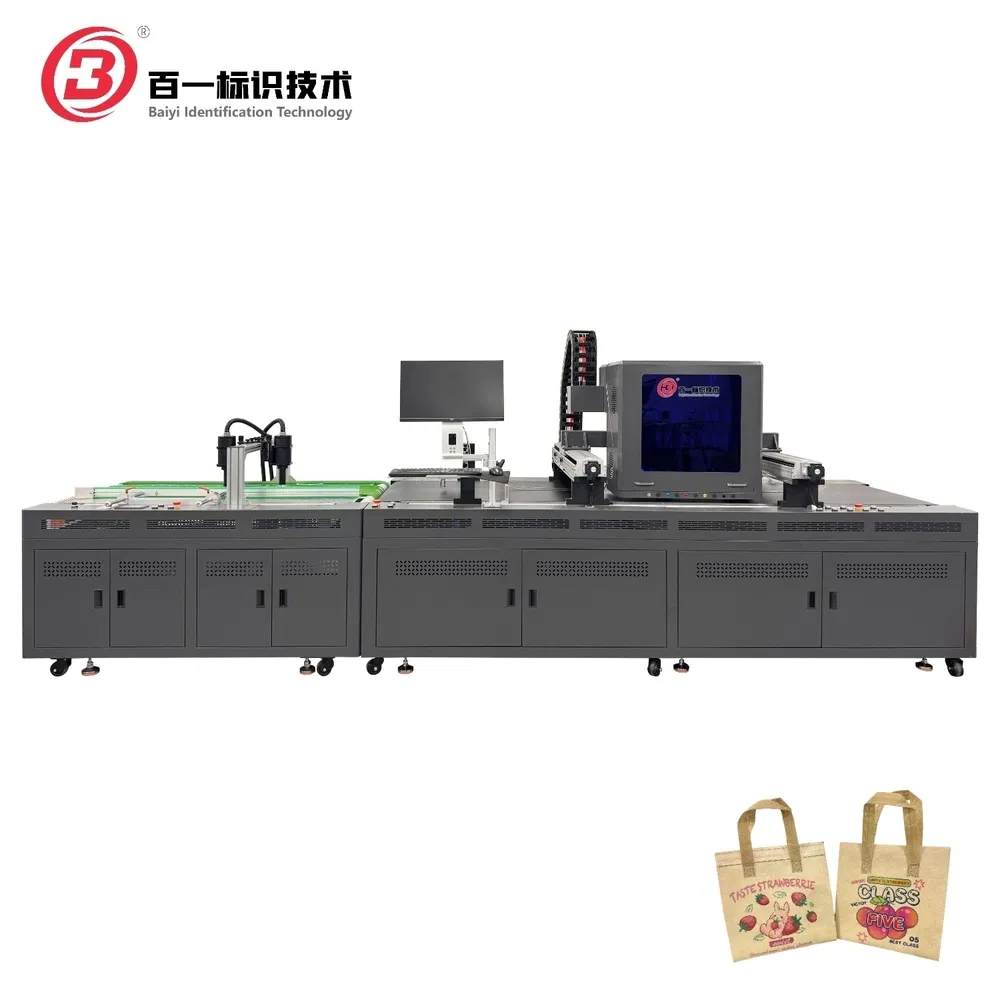

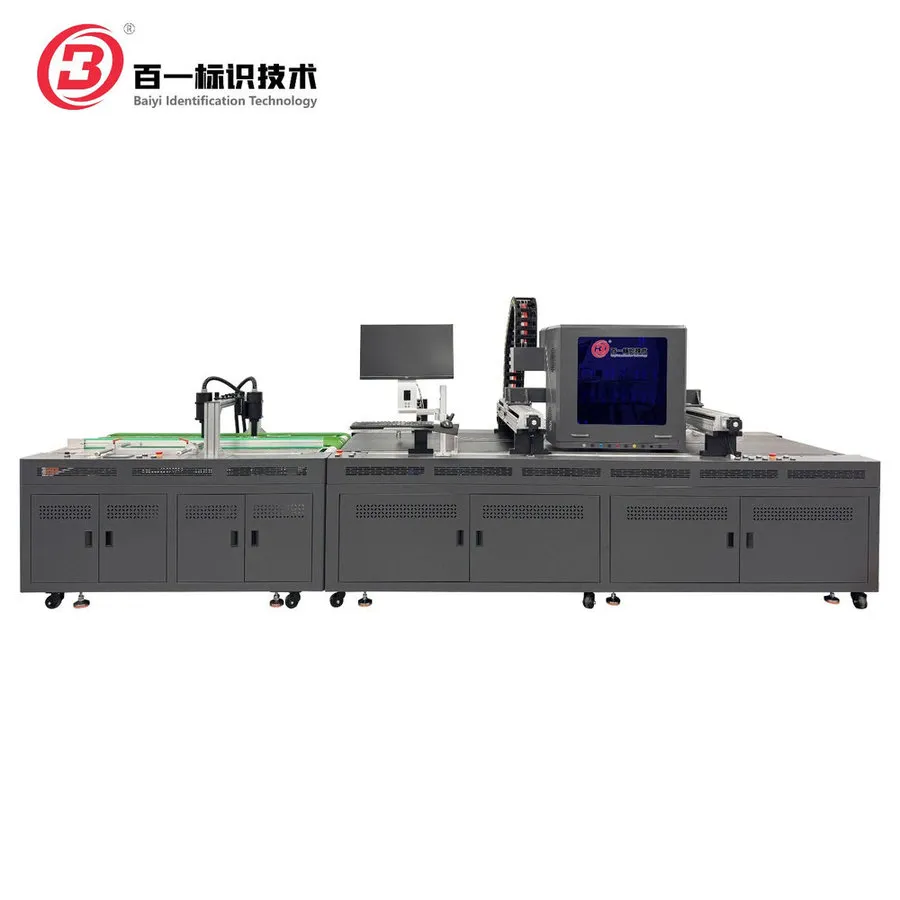

OEM Customized by-Hf02-800c-UV Cylinder Digital Bag Printing Machine for Coated Papers

ℹ️

Basic Information

Model NO.	BY-HF02-800C-UV	Structure	Digital Printing
Color & Page	Multi-Colour Printing Press	Usage	Paper, Label, Card, Cloths Printer
Automatic Grade	Automatic	Material	Painted Carbon Steel
Feature	Stable, High Speed, Easy Operation	OEM/ODM	Yes / Yes

⚙️

Product Description

HIGH-PRECISION UV DIGITAL PRINTING SYSTEM

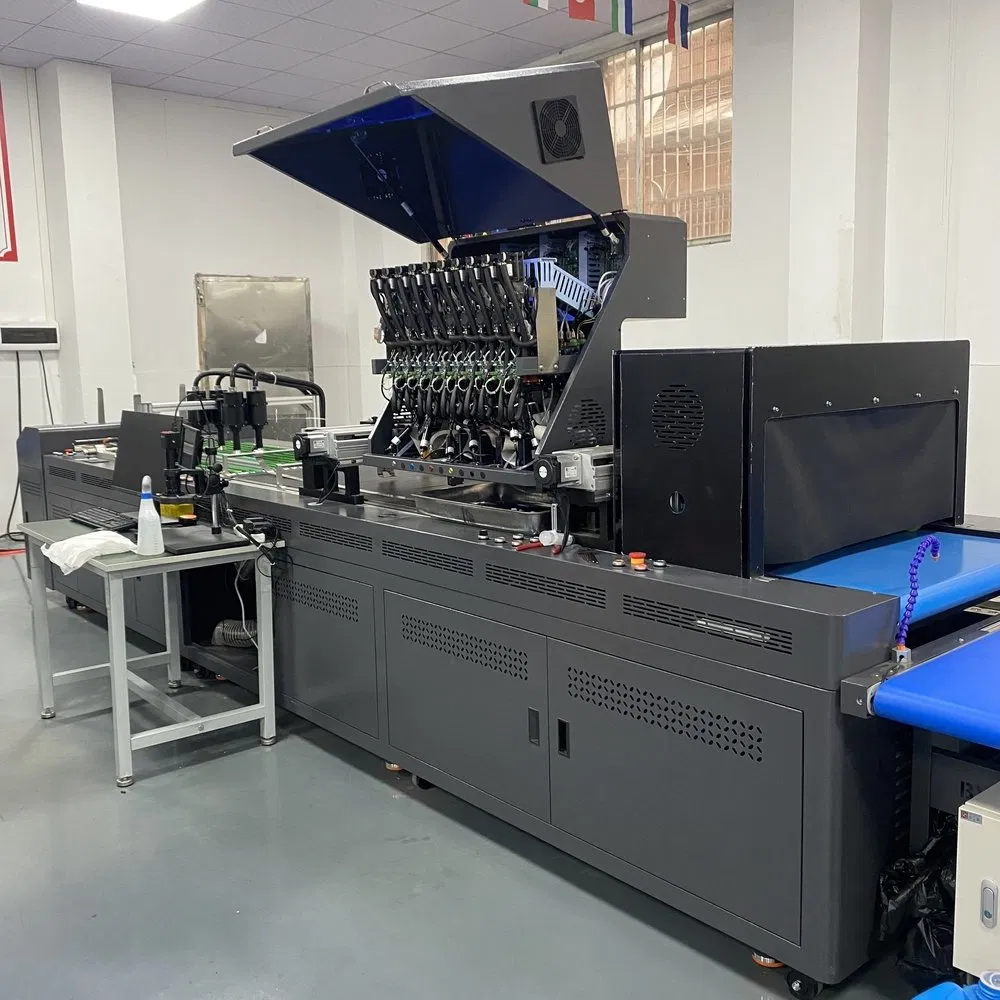

This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.

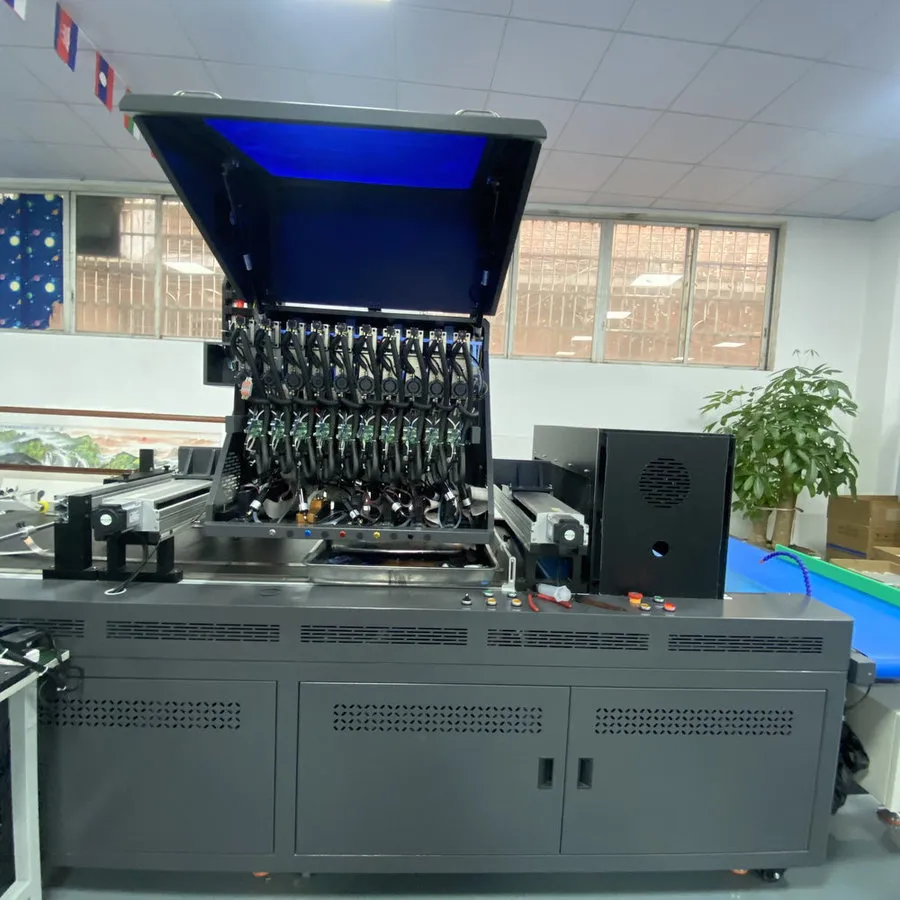

Featuring professional-grade Seiko 1536 printing heads with exceptional 20mm working height capacity, this customized digital printing system delivers outstanding white plus CMYK color printing with 210mm printing width coverage.

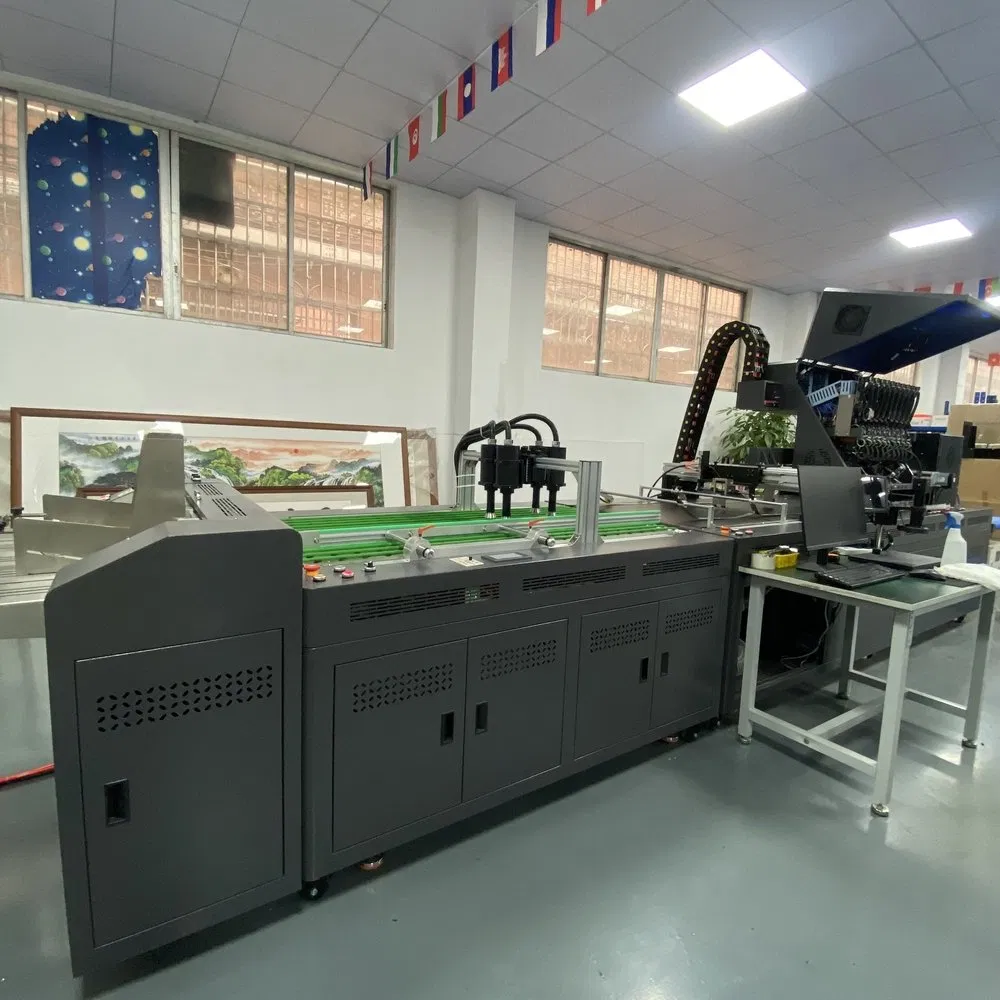

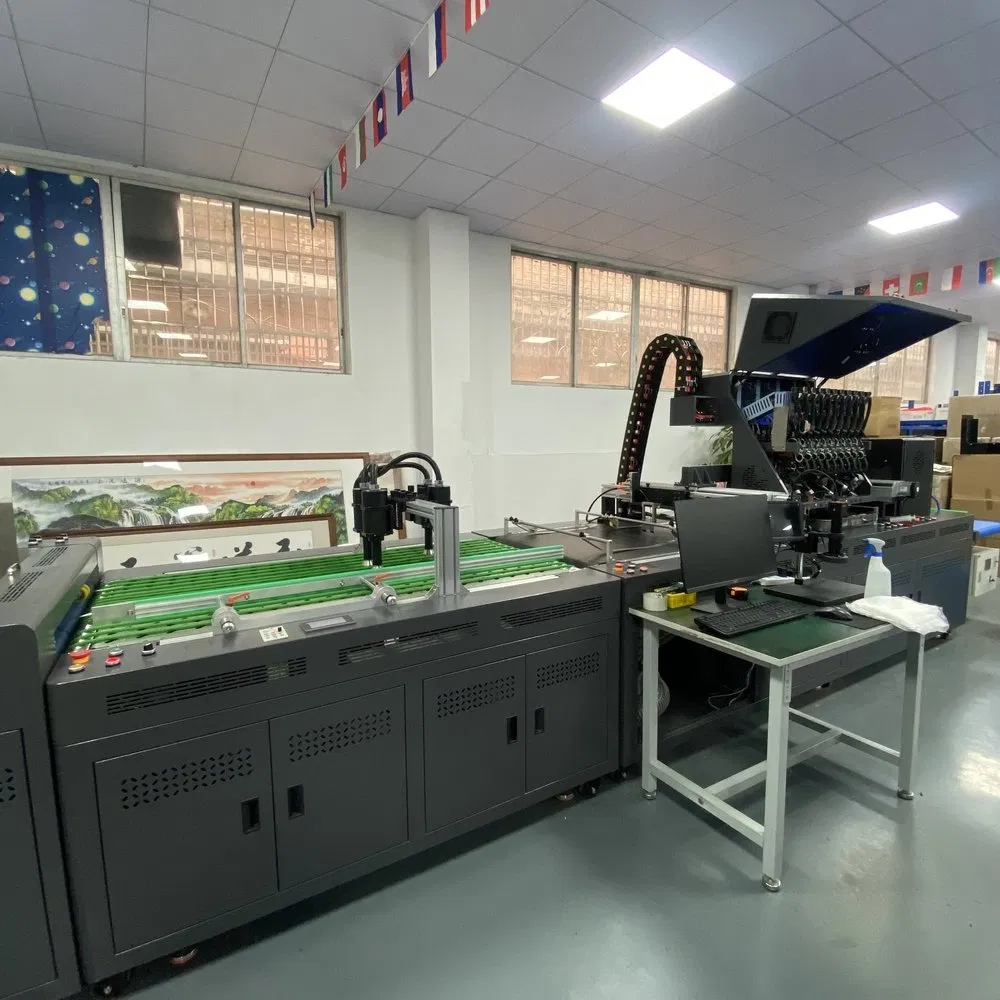

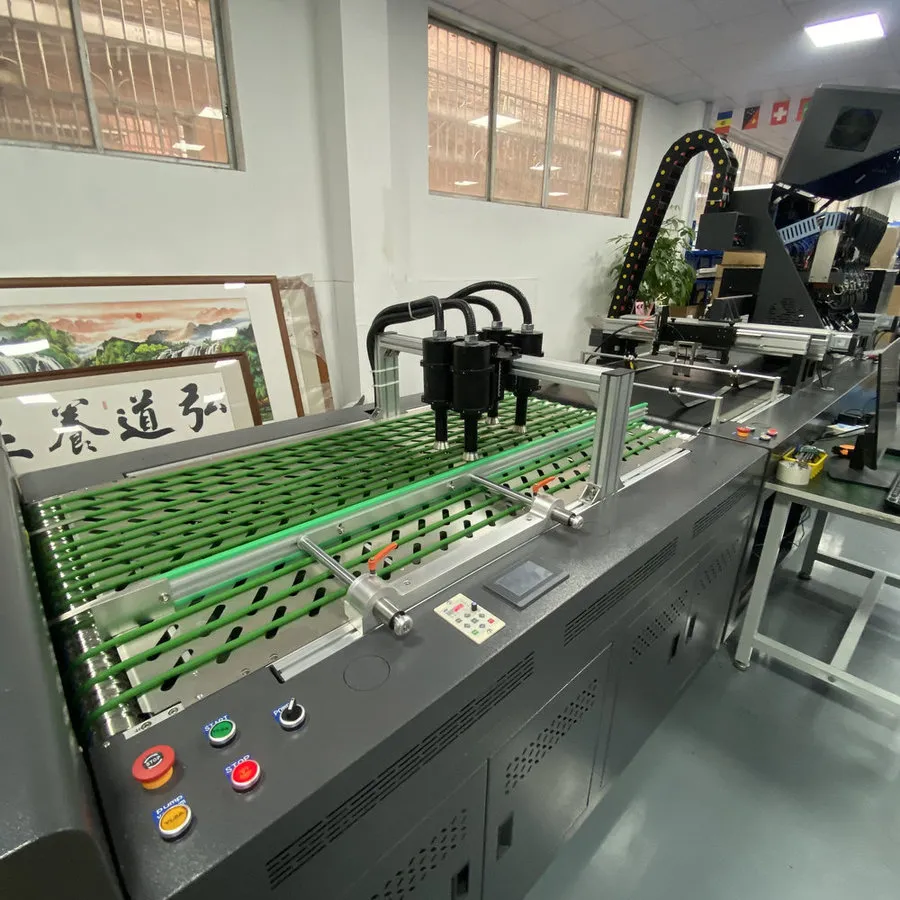

The integrated automated workflow combines auto-feeding technology, intelligent rectification device, plasma surface treatment, dual-stage UV curing system, and auto-collection conveyor to ensure consistent high-quality results.

🎯

Industrial Applications

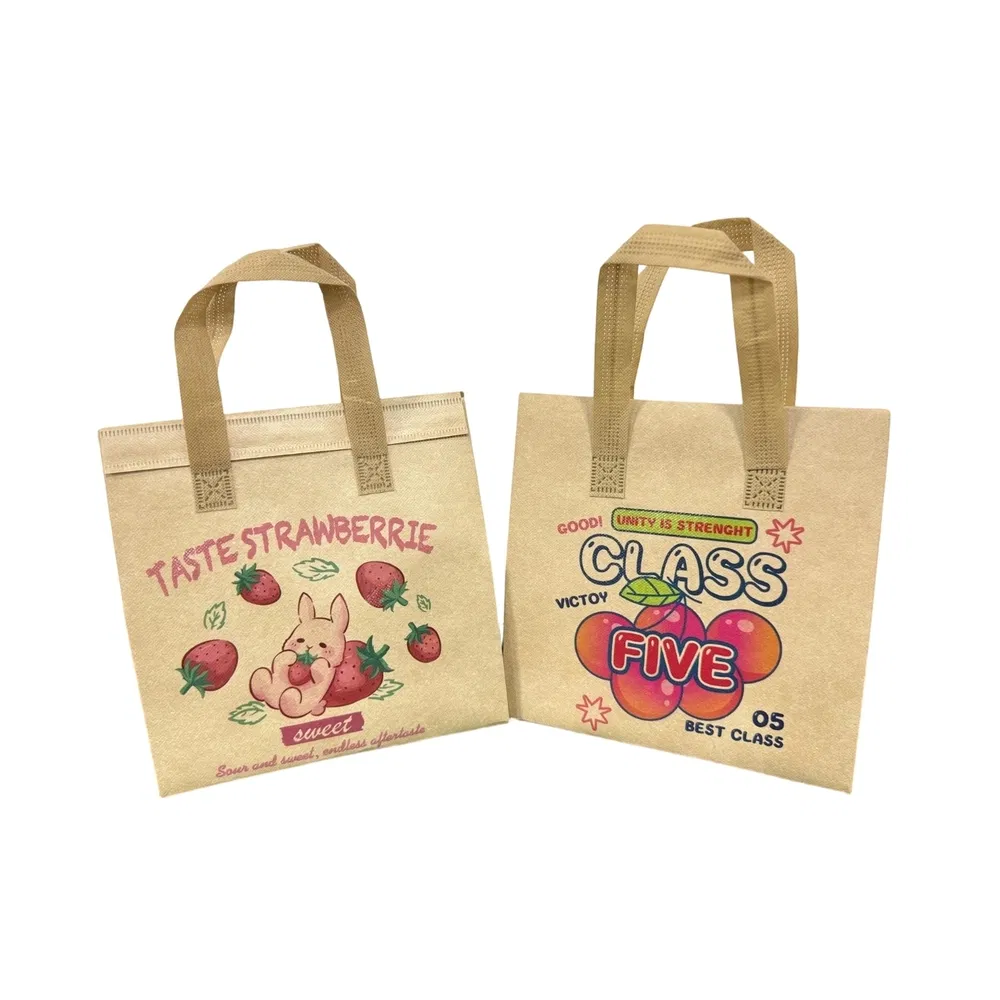

Non-Woven Bag Printing: Coated shopping bags, promotional tote bags, and reusable bags.
Packaging Materials: Coated paper bags, cardboard packaging, and paper boxes.
Plastic Products: Lunch boxes, food containers, film substrates, and PVC materials.
Wooden Products: Decorative wooden crafts, panels, and bamboo products.
Metal Surfaces: Metal sheets, aluminum products, and tin containers.

📊

Technical Parameters

Core Specifications
Printing Head	Seiko 1536 (10 Pcs)
Printing Color	White + CMYK (One Head One Color)
Printing Width	216 MM
Resolution	360 DPI
Printing Speed	15 M/Min
Voltage / Power	380VAC, 50/60HZ / Approx 10Kw
Available Size	60-600 * 50-750 * 0.05-5mm

📸

Detailed Features

❓

Frequently Asked Questions

How is the pricing determined?

The price is directly related to the specific machine configuration required to meet your production needs.

What is the Minimum Order Quantity (MOQ)?

The minimum order quantity for this industrial digital printing system is 1 set.

What is the average lead time for delivery?

Lead time depends on your specific selection and configuration, typically ranging from 2 to 30 working days.

What payment methods are accepted?

We currently accept TT (Telegraphic Transfer). A 50% payment is required upon order confirmation, with the balance settled before shipment.

What is the warranty period for the machine?

Generally, the machine comes with a one-year warranty after delivery, though wearable parts are excluded.

Is the product packaging safe for international export?

Yes, we utilize high-quality, reinforced export packaging. Specialized packing is used for industrial components to ensure secure delivery.
