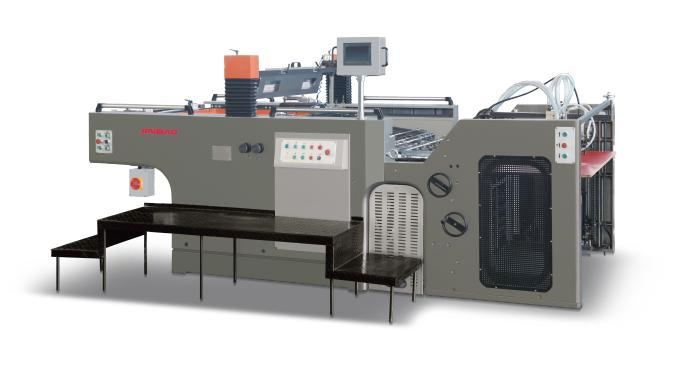

Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
1 / 5
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine
Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine

Jinbao Stop Cylinder Screen Printing Machine Rotary Silk Screen Printing Machine

Customization: Available
Type: Screen Printing
Plate: Screen Printing
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JB-1020A
Structure
Flat-Bed Cylinder Press
Color & Page
Single-Colour Printing Press
Model Size
1020X720mm
Usage
Paper, Label, Cloths Printer
Automatic Grade
Automatic
Printing Speed
3000PCS/H
System Support
3p 380V 50Hz 14.64kw
Weight
5500kg
HS Code
8443192900
Production Cap.
200sets/Year
📊 Product Description

Bottle Screen Printing Machine Silk Screen Printing Machine

The Series full automatic stop cylinder screen press adopts classical stop cylinder technology. It offers significant advantages such as precise and steady paper positioning, high precision, high speed, and low noise. With a high degree of automation, it is ideally suited for printing on ceramic and glass applique, electronic components (film switches, flexible circuitry, meter panels, mobile phones), packaging, branding, textile transfers, and other specialized technical applications.

⚙ Technical Parameters
Model JB-720A JB-800A JB-1020A
Max. paper dimension 720X520mm 800X610mm 1020X720mm
Min. paper dimension 350X270mm 350X270mm 560X350mm
Max. printing dimension 720X500mm 800X600mm 1020X710mm
Paper thickness 108-400g 108-400g 120-400g
Border ≤ 10mm ≤ 10mm ≤ 10mm
Max. printing speed 1000-3600pcs/h 1000-3300pcs/h 1000-3000pcs/h
Power 3p 380v 50Hz 8.89KW 3p 380v 50Hz 8.89KW 3p 380v 50Hz 14.64KW
Weight (approx) 3500kg 4000kg 5000kg
📷 Detailed Product Display

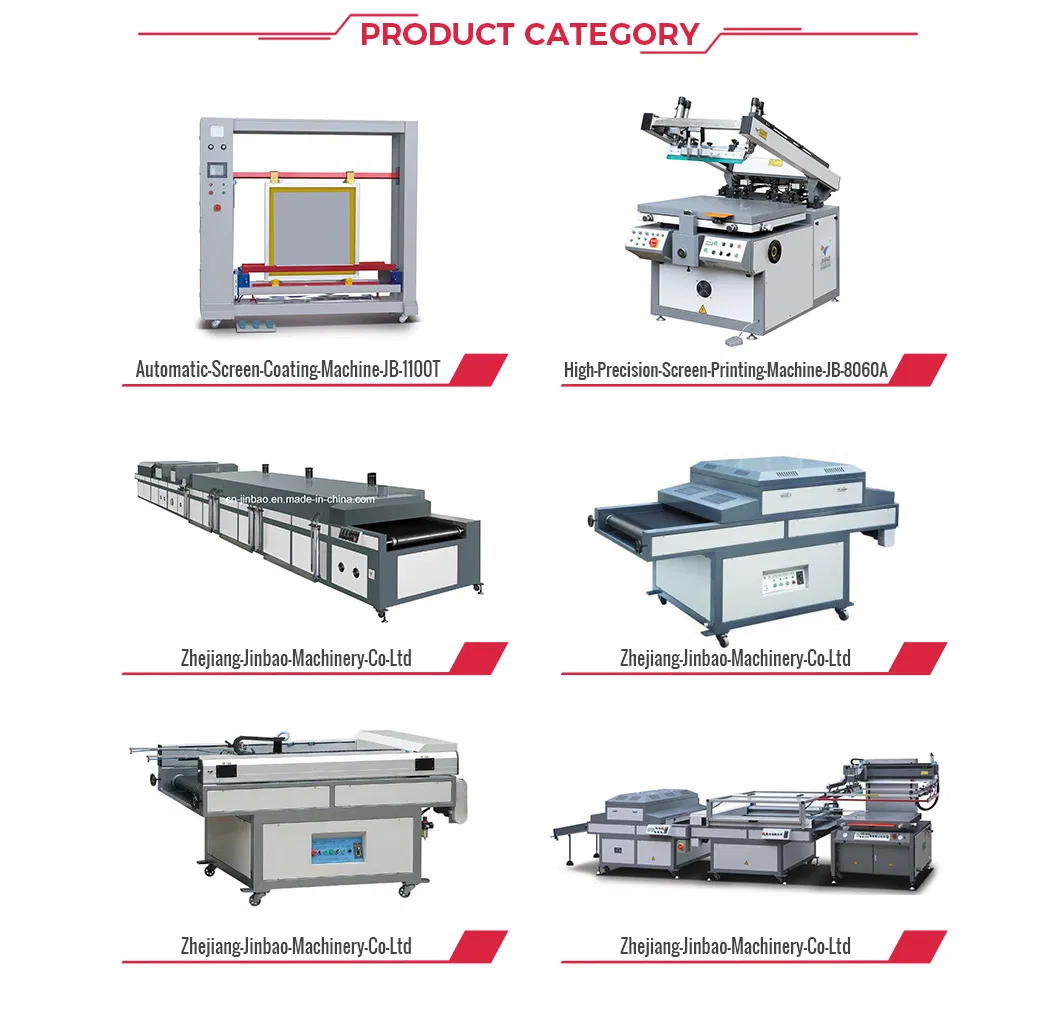

Screen Printing Machine Detail 1

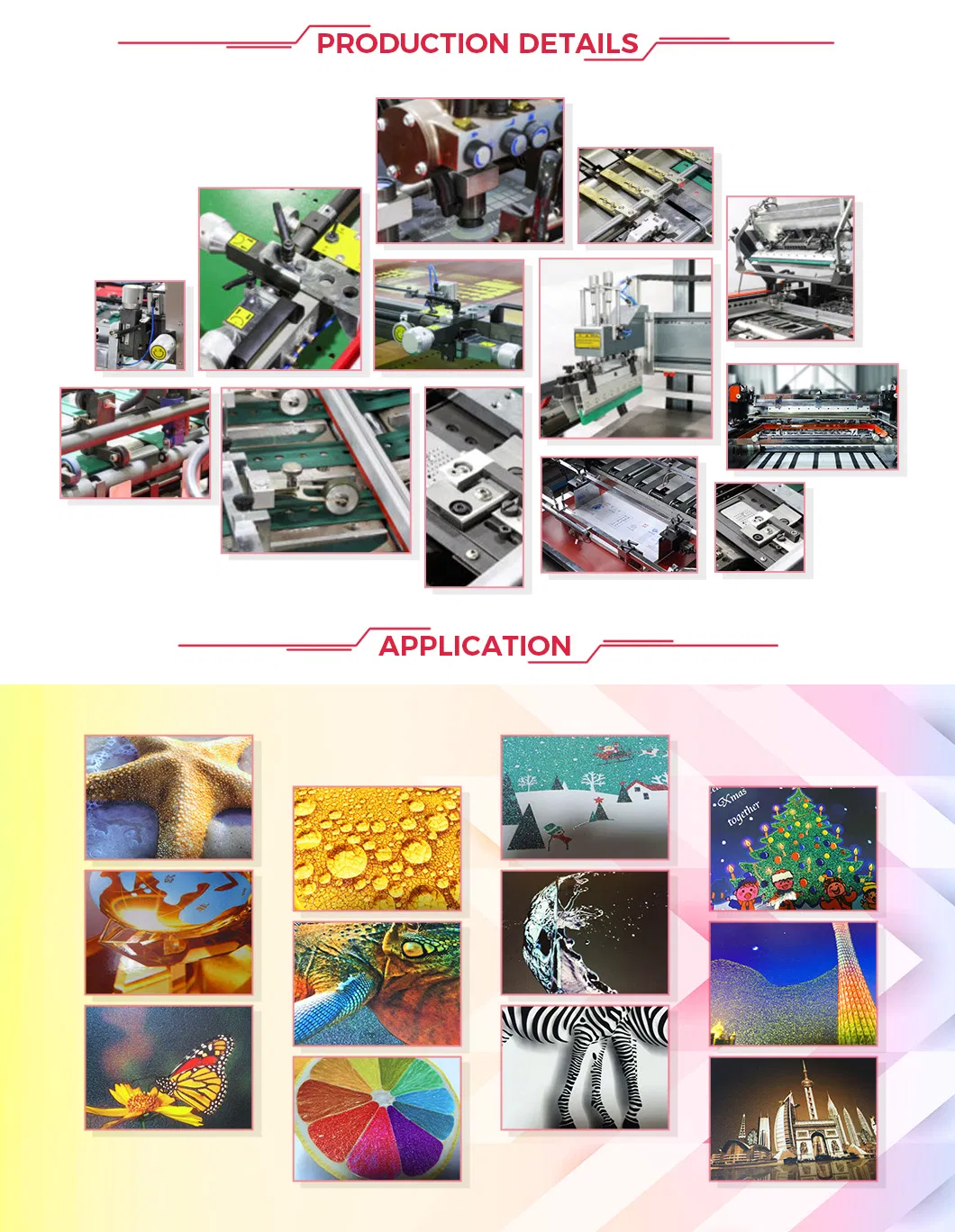

Screen Printing Machine Detail 2
🏭 Production & Certification
Manufacturing Facility
Quality Certifications
❓ Frequently Asked Questions
What is the advantage of Stop Cylinder technology?
It ensures that the substrate is positioned exactly and steadily, allowing for high-precision printing at high speeds with minimal noise.
What materials are suitable for this screen press?
It is ideal for paper, labels, cloth, ceramic and glass appliques, and electronic components like flexible circuitry and membrane switches.
What is the maximum printing speed of the JB-1020A?
The JB-1020A model can reach a maximum printing speed of up to 3000 pieces per hour.
Does the machine support automatic operation?
Yes, the Series is a full automatic grade system designed for high efficiency and minimal manual intervention.
What power supply is required for operation?
The standard power requirement is a 3-phase 380V 50Hz system.
Can it handle different paper thicknesses?
Yes, depending on the model, it can handle substrate thicknesses ranging from 108g to 400g.
