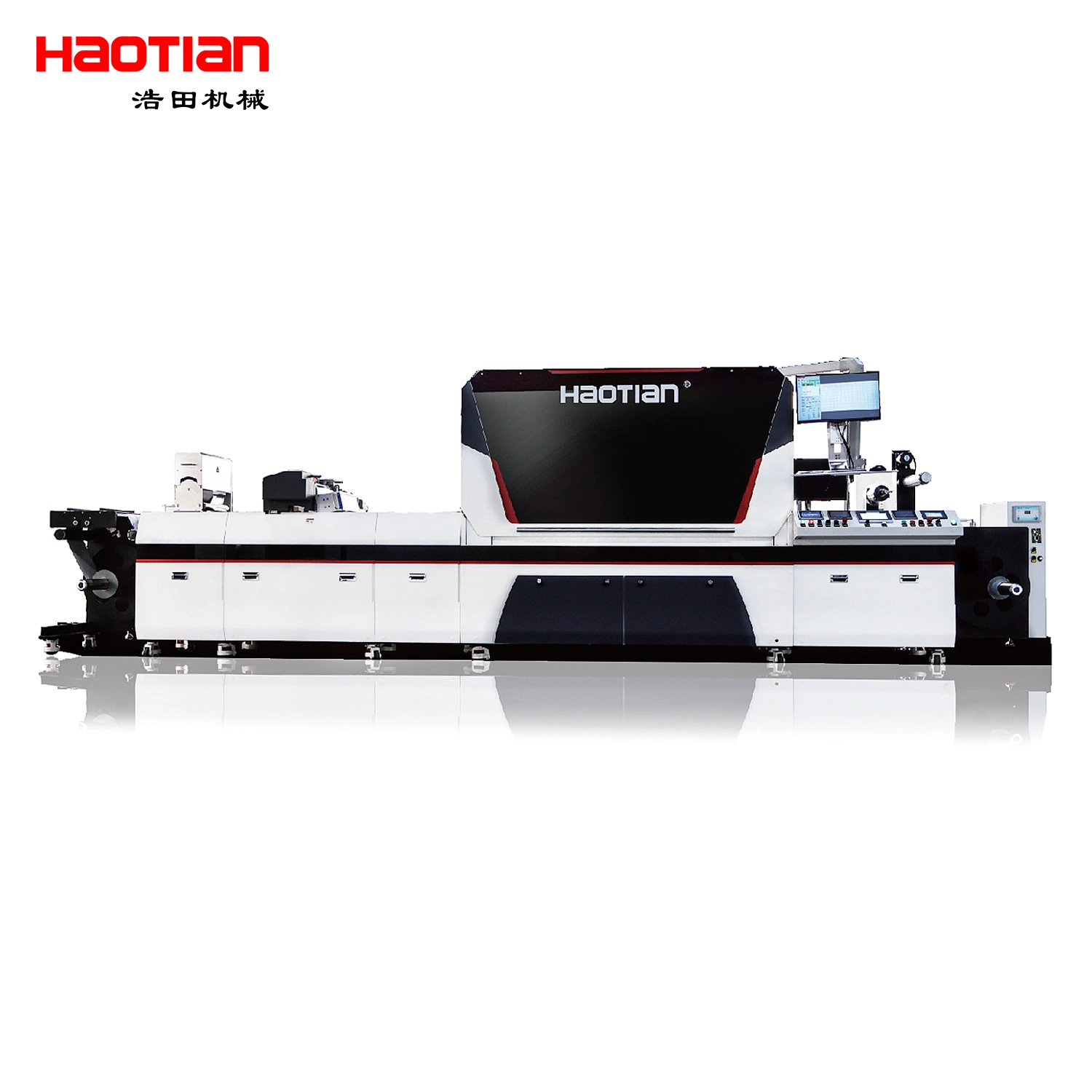

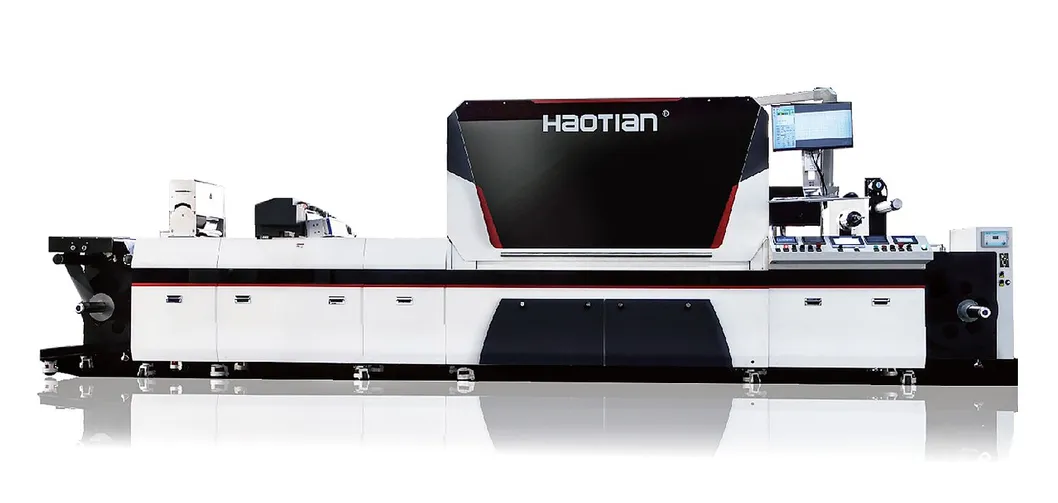

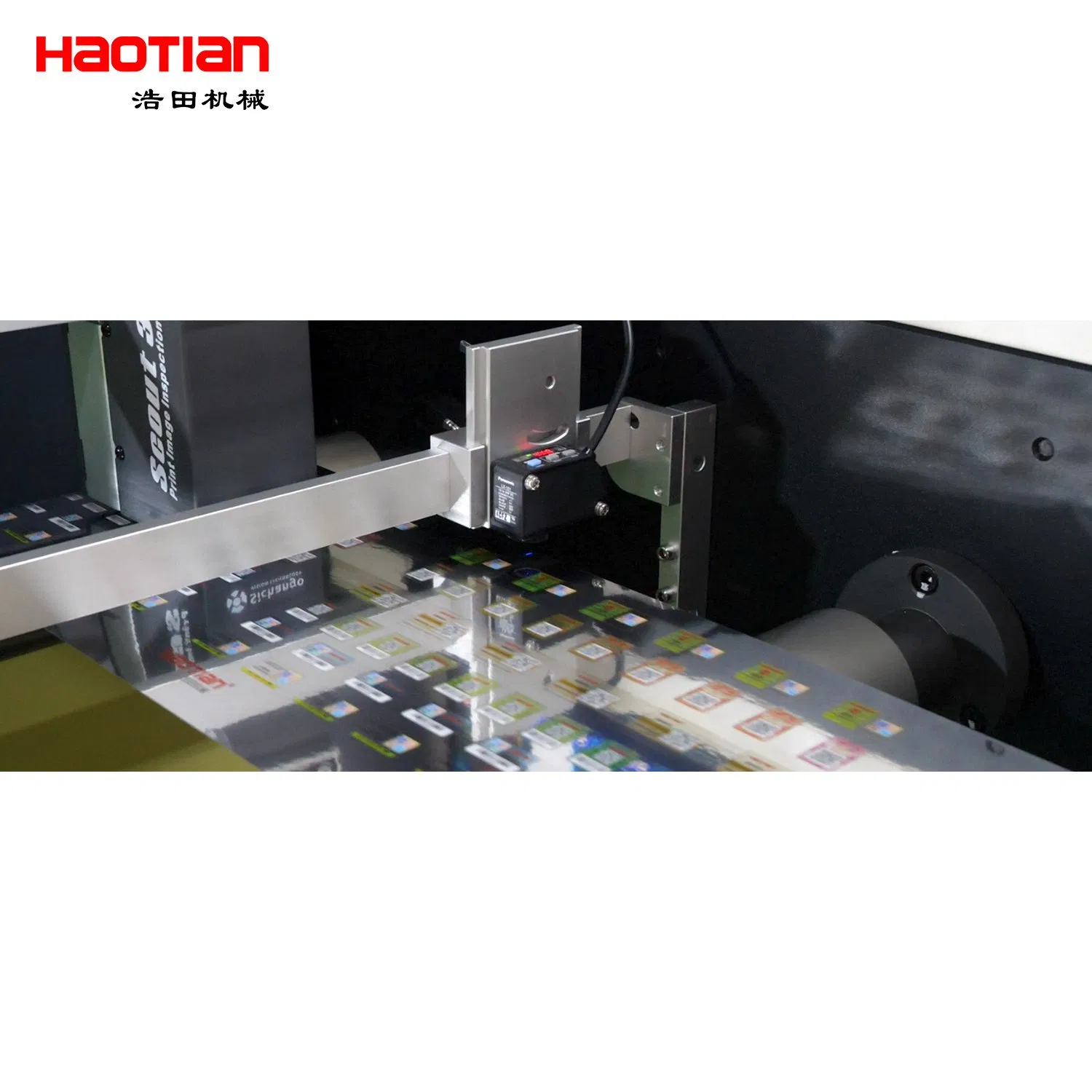

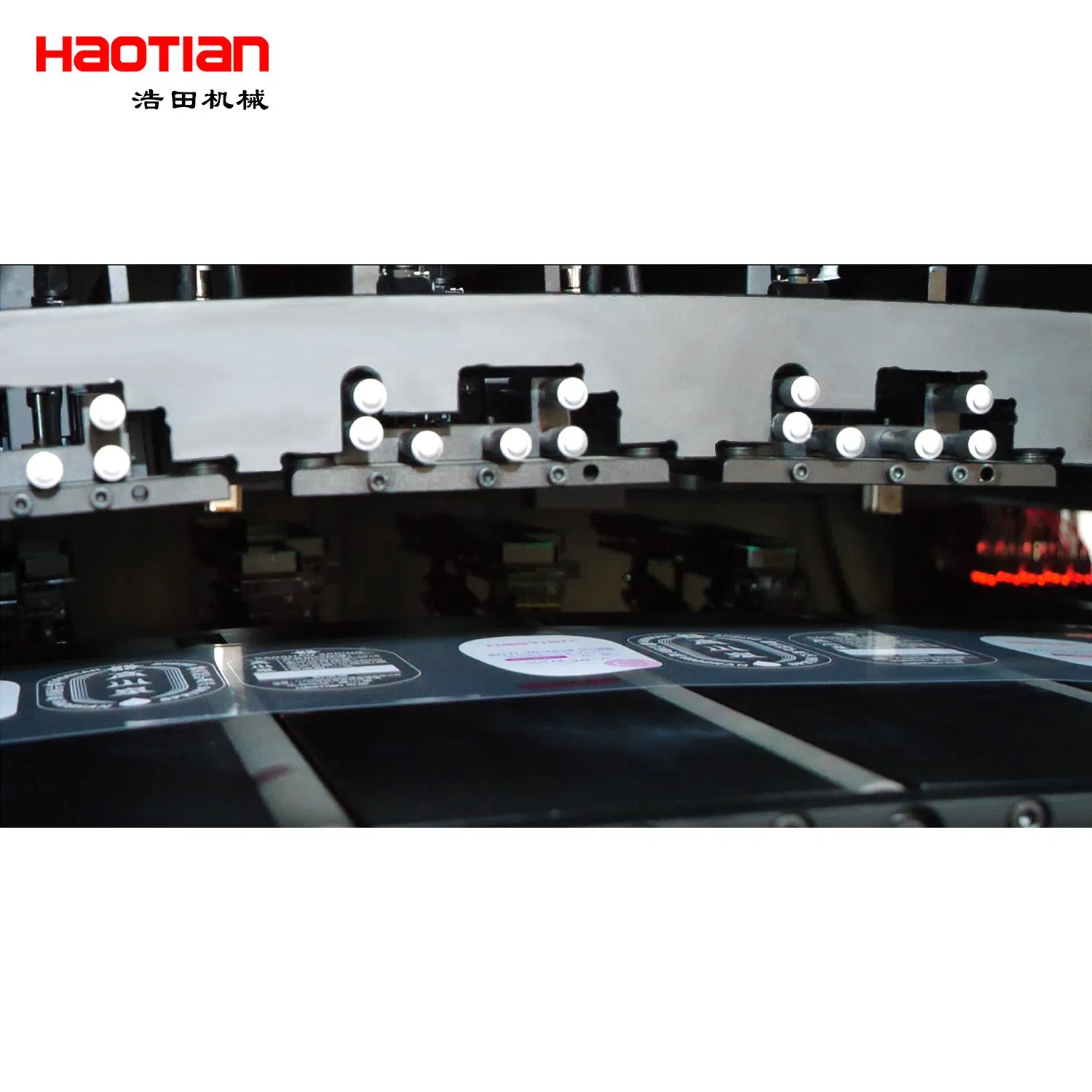

Fusion Digital Print
1 / 5
| Model NO. | HGP-220/330-4~9C | Printing Color | Nine Colors |
| Applicable Materials | Semigloss, Film, Universal Label Roll PAC | Paper Feed Width | 250mm/350mm(Maximum) |
| Actual Printing Width | 216mm/324mm(Maximum) | Production Capacity | 50m/Min |
| Transport Package | Packing in Non-Air Wooden Case | Specification | Approximately 4.2 tons |
| HS Code | 8443322190 | Package Size | 685.00cm * 185.00cm * 200.00cm |
| Printing technology | Single pass UV inkjet technology, DOD industrial grade nozzle | Input air source | 0.6~0.8mp |
| Resolving power | DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi | Input power supply | Three phase 380VAC 20/60Hz 10kw |
| Printing speed | 50m/min (Maximum) | Accept file format | PDF / JPEG / TIFF |
| Material type | Coated or uncoated paper, transparent or non transparent media, etc | Thickness of substrate | 0.01-0.8mm roll packaging material |
| Drying method | Nine sets of LEDs + one set of UV lamps with water-cooled rollers to prevent material deformation (PVC, PET, aluminum foil). | ||
| Ink Type | LED cured UV ink | Operating Temp | 26~28°C |
1. Ideal for diversified large and small batch products with short turnover times.
2. Zero adjustment time for order replacement, doubling production capacity compared to traditional equipment.
3. Exclusive RIP color separation software with user-defined ICC for exquisite printing quality.
4. Automated nozzle cleaning and integrated one-click test functions.
