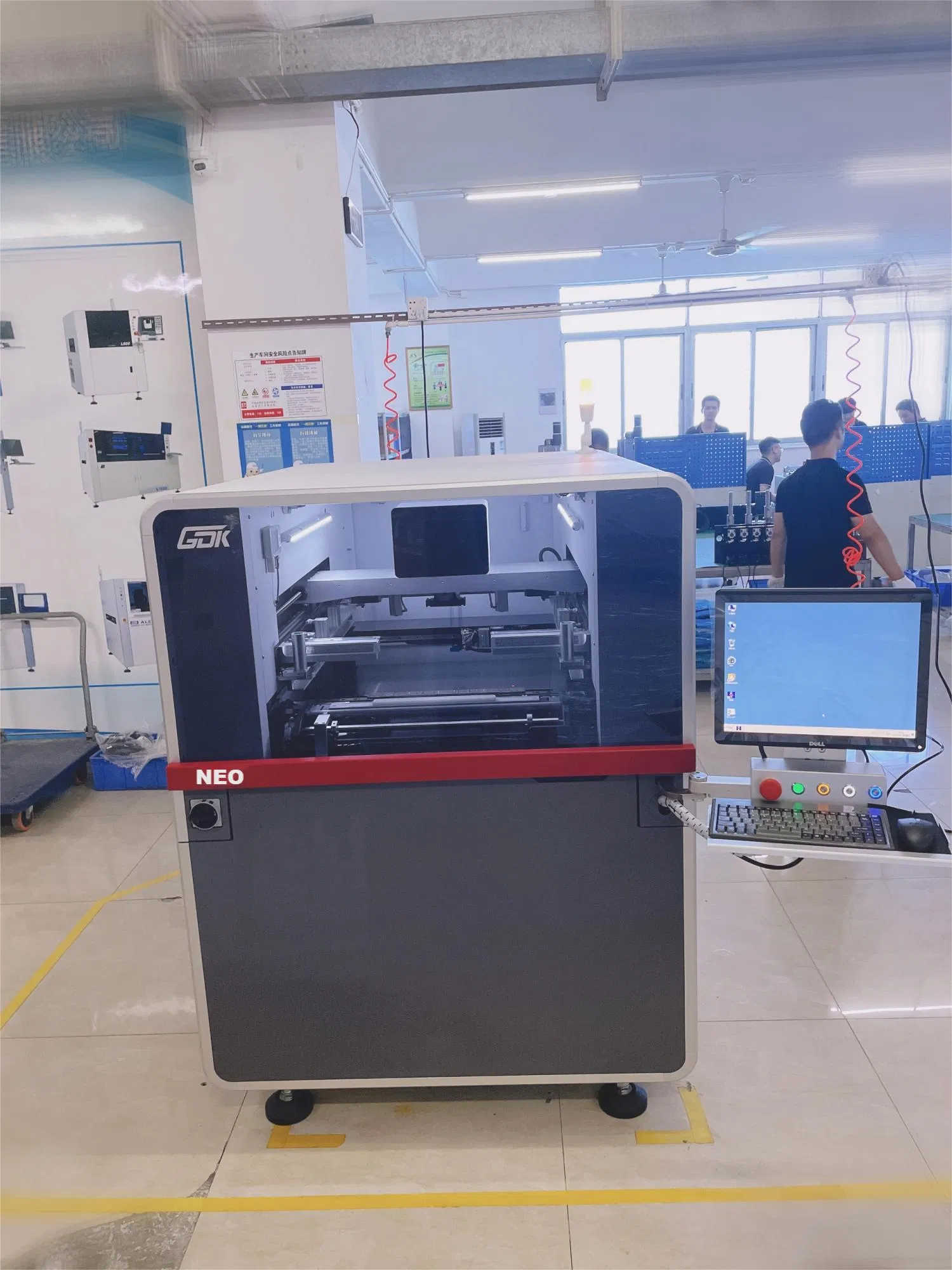

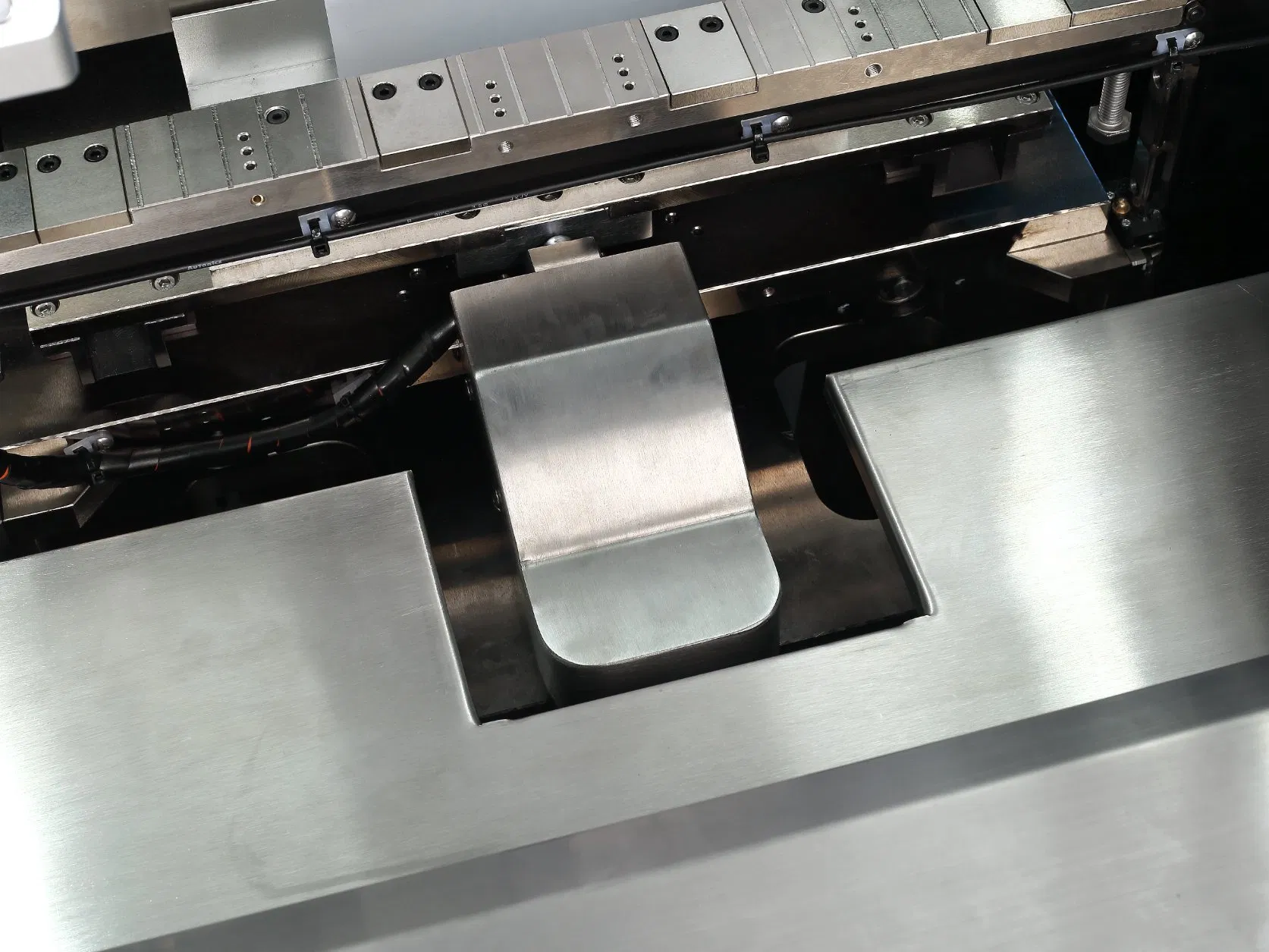

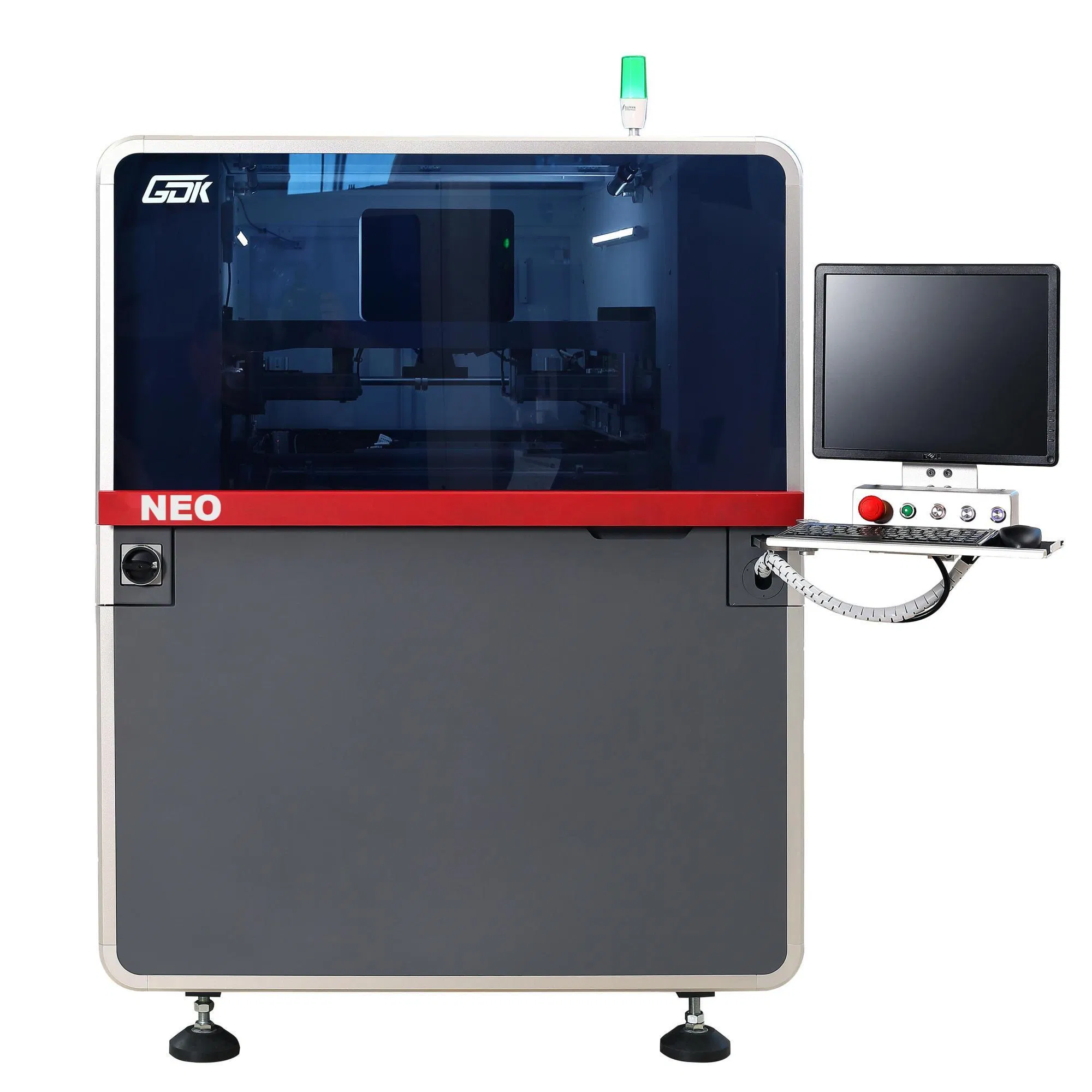

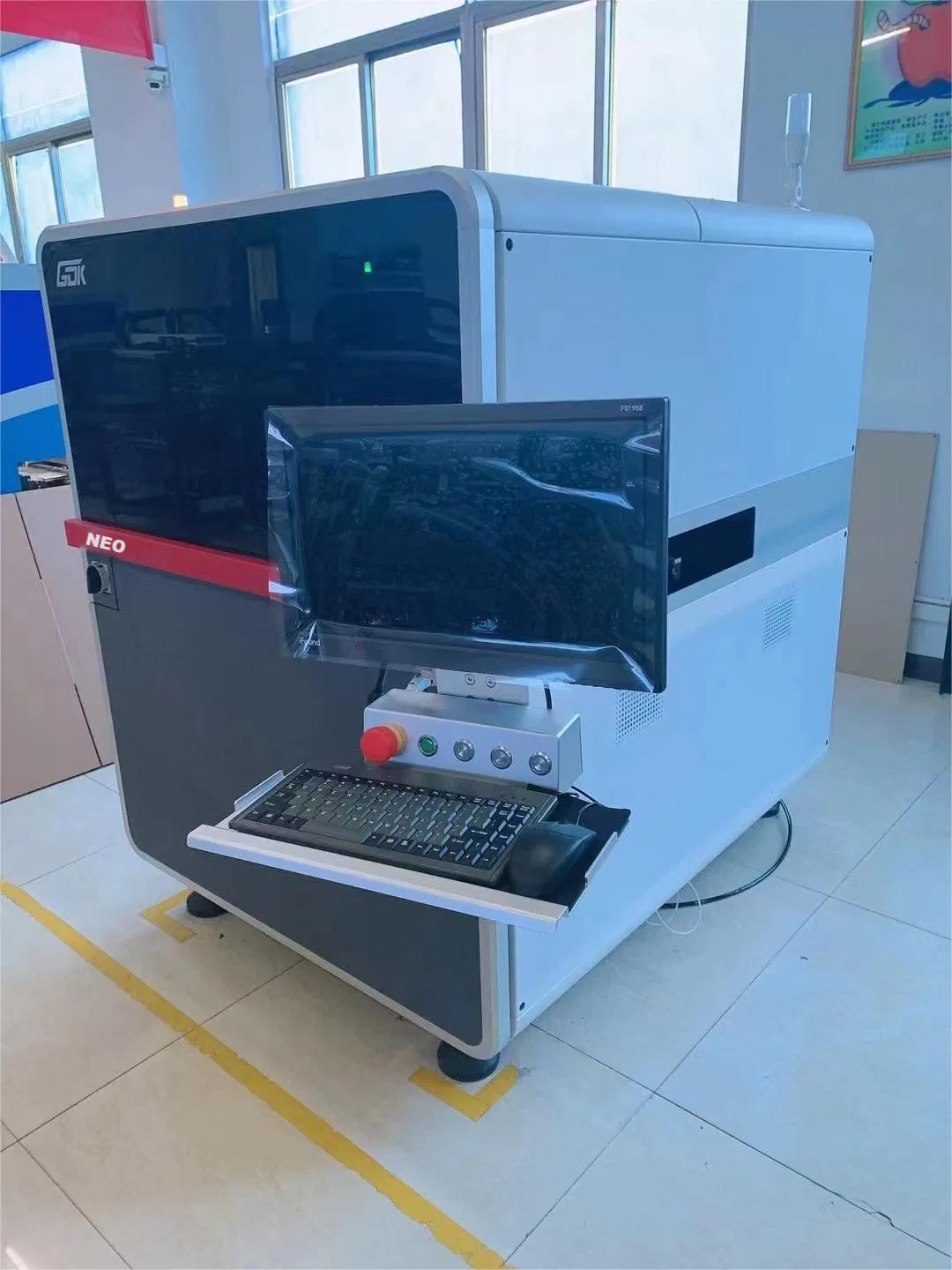

NEO automatic solder paste printer is a product aimed at the high-end application of SMT, especially for precision boards of 01005 or below, it has better molding and soldering volume. It can be placed back to back or used by a single machine. Printing range is 650mmx610mm. Equipped with CE Certificate, Award Certificate, and Software Work Certificate.
| PCB Board Handling Parameters | |
|---|---|
| Max. board size (X x Y) | 650mm x 610mm |
| Min. board size (X x Y) | 50mm x 50mm |
| PCB thickness Range | 0.4mm~6mm |
| PCB Warpage | ≤1% Diagonal |
| Conveyor speed (Max.) | 1500mm/s |
| Conveyor direction | L-R, R-L, L-L, R-R |
| Transfer mode | One stage orbit |
| Printing Parameters | |
| Stencil frame size | 470mm x 200mm ~ 800 mm x 800 mm |
| Squeegee Material / Angle | Steel/Rubber (45°/50°/60°) |
| Print speed | 0 ~ 200 mm/s |
| Print pressure | 0.5kg - 20Kg |

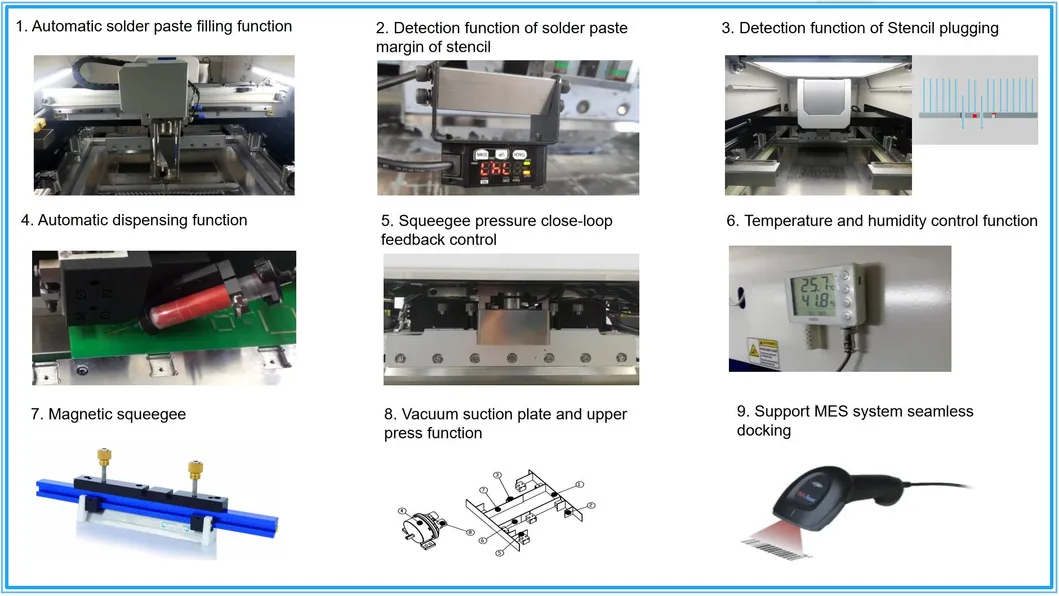

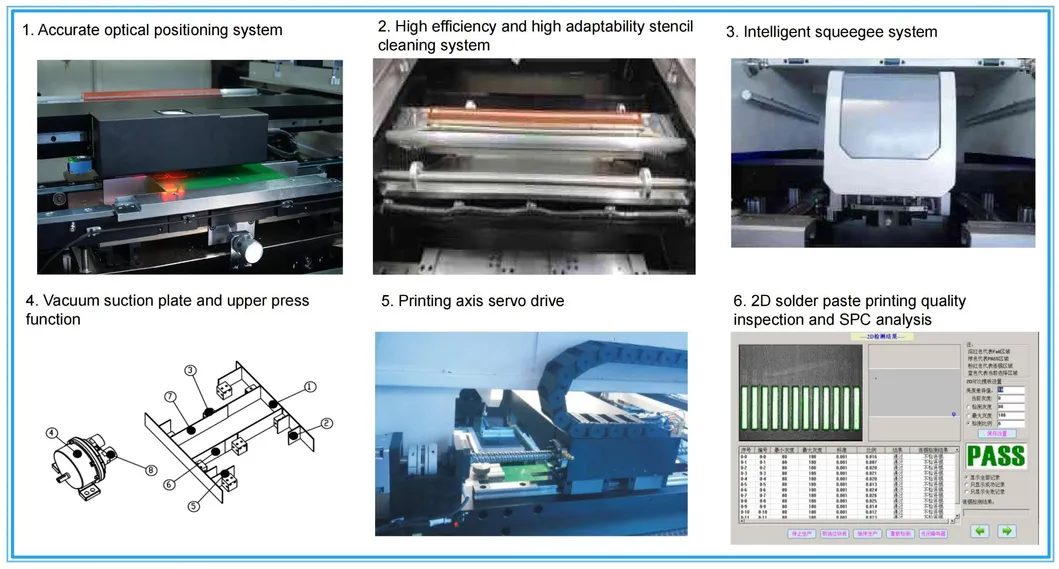

| Cleaning system | Programmable fluid injection; Dry, wet and vacuum modes |
