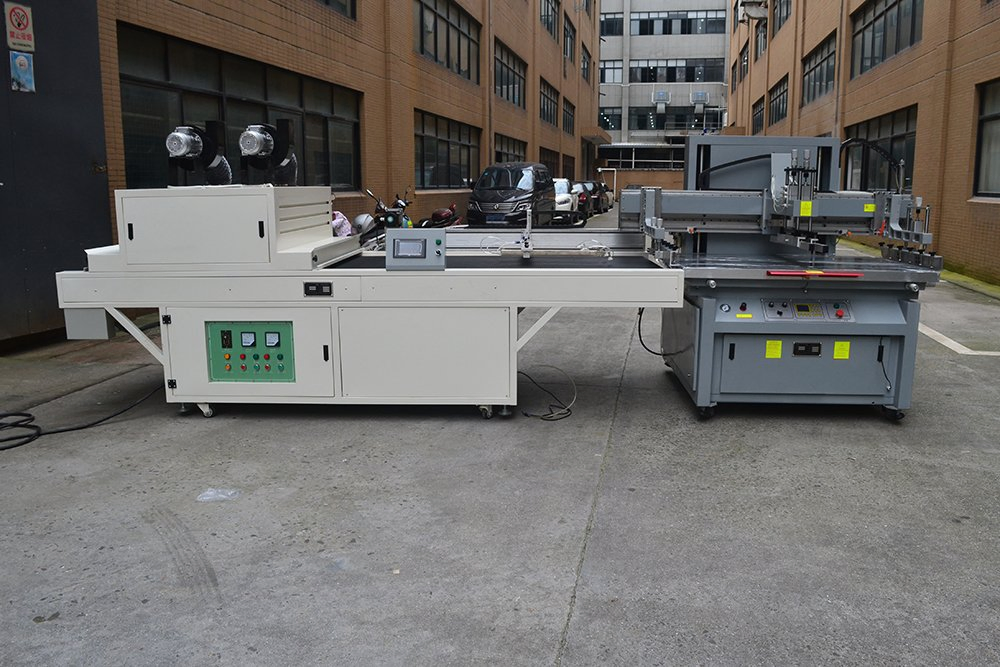

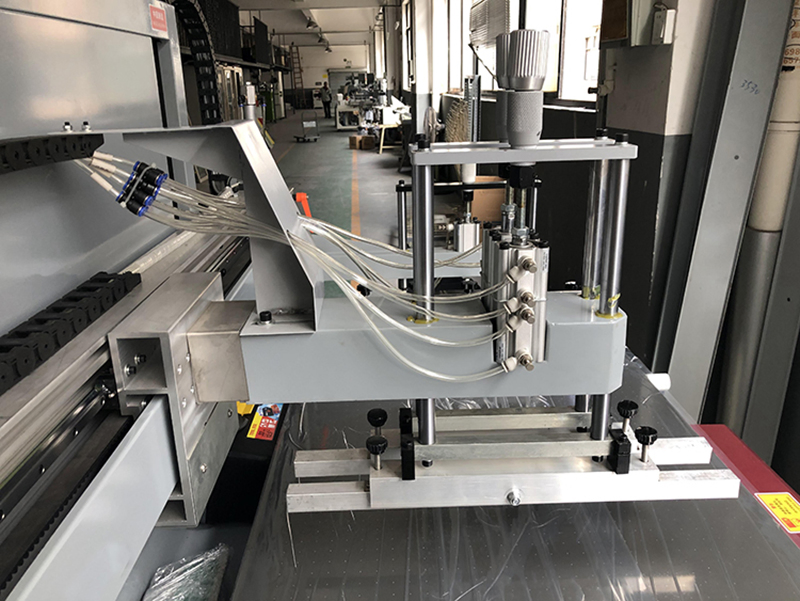

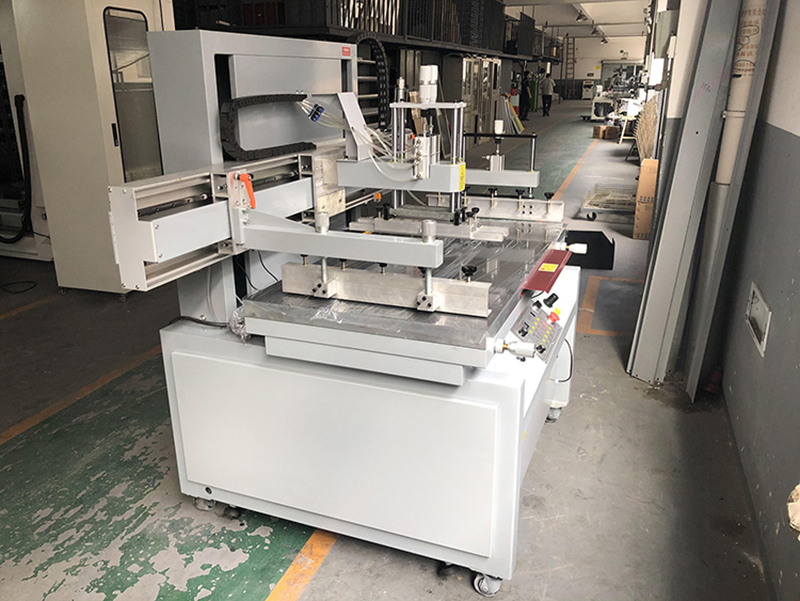

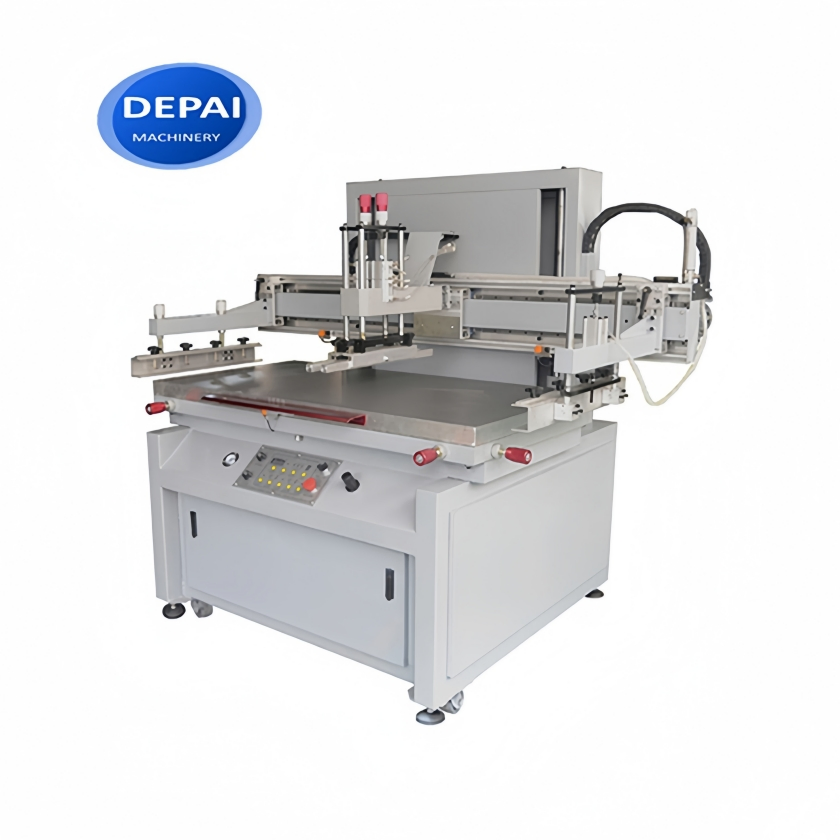

4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
1 / 5
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment
4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment

4060 5080 60100 Flat Bed Paper Label PCB Heat Transfer Vertical Silk Screen Printing Machine Label Printing Machine Screen Printing Equipment

Customization: Available
After-sales Service: 1 Year Warranty
Warranty: 1 Year Warranty
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
DP-SPE4060
Type
Vertical Screen Printing Machine
Structure
Flat-bed cylinder press
Color & Page
Multi-Colour Printing Press
Application
Advertising & Electronic Printing
Max Printing Size
400*600mm
Voltage
220V/380V
Origin
China
📦

Packaging & Delivery

Package Size
630.00cm * 180.00cm * 220.00cm
Gross Weight
500.000kg
Transport Package
Standard Wooden Box

Flat Bed Vertical Silk Screen Printing Equipment

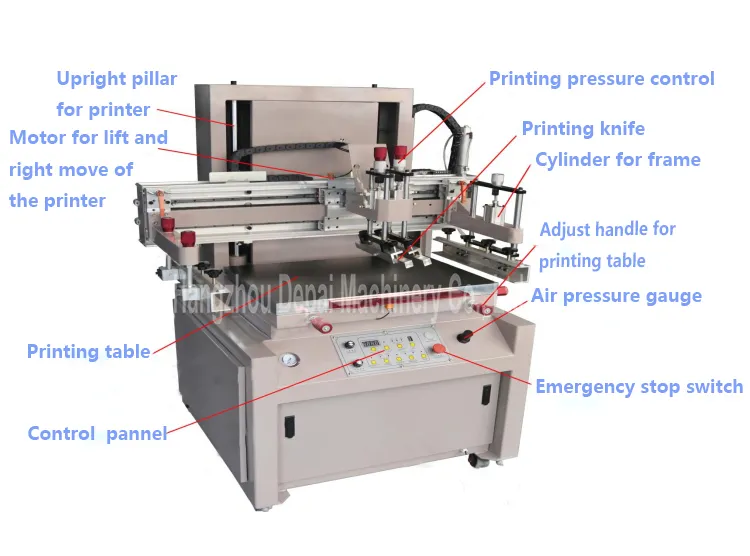

Vertical Silk Screen Printing Machine
🎯

Key Applications

Applied for flat printing of various materials including glass, CDs, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles, and electronics industry products like PCB, SMT solder paste, and membrane switches. It is also suitable for gold and silver cardboard, metal sheets, PVC, and other base materials requiring high overprint accuracy.

🌟

Machine Features

  • Vertical structure with frequency conversion electric lifting for the screen.
  • Printing head movement driven by frequency conversion electric drive.
  • Single-chip microcomputer control circuit with independent driving sources.
  • Pneumatic control for printing carriage lifting with photoelectric stroke adjustment.
  • Manual, Semi-automatic, and Full-automatic operation modes available.
  • Independently designed head lifting device for easy cleaning and screen loading.
  • Double guide posts for net clamp arms with simultaneous plate distance adjustment.
📊

Technical Parameters

Model Max Printing Area (mm) Printing Table Size (mm) Max Screen Frame Size (mm)
DP-SPE3050300*500400*600600*900
DP-SPE4060400*600500*700600*1000
DP-SPE5080500*800600*900700*1200
DP-SPE60100600*1000700*1000900*1400
DP-SPE70100700*1000800*12001000*1400
DP-SPE80120800*1200900*13001100*1600
DP-SPE90180900*18001000*20001200*2400
📸

Detailed Component Views

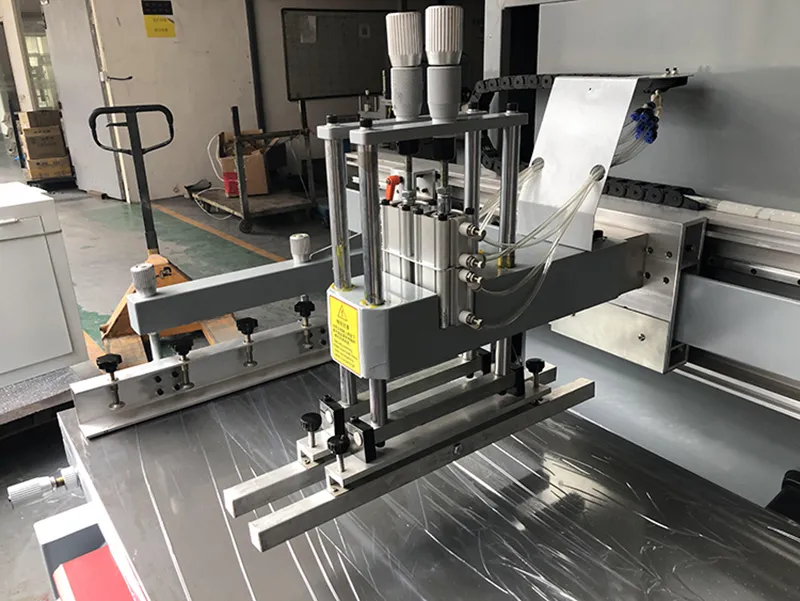

Detailed View 1

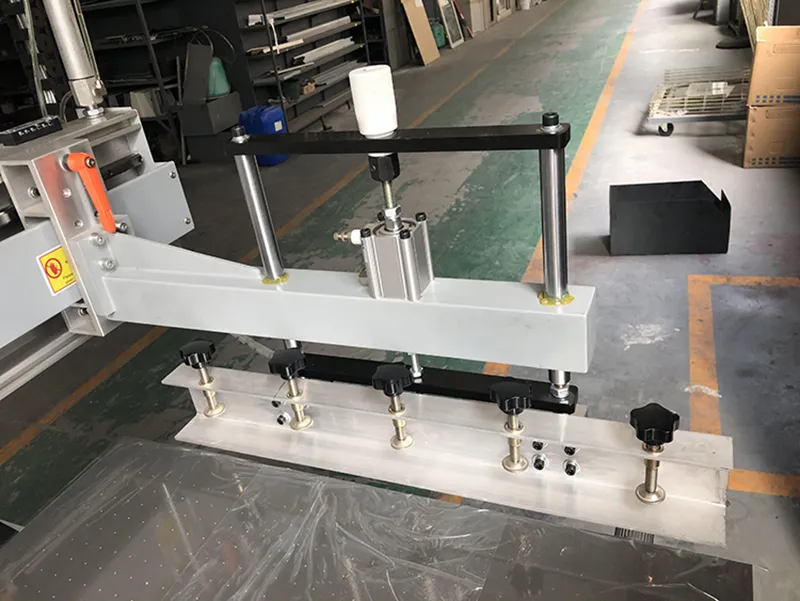

Ink Covering Blade

Ink Covering Blade & Scraper

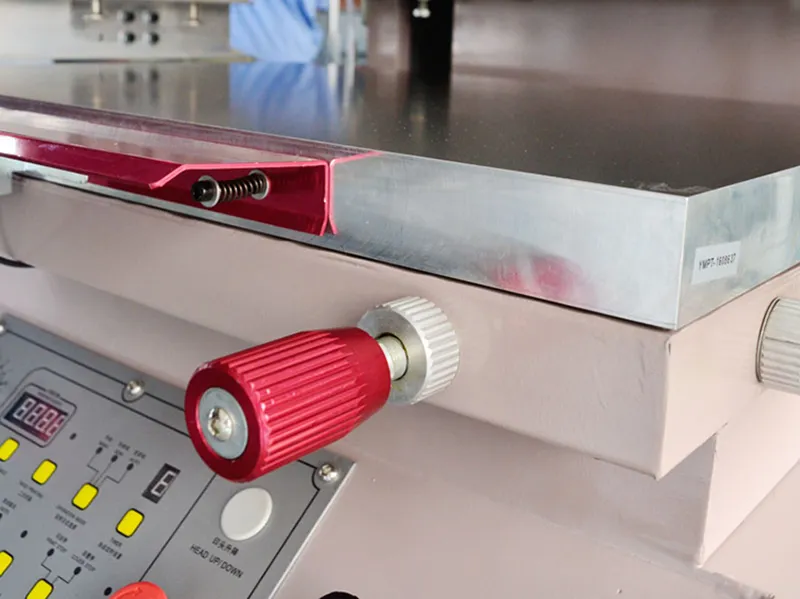

Screen Lifting Cylinder

Screen Lifting & Adjustment

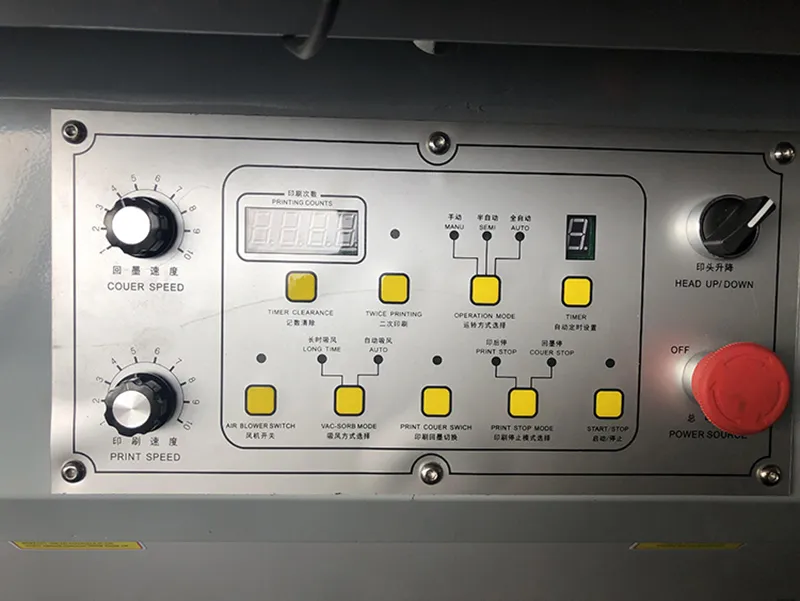

Control Panel

Advanced Control Panel

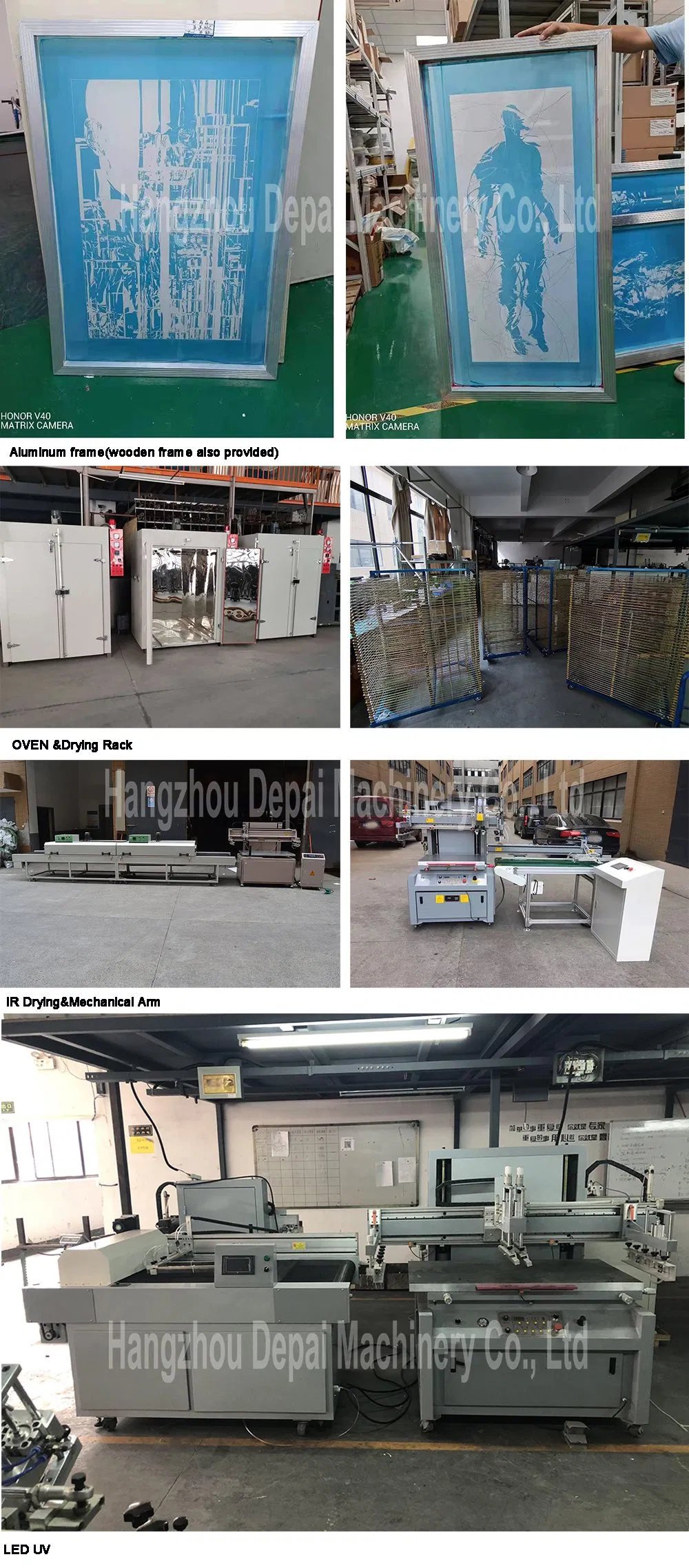

Optional Features

Optional Components

🖼️

Printing Samples

Printing Samples
🏭

Production Environment

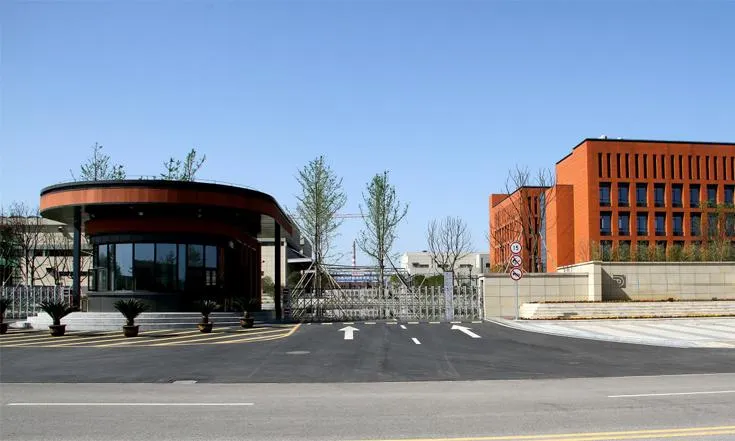

Workshop
Machine Assembly
Factory Overview
❓

Frequently Asked Questions

1. What materials can this vertical screen printing machine handle?
It is designed for flat printing on glass, CDs, stickers, PCBs, SMT solder paste, membrane switches, cardboard, and metal sheets.
2. Does the machine support automatic operation?
Yes, the machine features three distinct operation modes: manual, semi-automatic, and full-automatic to suit different production needs.
3. How is the printing accuracy maintained?
The machine uses frequency conversion electric drives, pneumatic control, and photoelectric sensors to ensure precise stroke control and high overprint accuracy.
4. What are the power requirements for installation?
The machine is compatible with both 220V and 380V power supplies, depending on the specific model and customer requirements.
5. What kind of packaging is used for international shipping?
All machines are securely packed in high-quality wooden boxes to prevent damage during long-distance transport.
6. Is there technical support available for machine debugging?
Yes, professional technical assistance is provided, including video call guidance and detailed operation manuals for setup and troubleshooting.
