Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
1 / 5
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine
Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine

Fully Automatic Registering UV Screen Printing Machine UV PCB PVC Printing Machine

Customization: Available
Type: Automatic Screen Printing Machine
Style: Screen-process Printing Press
Send Inquiry

Product Description

Basic Information
Model NO.
LTA-5060
Structure
Platen Press
Color & Page
Multi-Colour Printing Press
Application
Labels, Stickers, RFID, FPC, IMD, Iml, etc
Certification
CE and ISO9001:2008
Registration Accuracy
+/- 0.01mm
Max Printing Size
500x600mm
Warranty
One Year
Raw Material Types
PET, PVC, PE, PV, PP, PC, BOPP, Adhesive Stickers
Transport Package
Wooden Box
Specification
8200x1200x2000mm
HS Code
8443911900
Production Capacity
30 sets/Month
Fully Automatic Roll To Roll Screen Printing Machine

The Roll to Roll Screen Printing Machine is specifically engineered for high-precision printing on roll film materials such as PET, PVC, PE, PV, and PP film. This integrated production line consists of a specialized feeder, a precision printing unit, and a high-efficiency hot air dryer.

✓
High Level of Automation: The entire printing line can be operated by a single person, significantly reducing labor costs.
✓
Unmatched Accuracy: Features vacuum positioning and three photocell sensors for automatic registration, ensuring +/- 0.01mm overprint precision.
✓
Superior Productivity: Production capacity is equivalent to six sets of semi-automatic screen printing machines.

Primary Applications: Ideal for RFID tags, heat transfer labels, membrane switches, graphic overlays, IMD/IML components, FPC (Flexible Printed Circuits), ceramic decals, nameplates, and non-woven fabrics.

Technical Specifications
Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size 300x400mm 500x600mm 600x800mm
Printing Speed 0~5000 print/hr. 0~2500 print/hr. 0~2500 print/hr.
Max. Substrate Width 320mm 520mm 620mm
Registration Accuracy ±0.01mm ±0.01mm ±0.01mm
Power 220V, 3KW 220V, 3KW 220V, 3KW
Thickness Range 0.02~0.5mm 0.02~0.5mm 0.02~0.5mm
Weight 600kgs 700kgs 950kgs
Machine Components & Details

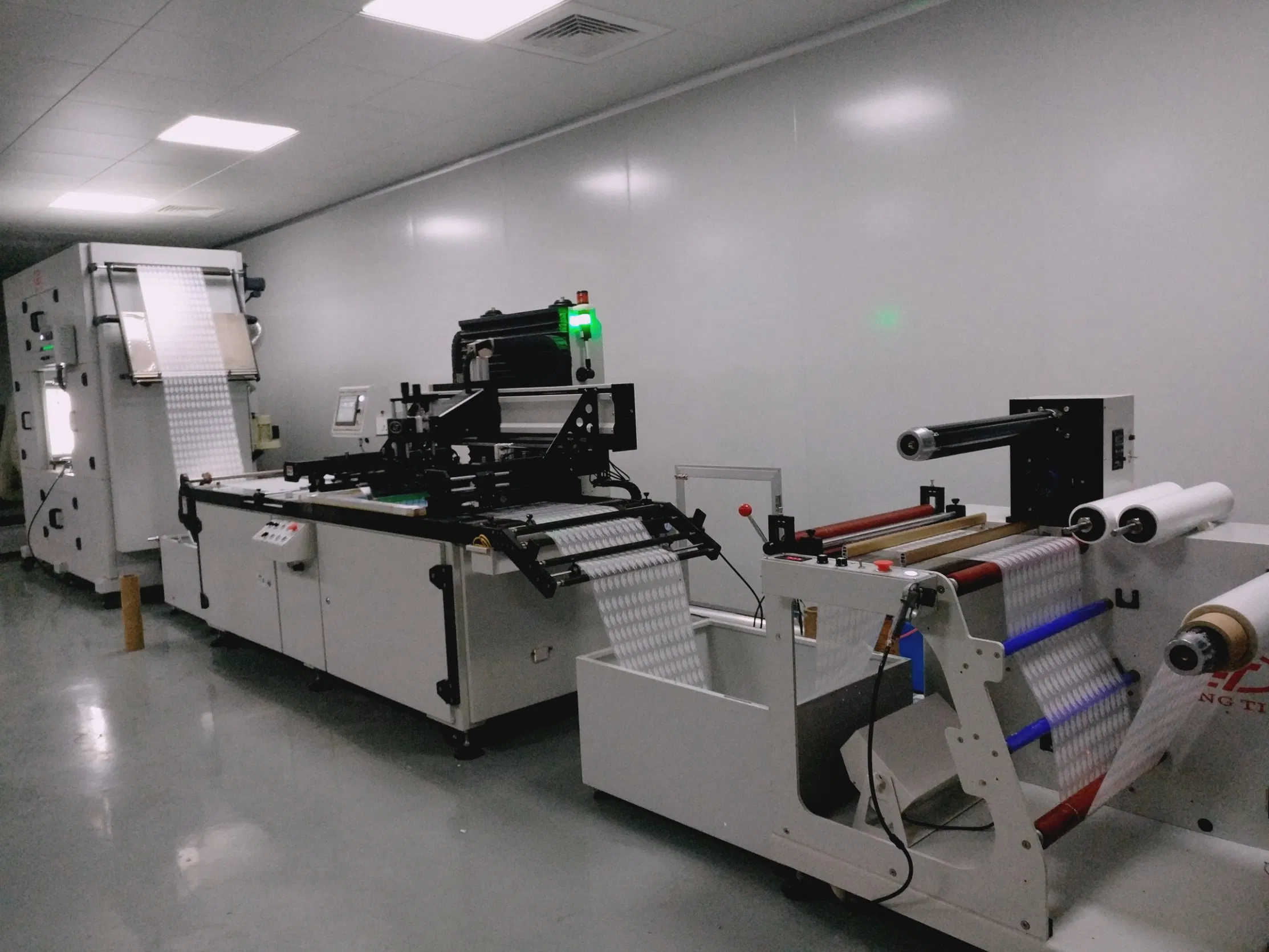

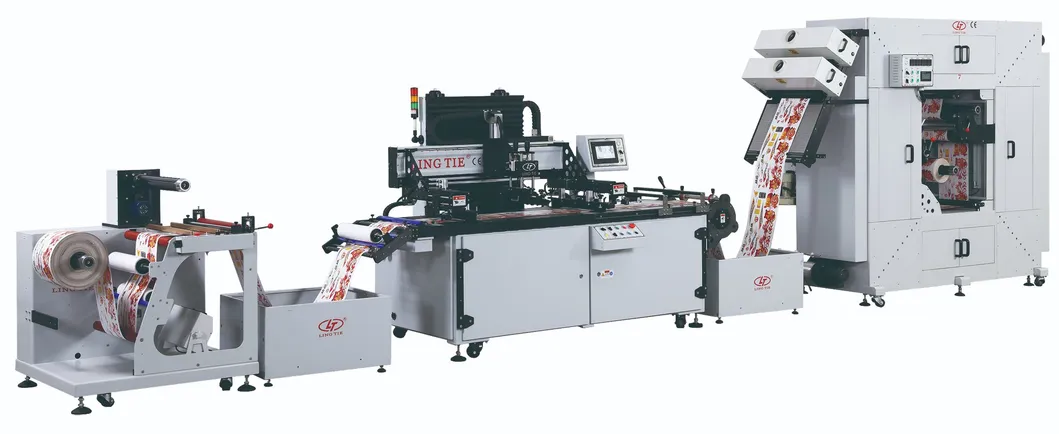

Roll to Roll Machine Overview

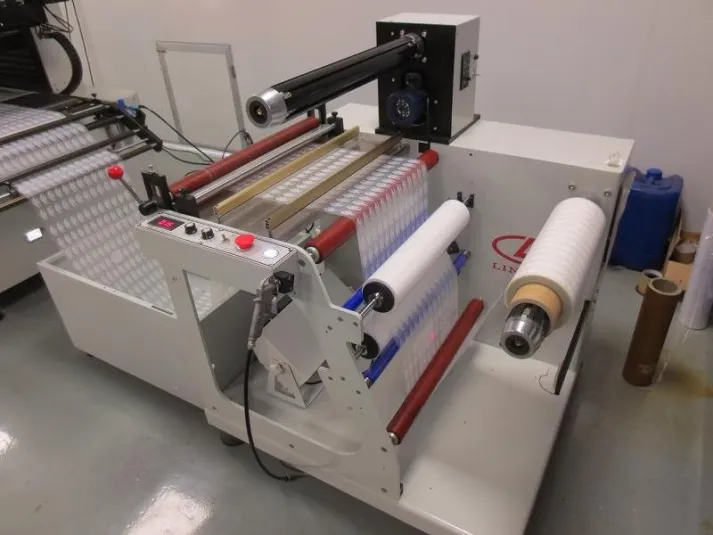

Feeder System

Key Unit Descriptions:

  • Feeder: Includes dust removal, protective film removal, and electrostatic elimination.
  • Inspection Station: Real-time quality control to minimize material waste.
  • Registration System: Independent 3-point alignment system for perfect multi-color overprinting.
  • Print Head: High-precision components ensuring long-term mechanical stability.

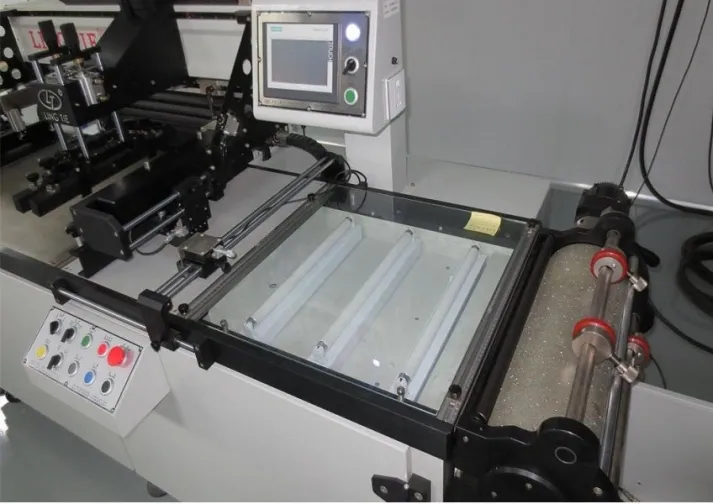

Inspection Station

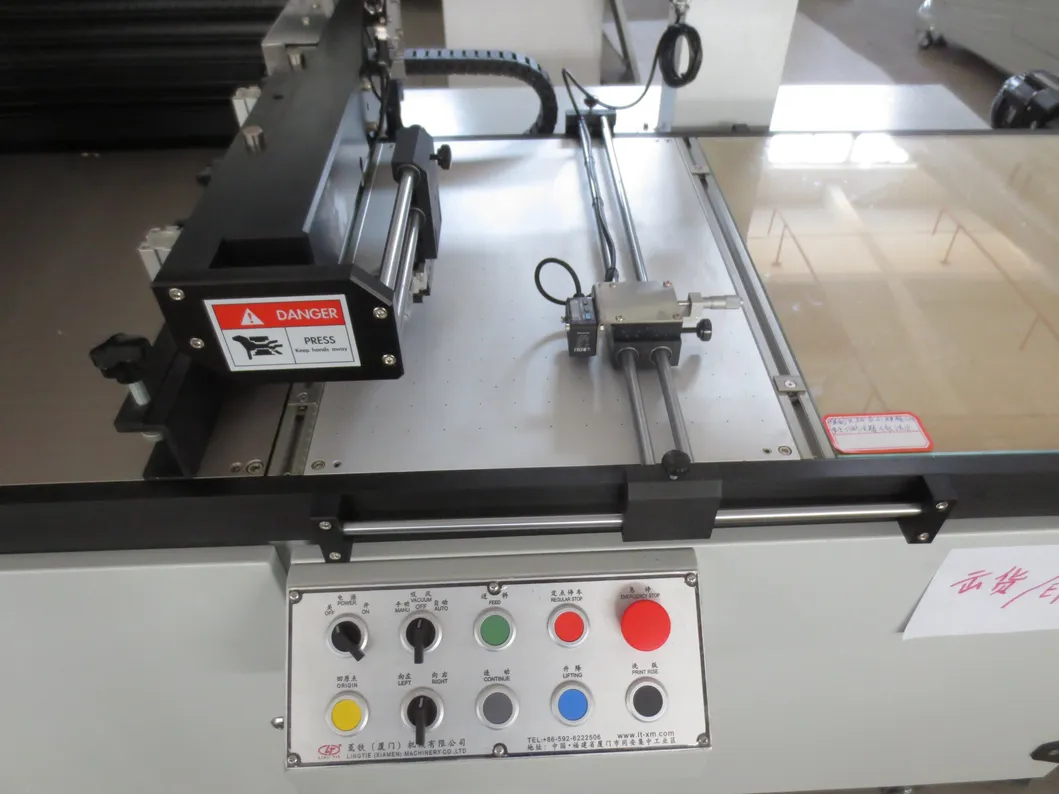

Registration System

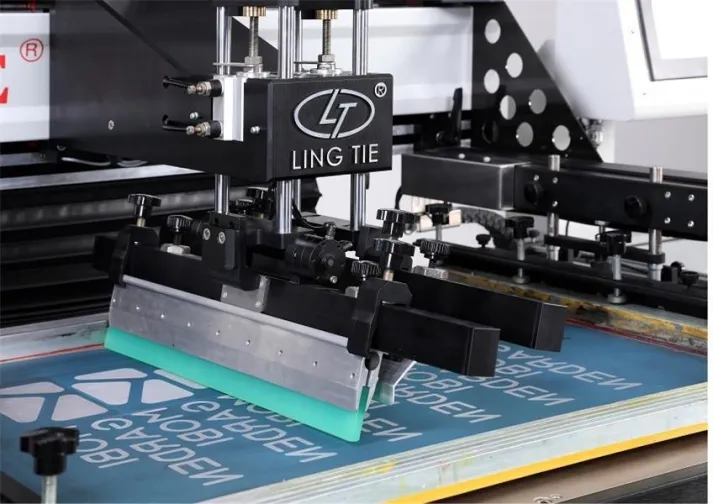

Print Head
Samples & Production Environment

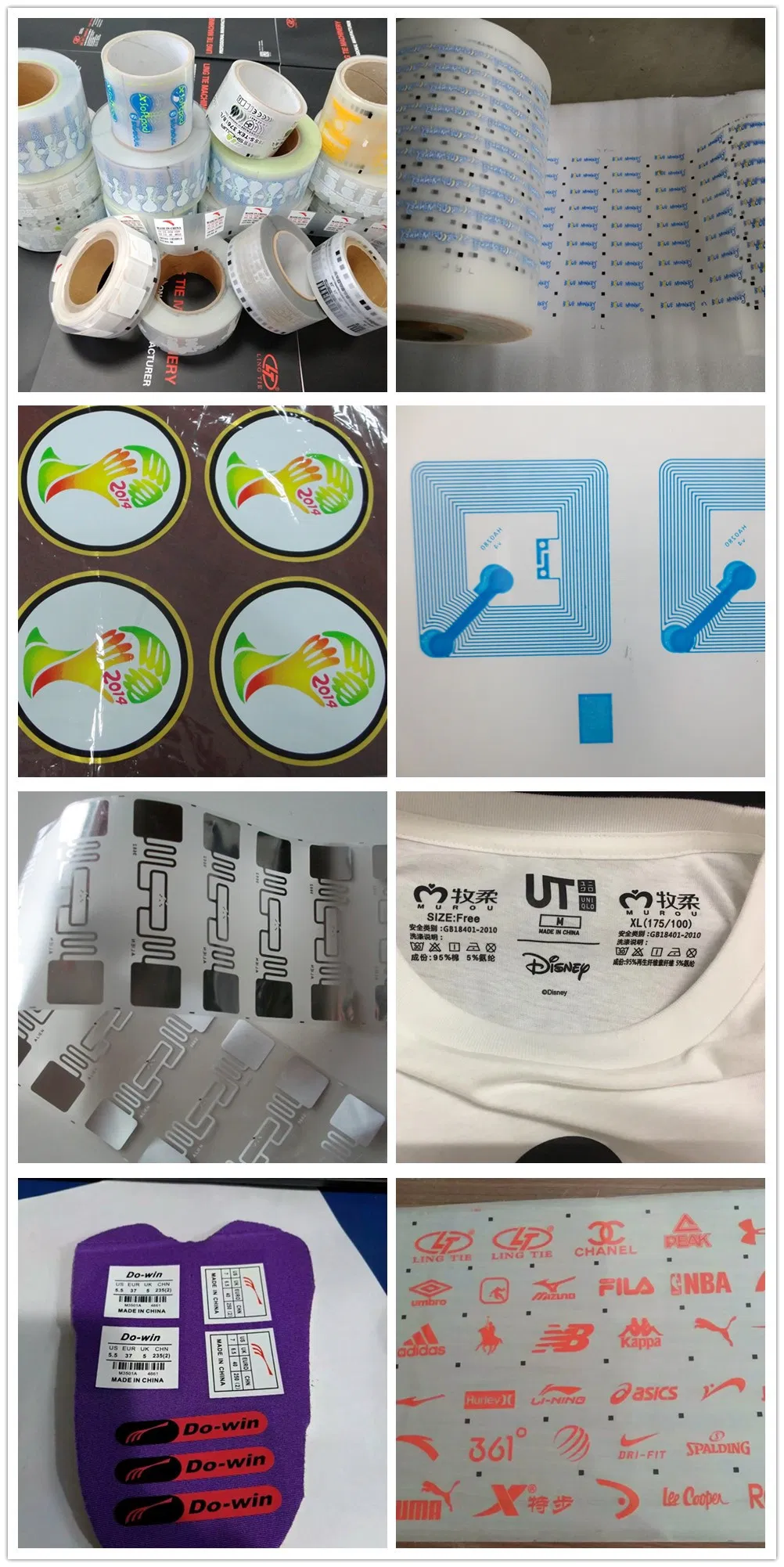

Printed Samples
Honors

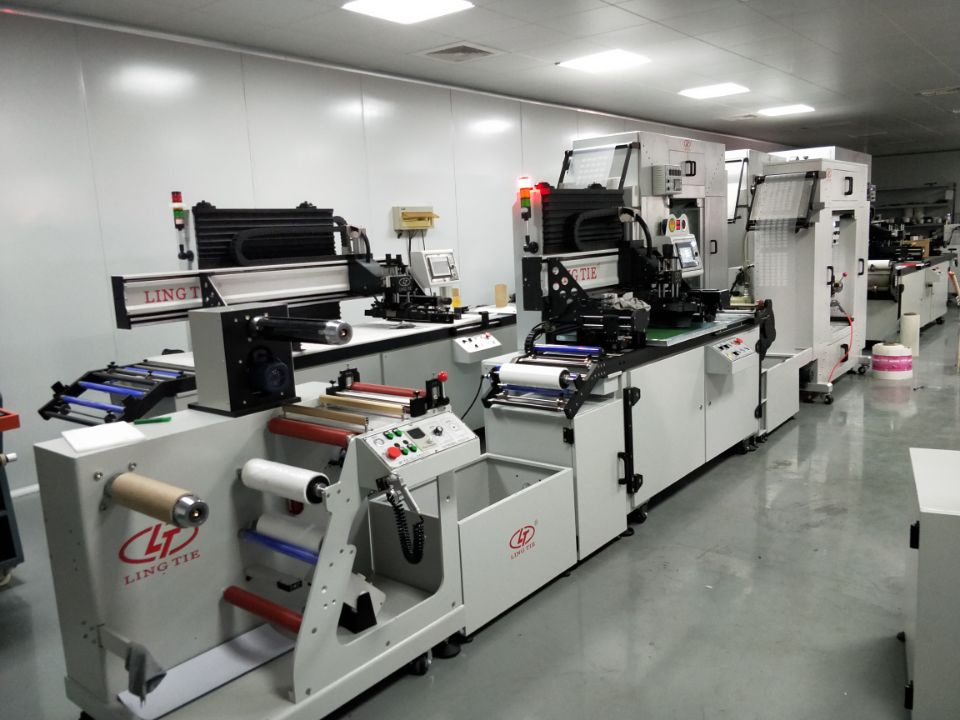

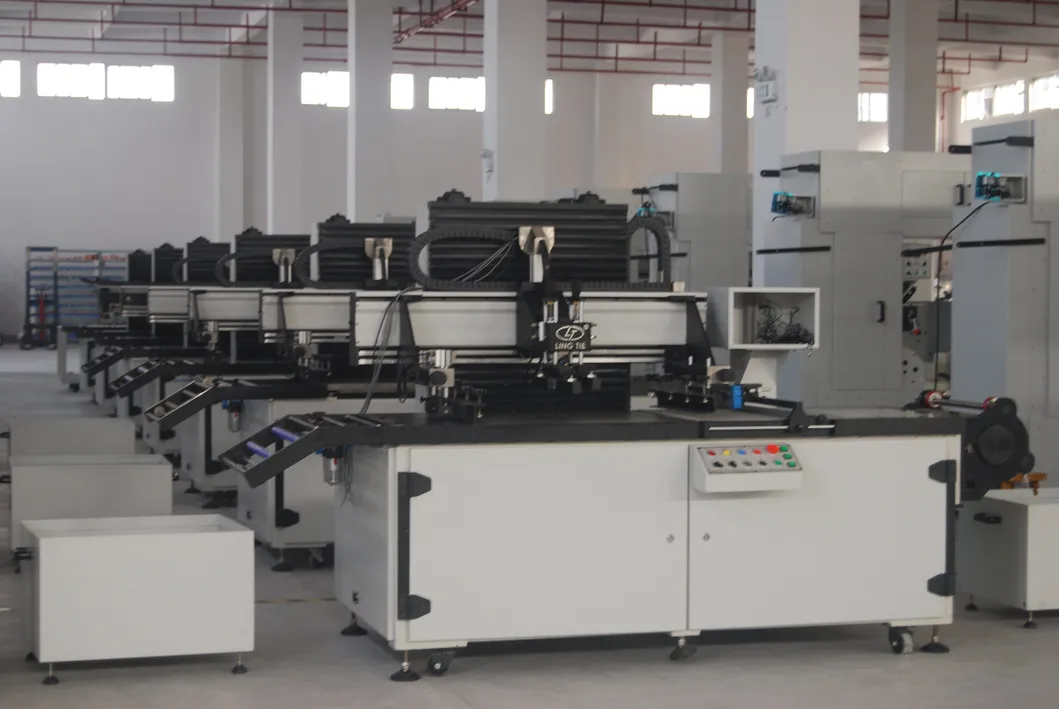

Workshop
Exhibition
Team and Customers
Package
Frequently Asked Questions (FAQ)
What types of materials can this roll-to-roll machine print on?
The machine is designed for various roll film materials, including PET, PVC, PE, PV, PP, PC, BOPP, and various adhesive stickers.
How accurate is the multi-color overprinting?
The machine features an advanced automatic registration system with three photocell sensors, achieving a registration accuracy of ±0.01mm.
How many operators are required for the production line?
Due to its high level of automation, only one person is needed to operate the entire printing line from feeding to rewinding.
What is the thickness range of substrates the machine can handle?
The machine can process printing materials with a thickness ranging from 0.02mm to 0.5mm.
What drying options are available for the printed film?
We offer hot air dryers with various pass lengths including 30M, 60M, and 80M to suit different ink types and production speeds.
What is the warranty and after-sales support?
The machine comes with a one-year warranty. We also provide overseas engineering support for installation and maintenance.
