Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
1 / 5
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder
Advanced Automatic Silk Screen Printing Machine with Stop Cylinder

Advanced Automatic Silk Screen Printing Machine with Stop Cylinder

Customization: Available
Warranty: One Year After Installation
Type: Printing
Send Inquiry

Product Description

📋

Basic Info

Plate
Silk Screen Printing
Structure
Flat-Bed Cylinder Press
Color & Page
Single-Colour Printing Press
Model
A4 to 1050X750
Usage
Paper, Cloths, Plastic Printer
Automatic Grade
Automatic
Printing Speed
4000PCS/H
System Supported
3p 380V 50Hz 11.3kw
Weight
6500kg
Measurement
22.87cbm
Package
2 Plywood Cases
Specification
CE, ISO9001: 2008
Origin
Made in China
HS Code
8443192900
Capacity
200sets/Year
⚙️

Product Description

Automatic Silk Screen Printing Machine Jb-1050AG for Hot-transfer Printer

JB-A Series full automatic stop cylinder screen press adopts the classical stop cylinder technology. It offers significant advantages such as exact and steady paper location, high precision, high speed, and low noise. Designed with a high degree of automation, it is perfectly suited for printing on ceramic and glass applique, electron industry components (film switches, flexible circuitry, meter panels, mobile telephones), packaging, textile transfers, and various special technical applications.

📊

Product Parameters

Model JB-720A JB-800A JB-1020A
Max. paper dimension 720X520mm 800X610mm 1020X720mm
Min. paper dimension 350X270mm 350X270mm 560X350mm
Max. printing dimension 720X500mm 800X600mm 1020X710mm
Paper thickness 108-400g 108-400g 120-400g
Border ≤ 10mm ≤ 10mm ≤ 10mm
Max. printing speed 1000-3600pcs/h 1000-3300pcs/h 1000-3000pcs/h
Power 3p 380v 50Hz 8.89KW 3p 380v 50Hz 8.89KW 3p 380v 50Hz 14.64KW
Weight (approx) 3500kg 4000kg 5000kg
Dimensions 4050X2240X1680mm 4350X2580X1680mm 4650X2800X1680mm
🖼️

Detailed Photos

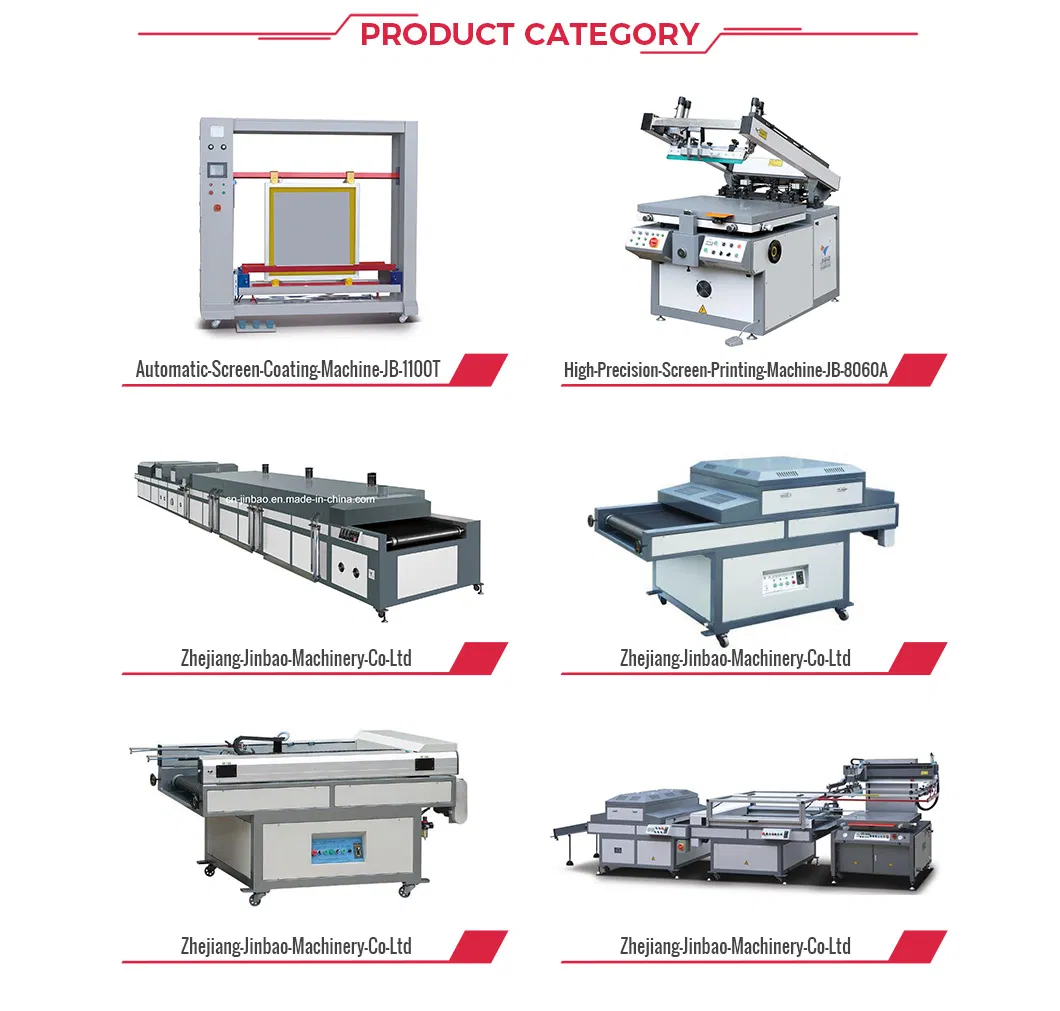

Advanced Automatic Silk Screen Printing Machine

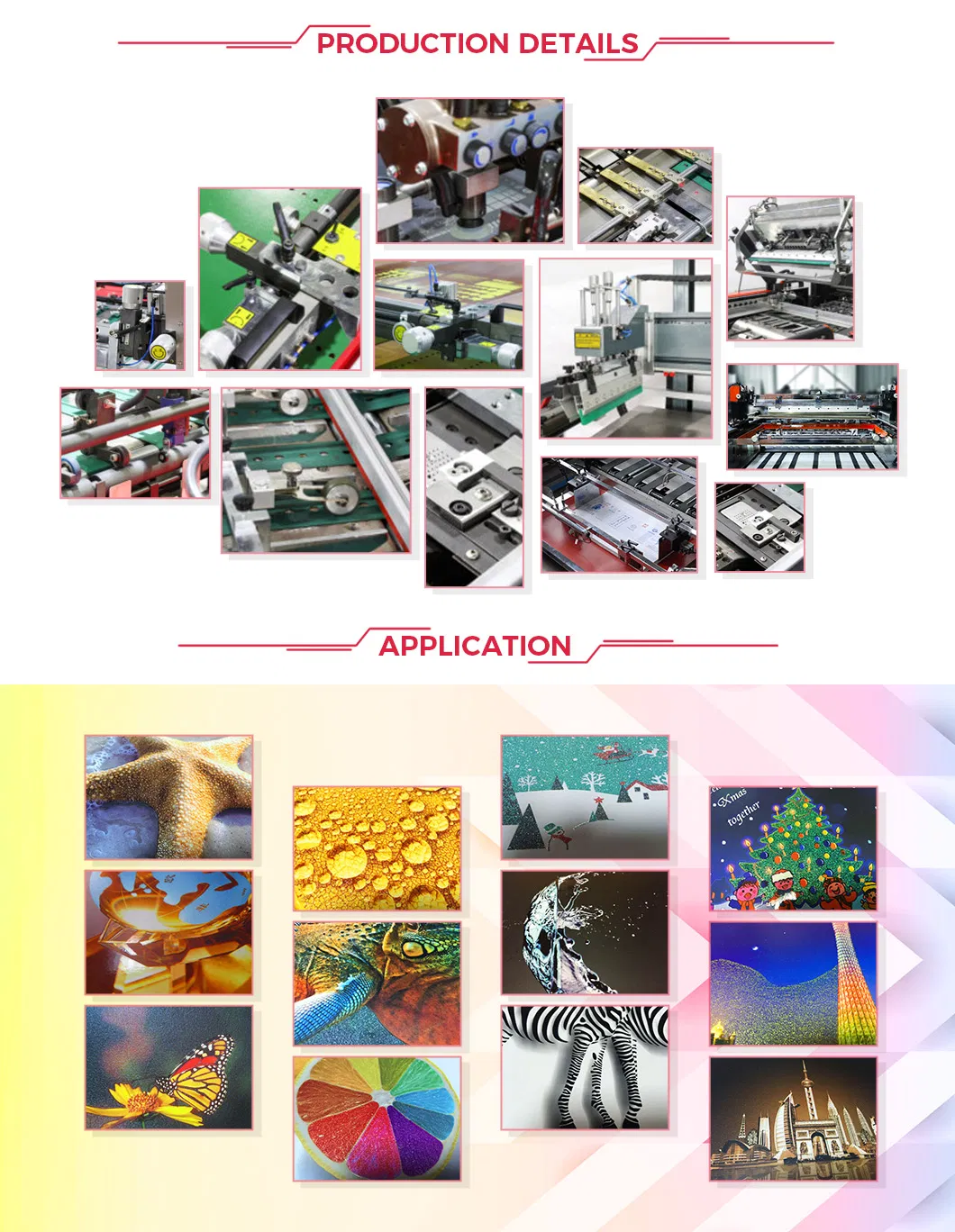

Screen Printing Detail
🏢

Manufacturing & Quality

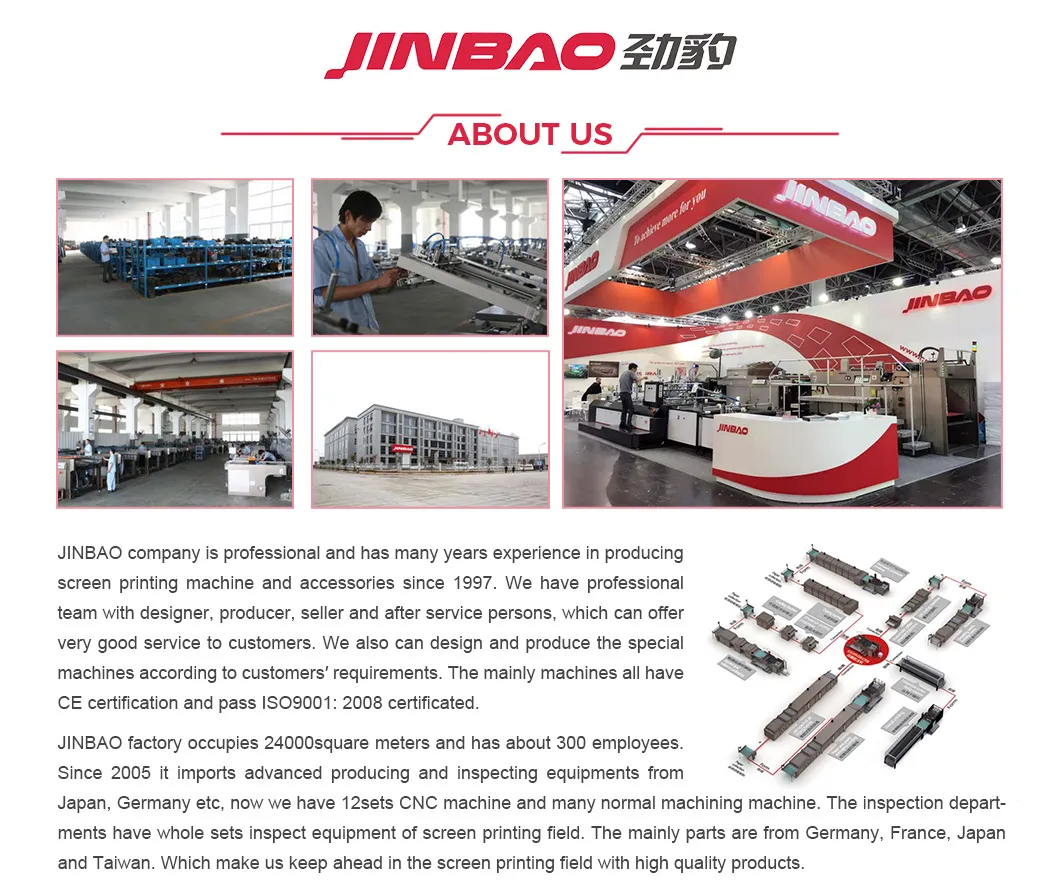

Production Facility
Certifications
❓

Frequently Asked Questions

What materials are compatible with the JB-A Series?
The machine is versatile and suitable for printing on paper, ceramic and glass appliques, electronic components (like film switches and flexible circuitry), textiles, and various plastics.
What are the benefits of the "Stop Cylinder" technology?
Classic stop cylinder technology ensures that paper is located exactly and steadily, resulting in high printing precision, higher speeds, and significantly lower operating noise.
What is the maximum printing speed of these machines?
Depending on the specific model and material, the maximum printing speed ranges from 3000 to 4000 pieces per hour (PCS/H).
Is the operation of the machine fully automatic?
Yes, the JB-A Series features a high degree of automation, categorized as an Automatic Grade machine for streamlined production workflows.
What quality certifications do these machines hold?
The machines are manufactured to high standards and hold both CE and ISO9001:2008 certifications, ensuring safety and quality reliability.
How is the machine packaged for international transport?
For safety during transit, the machine is typically packed in two robust plywood cases to prevent damage and ensure secure delivery.
