Customization: Available
Warranty: One Year
Type: Automatic Screen Printing Machine
Send Inquiry

Product Description

Automatic Roll to Roll Silk Screen Printing Machine

Basic Information

Model NO.:LTA-3040
Style:Screen-process Printing Press
Structure:Platen Press
Color & Page:Multi-Colour Printing Press
Application:Labels, Stickers, RFID, FPC, IMD, Iml, etc
Certification:CE and ISO9001:2015
Registration Accuracy:+/- 0.01mm
Max Printing Size:(300X400)mm
Raw Material Types:Pet, PVC, PE, PV, PP, PC, BOPP, Adhesive Stickers
Transport Package:Wooden Box
Specification:(L7000xW1100xH1900)mm
HS Code:8443911900
Production Capacity:30sets/Month

Product Description

Automatic Roll to Roll Silk Screen Printing Machine

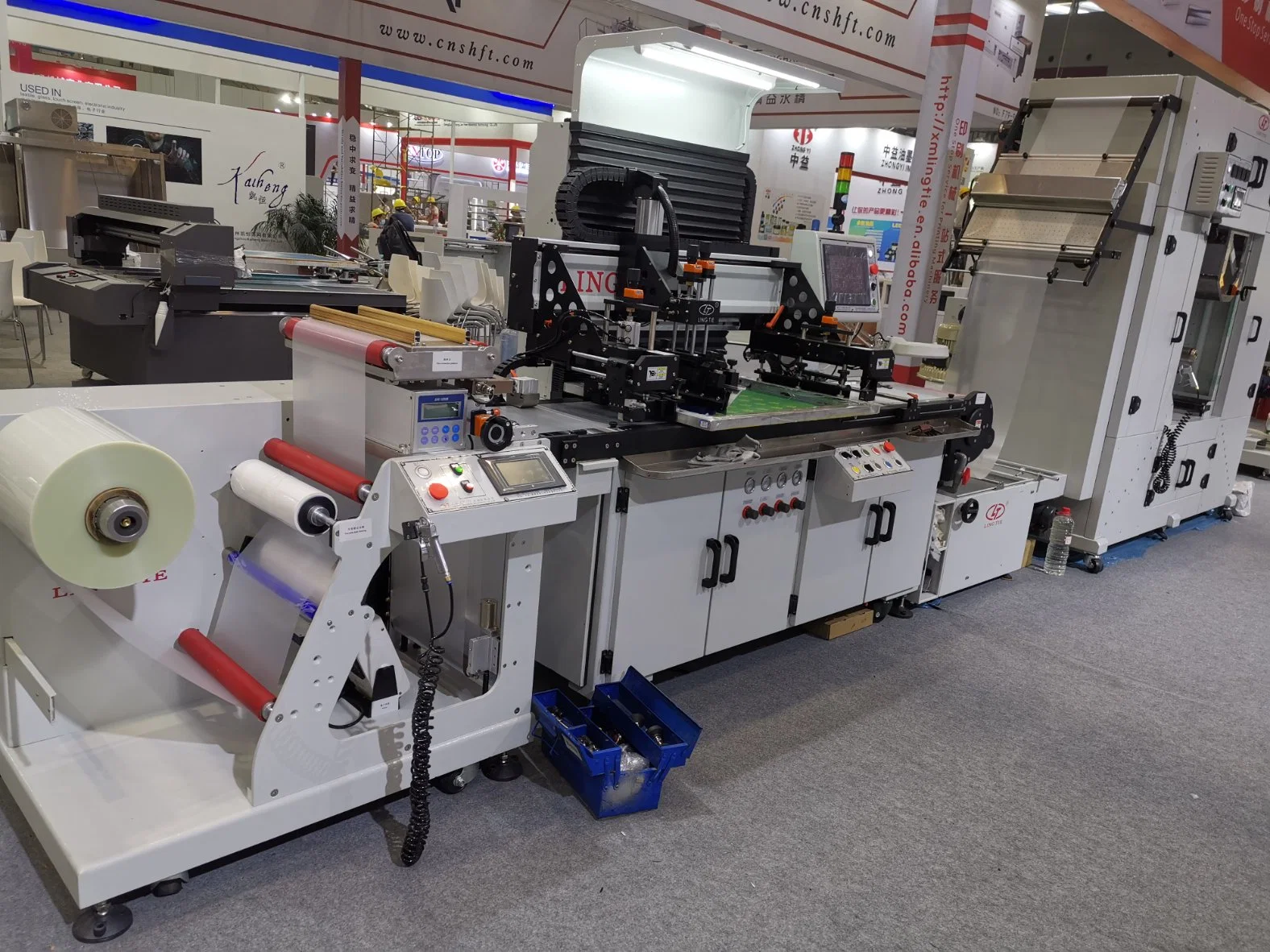

The Automatic Roll to Roll Silk Screen Printing Machine is specifically designed to print on film material in rolls, including PET, PVC, PE, PV, and PP films. This comprehensive printing line integrates high automation with extreme precision.

  • Full Production Line: Composed of a feeder, a printing unit, and a hot air dryer.
  • Intelligent Feeder: Equipped with dust removal rollers and an automatic material-run-out alarm.
  • High Precision: Vacuum table fixes PET film in position; three photocell sensors handle automatic registration.
  • Efficient Drying: Hot air dryers available in 30M, 60M, and 80M lengths with cooling and winding functions.
  • Cost-Effective: High automation allows one person to operate the entire line, with productivity equal to six semi-automatic machines.

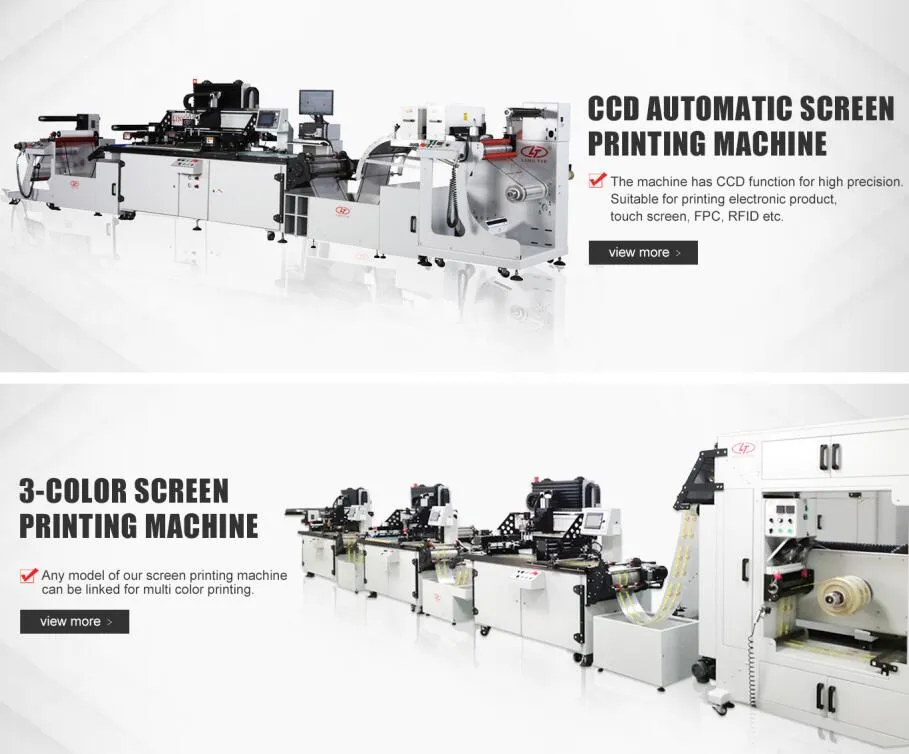

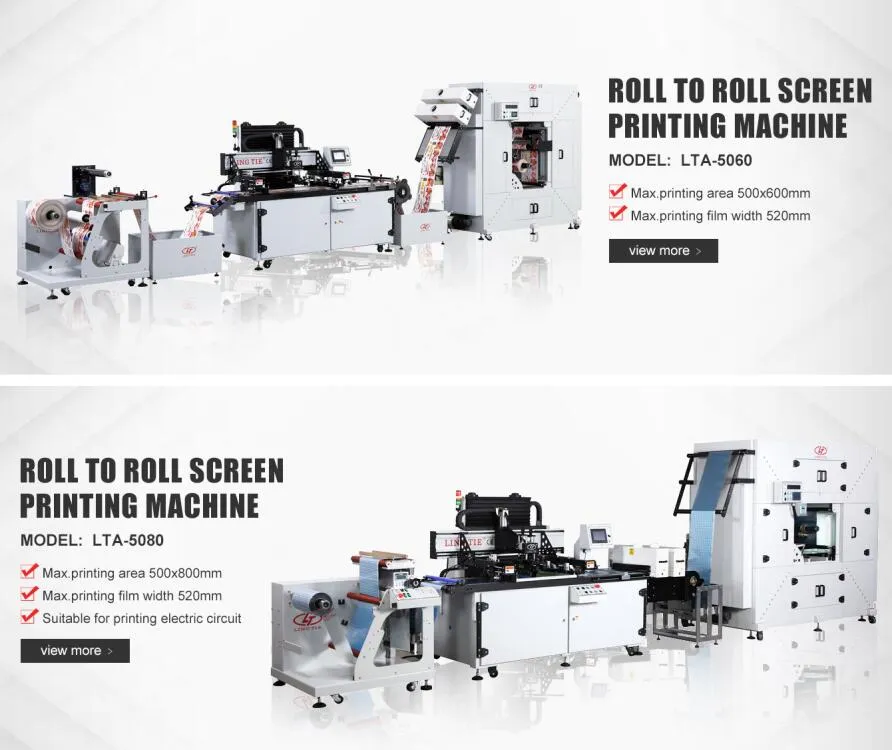

Machine Layout 1 Machine Layout 2

Application Scope: Perfect for RFID, heat transfer labels, membrane switches, graphic overlays, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, and non-woven fabrics.

Technical Parameters

Model LTA-3040 LTA-5060 LTA-6080
Max. Printing Size 300x400mm 500x600mm 600x800mm
Printing Speed 0~5000 print/hr. 0~2500 print/hr. 0~2500 print/hr.
Max. Screen Frame Size 600x800mm 800x1000mm 900x1200mm
Max. Substrate Width 320mm 520mm 620mm
Registration Accuracy ±0.01mm ±0.01mm ±0.01mm
Power 220V, 3KW, 15A 220V, 3KW, 15A 220V, 3KW, 15A
Weight 600kgs 700kgs 950kgs

Machine Components Details

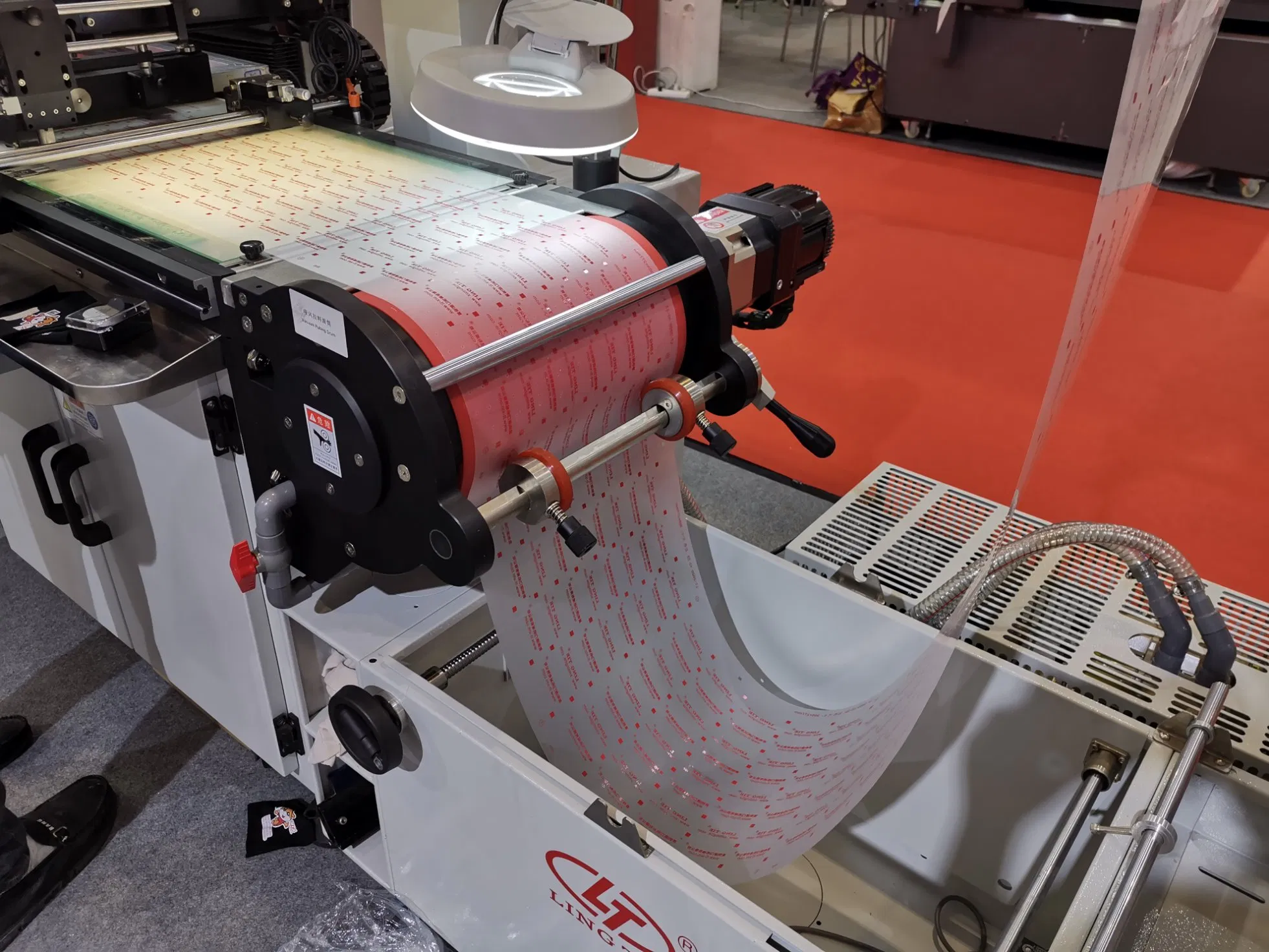

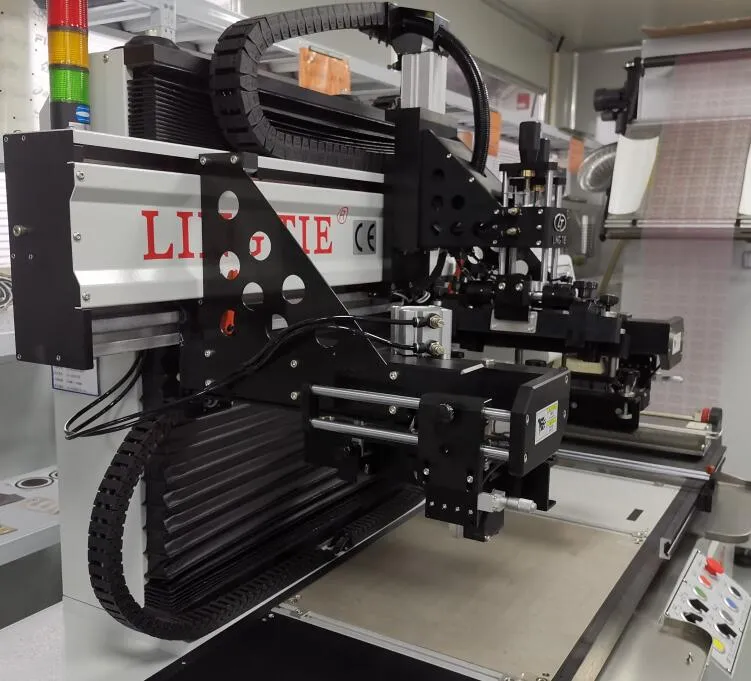

Vacuum Table & Register System

Fixes the PET film securely during the printing process. Features an automatic register system for perfect screen alignment.

Vacuum Table

Feeder & Print Head

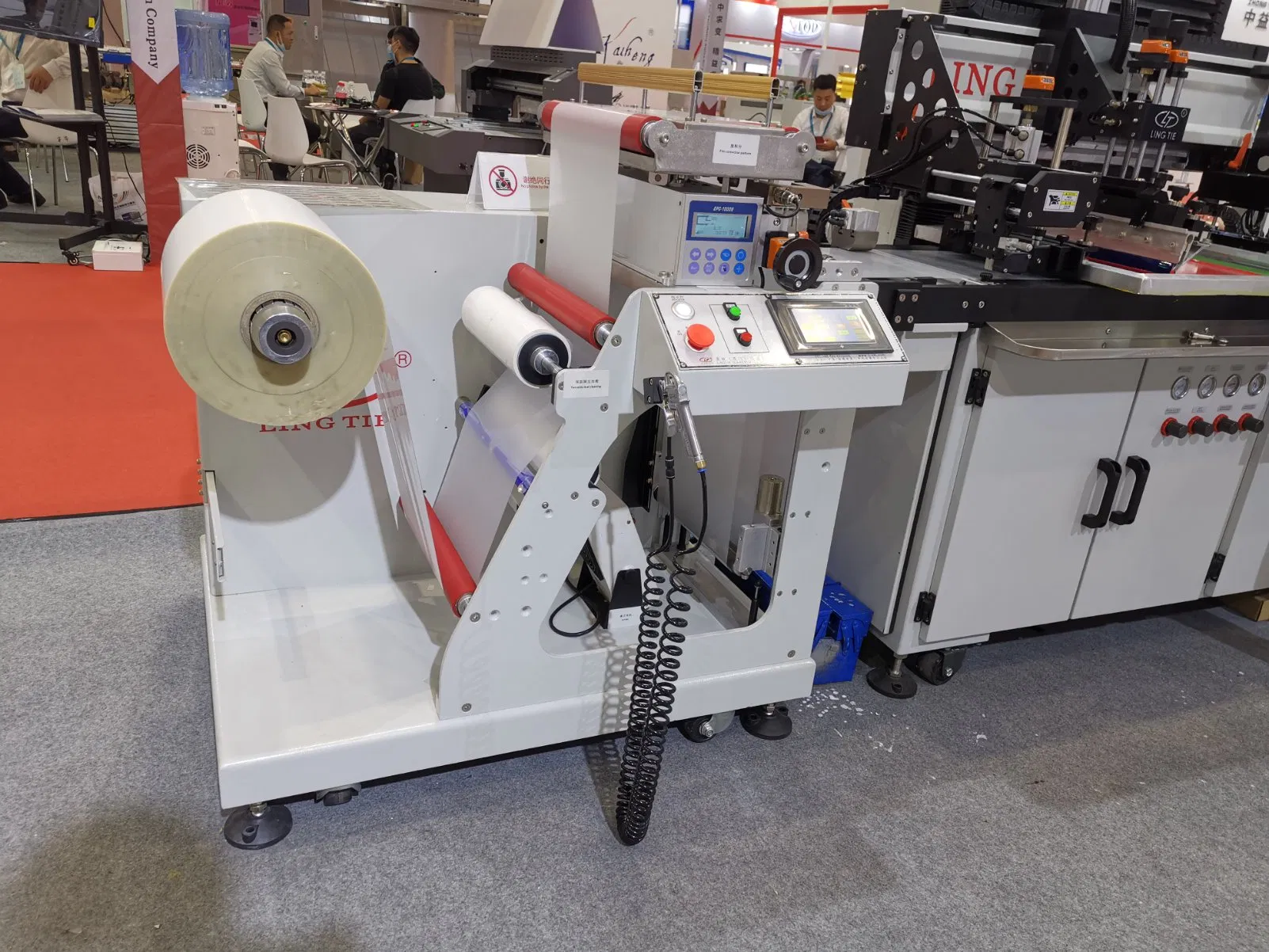

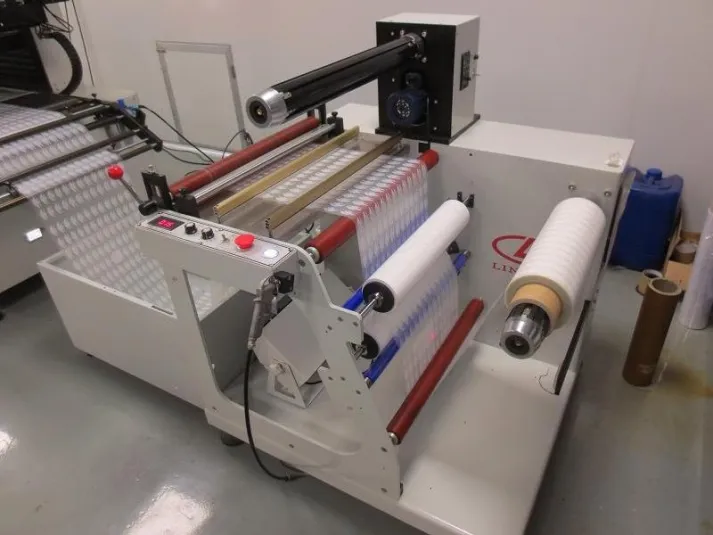

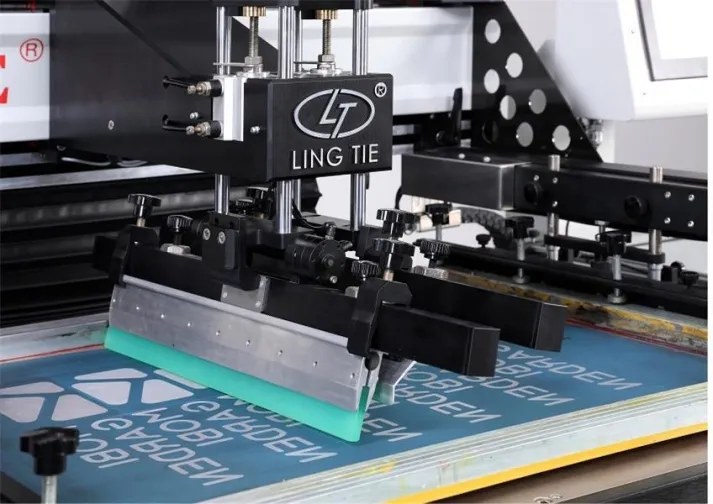

Feeder Unit Print Head

Feeder: Includes dust removal, protective film removal, and electrostatic elimination.
Print Head: High stability ensures long-term continuous operation.

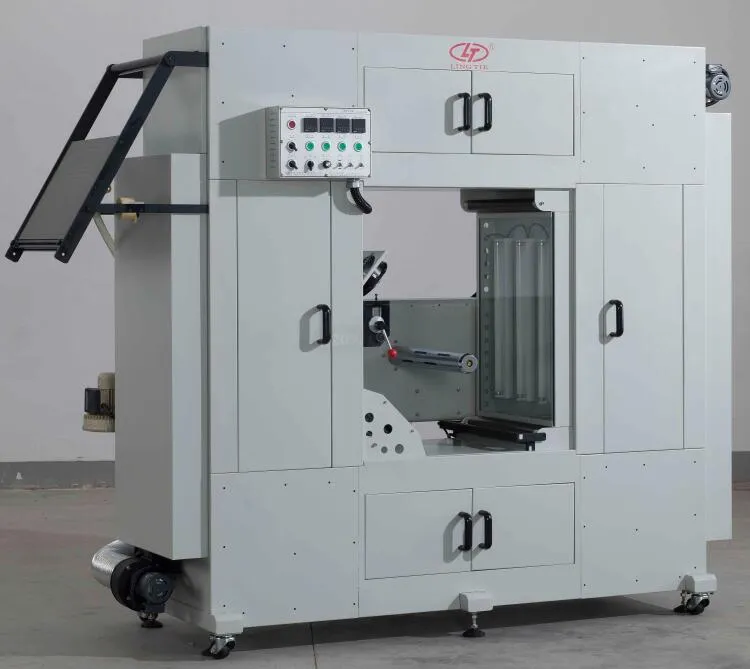

Hot Air Dryer

Hot Air Dryer

Available in 30m, 60m, and 80m inner loop designs for optimal curing of various ink types.

Application Samples

Sample 1 Sample 2 Sample 3

Frequently Asked Questions

1. What types of materials can the Roll to Roll Silk Screen Printing Machine handle? The machine is designed for film materials in roll form, such as PET, PVC, PE, PV, PP, PC, BOPP, and various adhesive stickers.
2. How accurate is the printing registration? The machine offers a high registration accuracy of ±0.01mm, making it suitable for complex multi-color overprinting.
3. What is the production capacity compared to manual machines? The production capacity of one automatic roll-to-roll line is approximately equal to six sets of semi-automatic screen printing machines.
4. How many operators are required for the machine? Due to its high level of automation, only one person is needed to operate the entire printing line, including feeding, printing, and drying.
5. Can the drying length be customized? Yes, the hot air dryer comes with options for 30M, 60M, and 80M pass lengths depending on your specific production and ink requirements.
6. What are the typical applications for this machine? Common applications include RFID tags, heat transfer labels, membrane switches, FPC (Flexible Printed Circuits), IMD/IML parts, and various industrial stickers.
