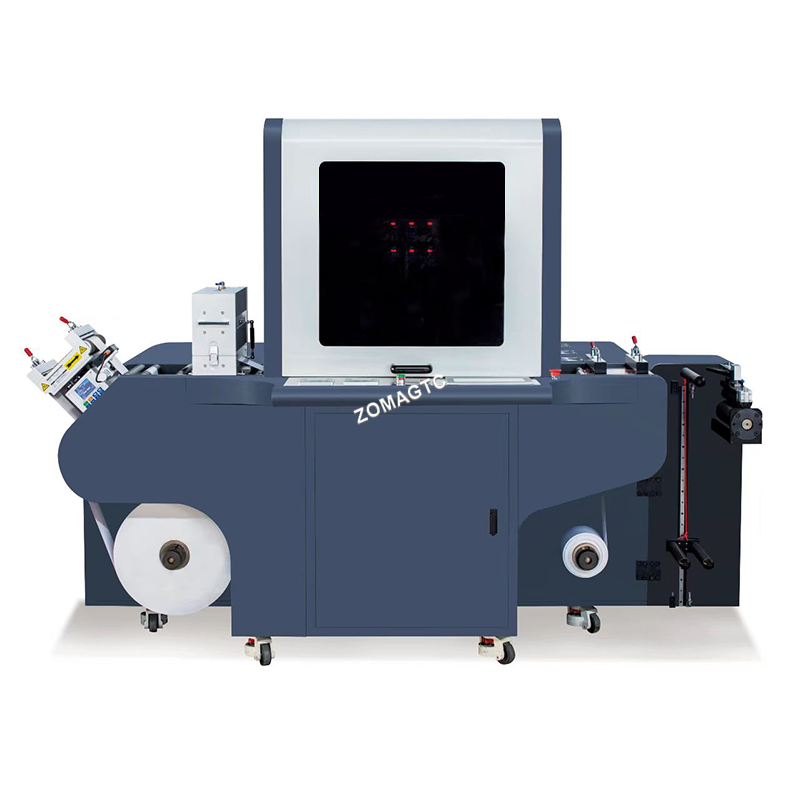

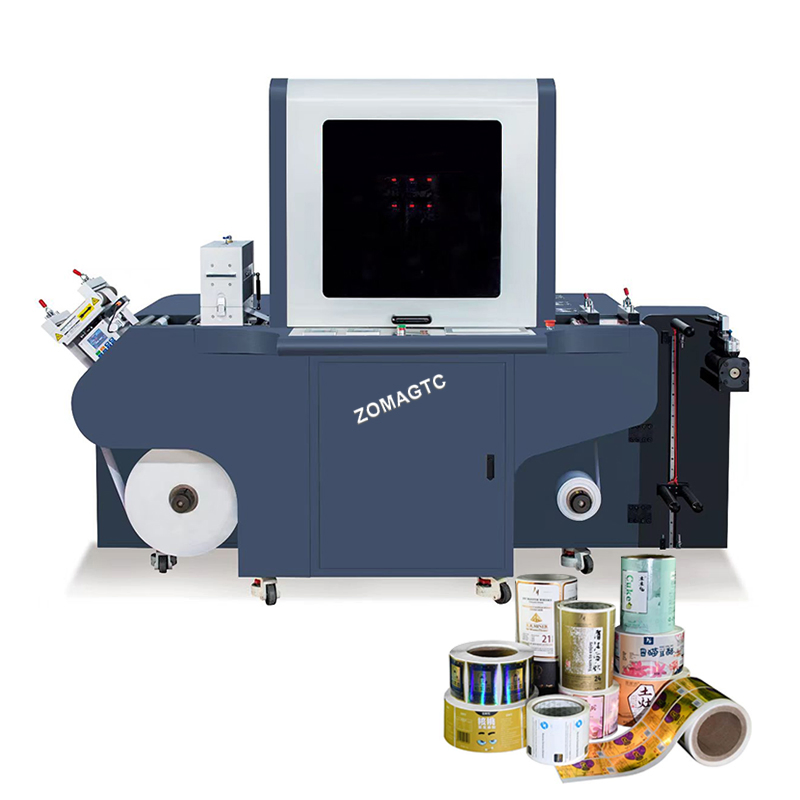

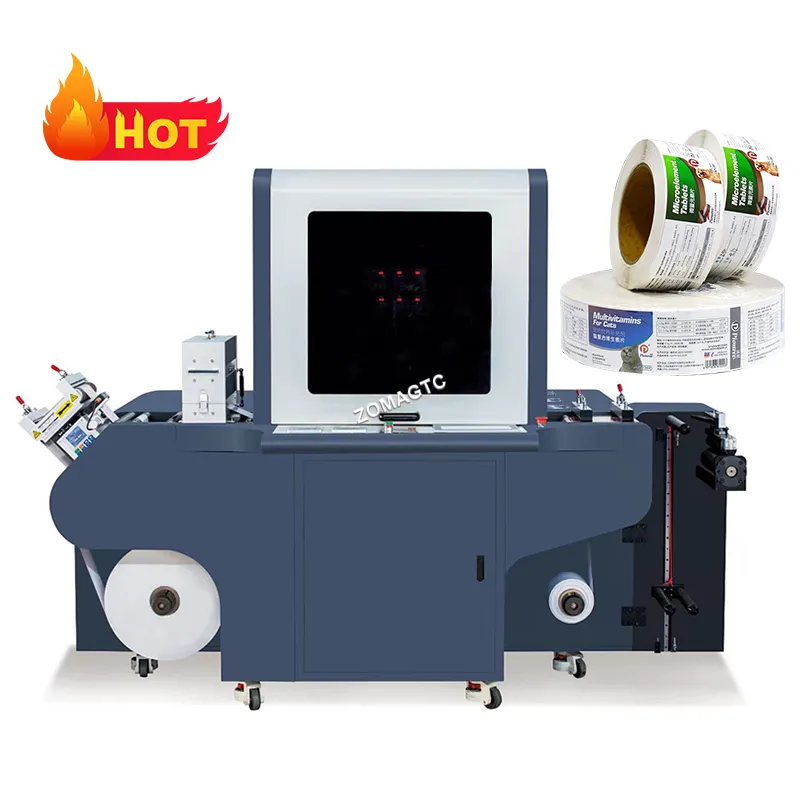

Automatic Digital CMYK Roll To Roll Sticker Label UV LED Label Printer Adhesive Label Printing Machine
| Main Parameters | |
|---|---|
| Print Technology | DOD piezoelectric inkjet Kyocera Head |
| Print Width | 108mm(4.25")/216(8.5") |
| Ink | LED-UV curable ink |
| Print Speed | Up to 50m/min(164ft/min) |
| Resolution | 600x600dpi / 600x1200dpi |
| Color Channels | CMYK, White, Varnish, Spot Color |
| Media Type | Coated/uncoated paper, self-adhesive stock, foil, PP, PE, PVC, PET, BOPP |
| Media Thickness | 0.08-0.5mm |
| Power Consumption | Printer: Max 4500W; Corona: 2000W; Water Cooler: 1500W |

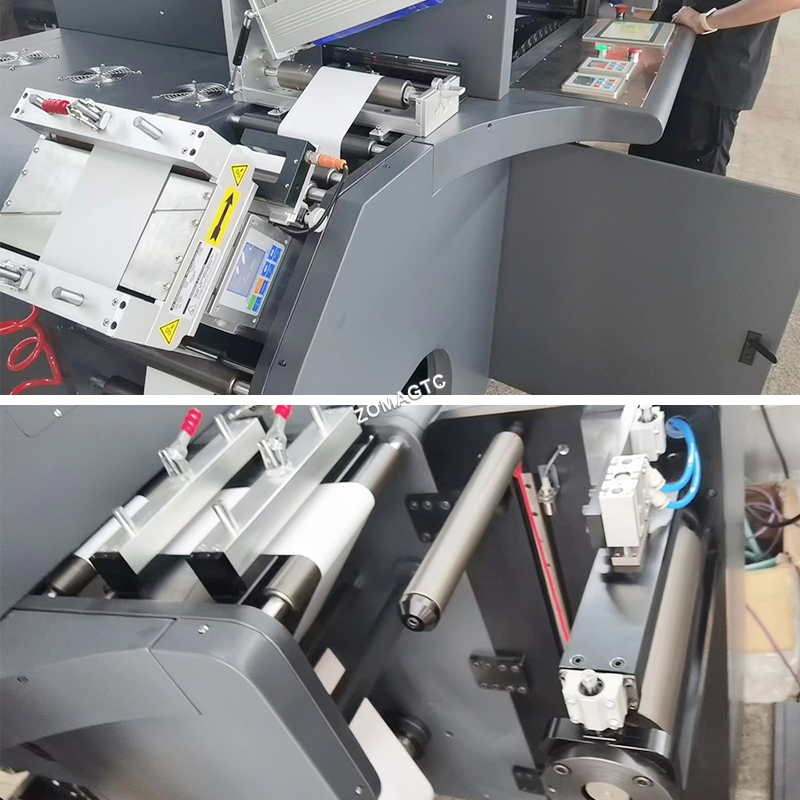

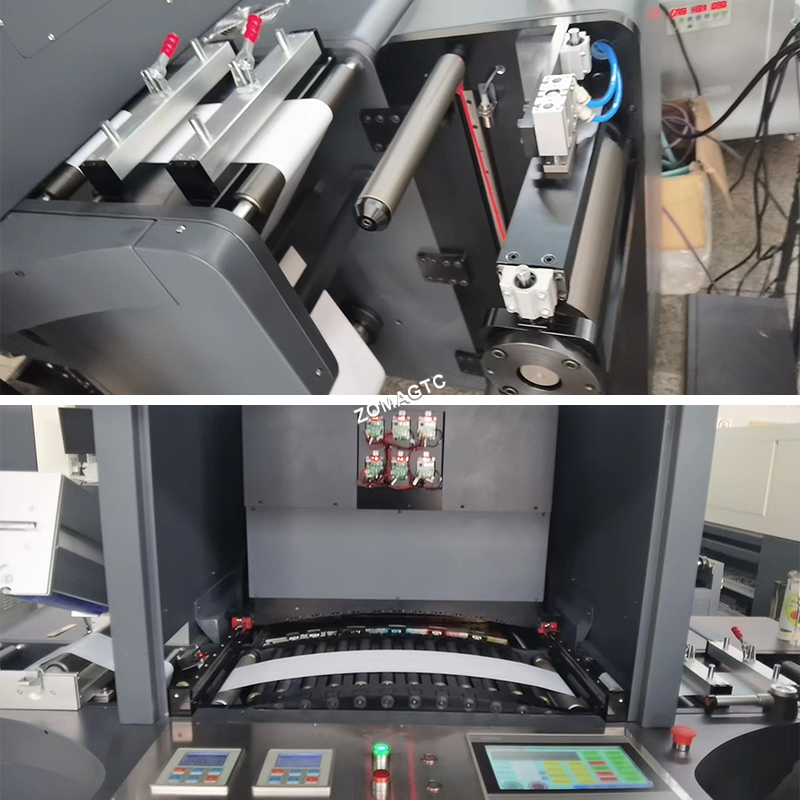

Utilizes a 76.2(3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system, supporting rewind diameter up to 500mm.
Double driver motor and accurate tension control system ensure the media can be rolled back neatly.
Position of the print module can be adjusted within the full media region (230mm) via control software without adjusting the media physically.
Specifically designed for industrial short-run production. Supports variable data for labels, hangtags, tickets, RFID, and foil packaging.
Varnish ink printing provides versatile surface finishes with amazing tactile and visual effects to beautify labels and grasp attention.
