6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
1 / 5
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen
6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen

6090 PRO A1 UV Flatbed Digital Pen Golf Ball Printer UV Flatbed Pen Printing Flat Bed Machine Price for Ballpoints Ballpen

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.:GS6090 PRO
Plate Type:Flat-Bed Cylinder Press
Structure:Platen Press
Color & Page:Multi-Colour Printing
Automatic Grade:Automatic
Printing Speed:8-20 Sqm/H
Print Head:I1600 / I3200
Printing Thickness:0-250mm
Ink Type:UV Ink (CMYK + W + V)
Certification:CE / RoHS

Product Description

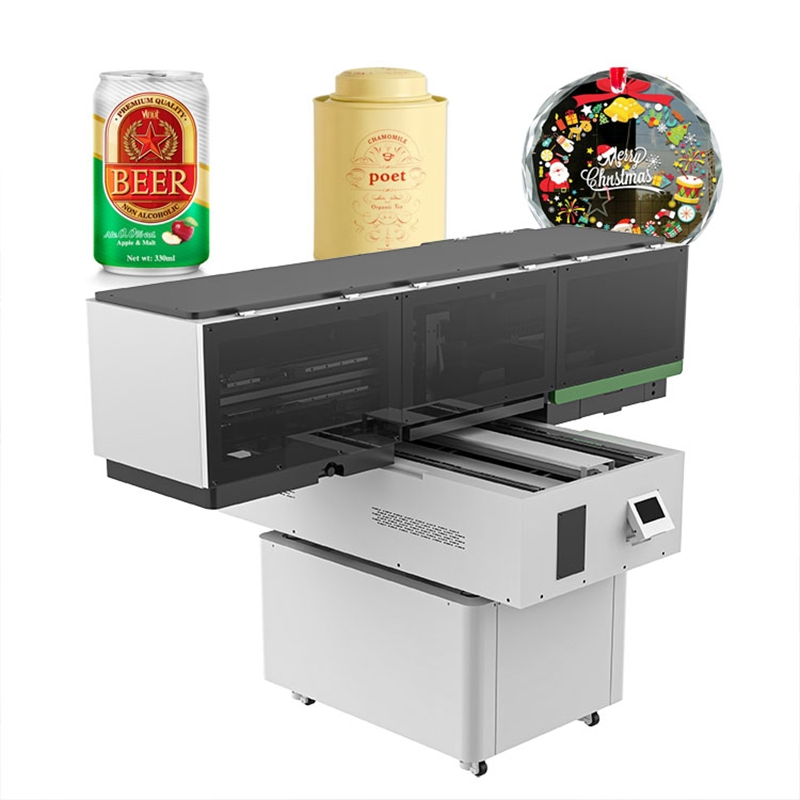

Visual Positioning Large Format 3D UV LED Flatbed Printer Machine

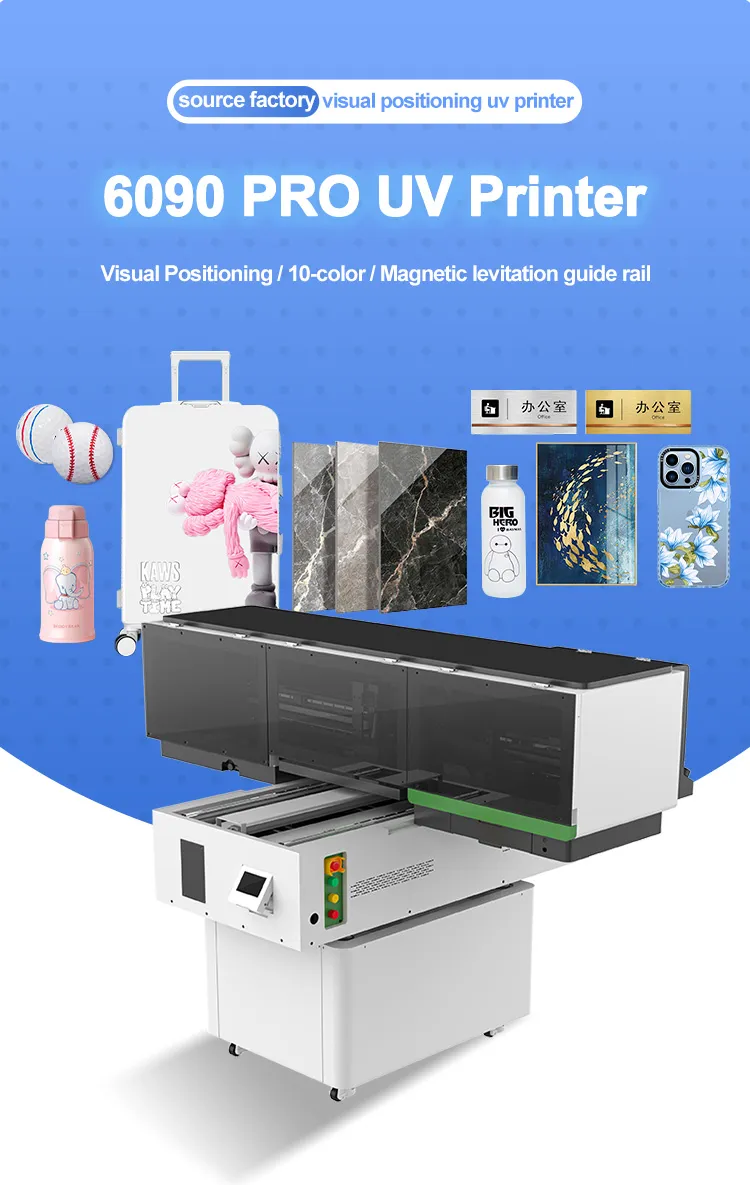

UV Flatbed Printer Overview
Printer Components

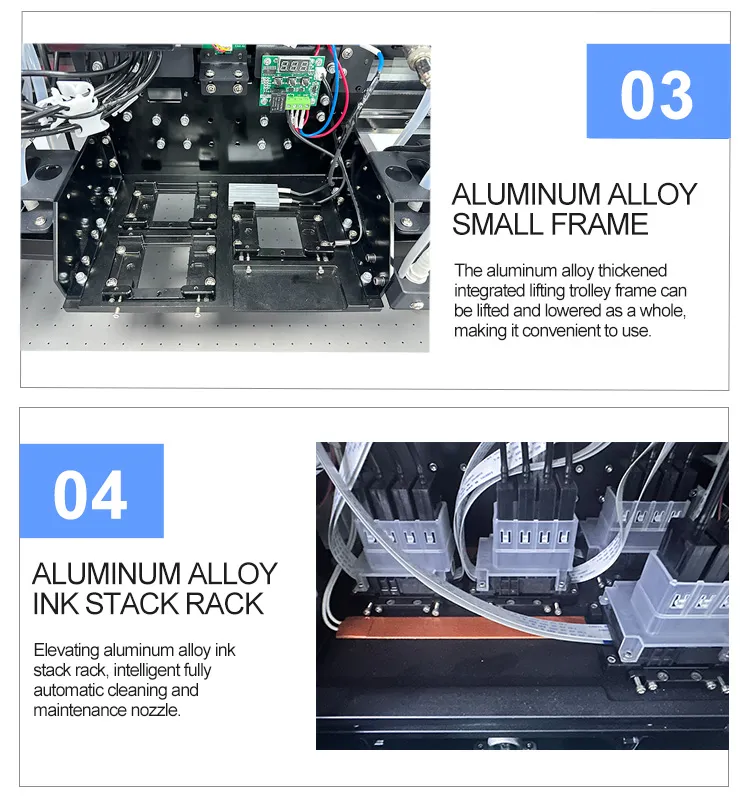

Advanced Machine Configuration

✓ 10-Color Ink System with Magnetic Levitation
✓ Negative Pressure Cleaning & Visual Positioning

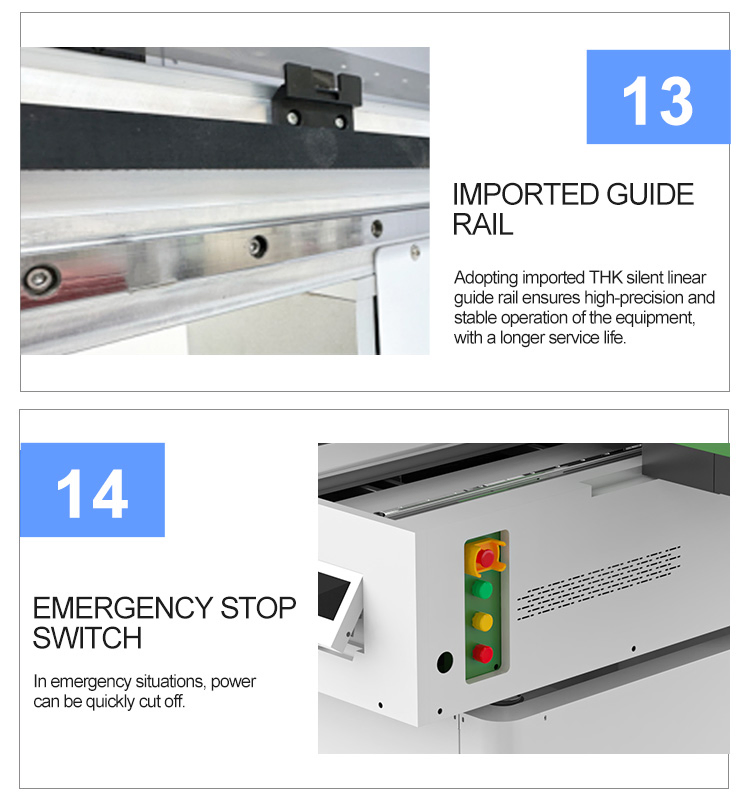

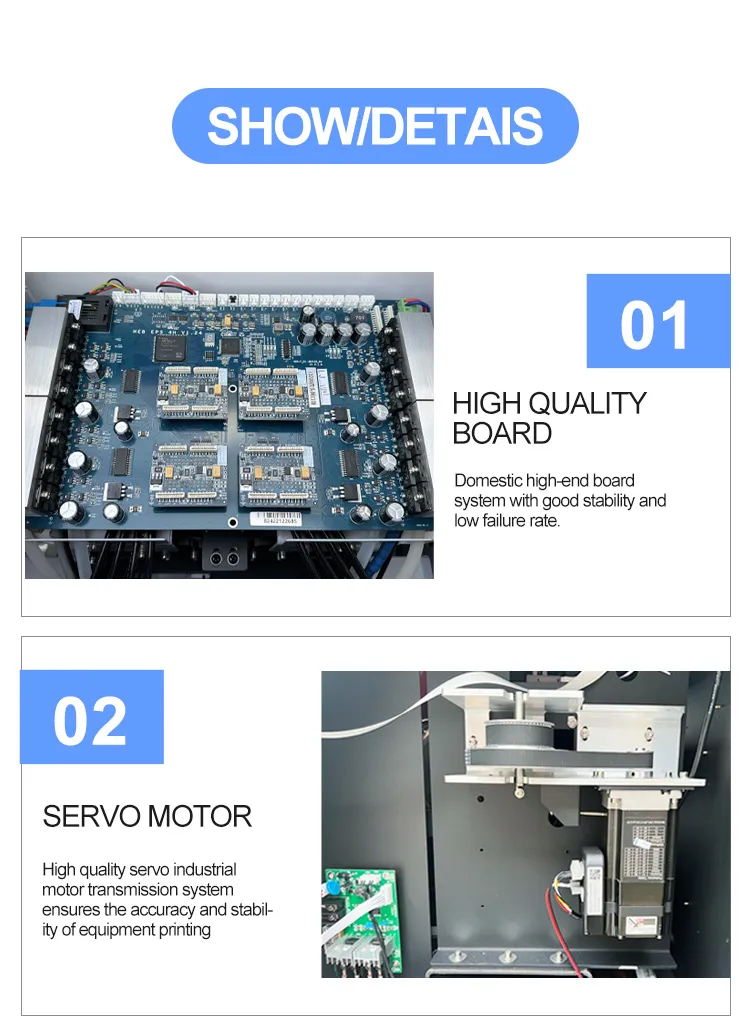

✓ Leadshine Servo Motor & HIWIN Guide Rail

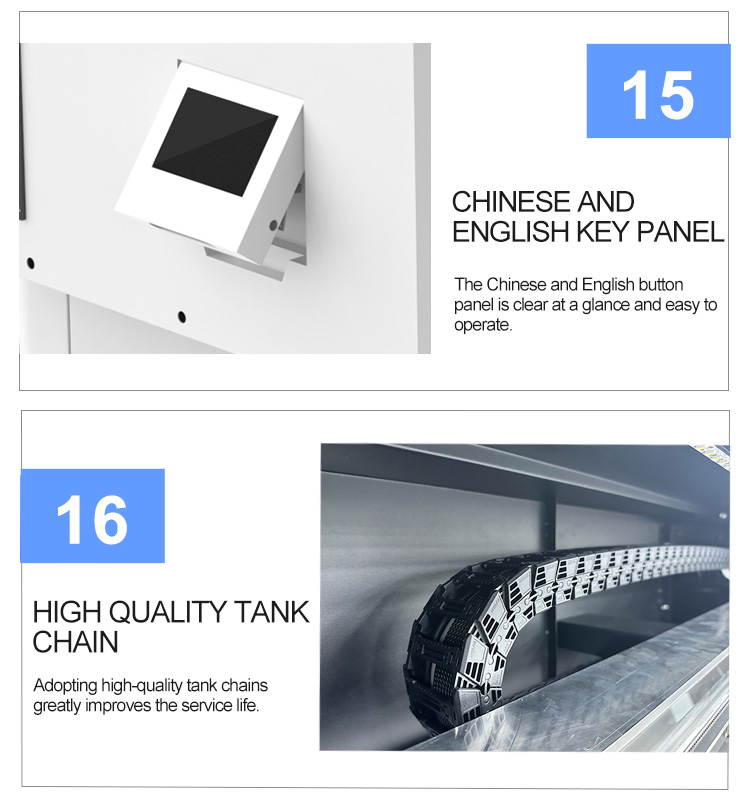

✓ IGUS Drag Chain & Integrated Aluminum Beam

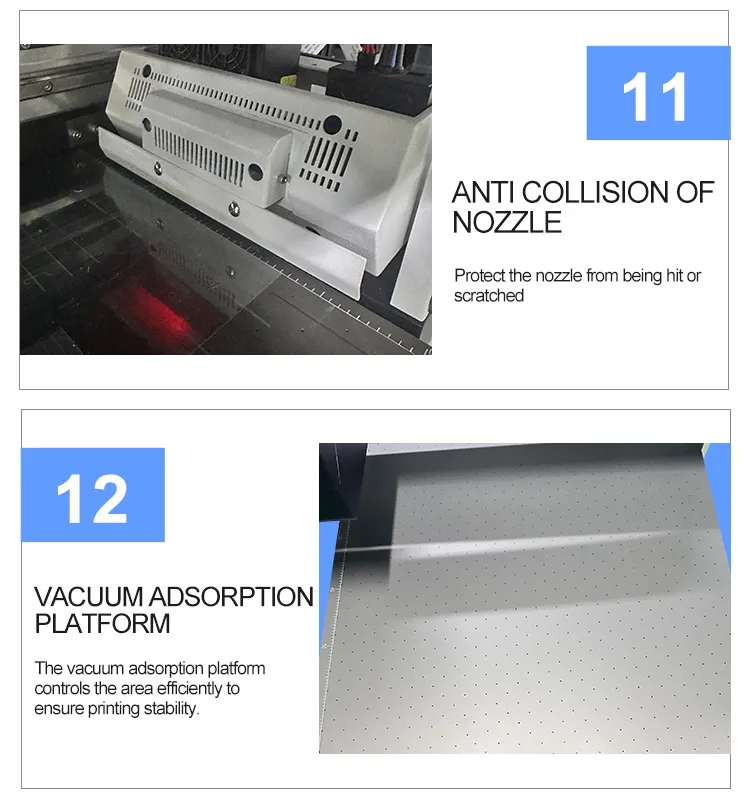

✓ Printhead Anti-collision Device

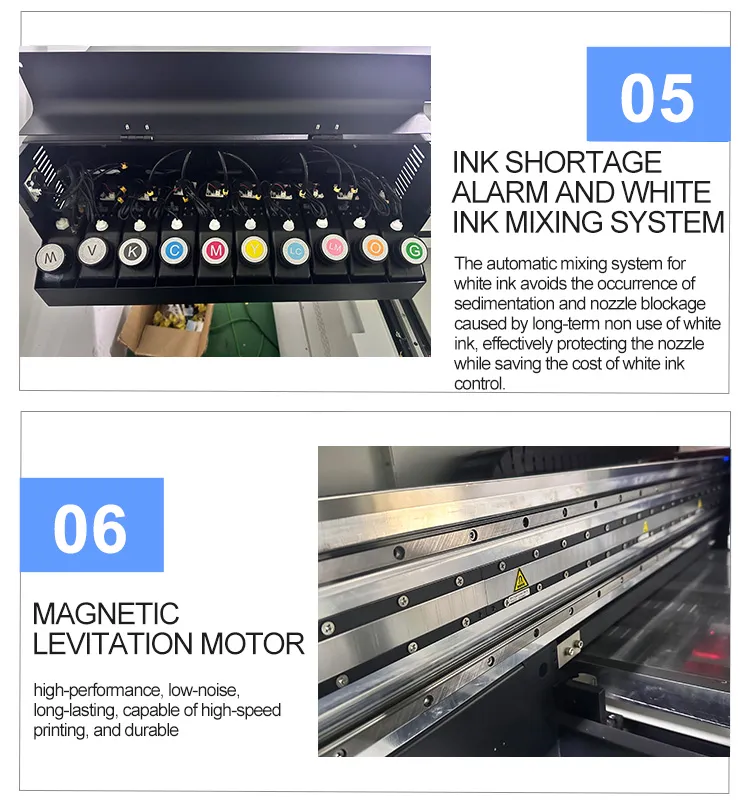

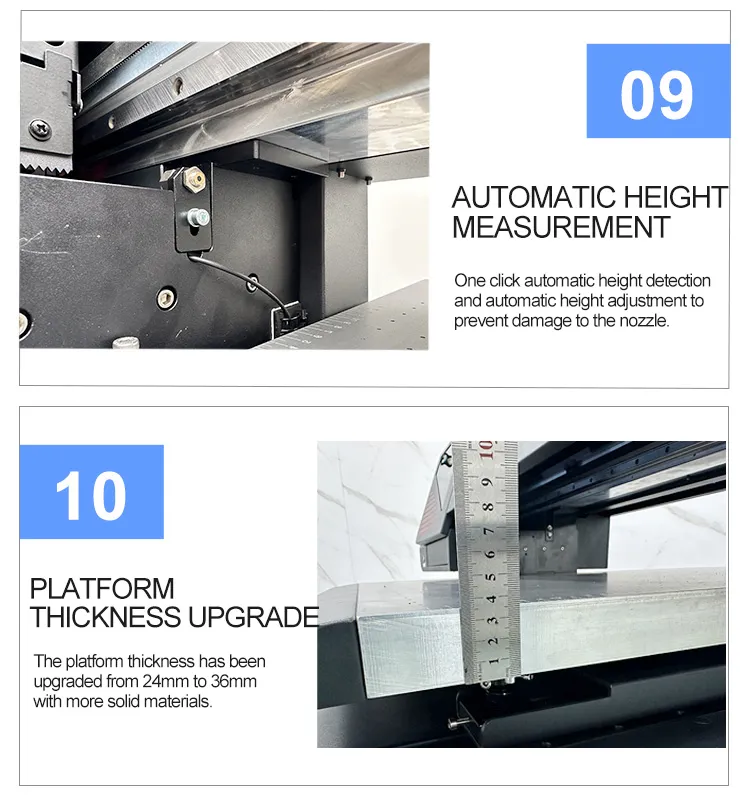

✓ Automatic Ink Shortage Alarm & Height Measurement

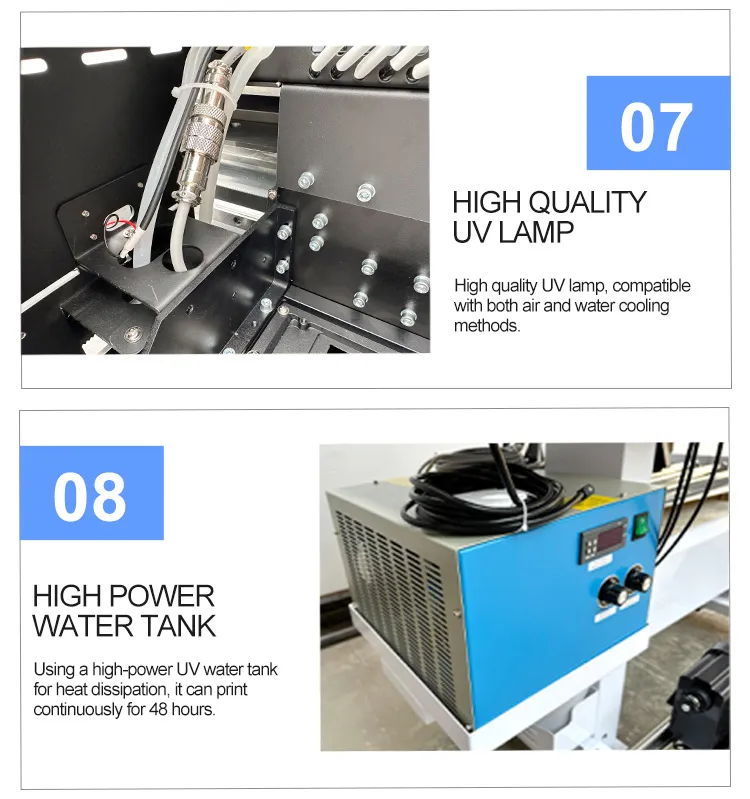

✓ Platform Suction & Water Cooling UV Lamp
✓ Heating of the Bottom Plate Device

Printing Applications & Details

Application 1
Application 2
Application 3
Application 4
Application 5
Application 6

Technical Specifications

Parameter Specification Details
Print Width60 * 90 cm
Print Speed8-20 sqm/h
Ink ColorsCMYK + W + V + LC + LM + G + O
Media SupportPhone case, Acrylic, Glass, Ceramic, Leather, Wine bottle, etc.
SoftwareMaintop / PP / RIIN
Operating SystemWindows 7 / 10 / 11
Working Env.20 - 30℃, 45-65% Humidity
Machine Size2000 * 1700 * 1700 mm
Gross Weight450 kg

Frequently Asked Questions

Q: What types of materials can the GS6090 PRO print on? A: It is highly versatile and can print on phone cases, acrylic, signage, glass, stainless steel, ceramic tiles, leather, handicrafts, and even wine bottles.
Q: What print head options are available for this machine? A: The machine supports high-performance Epson I1600 or I3200 print heads for superior detail and speed.
Q: What is the maximum thickness of the printing media? A: The GS6090 PRO can accommodate media with a thickness ranging from 0mm up to 250mm.

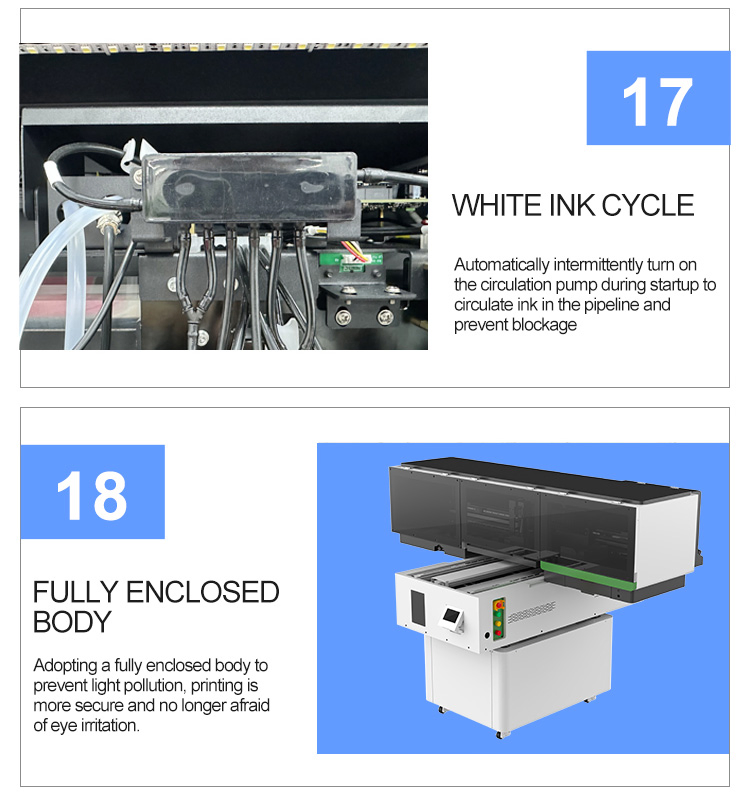

Q: Does the printer include automated maintenance features? A: Yes, it features one-key automatic cleaning, white ink circulation and stirring, and an automatic alarm for ink shortages to ensure stable operation.
Q: What software and systems are compatible with this UV printer? A: It supports popular RIP software like Maintop, PP, and RIIN, and is compatible with Windows 7, Windows 10, and Windows 11.
Q: How is the print quality stabilized during operation? A: Stability is ensured by a CNC machined integrated aluminum beam, magnetic levitation, and a heating system on the trolley base plate to keep the printhead at a constant temperature.
