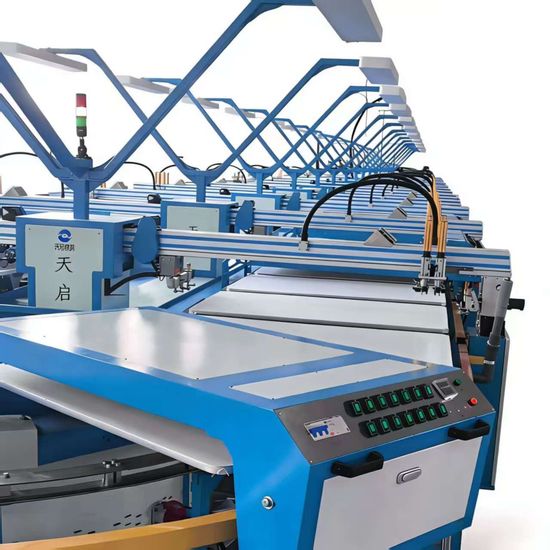

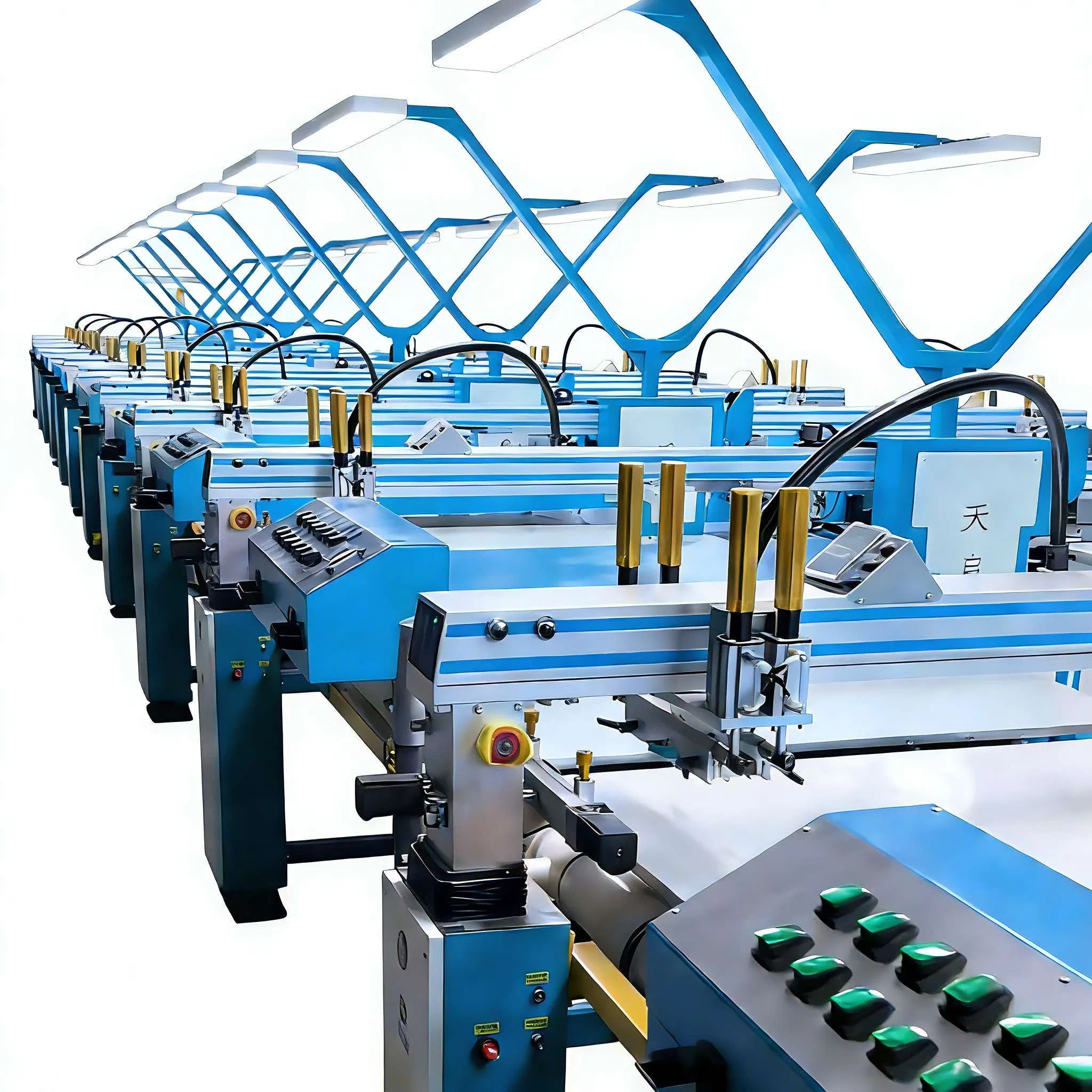

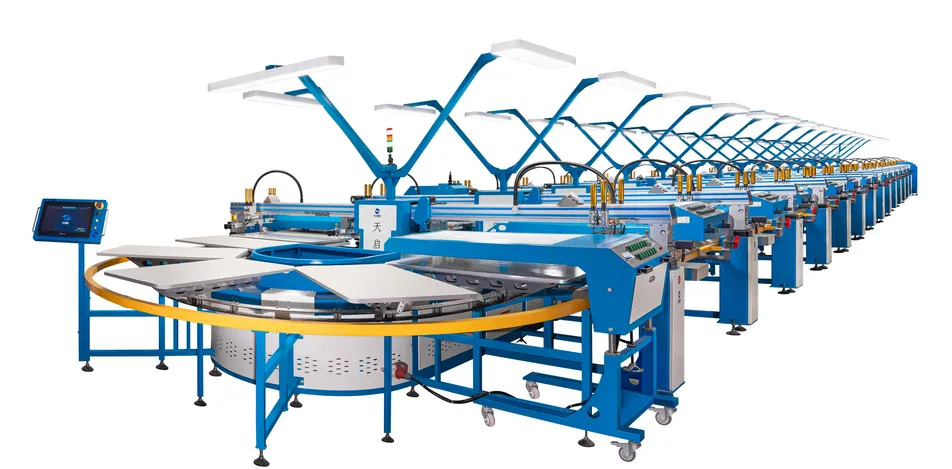

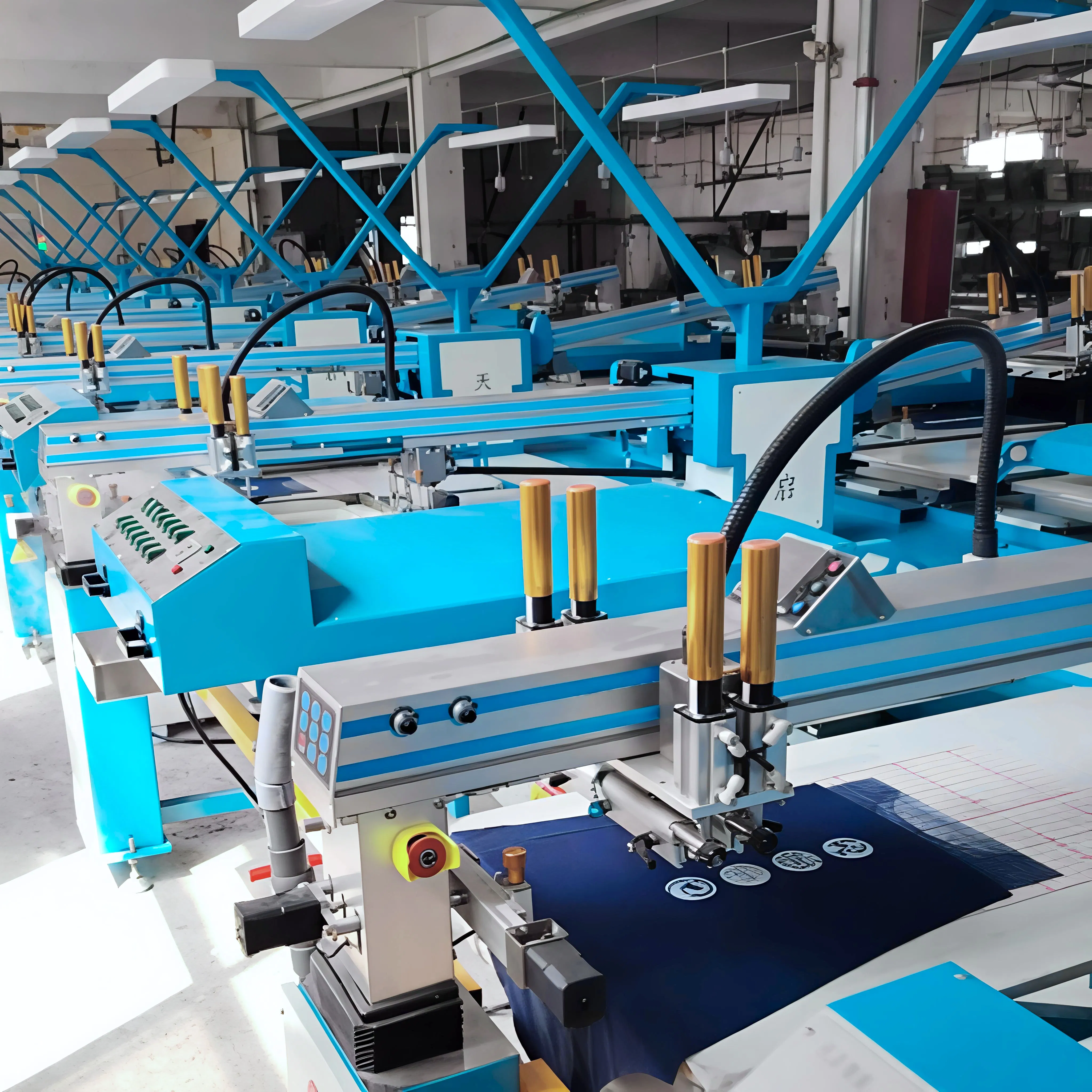

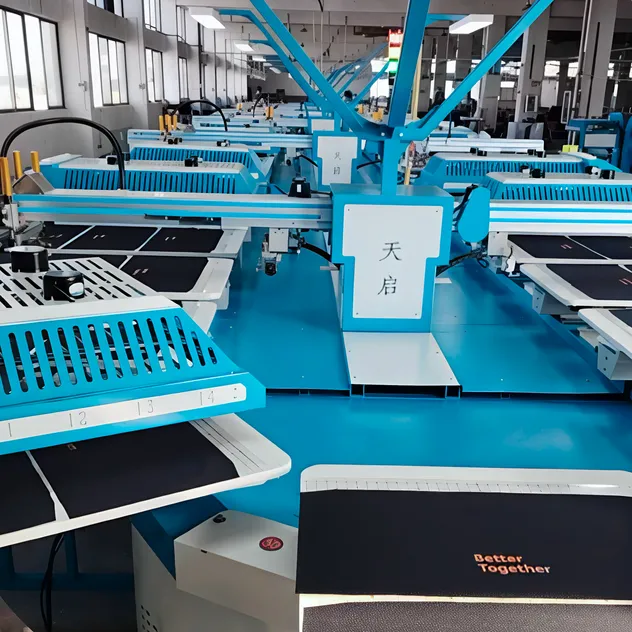

This elliptical printing machine excels in printing garments, textiles, luggage & bags, and shoe materials, offering high efficiency, stability, and flexibility. Built with precision transmission and durable materials, it assures high accuracy, smooth operation, and lower energy use. Ideal for mass production, it excels across diverse fabrics and designs.
1. Customization: Accepts extra-large sizes for specialized area printing.

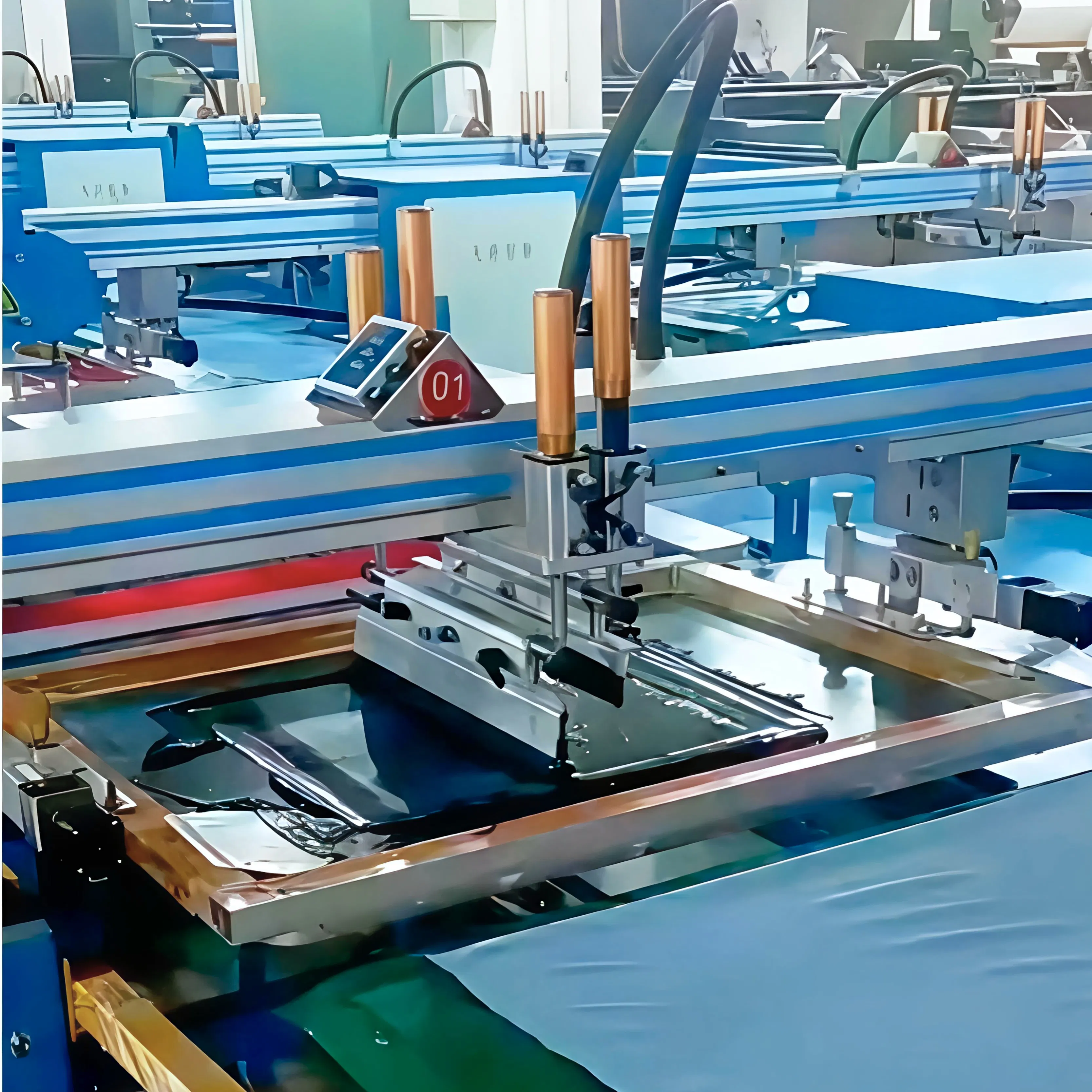

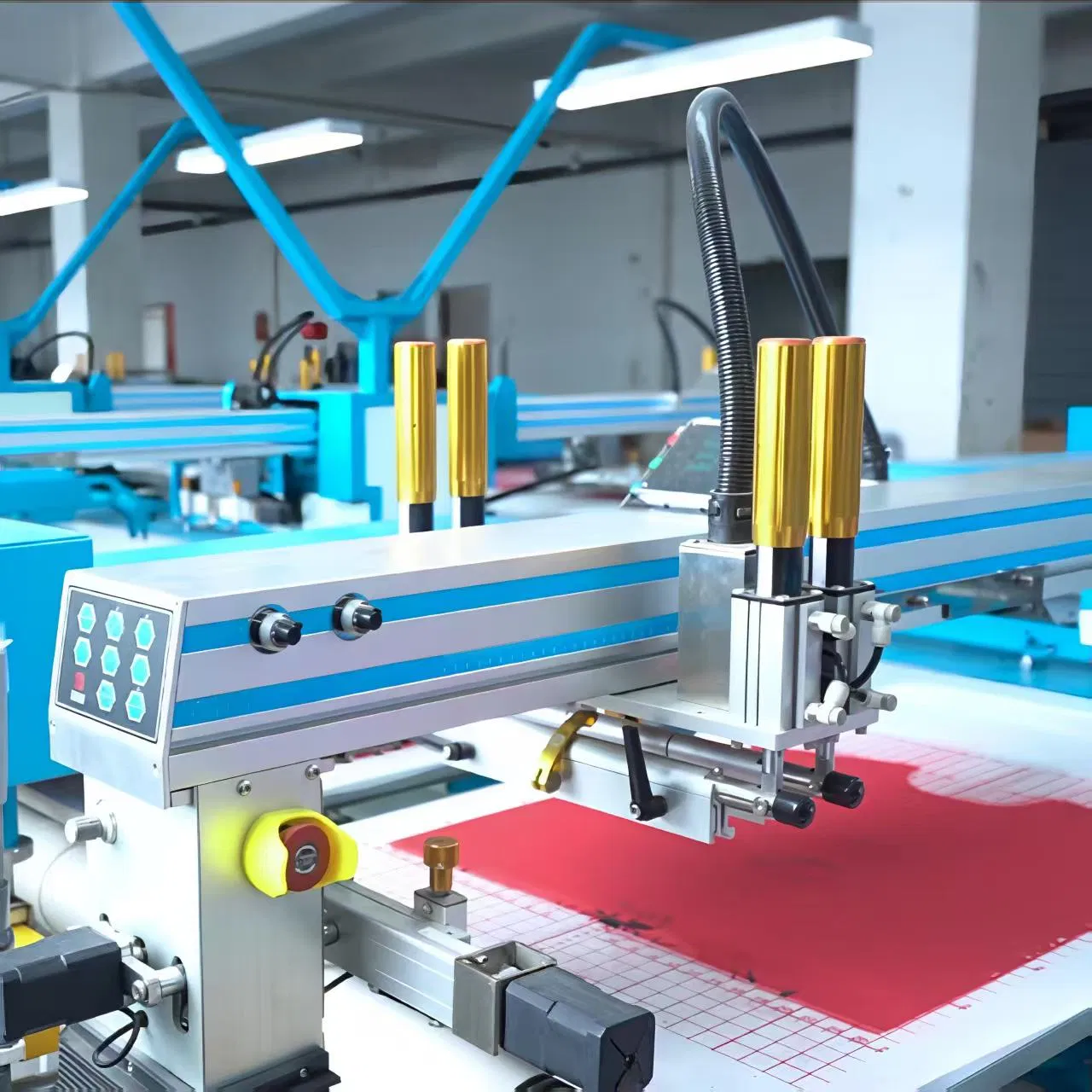

2. Stability: Printing head supported by outer columns ensures high precision.
3. Enhanced Support: Auxiliary track under platen arm offers superior stability.
4. Efficient Workflow: Manual cloth-laying position reserved in the middle.
5. Advanced Drying: Hanging flash dryer with carbon fiber U-shaped tubes for even heating.
| Parameter Item | Technical Indicator |
|---|---|
| Number of printing heads | 46 (Customizable) |
| Platen size (mm) | 400x650 - 800x1350mm |
| Power supply specification | 380V / 50Hz |
| Main machine power (KW) | 2.0 - 3.0 (depending on head count) |
| Minimum air pressure (MPa) | 0.6 |
| Maximum output (pieces/hour) | 900 |

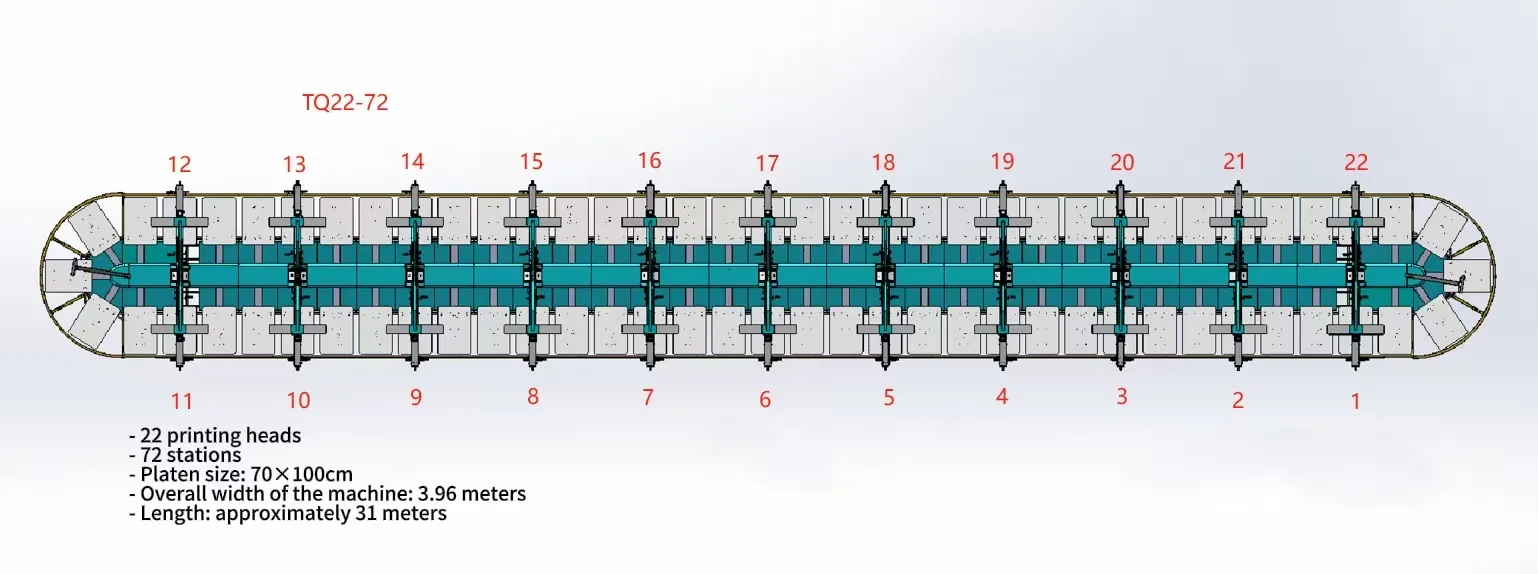

Custom configurations are available upon request. Below are the reference dimensions for standard setups.
